Ovation F-55WW

559,30 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONF55WW
Ovation  F-55WW Ovation F -55WW  is an efficient warm white LED (3- inch) inkie... mehr
Produktinformationen "Ovation F-55WW"

Ovation F-55WW

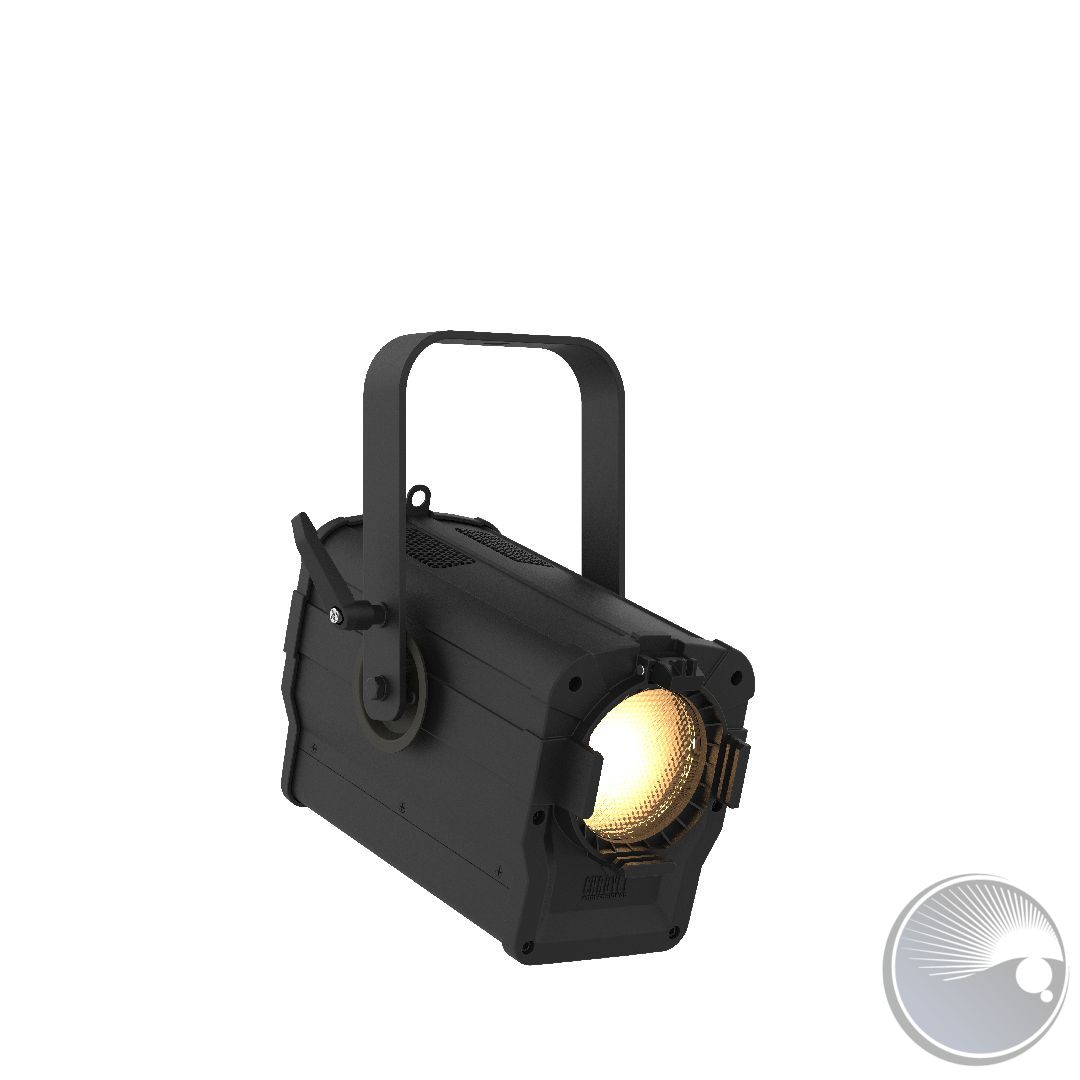

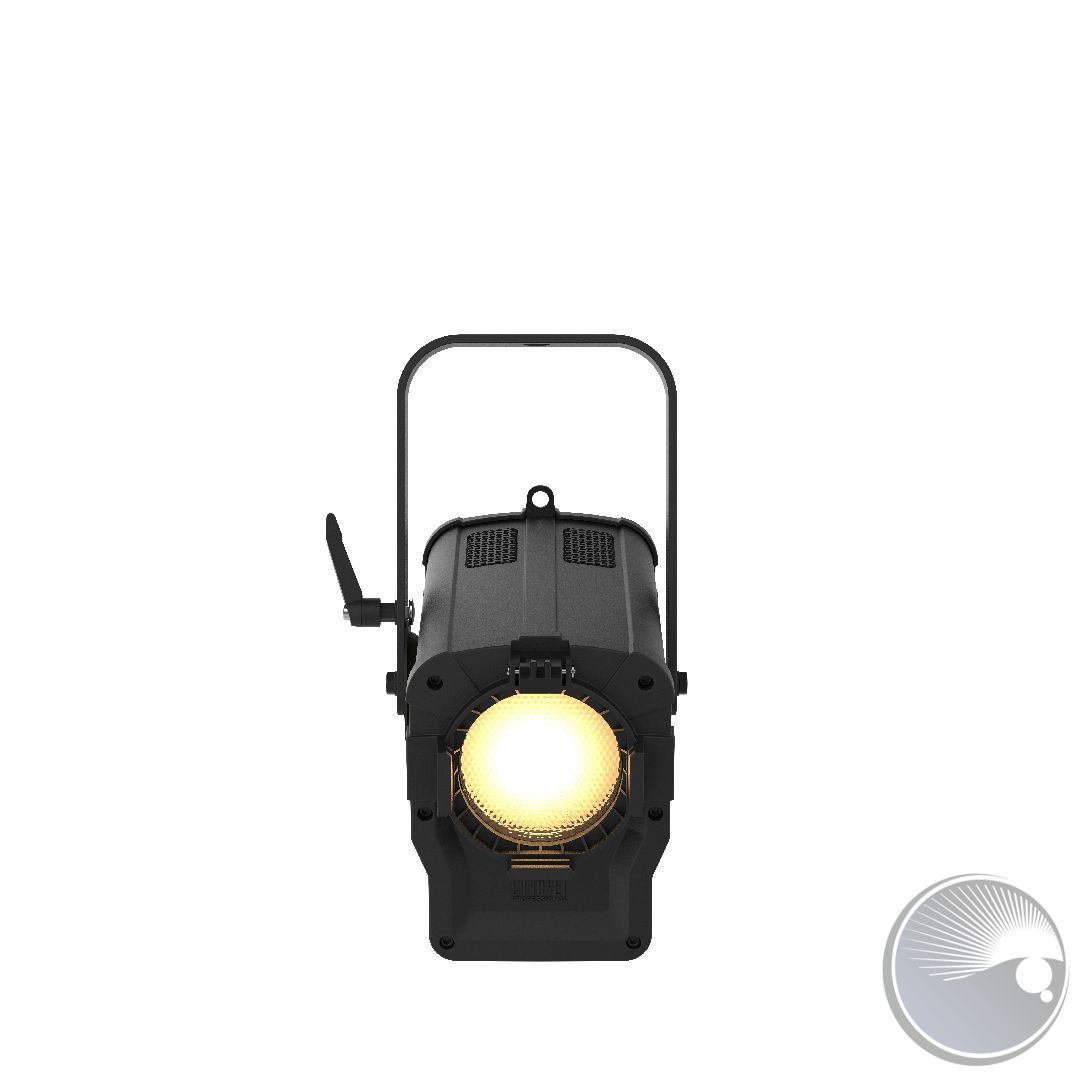

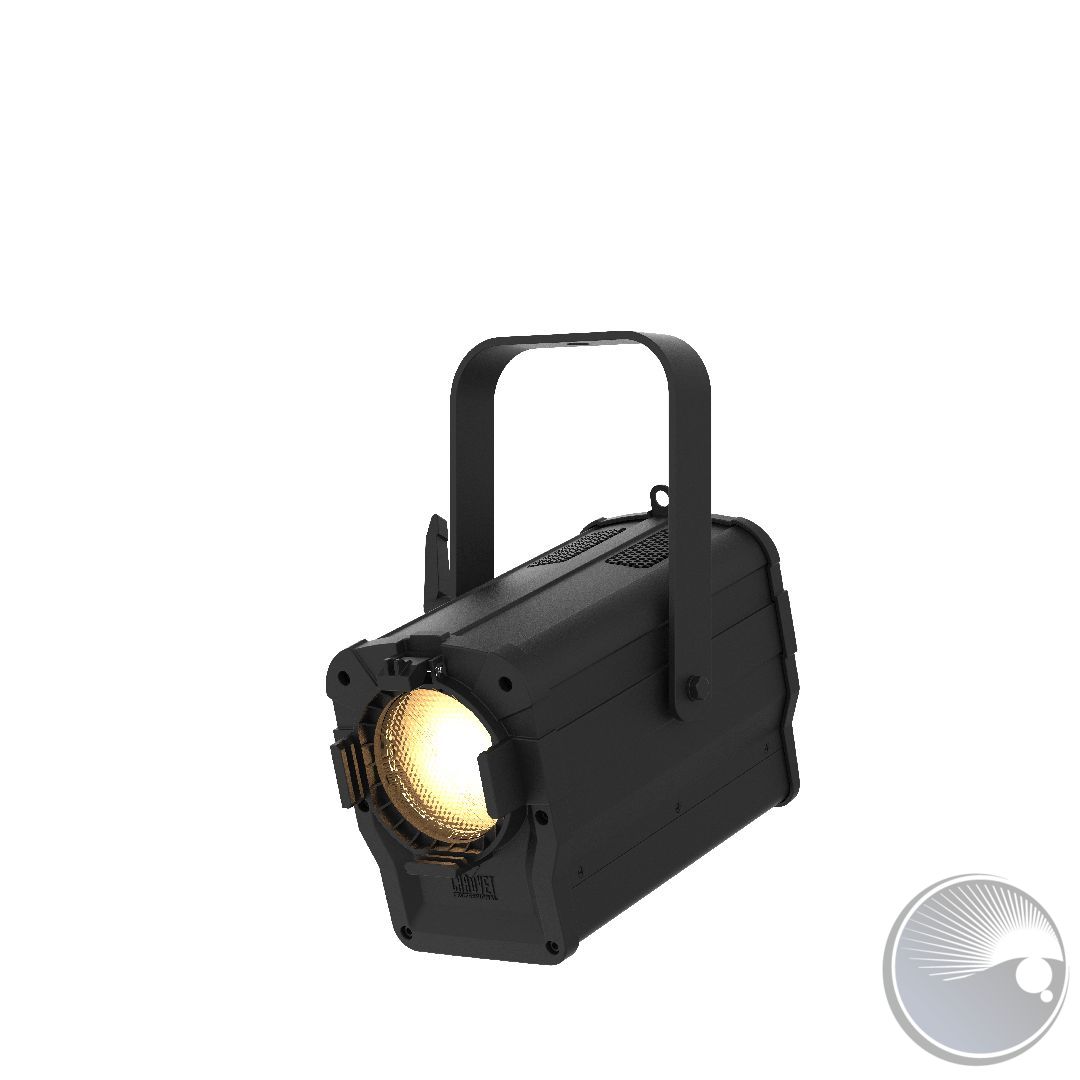

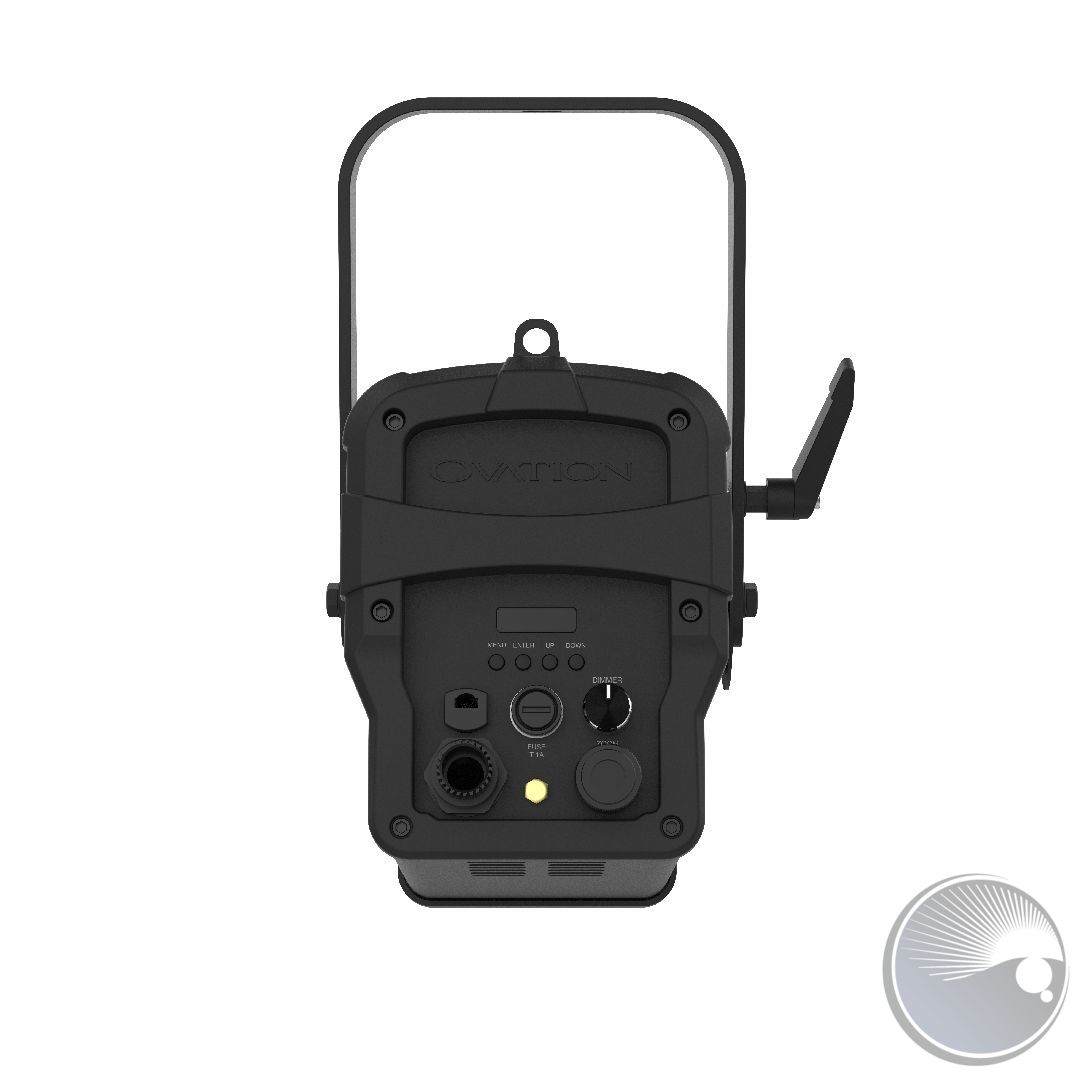

Ovation F-55WW is an efficient warm white LED (3- inch) inkie Fresnel-style fixture ideal for short throw applications in television, studios and theatres. It projects a bright, beautifully soft field of light within a 20°- 75° field range controlled by a manual zoom.

AT A GLANCE

  • Compact warm white Fresnel for tight spaces and on-location lighting

  • Soft and even field of light

  • 16-bit dimming resolution for smooth fades

  • Virtually silent operation for use in any situation

  • Manually controlled variable zoom range between 20° to 75°

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LED (WW) 36 W, (740 mA), 3120 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3120 K
  • CRI: 92.5
  • Beam Angle: 20.1° to 61.4°
  • Field Angle: 31.5° to 75.1°
  • Zoom Range: 20° to 75°
  • Lumens (31.5°): 959
  • Lumens (75.1°): 2,243
  • Illuminance (31.5°) : 313 lux @ 5 m
  • Illuminance (75.1°): 97 lux @ 5 m

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: No
  • Color Temperature Presets: No
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: No
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 25,000 Hz

CONSTRUCTION / PHYSICAL

  • Dimensions: 10.87 x 6.81 x 6.53 in (276.3 x 173 x 166 mm)
  • Weight: 4.8 lb (2.2 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 3.25 in (83 mm)

CONNECTIONS

  • Power Connection: Edison plug to hard-wired
  • Power Input: Hard-wired
  • Data Connectors: 5-pin XLR
  • Cable Length (signal): 1.79 ft (0.54 m)
  • Cable Length (power): 3.5 ft (1.07 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 2 or 5
  • Modes/Personalities: 3 personalities (1CH, 2CH, 5CH)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 32 W, 0.262 A @ 120 V, 60 Hz
  • Power and Current: 36 W, 0.171 A @ 208 V, 60 Hz
  • Power and Current: 40 W, 0.154 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Ovation F-55WW
  • Gel Frame

OPTIONAL ACCESSORIES

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik® powerCON® cables
  • 5-pin DMX Cables
  • Color Blending Filters: DF60X1D, DF20D
  • Ovation F3.25” Barndoor

ORDERING INFO

  • Item Code: 03031385
Weiterführende Links zu "Ovation F-55WW"

THERMAL SWITCHES (BOM#14)PTJ2020200739THERMAL SWITCHES (BOM#14)
DISPLAY PCB (ATTACHED TO BOM#30)PTJ2020201393DISPLAY PCB (ATTACHED TO BOM#30)
POTENTIOMETER PLATE (BOM#34)PTJ2020201971POTENTIOMETER PLATE (BOM#34)

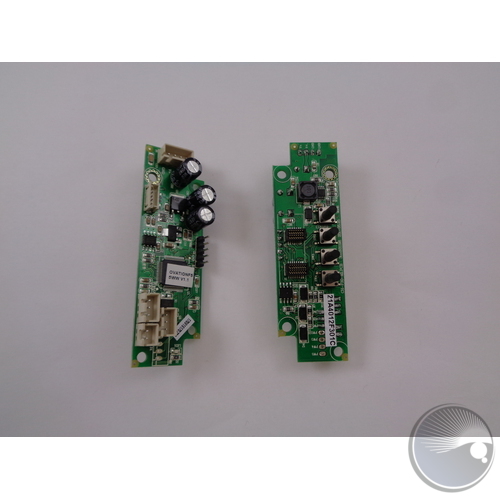

MPCB (BOM#30)PTJ2020202115MPCB (BOM#30)

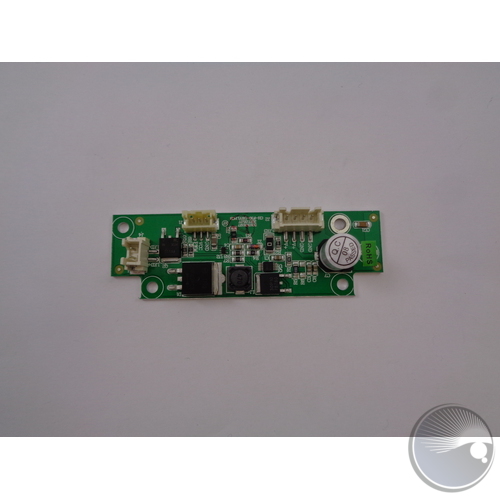

DRIVER PCB (BOM#29)PTJ2020202120DRIVER PCB (BOM#29)

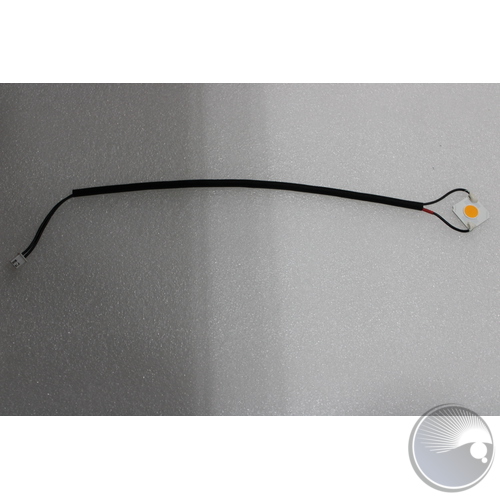

LED (BOM#15)PTJ3010500213LED (BOM#15)
PTJ3020100373ASPHERIC SURFACE LENS (BOM#12)
PTJ3020100383FRESNEL LENS (BOM#7)
DISPLAY COVER LENS (BOM#32)PTJ3020200066DISPLAY COVER LENS (BOM#32)

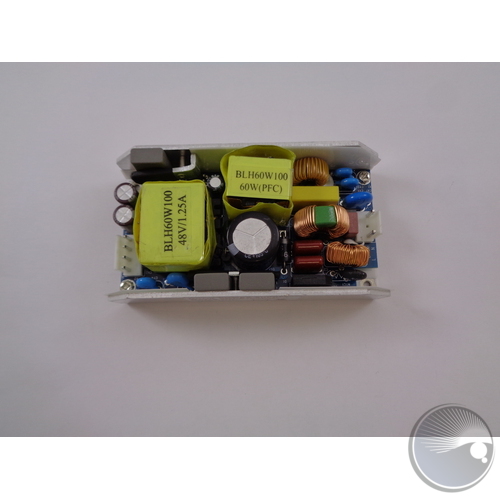

POWER SUPPLY (BOM#43)PTJ3020400261POWER SUPPLY (BOM#43)
BEARING (BOM#24)PTJ3020500049BEARING (BOM#24)
PTJ3021200023RUBBER LOOP (BOM#17)
PTJ3021200029ASPHERIC RING (BOM#11)
SPRING  (BOM#3)PTJ3021600100ASPRING (BOM#3)
C-RING (BOM#2)PTJ3021600102C-RING (BOM#2)
PTJ3021700883BRAKET ADJUSTMENT KNOB (BOM#50)
PTJ3021700890SCREW INSIDE HANGING BRACKET (BOM#48)
PTJ3022000011POWER CORD CONNECTOR (BOM#39)
PTJ3022500028WIRE BUCKLE (BOM#37)
Panel mount fuse holder (BOM#36)PTJ3027001001Panel mount fuse holder (BOM#36)
PTJ3030100211AXLE COVER (BOM#22)
PTJ3030100212PILLAR (BOM#47)
FLANGE (BOM#25)PTJ3030200023FLANGE (BOM#25)
PTJ3030600020SLIDER 2 (BOM#21)
PTJ3030600025FOCUSING LEVER (BOM#20)
PTJ3030600026FOUR-HEAD SCREW FIXATION (BOM#19)
SAFETY PIN (BOM#4)PTJ3030800005SAFETY PIN (BOM#4)
PTJ3030900006ROTARY KNOB A1 (BOM#26)
PTJ3030900007BROTARY KNOB (BOM#35)
PTJ3040401169AWIRE HARNESS (BOM#41)
PTJ3040700462POWER CABLE (BOM#40)

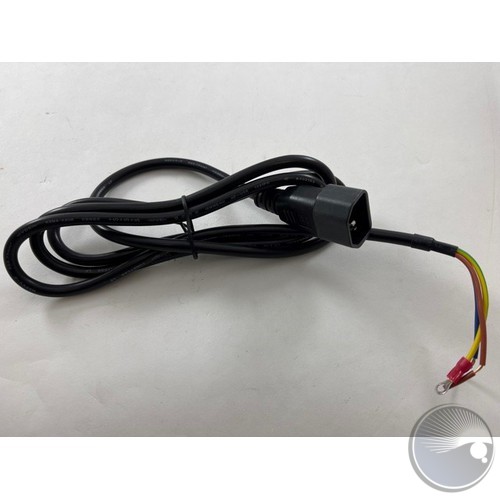

PTJ30407006053PIN(MALE) IEC POWER CABLE
PTJ3080100132LED COVER (BOM#16)
PTJ4010103516POWER SUPPLY HOLDER (BOM#42)
SEMI-CIRCLE  METAL PART (BOM#49)PTJ4010302483SEMI-CIRCLE METAL PART (BOM#49)
PTJ4010303646FRONT PANEL (BOM#8)
PTJ4010303647ALUMINIUM PLATE FOR THE REAR (BOM#33)
HANGING BRACKET (BOM#46)PTJ4010303648HANGING BRACKET (BOM#46)
PTJ4010303649VENTILATE NET (BOM#45)
PTJ4010303650BAR COVER (BOM#44)
PTJ4010303651HOUSING BASE (BOM#27)
PTJ4010303652PLATE FOR ASPHERIC SURFACE LENS (BOM#13)
PTJ4010303653ASPHERIC HODER (BOM#10)
PTJ4010303654SCREW FIXATION PLATE 1 (BOM#18)
PTJ4010303655SCREW FIXATION PLATE 2 (BOM#23)
PTJ4010303656HEAT SINK HOLDER (BOM#9)
GEL FRAME (BOM#5)PTJ4010303657GEL FRAME (BOM#5)
PTJ4010303658HEAT SINK (BOM#28)
BUTTONCOVER (BOM#31)PTJ4020200234BUTTONCOVER (BOM#31)
PTJ4020200360FRONT COVER (BOM#6)
PTJ4020200361REAR (BOM#38)
LOCK (BOM#1)PTJ4020200362LOCK (BOM#1)
UPLOAD03PTJUPLOAD03UPLOAD03
