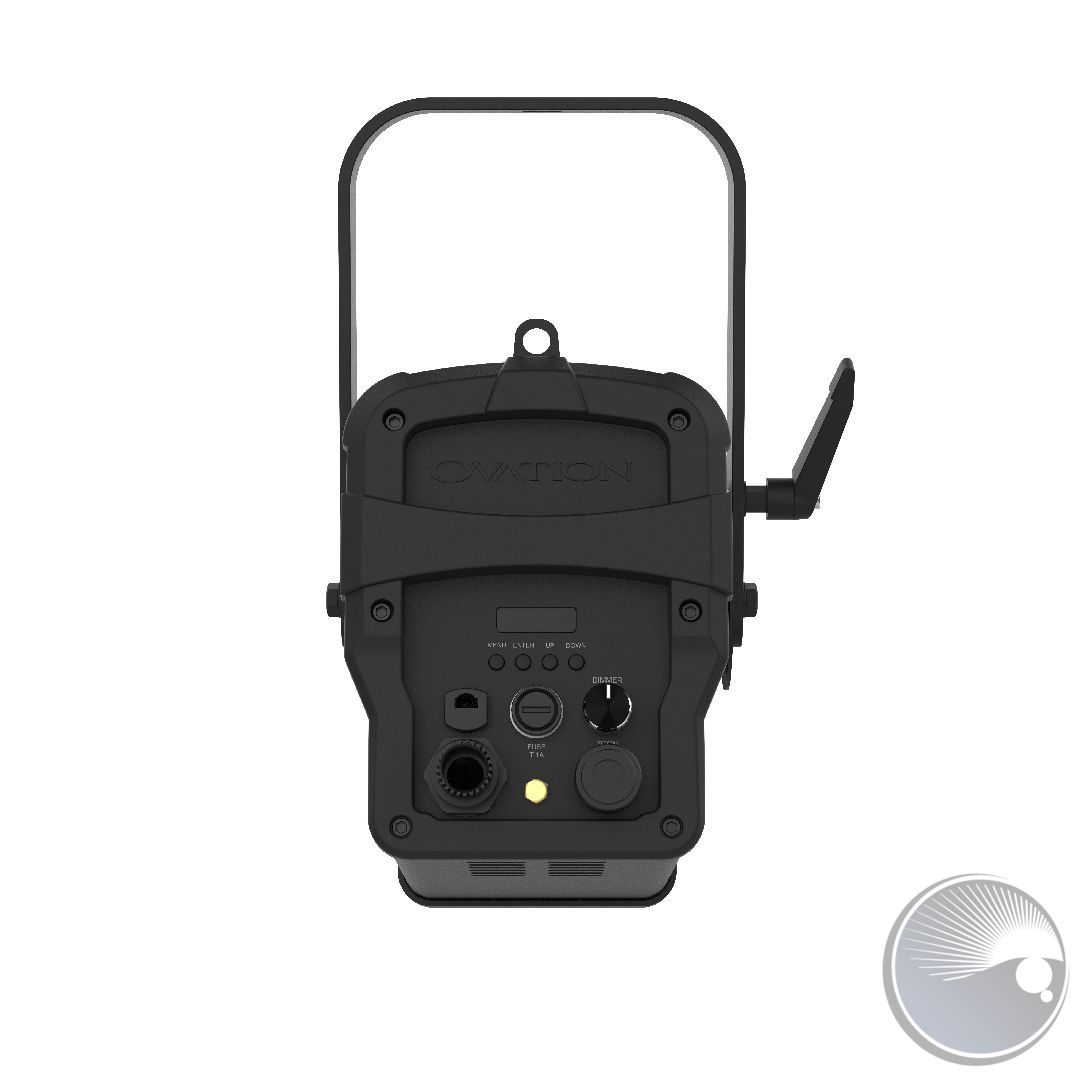

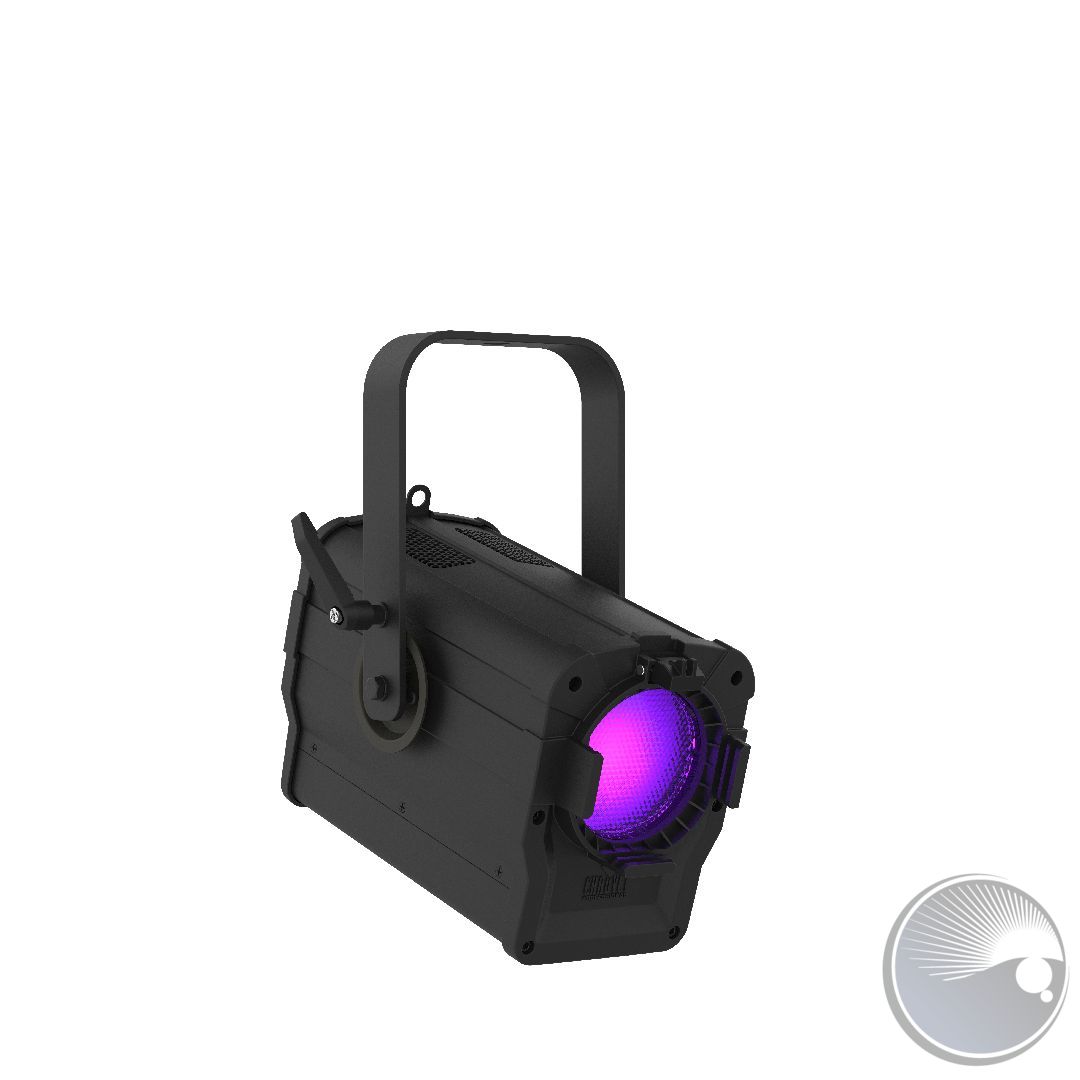

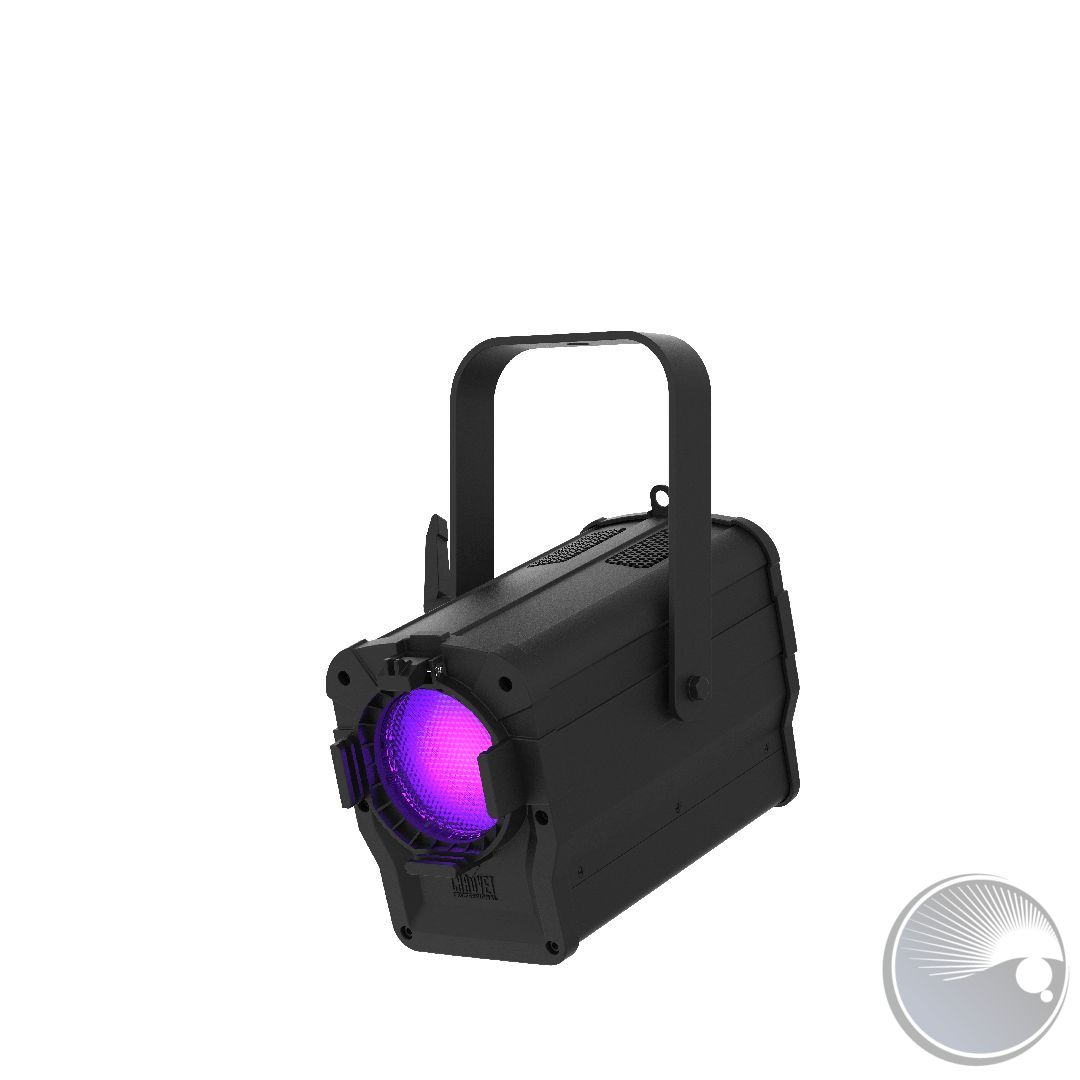

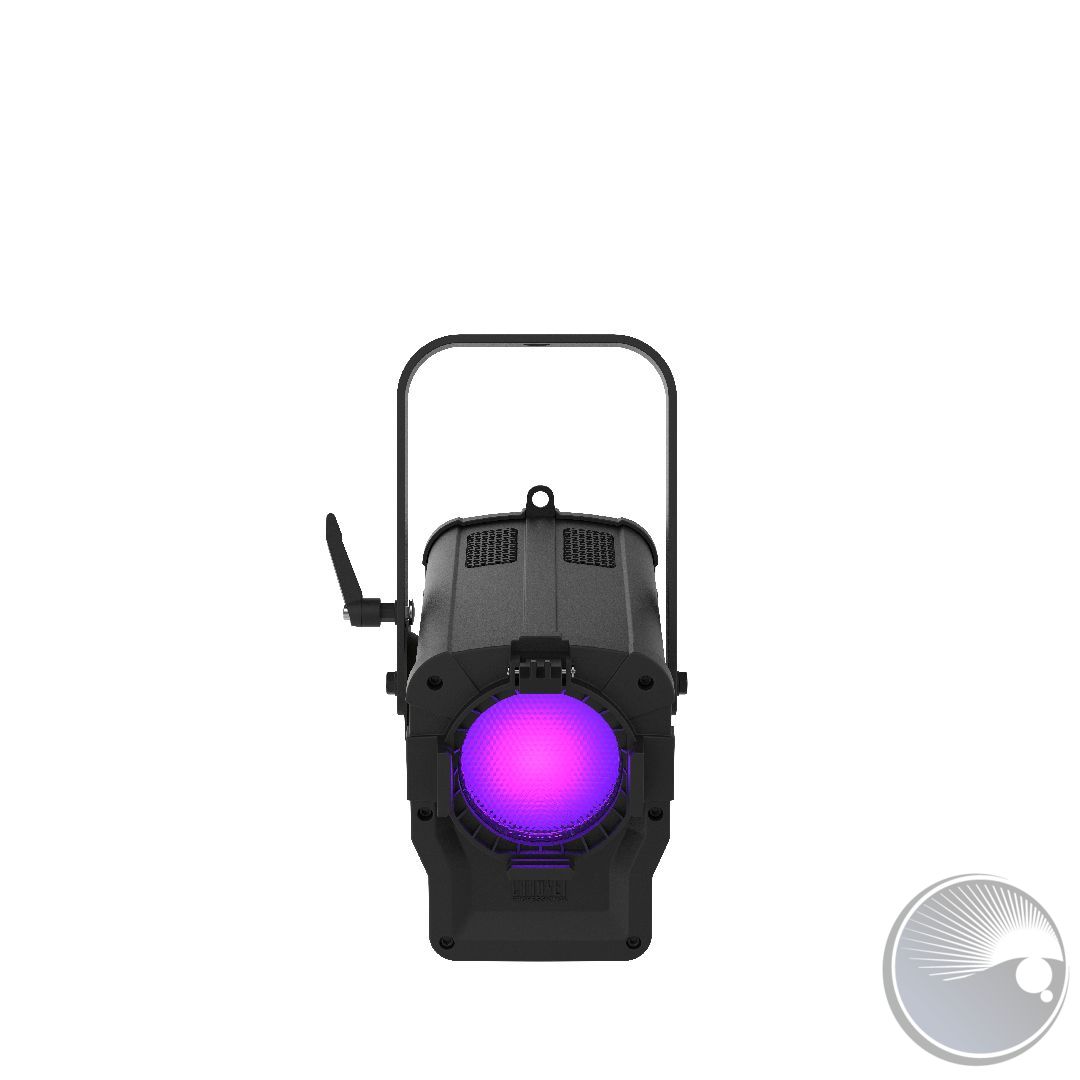

Ovation F-55FC

678,30 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONF55FC
Ovation  F-55FC Ovation F -55FC  is a full color RGBAL LED (3-inch) inkie... mehr
Produktinformationen "Ovation F-55FC"

Ovation F-55FC

Ovation F-55FC is a full color RGBAL LED (3-inch) inkie Fresnel-style fixture ideal for short throw applications in television studios and theatres. Our handy Virtual Color Wheel and Color Temperature presets are shared from our other full color Ovation fixtures. A manual zoom with a 18° – 87° field range allows you to add a beautifully soft field of light where needed.



AT A GLANCE

  • Compact, full color fresnel for tight spaces and on-location lighting

  • 16-bit dimming resolution for smooth fades

  • Soft and even field of light

  • Virtually silent operation for use in any situation

  • Manually controlled variable zoom range between 18° to 87°

SPECIFICATIONS

OPTICAL

  • Light Source: 15 LEDs (3 red, 3 green, 3 blue, 3 amber, 3 lime) 3 to 4 W, (700 mA), 3779 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3779 K
  • CRI (3200 K): 91
  • Beam Angle: 18° to 67°
  • Field Angle: 32° to 87°
  • Zoom Range: 18° to 87°
  • Lumens (30°): 114
  • Lumens (69°): 462
  • Illuminance (32°) : 36 lux @ 5 m
  • Illuminance (73°): 18 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25,000 Hz

CONSTRUCTION / PHYSICAL

  • Dimensions: 9.64 x 4.64 x 6.53 in (245 x 118 x 166 mm)
  • Weight: 5.4 lb (2.4 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Steel
  • Accessory Holder/Gel Frame Size: 3.25 in (83 mm)

CONNECTIONS

  • Power Connection: Edison plug to hard-wired
  • Power Input: Hard-wired
  • Data Connectors: 5-pin XLR
  • Cable Length (signal): 1.79 ft (0.54 m)
  • Cable Length (power): 3.5 ft (1.07 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 3, 5, 7, 10, 12, 13 or 15
  • Modes/Personalities: 8 personalities (HSV, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 44 W, 0.357 A @ 120 V, 60 Hz
  • Power and Current: 28 W, 0.130 A @ 208 V, 60 Hz
  • Power and Current: 29 W, 0.121 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Ovation F-55FC
  • Gel Frame

OPTIONAL ACCESSORIES

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik® powerCON® cables
  • 5-pin DMX Cables
  • Color Blending Filters: DF60X1D, DF20D
  • Ovation F3.25” Barndoor

ORDERING INFO

  • Item Code: 03031384
Weiterführende Links zu "Ovation F-55FC"

DISPLAY PCB (ATTACHED TO BOM#30)PTJ2020201393DISPLAY PCB (ATTACHED TO BOM#30)
POTENTIOMETER PLATE (BOM#34)PTJ2020201971POTENTIOMETER PLATE (BOM#34)

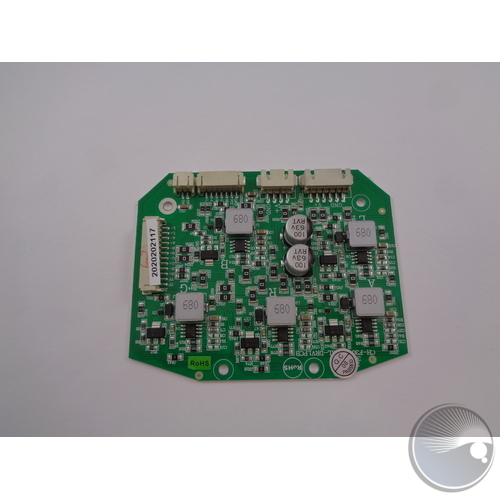

DRIVER PCB (BOM#28)PTJ2020202117DRIVER PCB (BOM#28)

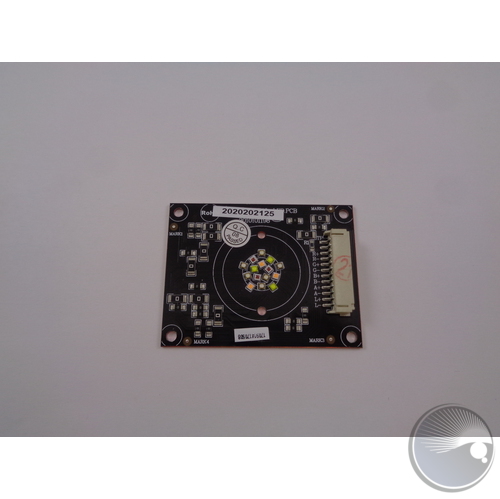

LED PCB (BOM#16)PTJ2020202125LED PCB (BOM#16)

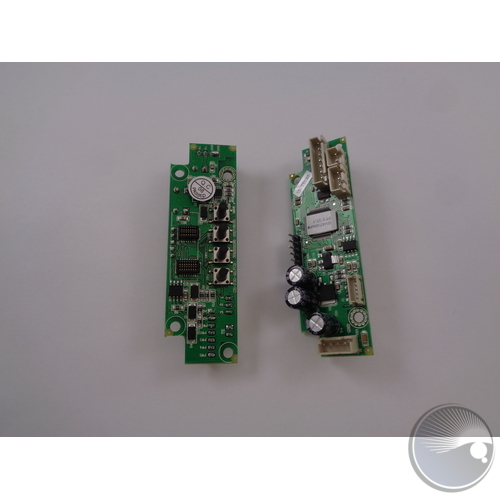

MPCB (BOM#29)PTJ2020202225MPCB (BOM#29)
PTJ3020100383FRESNEL LENS (BOM#7)
PTJ3020100384ASPHERIC (BOM#13)
DISPLAY COVER LENS (BOM#32)PTJ3020200066DISPLAY COVER LENS (BOM#32)
PTJ3020300301FILTER (BOM#8)

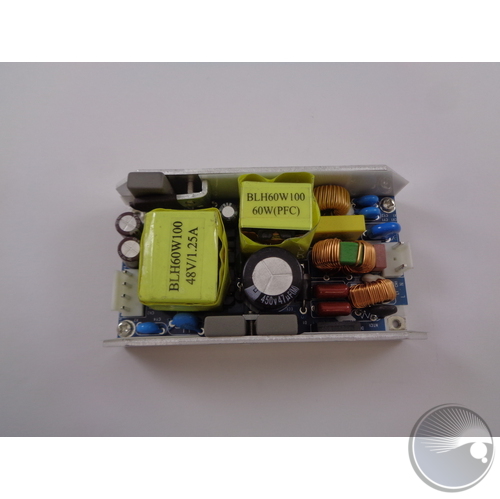

POWER SUPPLY (BOM#43)PTJ3020400262POWER SUPPLY (BOM#43)
BEARING (BOM#24)PTJ3020500049BEARING (BOM#24)
PTJ3021200023RUBBER LOOP (BOM#17)
PTJ3021200029ASPHERIC RING (BOM#11)

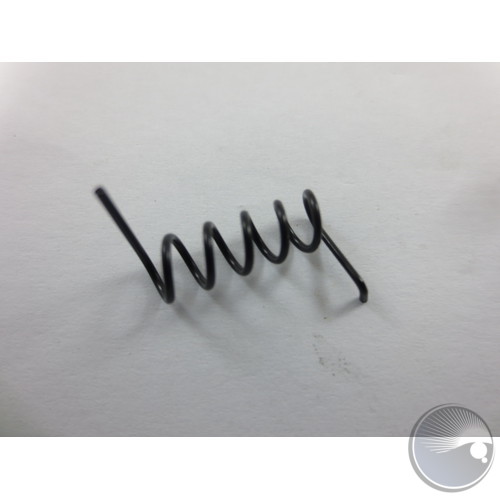

SPRING  (BOM#3)PTJ3021600100ASPRING (BOM#3)
C-RING (BOM#2)PTJ3021600102C-RING (BOM#2)
PTJ3021700883BRAKET ADJUSTMENT KNOB (BOM#50)
PTJ3021700890SCREW INSIDE HANGING BRACKET (BOM#48)
PTJ3022000011POWER CORD CONNECTOR (BOM#39)
PTJ3022500028WIRE BUCKLE (BOM#37)
Panel mount fuse holder (BOM#36)PTJ3027001001Panel mount fuse holder (BOM#36)
PTJ3030100211AXLE COVER (BOM#22)
PTJ3030100212PILLAR (BOM#47)
FLANGE (BOM#25)PTJ3030200023FLANGE (BOM#25)
PTJ3030600020SLIDER 2 (BOM#21)
PTJ3030600028FOUR-HEAD SCREW FIXATION (BOM#19)
PTJ3030600029FOCUSING LEVER (BOM#26)

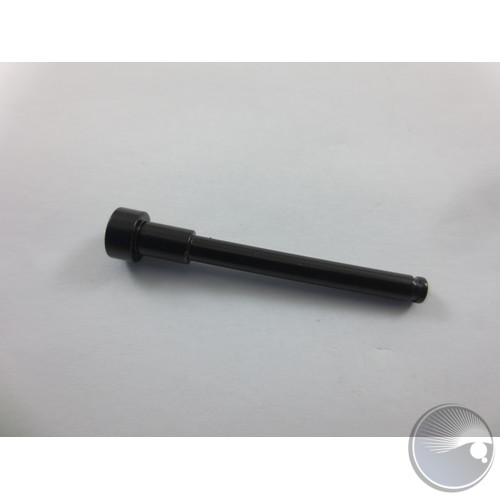

SAFETY PIN (BOM#4)PTJ3030800005SAFETY PIN (BOM#4)
PTJ3030900006ROTARY KNOB A1 (BOM#26)
PTJ3030900007BROTARY KNOB (BOM#35)
PTJ3040401169AWIRE HARNESS (BOM#41)
PTJ3040700462POWER CABLE (BOM#40)
PTJ4010103516POWER SUPPLY HOLDER (BOM#42)
SEMI-CIRCLE  METAL PART (BOM#49)PTJ4010302483SEMI-CIRCLE METAL PART (BOM#49)
PTJ4010303646FRONT PANEL (BOM#8)
PTJ4010303647ALUMINIUM PLATE FOR THE REAR (BOM#33)

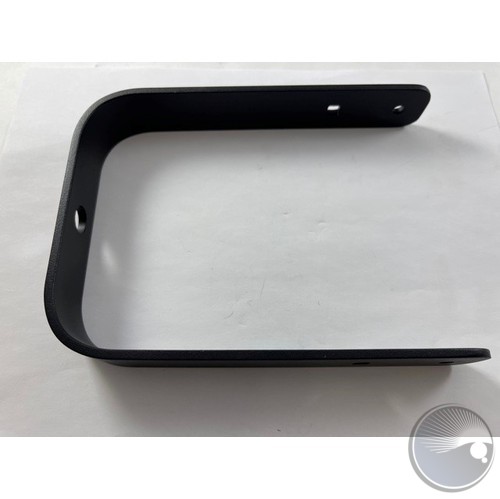

HANGING BRACKET (BOM#46)PTJ4010303648HANGING BRACKET (BOM#46)
PTJ4010303649VENTILATE NET (BOM#45)
PTJ4010303653ASPHERIC HODER (BOM#10)
PTJ4010303654SCREW FIXATION PLATE 1 (BOM#18)
PTJ4010303655SCREW FIXATION PLATE 2 (BOM#23)
PTJ4010303656HEAT SINK HOLDER (BOM#9)

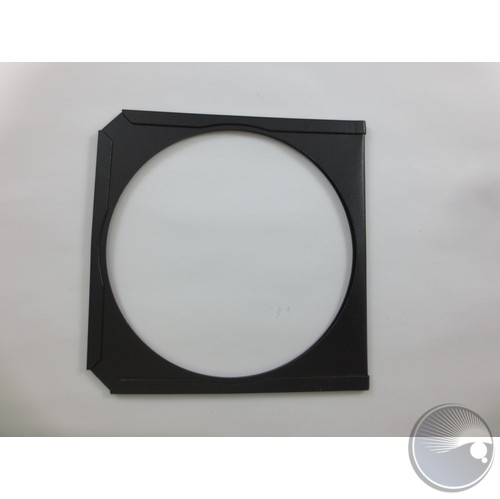

GEL FRAME (BOM#5)PTJ4010303657GEL FRAME (BOM#5)
PTJ4010303658HEAT SINK (BOM#28)
PTJ4010303659BAR COVER (BOM#44)
PTJ4010303660HOUSING BASE (BOM#41)
PTJ4010303661LOCATE CIRCULAR PLATE (BOM#14)
BUTTONCOVER (BOM#31)PTJ4020200234BUTTONCOVER (BOM#31)
PTJ4020200360FRONT COVER (BOM#6)
PTJ4020200361REAR (BOM#38)

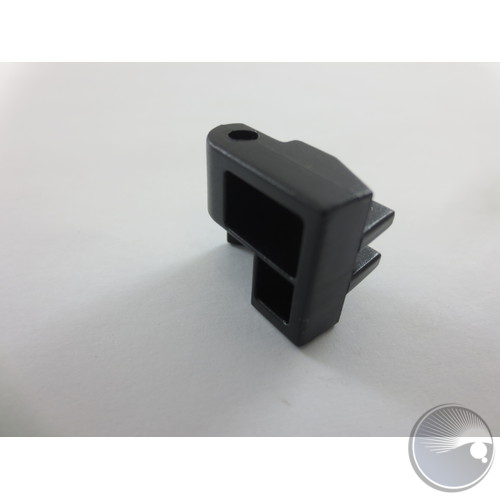

LOCK (BOM#1)PTJ4020200362LOCK (BOM#1)
UPLOAD03PTJUPLOAD03UPLOAD03
