Ovation F-265WW

1.642,20 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONF265WW
Ovation  F-265WW Ovation F -265WW  is a high-power Fresnel-style fixture... mehr
Produktinformationen "Ovation F-265WW"

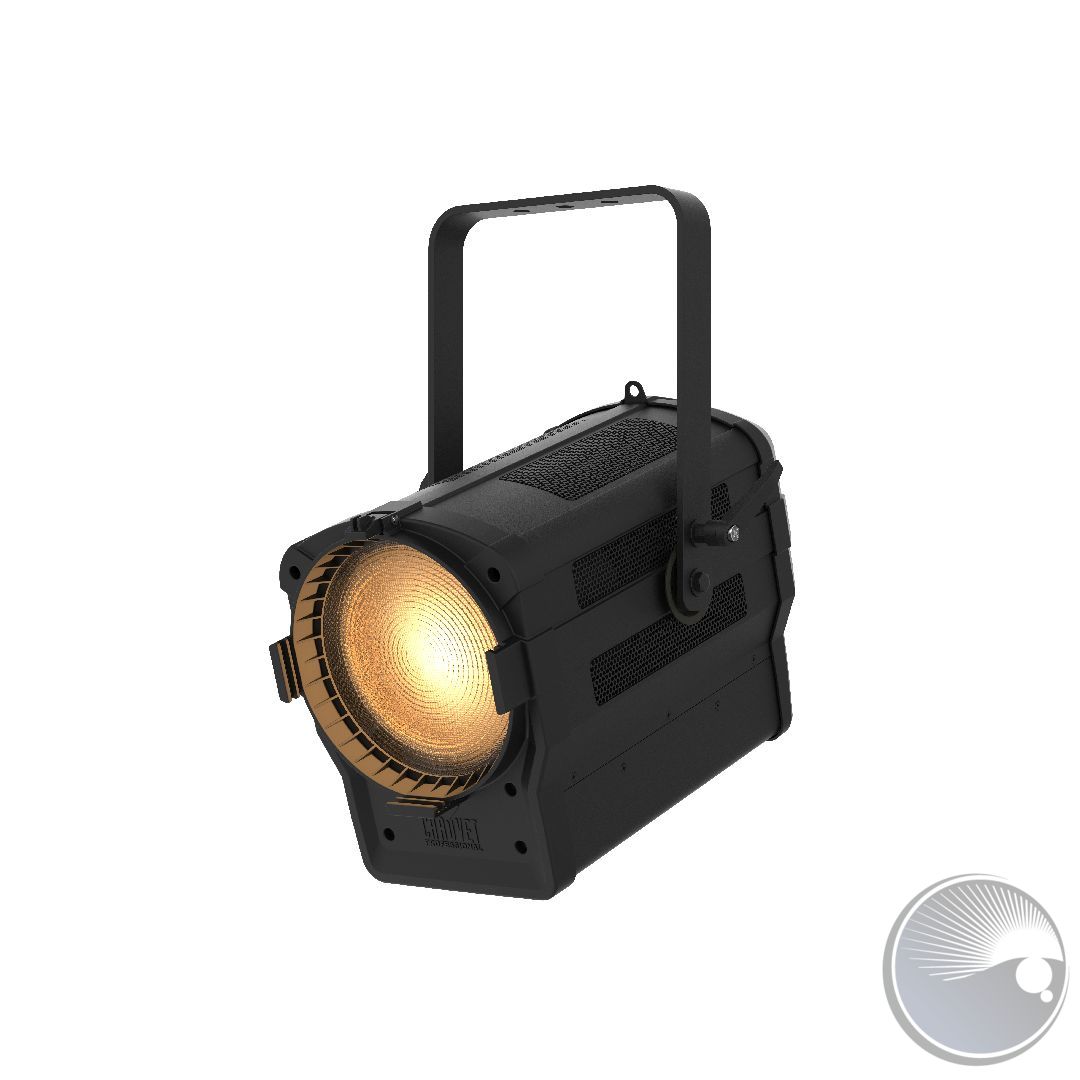

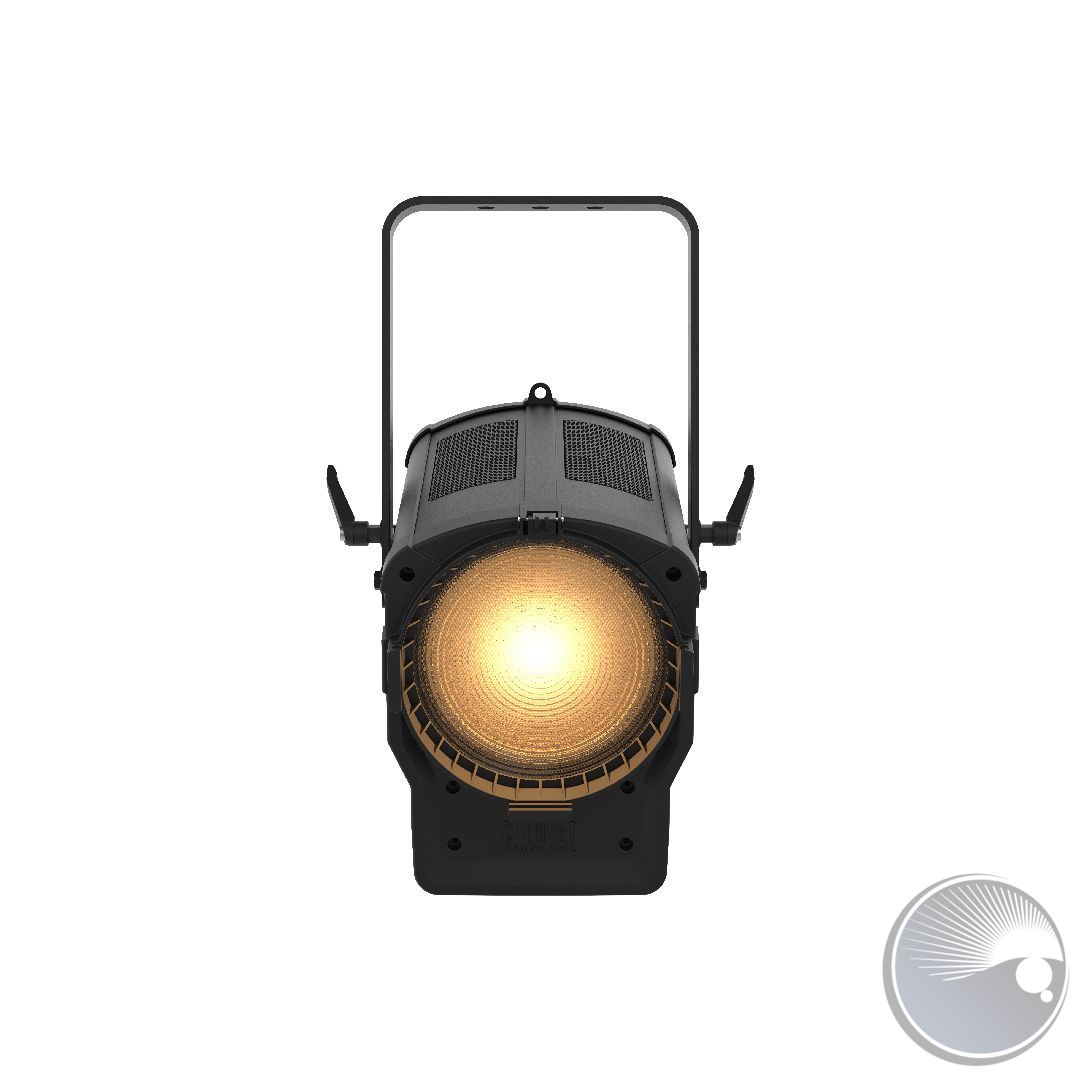

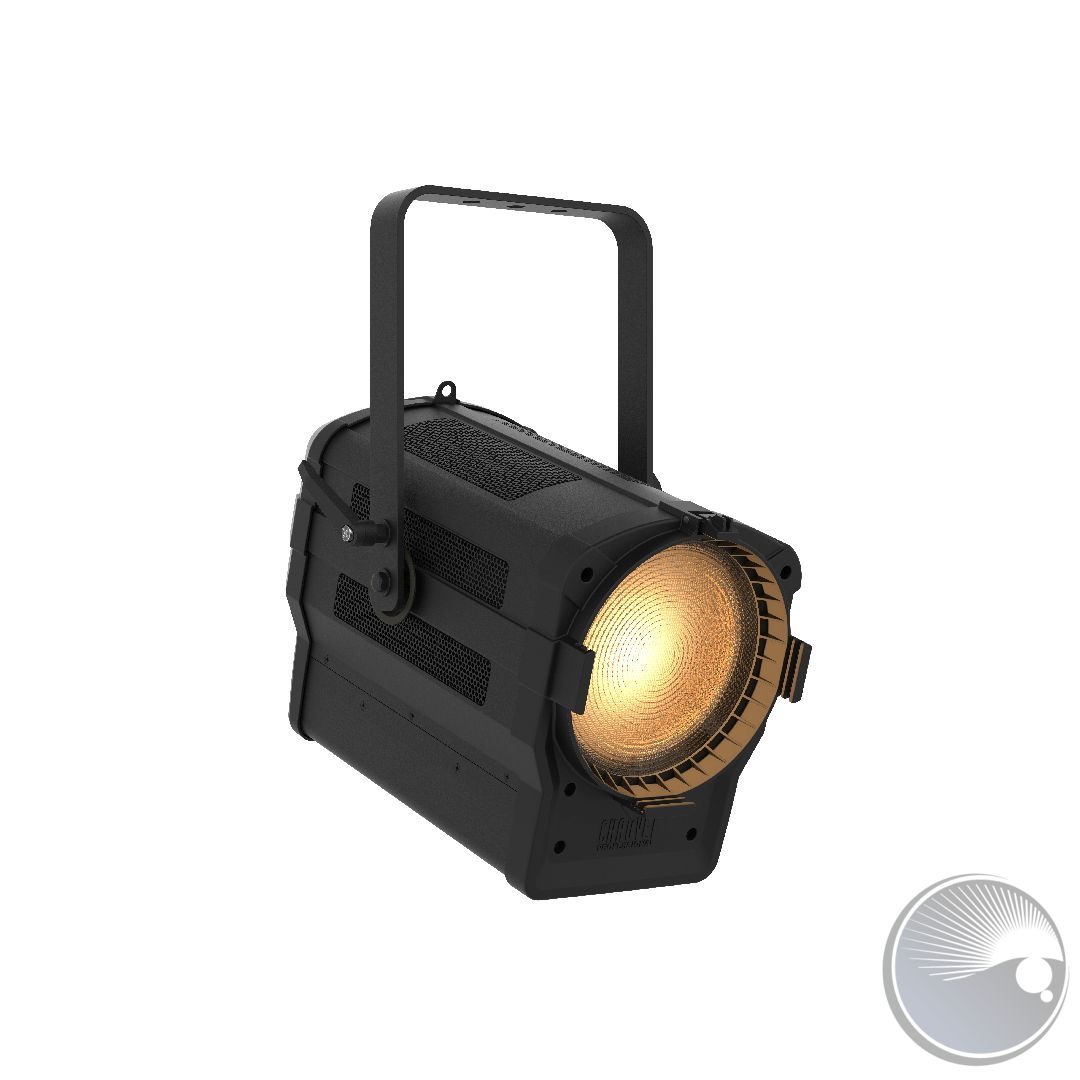

Ovation F-265WW

Ovation F-265WW is a high-power Fresnel-style fixture utilizing our efficient warm white LED system to project a bright, beautifully soft, high CRI (95+) field of light ideal for theatres and television studios. A motorized zoom with a 16°- 68° field range and the light output can be controlled via DMX, onboard dials, RDM, adjustable PWM and an easy to navigate OLED full text display.



AT A GLANCE

  • Warm white fresnel with output comparable to an 8”, 2,000 W Fresnel

  • Soft and even field of light

  • 16-bit dimming resolution for smooth fades

  • Virtually silent operation for use in any situation

  • Motorized zoom range between 16° to 68°, manually or via DMX

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LED (WW) 230 W, (3.6 A), 50,000 hours life expectancy
  • Color Temperature (at full): 3142 K
  • CRI: 96
  • Beam Angle: 16° to 46°
  • Field Angle: 27° to 68°
  • Zoom Range: 16° to 68°
  • Lumens (27°): 9,283
  • Lumens (68°): 12,802
  • Illuminance (27°): 4,010 lux @ 5 m
  • Illuminance (68°): 1,162 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 30 Hz
  • Dim Modes: 4

CONSTRUCTION / PHYSICAL

  • Dimensions: 15.11 x 12.59 x 17.71 in (384 x 320 x 450 mm)
  • Weight: 17.2 lb (7.9 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Protocol(s): DMX, RDM
  • DMX Channels: 1, 2, 2 or 5
  • Modes/Personalities: 4 personalities (1, 2, 2, 5)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
  • Power and Current: 222 W, 1.84 A @ 120 V, 60 Hz
  • Power and Current: 230 W, 1.10 A @ 208 V, 60 Hz
  • Power and Current: 231 W, 1.01 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • Ovation F-265WW
  • Neutrik powerCON power cord
  • Gel Frame

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: (120 V): 03031438 ; (230 V): 03031439
Weiterführende Links zu "Ovation F-265WW"

3.15AMPGMAFUSE (BOM#14)
PTF1001002202POWER OUT SOCKET (BOM#31)
PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)
PTF2700003804NEUTRIK POWER CABLE 1.5M (POWERCON TO EDISON) (BOM#41)
DMX XLR SOCKET PCB - 5-PIN (BOM#56)PTJ2010033700DMX XLR SOCKET PCB - 5-PIN (BOM#56)
PTJ2010325000DMX XLR SOCKET PCB - 3-PIN (BOM#57)
HALL ELEMENT  LOCATER (BOM#36)PTJ2020200635HALL ELEMENT LOCATER (BOM#36)
THERMAL SWITCHES (BOM#14)PTJ2020200739THERMAL SWITCHES (BOM#14)
DISPLAY PCB (BOM#37)PTJ2020201330DISPLAY PCB (BOM#37)

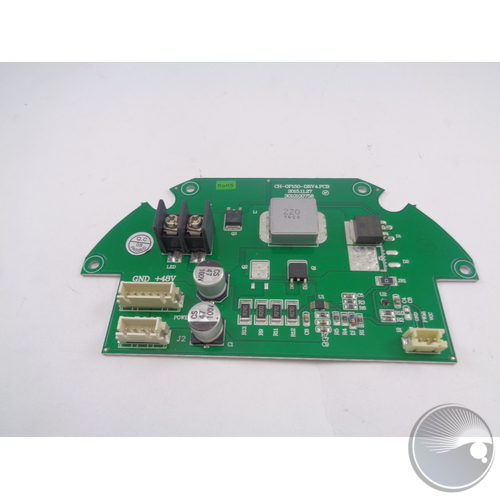

DRIVER PCB (BOM#19)PTJ2020201492DRIVER PCB (BOM#19)

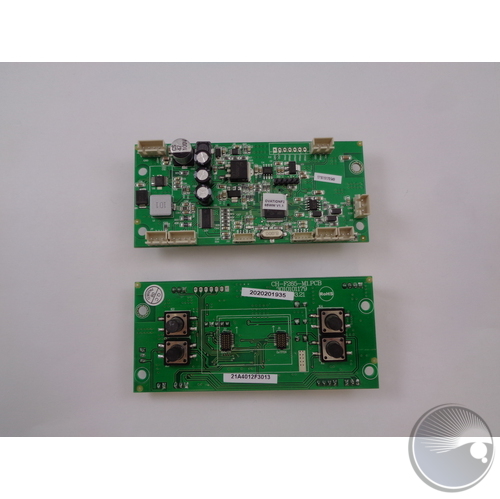

MPCB (BOM#17) WW LED Not compatible with OVATIONF265T fixturePTJ2020201935MPCB (BOM#17) WW LED Not compatible with OVATIONF265T fixture
POTENTIOMETER PLATE (BOM#34)PTJ2020201971POTENTIOMETER PLATE (BOM#34)

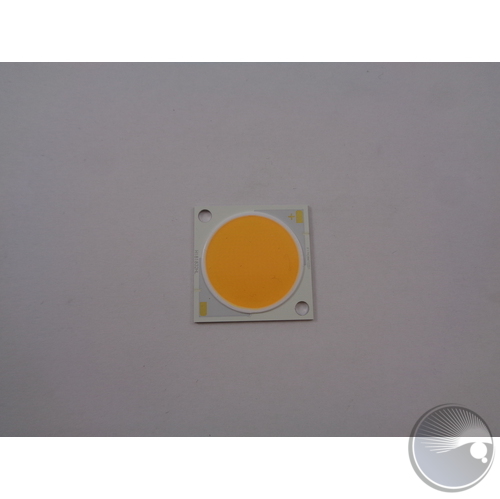

LED (BOM#26)PTJ3010500249LED (BOM#26)
THREAD LENS (BOM#72)PTJ3020100387THREAD LENS (BOM#72)
ASPHERIC SURFACE LENS (BOM#33)PTJ3020100388ASPHERIC SURFACE LENS (BOM#33)
PTJ3020300310FILTER (BOM#71)

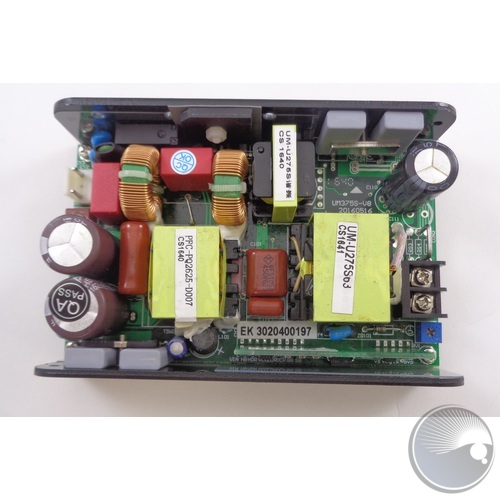

POWER SUPPLY (BOM#60)PTJ3020400197POWER SUPPLY (BOM#60)
BEARING (BOM#24)PTJ3020500049BEARING (BOM#24)
PTJ3020600053SYNCHRONOUS BELT (BOM#39)
DC FAN  (BOM#24)PTJ3020900072DC FAN (BOM#24)
PTJ3021000084STEPPER MOTOR (BOM#57)
PTJ3021100026PIPE (BOM#67)
PTJ3021200032GLASS RING (BOM#32)
SPRING    (BOM#2)PTJ3021600094SPRING (BOM#2)
C-RING (BOM#2)PTJ3021600102C-RING (BOM#2)
HM SCREW (BOM#6)PTJ3021700154HM SCREW (BOM#6)
SCREW INSIDE HANGING BRACKET  (BOM#22)PTJ3021700412SCREW INSIDE HANGING BRACKET (BOM#22)
RING (BOM#11)PTJ3021700452RING (BOM#11)
HM SCREW (BOM#24)PTJ3021700587HM SCREW (BOM#24)
PTJ3021700679METAL RING (BOM#69)
PTJ3021700898RING FOR THREAD LENS (BOM#70)
PTJ3021700899FOAM (BOM#35)
MAGNET (BOM#31.ARM)PTJ3022200009MAGNET (BOM#31.ARM)
LOOP FOR FOCUSING LEVER (BOM#66)PTJ3022500068LOOP FOR FOCUSING LEVER (BOM#66)
Panel mount fuse holder (BOM#36)PTJ3027001001Panel mount fuse holder (BOM#36)
PTJ3030100216PILLAR (BOM#9)
PTJ3030100218CONNECTER (BOM#22)
PTJ3030100219PLAIN BEARING (BOM#56)
FLANGE (BOM#25)PTJ3030200023FLANGE (BOM#25)
PTJ3030300028DRIVING WHEEL (BOM#40)
PTJ3030300049DRIVING GEAR (BOM#37)
PTJ3030600020SLIDER 2 (BOM#21)

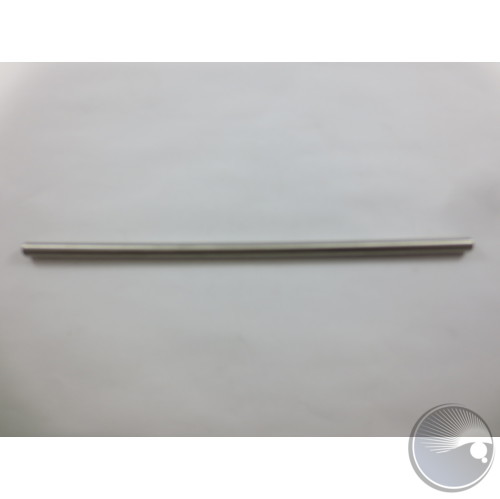

FOCUSING LEVER (BOM#59)PTJ3030600030FOCUSING LEVER (BOM#59)
SCREW FIXATION (BOM#64)PTJ3030600031SCREW FIXATION (BOM#64)
SAFETY PIN (BOM#4)PTJ3030800007SAFETY PIN (BOM#4)
PTJ3030900007BROTARY KNOB (BOM#35)

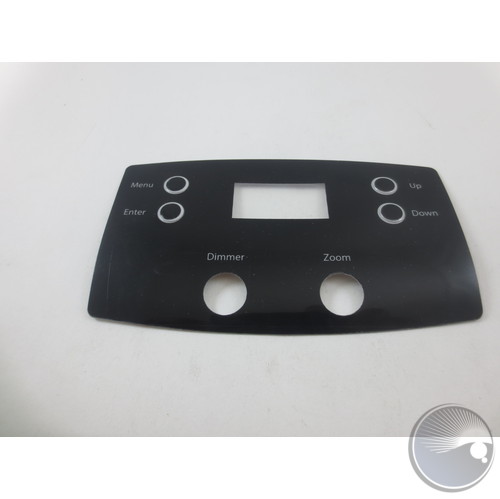

DISPLAY STICKER (BOM#15)PTJ3050802223DISPLAY STICKER (BOM#15)
PTJ4010103574ASPHERIC SURFACE LENS HOLDER (BOM#34)
PTJ4010103578FAN HOLDER (BOM#23)
PTJ4010103590HEAT SINK (BOM#25)
PTJ4010302041PRESSING PLATE (BOM#23.BASE)
SEMI-CIRCLE  METAL PART (BOM#49)PTJ4010302483SEMI-CIRCLE METAL PART (BOM#49)
GER FRAME (BOM#35)PTJ4010303080AGER FRAME (BOM#35)
PTJ4010303710ASPHERIC SURFACE LENS HOLDER (BOM#30)

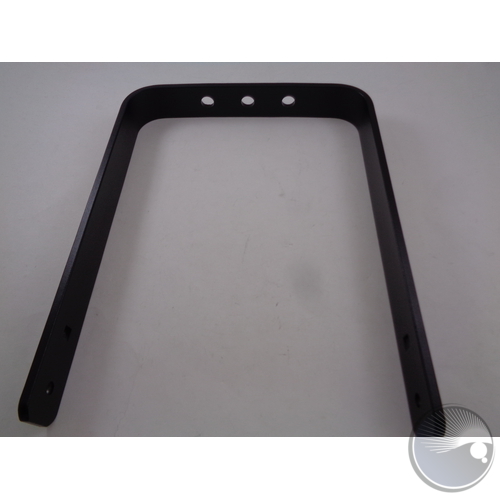

HANGING BRACKET (BOM#14)PTJ4010303719HANGING BRACKET (BOM#14)
PTJ4010303721SIDE PANEL 1 (BOM#6)
PTJ4010303722SIDE PANEL 2 (BOM#5)
PTJ4010303723TOP COVER (BOM#7)
PTJ4010303724FRONT PANEL (BOM#68)
PTJ4010303725HEAT SINK HOLDER (BOM#31)
PTJ4010303726HEAT SINK PLATE (BOM#21)
PTJ4010303727CONNECTOR PANEL (BOM#27)
PTJ4010303728SCREW FIXATION PLATE 1 (BOM#65)
PTJ4010303729PLAIN BEARING HOLDER (BOM#61)
PTJ4010303730PLAIN BEARING HOLDER 1 (BOM#55)
PTJ4010303731BASEBOARD (BOM#63)
PTJ4010303732SCREW FIXATION PLATE 2 (BOM#54)
PTJ4010303733HOUSING (BOM#62)
PTJ4010303734SHADOW SHIELD FOR REAR (BOM#20)
PTJ4010303735REAR (BOM#16)
PTJ4010303737DRIVER HOLDER (BOM#18)
LOCK (BOM#1)PTJ4020100174LOCK (BOM#1)
PTJ4020100197LED HOLDER (BOM#28)
FRONT COVER (BOM#73)PTJ4020100198FRONT COVER (BOM#73)
PTJ4020100199BACK HOUSING (BOM#41)
PTJ5000000068FRONT COVER ASSEMBLY
UPLOAD03PTJUPLOAD03UPLOAD03
