Ovation F-415VW

1.642,20 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONF415VW
Ovation  F-415VW Ovation F -415VW is a 6” Fresnel style variable white fixture that... mehr
Produktinformationen "Ovation F-415VW"

Ovation F-415VW

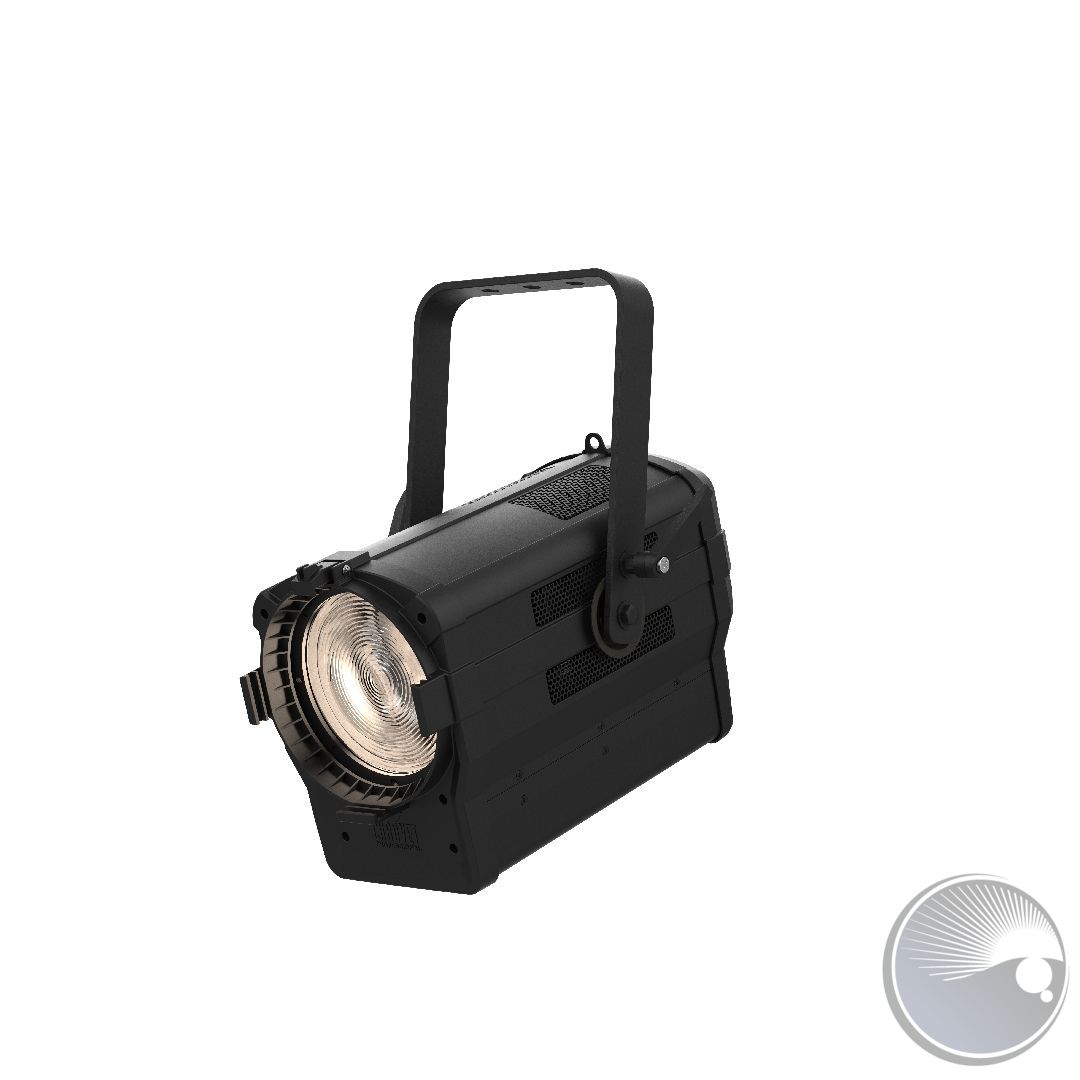

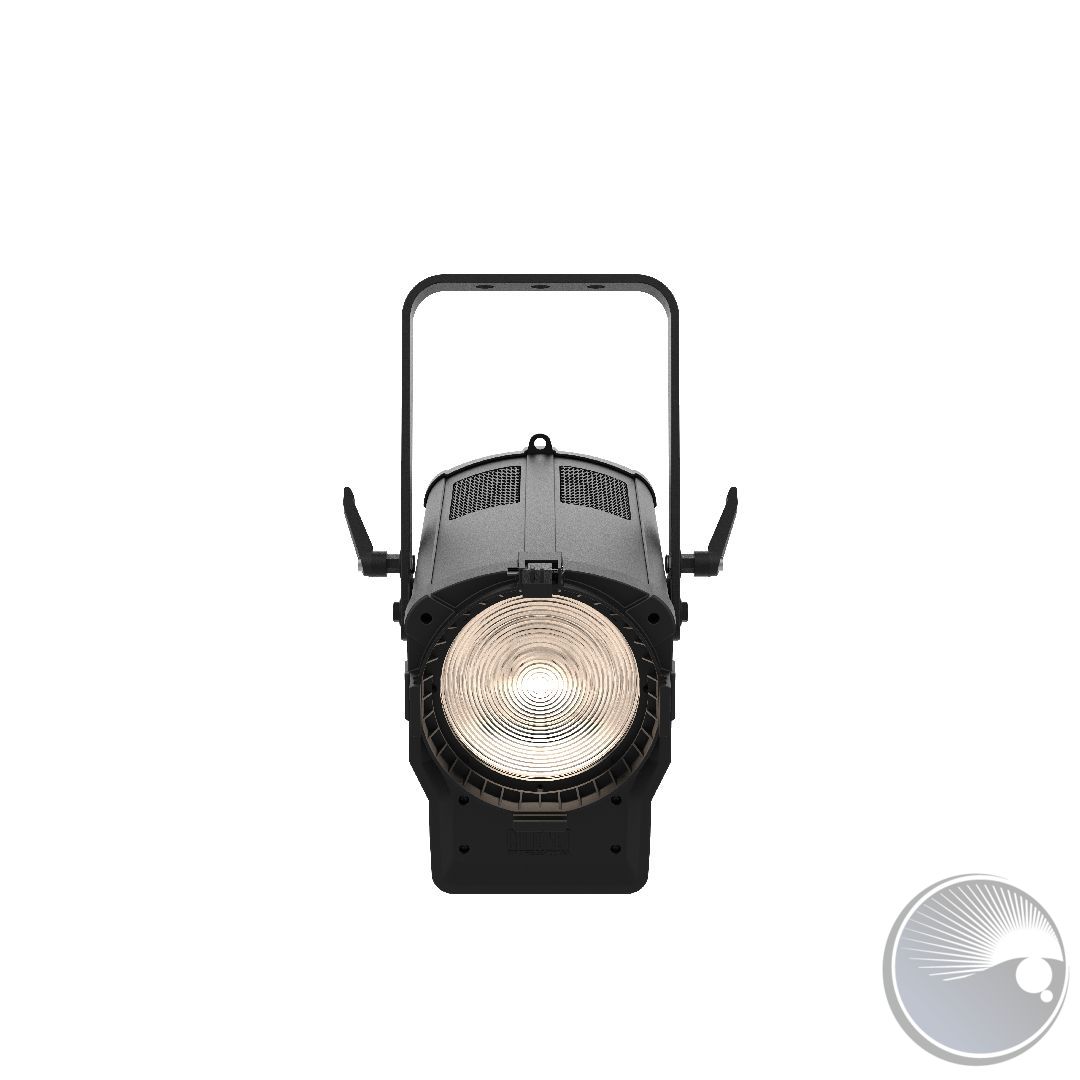

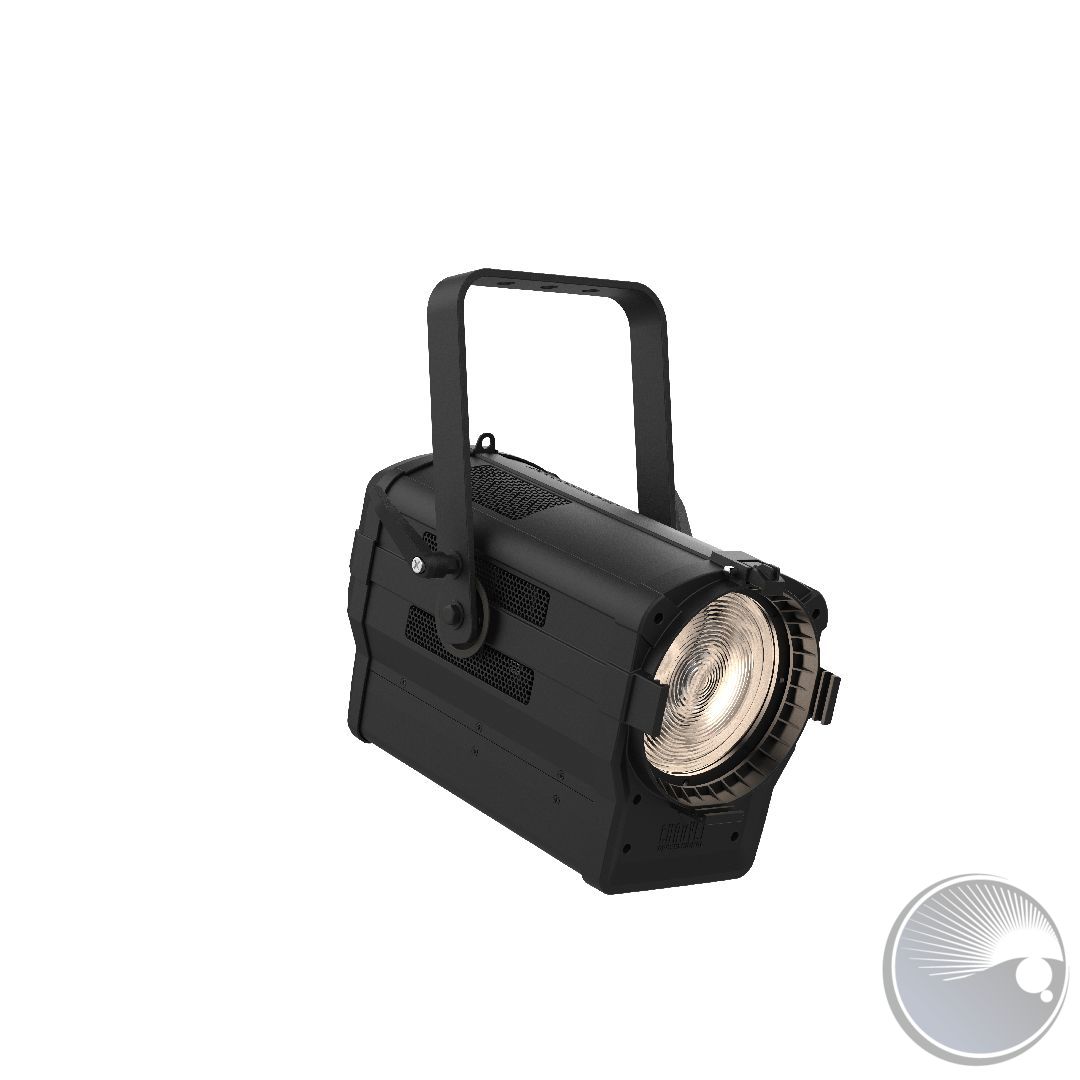

Ovation F-415VW is a 6” Fresnel style variable white fixture that utilizes our unique 6-color LED system. The unit projects a bright, beautifully soft field of light in nearly any temperature of white with high CRI and CQS making it ideal for theatres and TV studios. Each Color Temperature can be further adjusted for +/- green and a motorized zoom with a 14° – 68° field range that allows you to add light where it is needed. The Color Temperature and hue along with zoom and output can be controlled via DMX or on-board dials. Adding to its versatility, the RDM-enabled unit enables a 28 V external battery operation and offers adjustable PWM for flicker-free use on camera.



AT A GLANCE

  • Variable white LED Fresnel lighting fixture for theatre, film and production

  • Soft and even field of light

  • Smooth, motorized zoom from 14° to 68°

  • Color Temperature Presets from 2800 K to 8000 K with high CRI and CQS

  • 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack

  • Beautiful 16-bit dimming

  • Proprietary LED engine delivers tremendous, equal output at all color temperatures

  • Easy to use on board control of color temperature, zoom and dimming

  • +/- Green adjustment via DMX or on-board control

  • Independent color control over the 6-color engine when a splash of color is needed

  • RDM (Remote Device Management) for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Virtually silent operation for use in studio and theatre applications

SPECIFICATIONS

OPTICAL

  • Light Source: 46 LEDs (4 red, 4 green, 6 blue, 6 R. Blue, 10 Orange, 16 Lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 8000 K
  • CRI: 89 to 93
  • Beam Angle: 14° to 43°
  • Field Angle: 27° to 68°
  • Zoom Range: 14° to 68°
  • Lumens (27°) : 1,631
    (68°) : 2,408
  • Illuminance (27°) : 800 lux @ 5 m
    (68°): 152 lux @ 5 m
  • Illuminance drop percentage (fan silent) : 23%
    (fan off) : 59%
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 27 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: No

CONSTRUCTION / PHYSICAL

  • Dimensions: 15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
  • Weight: 12.79 lb (5.8 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

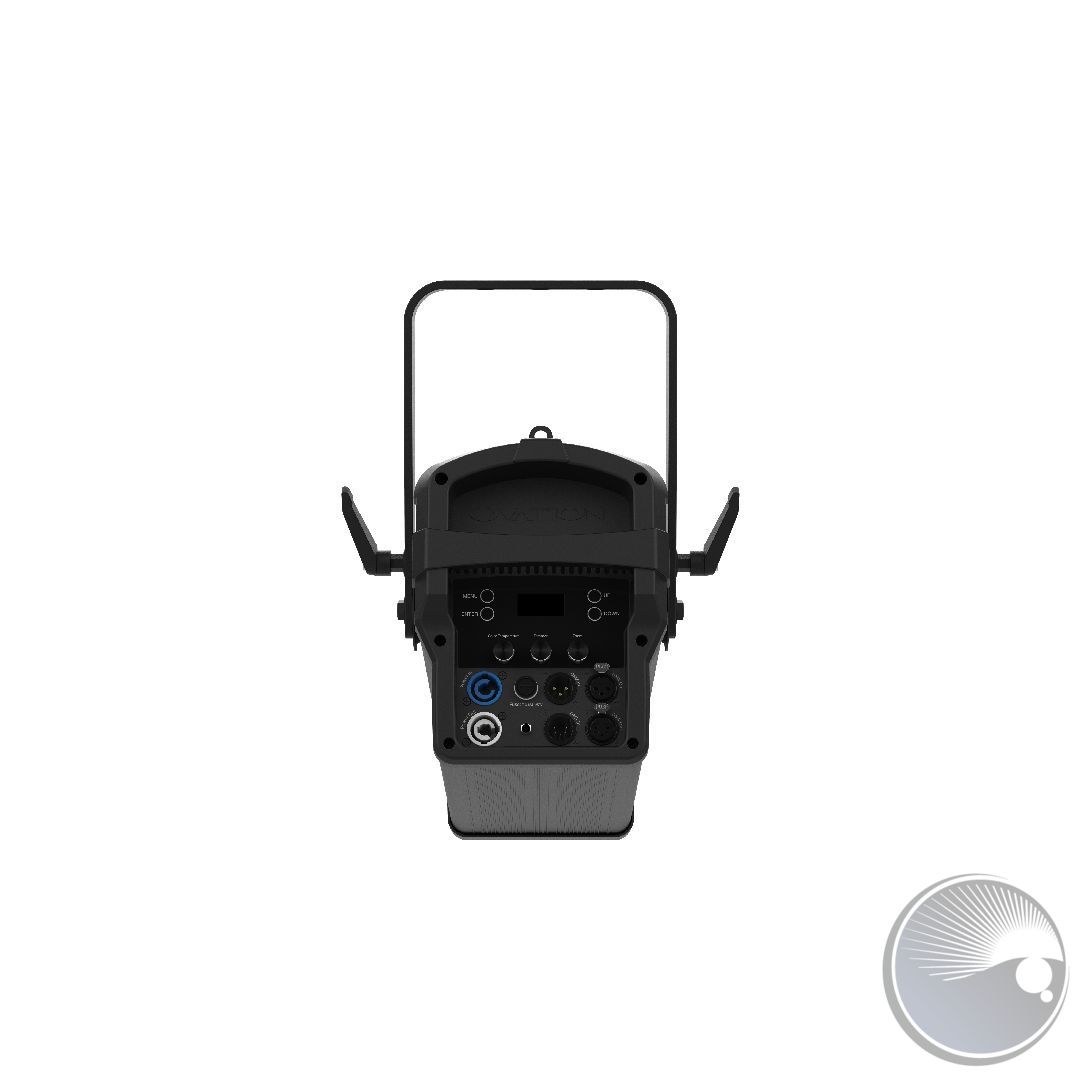

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON,
    3-pin XLR
  • Power Input: Neutrik powerCON
    28 VDC, 3-pin XLR
  • Power Output: Neutrik powerCON
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 2, 5, 7, 10, 14, 17 or 19
  • Modes/Personalities: 8 personalities (2ch, 5ch, 7ch1, 7ch2, 10ch, 14ch, 17ch, 19ch)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Input Voltage: 28 VDC
  • Power Linking: 14 units @ 120 V; 24 units @ 208 V; 27 units @ 230 V
  • Power and Current: 114 W, .93 A @ 120 V, 60 Hz
    115 W, .56 A @ 208 V, 60 Hz
    117 W, .50 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • Ovation F-415VW
  • Neutrik powerCON power cord
  • Gel frame holder (6.25 in/158.75 mm accessories)

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 03031481
Weiterführende Links zu "Ovation F-415VW"

2AMPGMAFUSE 2 AMP 250V (BOM#16)
PTF1001002202POWER OUT SOCKET (BOM#31)
PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)
GEL FRAME(BOM#1)PTF2440102422GEL FRAME(BOM#1)
PTF2700003804NEUTRIK POWER CABLE 1.5M (POWERCON TO EDISON) (BOM#41)
DMX XLR SOCKET PCB - 5-PIN (BOM#56)PTJ2010033700DMX XLR SOCKET PCB - 5-PIN (BOM#56)
HALL ELEMENT  LOCATER (BOM#36)PTJ2020200635HALL ELEMENT LOCATER (BOM#36)
DISPLAY PCB (BOM#37)PTJ2020201330DISPLAY PCB (BOM#37)
POTENTIOMETER PLATE (BOM#34)PTJ2020201971POTENTIOMETER PLATE (BOM#34)

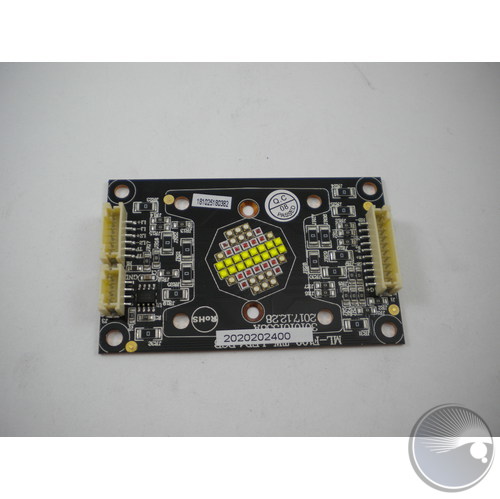

LED PCB (BOM#22)PTJ2020202400LED PCB (BOM#22)

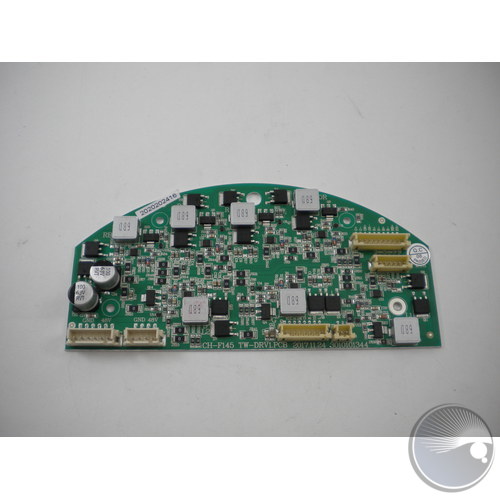

DRIVER PCB (BOM#30)PTJ2020202416DRIVER PCB (BOM#30)

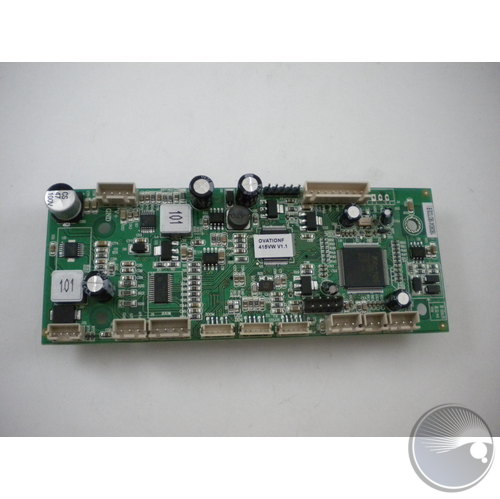

MPCB (BOM#29)PTJ2020202594MPCB (BOM#29)

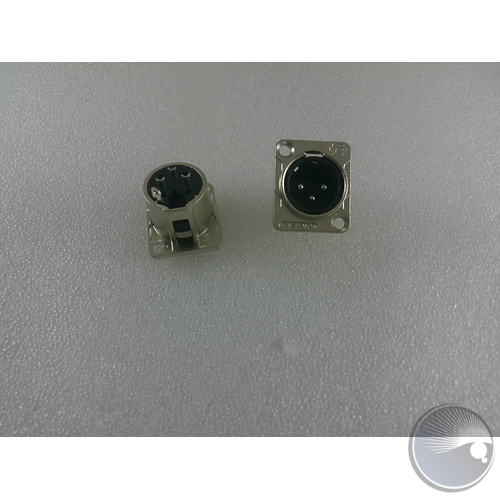

PTJ3010800138DMX CONNECTOR(3PIN,MALE) (BOM#37)
PTJ3020100372ATHREAD LENS (BOM#7)
PTJ3020200328MIRROR (BOM#19)
PTJ3020200329SPHERICAL CONDENSE (BOM#16)
PTJ3020300363FILTER (BOM#17)

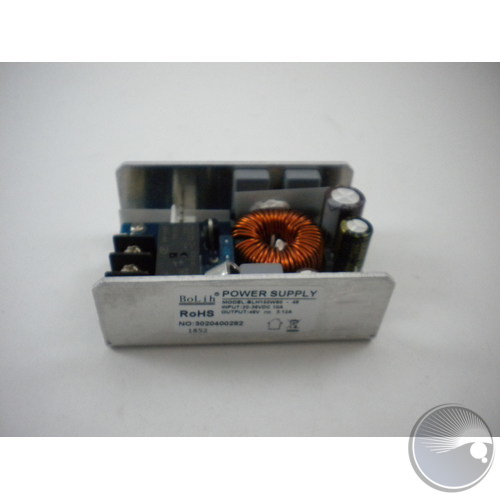

BOOSTING POWER SUPPLY (BOM#81)PTJ3020400282BOOSTING POWER SUPPLY (BOM#81)

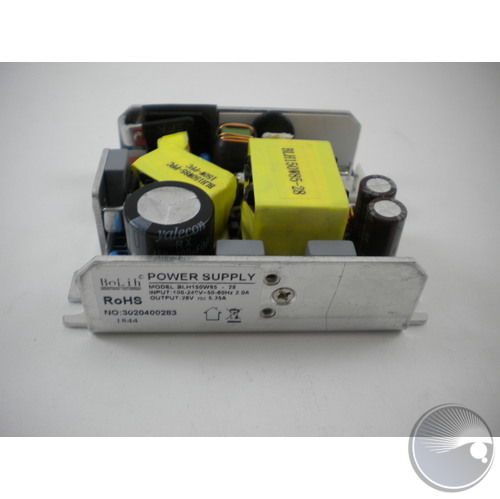

POWER SUPPLY (BOM#57)PTJ3020400283POWER SUPPLY (BOM#57)
BEARING (BOM#24)PTJ3020500049BEARING (BOM#24)
PTJ3020600053SYNCHRONOUS BELT (BOM#39)
DC FAN (BOM#4)PTJ3020900020ADC FAN (BOM#4)
PTJ3020900025FAN GUARD (BOM#5)
PTJ3021000084STEPPER MOTOR (BOM#57)
PTJ3021100028APIPE (BOM#10)
SPRING    (BOM#2)PTJ3021600094SPRING (BOM#2)
C-RING (BOM#2)PTJ3021600102C-RING (BOM#2)
HM SCREW (BOM#6)PTJ3021700154HM SCREW (BOM#6)
SCREW INSIDE HANGING BRACKET  (BOM#22)PTJ3021700412SCREW INSIDE HANGING BRACKET (BOM#22)
PTJ3021700429LOCK NUT (BOM#69)
RING (BOM#11)PTJ3021700452RING (BOM#11)
HM SCREW (BOM#24)PTJ3021700587HM SCREW (BOM#24)
PTJ3021701046FOAM FOR THREAD LENS (BOM#8)
PTJ3021701047STICKER USE ON PIPE (BOM#11)
PTJ3021701060SHADOW SHIELD STICKER (BOM#13)
PTJ3022100061PLASTIC PANEL (BOM#21)
MAGNET (BOM#31.ARM)PTJ3022200009MAGNET (BOM#31.ARM)
LOOP FOR FOCUSING LEVER (BOM#66)PTJ3022500068LOOP FOR FOCUSING LEVER (BOM#66)
PTJ3030100216PILLAR (BOM#9)
PTJ3030100273HEAT SINK STAND (BOM#20)
PTJ3030100274STAND OFF (BOM#24)
PTJ3030100275BEARING COVER (BOM#15)
FLANGE (BOM#25)PTJ3030200023FLANGE (BOM#25)
PTJ3030300028DRIVING WHEEL (BOM#40)
PTJ3030300049DRIVING GEAR (BOM#37)
PTJ3030600020SLIDER 2 (BOM#21)
PTJ3030600044SCREW FIXATION (BOM#56)
PTJ3030600045FOCUSING LEVER (BOM#62)
SAFETY PIN (BOM#4)PTJ3030800007SAFETY PIN (BOM#4)
PTJ3030900007BROTARY KNOB (BOM#35)
PTJ3050802677ADISPLAY STICKER (BOM#35)
PTJ4010103958LIGHT TUBE (BOM#18)
PTJ4010104453POWER SUPPLY HOLDER (BOM#82)
PTJ4010302041PRESSING PLATE (BOM#23.BASE)
SEMI-CIRCLE  METAL PART (BOM#49)PTJ4010302483SEMI-CIRCLE METAL PART (BOM#49)
PTJ4010304180SHADOW SHIELD FOR REAR (BOM#28)
PTJ4010304181DRIVER HOLDER (BOM#31)
PTJ4010304182FRONT PANEL (BOM#9)
PTJ4010304187HANGING BRACKET (BOM#70)
PTJ4010304188VENTILATE NET 1 (BOM#76)
PTJ4010304189VENTILATE NET 2 (BOM#73)
PTJ4010304190BEARING COVER HOLDER 1 (BOM#55)
PTJ4010304191BEARING COVER HOLDER 2 (BOM#51)
PTJ4010304192ASCREW FIXATION PLATE 1 (BOM#61)
PTJ4010304193BSCREW FIXATION PLATE 2 (BOM#48)
PTJ4010304196FAN HOLDER (BOM#26)
PTJ4010304257SIDE PANEL 1 (BOM#72)
PTJ4010304258SIDE PANEL 2 (BOM#75)
PTJ4010304259TOP COVER (BOM#74)
PTJ4010304260ACONNECTER PANEL (BOM#53)
PTJ4010304262HEAT SINK HOLDER (BOM#14)
PTJ4010304263HEAT SINK (BOM#23)
PTJ4010304264SHADOW SHIELD (BOM#12)
PTJ4010304265HEAT SINK PLATE (BOM#52)
PTJ4010304266HOUSING (BOM#77)
PTJ4010304636BASEBOARD (BOM#58)
PTJ4010402233REAR (BOM#32)
LOCK (BOM#1)PTJ4020100174LOCK (BOM#1)
FRONT COVER (BOM#2)PTJ4020100294FRONT COVER (BOM#2)
PTJ4020100295BACK COVER (BOM#33)
UPLOAD03PTJUPLOAD03UPLOAD03
