Ovation F-915FC

2.130,10 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONF915FC
Ovation  F-915FC Ovation F -915FC  is a high-power, full color mixing Fresnel... mehr
Produktinformationen "Ovation F-915FC"

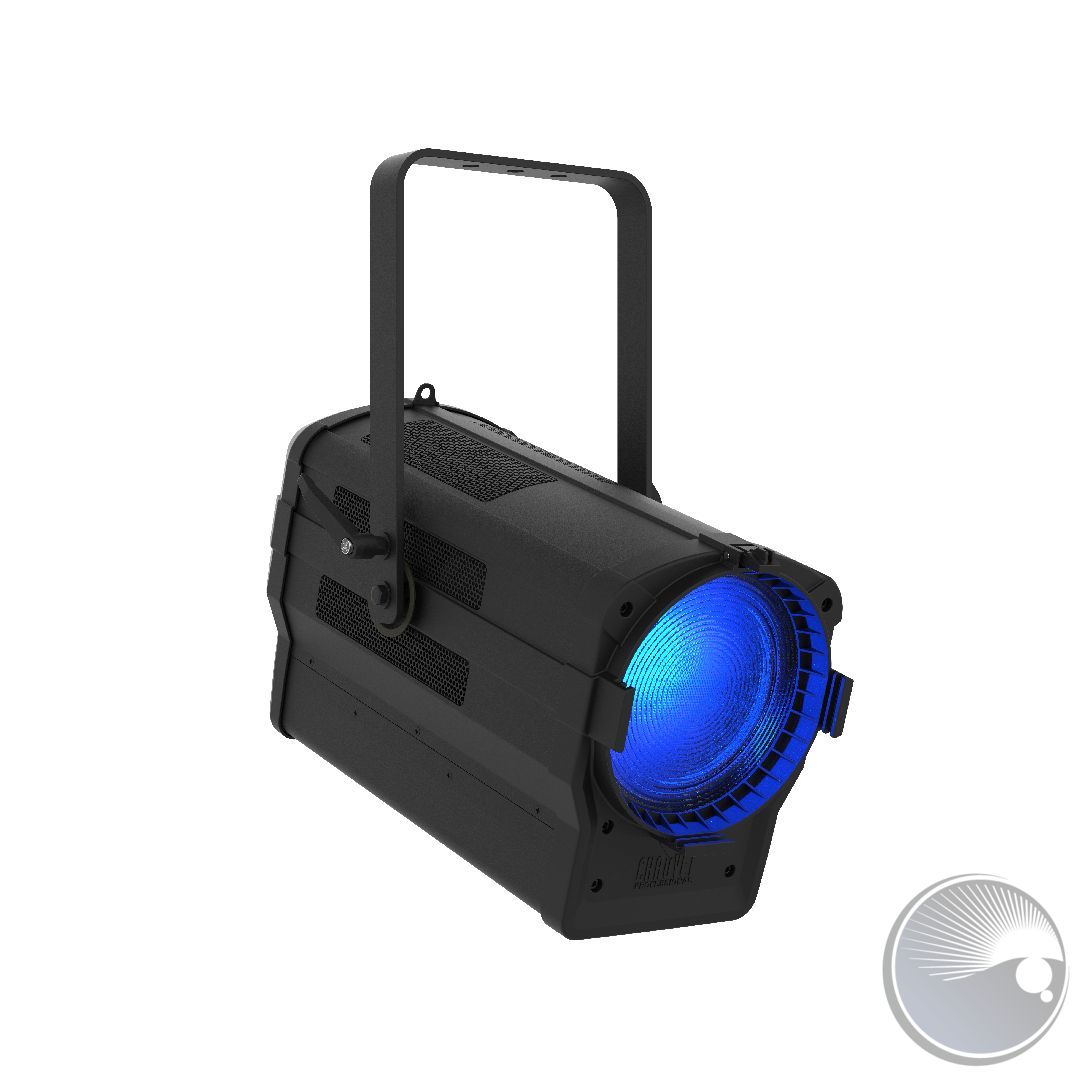

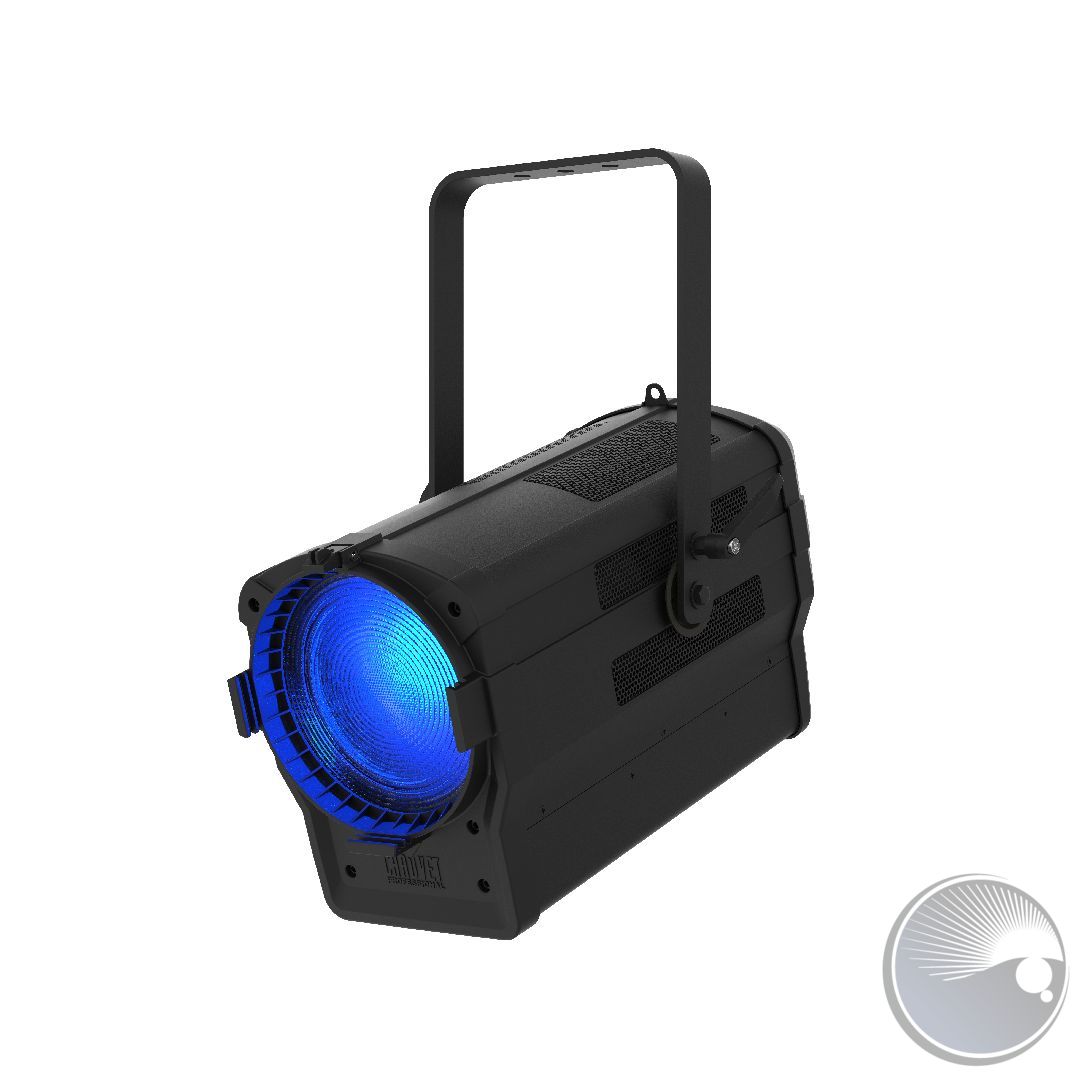

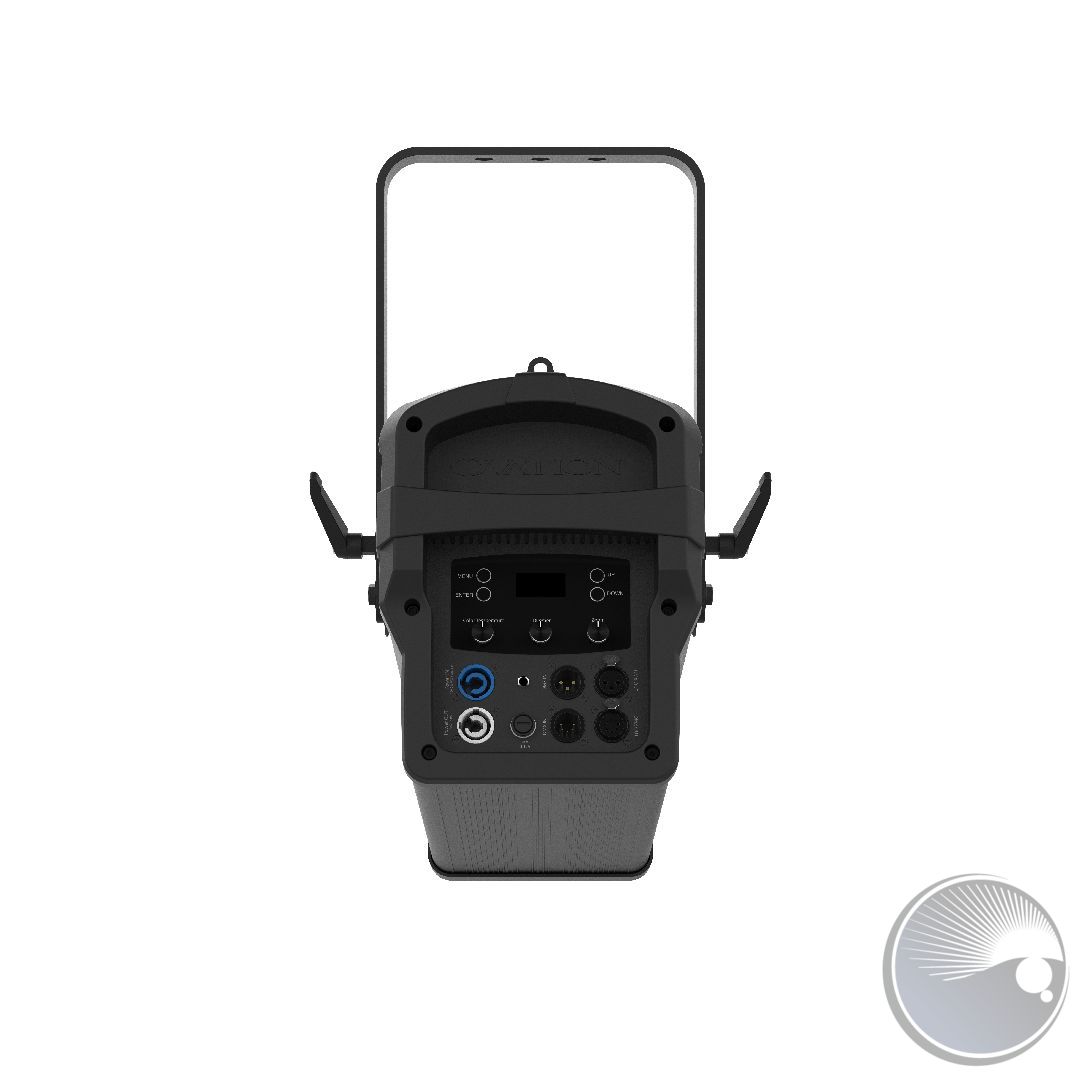

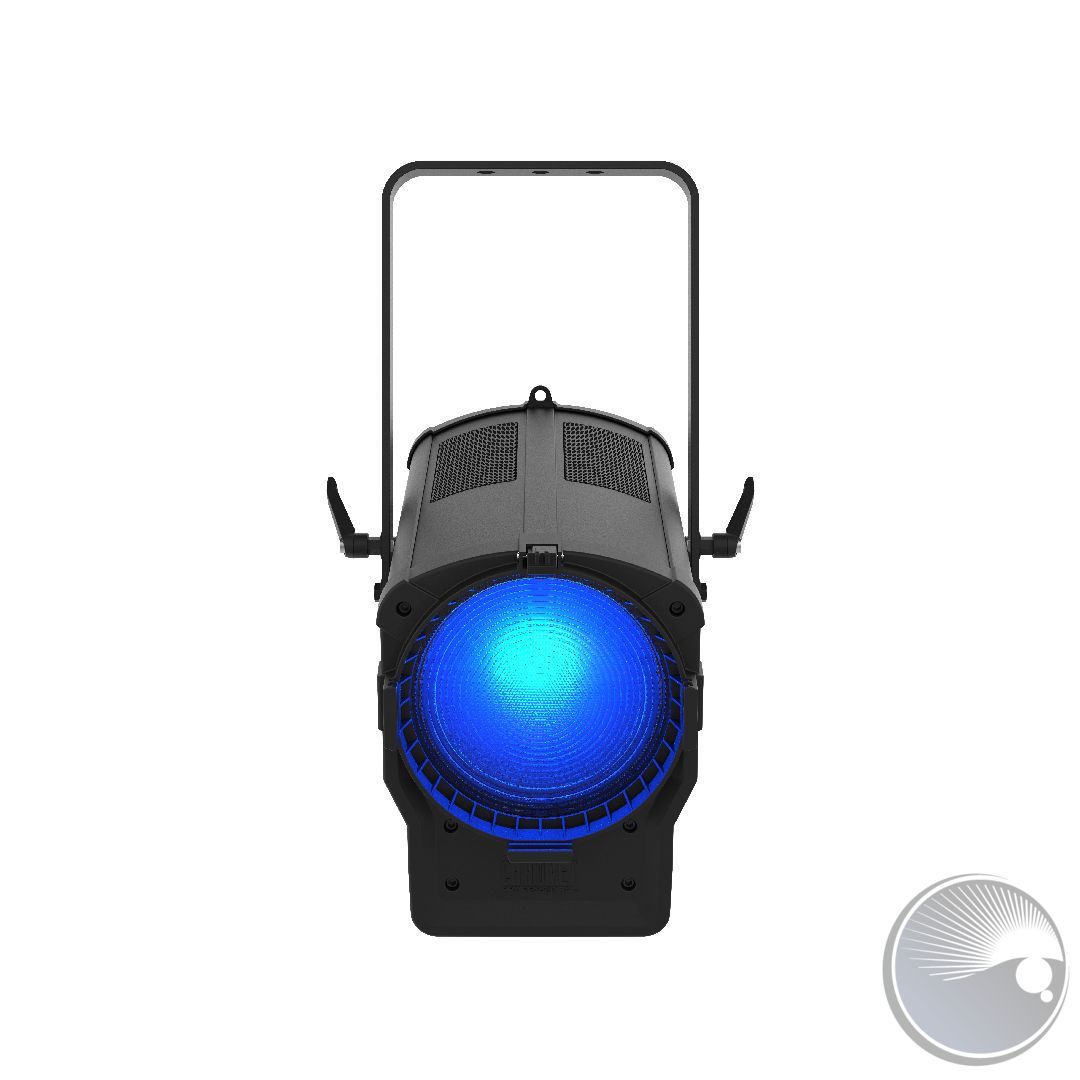

Ovation F-915FC

Ovation F-915FC is a high-power, full color mixing Fresnel style fixture that utilizes our RGBAL LED system. This fixture projects a bright beautifully soft, field of light from subtle pastels to punchy saturates and nearly any temperature of white. A motorized zoom with a 17° – 85° field range allows you to add light where it is needed. Control of the virtual color wheel, zoom and output can be via DMX or on-board dials.



AT A GLANCE

  • Full Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production

  • Soft and even field of light

  • Smooth, motorized zoom from 17° to 85°

  • Beautiful 16-bit dimming of master dimmer and individual colors

  • Easy to use on board control of color, zoom and dimming

  • Virtual Color wheel with color matched to popular gel colors

  • Color Temperature Presets from 2800 K to 6500 K

  • RDM (Remote Device Management) for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Virtually silent operation for use in studio and theatre applications

SPECIFICATIONS

OPTICAL

  • Light Source: 89 LEDs (18 red, 18 green, 16 blue, 16 amber, 21 lime) 3 W, (1.13 A), 3698 K, 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 6500 K
  • CRI (3200 K): 90
  • Beam Angle: 17° to 54°
  • Field Angle: 30° to 85°
  • Zoom Range: 17° to 85°
  • Lumens (30°): 4,294
  • Lumens (73°): 6,661
  • Illuminance (30°): 1,980 lux @ 5 m
  • Illuminance (85°): 433 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 27 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 22.41 x 12.59 x 10.82 in (569.44x 320 x 275 mm)
  • Weight: 19 lb (8.6kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 3, 5, 7, 11, 13, 14 or 17
  • Modes/Personalities: 8 personalities (1, 3, 5, 7, 11, 13, 14, 17, HSV)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 6 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
  • Power and Current: 260 W, 2.15 A @ 120 V, 60 Hz
  • Power and Current: 260 W, 1.25 A @ 208 V, 60 Hz
  • Power and Current: 260 W, 1.12 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Ovation F-915FC
  • Neutrik® powerCON® power cord
  • Gel frame (7.5 in/191 mm accessories)

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 03031389
Weiterführende Links zu "Ovation F-915FC"

3.15AMPGMAFUSE (BOM#14)
PTF1001002202POWER OUT SOCKET (BOM#31)
PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)
PTF2700003804NEUTRIK POWER CABLE 1.5M (POWERCON TO EDISON) (BOM#41)
DMX XLR SOCKET PCB - 5-PIN (BOM#56)PTJ2010033700DMX XLR SOCKET PCB - 5-PIN (BOM#56)
PTJ2010325000DMX XLR SOCKET PCB - 3-PIN (BOM#57)
HALL ELEMENT  LOCATER (BOM#36)PTJ2020200635HALL ELEMENT LOCATER (BOM#36)
DISPLAY PCB (BOM#37)PTJ2020201330DISPLAY PCB (BOM#37)
POTENTIOMETER PLATE (BOM#34)PTJ2020201971POTENTIOMETER PLATE (BOM#34)

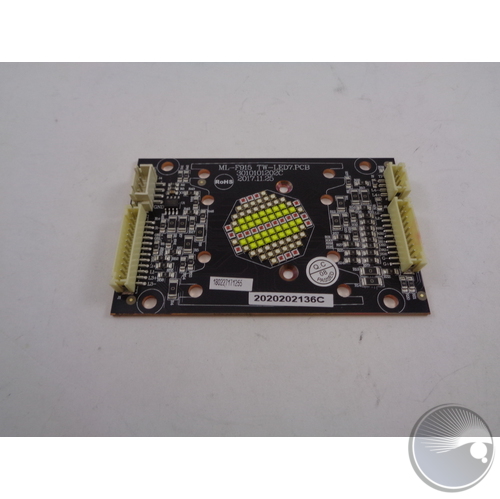

LED PCB (BOM#27)PTJ2020202166ALED PCB (BOM#27)

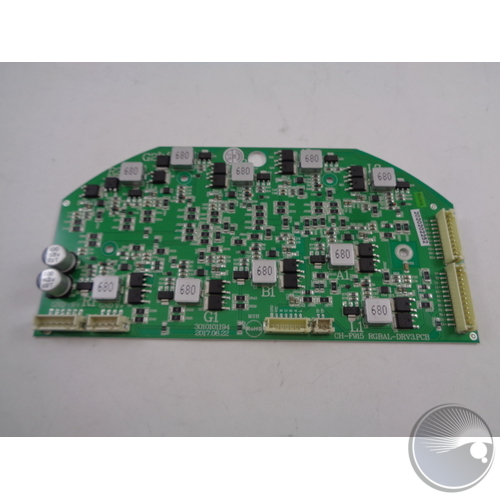

DRIVER PCB (BOM#18)PTJ2020202252DRIVER PCB (BOM#18)
MPCB (BOM#16)PTJ2020202305MPCB (BOM#16)
THREAD LENS (BOM#72)PTJ3020100387THREAD LENS (BOM#72)
ASPHERIC SURFACE LENS (BOM#33)PTJ3020100388ASPHERIC SURFACE LENS (BOM#33)
PTJ3020200305MIRROR (BOM#29)
FILTER FRAME  (BOM#30)PTJ3020300311FILTER FRAME (BOM#30)
POWER SUPPLY (BOM#46)PTJ3020400263POWER SUPPLY (BOM#46)
BEARING (BOM#24)PTJ3020500049BEARING (BOM#24)
PTJ3020600053SYNCHRONOUS BELT (BOM#39)
DC FAN  (BOM#24)PTJ3020900072DC FAN (BOM#24)
PTJ3021000084STEPPER MOTOR (BOM#57)
PTJ3021100027TUBES (BOM#32)
SPRING    (BOM#2)PTJ3021600094SPRING (BOM#2)
C-RING (BOM#2)PTJ3021600102C-RING (BOM#2)
HM SCREW (BOM#6)PTJ3021700154HM SCREW (BOM#6)
SCREW INSIDE HANGING BRACKET  (BOM#22)PTJ3021700412SCREW INSIDE HANGING BRACKET (BOM#22)
RING (BOM#11)PTJ3021700452RING (BOM#11)
HM SCREW (BOM#24)PTJ3021700587HM SCREW (BOM#24)
PTJ3021700679METAL RING (BOM#69)
PTJ3021700898RING FOR THREAD LENS (BOM#70)
PTJ3021700946FOAM (BOM#26)
MAGNET (BOM#31.ARM)PTJ3022200009MAGNET (BOM#31.ARM)
LOOP FOR FOCUSING LEVER (BOM#66)PTJ3022500068LOOP FOR FOCUSING LEVER (BOM#66)
Panel mount fuse holder (BOM#36)PTJ3027001001Panel mount fuse holder (BOM#36)
PTJ3030100218CONNECTER (BOM#22)
PTJ3030100219PLAIN BEARING (BOM#56)
FLANGE (BOM#25)PTJ3030200023FLANGE (BOM#25)
PTJ3030300028DRIVING WHEEL (BOM#40)
PTJ3030300049DRIVING GEAR (BOM#37)
PTJ3030600020SLIDER 2 (BOM#21)
PTJ3030600032FOCUSING LEVER (BOM#45)
PTJ3030600033SCREW FIXATION (BOM#50)
SAFETY PIN (BOM#4)PTJ3030800007SAFETY PIN (BOM#4)
PTJ3030900007BROTARY KNOB (BOM#35)
PTJ3050802396DISPLAY STICKER (BOM#14)
PTJ4010103578FAN HOLDER (BOM#23)
PTJ4010103588LIGHT TUBE (BOM#28)
PTJ4010103625HEAT SINK (BOM#24)
PTJ4010302041PRESSING PLATE (BOM#23.BASE)
SEMI-CIRCLE  METAL PART (BOM#49)PTJ4010302483SEMI-CIRCLE METAL PART (BOM#49)
GER FRAME (BOM#35)PTJ4010303080AGER FRAME (BOM#35)
PTJ4010303724FRONT PANEL (BOM#68)
PTJ4010303726HEAT SINK PLATE (BOM#21)
PTJ4010303727BCONNECTER PANEL (BOM#53)
PTJ4010303729PLAIN BEARING HOLDER (BOM#61)
PTJ4010303730PLAIN BEARING HOLDER 1 (BOM#55)
PTJ4010303732SCREW FIXATION PLATE 2 (BOM#54)
PTJ4010303734SHADOW SHIELD FOR REAR (BOM#20)
HANGING BRACKET  (BOM#13)PTJ4010303821HANGING BRACKET (BOM#13)
PTJ4010303822ASIDE PANEL ASSEMBLY 1 (BOM#5)
PTJ4010303823ASIDE PANEL ASSEMBLY 2 (BOM#6)
PTJ4010303824ATOP COVER ASSEMBLY (BOM#7)
PTJ4010303825HOUSING (BOM#48)
PTJ4010303826AHEAT HOLDER (BOM#25)
SCREW FIXATION PLATE 1 (BOM#51)PTJ4010303827SCREW FIXATION PLATE 1 (BOM#51)
PTJ4010303828BASEPLATE (BOM#49)
PTJ4010303829DRIVER HOLDER (BOM#17)
PTJ4010401980REAR (BOM#15)
PTJ4020100174ALOCK (BOM#1)
FRONT COVER (BOM#73)PTJ4020100198FRONT COVER (BOM#73)
PTJ4020100199BACK HOUSING (BOM#41)
FRONT COVER ASSEMBLYPTJ5000000066FRONT COVER ASSEMBLY
UPLOAD03PTJUPLOAD03UPLOAD03
