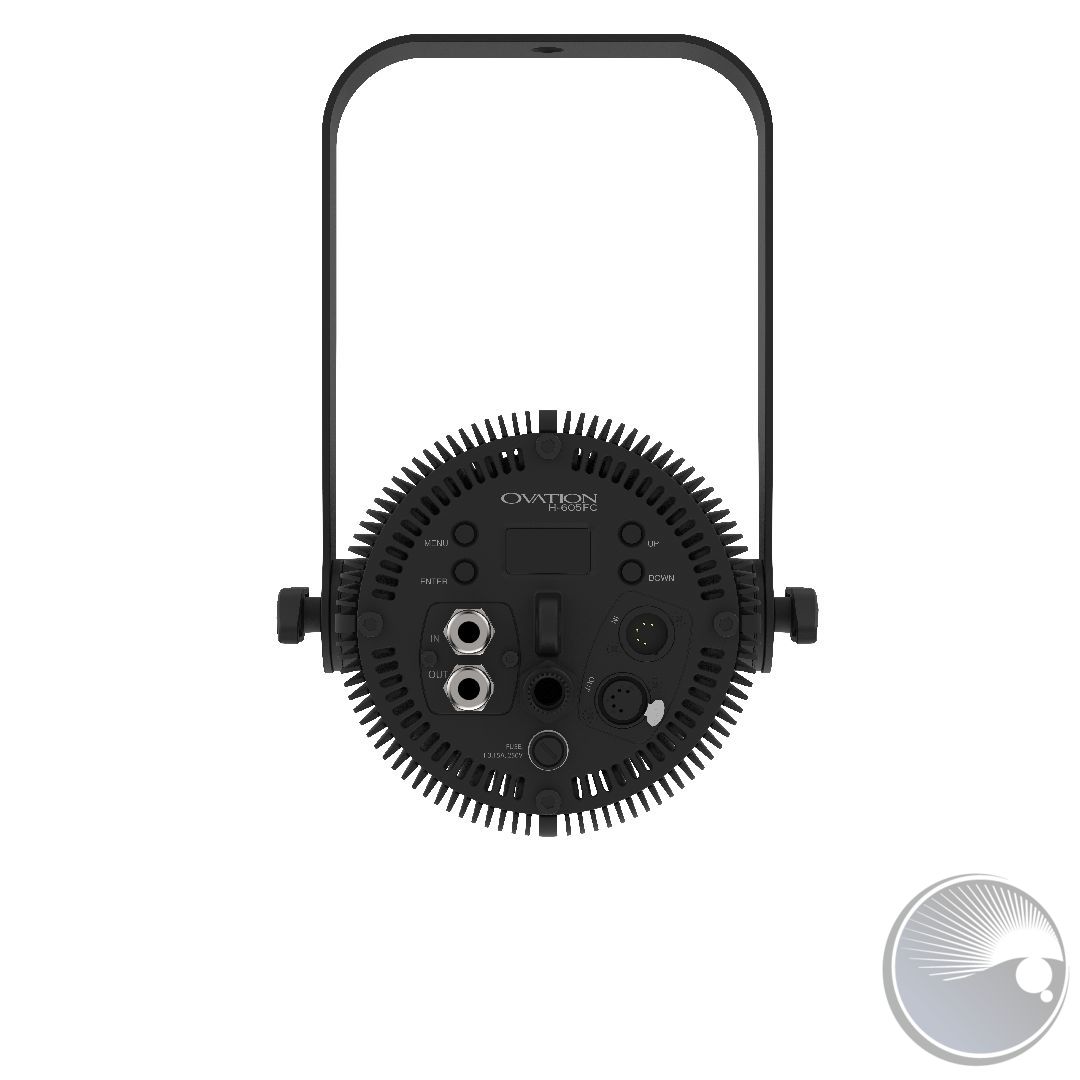

Ovation H-605FC

1.570,80 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONH605FCBLK
Ovation H-605FC Ovation H-605FC  takes full advantage of LED technology,... mehr
Produktinformationen "Ovation H-605FC"

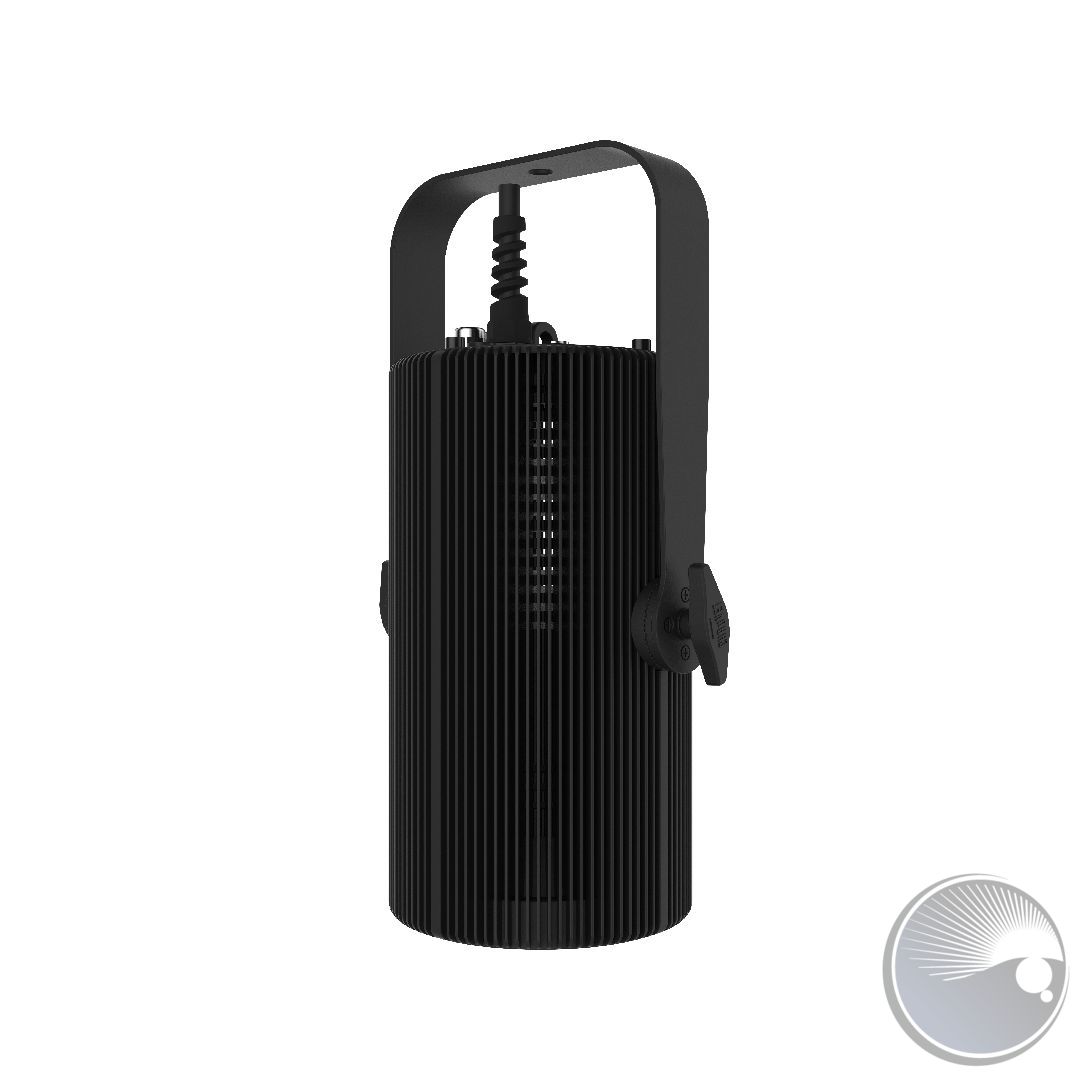

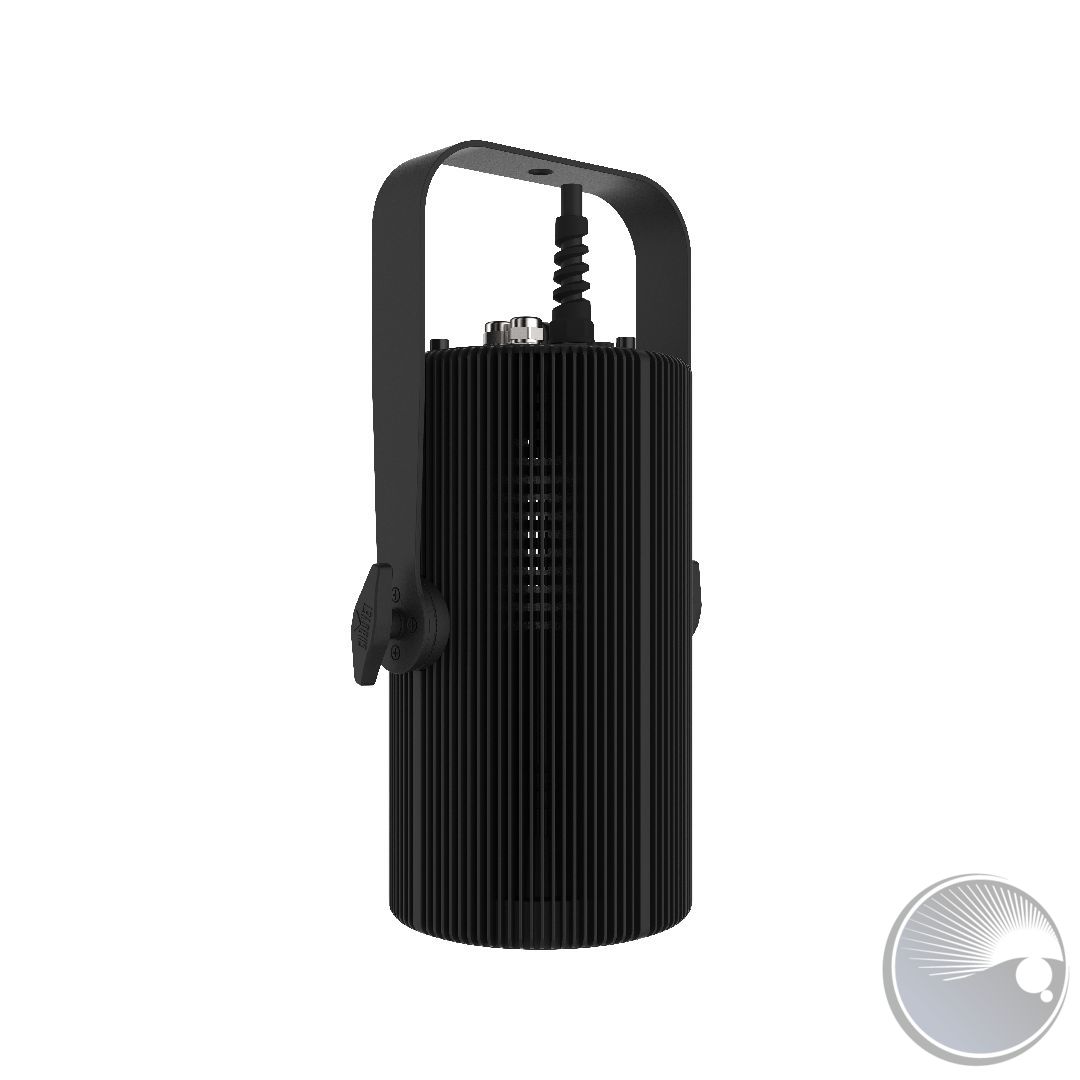

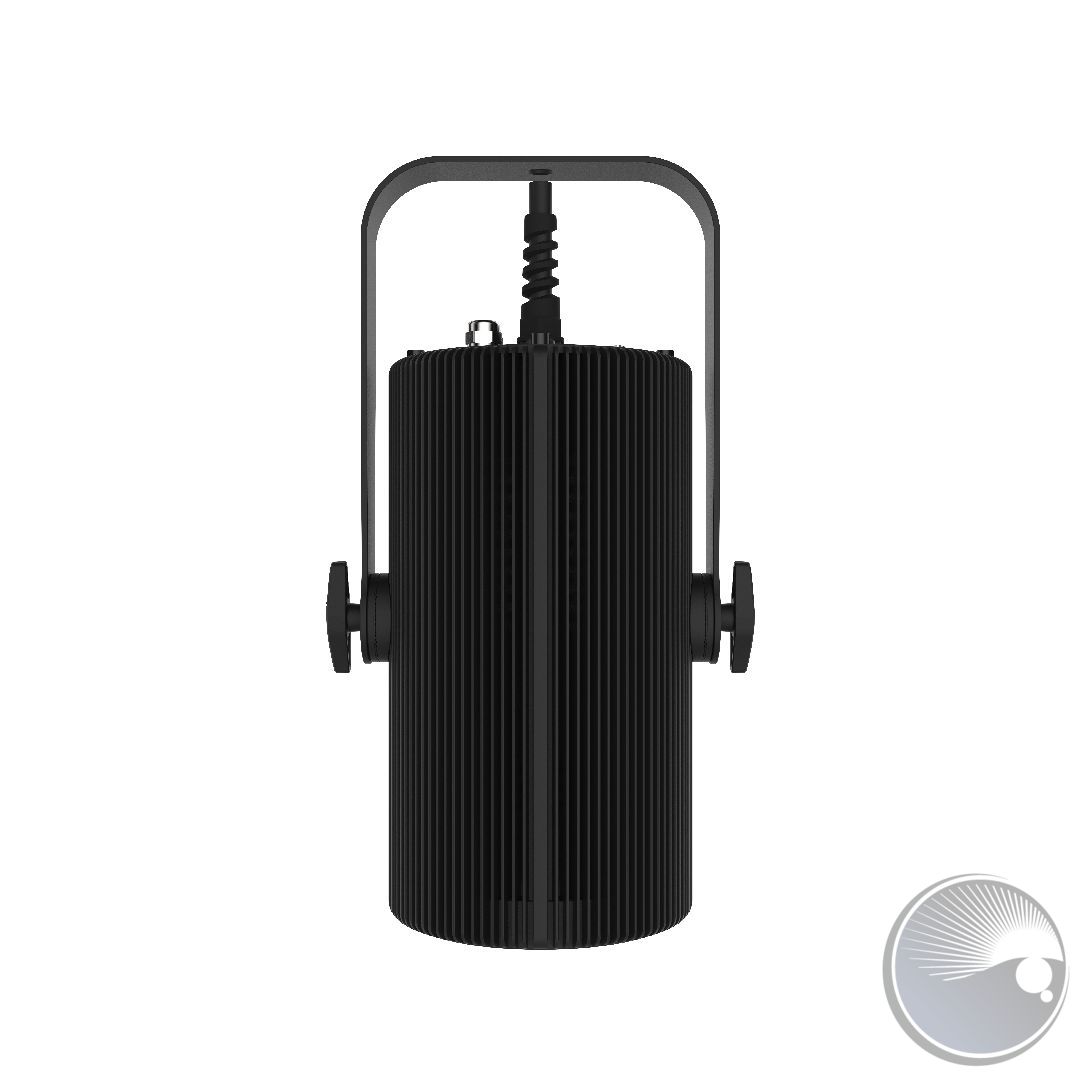

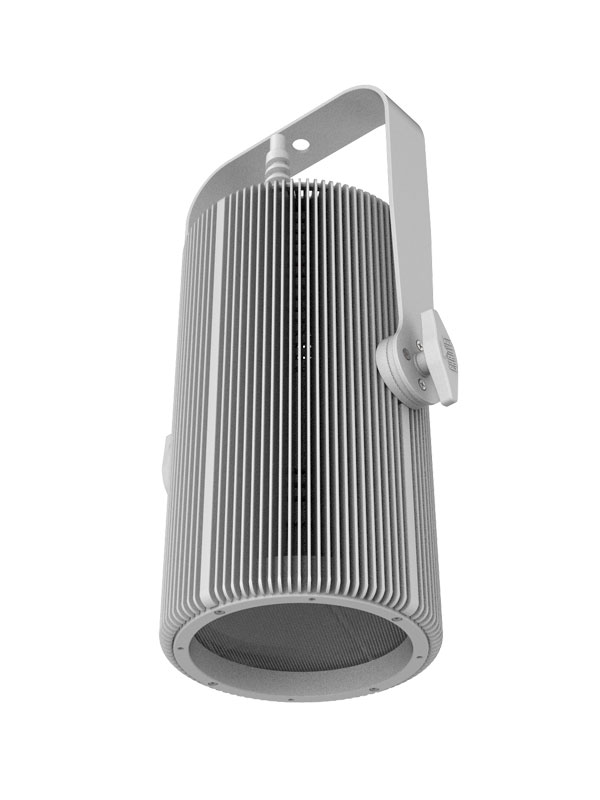

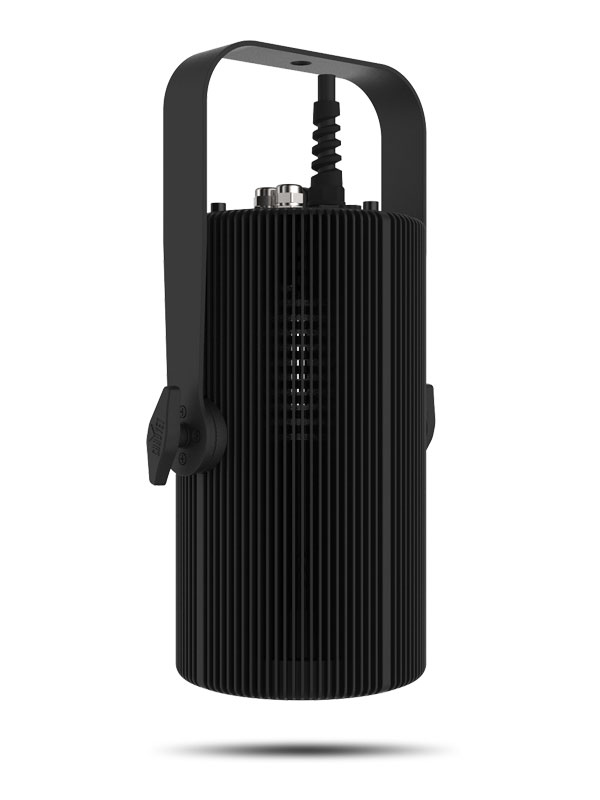

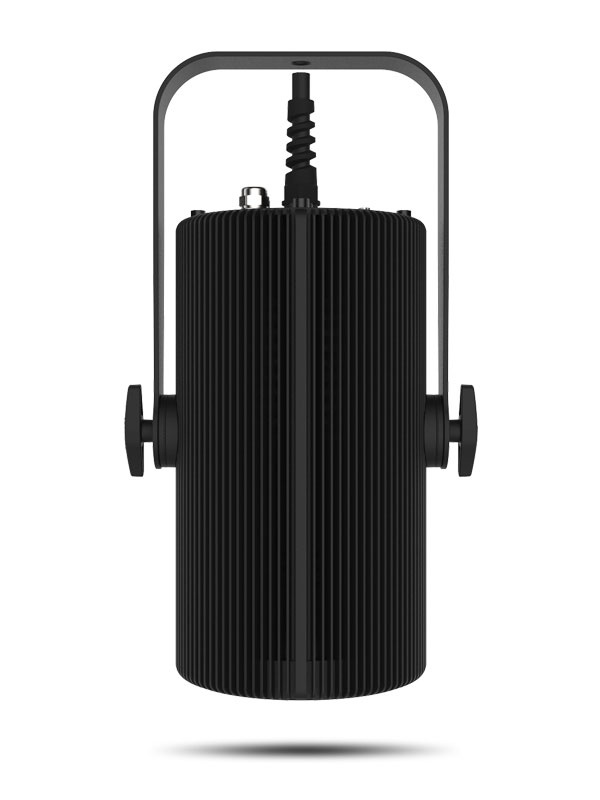

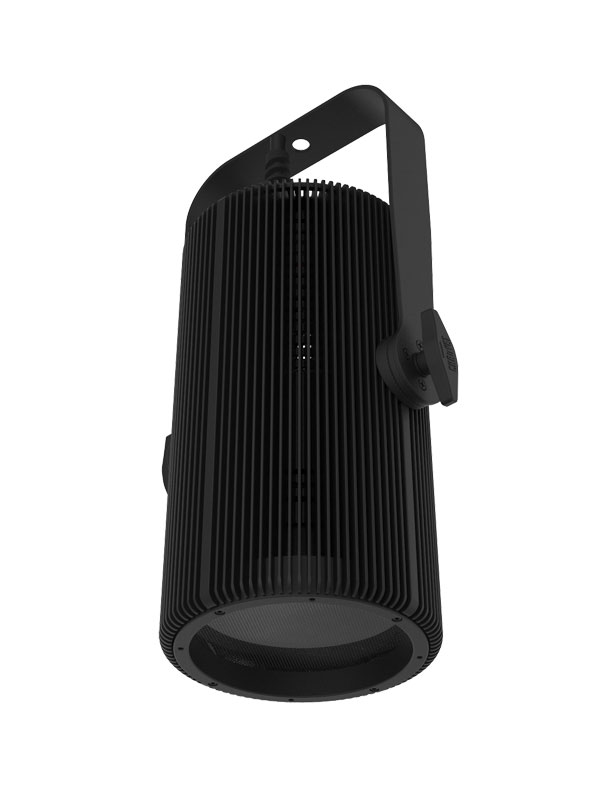

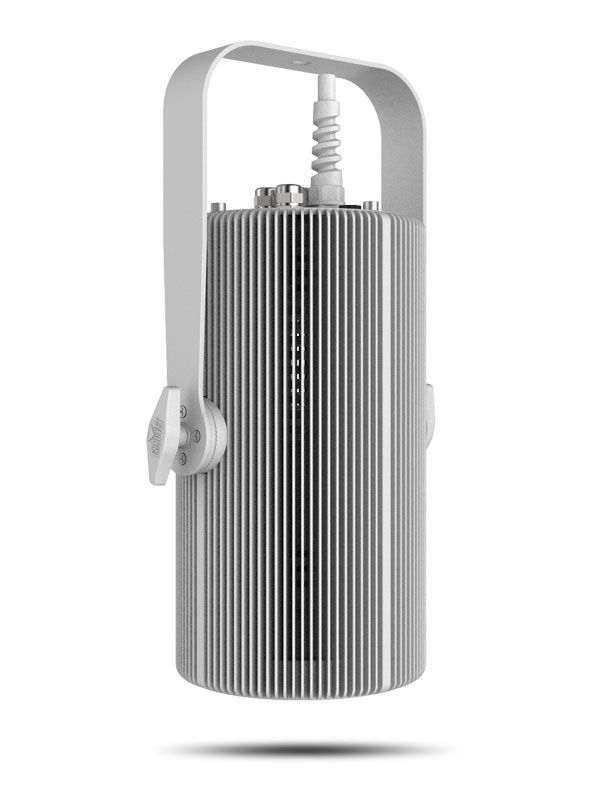

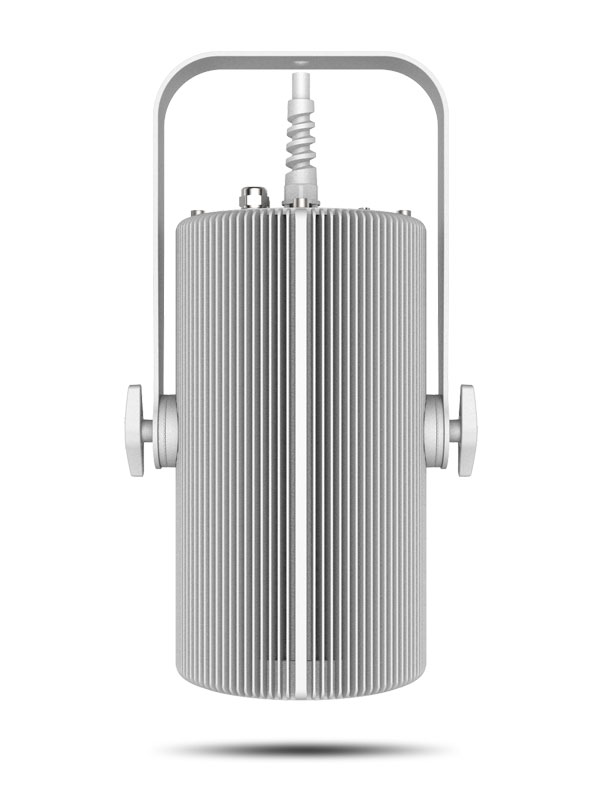

Ovation H-605FC

Ovation H-605FC takes full advantage of LED technology, utilizing the Ovation standard RGBA-Lime color palette to enable the fixture to replicate nearly any color with tremendous color rendering, as well as nearly any color temperature of white. Superior convection cooling provides excellent output in a compact package. Ideal for theatrical and house of worship applications, setup and control is now easier than ever with the addition of W-DMX, RDM, adjustable PWM and an easy to navigate OLED full text display. White housing not available in European Markets.



AT A GLANCE

  • Full Color LED (RGBAL), convection cooled houselight

  • Interchangeable lens plates to adapt to different mounting heights

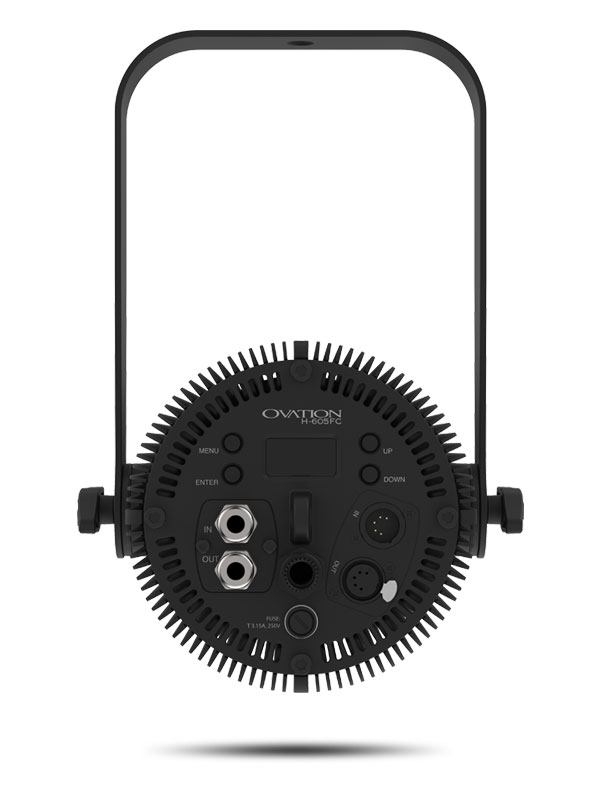

  • 5-pin XLR and terminal blocks for DMX connections

  • Use included yoke for pipe mounting, or suspend from integrated loop-eye

  • Virtual Color wheel with color matched to popular gel colors

  • Color Temperature Presets from 2800 K to 6500 K with high CRI and CQS

  • 16-bit dimming for ultra-smooth fades

  • DMX, WDMX and RDM (Remote Device Management) for added programming flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

SPECIFICATIONS

OPTICAL

  • Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 2 to 3 W, (800 mA), 4766 K, 50,000 hours life expectancy
  • Color Temperature (at full): 4766 K
  • CRI (5000 K): 90
  • Beam Angle (no lens): 28°
  • Beam Angle (w/80° filter): 40°
  • Beam Angle (w/65° lens): 51°
  • Beam Angle (w/45° lens): 39°
  • Beam Angle (w/25° lens): 37°
  • Field Angle (no lens): 60°
  • Field Angle (w/80° filter): 80°
  • Field Angle (w/65° lens): 79°
  • Field Angle (w/45° lens): 66°
  • Field Angle (w/25° lens): 37°
  • Dimming Modes: 4
  • Illuminance (no lens): 545 lux @ 5 m
  • Illuminance (w/80° filter): 163 lux @ 5 m
  • Illuminance (w/65° lens): 171 lux @ 5 m
  • Illuminance (w/45° lens): 349 lux @ 5 m
  • Illuminance (w/25° lens): 1,047 lux @ 5 m
  • Lumens (w/no lens): 4,410
  • Lumens (w/80° filter): 2,694
  • Lumens (w/65° lens): 3,769
  • Lumens (w/45° lens): 3,769
  • Lumens (w/25° lens): 3,938
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 27 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 13.11 x 9.44 x 13.34 in (333 x 240 x 339 mm)
  • Weight: 19.6 lb (8.9 kg)
  • Exterior Color: Black or White

CONNECTIONS

  • Power Connection: Bare-wired
  • Power Input: Hard-wired
  • Data Connectors: 5-pin XLR, Phoenix connector
  • Cable Length (power): 15 ft (4.5 m)

CONTROL

  • Control Protocol:, DMX, RDM, W-DMX™
  • DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16 or HSV
  • Modes/Personalities: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 142 W, 1.19 A @ 120 V, 60 Hz
  • Power and Current: 146 W, 0.704 A @ 208 V, 60 Hz
  • Power and Current: 145 W, 0.627 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Ovation H-605FC
  • 65°, 45° and 25° lenses
  • 80° filter

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 03031315 (Black), 03031307 (White)







Weiterführende Links zu "Ovation H-605FC"

antenna PCB A40895G4-R (BOM#43)PTH2020303265531antenna PCB A40895G4-R (BOM#43)
DMX XLR SOCKET PCB - 5-PIN (BOM#56)PTJ2010033700DMX XLR SOCKET PCB - 5-PIN (BOM#56)
Display PCBPTJ2020201329Display PCB

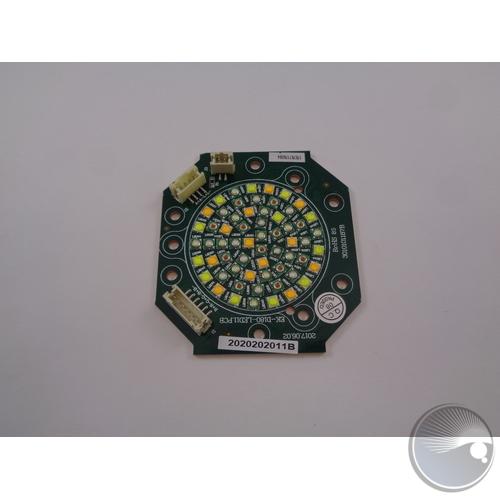

LED PCB (BOM#27)PTJ2020202011BLED PCB (BOM#27)
PTJ2020202050DMX XLR SOCKET (BOM#17)

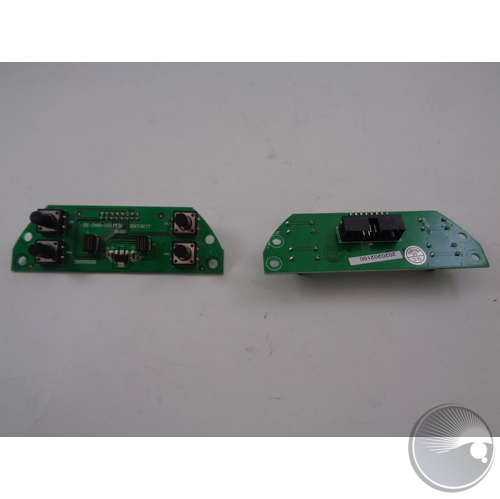

TOUCHING BOARD (BOM#14)PTJ2020202100TOUCHING BOARD (BOM#14)

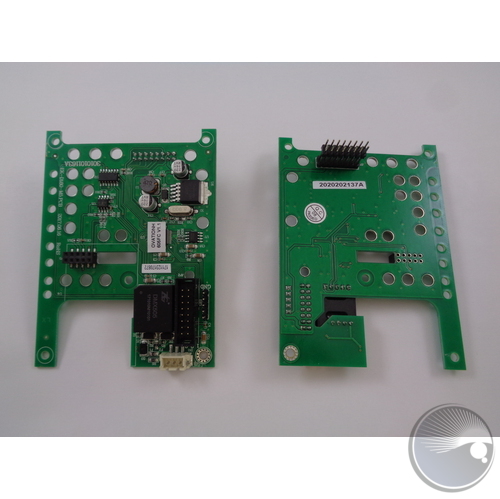

MPCB (BOM#11)PTJ2020202137AMPCB (BOM#11)

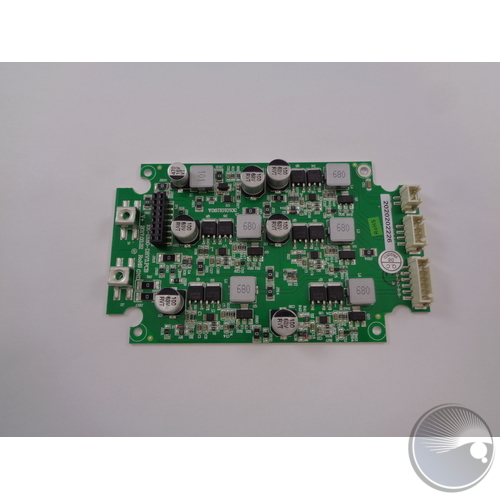

DRIVER PCB (BOM#9)PTJ2020202226DRIVER PCB (BOM#9)
PTJ3019001043BUTTON COVER (BOM#28)

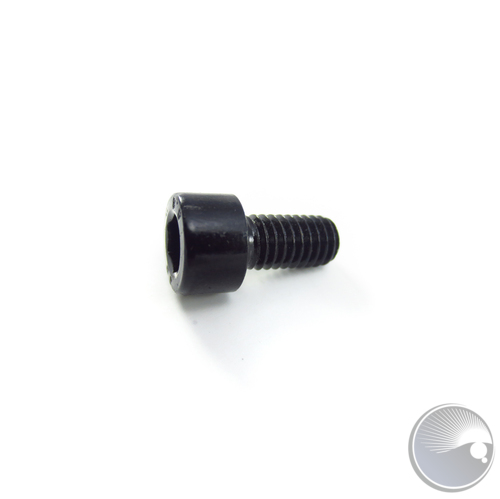

CM SCREW (BOM#19)PTJ3020016009CM SCREW (BOM#19)

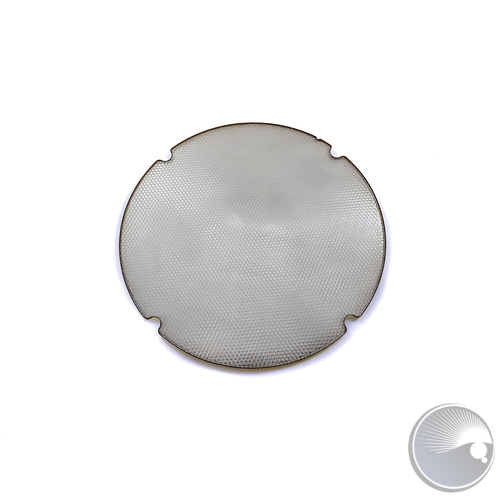

25 DEGREE LENSPTJ302010036825 DEGREE LENS
PTJ3020100369CMICROBEE LENS (BOM#29)

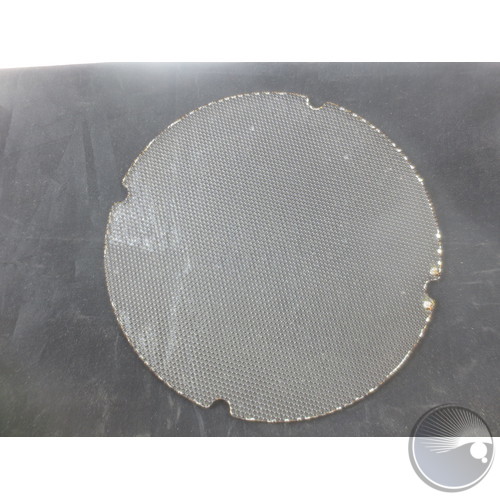

FRESNEL LENS (BOM#30)PTJ3020100370FRESNEL LENS (BOM#30)

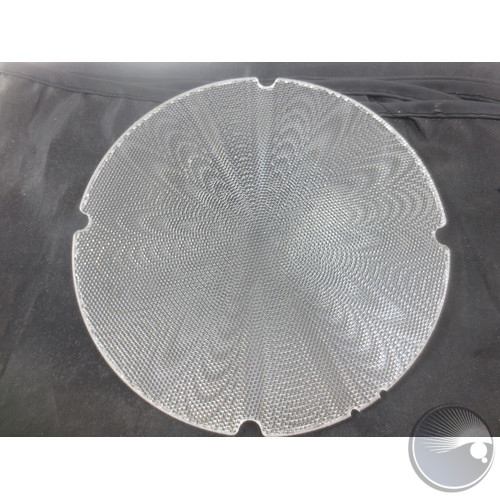

45 DEGREE LENSPTJ302010044945 DEGREE LENS

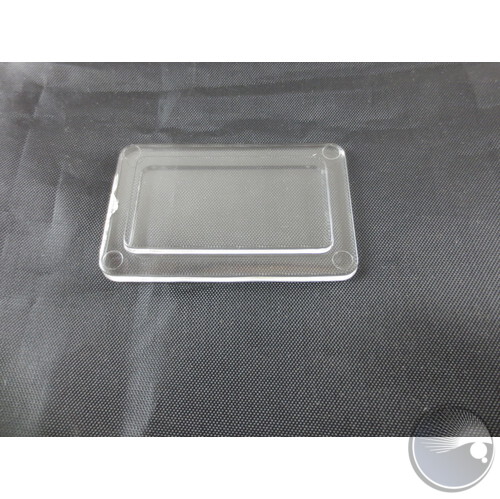

PTJ3020200064DISPLAY CLEAR LENS (BOM#13)

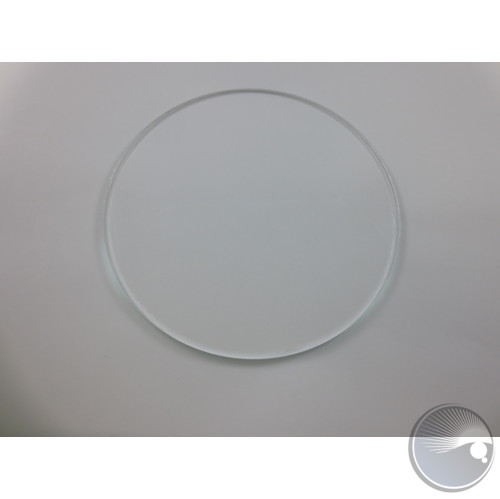

FRONT GLASS (BOM#31)PTJ3020200294FRONT GLASS (BOM#31)

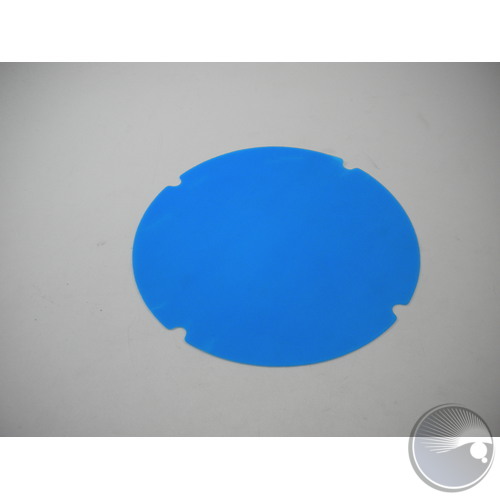

80 DEGREE FILTERPTJ302030038380 DEGREE FILTER

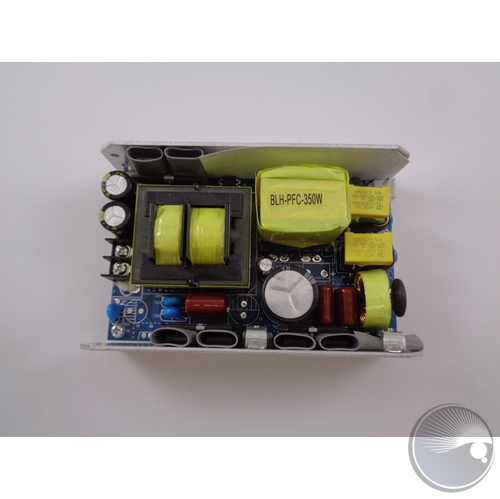

POWER SUPPLY (BOM#12)PTJ3020400254POWER SUPPLY (BOM#12)

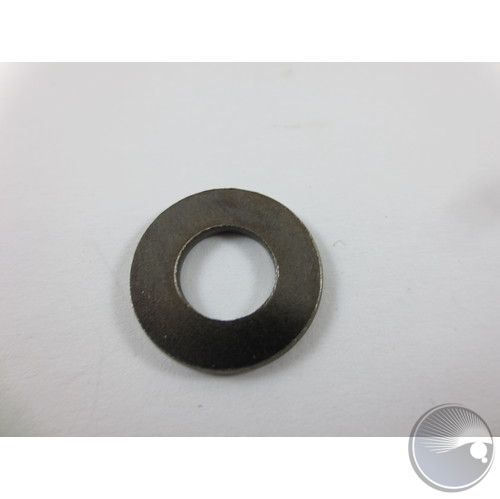

PLASTIC RING (BOM#23)PTJ3021700443PLASTIC RING (BOM#23)

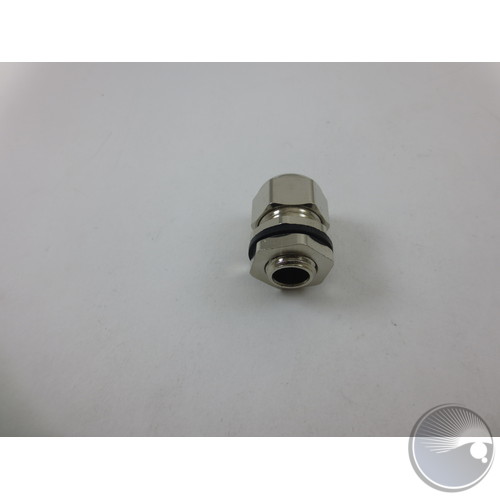

DMX CONNECTOR USE ON SIGNAL LINE (BOM#3)PTJ3022000006DMX CONNECTOR USE ON SIGNAL LINE (BOM#3)

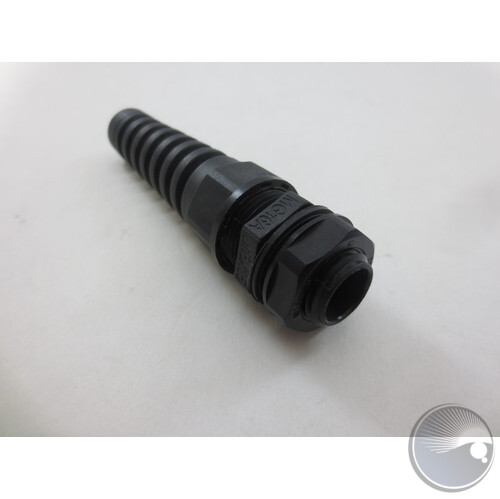

PTJ3022000011POWER CORD CONNECTOR (BOM#39)
Panel mount fuse holder (BOM#36)PTJ3027001001Panel mount fuse holder (BOM#36)
PTJ3030100042STANDOFF (BOM#10)

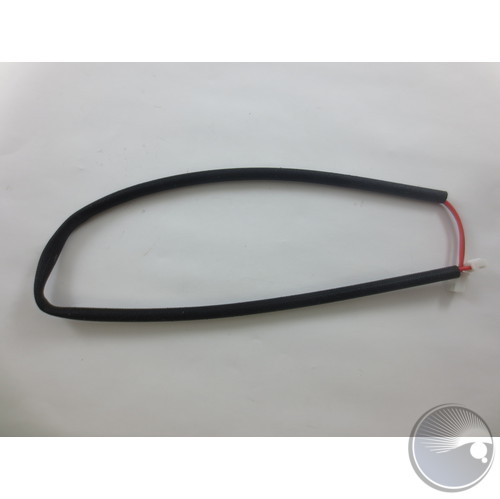

Wire Harness from LED PCB to DRIVER PCB 1PTJ3040401918AWire Harness from LED PCB to DRIVER PCB 1

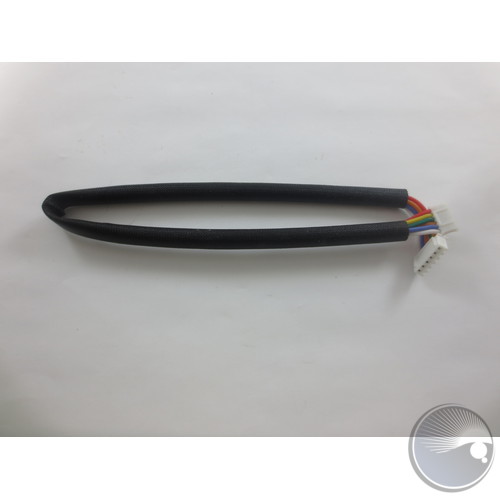

Wire Harness from LED PCB to DRIVER PCB 2PTJ3040401920AWire Harness from LED PCB to DRIVER PCB 2

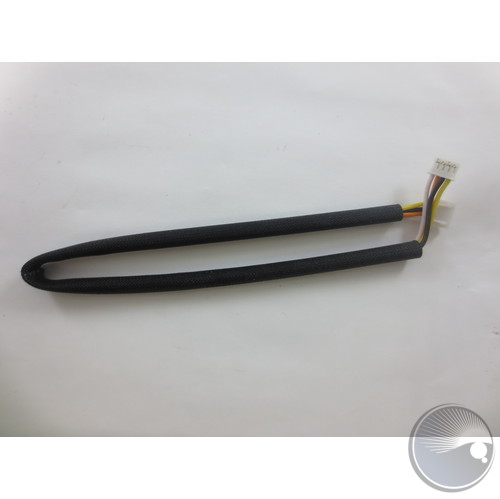

Wire Harness from LED PCB to DRIVER PCB 3PTJ3040401921AWire Harness from LED PCB to DRIVER PCB 3

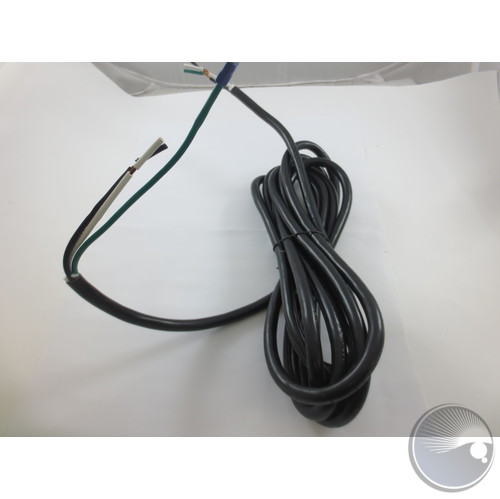

POWER CABLE (BOM#1)PTJ3040700444POWER CABLE (BOM#1)
PTJ3050601163SPECIFICATIONS (BOM#34)

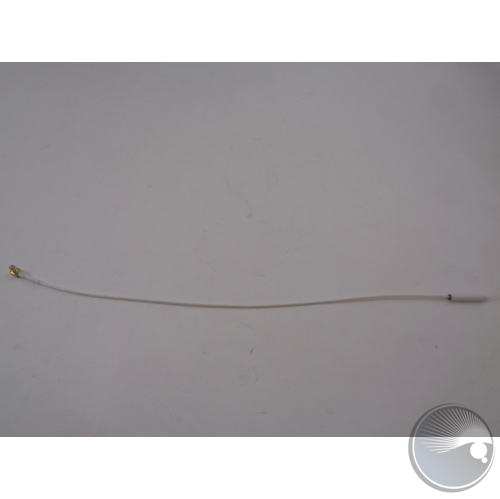

2.4G OMNI ANTERNNA (BOM#25)PTJ30801001242.4G OMNI ANTERNNA (BOM#25)
PTJ4010103300HEAT SINK (BOM#8)
PTJ4010103301BPOWER HEAT PLATE (BOM#7)

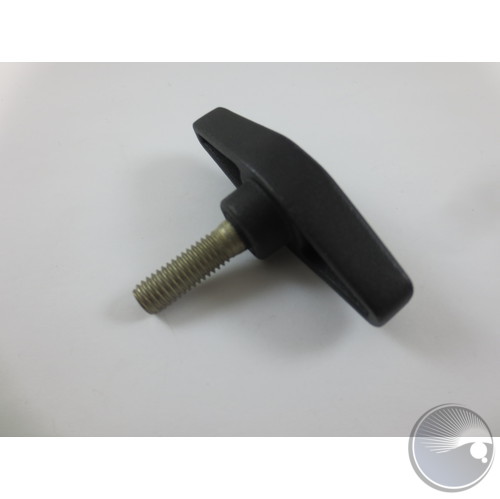

HANGING BRACKET KNOB (BOM#35)PTJ4010302560HANGING BRACKET KNOB (BOM#35)
PTJ4010303407TOP COVER (BOM#32)
PTJ4010303410TOOTH LOCK PLATE (BOM#21)

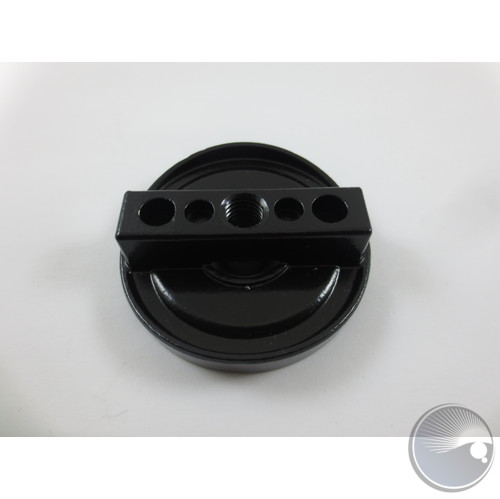

PARTS FOR HANGING BRACKET  (BOM#18)PTJ4010303411PARTS FOR HANGING BRACKET (BOM#18)

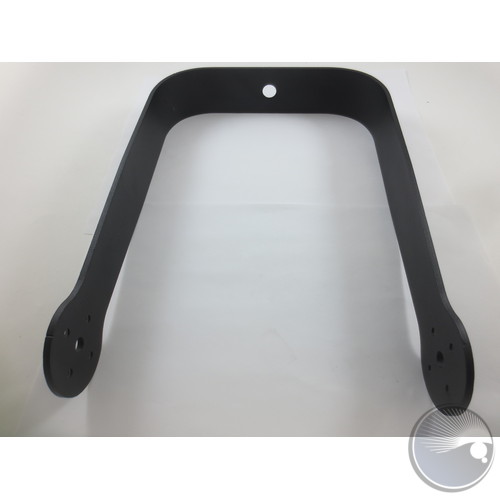

SPOT BRACKET (BOM#24)PTJ4010303412SPOT BRACKET (BOM#24)
PTJ4010303413EHEAT SINK ASSEMBLY (BOM#20)
PTJ4010401844REAR COVER (BOM#6)

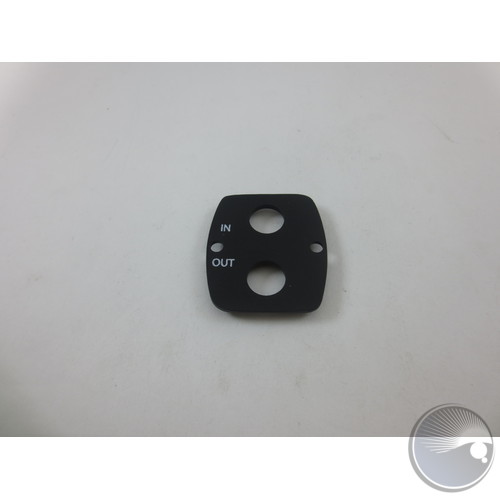

CONNECTOR COVER (BOM#4)PTJ4010401845CONNECTOR COVER (BOM#4)
PTJ4020200351BLOCK MASK (BOM#26)
61 REFLECT CUP (BOM#28)PTJ402020036861 REFLECT CUP (BOM#28)

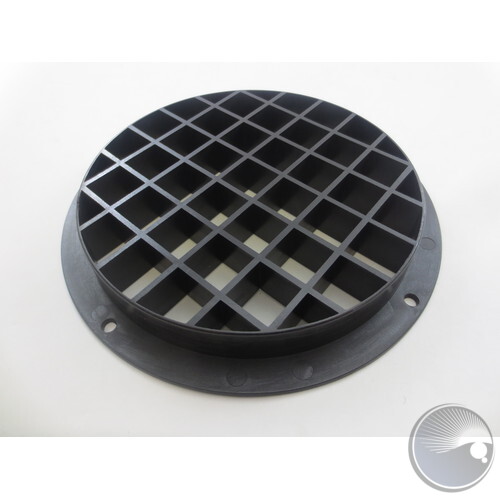

PTJ4020200402EGG CRATE
SOFTENING FILTER ASSEMBLY (BOM#28&29)PTJ5000000165SOFTENING FILTER ASSEMBLY (BOM#28&29)
UPLOAD03PTJUPLOAD03UPLOAD03
