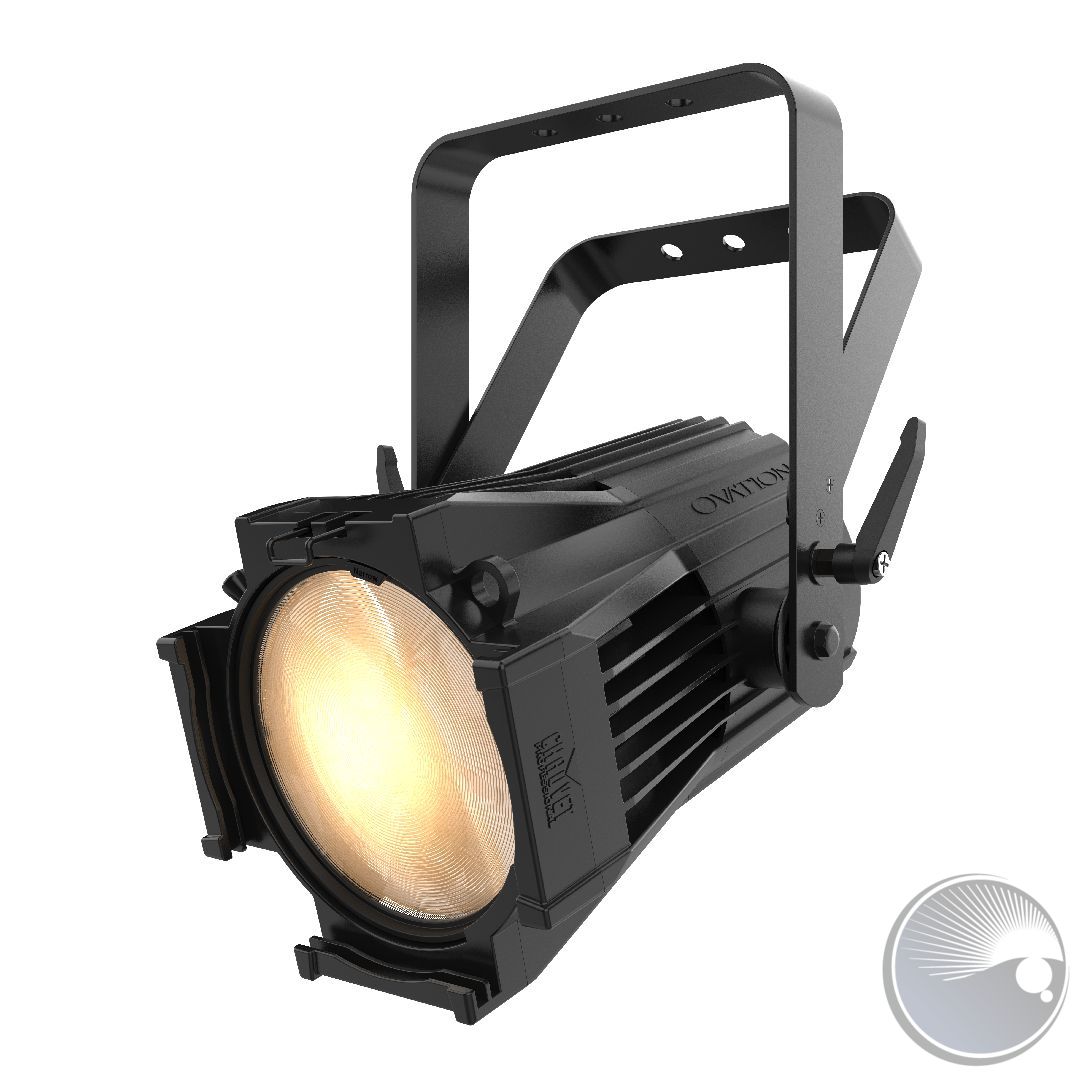

Ovation P-56WW

916,30 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONP56WW
Ovation  P-56WW Ovation P-56WW is a bright, compact, and virtually silent par with... mehr
Produktinformationen "Ovation P-56WW"

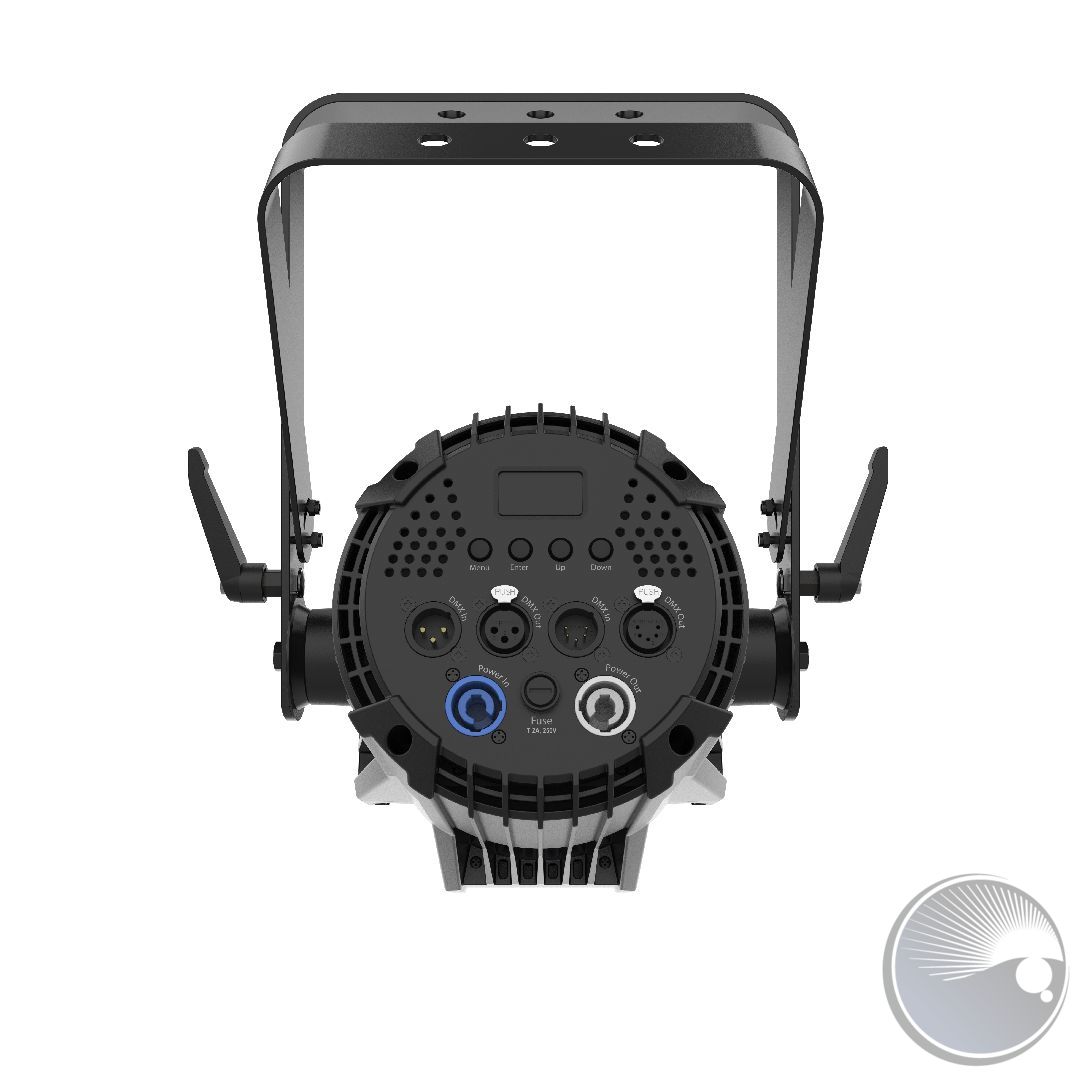

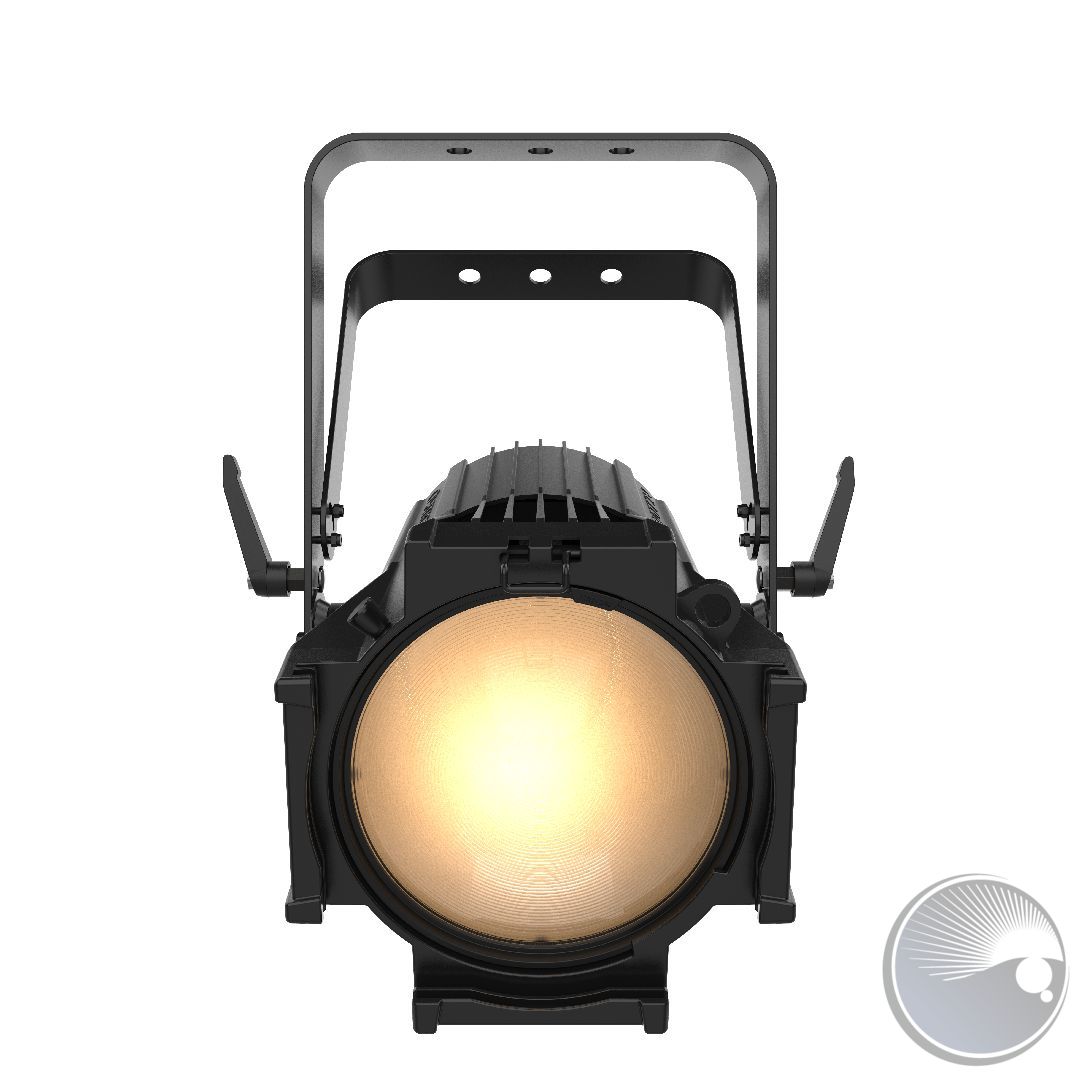

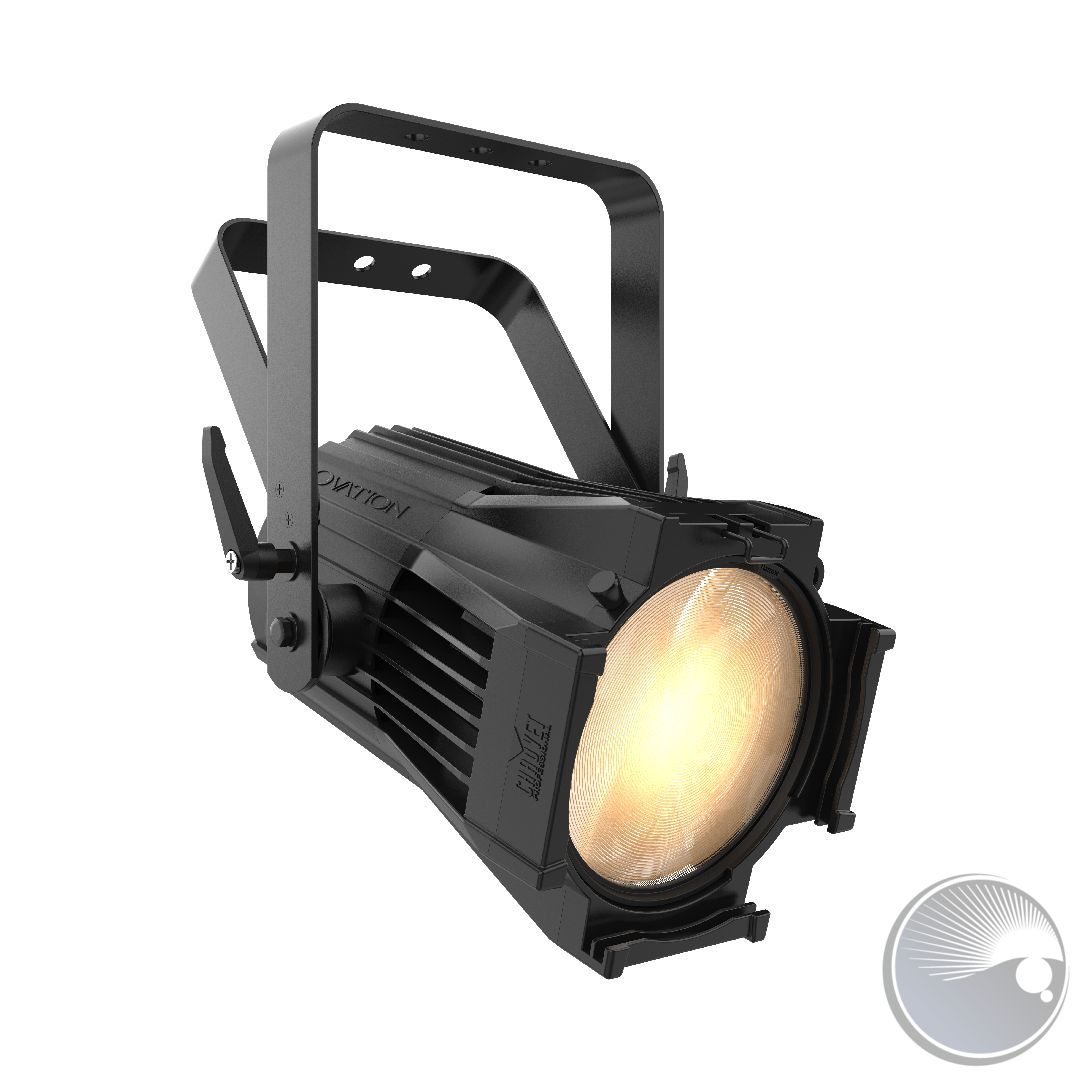

Ovation P-56WW

Ovation P-56WW is a bright, compact, and virtually silent par with exceptionally high CRI that is ideal for theatrical and studio applications. The sleek, modern-style par produces a homogenized, single-source, flat and even field of light with the same efficient warm white LED system found in the award-winning Ovation E-260WW ellipsoidal. Interchangeable lens plates are included for narrow, medium and wide beam angles. The virtually silent par also features extremely smooth 16-bit dimming, as well as RDM and PWM for set-up ease. The unit accepts standard 7.5” beam shaping accessories.

AT A GLANCE

  • Warm white PAR style fixture with output comparable to a 1,000 W PAR 64 lamp

  • 16-bit dimming resolution for smooth fades

  • Compact design with homogenous single source of light

  • Flat, even field of light

  • Quiet operation for use in any situation

  • Interchange lens plates included for narrow, medium and wide beam angles

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LEDs (WW) 230 W, (3.2 A), 3228 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3228 K
  • CRI: 97.9
  • Beam Angle (Narrow lens): 11.8°
  • Beam Angle (Medium lens): 23.9°
  • Beam Angle (Wide lens): 70.9°
  • Beam Angle (Wide lens w/ egg crate) : 37°
  • Field Angle (Narrow lens): 26.6°
  • Field Angle (Medium lens): 40°
  • Field Angle (Wide lens): 106°
  • Field Angle (Wide lens w/egg crate): 68°
  • Lumens (w/Narrow lens): 10,326
  • Lumens (w/Medium lens): 10,728
  • Lumens (w/Wide lens): 10,687
  • Illuminance (w/Narrow Lens): 5,468 lux @ 5 m
  • Illuminance (w/Medium Lens): 2,264 lux @ 5 m
  • Illuminance (w/Wide Lens): 363 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 29 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
  • Weight: 11.6 lb (5.3 kg)
  • Exterior Color: Black
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 2, 3 or 6
  • Modes/Personalities: 4 personalities (1, 2, 3, 6)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 100 V; 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V; 15 units @ 240 V
  • Power and Current: 210 W, 2.278 A @ 100 V, 60 Hz
  • Power and Current: 205 W, 1.806 A @ 120 V, 60 Hz
  • Power and Current: 197 W, 1.023 A @ 208 V, 60 Hz
  • Power and Current: 195 W, 0.916 A @ 230 V, 50 Hz
  • Power and Current: 194 W, 0.886 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • Ovation P-56WW
  • Neutrik powerCON power cord
  • Gel Frame holder (7.5 in/191 mm accessories)
  • Wide, medium and narrow lenses

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 03031475





Weiterführende Links zu "Ovation P-56WW"

3.15AMPGMAFUSE (BOM#14)
PTF1001002202POWER OUT SOCKET (BOM#31)
PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)
PLASTIC RING (BOM#11)PTF1490500042PLASTIC RING (BOM#11)
PTF2700003804NEUTRIK POWER CABLE 1.5M (POWERCON TO EDISON) (BOM#41)
DMX XLR SOCKET PCB - 5-PIN (BOM#56)PTJ2010033700DMX XLR SOCKET PCB - 5-PIN (BOM#56)
PTJ2010325000DMX XLR SOCKET PCB - 3-PIN (BOM#57)
DISPLAY PCB (BOM#37)PTJ2020201330DISPLAY PCB (BOM#37)

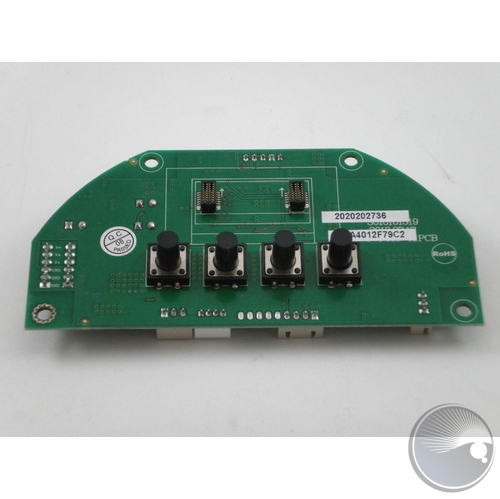

MPCB (BOM#21)PTJ2020202494AMPCB (BOM#21)

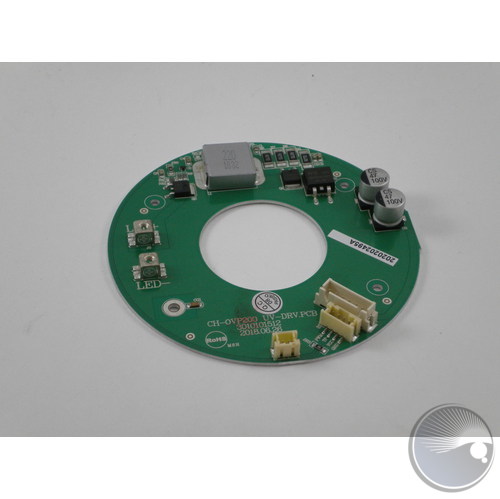

DRIVER PCB (BOM#10)PTJ2020202495DRIVER PCB (BOM#10)

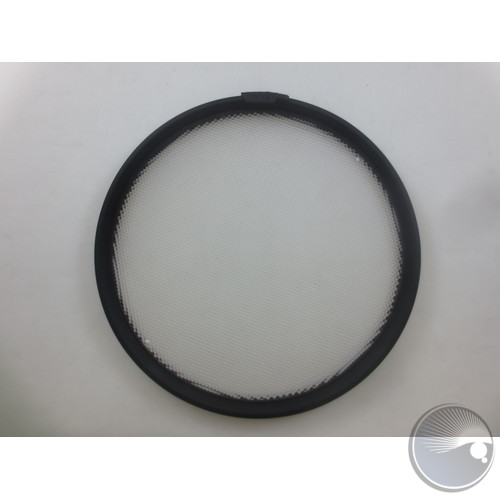

Wide lens (BOM#2,3)PTJ2030100148Wide lens (BOM#2,3)

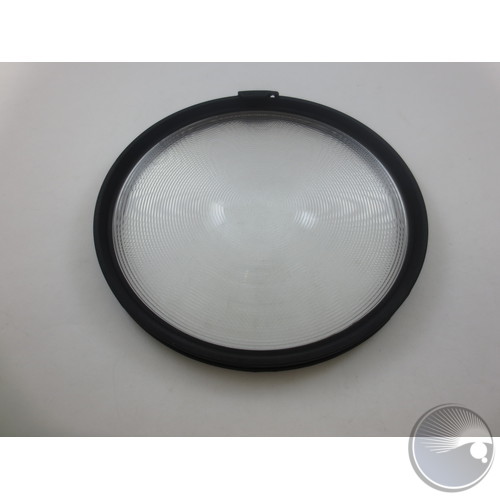

Medium lens (BOM#2,3)PTJ2030100149Medium lens (BOM#2,3)

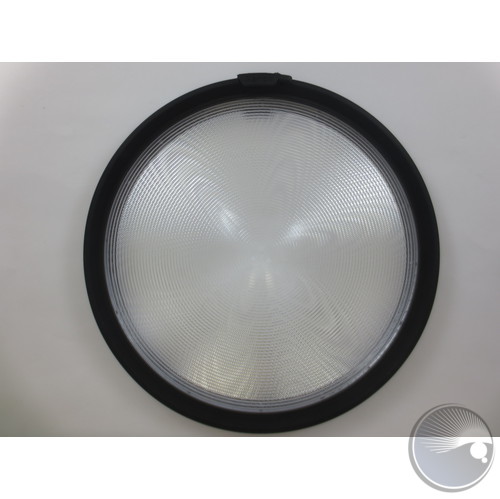

Narrow lens (BOM#2,3)PTJ2030100214Narrow lens (BOM#2,3)

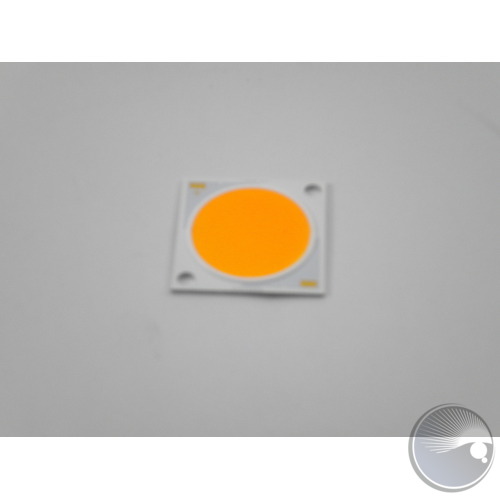

LED (BOM#12)PTJ3010500241LED (BOM#12)
PTJ3019001043BUTTON COVER (BOM#28)
PTJ3020100427THREAD LENS (BOM#3)
PTJ3020200064DISPLAY CLEAR LENS (BOM#13)

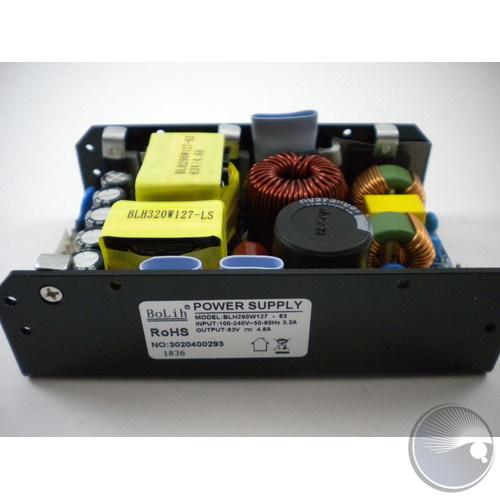

POWER SUPPLY (BOM#18)PTJ3020400293POWER SUPPLY (BOM#18)
PTJ3020900027FAN NET (BOM#15)

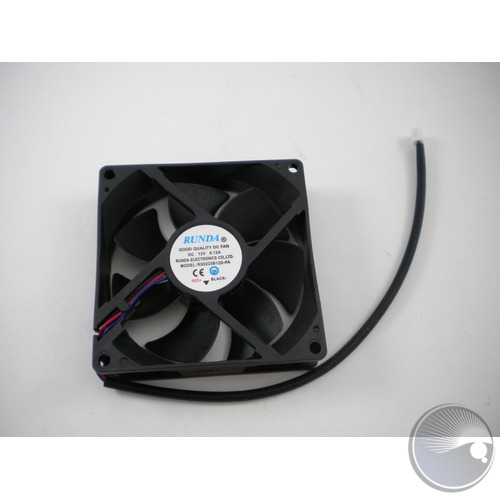

DC FAN (BOM#17)PTJ3020900071ADC FAN (BOM#17)
PTJ3021600060LATCH SPRING (BOM#35)
SCREW INSIDE HANGING BRACKET  (BOM#22)PTJ3021700412SCREW INSIDE HANGING BRACKET (BOM#22)
PLASTIC WASHER FOR KNOBPTJ3021700480PLASTIC WASHER FOR KNOB
HM SCREW (BOM#24)PTJ3021700587HM SCREW (BOM#24)

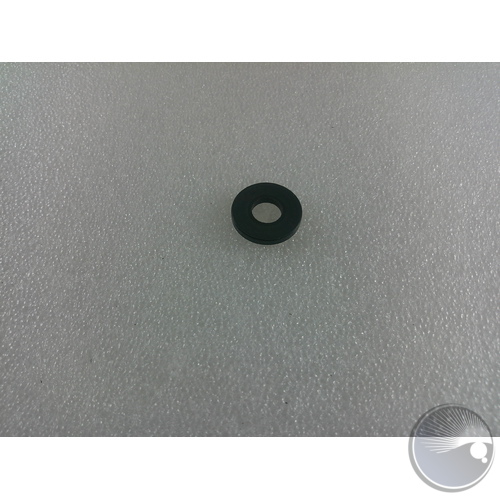

PTJ3021701039PLASTIC RING (BOM#35)
PTJ3050601363AQRG (BOM#39)
PTJ4010104125POWER HOLDER (BOM#19)
PTJ4010104126REFLECT CUP (BOM#9)
PTJ4010302041PRESSING PLATE (BOM#23.BASE)
SEMI-CIRCLE  METAL PART (BOM#49)PTJ4010302483SEMI-CIRCLE METAL PART (BOM#49)

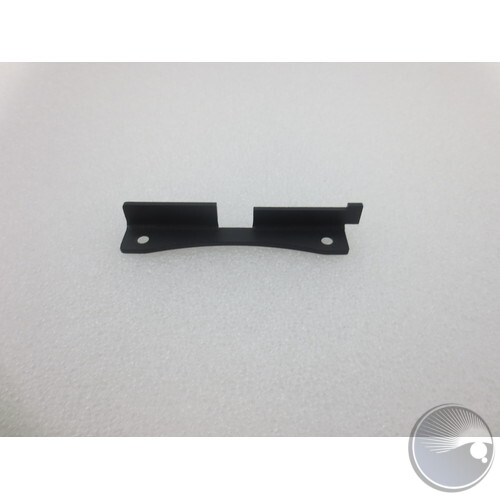

PTJ4010303009SPRING USE ON TOP COVER (BOM#4)
GER FRAME (BOM#35)PTJ4010303080AGER FRAME (BOM#35)
PTJ4010304308LOCK (BOM#6)
PTJ4010304309LOCK PLATE (BOM#8)

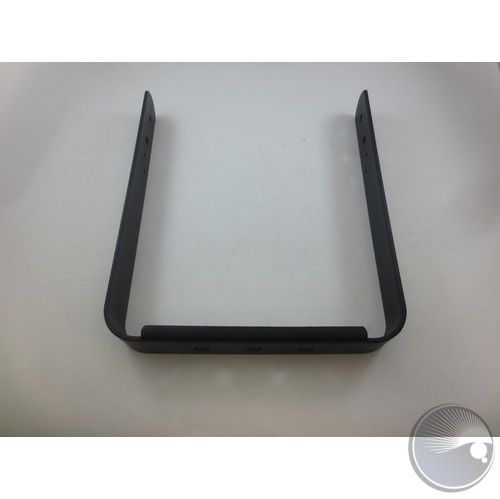

HANGING BRACKET-OUTER (BOM#31)PTJ4010304310AHANGING BRACKET-OUTER (BOM#31)

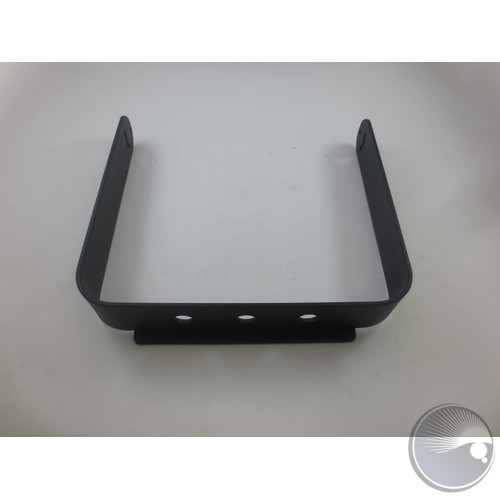

HANGING BRACKET-INNER (BOM#30)PTJ4010304311AHANGING BRACKET-INNER (BOM#30)
PTJ4010304312AHEAD HOUSING (BOM#14)
PTJ4010304313TOP COVER (BOM#5)
PTJ4010304315BACK PLATE (BOM#16)
PTJ4010402149REAR (BOM#20)
PTJ4020100197LED HOLDER (BOM#28)
PTJ4020200417THREAD LENS COVER (BOM#2)
UPLOAD03PTJUPLOAD03UPLOAD03
