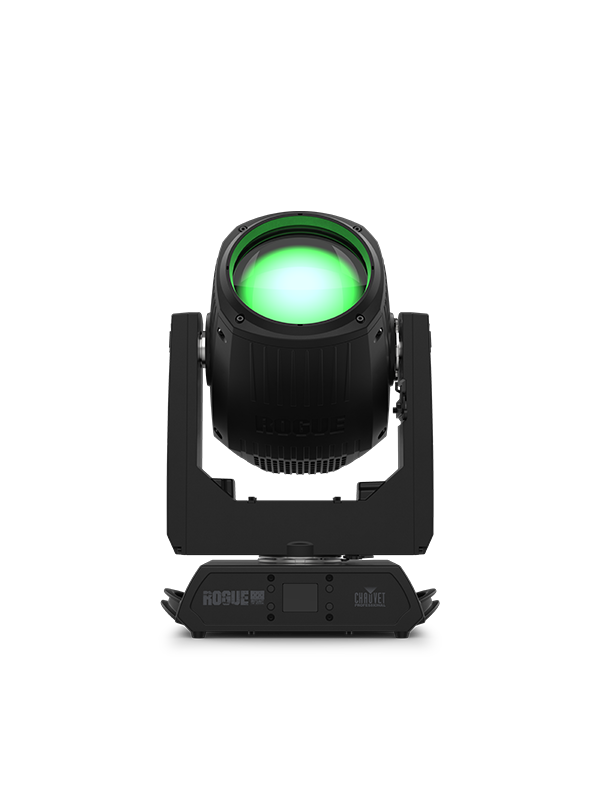

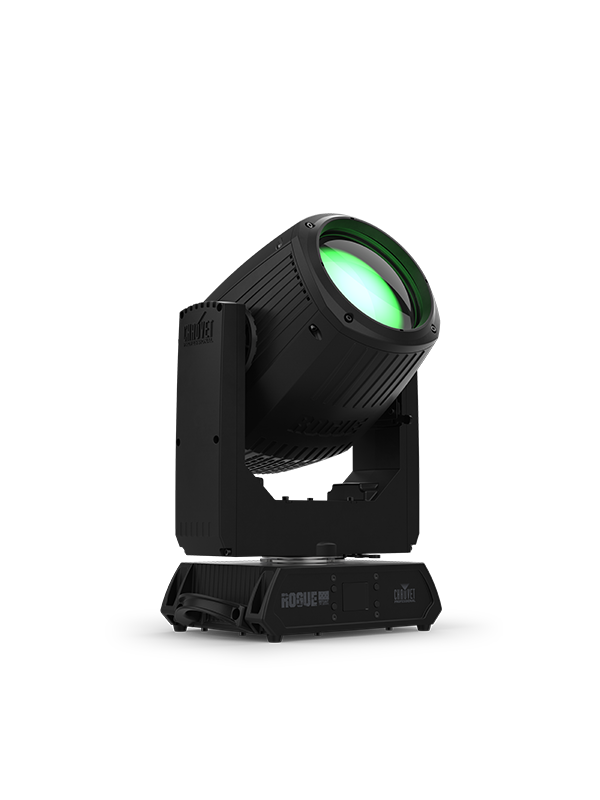

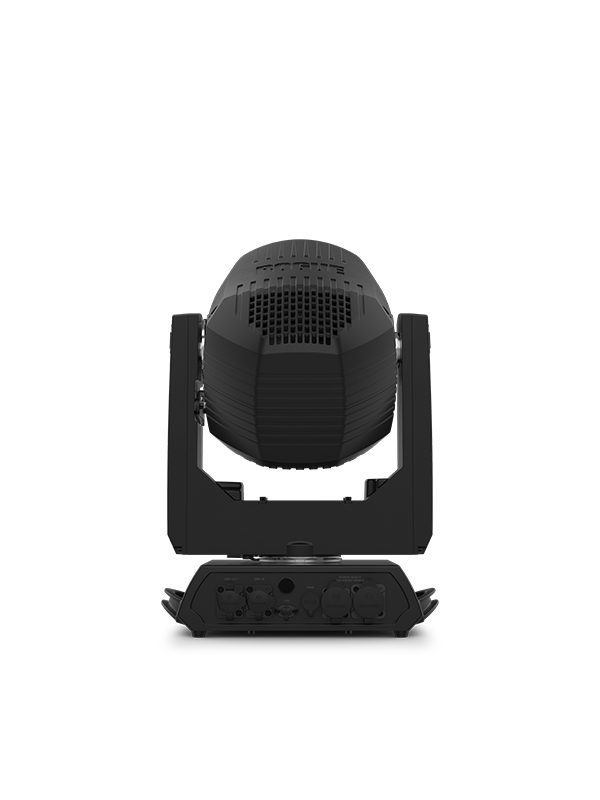

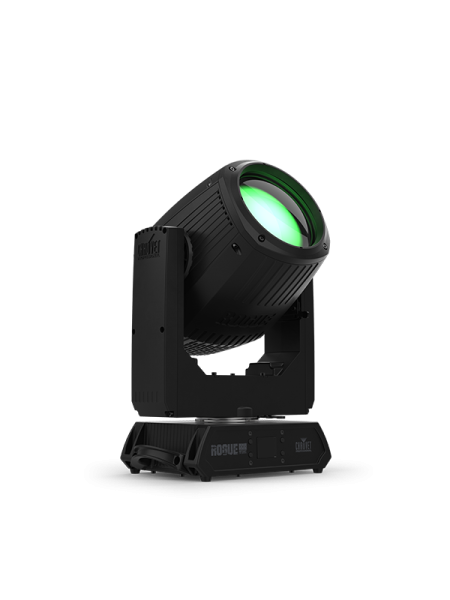

Rogue Outcast 1M Beam #
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: ROGUEOUTCAST1MBEAM
At a Glance
Fully featured, high powered IP65 rated beam fixture with a Red, Mint and Blue LED, single gobo wheel with static gobos, layerable prisms in a lightweight and durable aluminum / magnesium casing
Full color mixing from the LED source for a wide spectrum of color variations. No color wheel needed
360° pan and tilt movement for endless movement effects
Fast and precise movement of pan and tilt functions
Individually controllable and layerable 6- and 8-facet prisms
Frost for even light distribution
5-pin DMX input/output connections
Tight 1.9° beam for extremely focused aerial effects
RDM enabled for remote addressing and troubleshooting
17 static gobos on one wheel for dynamic gobo effects
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility
USB-C port for uploading software
Specifications
Optical
- Light Source: 1 LEDs (Red,Mint,Blue) 120 W, (3.34A), 50,000 hours life expectancy
- Color Temperature (at full): 10,398 K
- Front lens diameter: 140 mm
- CRI: 80.8
- Beam Angle: 1.9°
- Field Angle: 2.7°
- Cutoff Angle: 3.4°
- Lumens (Output): 4,488
- Illuminance (total): 117,690 lux @ 5 m
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
Dynamic Effects
- Pan and Tilt: 360°/360° total movement
- Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Gobos (1): 17 + open (metal), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel (rotating): 6 mm (outside), .6 mm (max. thickness)
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Focus: Motorized
- Frost: Motorized
- Prism: 6 Facets, motorized, linear, rotating
- Prism: 8 Facets, motorized, round, rotating
- Strobe Rate: 0 to 30 Hz
- Dim Curves: 4
Construction / Physical
- Dimensions: 11.9 x 7.56 x 17.9 in (302 x 192 x 455 mm)
- Weight: 27.2 lb (12.34 kg)
- Exterior Color: Black
- Housing Material: Aluminum/Magnesium diecast
Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP65 XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 21 or 25
- Modes/Personalities: 2 personalities (21, 25)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking:; 6 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
- Power and Current: 232 W, 1.95 A @ 120 V, 60 Hz
- Power and Current: 223 W, 1.11 A @ 208 V, 60 Hz
- Power and Current: 220 W, .990 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC, UKCA
- IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
- Rogue Outcast 1M Beam
- Seetronic Powerkon IP65 power cord

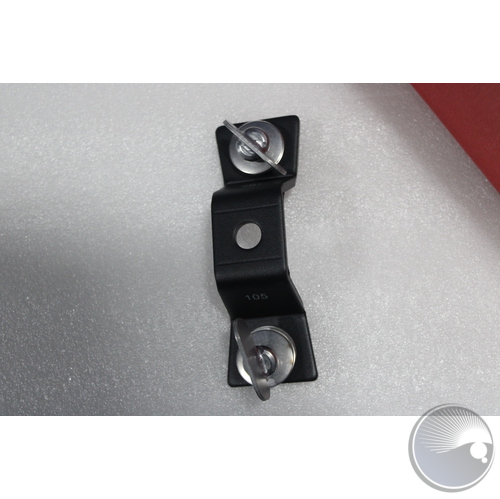

- 105mm Omega bracket with mounting hardware
Optional Accessories
- Clamps
- Seetronic PowerKON cables
- DMX Cables
- Flight Cases
- CP Rack
- PowerStream 4 IP
