- Artikel-Nr.: WELLFITXX6
At a Glance

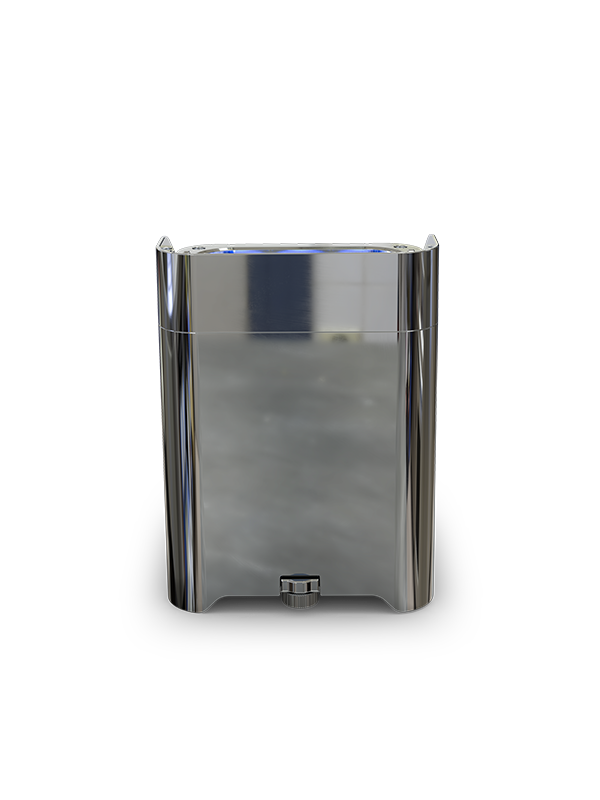

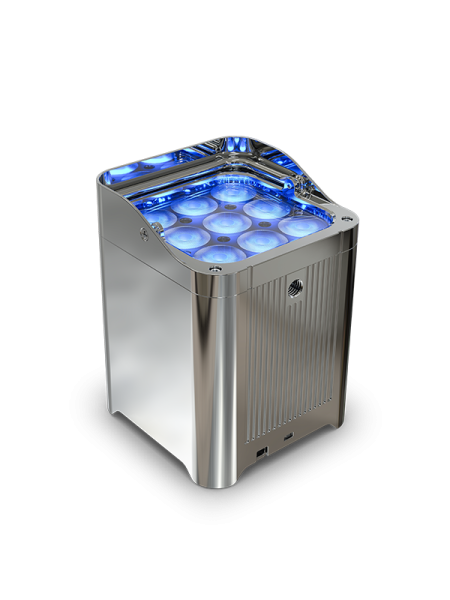

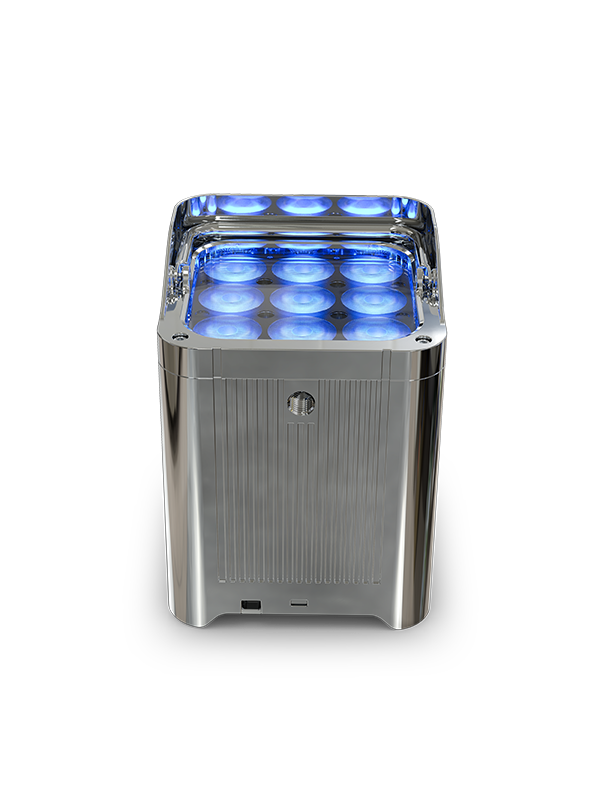

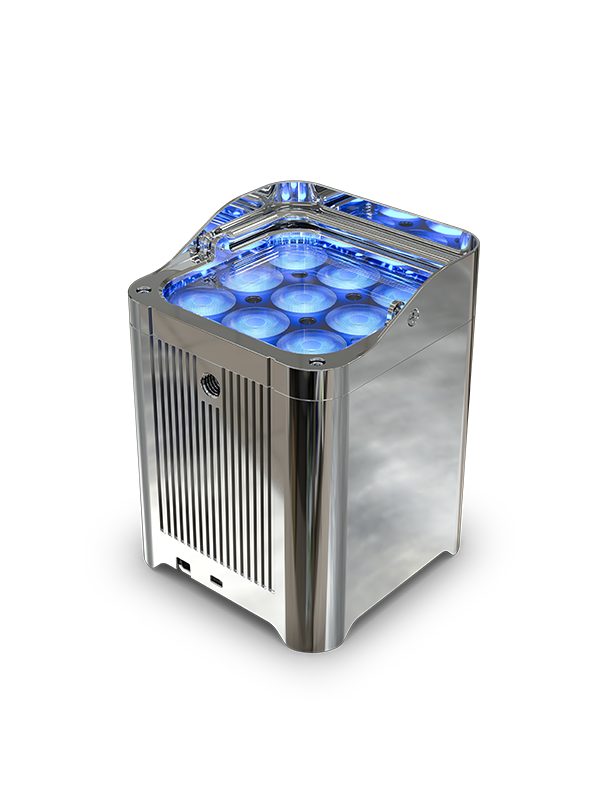

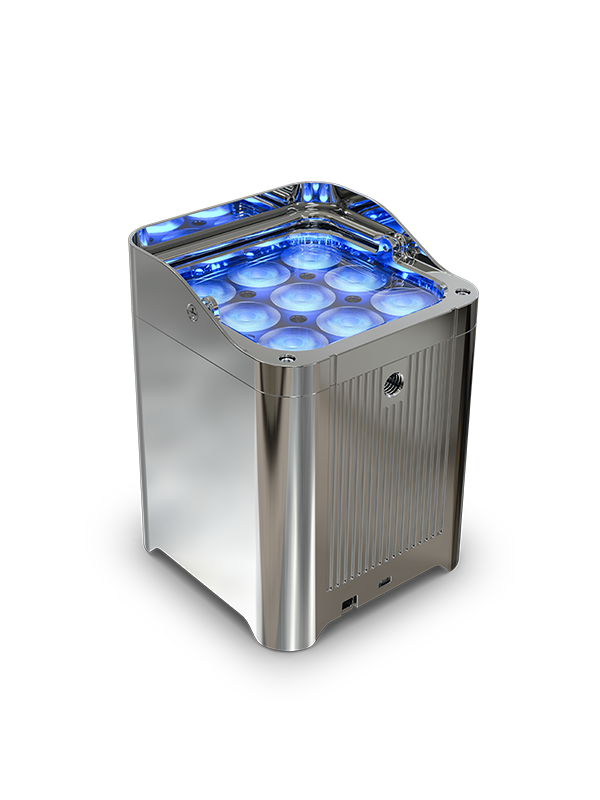

A fully realized kit of (6) battery operated chrome IP65-rated uplight-style fixtures with (9) RGB warm white LEDs, and a beam angle of 11.3 degrees
Charging case designed to charge with the lid closed to save warehouse space
Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
Built-in battery charger allows fixture to operate while charging (Single charging cable sold separately)
Control over RDM, CRMX, or RF
Easy connection to WELL CONNECT box and ConnectFX app
USB-C port for convenient software updates
Pressure equalizing M6 Gore valve
Adjustable front foot for adjusting fixture angle
Kensington lock position
Built-in safety cable attachment point
Easy-to-read OLED display
Built-in theft alarm (audio and visual notification)
Built-in PWM adjustment
Included RF remote

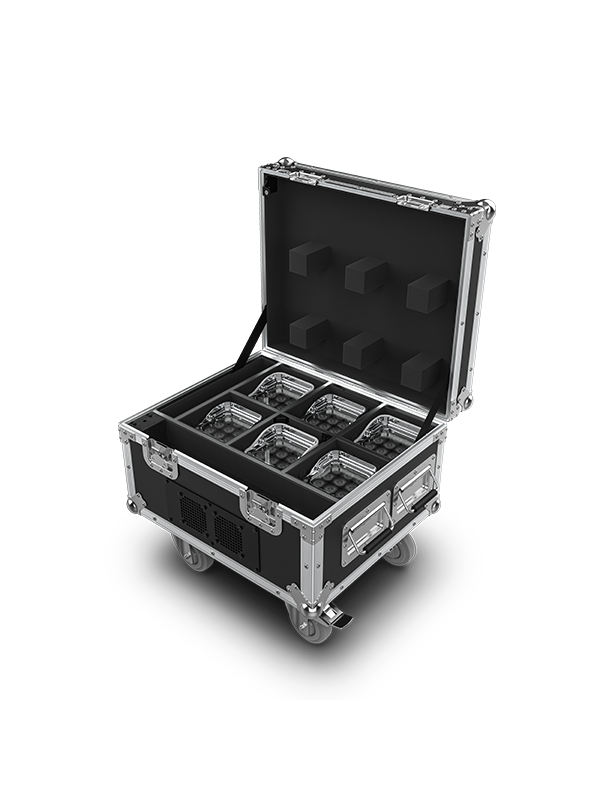

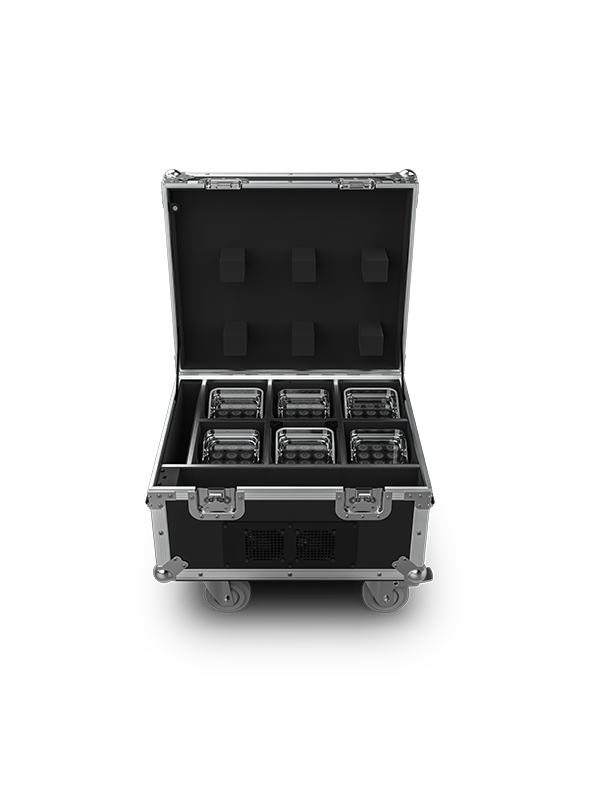

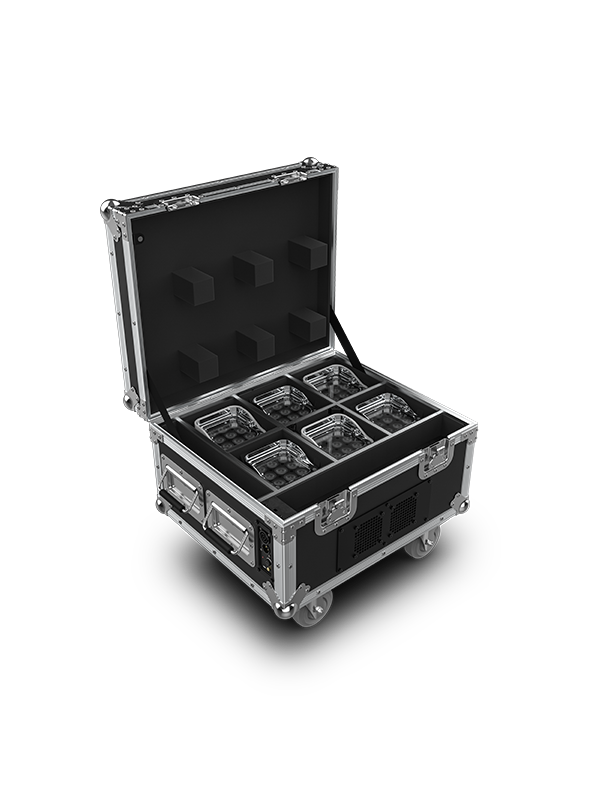

Included 6 pack charging case
Specifications
Optical
- Light Source: 9 LEDs (RGBWW) 13.2 W, (556 mA), 50,000 hours life expectancy
- Color Temperature (range): 2600 to 10,000K
- Beam Angle: 11.5°
- Field Angle: 21.1°
- Lumens: 1762 lm (OFF battery setting)
- Illuminance: 1087 lux @ 5 m (OFF battery setting)
- Lumens: 1944 lm (5-hour battery setting)
- Illuminance: 1205 lux @ 5 m (5-hour battery setting)
- Lumens: 1233 lm (8-hour battery setting)
- Illuminance: 764 lux @ 5 m (8-hour battery setting)
- Lumens: 821 lm (12-hour battery setting)
- Illuminance: 507 lux @ 5 m (12-hour battery setting)
- Lumens: 550 lm (18-hour battery setting)
- Illuminance: 339 lux @ 5 m (18-hour battery setting)
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 30 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: No
Construction / Physical
- Dimensions - Fixture: 4.9 x 4.9 x 6.9 in (126 x 126 x 176 mm)
- Dimensions – 6 pack case: 21.8 x 18.5 x13.5 in (554 x 470 x 345 mm)
- Weight (single unit) 7.0 LB (3.2 kg)
- Weight (shipping weight): 98.3 lbs (44.6 kg)
- Exterior Color: Chrome
- Housing Material: Aluminum diecast
Connections
- Power Connection: 5.5mm right-angle barrel jack
- Cable Length (charger): 8.5 ft (2.6m) (sold separately)
- Power Input (charging case): Seetronic TRUE1 IP65
- Power Output (charging case): Seetronic TRUE1 IP65
- Software Connection: USB-C
Control
- Control Protocol: RDM, CRMX, NFC, RF
- DMX Channels: 5, 8, or 12
- Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
- Wireless WDMX “G” Compatibility: G4S
- Wireless Lumen Radio Compatibility: CRMX
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Single unit
- Power and Current (single unit charging): 43 W, 0.74 A @ 100 V, 60 Hz
- Power and Current (single unit charging): 42 W, 0.64 A @ 120 V, 60 Hz
- Power and Current (single unit charging): 42 W, 0.52 A @ 208 V, 60 Hz
- Power and Current (single unit charging): 42 W, 0.47 A @ 230 V, 50 Hz
- Power and Current (single unit charging): 42 W, 0.47 A @ 240 V, 50 Hz
- 6 Pack case
- 3 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
- Power and Current:239W, 3.94A @ 100V
- Power and Current: 238W, 3.44A @ 120V
- Power and Current: 235W, 2.48A @ 208V
- Power and Current: 235W, 2.32A @ 230V
- Power and Current: 235W, 2.27A @ 240V
Battery
- Battery type: Lithium Ion
- Rechargeable: Yes
- Battery Charge Time: 1.6 hours
- Battery Life: 3hr, 5hr, 8hr, 12hr
- Battery Power: 25.9 V, 4.4 Ah
Certifications / Qualifications
- CE, FCC, UKCA
- IP Rating: IP65, temporary outdoor/ wet use (fixture)
- IP Rating: IP20 (case)
- Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
- Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
What's Included
- (6) WELL FIT X
- (1) 6 slot charging case
- (1) basic RF controller
- (1) True 1 power cable
- (1) QRG
