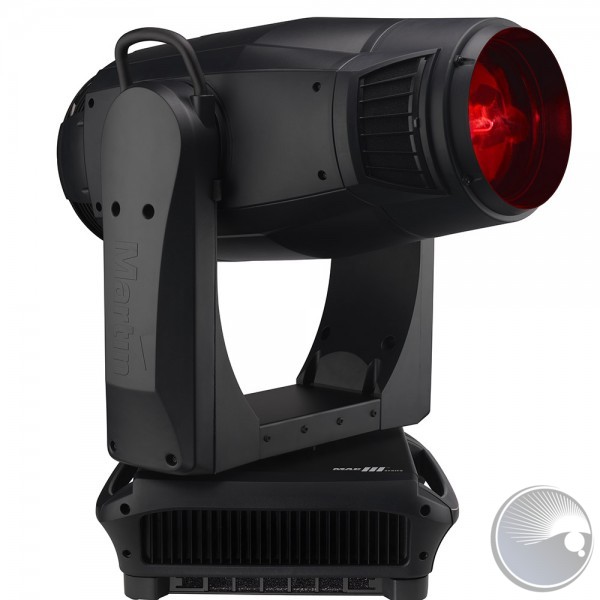

MAC III Profile in cardboard

MAC III Profile in cardboard

Auf Anfrage!

  • 90206000
The MAC III Profile offers a perfect balance between a superior feature list and ultimate... mehr
Produktinformationen "MAC III Profile in cardboard"

The MAC III Profile offers a perfect balance between a superior feature list and ultimate performance. This high-output profile combines advanced 1500 watt lamp technology with superb optical efficiency, an innovative design and great feel to take moving head performance to a higher level.

  • 1500 W short arc discharge lamp with Lok-it!™ base
  • CMY plus variable CTO with non-fade coating technology
  • 7 position color wheel plus open
  • 1500 W short arc discharge lamp with Lok-it!™ base
  • CMY plus variable CTO with non-fade coating technology
  • 7 position color wheel plus open
  • Interchangeable 4-facet rotating and indexable prism
  • Motorized iris
  • Mechanical and electronic strobe effect 2 - 10 Hz, pulse effects, instant open and blackout
  • Gobo animation wheel with full movement / direction control
  • 1:5 zoom with focus tracking
  • Completely uniform dimming plus mechanical shutter for total blackout
  • Pan and tilt (540°/267°) with absolute positioning control
  • Modular design for easy maintenance, servicing and product conversion
  • Electronic ballast, fast lamp re-strike and flicker free light
  • Patented very low-noise cooling. Quietest fixture in its class
  • RDM ready, service USB and Art-Net II prepared
  • Battery powered TFT display and jog wheel navigation
  • Easy conversion between a profile and performance - no need to invest in two separate fixtures
  • 2 x 5 indexable rotating gobos plus open


Weiterführende Links zu "MAC III Profile in cardboard"

Martin Lamphol. 840 FastFit839/3539105221009Martin Lamphol. 840 FastFit839/35391
Martin Step motor 23HS1001-22 Ø6,35/2105701804Martin Step motor 23HS1001-22 Ø6,35/21
Martin Step motor KT42HM4-015 Ø5/12 D05703600Martin Step motor KT42HM4-015 Ø5/12 D
Martin M3x6 ph torx black08050702Martin M3x6 ph torx black
Martin M3x8 cs torx black08050803Martin M3x8 cs torx black
Martin M4x6 ph torx tapt spike black08070702Martin M4x6 ph torx tapt spike black
Martin M4x12 bh torx black08070710Martin M4x12 bh torx black
Martin PT 2,9x6,5 ph torx black08200102Martin PT 2,9x6,5 ph torx black
Martin PT 5x12 ph pz black08200107Martin PT 5x12 ph pz black
Martin DIA10 starlock brown08230116Martin DIA10 starlock brown
Martin DIA4 circlip shiny08230118Martin DIA4 circlip shiny
Martin 1/4 turn 4mm retaining spring08240106Martin 1/4 turn 4mm retaining spring
Martin 1/4 turn 4mm receptacle08240109Martin 1/4 turn 4mm receptacle
Martin 1/4 turn fastener, wingbolt08240113Martin 1/4 turn fastener, wingbolt
Martin Magnet DIA20/DIA10x1,5 NdFeB08240703Martin Magnet DIA20/DIA10x1,5 NdFeB
Martin Spacer D8 d4,5 L508261330Martin Spacer D8 d4,5 L5
WIRE Y/G AWG18 M3 UL156911100520WIRE Y/G AWG18 M3 UL1569
Martin WIRE RED AWG14 PTFE 950mm11122001Martin WIRE RED AWG14 PTFE 950mm
Martin WIRE RED AWG14 PTFE 650mm11122002Martin WIRE RED AWG14 PTFE 650mm
Wireset 24V for Display, 200mm11720027Wireset 24V for Display, 200mm
Martin Wireset for I/O Head11720028Martin Wireset for I/O Head
Martin Ribbon cable 0,5mm 40Way,130mm11781001Martin Ribbon cable 0,5mm 40Way,130mm
Wires. H.Volt base-yoke,MACIII11850113Wires. H.Volt base-yoke,MACIII
Martin Wireset for highvolt,yoke-head11850115Martin Wireset for highvolt,yoke-head
Martin Wireset 6-pol - Powerbox MACIII11851031Martin Wireset 6-pol - Powerbox MACIII
Wireset 10-pol - Powerbox MACIII11851032Wireset 10-pol - Powerbox MACIII
Wireset 2-pol - Powerbox MACIII11851033Wireset 2-pol - Powerbox MACIII
Wireset Ballast to SMPS11851034Wireset Ballast to SMPS
Wireset 4-pol PFC to11851035Wireset 4-pol PFC to
Ground wire - PowerBox MACIII11851041Ground wire - PowerBox MACIII
Martin Wireset for Power Input for Powerbox 32311851043Martin Wireset for Power Input for Powerbox 323
Wireset for Yoke,MACIII11860218Wireset for Yoke,MACIII
Wireset for Prisme, MACIII11860219Wireset for Prisme, MACIII
Wire set Power Unit-Con.Board11860221Wire set Power Unit-Con.Board
Wireset Power Unit-PCB,MACIII11860222Wireset Power Unit-PCB,MACIII
Wireset for Zoom/Focus,MACIII11860223Wireset for Zoom/Focus,MACIII
Martin Wireset for CMMY,MACIII11860224Martin Wireset for CMMY,MACIII

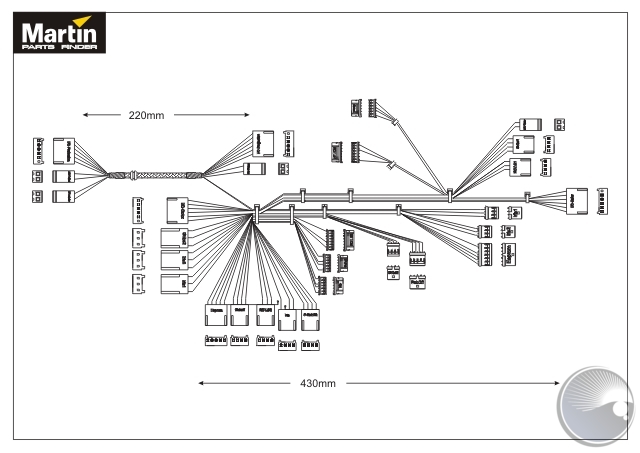

Wireset for color/gobo, MAC III11860225Wireset for color/gobo, MAC III

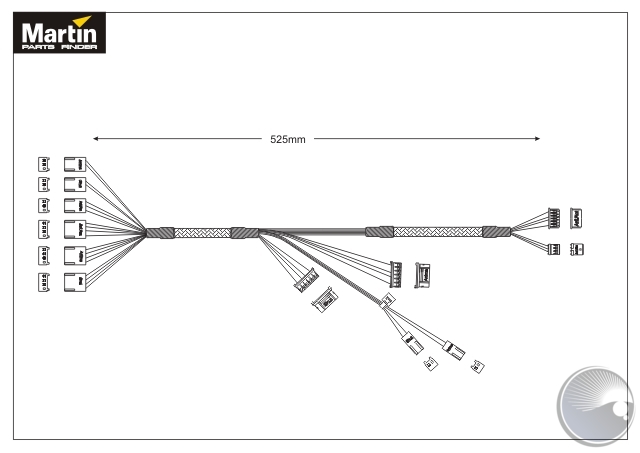

Wireset for Animation,MACIII11860226Wireset for Animation,MACIII
Wireset 24V Yoke-Head,MACIII11860234Wireset 24V Yoke-Head,MACIII
Martin Wireset for Mainboard,MACIII11860235Martin Wireset for Mainboard,MACIII
Martin Wire Retainer Flexible13101008Martin Wire Retainer Flexible
Martin Strap,black,high temp,2.5x9813104000Martin Strap,black,high temp,2.5x98
Rubber grommet DA 95/130/3013200002Rubber grommet DA 95/130/30
Martin Rubber grommet DA 60/90/2013200007Martin Rubber grommet DA 60/90/20
Martin Rubber grommet DA 80/110/2013200012Martin Rubber grommet DA 80/110/20
Wire pipe top13200015Wire pipe top
Rubber grommet DA 80/110/3013200020Rubber grommet DA 80/110/30
Rubber grommet DA 70/120/3013200021Rubber grommet DA 70/120/30
Rubber grommet DA 230/300/2013200024Rubber grommet DA 230/300/20
Rubber grommet DGC 2113200025Rubber grommet DGC 21
Martin Silicone tube 5/9 transparent14026005Martin Silicone tube 5/9 transparent
Martin Silicon/glass sleev d=6mm,blac15802007Martin Silicon/glass sleev d=6mm,blac
Martin Timing wheel T2,5 z=24 std16000210Martin Timing wheel T2,5 z=24 std
Martin Timing wheel MXL-20 w3,2 ø516000230Martin Timing wheel MXL-20 w3,2 ø5
Martin Timing wheel S3M-32 w6 ø6,35 tahco16000290Martin Timing wheel S3M-32 w6 ø6,35 tahco
Martin Timing wheel MXL-20 w5 DIA516000340Martin Timing wheel MXL-20 w5 DIA5
Martin Timing wheel S3M-24 w15 ø6,3516000590Martin Timing wheel S3M-24 w15 ø6,35
Timing wheel S3M-16 w15 16000620Timing wheel S3M-16 w15
Martin Timing belt 40 S3M 48616040050Martin Timing belt 40 S3M 486
Martin Timing belt 270 MXL 4,016040170Martin Timing belt 270 MXL 4,0
Martin Timing belt 72 MXL 4,016040310Martin Timing belt 72 MXL 4,0
Martin Timing belt T2,5-265-04 CF16040470Martin Timing belt T2,5-265-04 CF

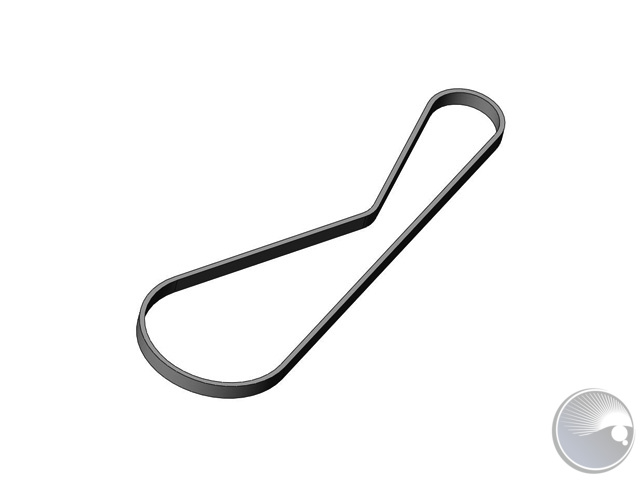

Martin Timing belt T2,5-305-04 CF16040500Martin Timing belt T2,5-305-04 CF
Martin Timing belt T2,5-317,5-04 CF16040510Martin Timing belt T2,5-317,5-04 CF
Martin Timing belt 140 S3M 90016040650Martin Timing belt 140 S3M 900
Martin Timing belt 140 S3M 66616040660Martin Timing belt 140 S3M 666
Martin Timing belt HT 320 MXL 3,816060080Martin Timing belt HT 320 MXL 3,8
Martin Timing belt HT 90 MXL 2,216060090Martin Timing belt HT 90 MXL 2,2
Martin Sun wheel z=56 MAC III16080640Martin Sun wheel z=56 MAC III
Shutter adaptor16300590Shutter adaptor
Gobo sun wheel adaptor16300600Gobo sun wheel adaptor
Martin Flange Bearing MFM-0610-1016700320Martin Flange Bearing MFM-0610-10
Martin Flange bearing JFM-0810-1016700390Martin Flange bearing JFM-0810-10
Axle for CMY16720660Axle for CMY
Zoom axel 16720740Zoom axel
Color wheel shaft MIII16720760Color wheel shaft MIII
Stay for belt tight 8,416720940Stay for belt tight 8,4
Stay for belt tight 5,216720950Stay for belt tight 5,2
Martin Snaplock for timing belt16740170Martin Snaplock for timing belt
Martin Bearing 8/22x7 608-ZZ16760021Martin Bearing 8/22x7 608-ZZ
Martin Bearing 5/16x5 625-ZZ16760030Martin Bearing 5/16x5 625-ZZ
Bearing 5/11x5 685-ZZ N316760131Bearing 5/11x5 685-ZZ N3
Bearing 40/52x7 61808-2RZ N316760480Bearing 40/52x7 61808-2RZ N3
Martin Bushinglock, MAC200016780170Martin Bushinglock, MAC2000
Bushing lock M4 16780190Bushing lock M4
Bushinglock 16780210Bushinglock
Flanged bushing 16780220Flanged bushing
Martin Bushinglock M4 Ø5,9x4,516780270Martin Bushinglock M4 Ø5,9x4,5
Carriage TW-04-1216800040Carriage TW-04-12
Martin Linear ball bushing LMEK8LUU-BR L55/016800070Martin Linear ball bushing LMEK8LUU-BR L55/0
Gobo wheel adaptor17320450Gobo wheel adaptor
Ani wheel receptor plate MIII17320480Ani wheel receptor plate MIII
Prism arm MIII17329750Prism arm MIII
Prism adaptor MIII17329770Prism adaptor MIII
Compression spring D6/d0,6x817720010Compression spring D6/d0,6x8
Martin Tension spring D10,4/d1,2x2717740080Martin Tension spring D10,4/d1,2x27
Martin Tension spring D4/d0,55x21,217740090Martin Tension spring D4/d0,55x21,2
Martin DIA15,60/1,0 snap ring17760570Martin DIA15,60/1,0 snap ring
Martin Air filter support short17760580Martin Air filter support short
Martin Air filter support long17760590Martin Air filter support long
Reset spring zoom M700W17780600Reset spring zoom M700W
Color wheel spring MIII17780860Color wheel spring MIII
Martin Air filter retainer head MIII17780870Martin Air filter retainer head MIII
17 size motor spacer 2mm1782081017 size motor spacer 2mm
Hall sensor bracket MIII18220280Hall sensor bracket MIII
Magnet retainer MIII18220330Magnet retainer MIII
Protection cap for PCBA18220340Protection cap for PCBA
Martin Igniter terminal cover18260320Martin Igniter terminal cover
Martin Upper blower bracket MIII18280140Martin Upper blower bracket MIII
Martin CMY axleholder A19060690Martin CMY axleholder A
Martin CMY axleholder B19060700Martin CMY axleholder B
Martin Handle for yoke MIII19200360Martin Handle for yoke MIII
Martin Rubber foot 25x15mm. Black19440040Martin Rubber foot 25x15mm. Black
Martin Base filter, Short20800220Martin Base filter, Short
Martin Base filter, Long20800230Martin Base filter, Long
Basegable, display module MAC III23402180Basegable, display module MAC III
Martin Basegable, power module MAC III23402190Martin Basegable, power module MAC III
Basehandle, MAC III23402200Basehandle, MAC III
Martin Yoke outercover23402220Martin Yoke outercover
Martin Headlid23402270Martin Headlid
Martin Head sidecover23402280Martin Head sidecover
Martin Headcooling rearcover23402300Martin Headcooling rearcover
Headcooling sidecover23402310Headcooling sidecover
Martin Head module guides23402340Martin Head module guides
Martin Head sidecover B23402370Martin Head sidecover B
Martin Blower adaptor MIII23402440Martin Blower adaptor MIII
Bearing housing w. tilt stop23402490Bearing housing w. tilt stop
Martin Spill ring23402540Martin Spill ring
CMY belt tension arm, elzink y23805920CMY belt tension arm, elzink y
Martin Tilt lock23818030Martin Tilt lock
Yoke top lid23818031Yoke top lid
Martin Module plate CMY 2mm23818161Martin Module plate CMY 2mm
23818330Zoom shaft holder MIII

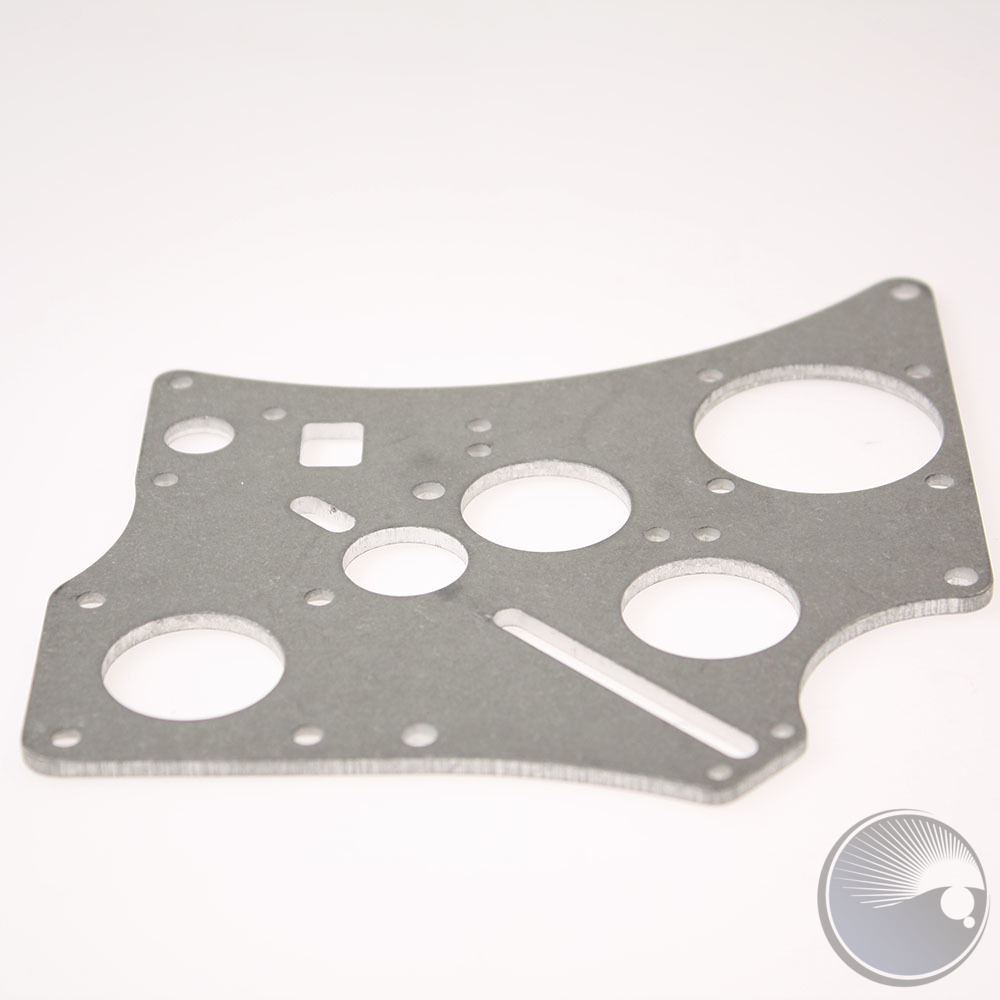

Gobo wheel 1 unit plate MIII23818560Gobo wheel 1 unit plate MIII
Sliding plate color wheel MIII23818710Sliding plate color wheel MIII
Mounting pl. for handles23819000Mounting pl. for handles
MAC III Motor driver PCB id33120098MAC III Motor driver PCB id
MAC III Fan control PCB id33120099MAC III Fan control PCB id
Label Mac III MDLP2 Connections33190159Label Mac III MDLP2 Connections
Martin Plast bag 600/250x1200x0.34240008Martin Plast bag 600/250x1200x0.
Plasticbag 250x360x40x0,04mm34240018Plasticbag 250x360x40x0,04mm
Martin Sikaflex 521 Clear 90 C37000201Martin Sikaflex 521 Clear 90 C
Martin Loctite 5927 red silicone high temp (SAL37001201Martin Loctite 5927 red silicone high temp (SAL
Loctite 243 10ml37021002Loctite 243 10ml
Silicone grease, clear, 100g37302002Silicone grease, clear, 100g
Martin Molykote D, Grease37302008Martin Molykote D, Grease
Martin Reflector D=125,F=94 MAC III41002095Martin Reflector D=125,F=94 MAC III
Front lens assy MAC III41203070Front lens assy MAC III
Martin Focus lens assy MAC III41203073Martin Focus lens assy MAC III
Martin Front glass display41704035Martin Front glass display

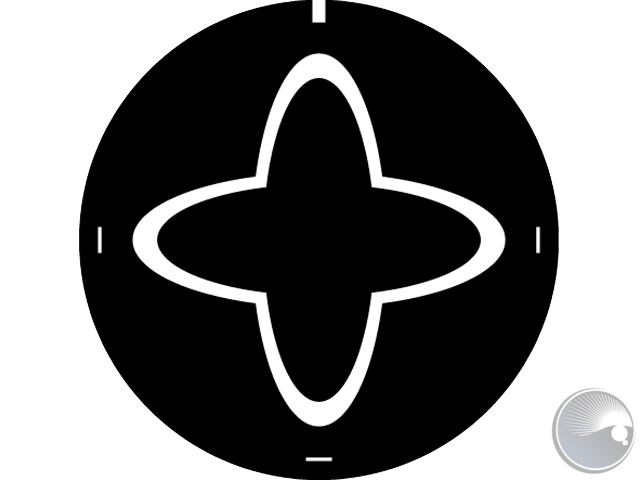

Martin Gobo, 4D Cone, D37.5/d30, hm glass43042039Martin Gobo, 4D Cone, D37.5/d30, hm glass

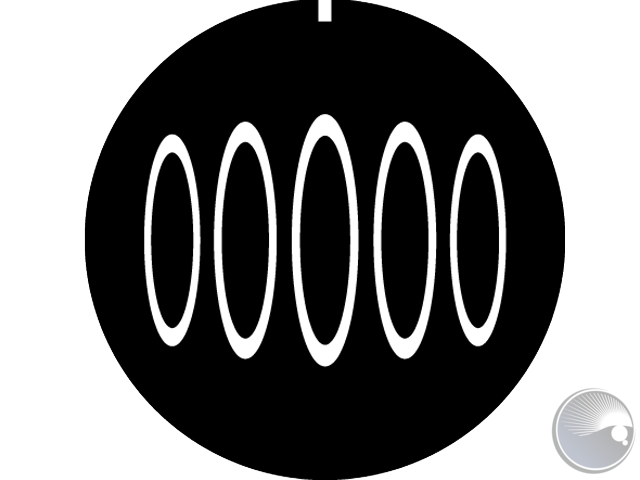

Martin Gobo, 5 Circles In Line, D37.5/d30, hm g43042040Martin Gobo, 5 Circles In Line, D37.5/d30, hm g

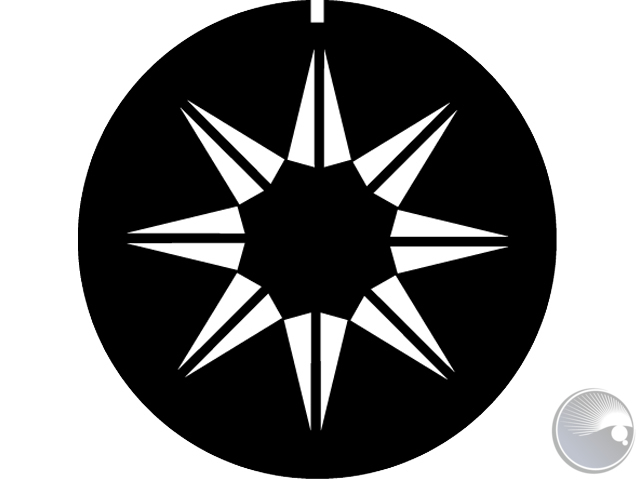

Martin Gobo, Spikes, D37.5/d30, hm glass43042042Martin Gobo, Spikes, D37.5/d30, hm glass

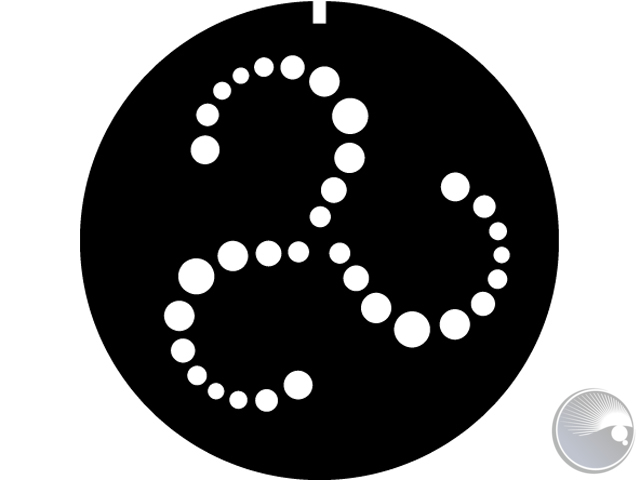

Martin Gobo, Pin Wheel, D37.5/d30, hm glass43042043Martin Gobo, Pin Wheel, D37.5/d30, hm glass

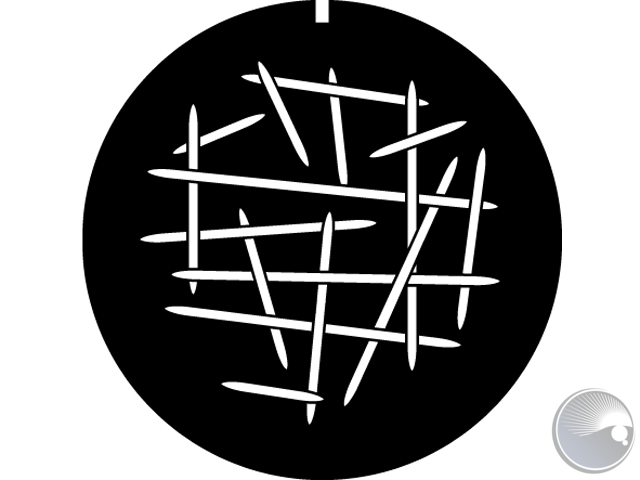

Martin Gobo, Mikado, D37.5/d30, hm glass43042045Martin Gobo, Mikado, D37.5/d30, hm glass

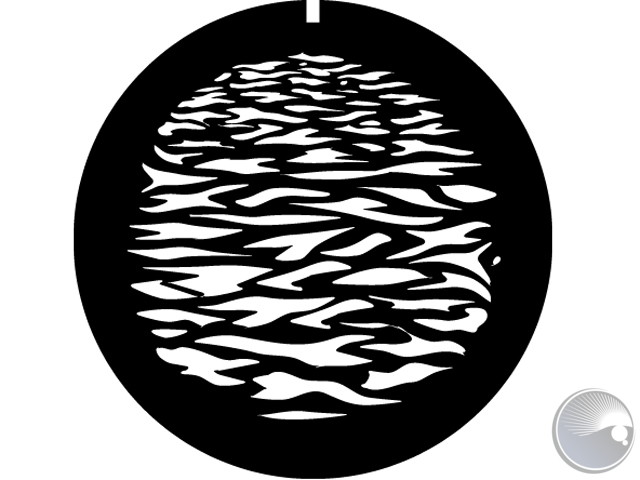

Martin Gobo, Cloud Flames, D37.5/d30, hm glass43042046Martin Gobo, Cloud Flames, D37.5/d30, hm glass

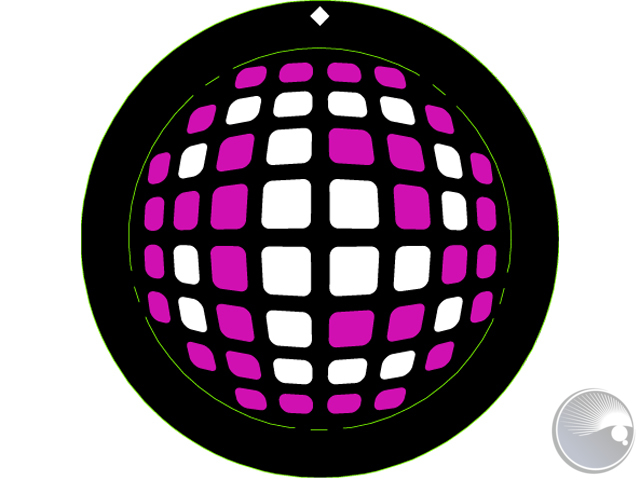

Gobo, Grid Lock, D37.5/d30, colored glas43042047Gobo, Grid Lock, D37.5/d30, colored glas

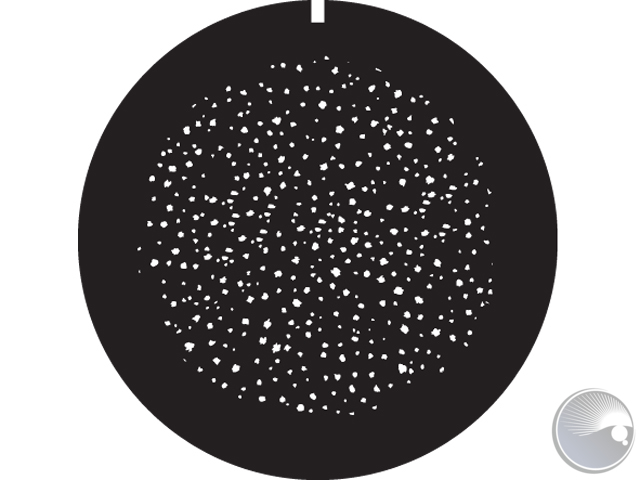

Martin Gobo, Snow Storm, D37.5/d30, hm glass43042050Martin Gobo, Snow Storm, D37.5/d30, hm glass

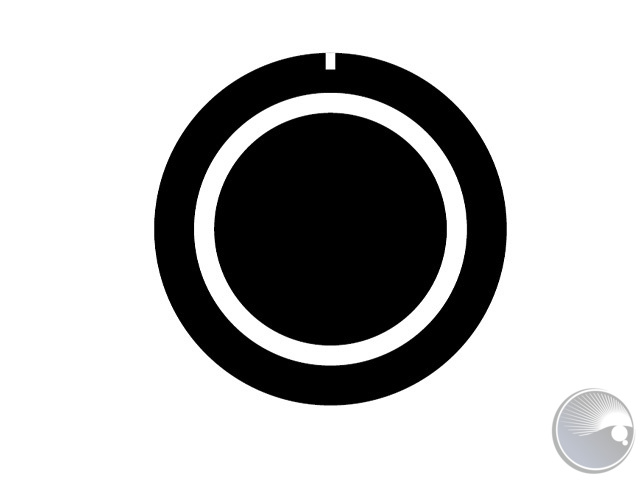

Martin Gobo, Lasercone Single, D37.5/d30, hm gl43042053Martin Gobo, Lasercone Single, D37.5/d30, hm gl
Martin Gobo, Limbo Crystal, D37.5, textured gla43043000Martin Gobo, Limbo Crystal, D37.5, textured gla
Martin Color filter M02 Blue 101 SP46404500Martin Color filter M02 Blue 101 SP
Martin Color filter M02 Green 203 SP46404510Martin Color filter M02 Green 203 SP
Martin Color filter M02 Orange 311 SP46404520Martin Color filter M02 Orange 311 SP
Color filter M02 Yellow 610 SP46404530Color filter M02 Yellow 610 SP
Martin Color filter M02 Minus Green SP46404540Martin Color filter M02 Minus Green SP
Martin Color filter M02 Deep Blue 108 SP46404550Martin Color filter M02 Deep Blue 108 SP
Martin Color filter M02 Red 310 SP46404560Martin Color filter M02 Red 310 SP
5050873Martin 145/130 Thermostat Air 36TXE11
Martin Display module55206000Martin Display module
Base cabinet55206001Base cabinet
Rear head55206003Rear head
Color mixing module MAC III55206004Color mixing module MAC III
Zoom focus module MAC III55206006Zoom focus module MAC III
Martin Power Unit55206007Martin Power Unit
Lamp adjust unit 05 MAC III55206009Lamp adjust unit 05 MAC III
Martin PCBA Connector5XLR62000526Martin PCBA Connector5XLR
PCBA ConnectorEthernet62000527PCBA ConnectorEthernet
PCBA ConnectorUSB62000528PCBA ConnectorUSB
Martin PCBA Microswitch Zippy62000529Martin PCBA Microswitch Zippy
Martin PCBA with Microswitch, 2p plug62002507Martin PCBA with Microswitch, 2p plug
62050042Martin PCBA MDLP6 with SW
Martin PCBA Hallsensor univer.SMD62090166Martin PCBA Hallsensor univer.SMD
Martin PCBA, Hallsensor62090177Martin PCBA, Hallsensor
Martin PCBA Dual hall sensor SMD62090184Martin PCBA Dual hall sensor SMD
Martin PCBA Switchsensor uni. 02.SMD62090185Martin PCBA Switchsensor uni. 02.SMD
Martin PCBA MDHP262091030Martin PCBA MDHP2
Martin PCBA smd top Fan Controller62091031Martin PCBA smd top Fan Controller
PCBA smd top Controller Board62091032PCBA smd top Controller Board
Martin PCBA smd Display Interface62091033Martin PCBA smd Display Interface
Martin PCBA smd Power Distribution62091034Martin PCBA smd Power Distribution
Martin PCBA BatteryChargeUnit SMD62091053Martin PCBA BatteryChargeUnit SMD
PCBA Power Distrib. Yoke SMD62091054PCBA Power Distrib. Yoke SMD
Martin PCBA Calibrate Data SMD62091055Martin PCBA Calibrate Data SMD
Martin PCBA MAC III E-Ballast 1500W62091059Martin PCBA MAC III E-Ballast 1500W
Martin PCBA MAC III PFC for PowerBox62091060Martin PCBA MAC III PFC for PowerBox
Martin PCBA MAC III SMPS for PowerBox62091061Martin PCBA MAC III SMPS for PowerBox
Martin Gobo, Limbo Crystal, D37.5, tex. glass,62325128Martin Gobo, Limbo Crystal, D37.5, tex. glass,
Martin Anim. wheel w. adaptor, Tribal Wave, D1362325143Martin Anim. wheel w. adaptor, Tribal Wave, D13
Gobo, Grid Lock, D37.5/d30, colored glas62325145Gobo, Grid Lock, D37.5/d30, colored glas
62328026Martin Animation wheel adaptor glued
Martin Shutter blade assy MAC III62329082Martin Shutter blade assy MAC III
Martin Air tunnel diffuser assy62329093Martin Air tunnel diffuser assy
Martin Prism adaptor assy 10°62329120Martin Prism adaptor assy 10°
Martin MacIII Lens Assy62332088Martin MacIII Lens Assy
62334093Magnet retainer assy
Belt pulley 62400314Belt pulley
Martin Yoke chassis w. nut and rivets62400572Martin Yoke chassis w. nut and rivets
Martin Pan motor module62400574Martin Pan motor module
Color wheel w/o colors MAC III62400790Color wheel w/o colors MAC III
Martin Head chassis w. nuts62400794Martin Head chassis w. nuts
Martin Head front assy MIII62400798Martin Head front assy MIII
Martin Head main cover with 1/4 turns and safet62400799Martin Head main cover with 1/4 turns and safet
Martin Rear end with lid62400802Martin Rear end with lid
Silicone tube A L=145 mm62400860Silicone tube A L=145 mm
Tube adaptor asm62400862Tube adaptor asm
Outer yoke cover62400864Outer yoke cover
Martin Outer yoke cover w. tilt lock62400865Martin Outer yoke cover w. tilt lock
Martin Inner yoke cover62400866Martin Inner yoke cover
Martin Module bracket assy MIII62400870Martin Module bracket assy MIII
62400873Martin Rear protective mesh HT-paint
Lamp adjust Z MAC III62400877Lamp adjust Z MAC III
Martin User interface assembly62406510Martin User interface assembly
Martin Dimmer assy62406630Martin Dimmer assy
Dimmer Heat shield assy62406650Dimmer Heat shield assy
Martin Zoom focus chassis assy MIII62406690Martin Zoom focus chassis assy MIII
62406700Martin Zoom wagon assy MAC III
62406720Zoom motor assy MIII
Martin Focus wagon assy MAC III62406740Martin Focus wagon assy MAC III
Zoom tensioner assy MAC III62406790Zoom tensioner assy MAC III

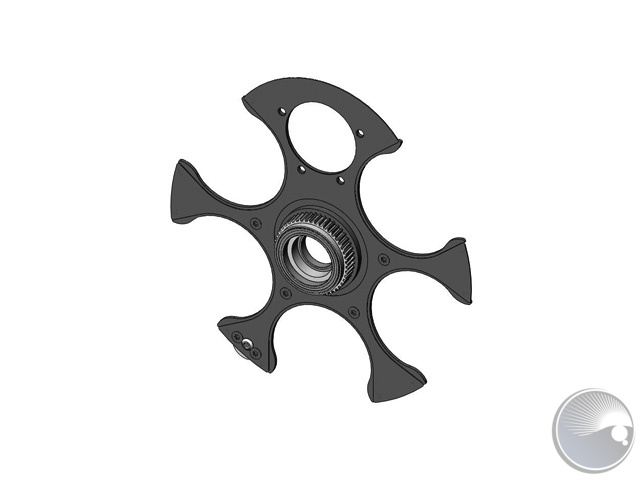

Martin Gobo wheel w/o gobos MAC III62406860Martin Gobo wheel w/o gobos MAC III
Martin Gobo adaptor w bearing MAC III62406864Martin Gobo adaptor w bearing MAC III

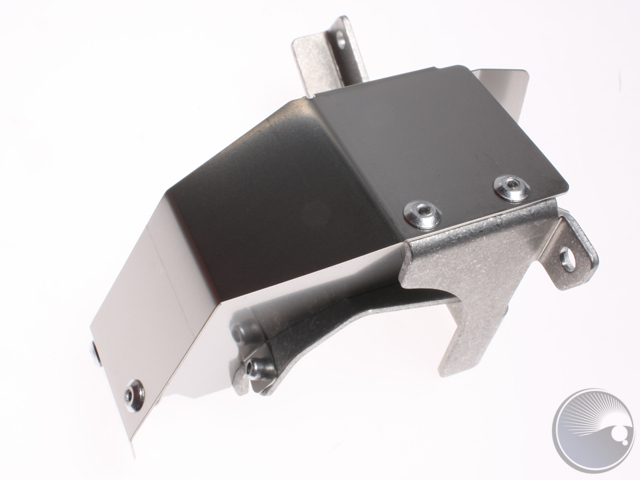

Air guide assy MIII62406866Air guide assy MIII

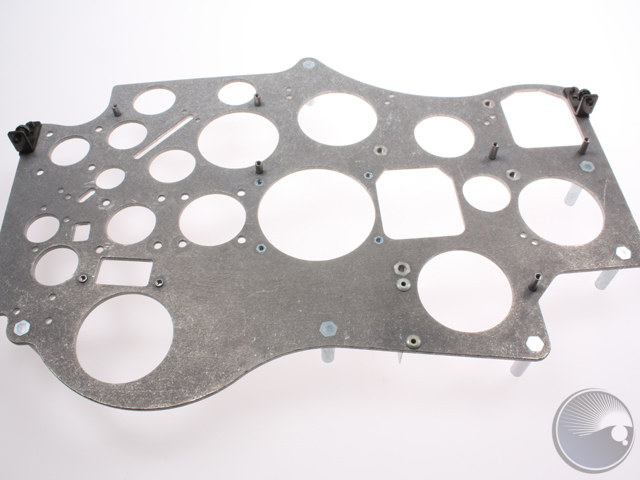

Projection module main pl assy62406868Projection module main pl assy
Color wheel with colors MAC III62406870Color wheel with colors MAC III
Prism holder assy MAC III62406877Prism holder assy MAC III
62406883Display backplate assy
62406888Controller PCB asm

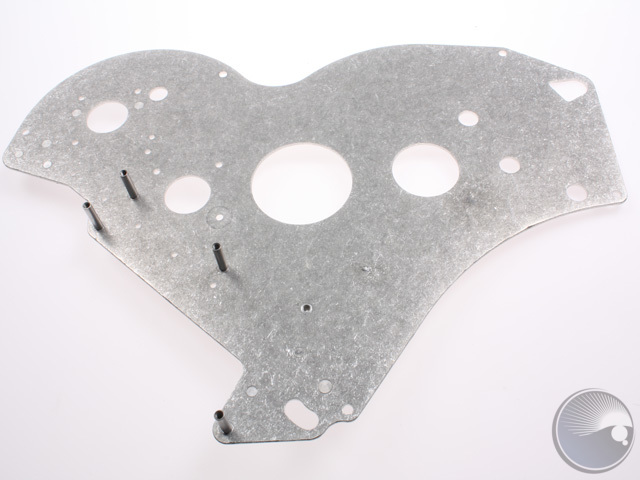

Shutter ani unit plate assy62406889Shutter ani unit plate assy

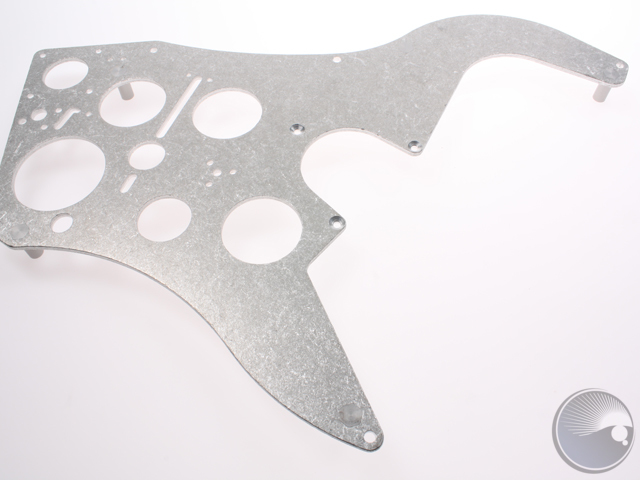

Color wheel unit plate assy62406930Color wheel unit plate assy
Front cooling asm62407070Front cooling asm
62407122Guide block assy MAC III
Cooling plate asm62407140Cooling plate asm
Martin Lamp rearcap assy62408140Martin Lamp rearcap assy
Martin Tilt lock position62408170Martin Tilt lock position
Bottom plate Assy62408190Bottom plate Assy
62408230Tension assy CMY 1
62408250Tension assy CMY 3
Lower blower bracket assy MIII62408310Lower blower bracket assy MIII
LHS blower bracket assy MIII62408330LHS blower bracket assy MIII
62408340RHS blower bracket assy MIII
Base fan plate asm62408350Base fan plate asm
62408360Martin Dimmer assy diffused
Martin Reflective plate with HT62408510Martin Reflective plate with HT
Safety wire Power Unit62409060Safety wire Power Unit
Martin Absolute encoder module62409062Martin Absolute encoder module
Martin Tilt lock bearing assy62409072Martin Tilt lock bearing assy
Martin Tilt wheel bearing assy62409073Martin Tilt wheel bearing assy
Belt tightener wheel 14mm62409074Belt tightener wheel 14mm
Base chassis sub assy62409075Base chassis sub assy
Martin Iris W. arm burned New treatment62409425Martin Iris W. arm burned New treatment
62409980Martin Heat filter module
Lamp socket plate w silkprint62410014Lamp socket plate w silkprint
Main Module plate CMY 3mm Assy62420154Main Module plate CMY 3mm Assy
Martin Air filter head MACIII62420165Martin Air filter head MACIII
Gear for lamp adjust assy62420230Gear for lamp adjust assy
Martin Omega-Adapter mit 2x Camlock, 107mm91602001Martin Omega-Adapter mit 2x Camlock, 107mm
Osram HTI 1500W/60/P50 Lok-it97010347Osram HTI 1500W/60/P50 Lok-it

Es sind leider keine Geräte verfügbar.

Es kann vorkommen, dass in unserem Lager noch gebrauchte Geräte vorhanden sind. Fragen Sie gerne über unsere Service-Hotline +49 871 40875521 oder per Email bei uns nach. Wir helfen Ihnen gerne weiter!

Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "MAC III Profile in cardboard"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Ich habe die Datenschutzbestimmungen zur Kenntnis genommen.

Zuletzt angesehen
