JEM ZR44 Hi-Mass 230V/50-60Hz
Discontinued

JEM ZR44 Hi-Mass 230V/50-60Hz

Auf Anfrage!

  • 92215300
The Jem ZR44 Hi-Mass™ is a reliable and highly efficient fogger capable of precise fog... mehr
Produktinformationen "JEM ZR44 Hi-Mass 230V/50-60Hz"

The Jem ZR44 Hi-Mass™ is a reliable and highly efficient fogger capable of precise fog delivery from subtle to massive. Ideal for a variety of settings from small venues to huge stadiums and arenas, it features advanced technology for top-quality performance, as well as advances in digital functionality such as RDM compatibility.

Features
  • 3 & 5 pin DMX interface
  • Prepared for multifunctional digital remote
  • RDM capable
  • Floor standing or truss mounting
  • Neutrik PowerCon connector
  • 1200 m³/min fog output
  • Continuous output
  • Tough and solid design
  • 1800 W heat exchanger
  • 7.5 min heat-up time
  • Indirect Fluid Sensing System
  • Proprietary Pro Steam Simulation fluid solution
  • Different fluid options for different applications
  • Leaves no oil residue on light fixtures
  • Soft Start technology
Weiterführende Links zu "JEM ZR44 Hi-Mass 230V/50-60Hz"

Martin Thermostat 350°C manual reset05041029Martin Thermostat 350°C manual reset
Martin Knob for ZR22 dmx remote05551044Martin Knob for ZR22 dmx remote
Martin Piston pump 120v/60hz05761001Martin Piston pump 120v/60hz
Martin Piston Pump     240V / 50Hz05761003Martin Piston Pump 240V / 50Hz
Martin Handwheel m808132309Martin Handwheel m8
Martin Screw no6x1/4 self tapper p08190108Martin Screw no6x1/4 self tapper p
Martin Mains Lead 1.0mm P/con Compact/Hazer Pro11501041Martin Mains Lead 1.0mm P/con Compact/Hazer Pro
Martin Strap, black, 2.5x100mm13104001Martin Strap, black, 2.5x100mm
Martin Tube rubber  d=4,0  D=9 (for m14026004Martin Tube rubber d=4,0 D=9 (for m

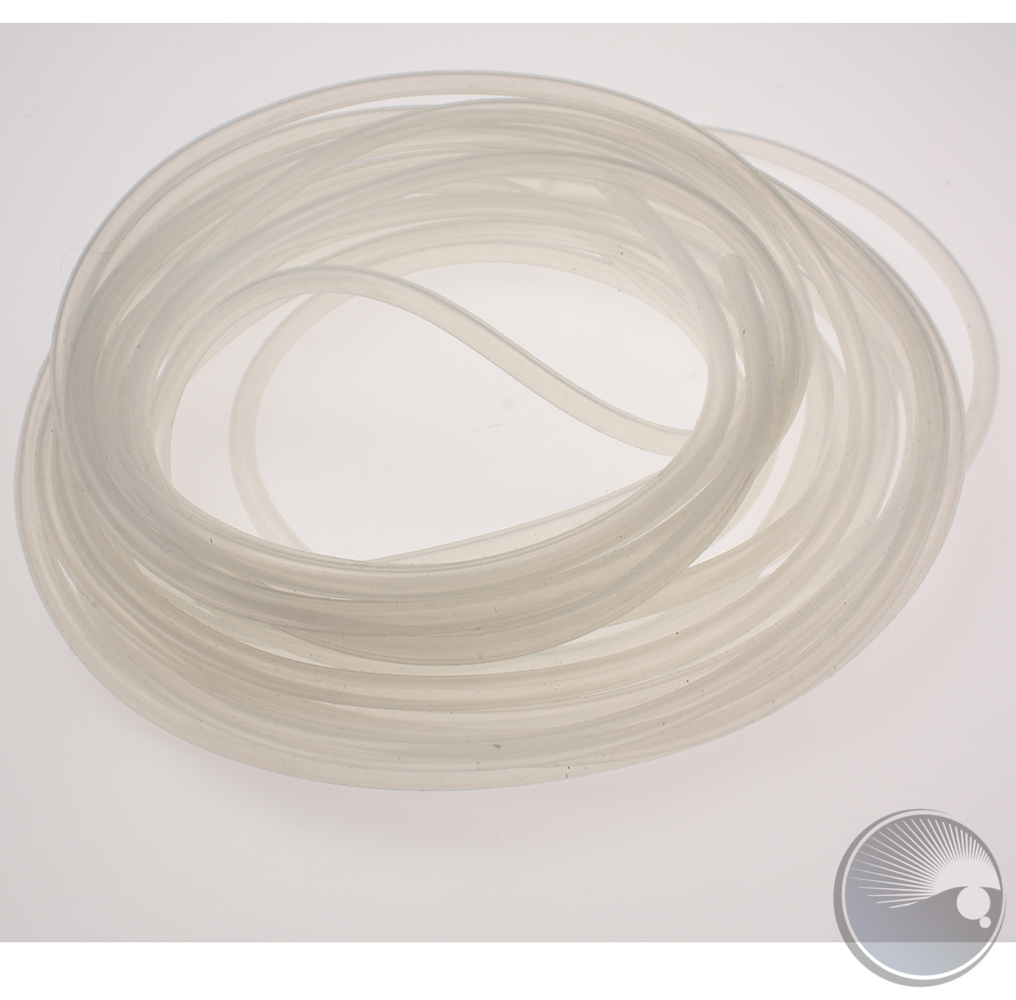

Martin Tubing, silicone, d=4 D=614026027Martin Tubing, silicone, d=4 D=6
Martin Heatshrink 12.7mm black15803013Martin Heatshrink 12.7mm black
15804006Sleeve mains, Powercon
15807005PVC sleeving 6mm, black
Plate for xlr-plugs,M2000,18360070Plate for xlr-plugs,M2000,
Martin Handle, polyamide end19200390Martin Handle, polyamide end

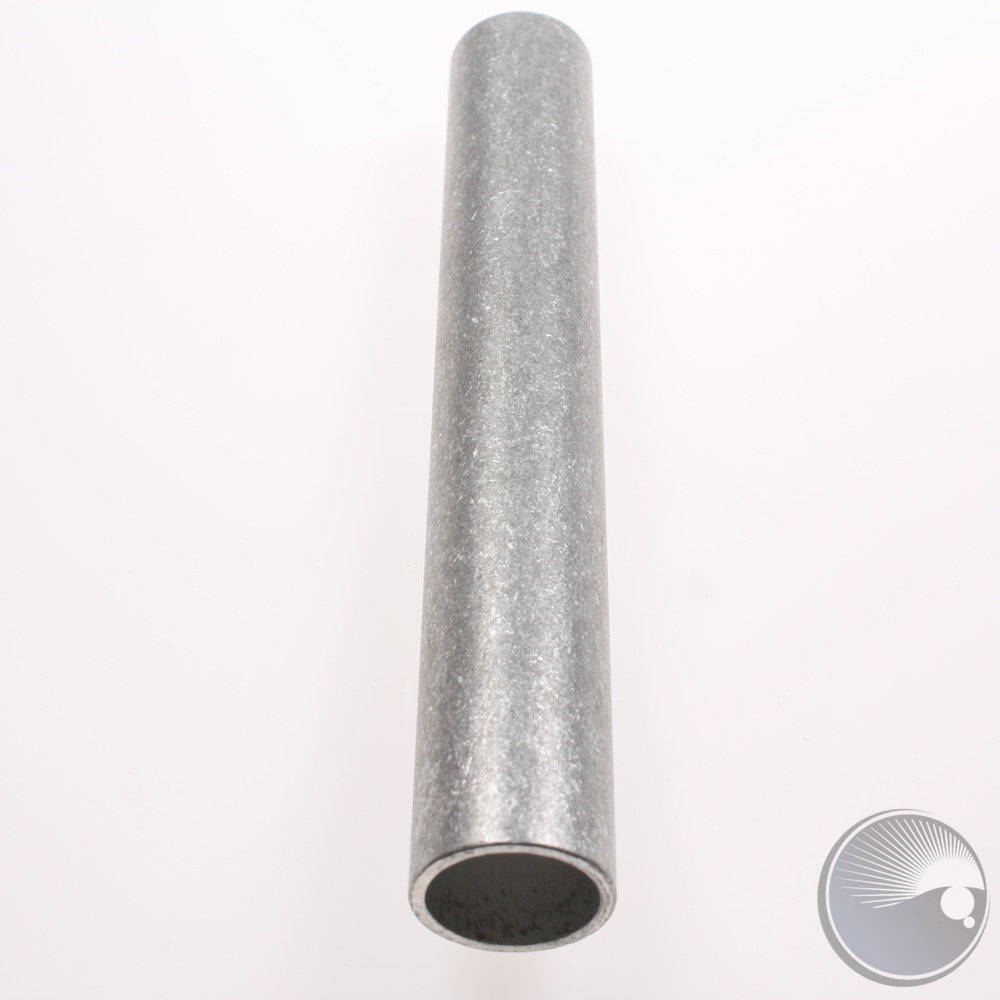

Handle, rumbled 185mm, ZR4419200395Handle, rumbled 185mm, ZR44
Martin Rubber foot 25x15mm. Black19440040Martin Rubber foot 25x15mm. Black
20820090Flexiplug M8, bottle dust cap

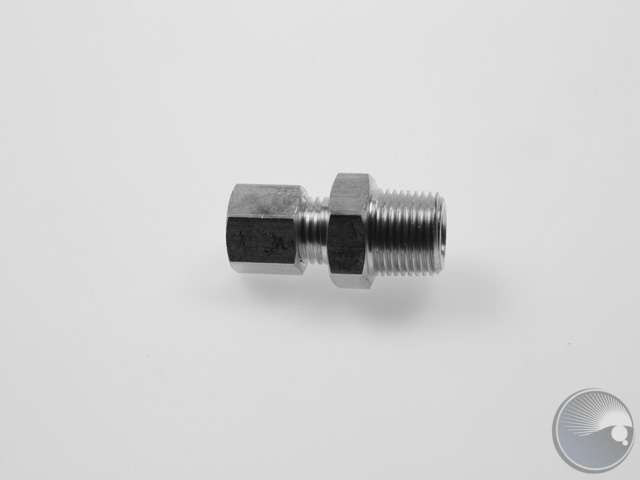

Martin Straight 1/8 to 1/8 bsp26460170Martin Straight 1/8 to 1/8 bsp
Martin Hose fitting, 5mm Y26460440Martin Hose fitting, 5mm Y
26460870Martin Sealed nipple
Martin Filter, inline 1/8-1/8 barb26480060Martin Filter, inline 1/8-1/8 barb

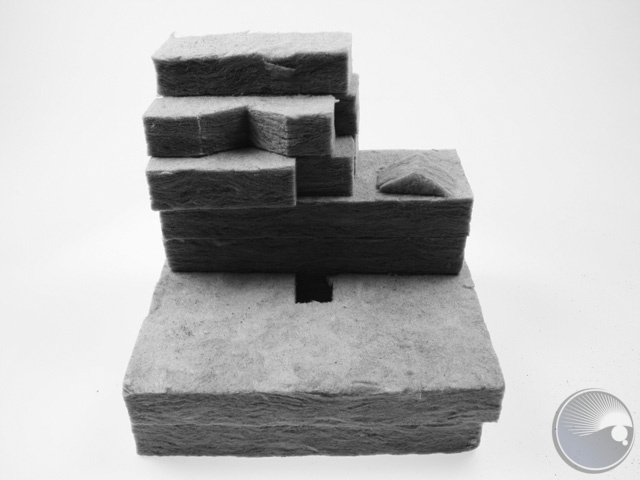

Martin Rockwool precut kit, ZR33/ZR4426520060Martin Rockwool precut kit, ZR33/ZR44
26561570Plate Pump ZR12/22/33/FX-2
26561700Bracket support angle ZR33
26561710Bracket pump ZR33
26562640Block case rear spacer ZR22/33
26568620PowerCon back plate
26568650Block case, ZR44
26568655Chassis, ZR44
26568660Back box, ZR44
26568665Bottle comp panel, ZR44
26568670Front cover, ZR44
26568675Martin Rear lid, ZR44
26568680Hanging bracket, ZR44
26568695Switch Panel, ZR44
26568700Block case lid, ZR44
26568705Heatsink, ZR44
Grommet open 11.1mm32021002Grommet open 11.1mm
33120100Label, Replace fuse PCB(EN/FR)
33130035Label thermal trip
33150028Martin Label FX-2 yellow warning tria
33150040Martin Label, Use Jem/Martin fluid
33150074Label, Caution-shock (ENG/FR)
Martin Container 9.5 ltr34300528Martin Container 9.5 ltr

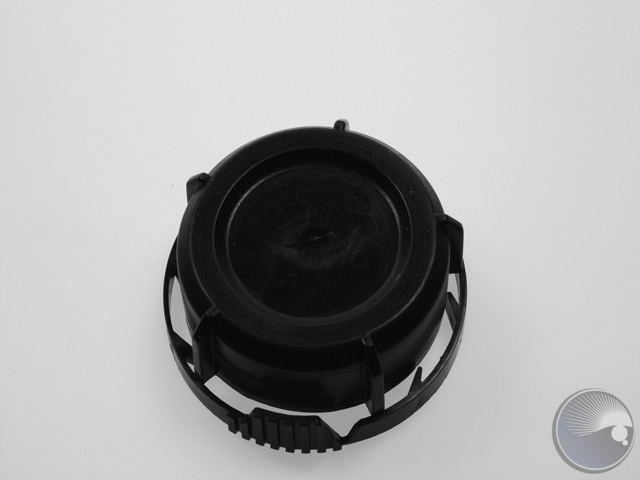

Martin Cap for container 2.5 Gal / 9.34320005Martin Cap for container 2.5 Gal / 9.
Martin Potentiometer 100k linear pcb4220034Martin Potentiometer 100k linear pcb
Martin Fuse 3.15 AT, I*I*t=226.55020013Martin Fuse 3.15 AT, I*I*t=226.5
Martin Fuse 20a sand filled 1 1/4 x5021024Martin Fuse 20a sand filled 1 1/4 x
Martin Thermostat 350°C cw UL loom5041030Martin Thermostat 350°C cw UL loom
Martin Speakon Mains NAC3MPA chas.5222804Martin Speakon Mains NAC3MPA chas.
Martin Crimp non insulated5328408Martin Crimp non insulated
5328409Crimp blue piggy back
Crimp Contact5328421Crimp Contact
PowerCon NAC3FCA Power Input Connector5342804PowerCon NAC3FCA Power Input Connector
Martin Switch latching push pcb mount5501402Martin Switch latching push pcb mount
Martin Switch non latch push pcb moun5501403Martin Switch non latch push pcb moun
Martin Switch illuminated mains5523021Martin Switch illuminated mains
Cap red push in for remotes5550006Cap red push in for remotes
Martin Cap grey push in for remotes5550007Martin Cap grey push in for remotes
56150134Martin Heat ex assy + fit ZR44 120V
Martin Rubber Washer for piston Pump5769002Martin Rubber Washer for piston Pump

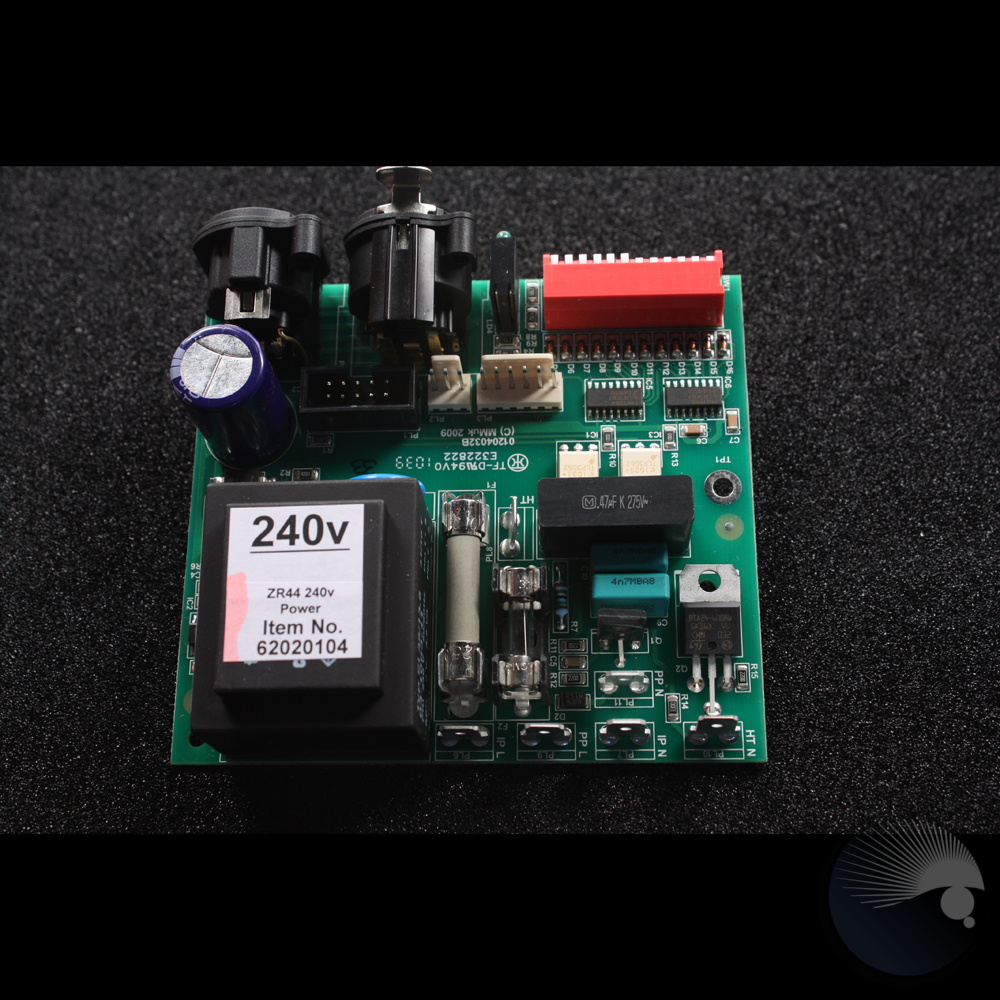

Martin PCBA ZR44 Pwr, 230V, Tested62020104Martin PCBA ZR44 Pwr, 230V, Tested
Martin PCBA ZR44 Pwr, 120V, Tested62020105Martin PCBA ZR44 Pwr, 120V, Tested

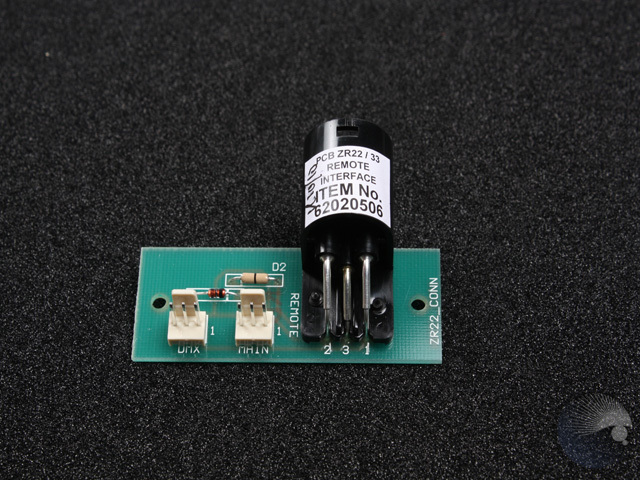

Martin PCBA ZR22/33 remote interface62020506Martin PCBA ZR22/33 remote interface
Martin PCBA remote, c/w btns ZR12/22/362020563Martin PCBA remote, c/w btns ZR12/22/3
Martin PCBA dmx, ZR44, 120V62021053Martin PCBA dmx, ZR44, 120V

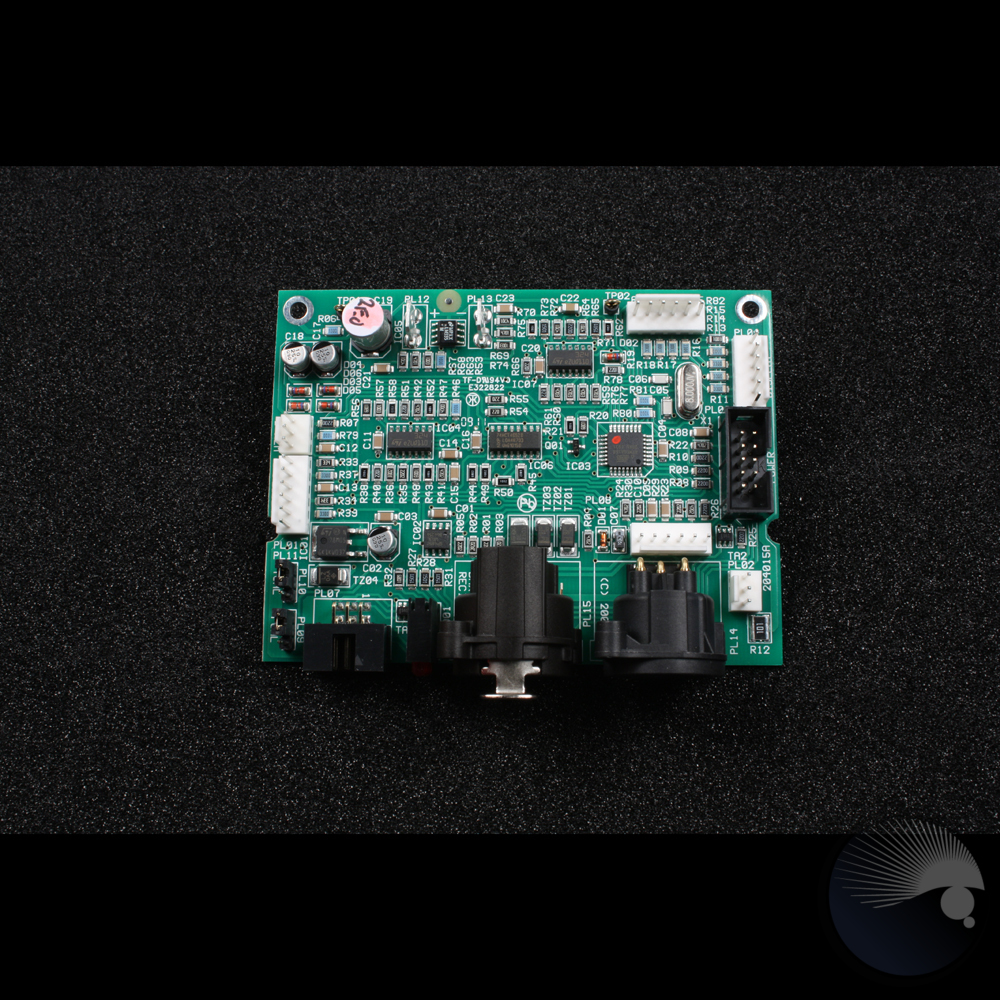

Martin PCBA dmx, ZR44, 230V62021054Martin PCBA dmx, ZR44, 230V
62203624Loom, thermal HFG, UL
62203734Loom, high voltage, ZR44
62203735Martin Loom, low voltage, ZR44

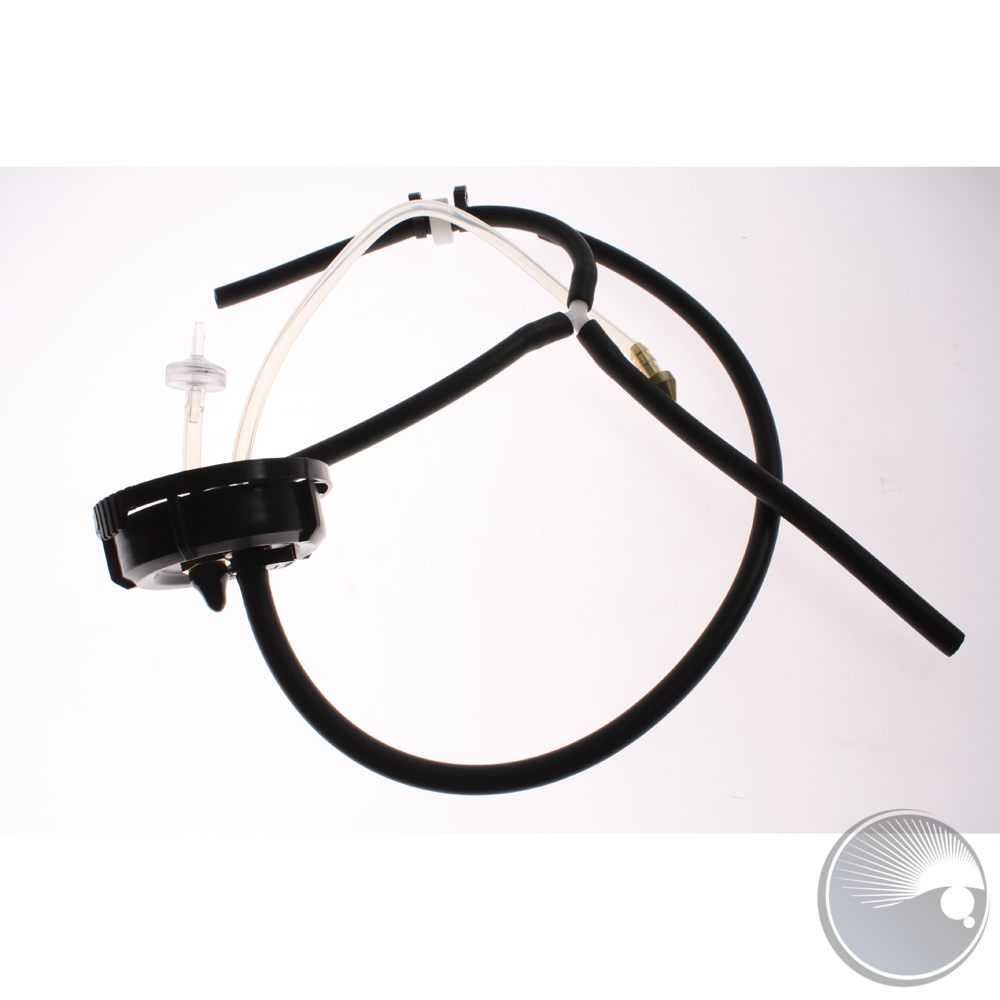

Martin Fluid line assy ZR4462520088Martin Fluid line assy ZR44
Martin M3x16 ph pz black8050407Martin M3x16 ph pz black
M3x10 ph pz black8050416M3x10 ph pz black
Martin M3 nut black8052601Martin M3 nut black
Martin M3 nut lock PA shiny8052701Martin M3 nut lock PA shiny
Martin M3 washer lock 3,2/6 black8054401Martin M3 washer lock 3,2/6 black
Washer m3 crinkle8054403Washer m3 crinkle
M4x10 ph pz black8070402M4x10 ph pz black
Martin M4x10 tapt black8070418Martin M4x10 tapt black
Martin M4x16 ph pz black8070419Martin M4x16 ph pz black
Martin M4x10 finger screw for washer8072302Martin M4x10 finger screw for washer
Martin M4 washer lock 4,3/8 black8074401Martin M4 washer lock 4,3/8 black
Martin M4 vistop push-on washer shiny8074402Martin M4 vistop push-on washer shiny
Martin Clip P type brass 4.8mm8105010Martin Clip P type brass 4.8mm
Martin Bolt set m8x20 hex hd black8131007Martin Bolt set m8x20 hex hd black
Martin M8x25 Allen screw black8131202Martin M8x25 Allen screw black
Martin M8 washer 8,4/16x1,6 black8134301Martin M8 washer 8,4/16x1,6 black
2.9x9.5 C. rec. Ph. Selftap bl81901042.9x9.5 C. rec. Ph. Selftap bl
Martin 3.2x10 Pop rivet steel black8220105Martin 3.2x10 Pop rivet steel black
Rivet earthing8220705Rivet earthing
Martin Hose clamp 7.9-9.2 plastic8250105Martin Hose clamp 7.9-9.2 plastic
7.3/3.6x5  Spacer polystyrol82601037.3/3.6x5 Spacer polystyrol
Martin 25/8.2x5  Spacer Plastic Black8260106Martin 25/8.2x5 Spacer Plastic Black
Martin Bush ZR33(flying bracket)8261315Martin Bush ZR33(flying bracket)

Es sind leider keine Geräte verfügbar.

Es kann vorkommen, dass in unserem Lager noch gebrauchte Geräte vorhanden sind. Fragen Sie gerne über unsere Service-Hotline +49 871 40875521 oder per Email info@lights-whatever.de bei uns nach. Wir helfen Ihnen gerne weiter!
