ArcPod 27Q, 27x 10W LEDs

ArcPod 27Q is a compact high-power exterior wash light featuring an outstanding brightness of 11'200 lumens. It is equipped with 27x10W RGBW/FC LEDs, delivering a limitless reproduction of colours and whites. ArcPod 27Q is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 27Q an incredibly flexible and versatile device for any outdoor install.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 27x10W RGBW / FC LEDs
• Luminous flux: (10°) 9'437 lm; (15°) 11'179 lm; (25°) 10'757; (45°) 9'816 @Full
• Lux: (10°) 17'953 lx; (15°) 14'017 lx; (25°) 6'340 lx; (45°) 1'454lx @3 m full
• Lux: (10°) 6'463 lx; (15°) 5'046 lx; (25°) 2'282 lx; (45°) 523lx @5 m full
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Beam angle: 15°
• Field angle: 28°
• Additional optics: 10° - 25° - 45° (optional) - see available accessories
• Other: barn doors not included

COLOUR SYSTEM

• Colour mixing: RGBW / FC
• CCT: CCT control through dedicated DMX channel
• Colour wheel: virtual colour wheel with presets
• Macros: several pre-built macros with adjustable speed

DYNAMIC EFFECTS

• FX generator: up to 3 linear controllable sections
• Static mode: selection of static colour

BODY

• Tilt range: 0 ~ 130° with manual regulation
• Body: Sturdy die-cast aluminium body
• Body colour: RAL 7012 - see available finishing

CONTROL

• Supported Protocols: DMX512, RDM
• DMX channels: 5 / 7 / 10 / 13 / 17channel
• Pixel control: up to 3 linear controllable sections
• RDM: RDM for remote monitoring and settings
• Display: user interface through DATAMASTER external coder (not included)
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 270W
• Output (at 230V): 9 units on a single power line
• Power factor: 0,97

PHYSICAL

• IP rating: IP66 for outdoor installations
• IK rating: 08

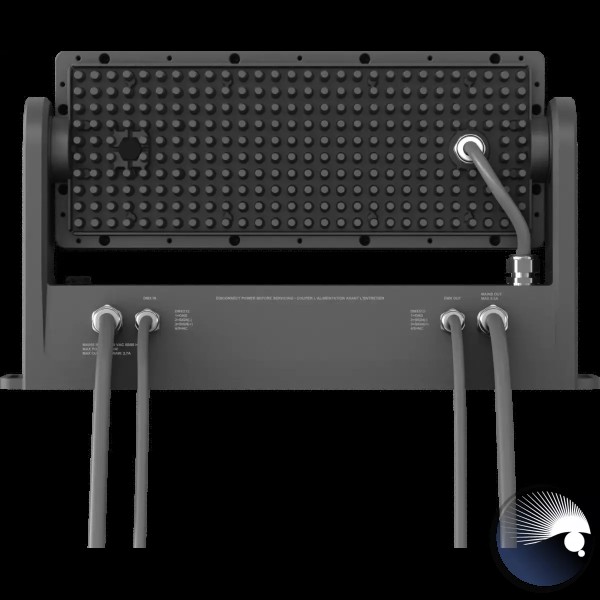

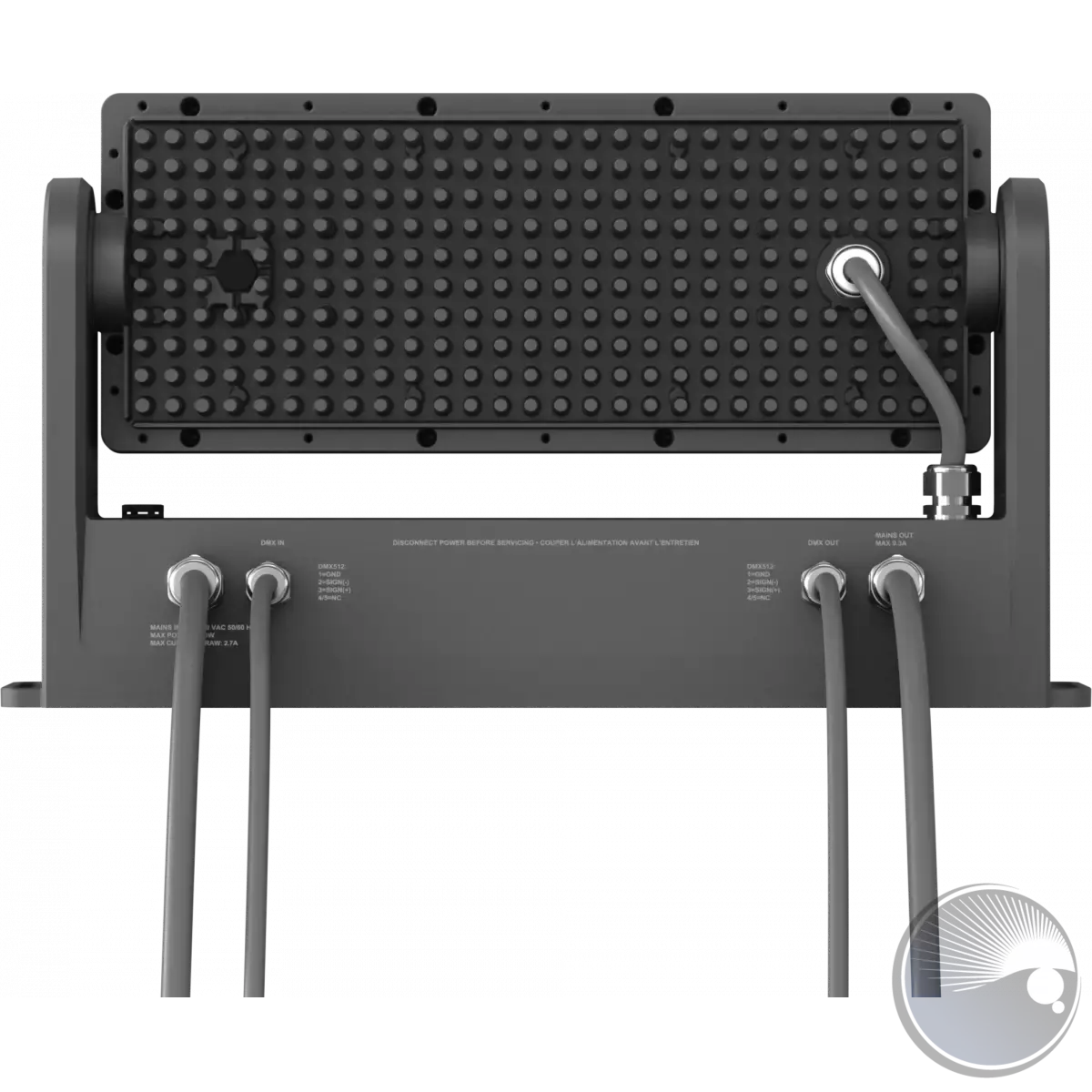

• Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
• Adaptors: XLR and BARE END 16A adaptors included
• Signal connection: 1,8 m moulded IP signal IN/OUT connectors
• Power connection: 1,8 m moulded IP signal IN/OUT connectors
• Dimensions (WxHxD): 455x258x83mm / 17.91''x10.16''x3.27''
• Weight: 9kg / 19.84lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

• 1 x ARCPOD27Q
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - IP connection adapter)
• 1 x 5p XLR - IP connection female adapter
• 1 x 5p XLR - IP connection male adapter
• User Manual
