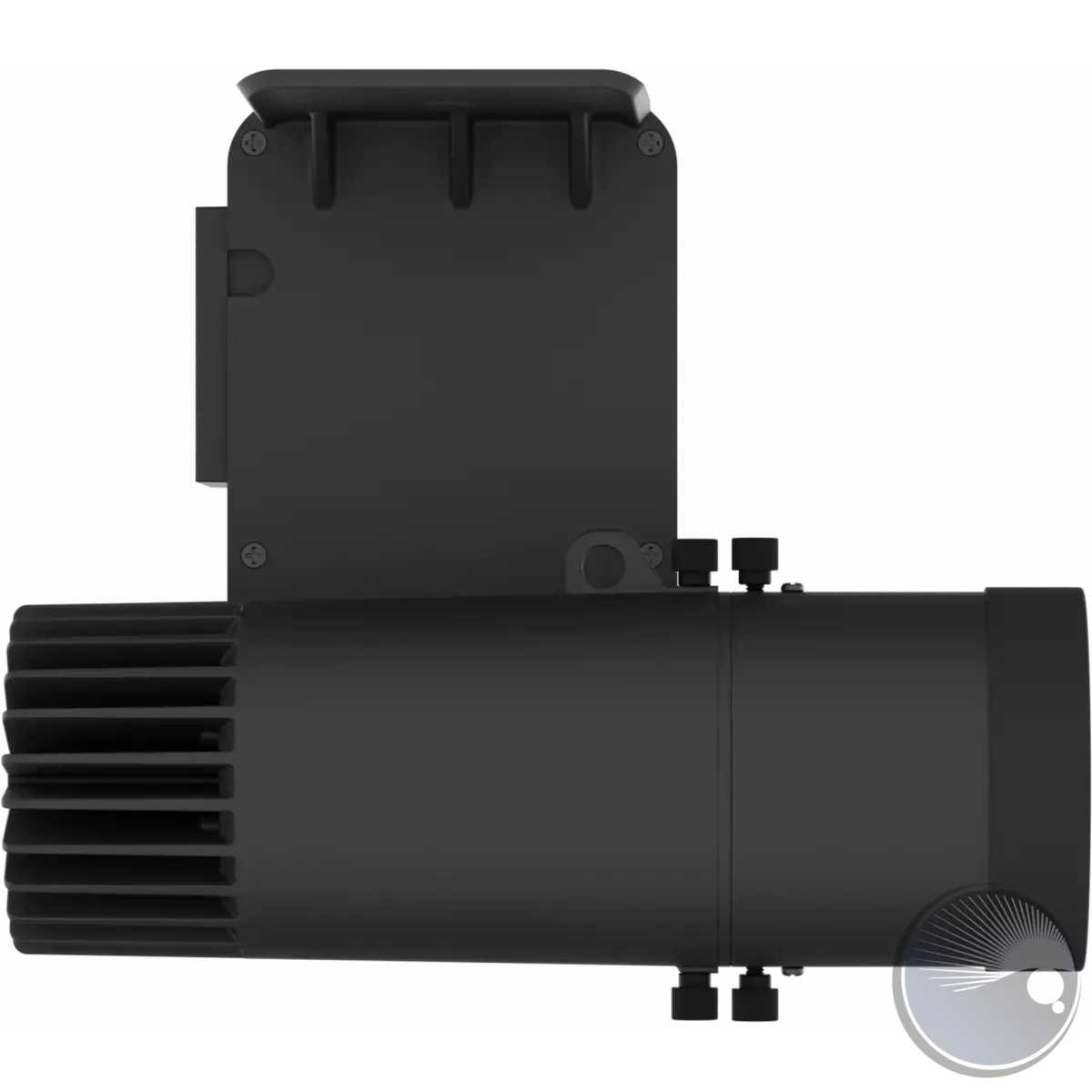

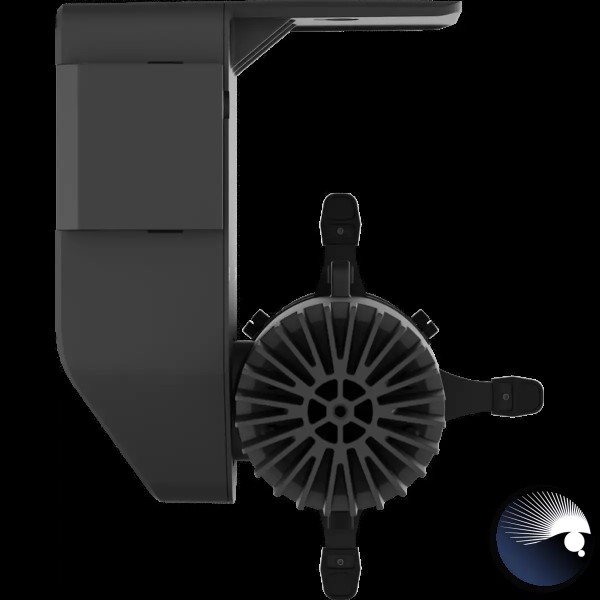

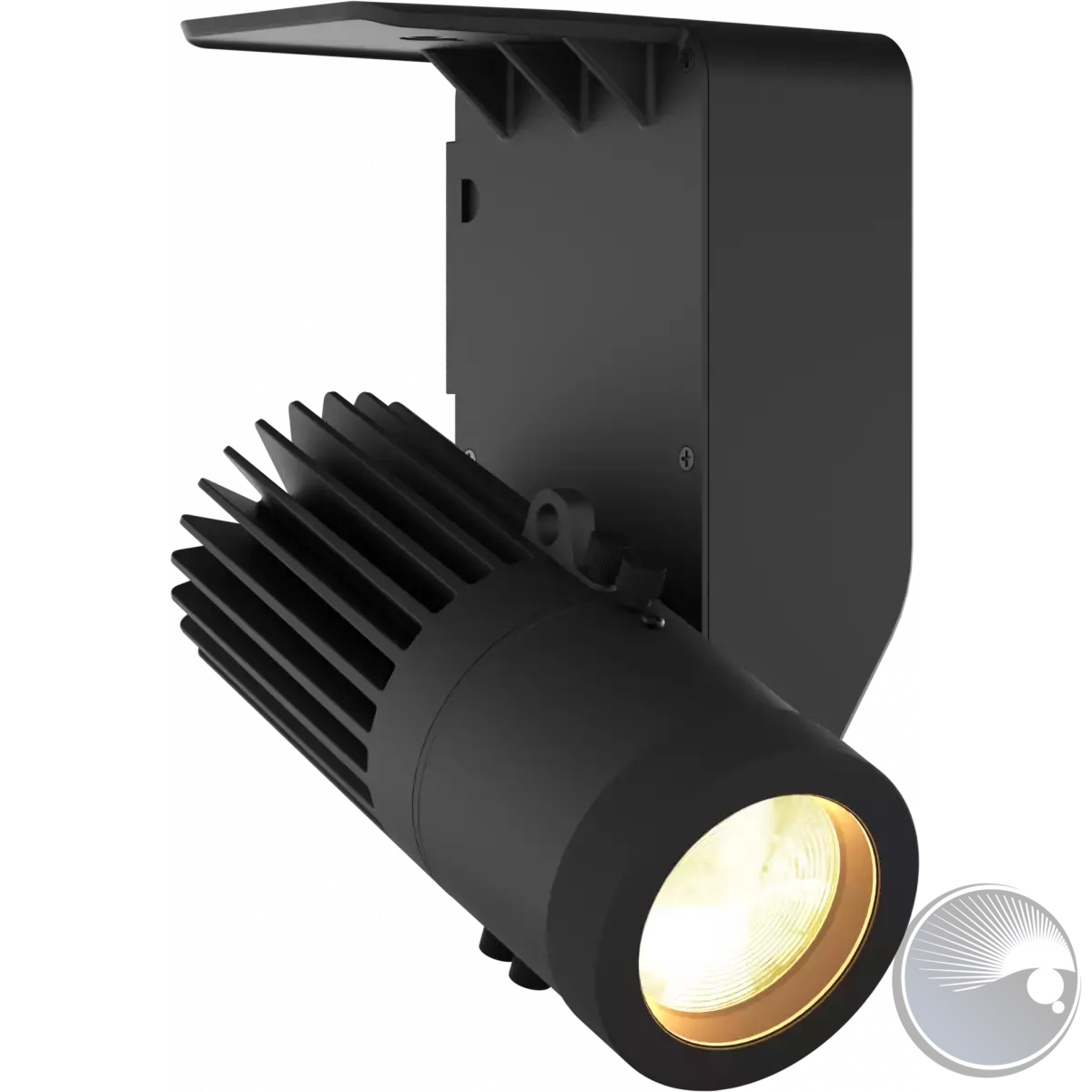

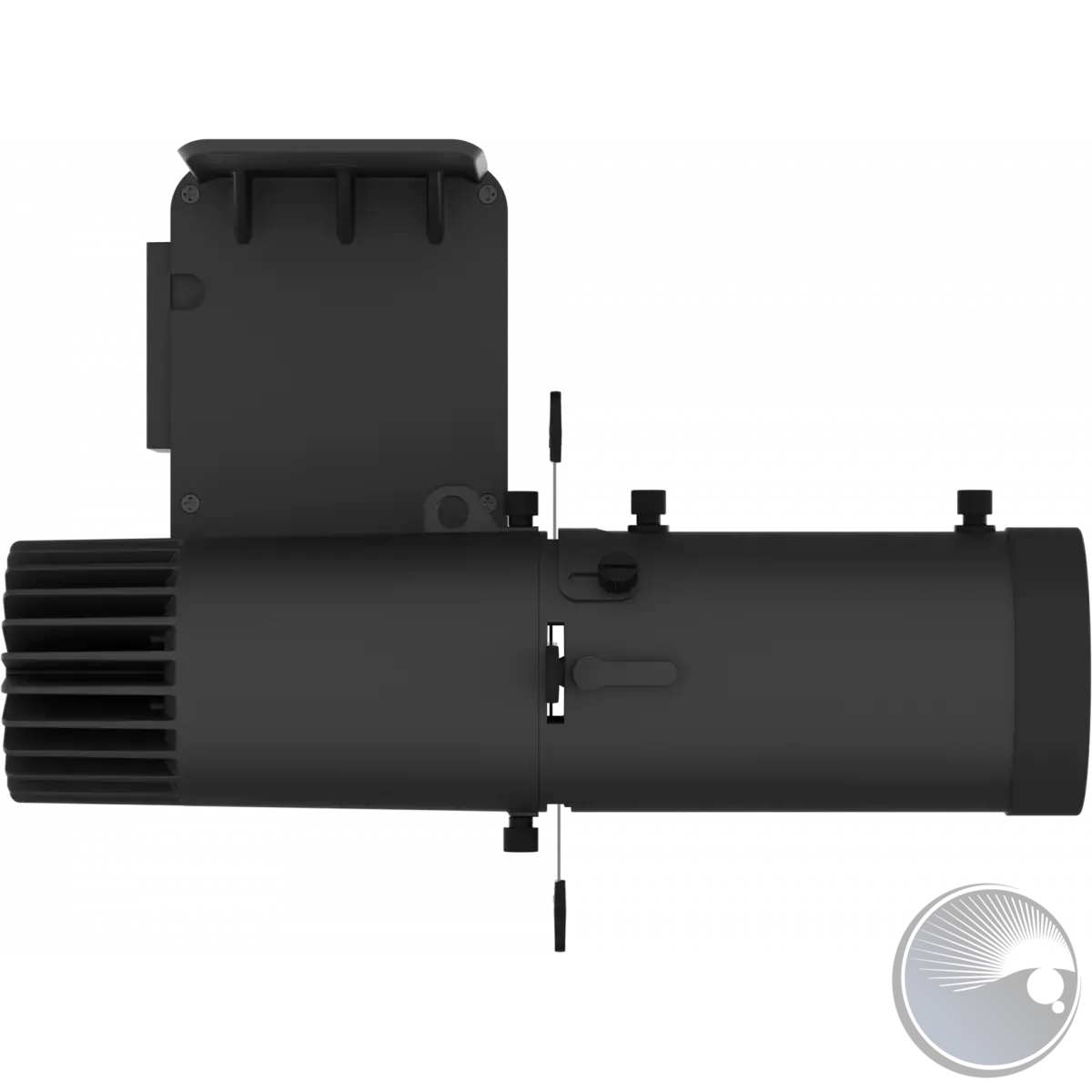

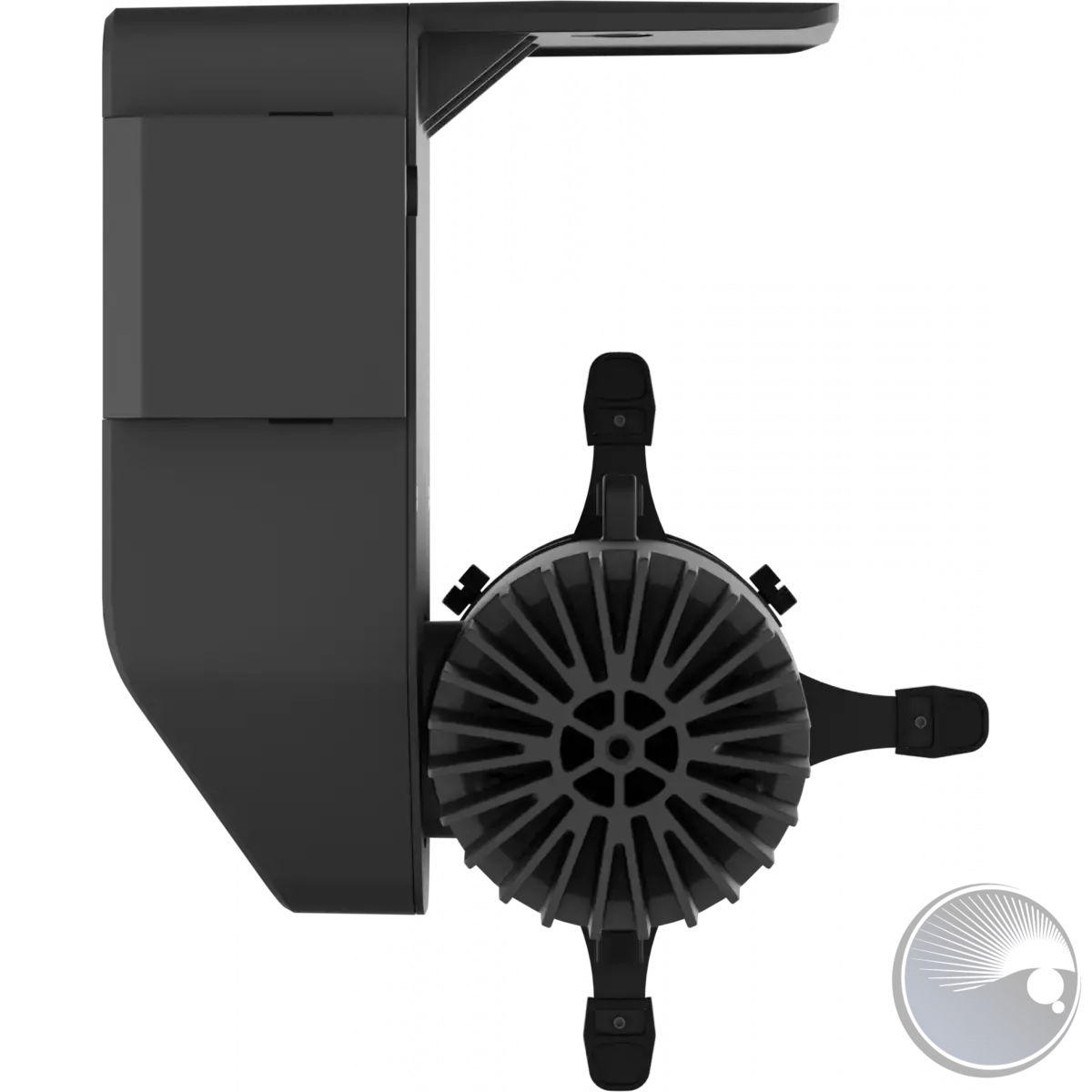

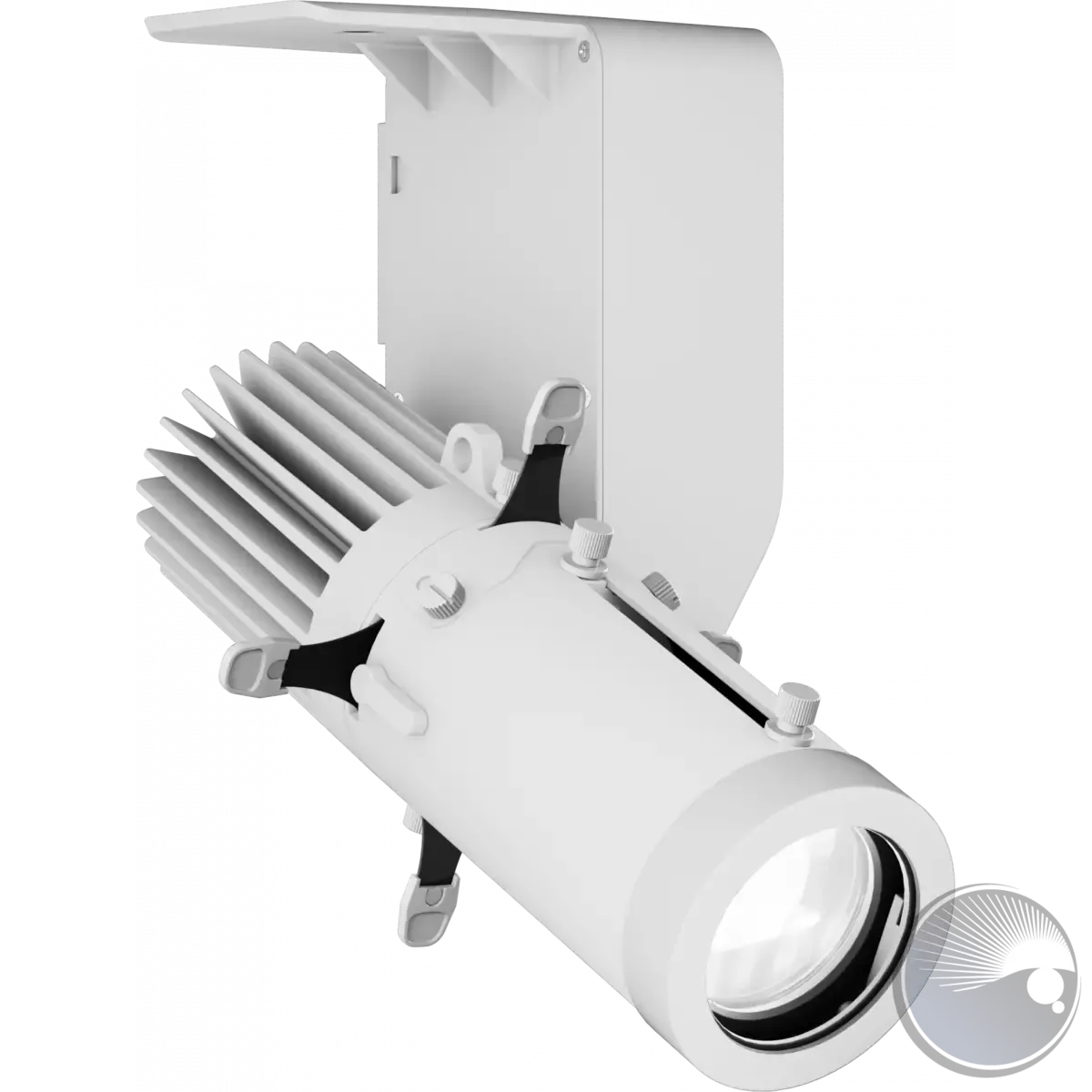

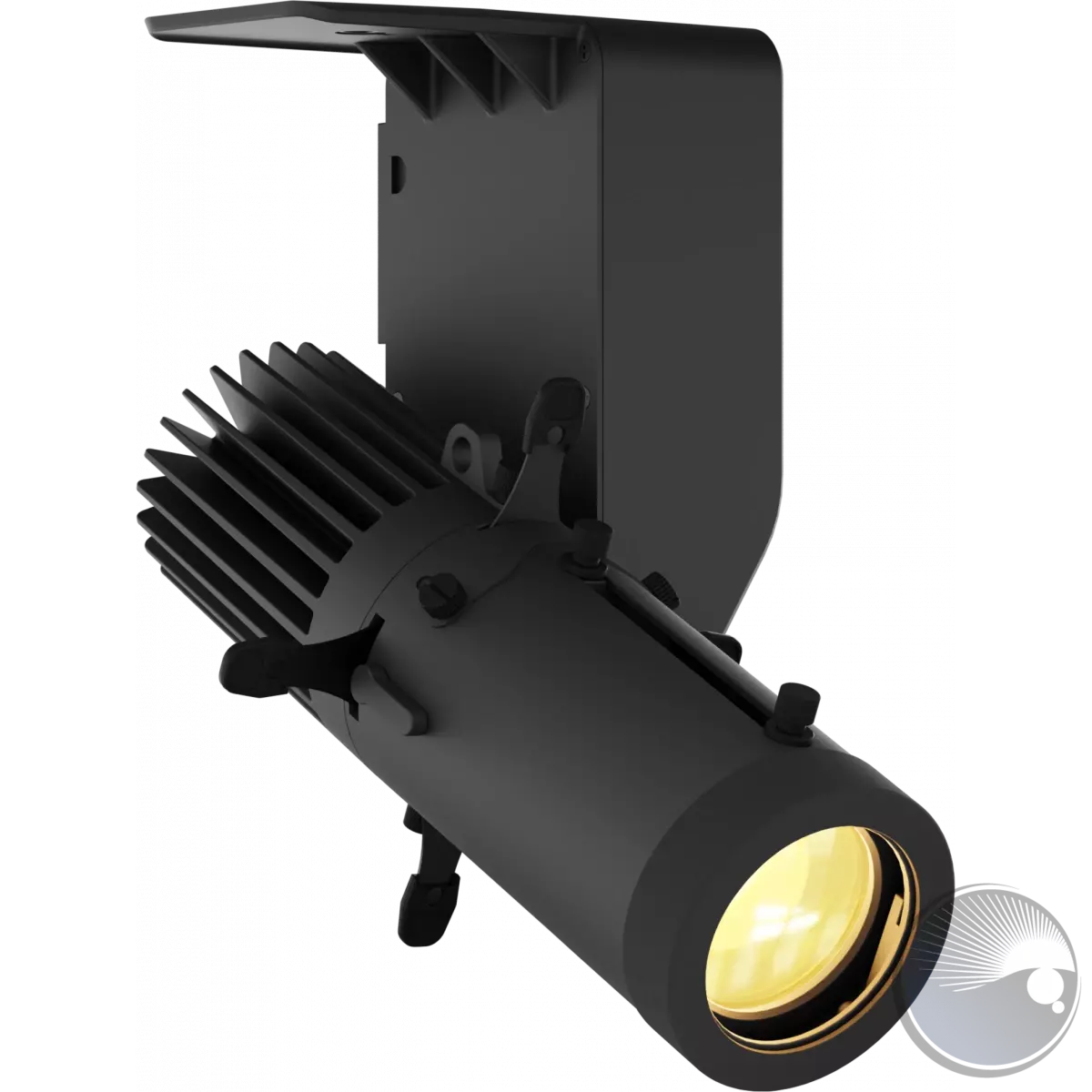

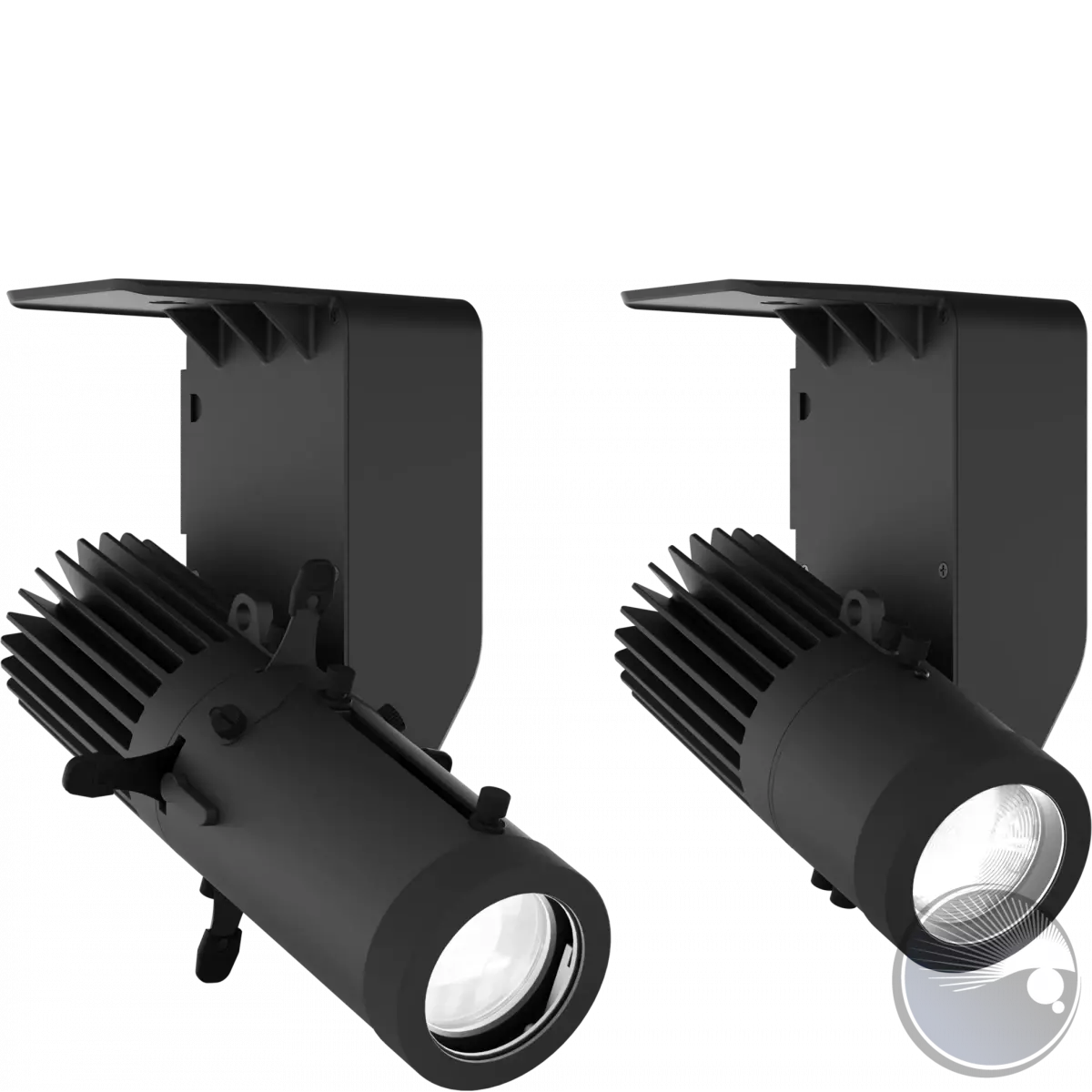

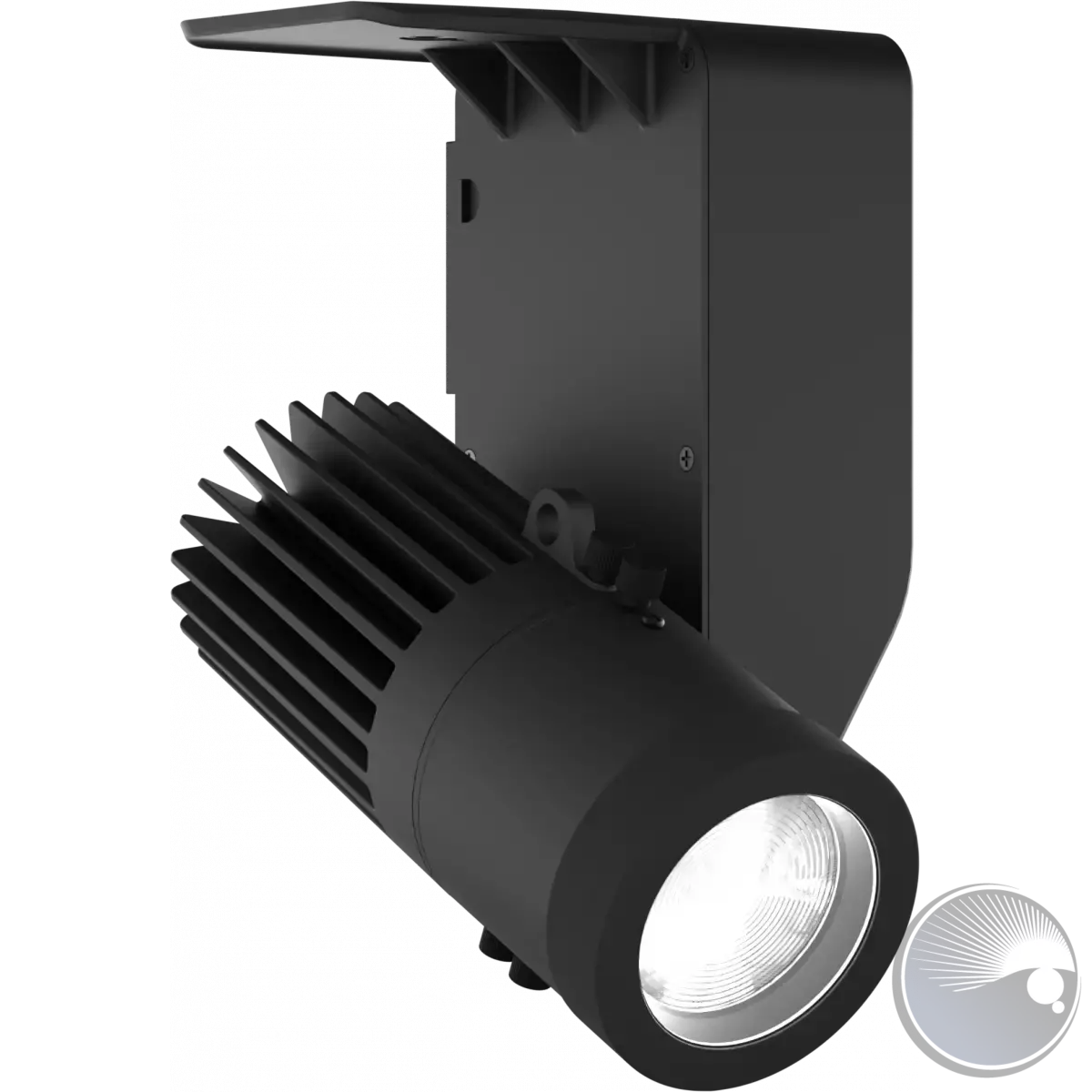

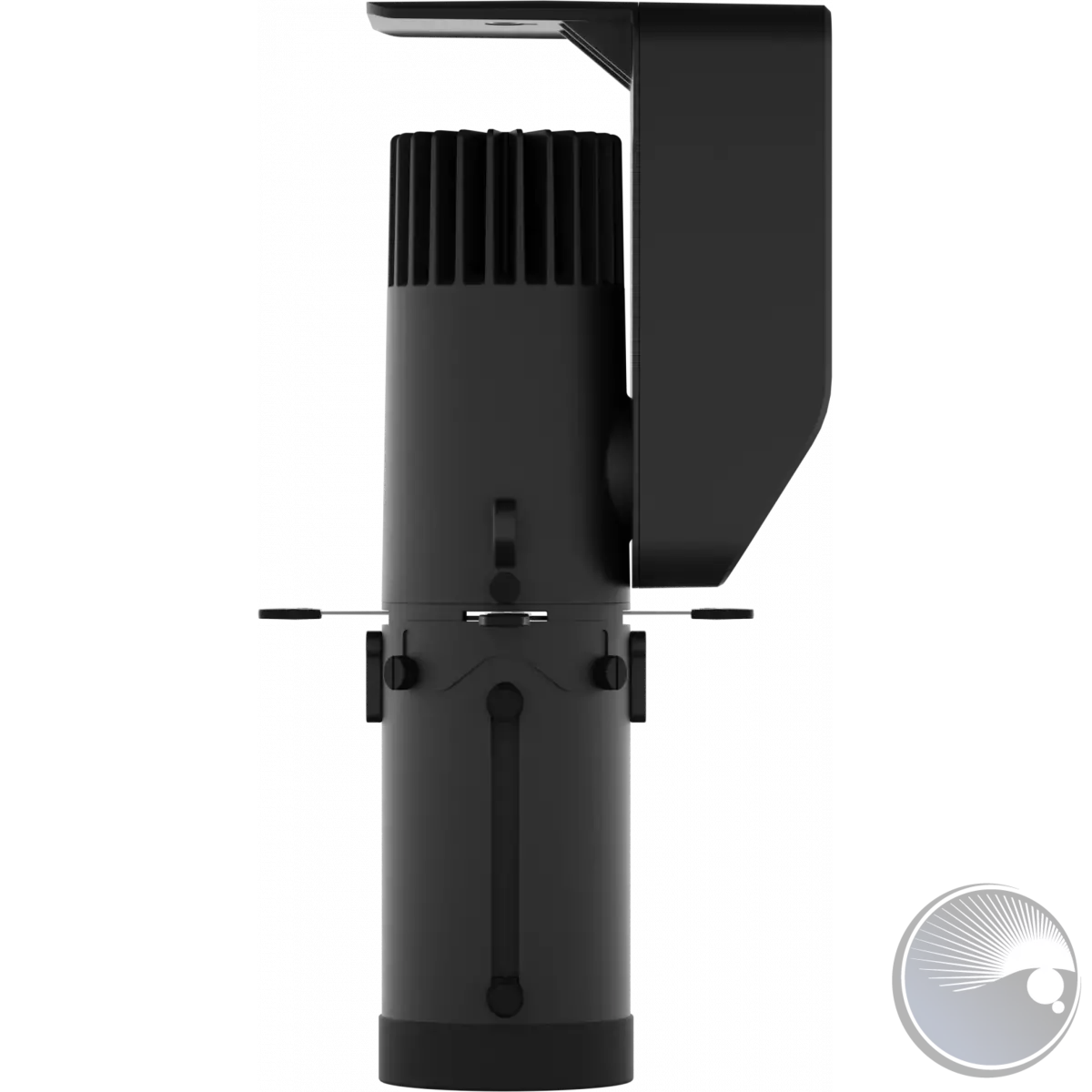

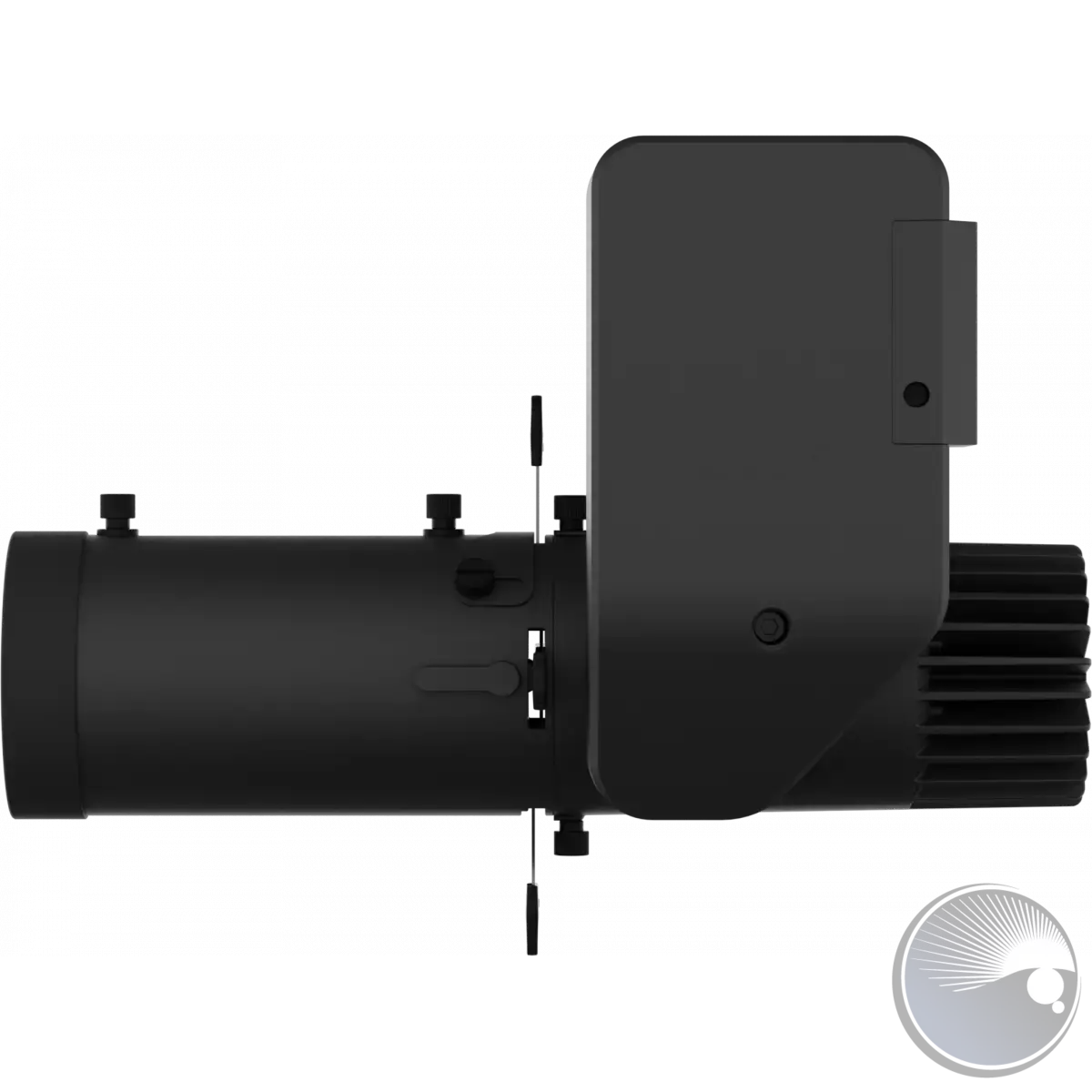

PL EclDisplay CAS VW, ohne Linsentubus, ohne Stromschienenadapter, weiß

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay CAS VW is the version of the EclDisplay range made with integrated CASAMBI control on-board, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control. EclDisplay CAS VW includes a high-efficiency 35W Warm White + Cold White (Variable White - VW) LED capable of delivering  a full tuneable White from 2700K to 5600K, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 35W Tunable White LED
• CCT: 2700K to 5600K
• Luminous flux: 2700K: (profile - 8°) 461 lm - (profile - 18° HD) 525 lm - (profile - 36° HD) 582 lm - (profile - 50° HD) 573 lm - (profile - 10°-20°) 838 lm @20° - (profile - 20°-40°) 833 lm @40° - (wash 25°-50°) 866 lm @50° - (wash 15°-30°) 802 lm @30°
• Luminous flux: 5600K: (profile - 8°) 641 lm - (profile - 18° HD) 1'180 lm - (profile - 36° HD) 1'242 lm - (profile - 50° HD) 1'225 lm - (profile - 10°-20°) 1'168 lm @20° - (profile - 20°-40°) 1'153 lm @40° - (wash 25°-50°) 1'183 lm @50° - (wash 15°-30°) 1'122 lm @30°
• Lux: 2700K: (profile - 8°) 1'334 lx - (profile - 18° HD) 338 lx - (profile - 36° HD) 110 lx - (profile - 50° HD) 48 lx - (profile - 10°-20°) 1'344 lx @10°; 426 lx @20° - (profile - 20°-40°) 347 lx @20°; 91 lx @40° - (wash 25°-50°) 134 lx @25°; 49 lx @50°lx @5 m
• Lux: 5600K: (profile - 8°) 1'807 lx - (profile - 18° HD) 738 lx - (profile - 36° HD) 232 lx - (profile - 50° HD) 100 lx - (profile - 10°-20°) 1'765 lx @10°; 529 lx @20° - (profile - 20°-40°) 587 lx @20°; 128 lx @40° - (wash 25°-50°) 186 lx @25°; 69 lx @50°lx @5 m
• CRI: 2700K: >96; 5600K: >96
• R9: 2700K: >87; 5600K: >90
• TLCI: 2700K: >96; 5600K: >97
• TM30 Rf: 2700K: >96; 5600K: >92
• TM30 Rg: 2700K: <101; 5600K: <99
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°, 18°, 36°, 50°
• Other: 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
• Other: (profile lens) shutter blades lockable
• Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm

COLOUR SYSTEM

• Colour mixing: warm white + cold white - tunable white
• CCT: linear CCT control

DYNAMIC EFFECTS

• Static mode: selection of static dimmer and color temperature

BODY

• Hardware on-board: lockable tilt with screw
• Body: Die-cast aluminium
• Body colour: RAL 9004 or RAL 9010
• Other: included 1 meter power cable - Cable diameter range: 6 - 10 mm

CONTROL

• Supported Protocols: CASAMBI control on-board

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 30W
• Output (at 230V): 40 units on a single power line
• Power factor: > 0,96

PHYSICAL

• Operating Temperature: -10° ~ +45°
• IP rating: IP20
• Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
• Suspension and fixing: track / hanging / ceiling installation
• Data connection: bluetooth
• Power connection: bare-end cable
• Dimensions (WxHxD): 148x200x115.5mm / 5.83''x7.87''x4.55''
• Weight: 1,63kg / 3.59lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM
