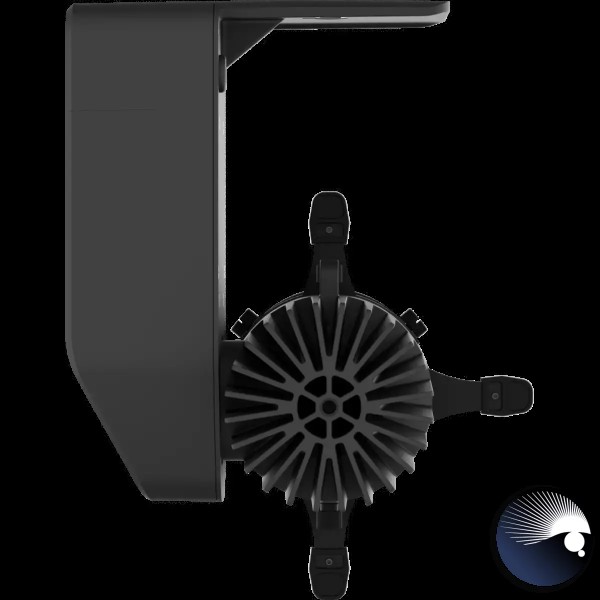

PL EclDisplay CAS 5600k, ohne Linsentubus, ohne Stromschienenadapter, weiß

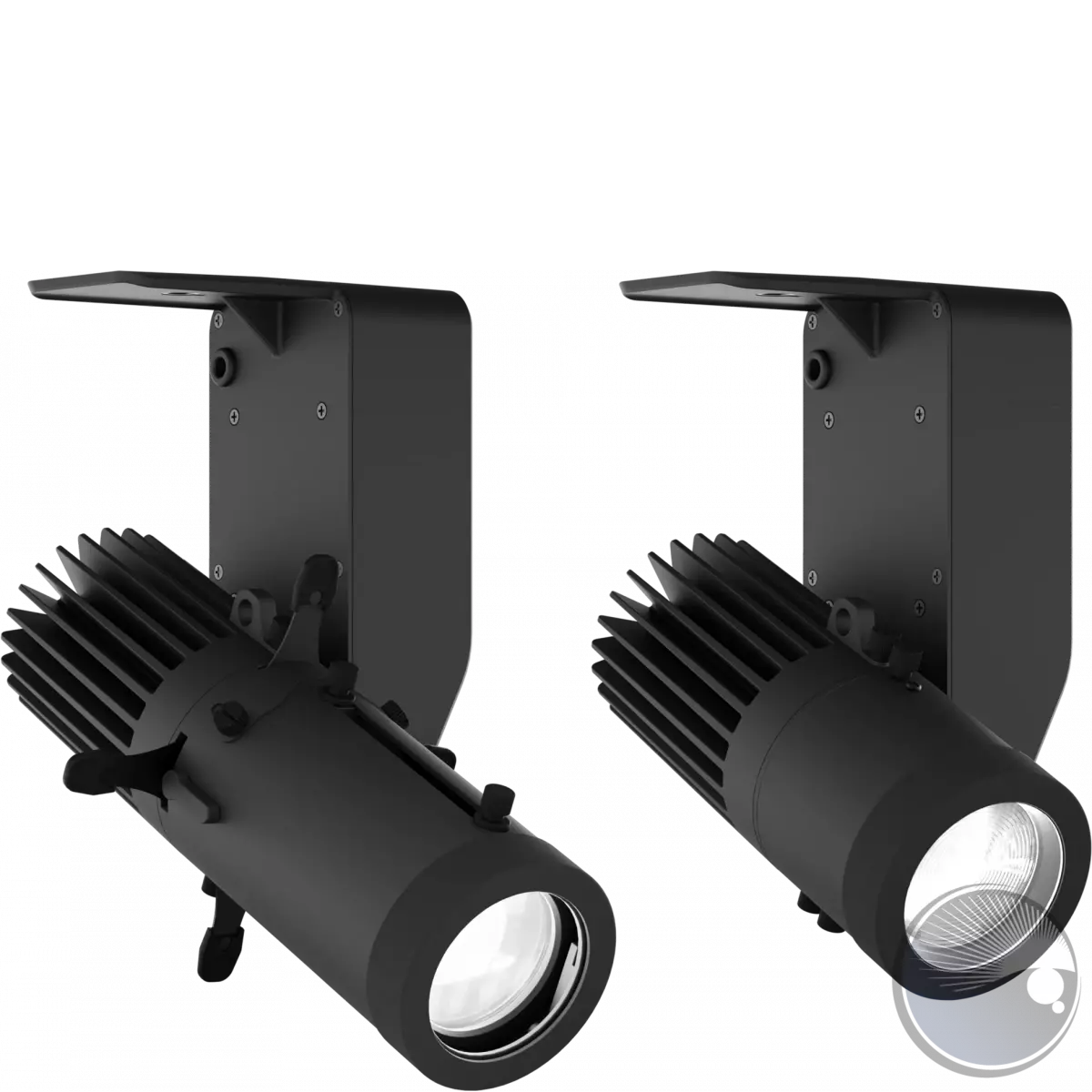

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay CAS is the version of the EclDisplay range made with integrated CASAMBI control on-board, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control. EclDisplay CAS includes a high-efficiency 25W single color LED available in 2700K, 3000K, 4000K and 5600K versions both in black and white finishing, and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 25W White LED
• CCT: see available versions
• Luminous flux: 2700K: (profile - 20°-40°) 1'586 lm @40° - (wash 25°-50°) 1'638 lm @50° - (wash 15°-30°) 1'527 lm @30° @full 3000K: (profile - 20°-40°) 1'676 lm @40° - (wash 25°-50°) 1'849 lm @50° - (wash 15°-30°) 1'730 lm @30° @full @Full
• Luminous flux: 4000K: (profile - 20°-40°) 1'810 lm @40° - (wash 25°-50°) 1'845 lm @50° - (wash 15°-30°) 1'724 lm @30° @full 5600K: (profile - 20°-40°) 1'869 lm @40° - (wash 25°-50°) 1'884 lm @50° - (wash 15°-30°) 1'764 lm @30° @full
• Lux: 2700K: (profile - 20°-40°) 825 lx @20°; 221 lx @40° - (wash 25°-50°) 271 lx @25°; 96 lx @50° @5 m full 3000K: (profile - 20°-40°) 887 lx @20°; 241 lx @40° - (wash 25°-50°) 310 lx @25°; 108 lx @50°lx @5 m full
• Lux: 4000K: (profile - 20°-40°) 923 lx @20°; 245 lx @40° - (wash 25°-50°) 295 lx @25°; 107 lx @50° @5 m full 5600K: (profile - 20°-40°) 964 lx @20°; 256 lx @40° - (wash 25°-50°) 307 lx @25°; 108 lx @50°lx @5 m full
• CRI: 91 @2.700 K; 90 @3.000 K; 93 @4.000 K; 91 @5.600 K
• TLCI: 83 @2.700 K; 82 @3.000 K; 92 @4.000 K; 94 @5.600 K
• TM30 Rf: > 88 @2.700 K; > 87 @3.000 K; > 89 @4.000 K and 5.600 K
• TM30 Rg: < 104 @2.700 K and 3.000 K; > 100 @4.000 K and 5.600 K
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°, 18°, 36°, 50°
• Other: 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
• Other: (profile lens) shutter blades lockable
• Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm

COLOUR SYSTEM

• Colour mixing: see available versions

DYNAMIC EFFECTS

• Static mode: selection of static dimmer

BODY

• Hardware on-board: lockable tilt with screw
• Body: Die-cast aluminium
• Body colour: RAL 9004 or RAL 9010
• Other: included 1 meter power cable - Cable diameter range: 6 - 10 mm

CONTROL

• Supported Protocols: CASAMBI control on-board

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 30W
• Power factor: > 0,96

PHYSICAL

• Operating Temperature: -10° ~ +45°
• IP rating: IP20
• Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
• Suspension and fixing: track / hanging / ceiling installation
• Data connection: bluetooth
• Power connection: bare-end cable
• Dimensions (WxHxD): 141x200x115.5mm / 5.55''x7.87''x4.55''
• Weight: 1,4kg / 3.09lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM
