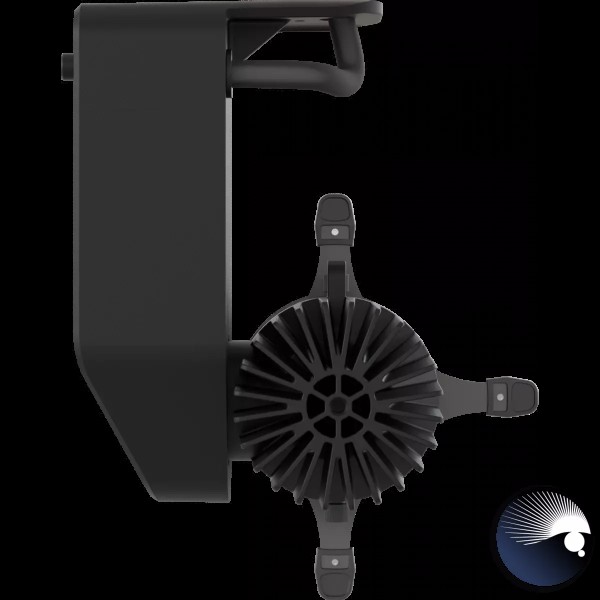

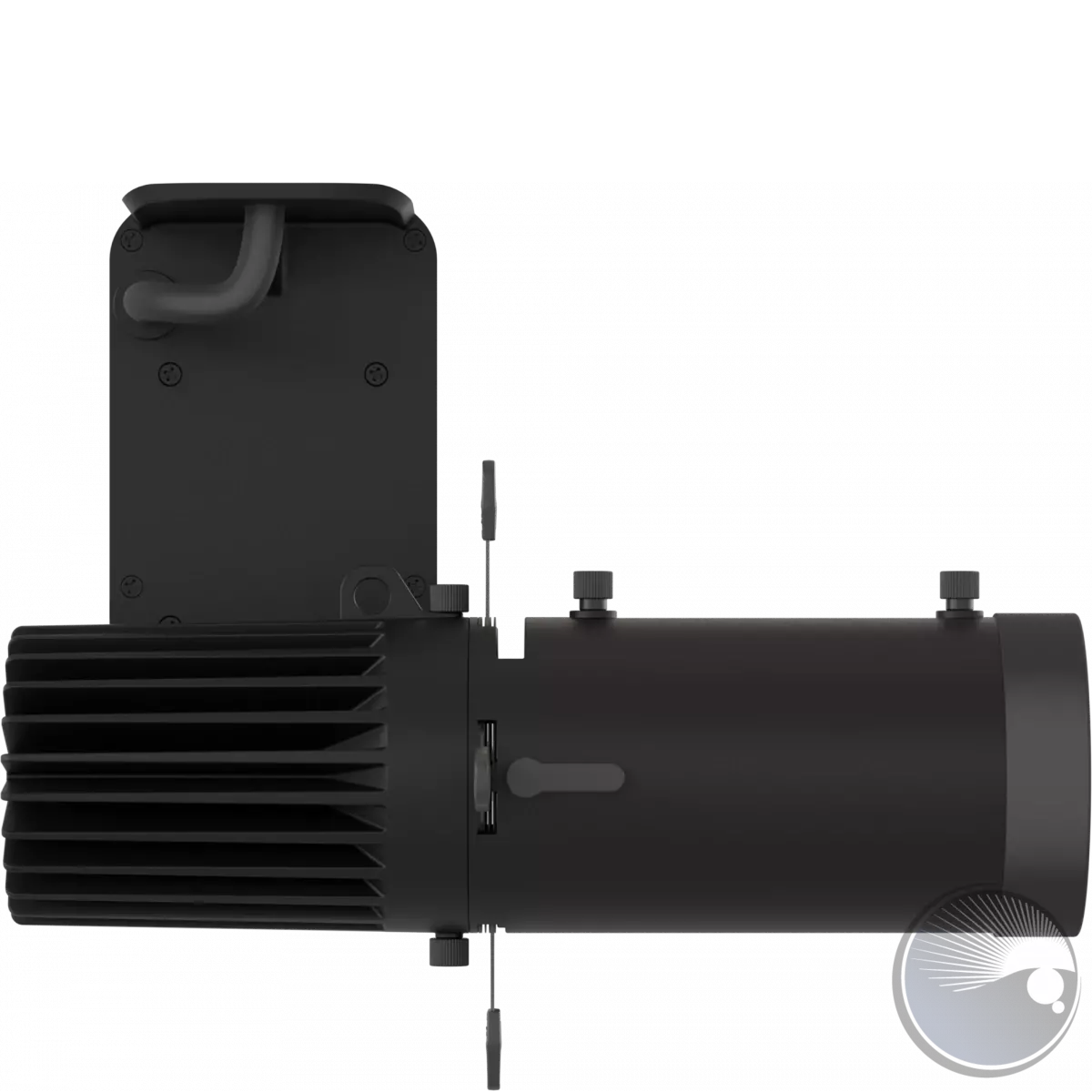

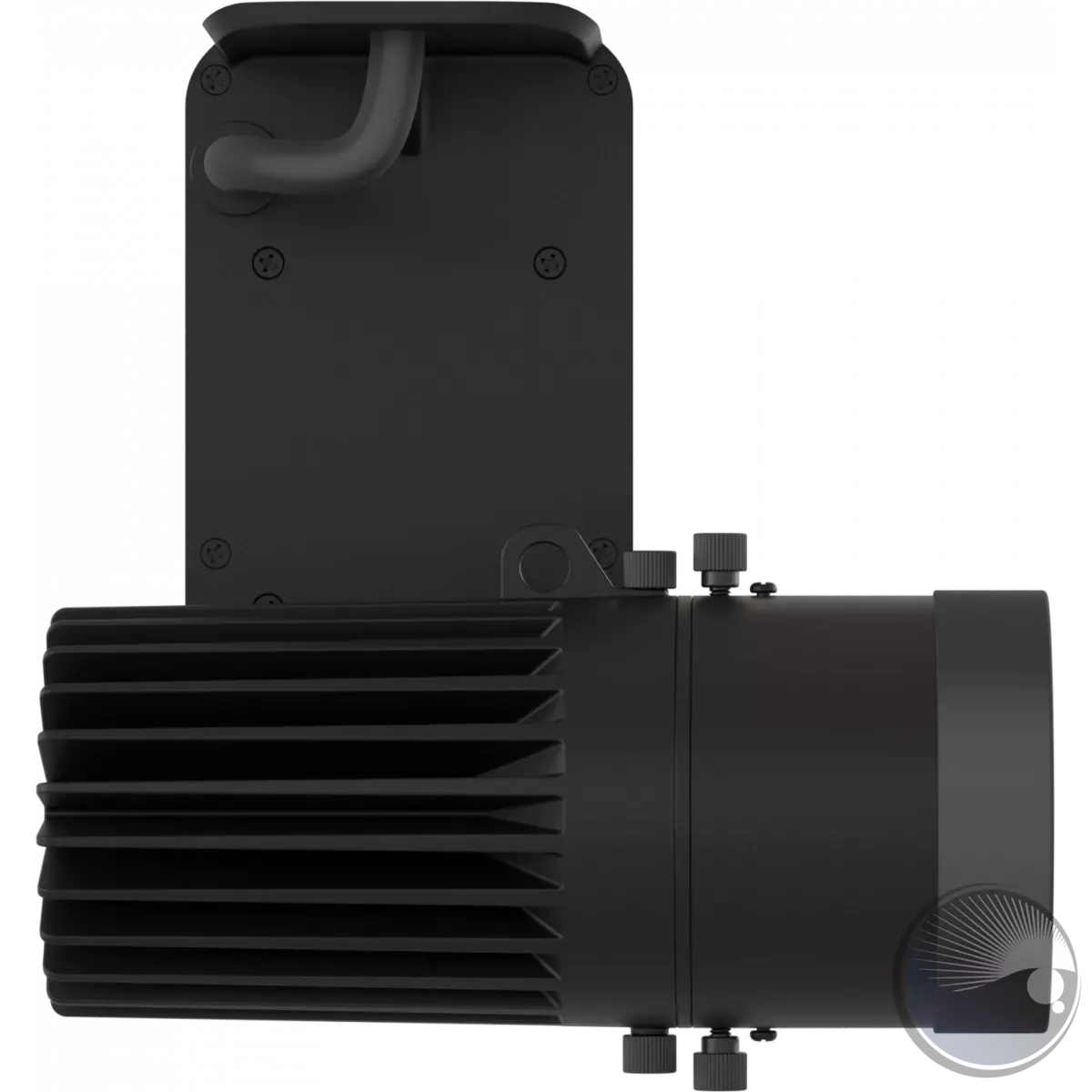

PL EclDisplay CRMX White, 25W, 2.700K, weiss, ohne Optik, Steuerung: CRMX, DMX, manuell

The EclDisplay CRMX series presents an innovative and versatile range of LED spotlights, designed for use in galleries, commercial spaces, and other public venues. These advanced fixtures are distinguished by their refined design and multiple control options, including both wired and wireless protocols. They are adaptable to a variety of applications, thanks to the availability of different sources and optics.Each EclDisplay CRMX unit can be programmed and controlled via RDM, encompassing a comprehensive array of built-in input control protocols such as Wireless CRMX, DMX and local knob dimming.At the heart of the EclDisplay CRMX is a highly efficient White, high CRI LED source. This source is offered in multiple color temperature options: 35 W Variable White and 25 W 2.700K, 3,000 K, 4,000 K, and 5,600 K. The fixture's versatility is further enhanced by an extensive range of optional accessories, including profile (zoom and static) or wash lenses and additional optical elements like louvres and snoots. This makes the EclDisplay CRMX not just a lighting fixture, but a comprehensive lighting solution adaptable to a multitude of environments and needs.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 25W White COB LED
• Luminous flux: 2.700K: (profile - 20°) 1'270 lm - (profile - 40°) 1'301 lm; (wash 2550 - min) 999 lm - (wash 2550 - max) 1'454 lm; (wash 1530 - min) 1'069 lm - (wash 1530 - max) 1'317 lm @Full
• Luminous flux: 3.000K: (profile - 20°) 1'352 lm - (profile - 40°) 1'377 lm; (wash 2550 - min) 1'116 lm - (wash 2550 - max) 1'663 lm; (wash 1530 - min) 1'196 lm - (wash 1530 - max) 1'468 lm
• Luminous flux: 4.000K: (profile - 20°) 1'581 lm - (profile - 40°) 1'568 lm; (wash 2550 - min) 1'242 lm - (wash 2550 - max) 1'788 lm; (wash 1530 - min) 1'329 lm - (wash 1530 - max) 1'639 lm
• Luminous flux: 5.600K: (profile - 20°) 1'687 lm - (profile - 40°) 1'700 lm; (wash 2550 - min) 1'367 lm - (wash 2550 - max) 1'997 lm; (wash 1530 - min) 1'493 lm - (wash 1530 - max) 1'843 lm
• Lux: 2.700K: (profile - 20°) 676 lx - (profile - 40°) 194 lx; (wash 2550 - min) 229 lx - (wash 2550 - max) 81 lx; (wash 1530 - min) 556 lx - (wash 1530 - max) 190 lxlx @5 m full
• Lux: 3.200K: (profile - 20°) 610 lx - (profile - 40°) 185 lx; (wash 2550 - min) 234 lx - (wash 2550 - max) 83 lx; (wash 1530 - min) 571 lx - (wash 1530 - max) 208 lxlx @5 m full
• Lux: 4.000K: (profile - 20°) 782 lx - (profile - 40°) 235 lx; (wash 2550 - min) 272 lx - (wash 2550 - max) 98 lx; (wash 1530 - min) 683 lx - (wash 1530 - max) 232 lxlx
• Lux: 5.600K: (profile - 20°) 853 lx - (profile - 40°) 250 lx; (wash 2550 - min) 292 lx - (wash 2550 - max) 107 lx; (wash 1530 - min) 720 lx - (wash 1530 - max) 261 lxlx
• CRI: > 97 @2.700K; > 98 @3.000K; > 98 @4.000K; >95 @5.600K
• R9: > 89 @2.700K; > 90 @3.000K; > 90 @4.000K; >82 @5.600K
• TLCI: > 92 @2.700K; > 98 @3.000K; > 98 @4.000K; >98 @5.600K
• TM30 Rf: > 95 @2.700K; > 95 @3.000K; > 94 @4.000K; >93 @5.600K
• TM30 Rg: < 99 @2.700K; < 99 @3.000K; < 100 @4.000K; <101 @5.600K
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8°
• Other: 360° lens rotation - optional 360° rotating barndoors and gel frame holder
• Other: (profile lens) shutter blades lockable
• Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer
• Static mode: selection of static dimmer
• Manual mode: manual adjustment of dimmer and strobe
• Auto mode: built-in programs with execution speed adjustment

BODY

• Hardware on-board: lockable tilt with screw
• Body: Die-cast aluminium
• Body colour: RAL 9004 or RAL 9010
• Other: cable not included - Cable diameter range: 6 - 10 mm

CONTROL

• Supported Protocols: Local Knob, DMX, RDM, CRMX
• Stand Alone: 1 push encoder
• DMX channels: 1 / 2 / 3 / 4channel
• Wireless Control: Included LumenRadio TiMoRX
• RDM: RDM for remote monitoring and settings
• Display: user interface through DATAMASTER external coder (not included)
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 33W
• Output (at 230V): 40 units on a single power line
• Power factor: > 0,94

PHYSICAL

• Operating Temperature: -10° ~ +45°
• IP rating: IP20
• Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
• Suspension and fixing: track / hanging / ceiling installation
• Data connection: screw terminal blocks
• Power connection: screw terminal blocks
• Dimensions (WxHxD): 141X200x115.5mm / 5.55''x4.55''
• Weight: 1,4kg / 3.09lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM, FCC, cTUVus
