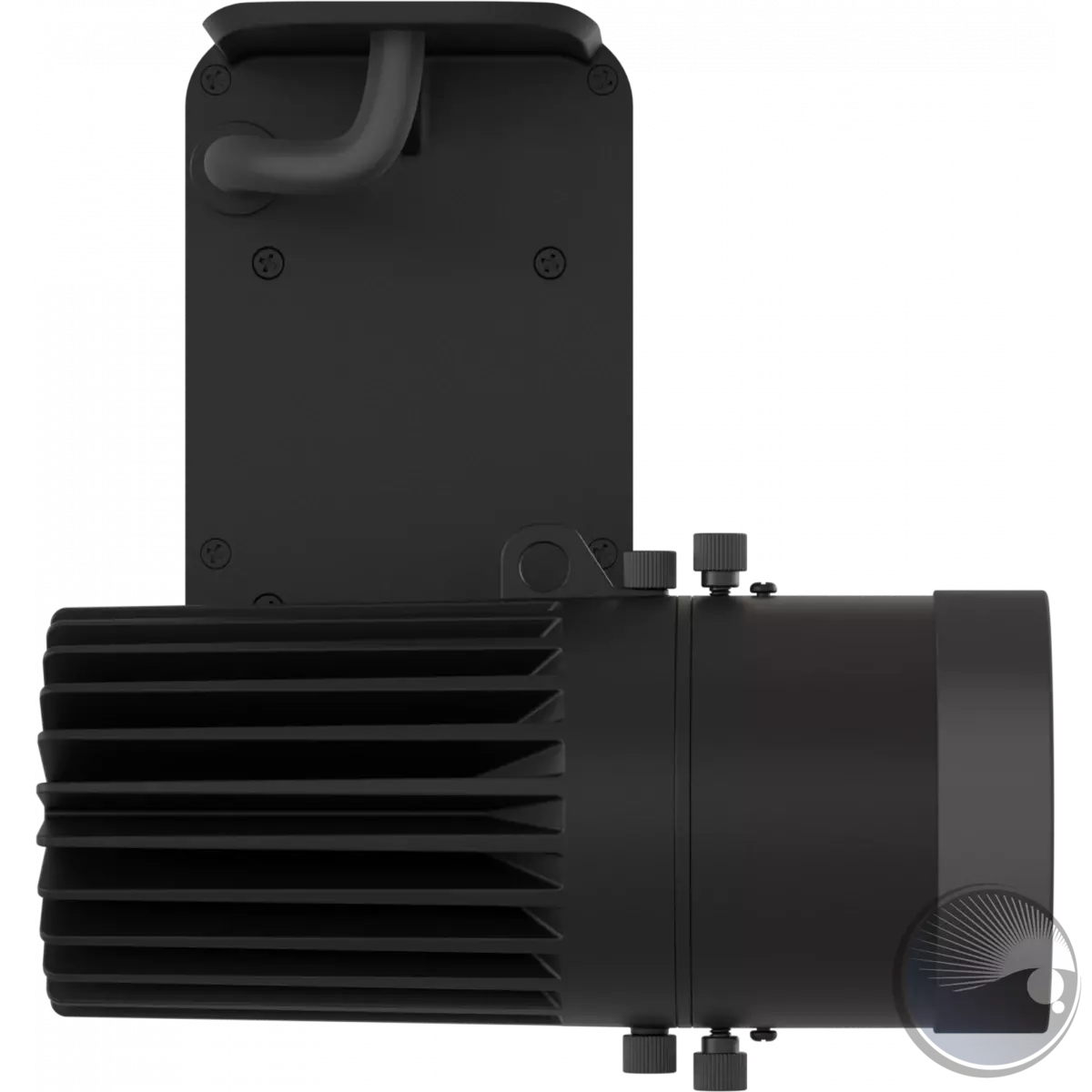

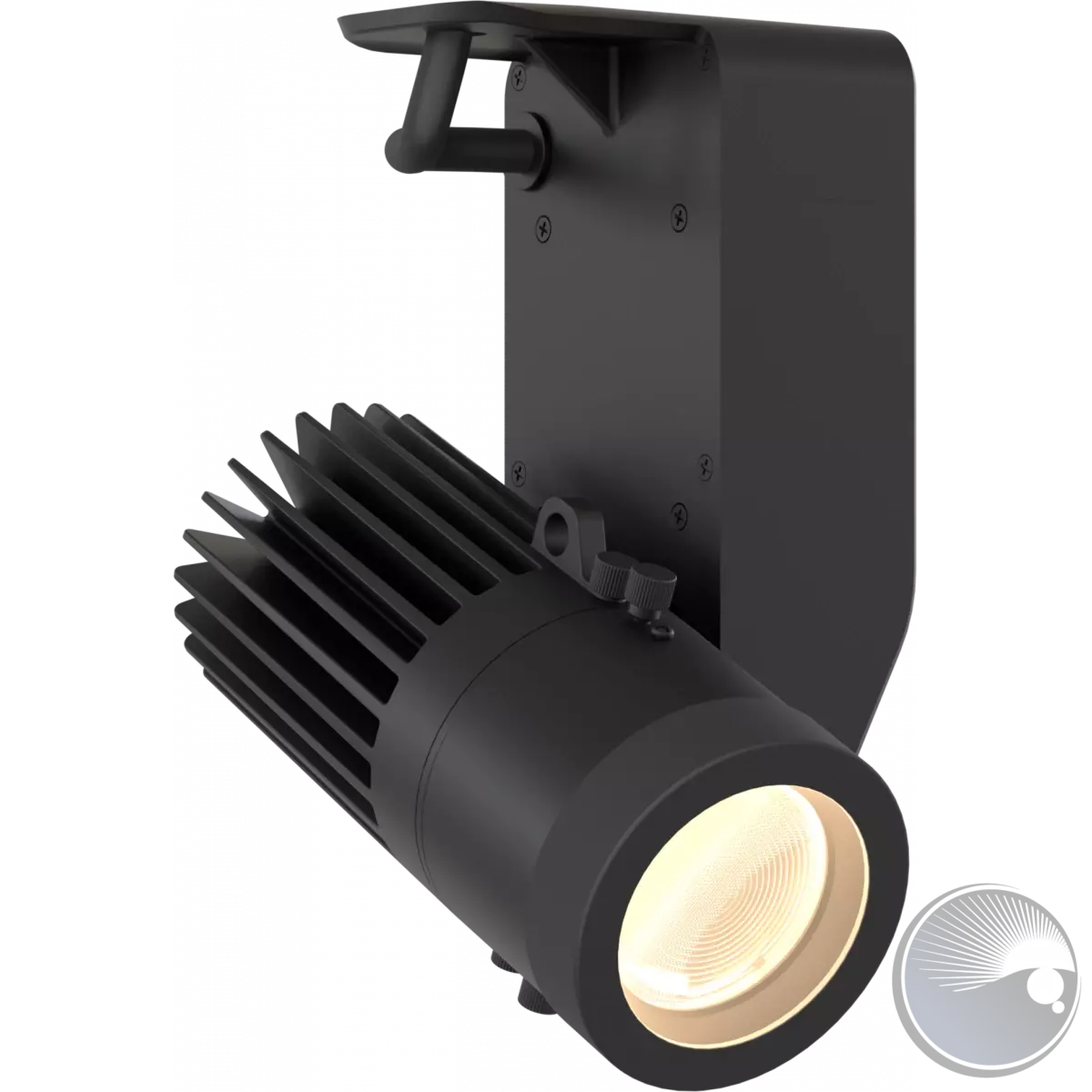

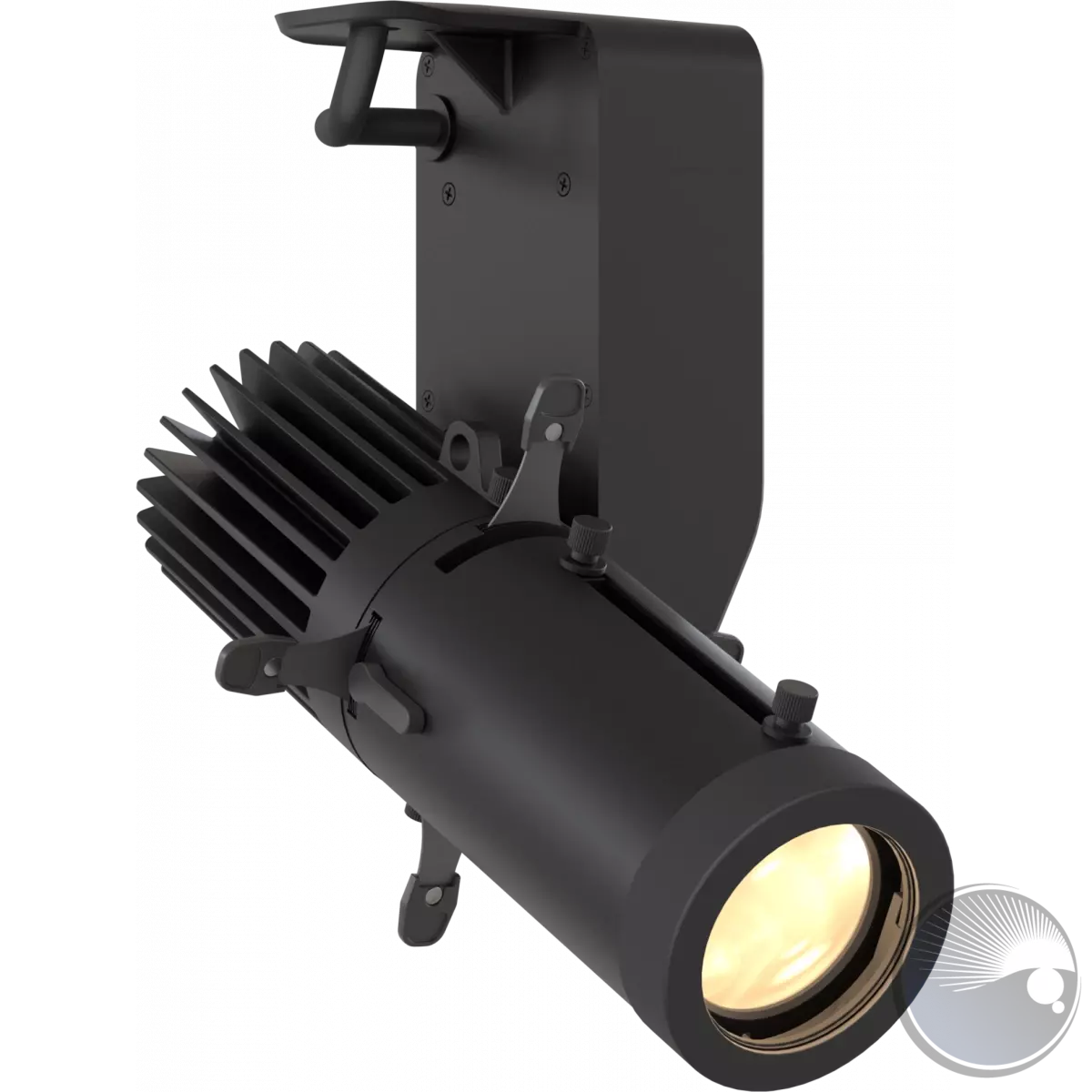

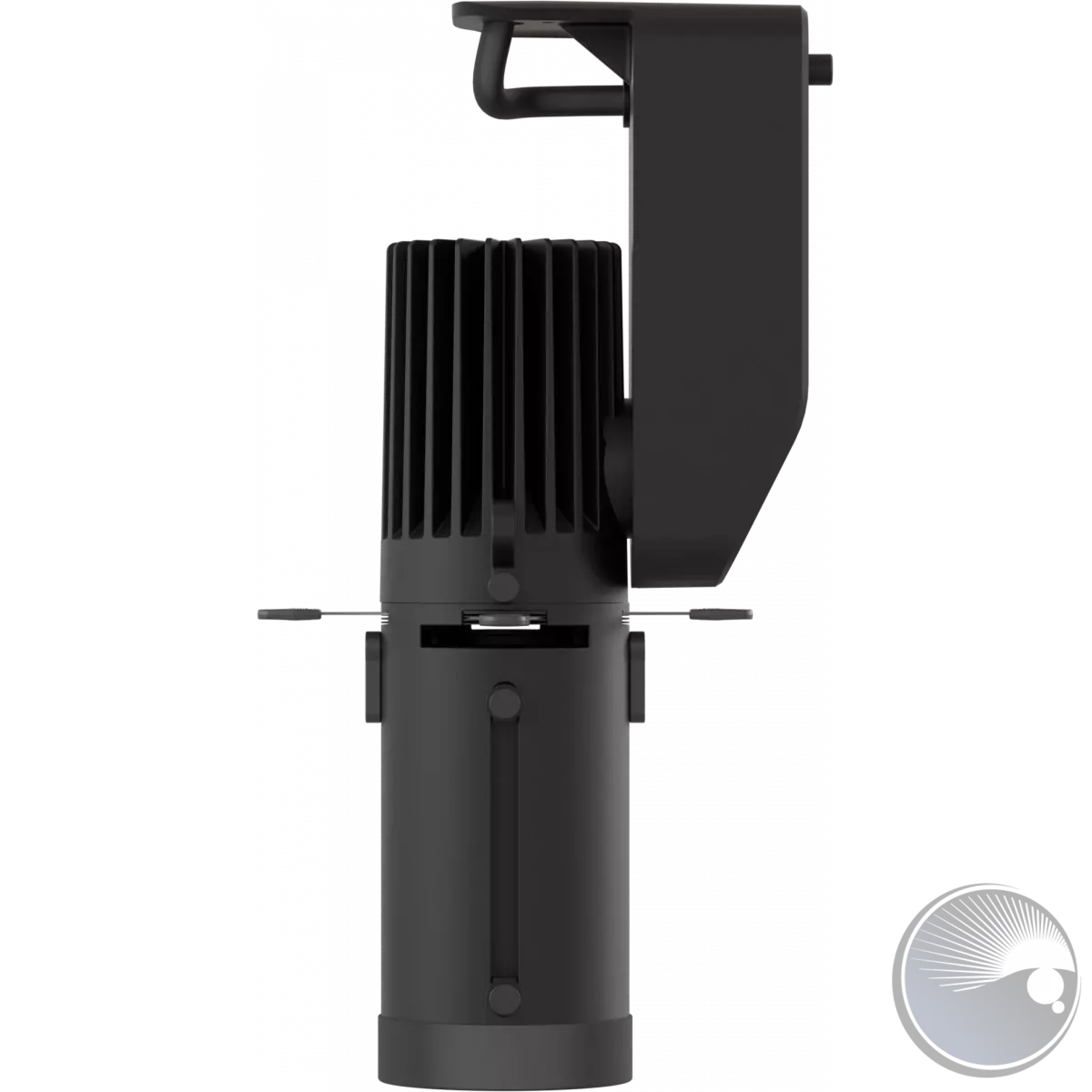

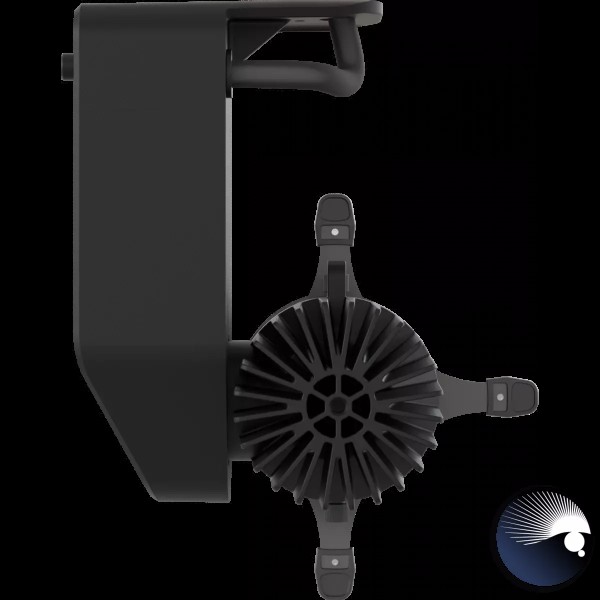

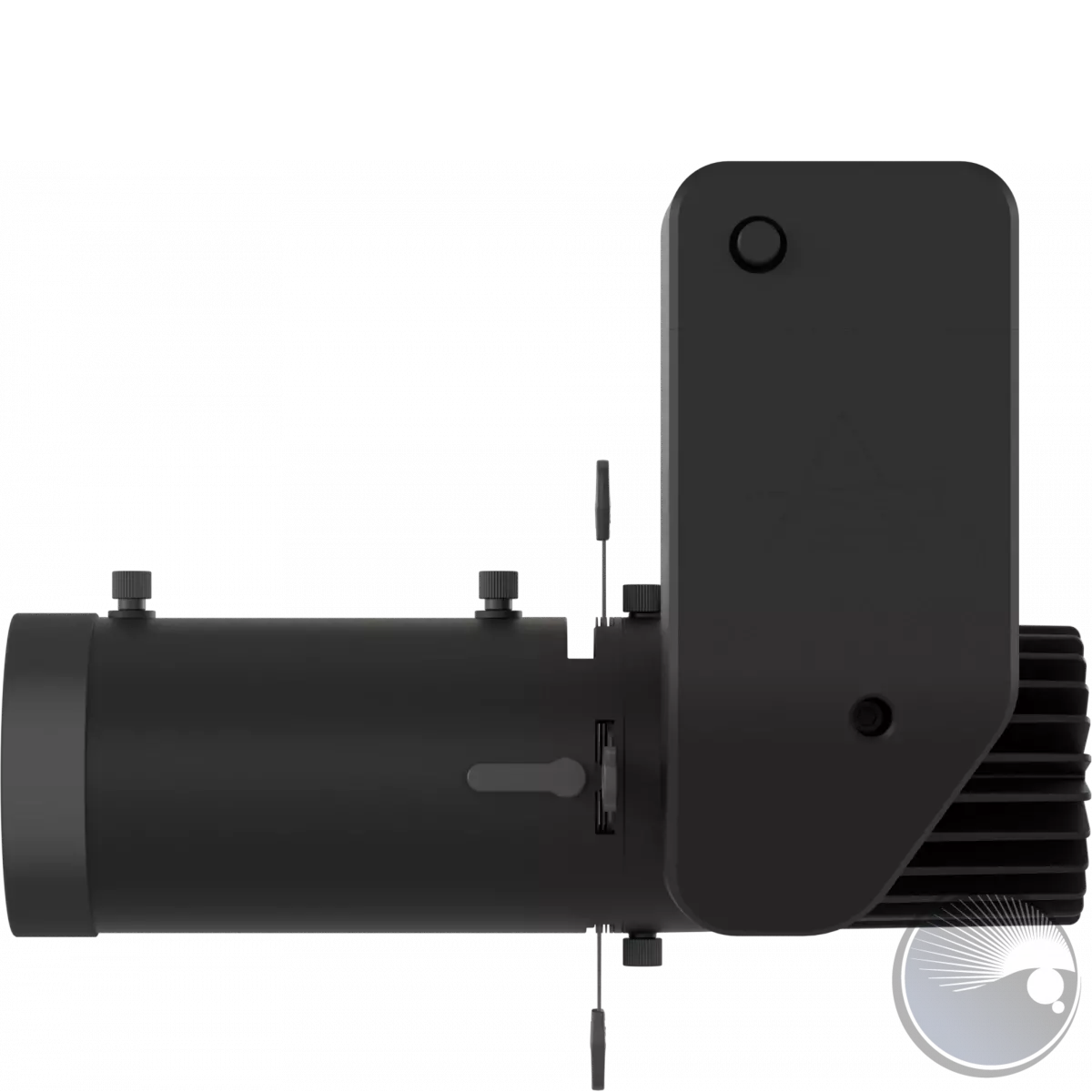

PL EclDisplay CRMX VW, 35W, 2.700K ? 5.600K, weiss, ohne Optik, Steuerung: CRMX, DMX, manuell

The EclDisplay CRMX series presents an innovative and versatile range of LED spotlights, designed for use in galleries, commercial spaces, and other public venues. These advanced fixtures are distinguished by their refined design and multiple control options, including both wired and wireless protocols. They are adaptable to a variety of applications, thanks to the availability of different sources and optics.Each EclDisplay CRMX unit can be programmed and controlled via RDM, encompassing a comprehensive array of built-in input control protocols such as Wireless CRMX, DMX and local knob dimming.At the heart of the EclDisplay CRMX is a highly efficient White, high CRI LED source. This source is offered in multiple color temperature options: 35 W Variable White and 25 W 2.700K, 3,000 K, 4,000 K, and 5,600 K. The fixture's versatility is further enhanced by an extensive range of optional accessories, including profile (zoom and static) or wash lenses and additional optical elements like louvres and snoots. This makes the EclDisplay CRMX not just a lighting fixture, but a comprehensive lighting solution adaptable to a multitude of environments and needs.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 35W Tunable White LED
• CCT: 2700K to 5600K
• Luminous flux: (profile 2040 - min) 1124 lm - (profile 2040 - max) 1087 lm; (wash 2550 - min) 921 lm - (wash 2550 - max) 1370 lm; (wash 1530 - min) 975 lm - (wash 1530 - max) 1218
• Luminous flux:
• Lux: (profile 2040 - min) 602 lx - (profile 2040 max) 160 lx; (wash 2550 - min) 186 lx - (wash 2550 - max) 76 lx; (wash 1530 - min) 451 lx - (wash 1530 - max) 181lx @5 m
• Lux: lx @5 m
• CRI: 2700K: >96; 5600K: >96
• R9: 2700K: >89; 5600K: >93
• TLCI: 2700K: >96; 5600K: >97
• TM30 Rf: 2700K: >91; 5600K: >92
• TM30 Rg: 2700K: <100; 5600K: <100
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

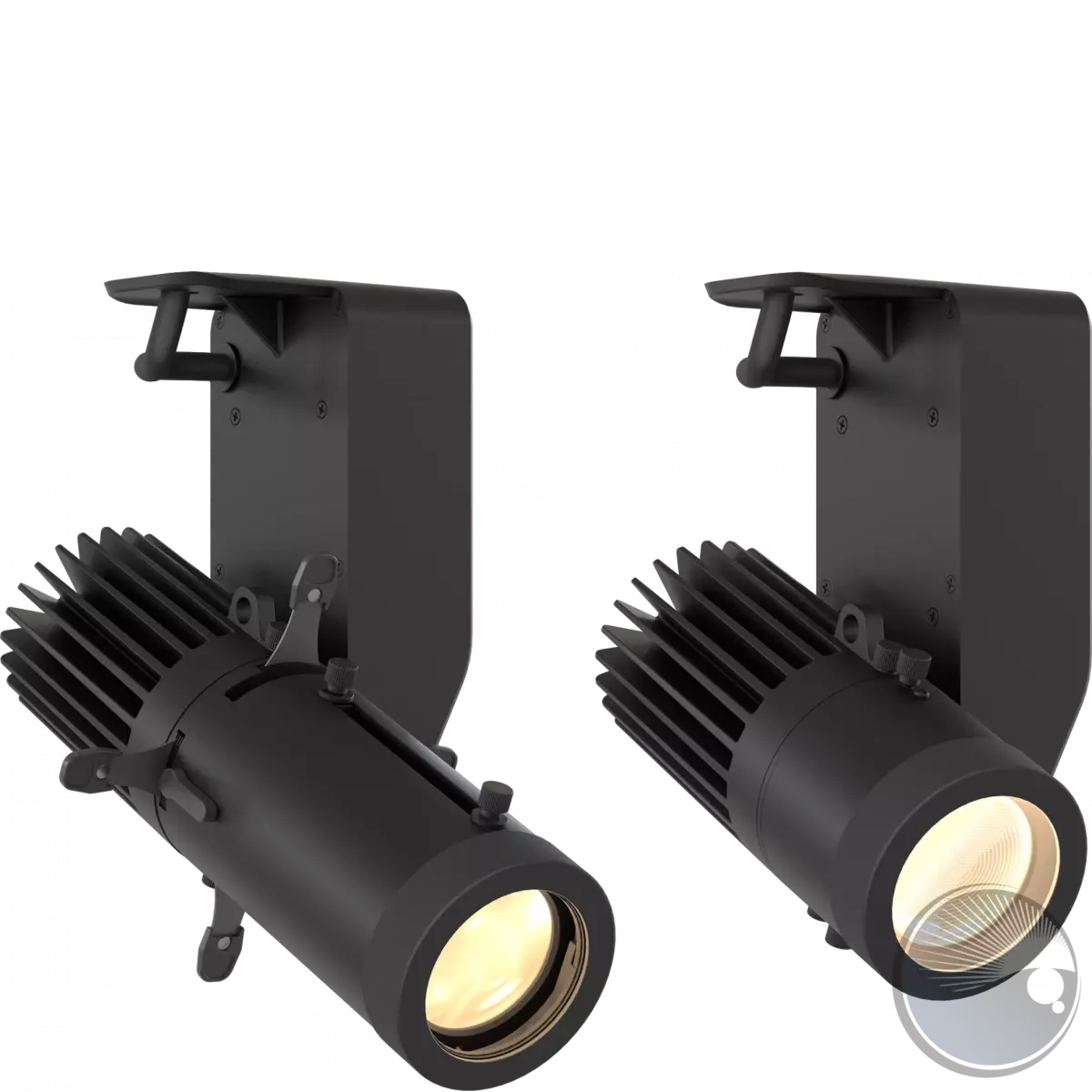

• Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°
• Other: 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
• Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm

COLOUR SYSTEM

• Colour mixing: warm white + cold white - tunable white
• CCT: linear CCT control

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer
• Static mode: selection of static dimmer
• Manual mode: manual adjustment of dimmer and strobe
• Auto mode: built-in programs with execution speed adjustment

BODY

• Hardware on-board: lockable tilt with screw
• Body: Die-cast aluminium

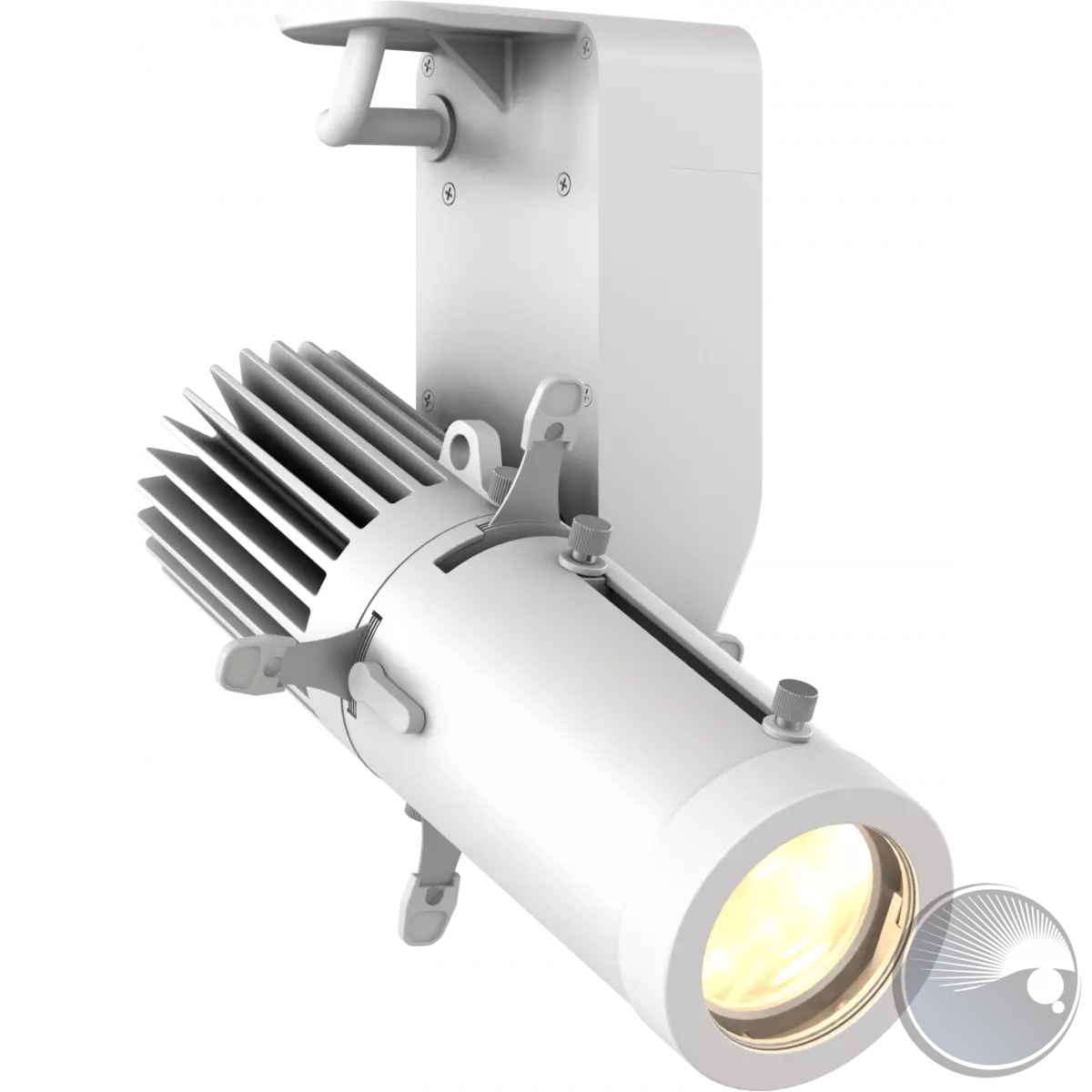

• Body colour: RAL 9004 or RAL 9010
• Other: cable not included - Cable diameter range: 6 - 10 mm

CONTROL

• Supported Protocols: Local Knob, DMX, RDM, CRMX
• Stand Alone: 1 push encoder
• DMX channels: 1 / 2 / 3 / 4channel
• Wireless Control: Included LumenRadio TiMoRX
• RDM: RDM for remote monitoring and settings
• Display: user interface through DATAMASTER external coder (not included)
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 33W
• Output (at 230V): 40 units on a single power line
• Power factor: > 0,93

PHYSICAL

• Operating Temperature: -10° ~ +45°
• IP rating: IP20

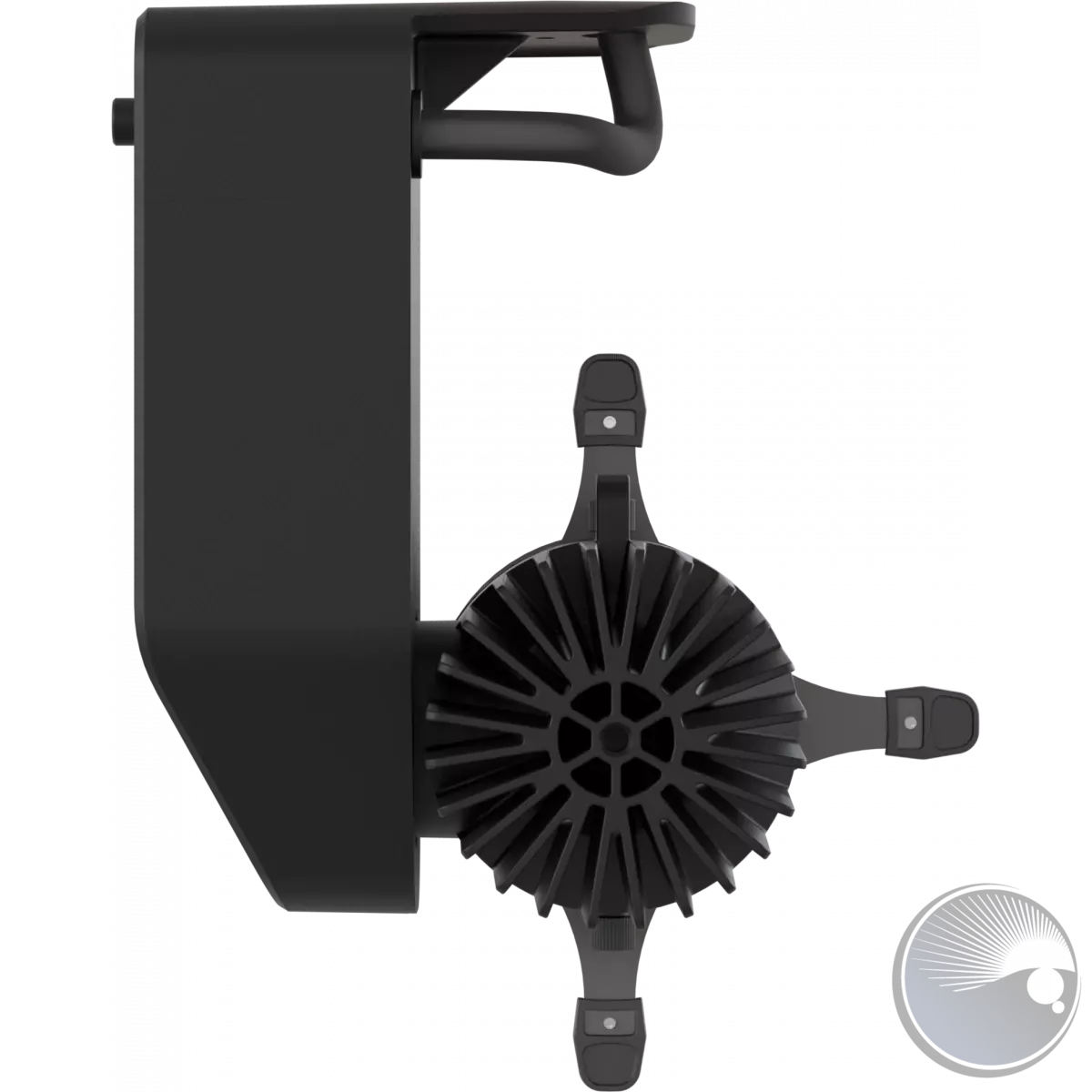

• Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
• Suspension and fixing: track / hanging / ceiling installation
• Data connection: screw terminal blocks
• Power connection: screw terminal blocks
• Dimensions (WxHxD): 141X200x150mm / 5.55''x5.91''
• Weight: 1,4kg / 3.09lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
