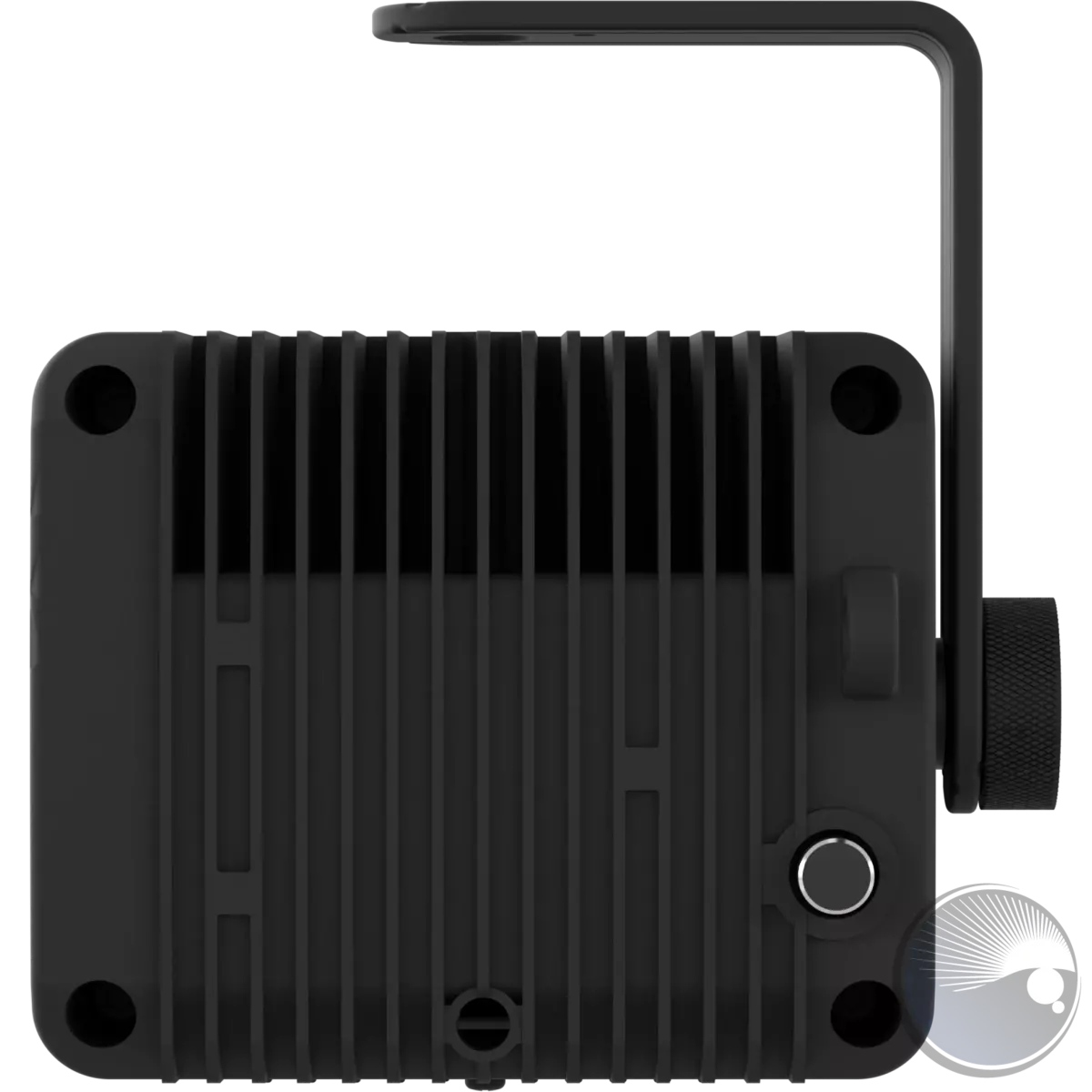

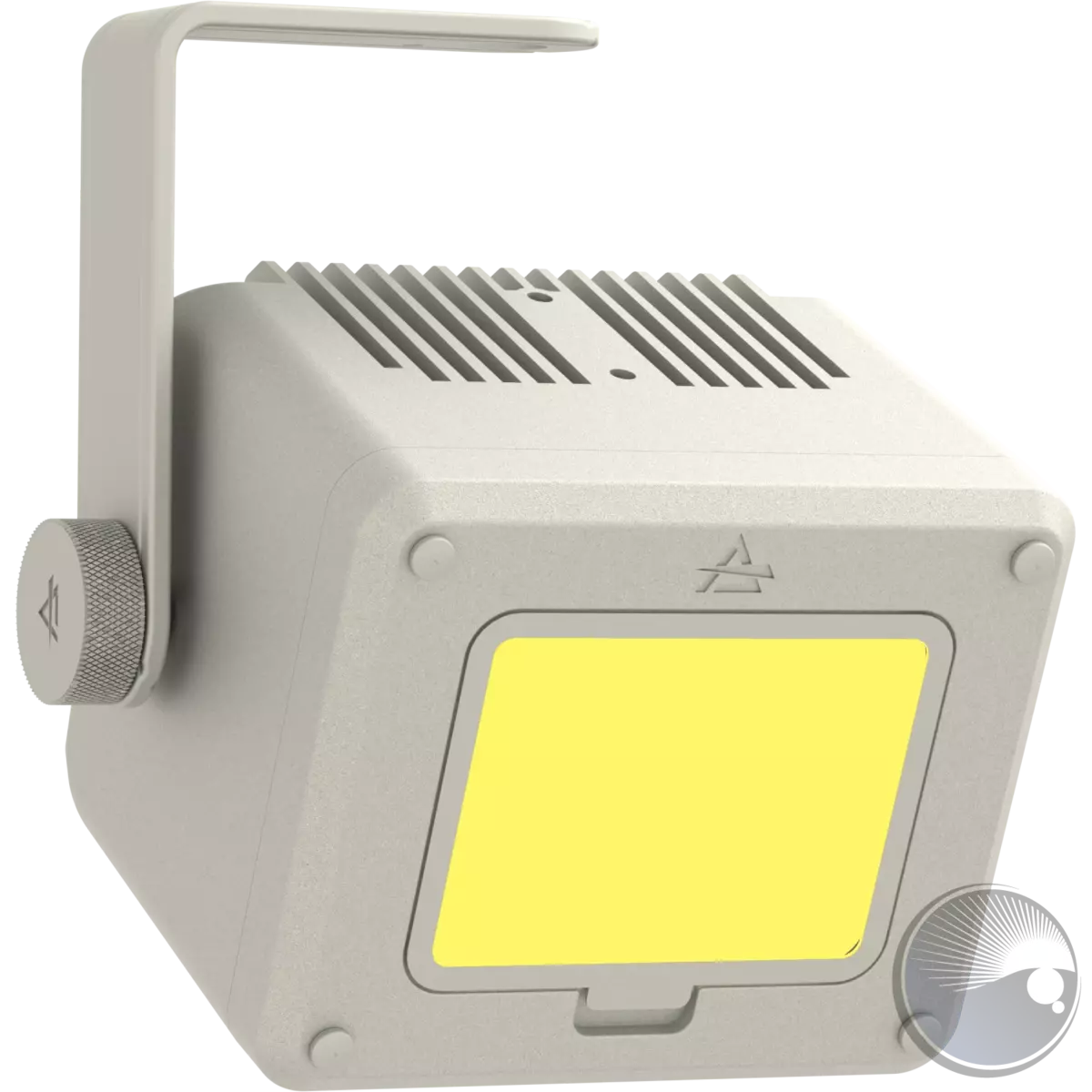

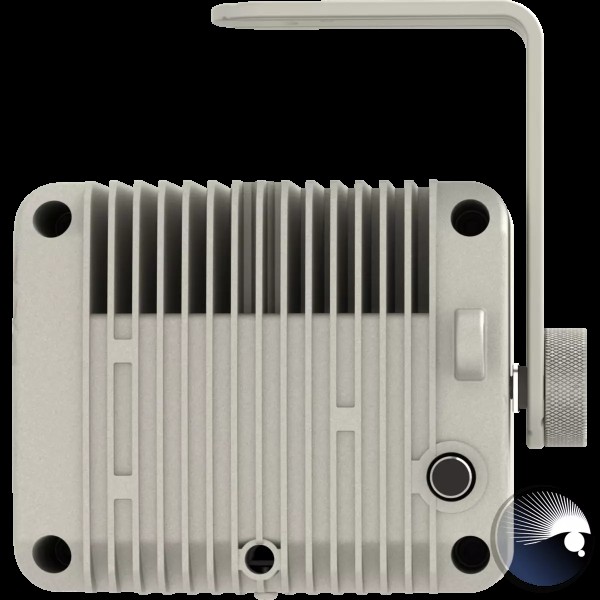

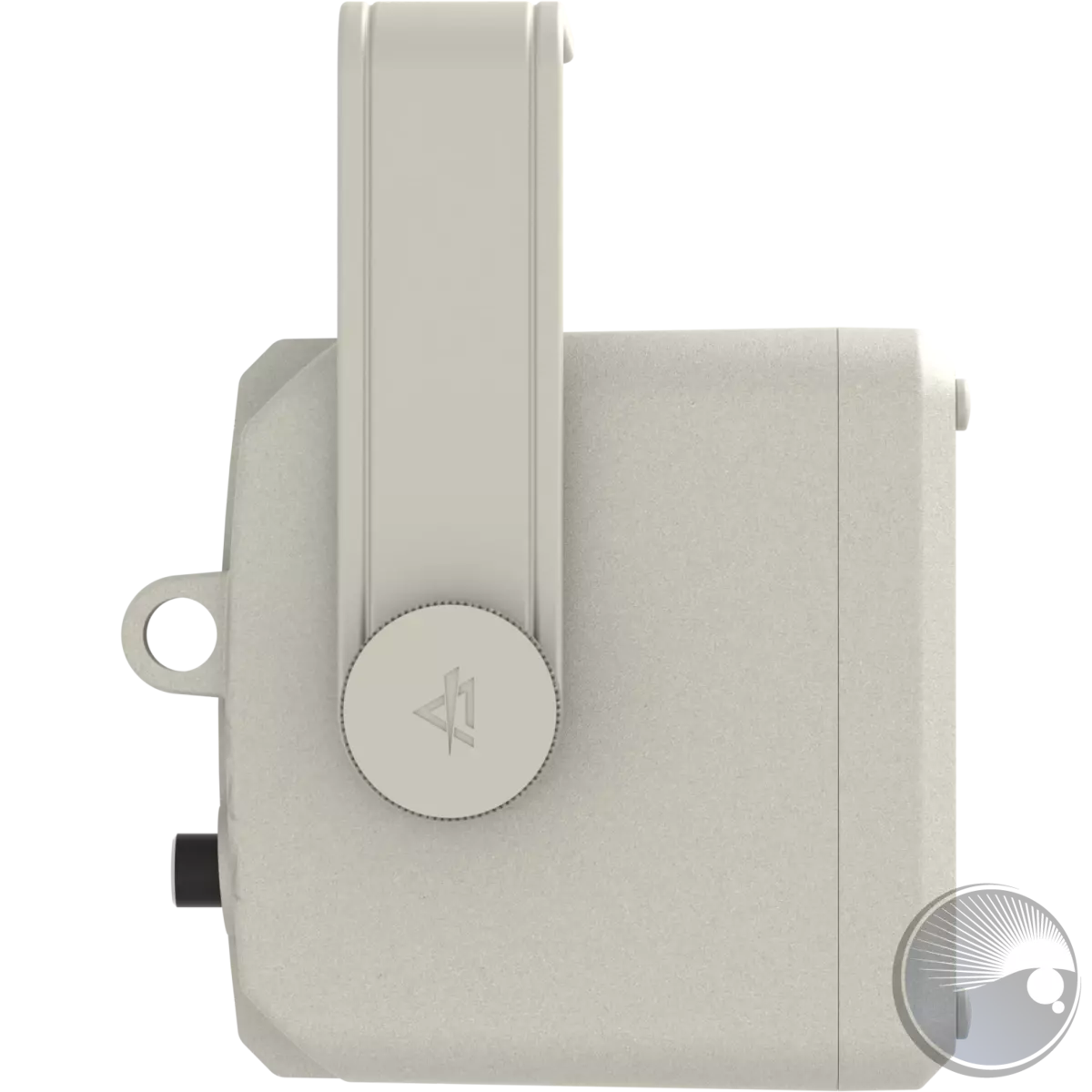

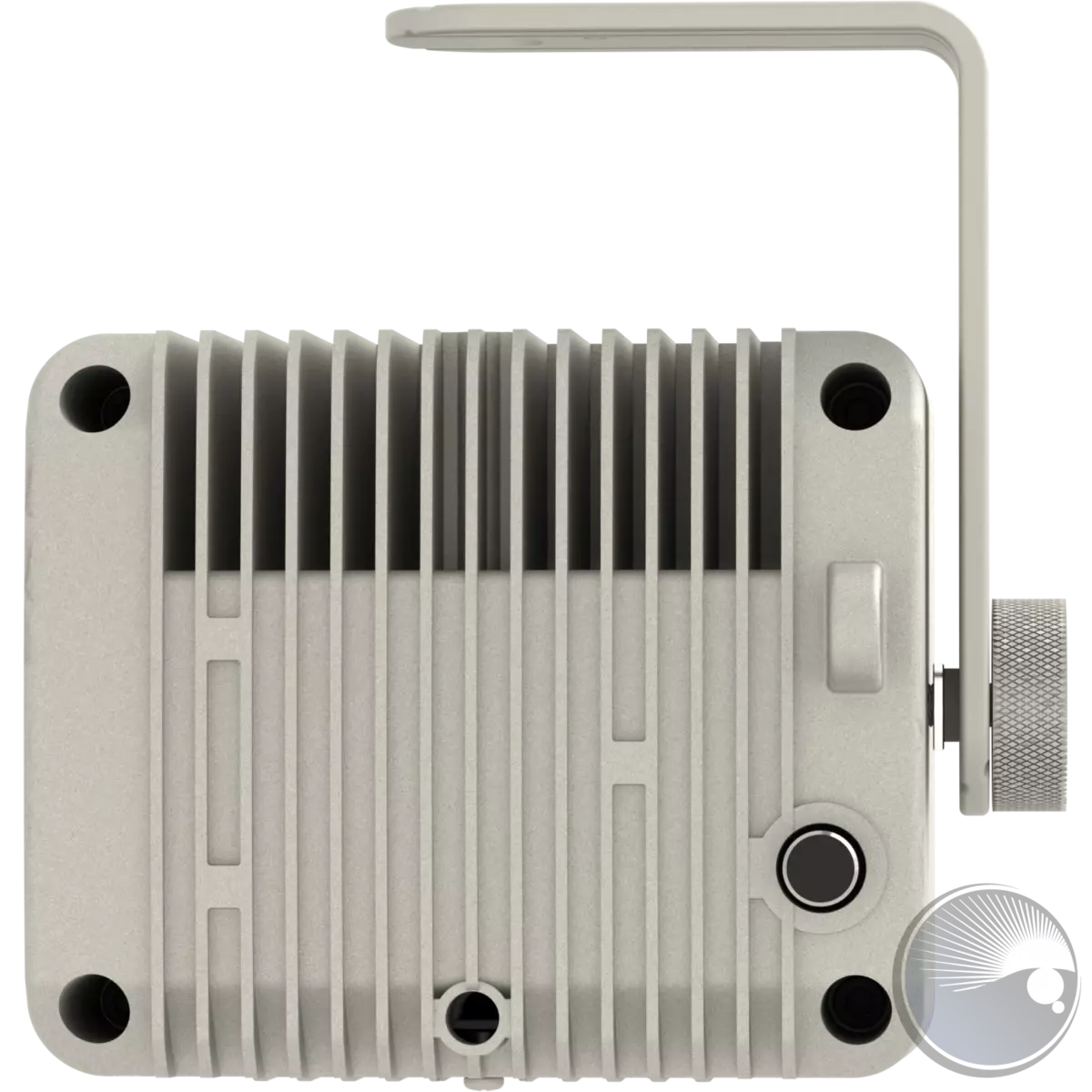

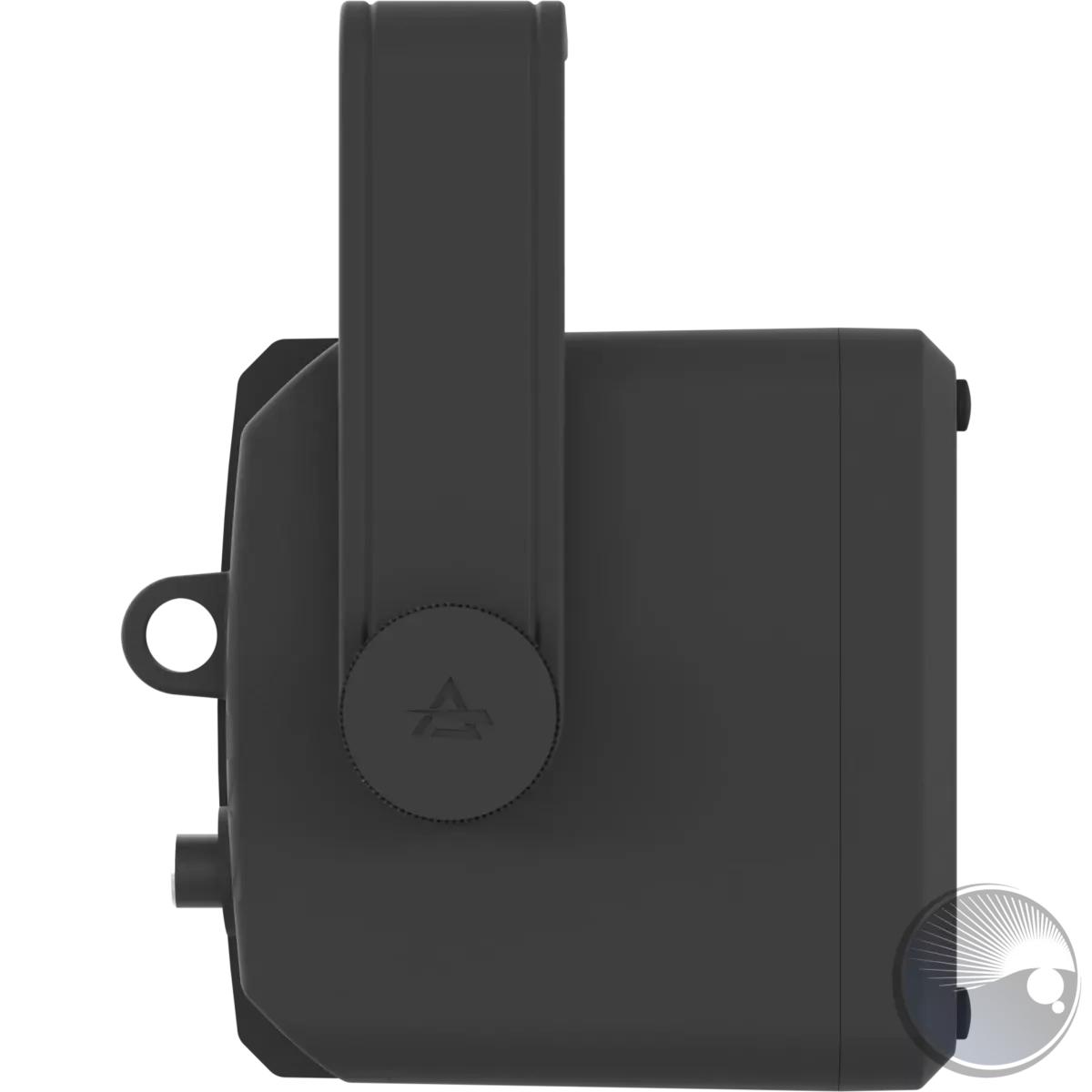

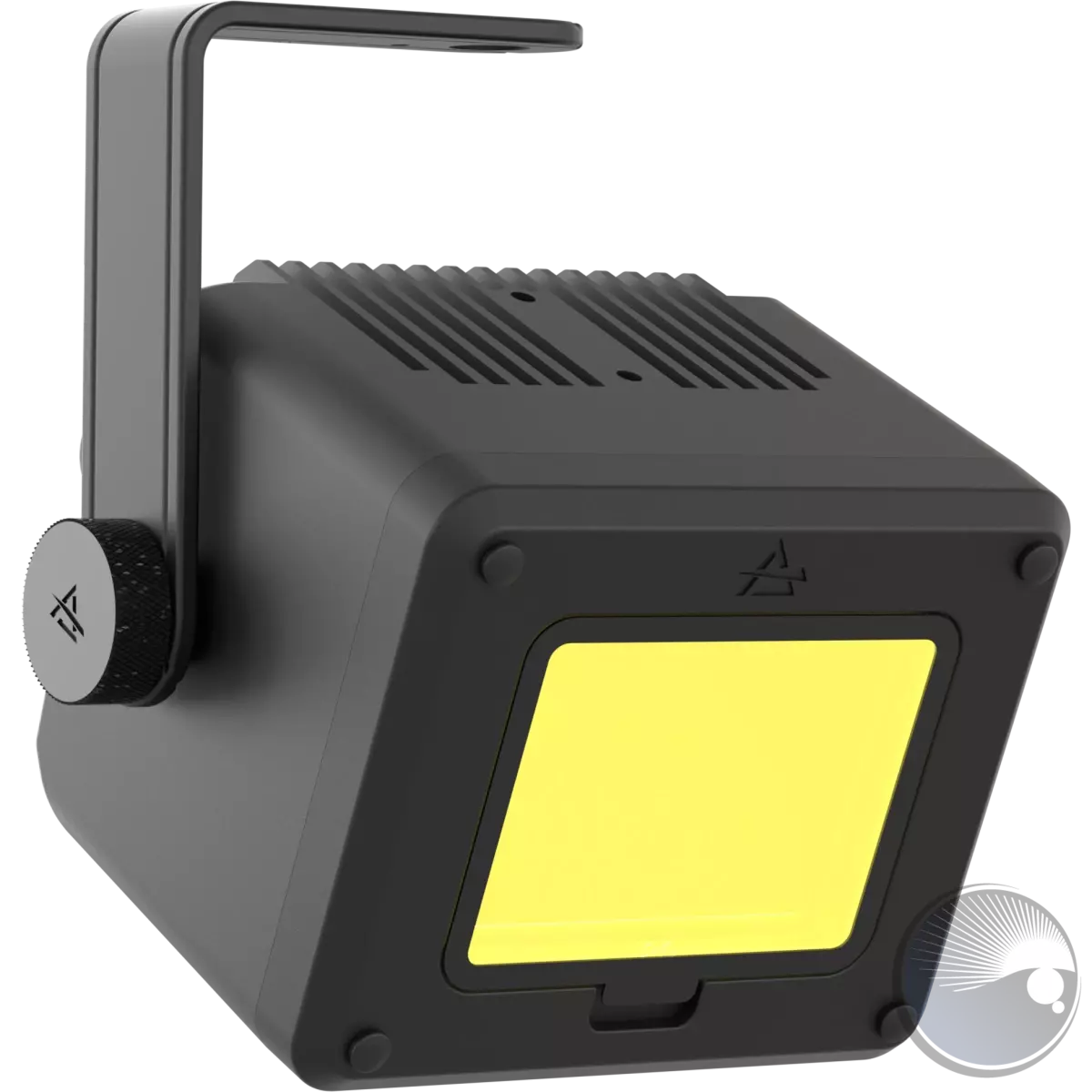

Gallery WashDAT FC, 60W, RGB + warmweiß, weiß

Gallery WashDAT is a compact and efficient LED wallwash luminaire, purpose-designed for precise, uniform illumination of walls, exhibits, and shelving in galleries, events, and venues.Its advanced optical system combines a custom linear LED source with an asymmetrical reflector, significantly reducing the required number of fixtures by enabling greater spacing without compromising visual comfort or uniformity.The Gallery WashDAT FC model features a 60W RGB + Warm White LED engine, providing a versatile combination of dynamic color mixing and tunable white illumination. This model is ideal for creating customizable ambiances or highlighting architectural and exhibit features with precision.Control flexibility is assured through integrated RDM, DMX, and intuitive local dimming.Optional wireless control modules (LumenRadio CRMX) can be specified to simplify installation and enhance operational convenience.With its stylish cubic form factor, Gallery WashDAT integrates seamlessly into both contemporary interiors and historic venues. The integrated power supply and driver facilitate straight forward installation, further supported by an extensive range of accessories, including track adapters, adjustable yokes, ceiling mounting kits, and optical modifiers such as barn doors, holographic filters, and snoots.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 60W RGB + Warm White LED
• Luminous flux: 2'932 lm @3.200 K; 2'468 lm @5.600 K; 2'582 lm @Full
• Lux: 36lx @5 m 3.200 K; 30lx @5 m 5.600 K; 32lx @5 m full
• CRI: 95,3 @3.200 K; 92,8 @5.600 K
• R9: 93,4 @3.200 K; 97,3 @5.600 K
• TLCI: 86 @3.200 K; 90 @5.600 K
• TM30 Rf: 92,9 @3.200 K; 90,6 @5.600 K
• TM30 Rg: 105,2 @3.200 K; 106,2 @5.600 K
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Beam angle: (VxH) 67°x117°
• Additional optics: Smooth filter on-board - see available accessories

COLOUR SYSTEM

• Colour mixing: RGB + Warm White
• CCT: CCT control through dedicated DMX channel
• White presets: 2'800K - 10'000K

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer, colours
• Static mode: selection of static dimmer, colors and color temperature
• Manual mode: manual adjustment of colour

BODY

• Body: Die-cast aluminium
• Body colour: RAL 9004 or RAL 9010

CONTROL

• Supported Protocols: Local Knob, DMX, RDM, CRMX (optional)
• DMX channels: 5 / 6 / 10 / 15channel
• Wireless Control: Optional LumenRadio TiMoRX
• RDM: RDM for remote monitoring and settings
• Display: user interface through DATAMASTER external coder (not included)
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -10° ~ +45° Ta
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Max power consumption:
• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 51W
• Standby power: 1,3W
• Power factor: > 0,9

PHYSICAL

• IP rating: IP20
• Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
• Suspension and fixing: track / hanging / ceiling installation
• Data connection: screw terminal blocks
• Power connection: screw terminal blocks
• Dimensions (WxHxD): 141x146x112mm / 5.55''x5.75''x4.41''
• Weight: 1kg / 2.2lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM, FCC, cTUVus

BOX CONTENT

• 1 x GALLERYWASHDATFC
• 1 meter cable with 3G0,75mmq power cable + 2x0,169 mmq DMX 120 Ohm (BARE END - already connected)
• User Manual
