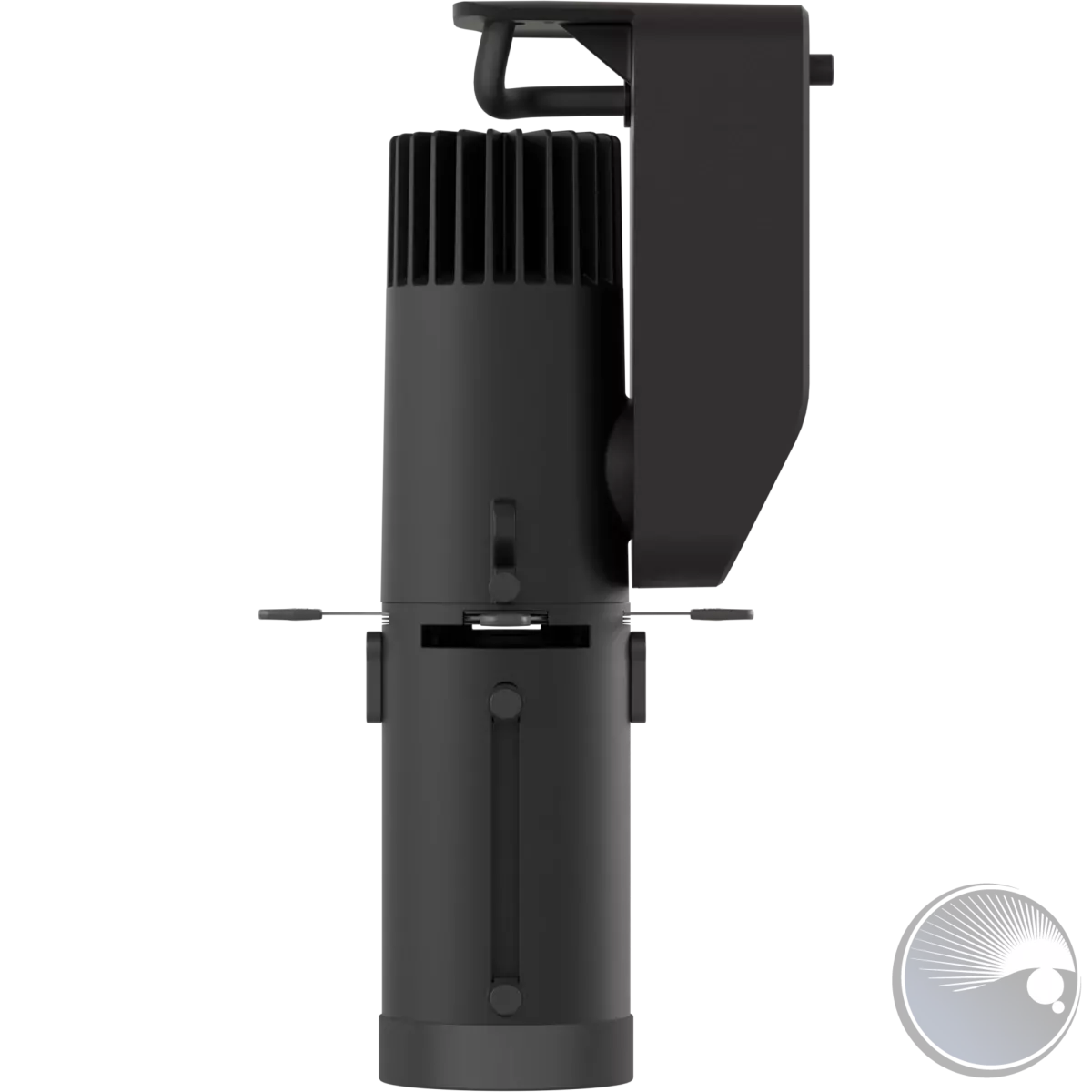

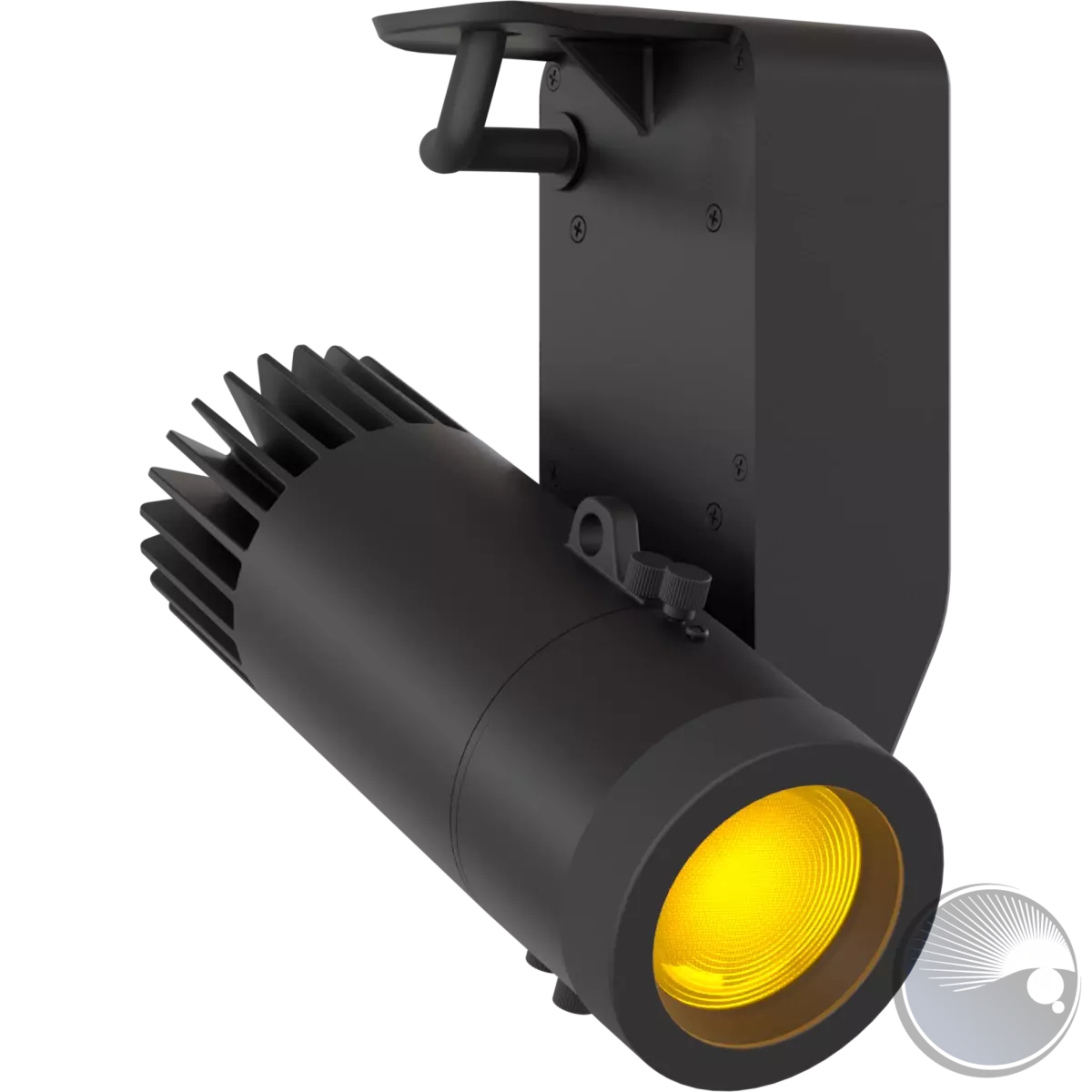

EclDisplay XBFC, 40W, RGB+Lime LED, weiß

The EclDisplay XB series presents an innovative and versatile range of LED spotlights, designed for use in galleries, commercial spaces, and other public venues. These advanced fixtures are distinguished by their refined design and multiple control options, including both wired and wireless protocols. They are adaptable to a variety of applications, thanks to the availability of different sources and optics.Each EclDisplay XB unit can be programmed and controlled via RDM, built-in input control protocols such as DMX and local knob dimming.At the heart of the EclDisplay XB is a highly efficient 40 W RGB+Lime, LED source, capable of delivering both a Full Colour spectrum and also tunable White. The fixture's versatility is further enhanced by an extensive range of optional accessories, including profile (zoom and static) or wash lenses and additional optical elements like louvres and snoots. This makes the EclDisplay XB not just a lighting fixture, but a comprehensive lighting solution adaptable to a multitude of environments and needs.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 40W RGB + lime LEDs
• Luminous flux: (profile 36 HD) 644 lm; (profile 2040 HD - min) 584 lm - (profile 2040 HD - max) 571 @Full
• Lux: (profile 36 HD) 121 lx; (profile 2040 HD - min) 372 lx - (profile 2040 HD - max) 107lx @5 m full
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8°
• Other: 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
• Other: (profile lens) shutter blades lockable
• Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm

COLOUR SYSTEM

• Colour mixing: RGB + lime / full colour
• CCT: CCT control through dedicated DMX channel
• Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer, colours
• Static mode: selection of static colour
• Manual mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment

BODY

• Hardware on-board: lockable tilt with screw
• Body: Die-cast aluminium
• Body colour: RAL 9004 or RAL 9010
• Other: cable not included - Cable diameter range: 6 - 10 mm

CONTROL

• Supported Protocols: DMX512, RDM, CRMX (optional)
• Stand Alone: 1 push encoder
• DMX channels: 5 / 6 / 15channel
• Wireless Control: Optional LumenRadio TiMoRX
• RDM: RDM for remote monitoring and settings
• Display: user interface through DATAMASTER external coder (not included)
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 38W
• Standby power: 3,1 W
• Output (at 230V): 35 units on a single power line
• Power factor: > 0,94

PHYSICAL

• Operating Temperature: -10° ~ +45°
• IP rating: IP20
• Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
• Suspension and fixing: track / hanging / ceiling installation
• Data connection: screw terminal blocks
• Power connection: screw terminal blocks
• Dimensions (WxHxD): 141X200x150mm / 5.55''x5.91''
• Weight: 1,4kg / 3.09lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM, FCC, cTUVus
