PL Mosaico JR, LED Projektor, 70W, IP66, RAL 9006

Mosaico Jr is a compact exterior LED image projector designed for projection of logos, images and textures onto commercial buildings, hotels and city facades. The small size allows for mounting anywhere without any impact on the surrounding environment or architecture. The on board zoom ranges from 14,7° to 45° allowing for an extensive user-flexibility, from projecting crisp and accurate logos to textured projections.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 70W White LED
• CCT: 7.000
• Luminous flux: (14.7°) 2'595 lm - (45°) 2'628
• Lux: (14.7°) 1'927 lx - (45°) 294lx @5 m full
• Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Zoom range: 14,7° - 45° motorised linear zoom
• Lens diameter: 63mm / 2.48''
• Lens type: high-quality glass lens optics
• Focus: motorised

COLOUR SYSTEM

• Colour wheel: 7 colour filters

DYNAMIC EFFECTS

• Rotating gobos: 7 rotating gobos + open, indexing
• Gobo size (BW): gobo Ø 15,8 mm - img Ø 12,5 mm
• Gobo size (Color): gobo Ø 15,8 mm - img Ø 9 mm
• Auto mode: built-in programs with execution speed adjustment

BODY

• Body: Die-cast aluminium
• Body colour: RAL 9006 - see available finishing
• Other: inspectable cover window for image replacement and maintenance and record scenes and create chases and shows throughout these scenes

CONTROL

• Supported Protocols: DMX512, RDM, CRMX
• Stand Alone: Stand Alone programmer and playback
• DMX channels: 8 / 14channel
• Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings

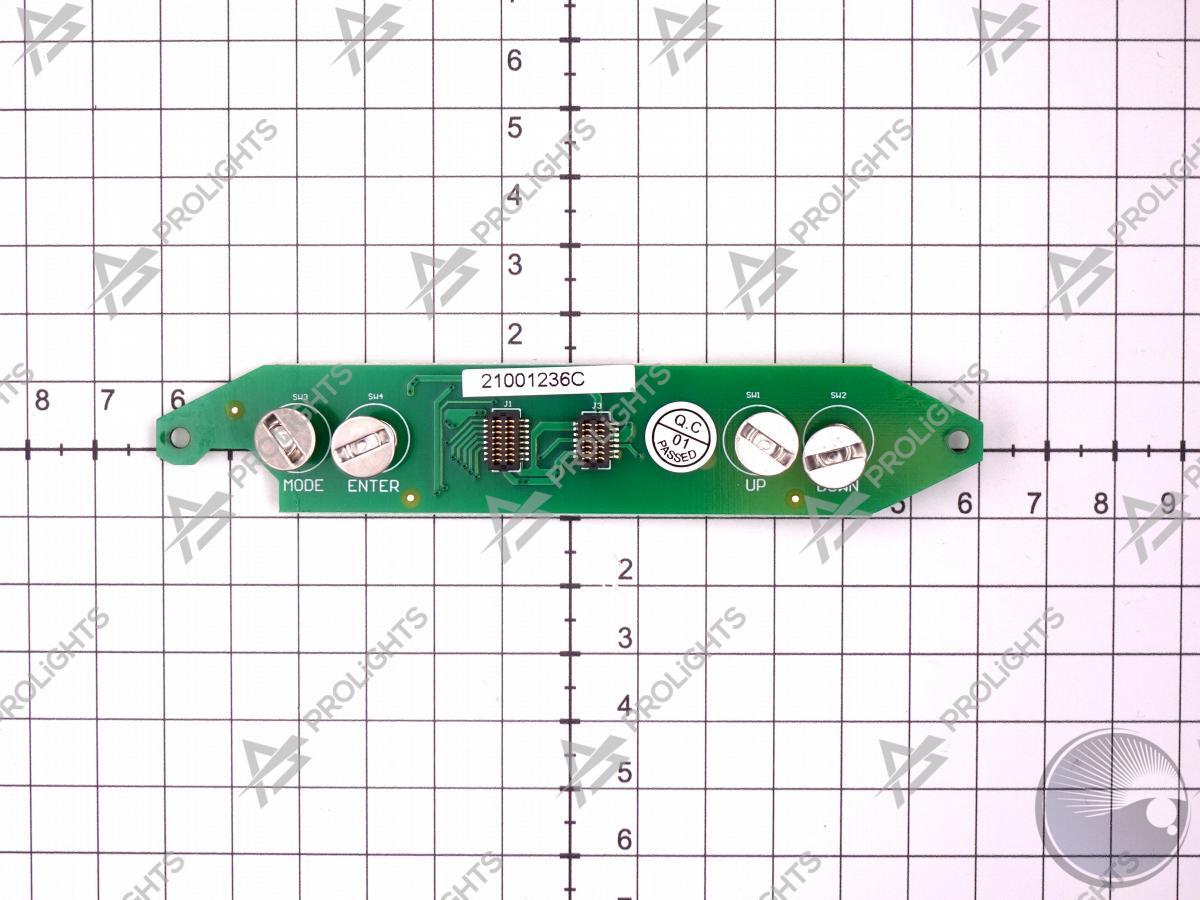

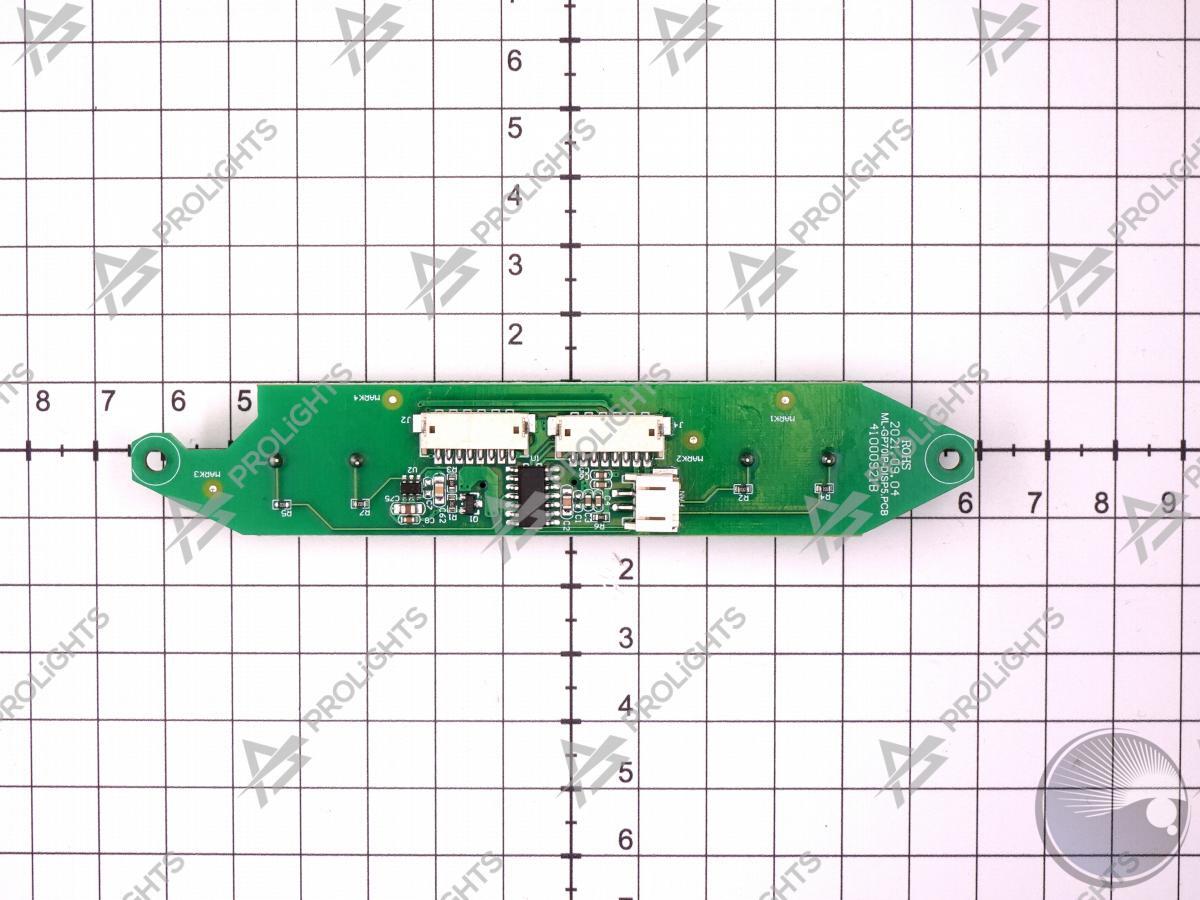

• Display: Graphic User Interface
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 ~ 21 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
• LED Control: flicker free frequency with adjustable PWM

ELECTRICAL

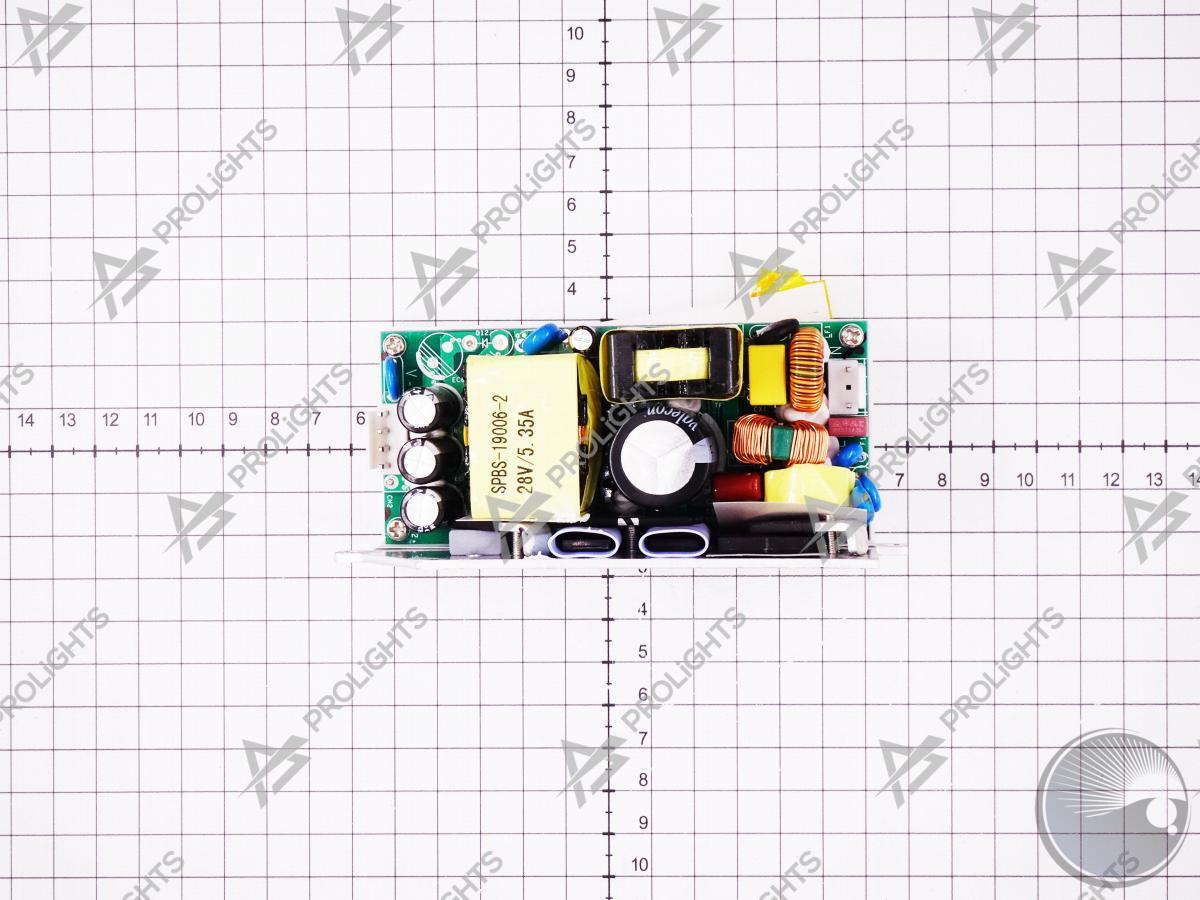

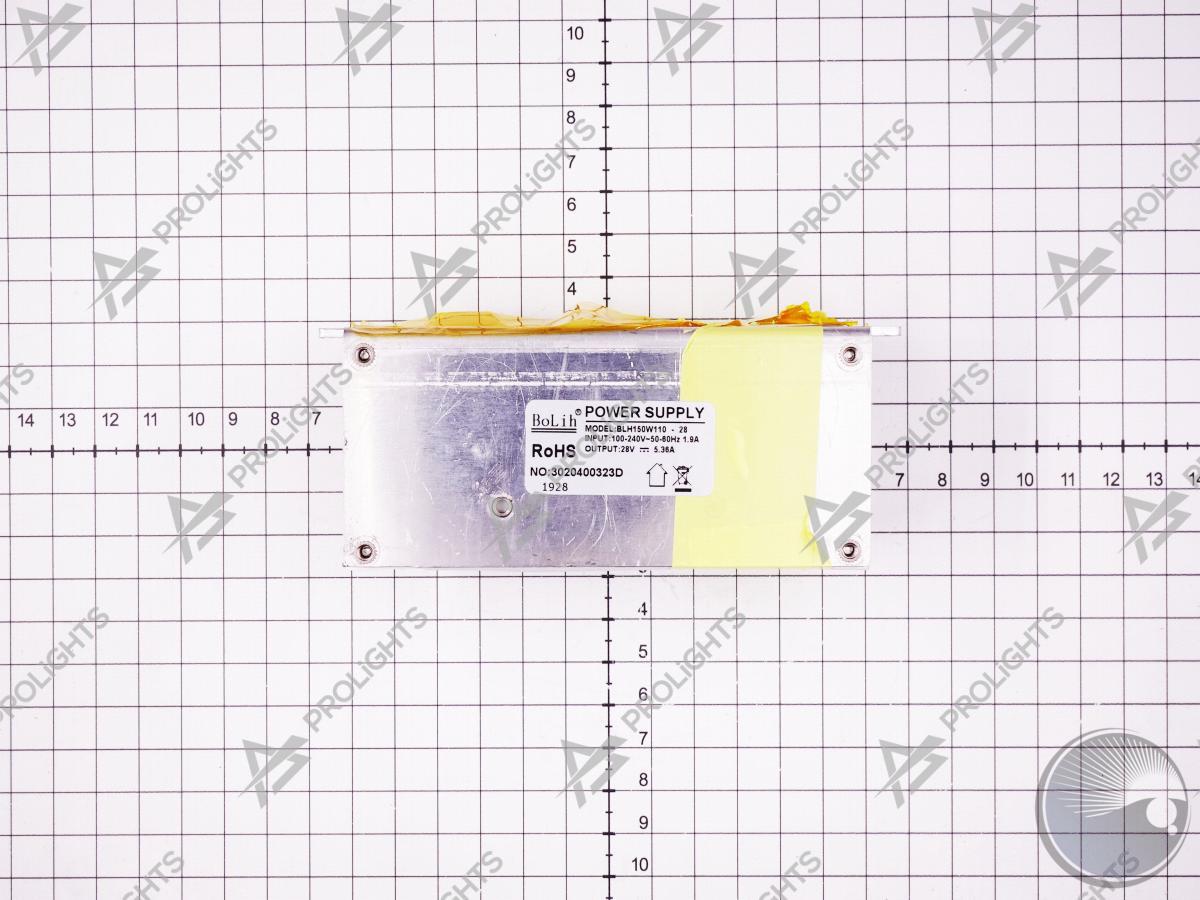

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 90W
• Standby power: 18 W
• Power factor: >0,92

PHYSICAL

• IP rating: IP66 for outdoor installations
• IK rating: 09
• Cooling: active, with IP low noise fan
• Suspension and fixing: bracket for hanging and positioning
• Adaptors: XLR and BARE END 16A adaptors included

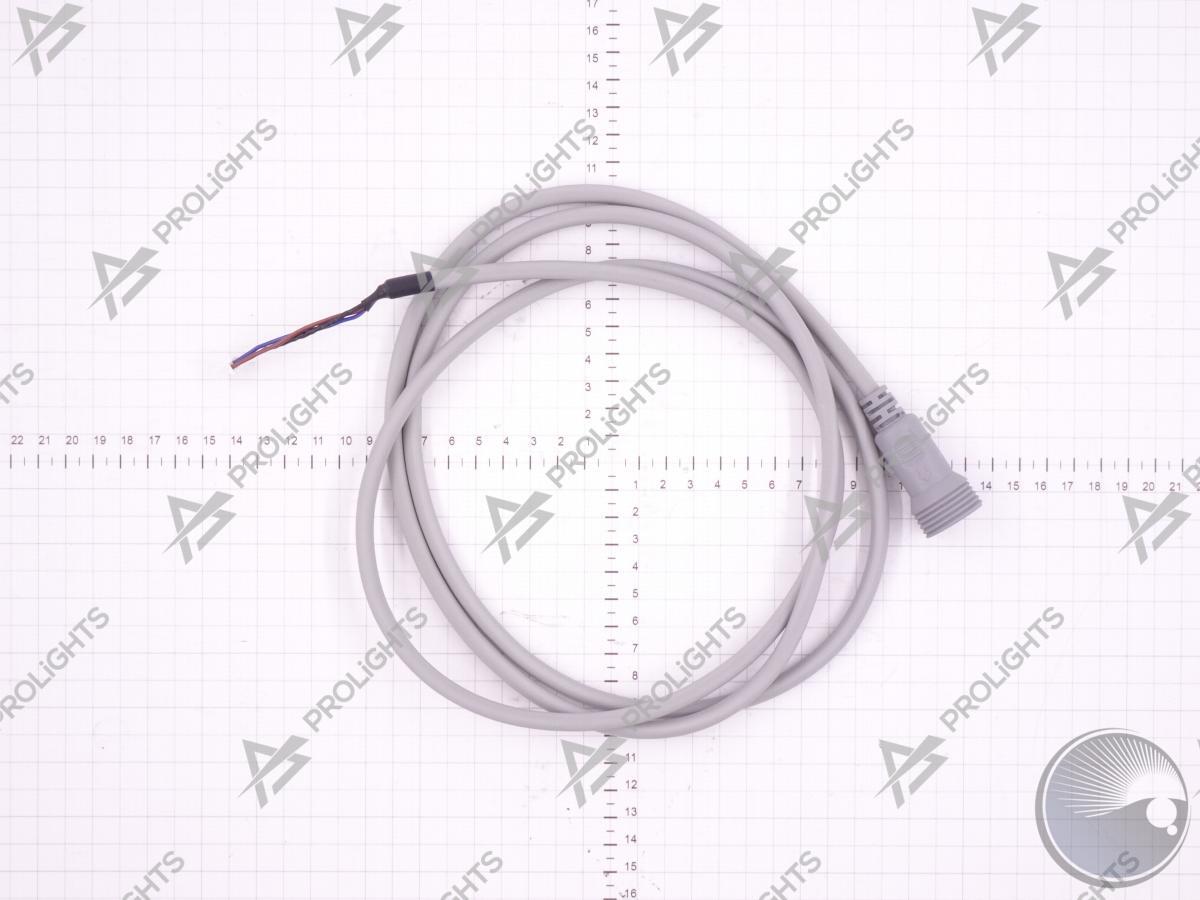

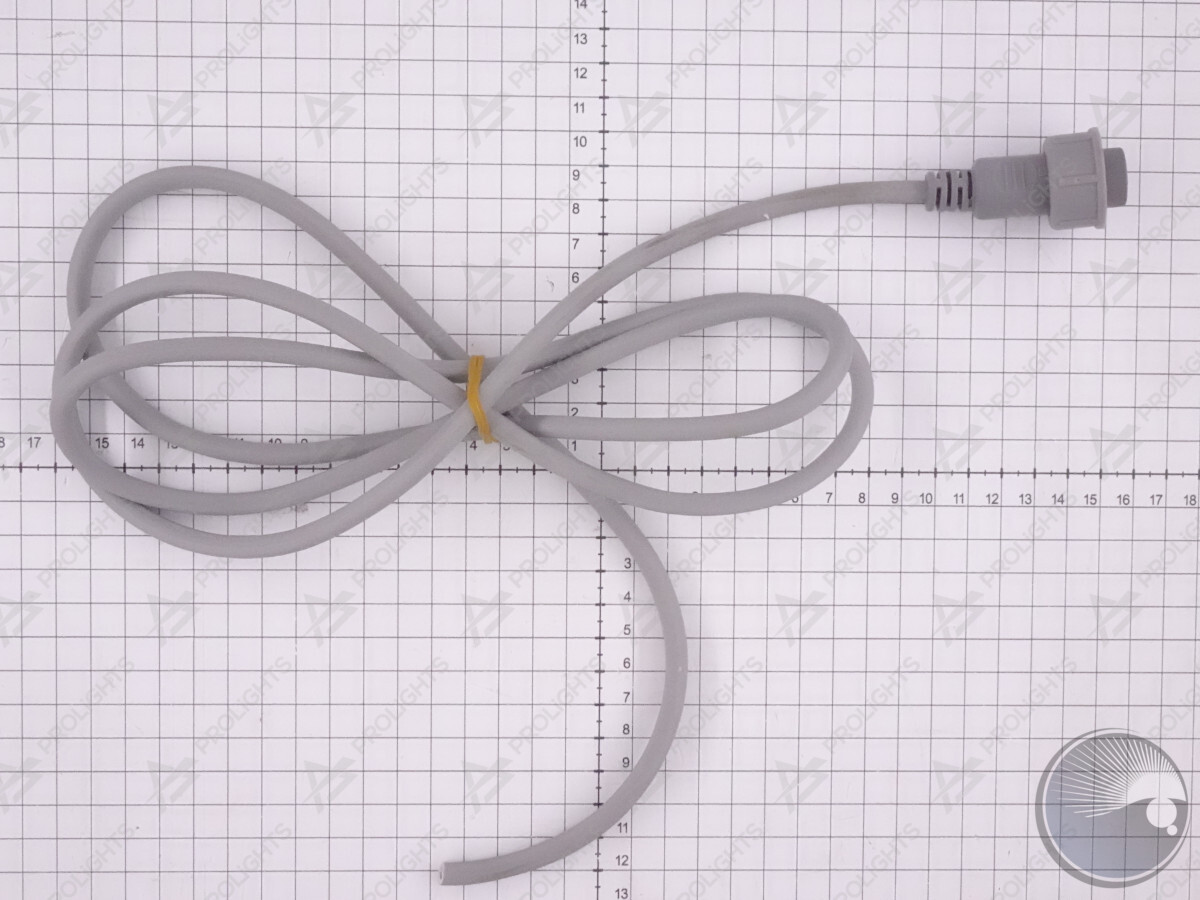

• Signal connection: 1,8 m moulded IP signal IN/OUT connectors

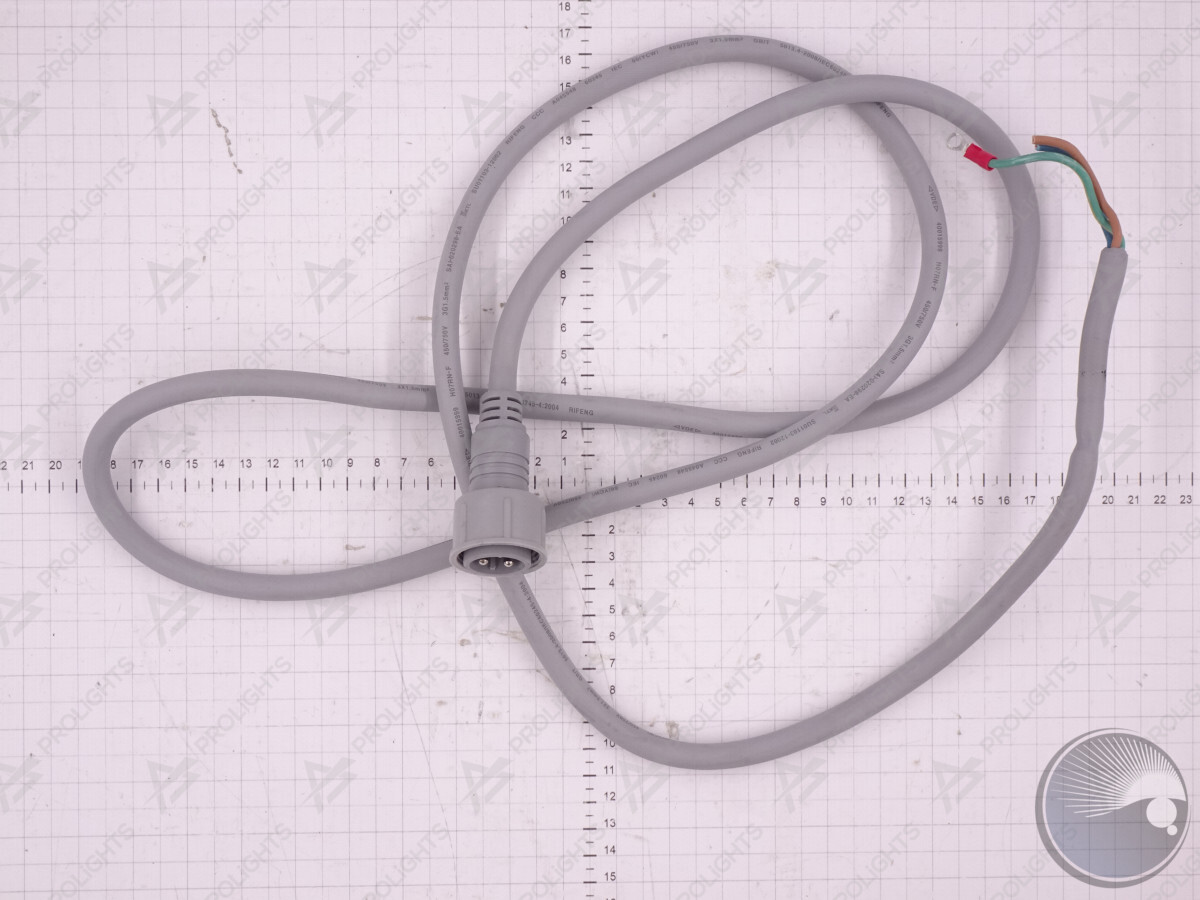

• Power connection: 1,8 m moulded IP power IN/OUT connectors
• Dimensions (WxHxD): 247x258x244mm / 9.72''x10.16''x9.61''
• Weight: 10kg / 22.05lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

• 1 x MOSAICOJR
• 1 x 0,28 meters 3G1mmq power cable (BARE END - IP connection adapter)
• 1 x 5p XLR - IP connection male adapter
• 1 x 5p XLR - IP connection female adapter
• User Manual
