PL Mosaico L, LED Projektor, 300W, IP66, RAL 9006

The Mosaico L is a bright outdoor LED image projector, designed for long-range image, textures and logo projections.Built in a durable IP66 die-cast housing, the Mosaico L offers a phenomenal output of 11,700 lumens and an extensive set of features including a rotating animation wheel, 7 interchangeable gobos, and motorized framing shutters that precisely focus within a certain projection area.It has an exceptional zoom range, from 7° to 49°, making it versatile in both near-field and long-throw installations, or even for static and animated facade building lighting.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

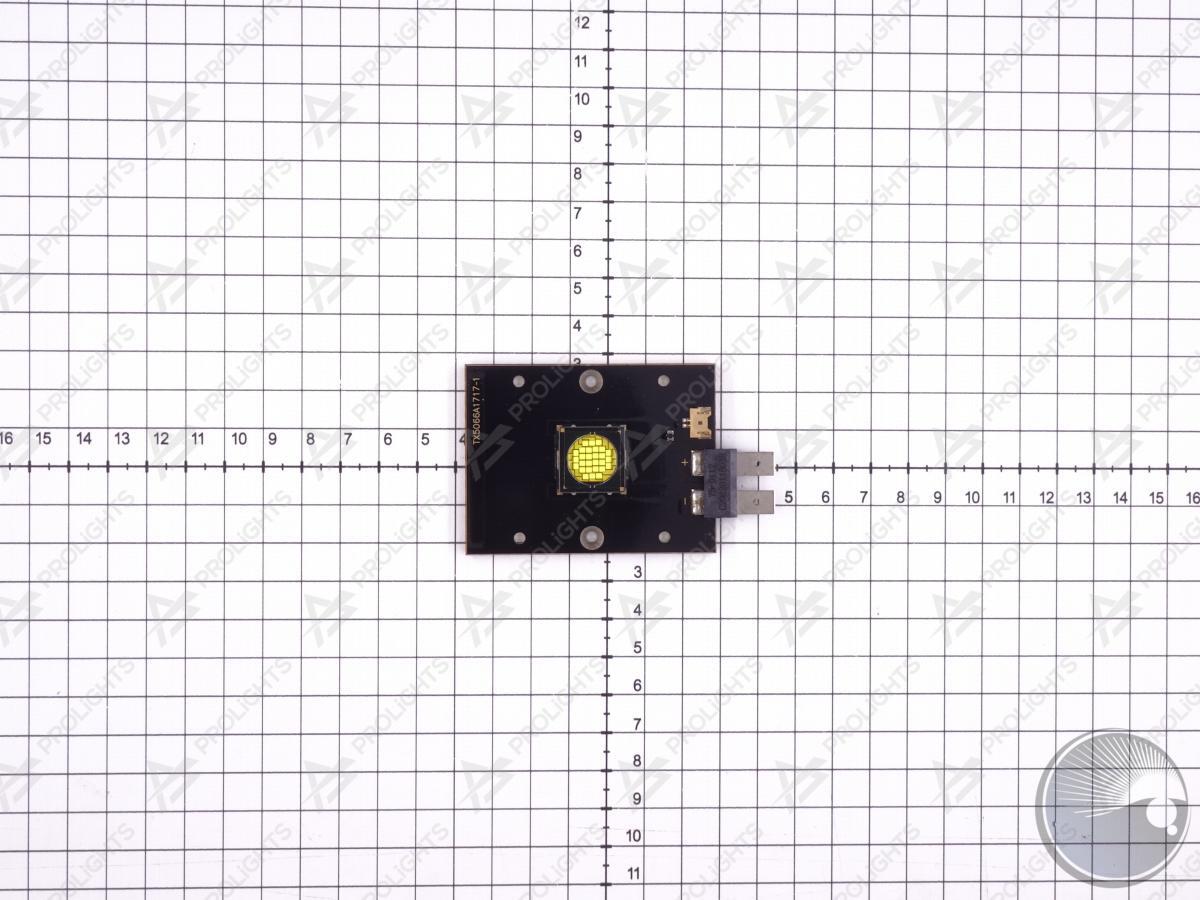

• Source: 300W high-power white LED
• CCT: 8.000
• Luminous flux: (7°) 8'536 lm - (49°) 11'729 @Full
• Lux: (7°) 28'230 lx - (49°) 867lx @5 m full
• Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Zoom range: 7°- 49° motorised linear zoom
• Lens diameter: 110mm / 4.33''
• Lens type: HD anti-reflection lenses with achromatic coating
• Focus: motorised

COLOUR SYSTEM

• Colour mixing: cold white LED with colour wheel
• Colour wheel: open + 7 colour filters

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer
• Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
• Animation wheel: magnetic interchangeable animation wheel with CW and CCW rotation
• Rotating gobos: open + 7 rotating gobos + open, interchangeable, indexing
• Gobo size (BW): outer: 26,9 mm - image: 23 mm
• Gobo size (Color): outer: 26,9 mm - image: 20,5 mm
• FX generator: shutter macros with adjustable speed
• Circular prism: 3ff with bi-directional rotation, indexing
• Frost: linear 0-100%
• Special features: record scenes and create chases and shows throughout these scenes

BODY

• Body: Weatherproof IP66 construction
• Body colour: RAL 9006
• Other: Inspectable cover window for gobos replacement and maintenance

CONTROL

• Supported Protocols: DMX512, RDM, CRMX
• Stand Alone: Stand Alone programmer and playback
• DMX channels: 22 / 32 / 43channel
• Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings

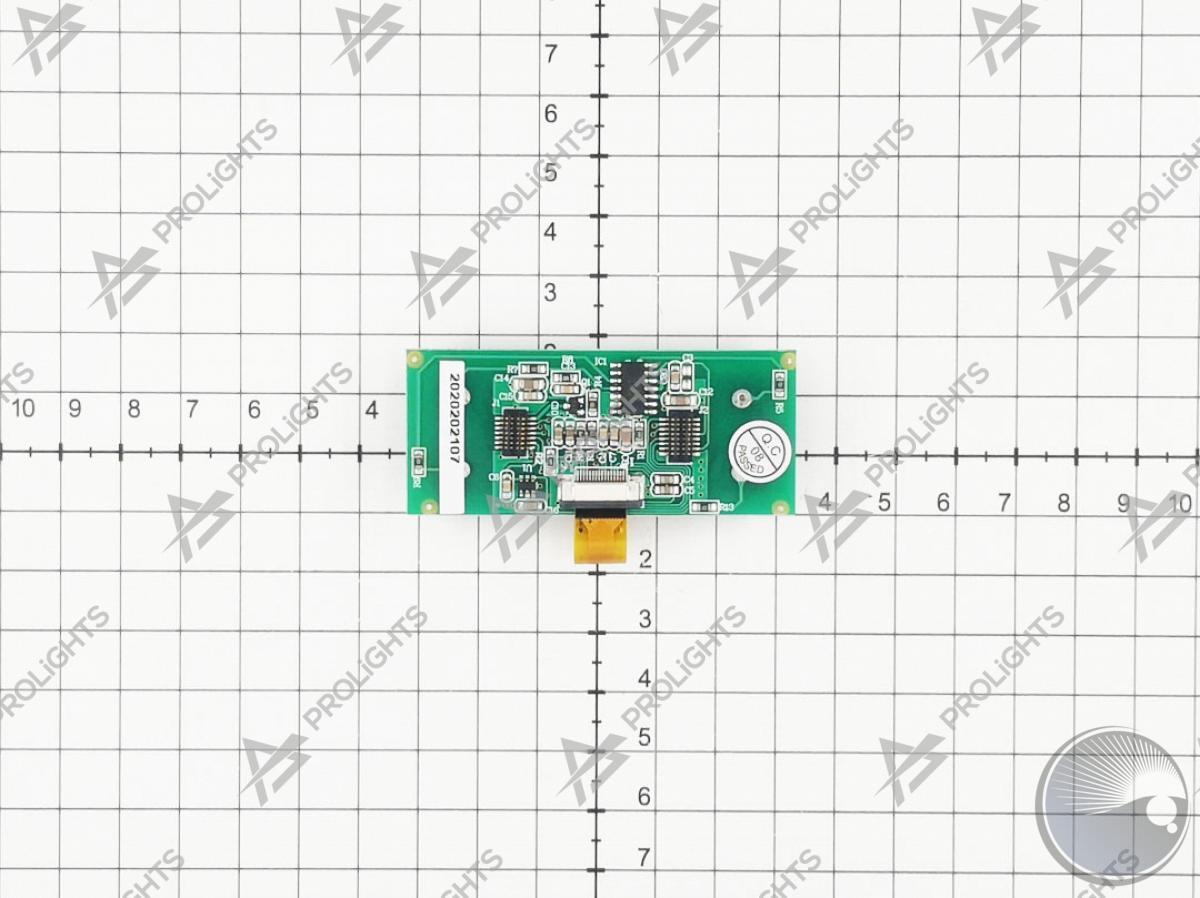

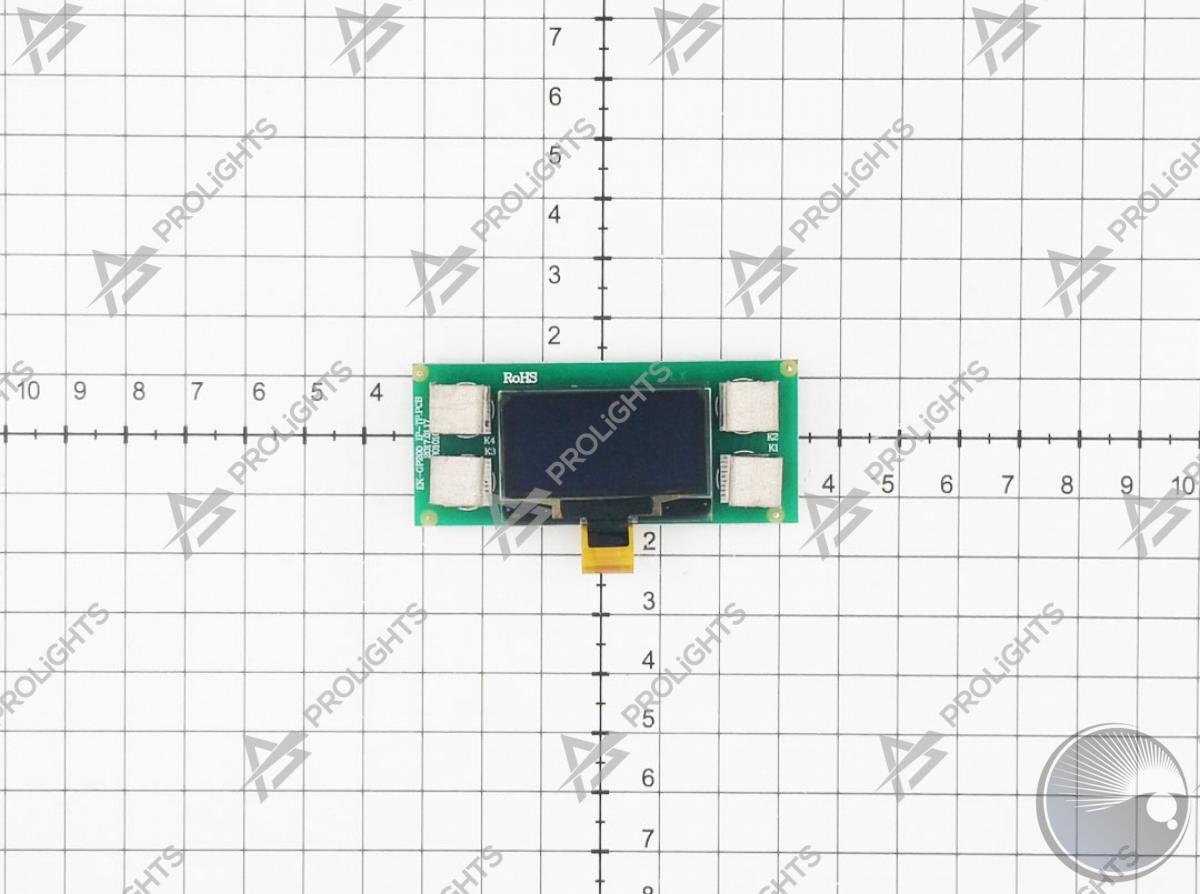

• Display: Graphic User Interface
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1~30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

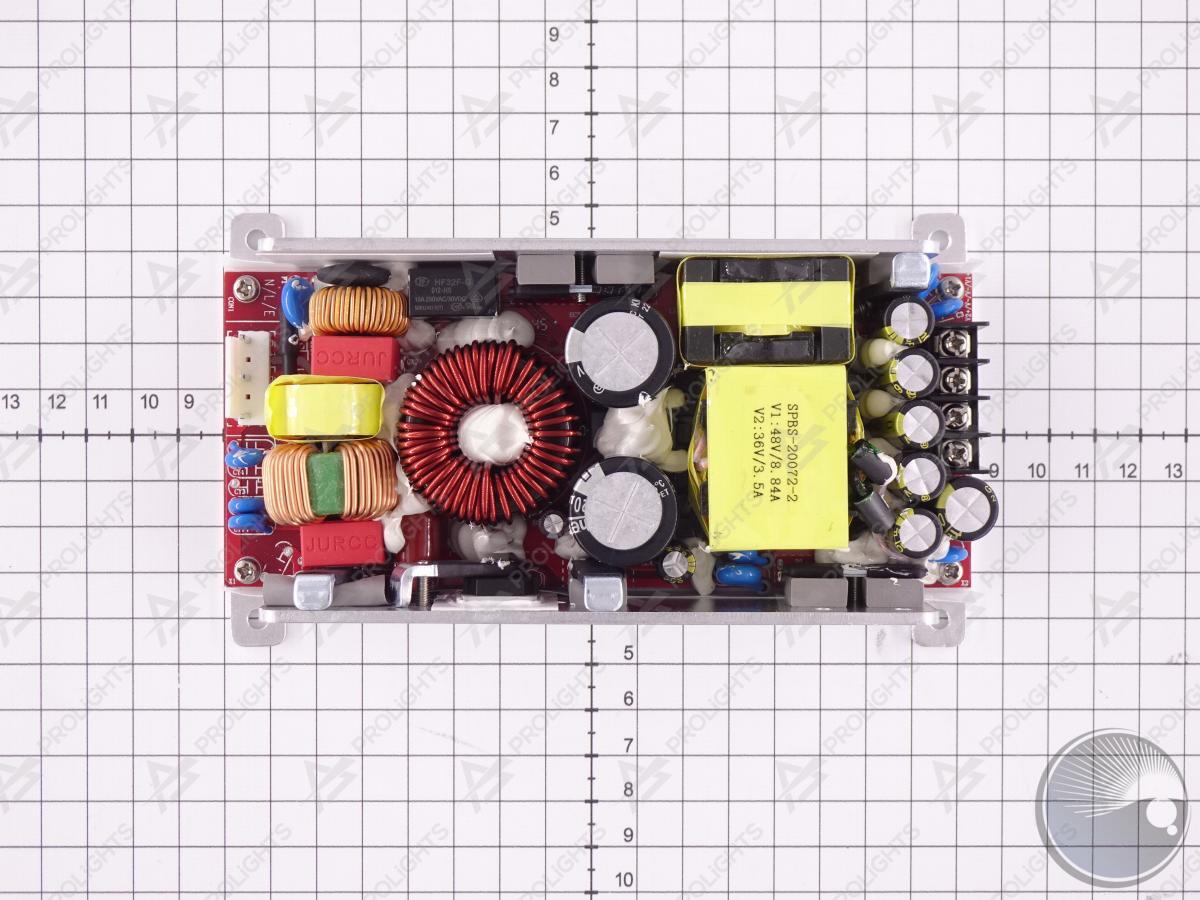

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 440W
• Standby power: 58 W
• Output (at 230V): 6 units on a single power line
• Power factor: > 0,98

PHYSICAL

• IP rating: IP66 for outdoor installations
• IK rating: 09
• Cooling: combination of heat pipe cooling system and low noise fan
• Suspension and fixing: bracket for hanging and positioning
• Adaptors: XLR and BARE END 16A adaptors included
• Signal connection: 1,8 m moulded IP signal IN/OUT connectors
• Data connection: W-DMX transreceiver
• Power connection: 1,8 m moulded IP power IN/OUT connectors
• Dimensions (WxHxD): 362x428x451mm / 14.25''x16.85''x17.76''
• Weight: 25kg / 55.12lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

• 1 x MOSAICOL
• 1 x 0,28 meters 3G1,5mmq power cable (BARE END - IP connection adapter)
• 1 x 5p XLR - IP connection female adapter
• 1 x 5p XLR - IP connection male adapter
• User Manual
