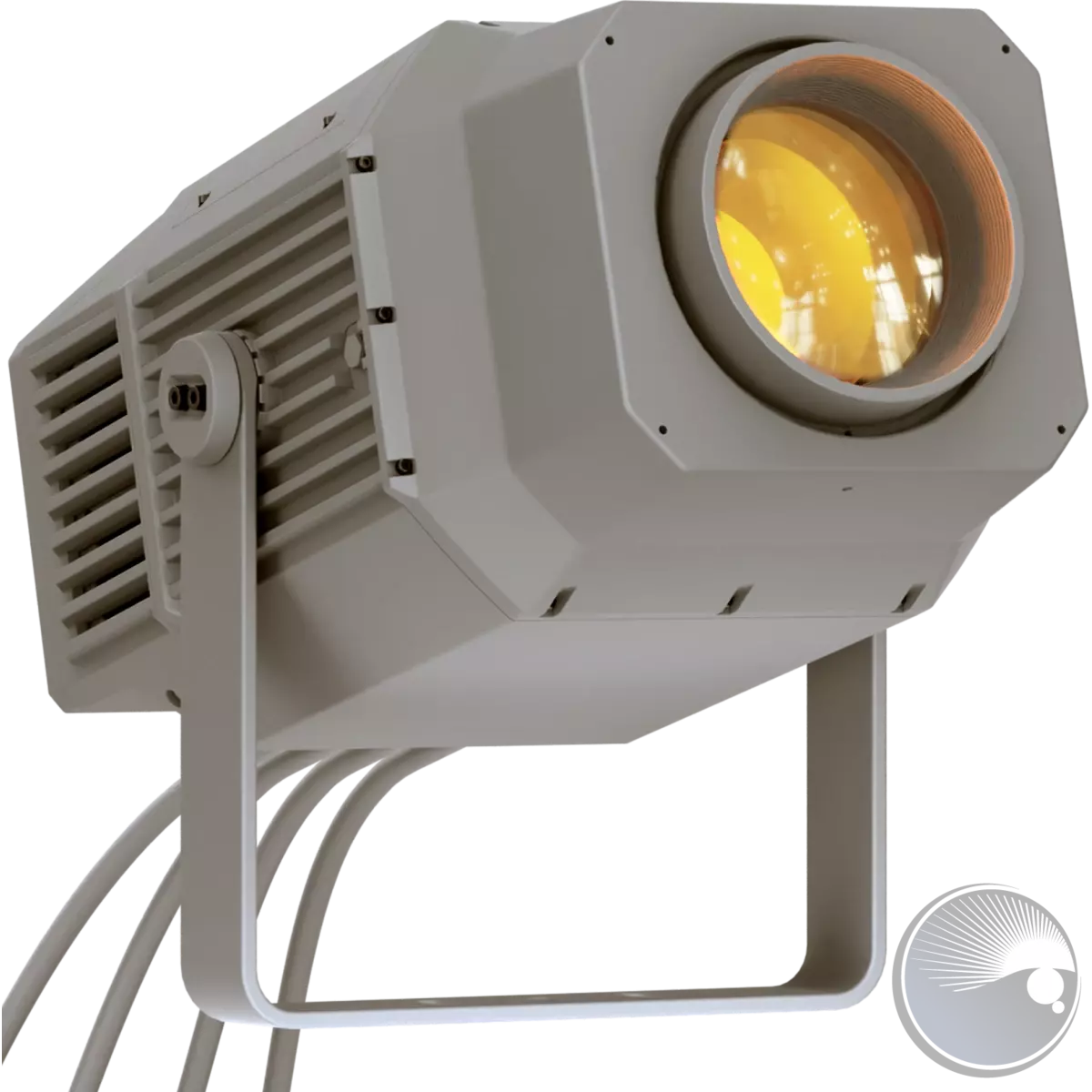

Mosaico XL+

Mosaico XL+ is an extremely powerful outdoor LED image projector for long-range projection of textures, images and logos onto buildings and landscapes. Built in a durable IP66 die-cast housing, the Mosaico XL+ offers a phenomenal output of 23'600 lumens and an extensive set of features including linear CMY+CTO colour mixing system and profile to precisely shape the projection area. The exceptional zoom ranges from 6° to 50° allowing this fixture to be installed at any distance making it versatile in both near-field and long-throw installations, awesome for static and animated facade building lighting.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 600W high-power white LED
• CCT: 6.300
• Luminous flux: (6,8°) 17'404 lm - (52,1°) 23'570 lm @Full
• Lux: (6,8°) 59'962 lx - (52,1°) 1'454lx @5 m full
• Source life expectancy: > 20.000 h

OPTICS

• Zoom range: 6,8° - 52,1° motorised linear zoom
• Lens diameter: 135mm / 5.31''
• Lens type: high-quality glass lens optics
• Focus: motorised

COLOUR SYSTEM

• Colour mixing: linear CMY
• CCT: linear CTO correction 3.000 K ~ 6.000 K
• Colour wheel: open + 6 interchangeable colour filters

DYNAMIC EFFECTS

• Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
• Animation wheel: animation wheel with CW and CCW rotation
• Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
• Gobo size (BW): outer: 26,9 mm - image: 20,5 mm
• Gobo size (Color): outer: 26,9 mm - image: 20,5 mm
• Circular prism: 4f with bi-directional rotation, indexing
• Frost: dual soft-edge and heavy
• Iris: 5 ~ 100% motorised iris

BODY

• Hardware on-board: ancor points on the front for accessory mounting
• Body: Sturdy die-cast aluminium body, scratch-resistant C5M Marine Grade paint (as standard)
• Body colour: RAL 9006
• Other: inspectable cover window for gobos replacement and maintenance and record scenes and create chases and shows throughout these scenes

CONTROL

• Supported Protocols: DMX512, RDM, CRMX
• Stand Alone: Stand Alone programmer and playback
• DMX channels: 28 / 30 / 35 / 44channel
• Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings

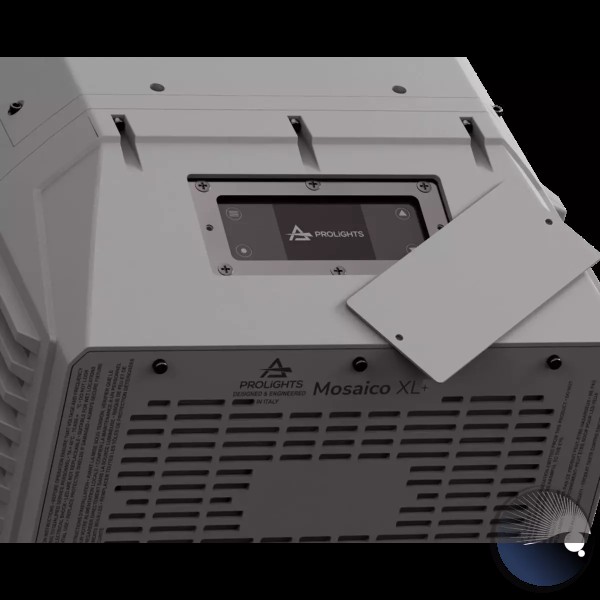

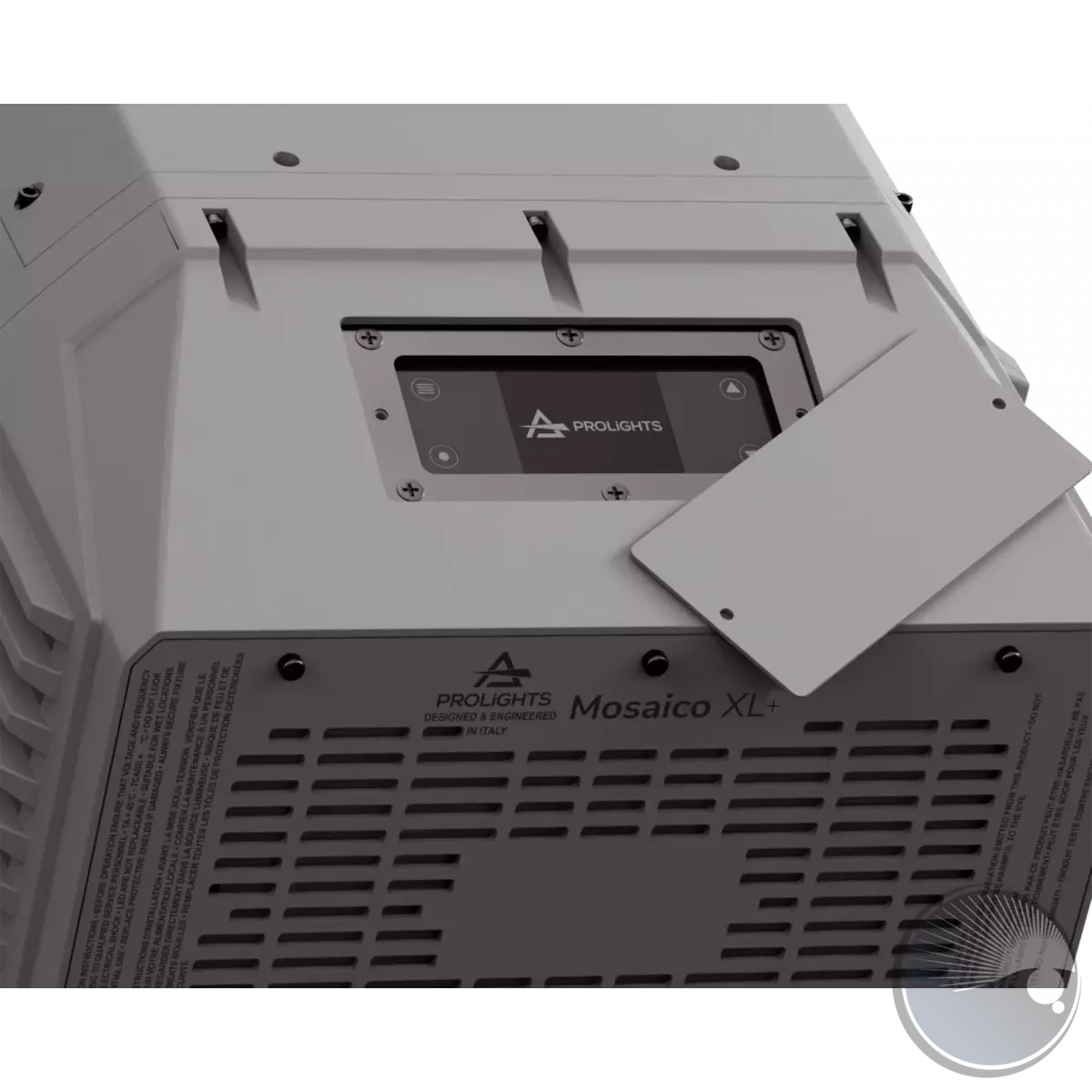

• Display: black OLED touch display
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 40.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 680W
• Standby power: 58,7 W
• Output (at 230V): 4 units on a single power line
• Power factor: >0,96

PHYSICAL

• IP rating: IP66 for outdoor installations
• IK rating: 09
• Cooling: combination of heat pipe cooling system and low noise fan
• Suspension and fixing: bracket for hanging and positioning
• Adaptors: XLR and BARE END 16A adaptors included

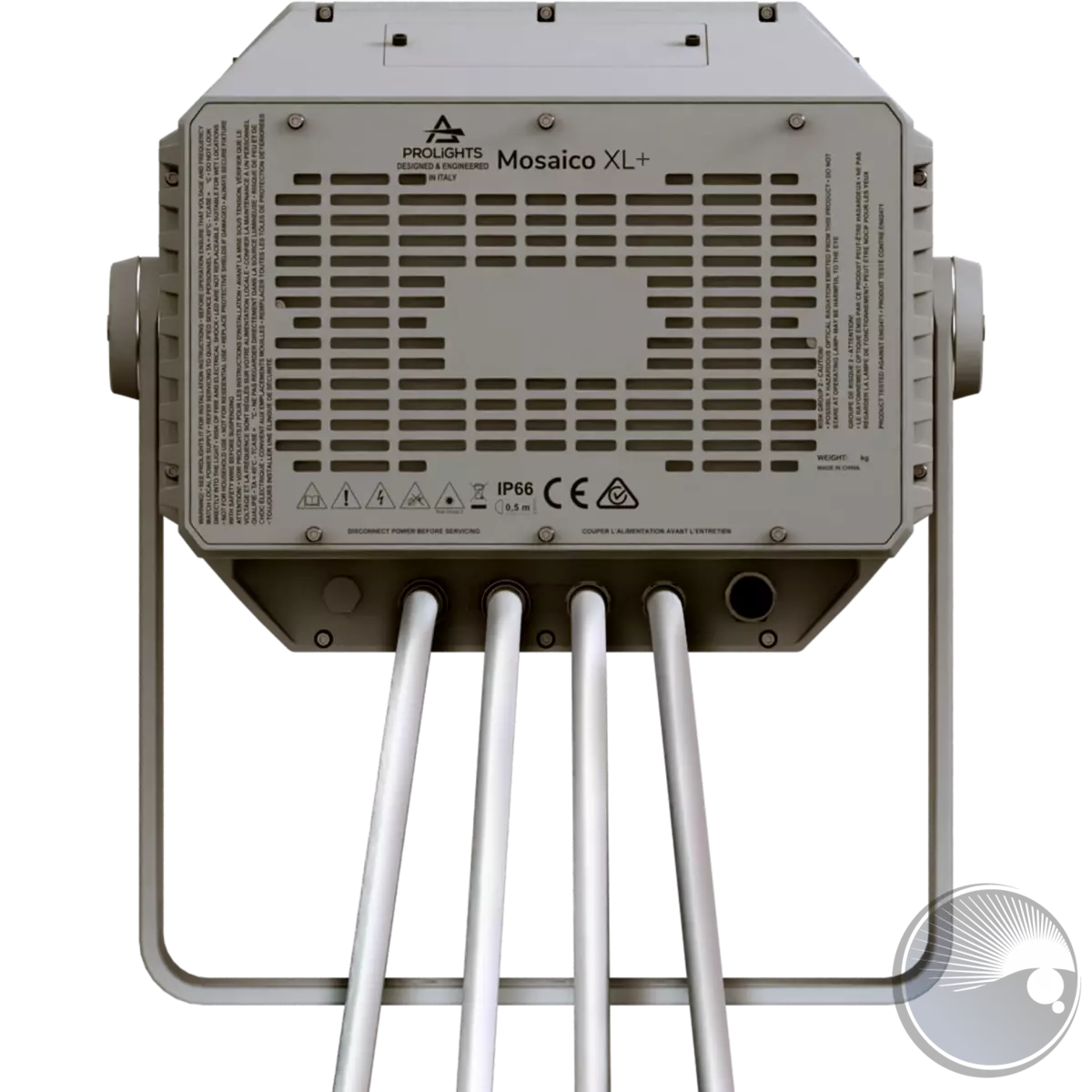

• Signal connection: 1,8 m moulded IP signal IN/OUT connectors
• Power connection: 1,8 m moulded IP power IN/OUT connectors
• Dimensions (WxHxD): 403x462x565mm / 15.87''x18.19''x22.24''
• Weight: 35,5kg / 78.26lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM, FCC, cTUVus
