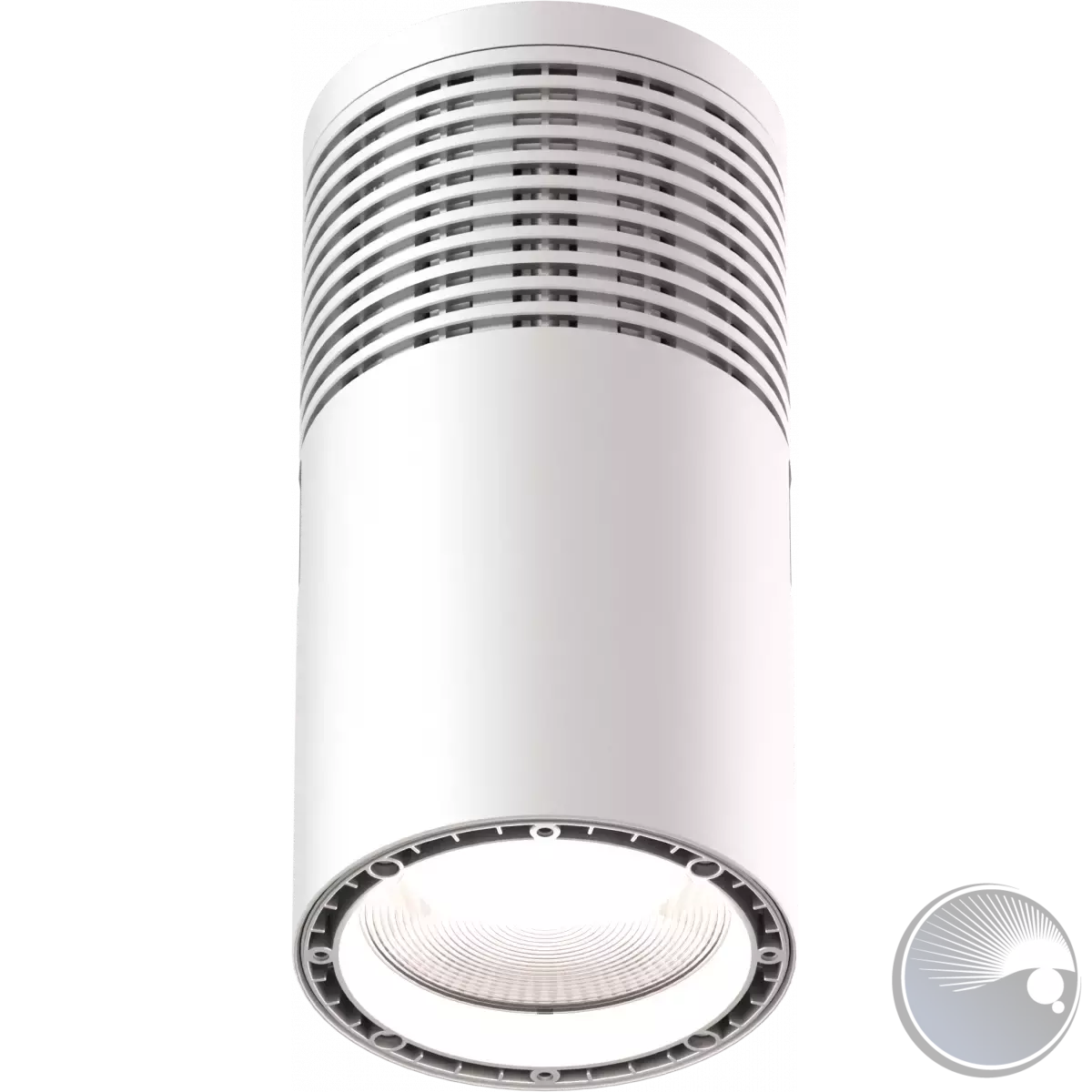

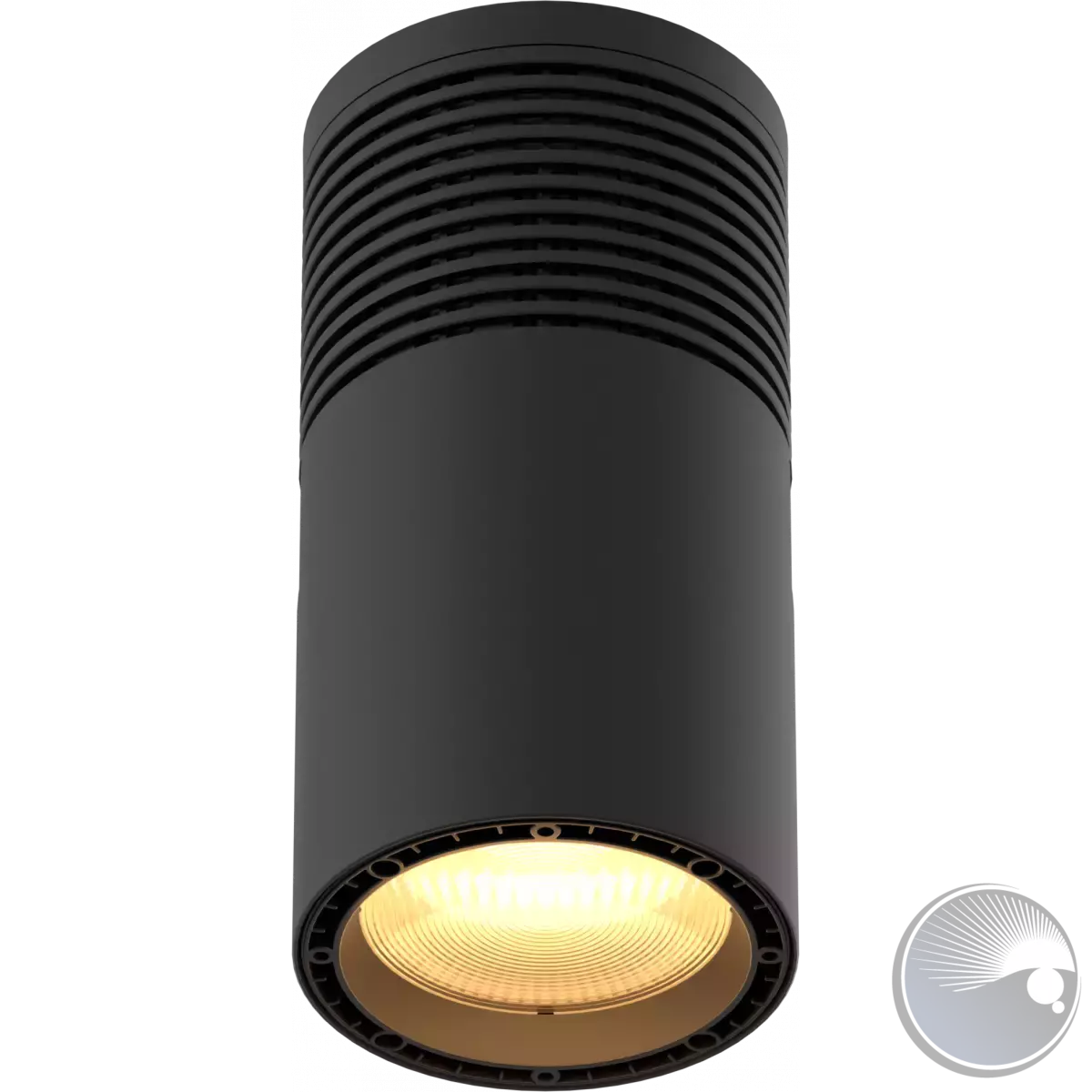

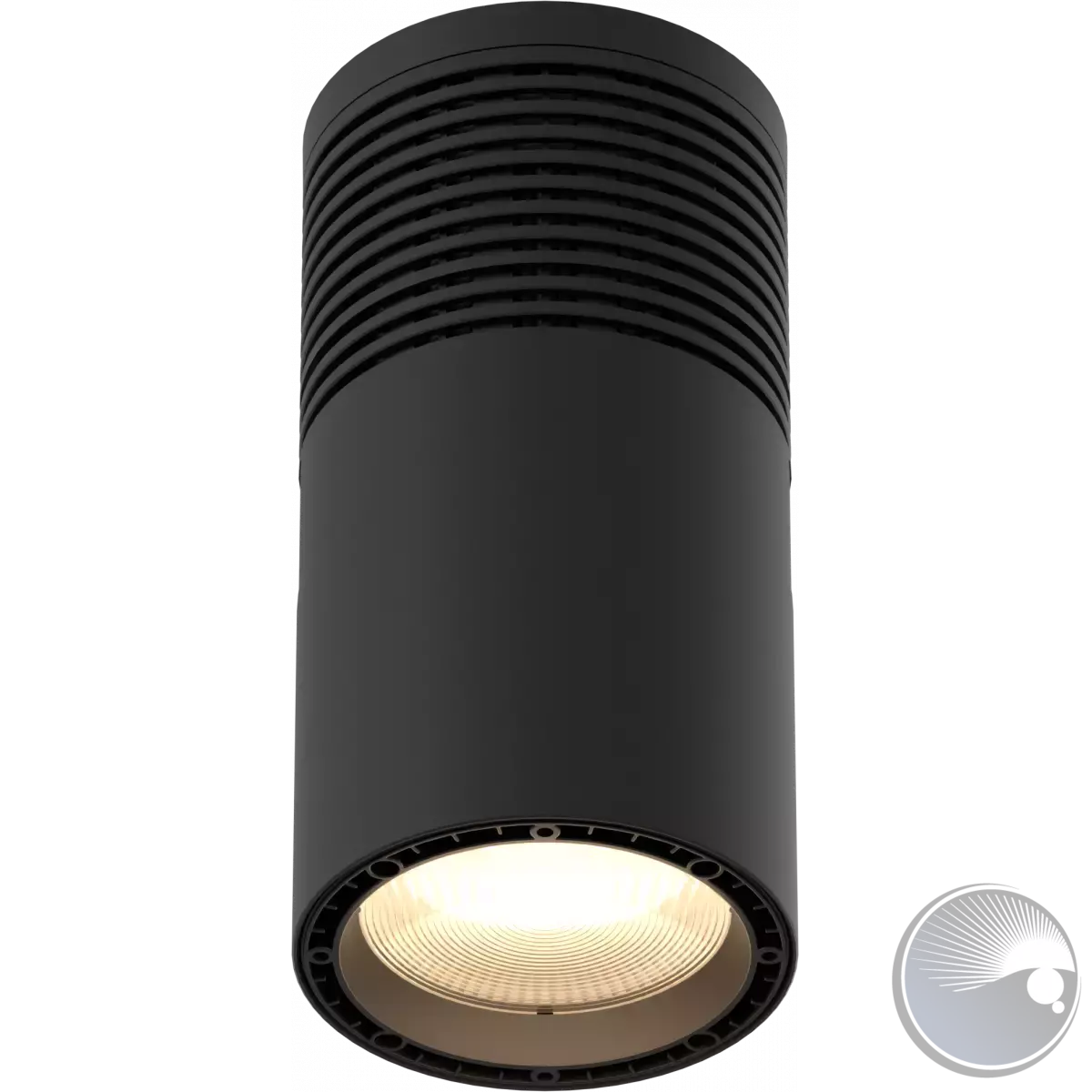

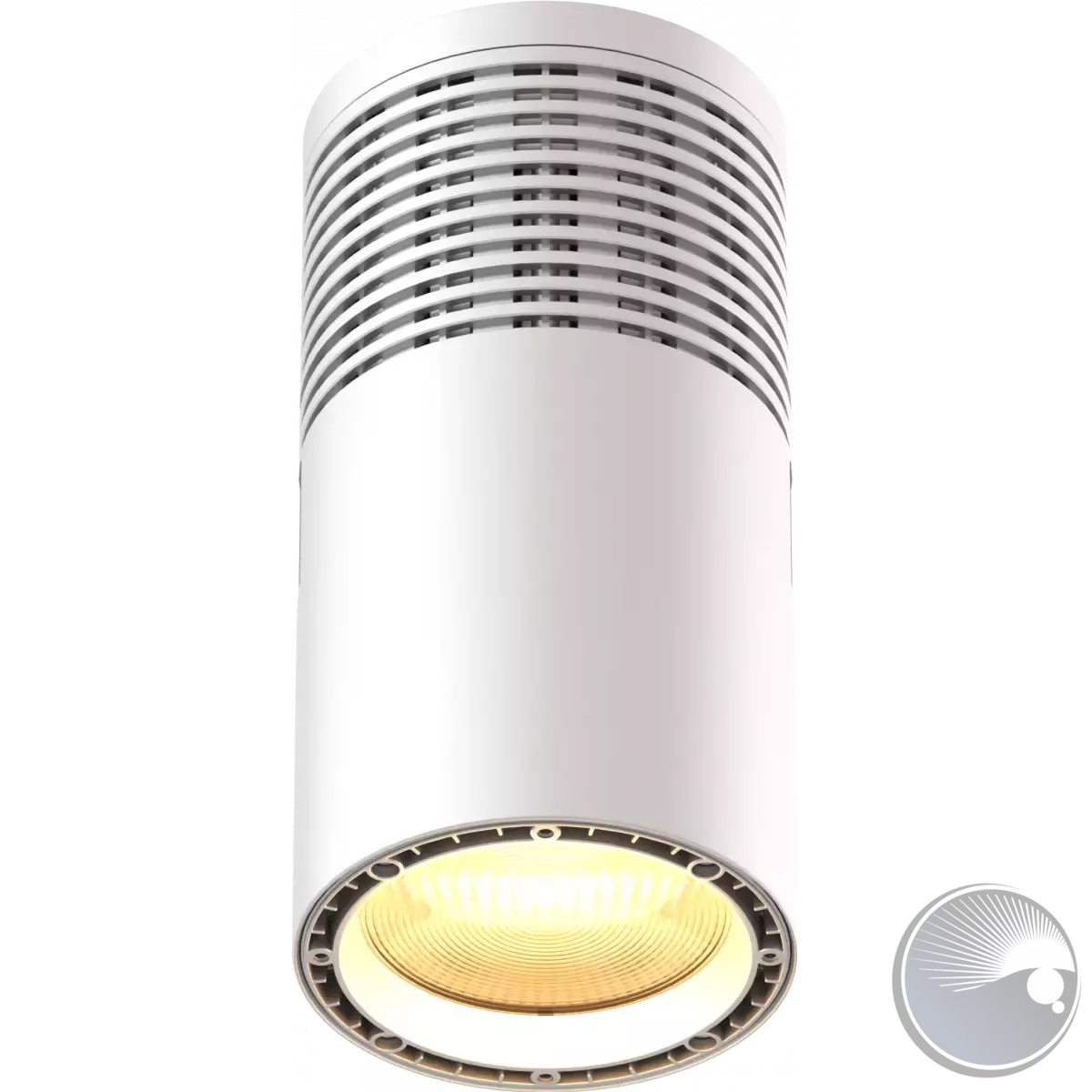

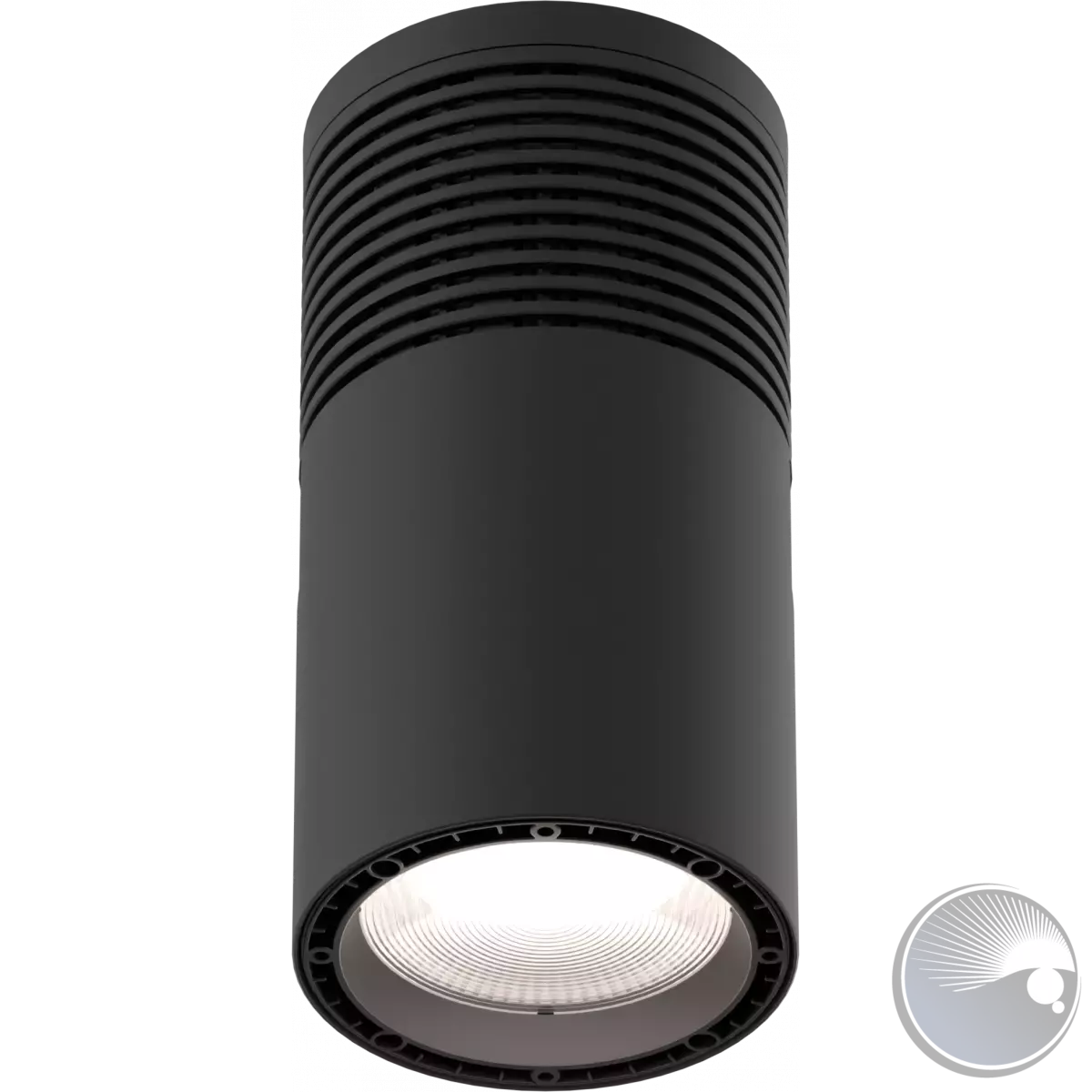

PL EclPendant S, 50W, 4.000K, weiß

The EclPendant S merges elegant design with cutting-edge, eco-friendly technology, ensuring optimal illumination for any venue. This series of pendant lights offers a diverse range of LED sources, including options in RGB + Warm White, Variable White and single color (3000K, 4000K and 5600K), each featuring a 50 Watt LED that provides high-quality light output, uniform color, and remarkable durability.Completed by a wide range of optics, accessories, and versatile mounting solutions, the EclPendant S adapts to various installation needs. Mounting alternatives include pendant, surface, stem, wall, adjustable bracket, and recessed options. It can be directly wired to mains power (100-240 VAC or 48 VDC) and integrates seamlessly with control protocols like DMX + RDM and DALI, thanks to its accessible terminal blocks.User-friendly settings are manageable via the unit's onboard GUI, enhancing its functionality. The fixture's wide array of optics and accessories is designed for utmost flexibility and precision, allowing easy on-site changes without complications.Notably, the EclPendant S features a fan-free thermal design, ensuring quiet operation while delivering consistent and robust lumen output throughout its extended lifespan. * Please note: The hanging bracket is not included with the product.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 50W COB LED
• CCT: 3000K (TU), 4000K (NW), 5600K (DY)
• Luminous flux: (TU) 2'814 lm; (NW) 3'851 lm; (DY) 4'045 @Full
• Lux: (TU) 796 lx; (NW) 1'079 lx; (DY) 1'116lx @5 m full
• CRI: (TU) 98,1; (NW) 95,3; (DY) 95,2
• R9: (TU) 91,8; (NW) 89,2; (DY) 91,8
• TLCI: (TU) 98; (NW) 96; (DY) 96
• TM30 Rf: (TU) 93,4; (NW) 92,3; (DY) 90,9
• TM30 Rg: (TU) 99,1; (NW) 101,3; (DY) 100,8
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Beam angle: 20°
• Field angle: 40°
• Lens diameter: 100mm / 3.94''
• Lens type: fresnel lens
• Other: see available accessories

DYNAMIC EFFECTS

• Static mode: selection of static dimmer
• Manual mode: manual adjustment of dimmer and strobe
• Auto mode: built-in programs with execution speed adjustment

BODY

• Body: Sturdy die-cast aluminium body
• Body colour: RAL 9004 or RAL 9010

CONTROL

• Supported Protocols: DALI Type6, DMX512, RDM, CRMX (optional)
• DMX channels: UNO / DUO / Standard / Extendedchannel
• Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX) (Order code SP018409)
• RDM: RDM for remote monitoring and settings

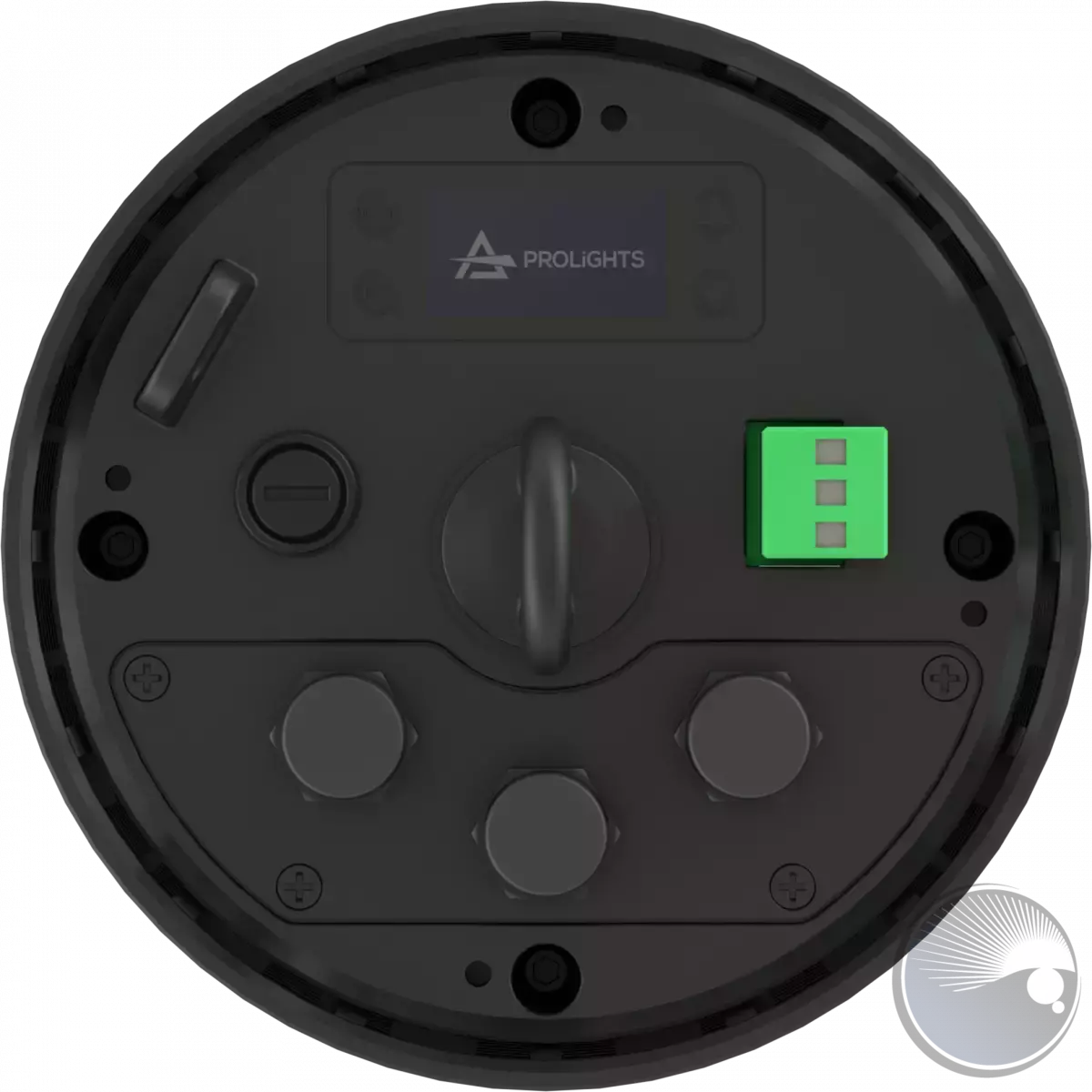

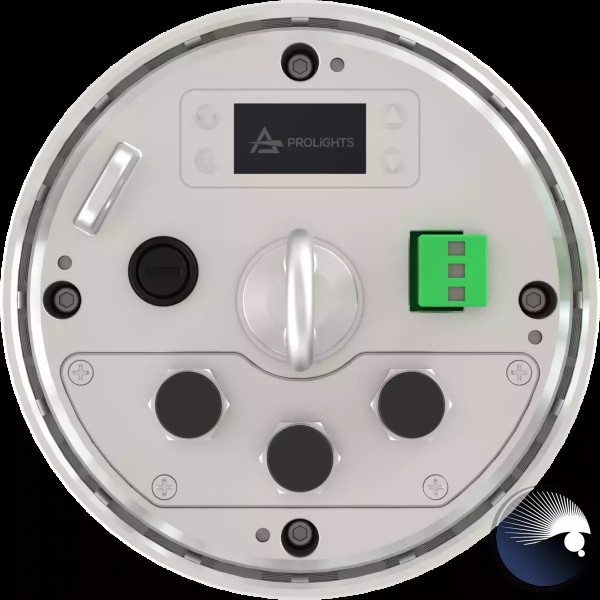

• Display: Graphic User Interface
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
• Other: 16bit control of dimmer

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1-30 Hz, electronic
• Operating temperature: -10° ~ +45° Ta
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 40.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Low Voltage DC mains: DC 48V for emergency light use
• Max power consumption: 60W
• Output (at 230V): 24 units on a single power line
• Power factor: > 0,93

PHYSICAL

• IP rating: IP20
• Cooling: Heatsink with heat pipes, natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
• Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)
• Signal connection: Screw terminal block
• Power connection: Screw terminal block
• Dimensions (WxHxD): 135x300x135mm / 5.31''x11.81''x5.31''
• Weight: 3kg / 6.61lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM, FCC, cTUVus

BOX CONTENT

• 1 x ECLPENDANTS
• 1 x User Manual
• NOTE: no hanging bracket ECLPENDSHGBRK on board to the fixture
