PL AEtherBox Lite, CRMX Transceiver

The AetherBox Lite is a versatile, single universe Wireless CRMX Transceiver, offering compatibility with both Lumen Radio CRMX and Wireless DMX G3 and G4S protocols.This compact unit provides flexible power and signal processing options via chassis connectors or terminal blocks. Its design allows for track mounting, enabling the streaming of signals on tracks equipped with a data bus option.The AetherBox Lite is an effective solution for small and medium-sized live events or installations, delivering reliable wireless control in various settings.

TECHNICAL SPECIFICATIONS

BODY

• Hardware on-board: see available accessories
• Body: Sturdy polycarbonate body
• Body colour: black

CONTROL

• Supported Protocols: DMX512, RDM, CRMX + WDMX, Bluetooth
• Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and W-DMX, Bluetooth capable
• RDM: RDM for remote monitoring and settings
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)

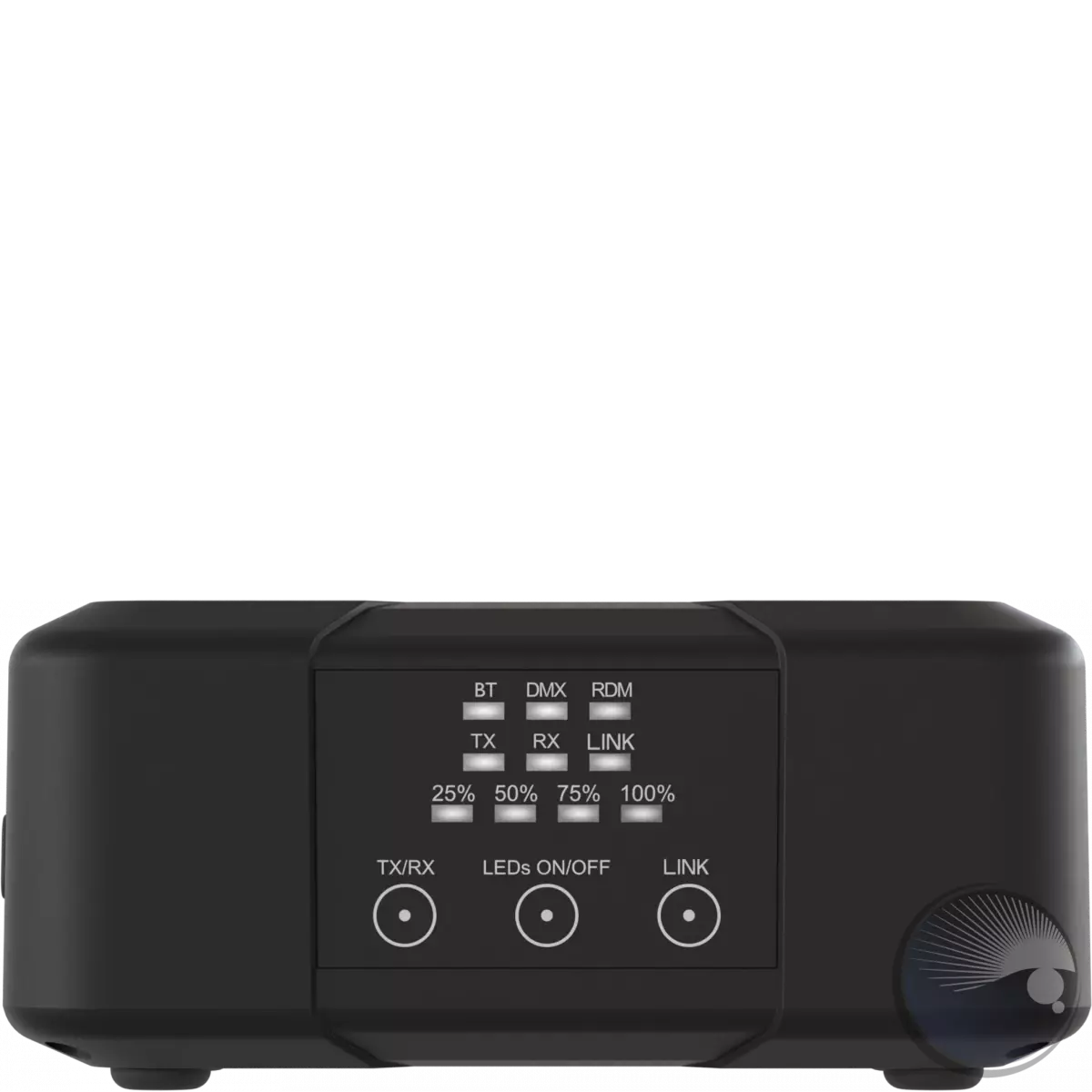

• Other: 3 control buttons and status LEDs on-board
• Other: transmission distance max 100 m in open field
• Other: Transmission range up to 80 meters in open field

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 5W
• Power factor: > 0,95

PHYSICAL

• Operating Temperature: -10° ~ +45°
• IP rating: IP20

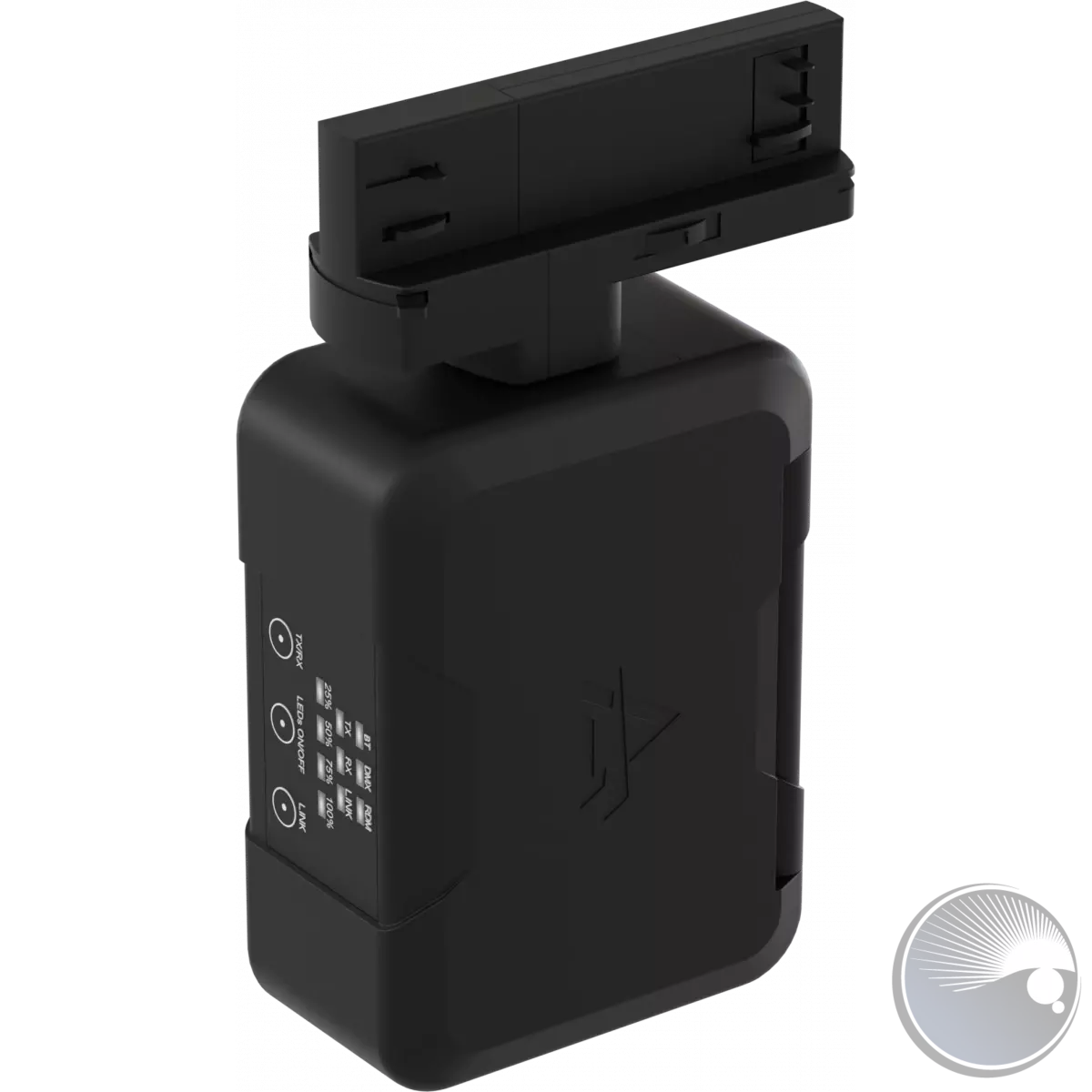

• Suspension and fixing: track-adapter option (track not included), for fixing in suspension

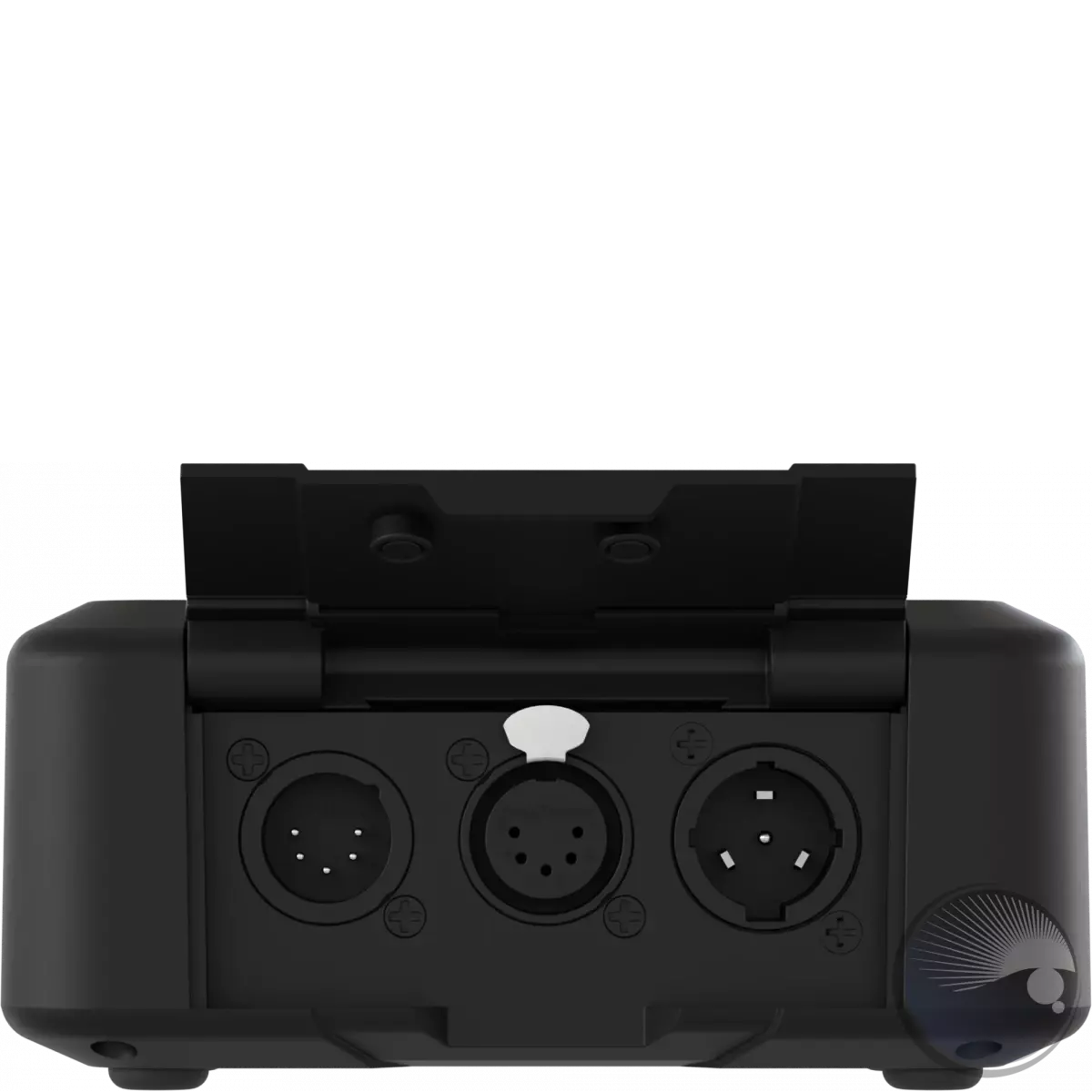

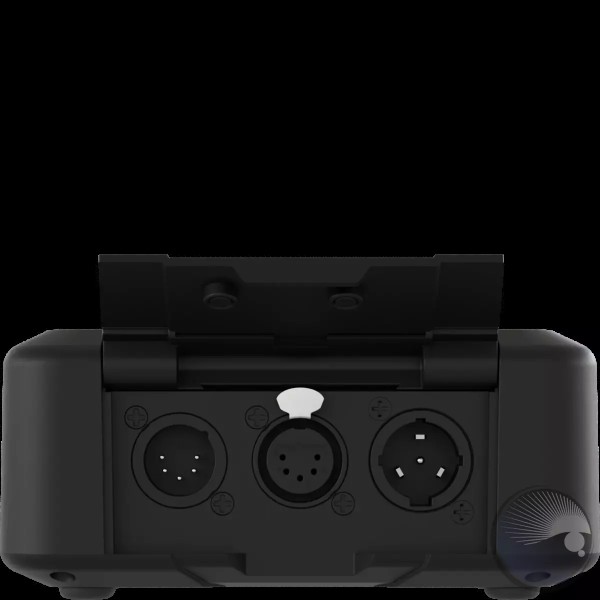

• Signal connection: screw terminal block, Amphenol XLR 5p IN/OUT connectors
• Power connection: screw terminal block, Seetronic powerCON TRUE IN
• Dimensions (WxHxD): 140x60x100mm / 5.51''x2.36''x3.94''
• Weight: 0,4kg / 0.88lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM, FCC, cTUVus

BOX CONTENT

• 1 x AETHERBOXLITE
