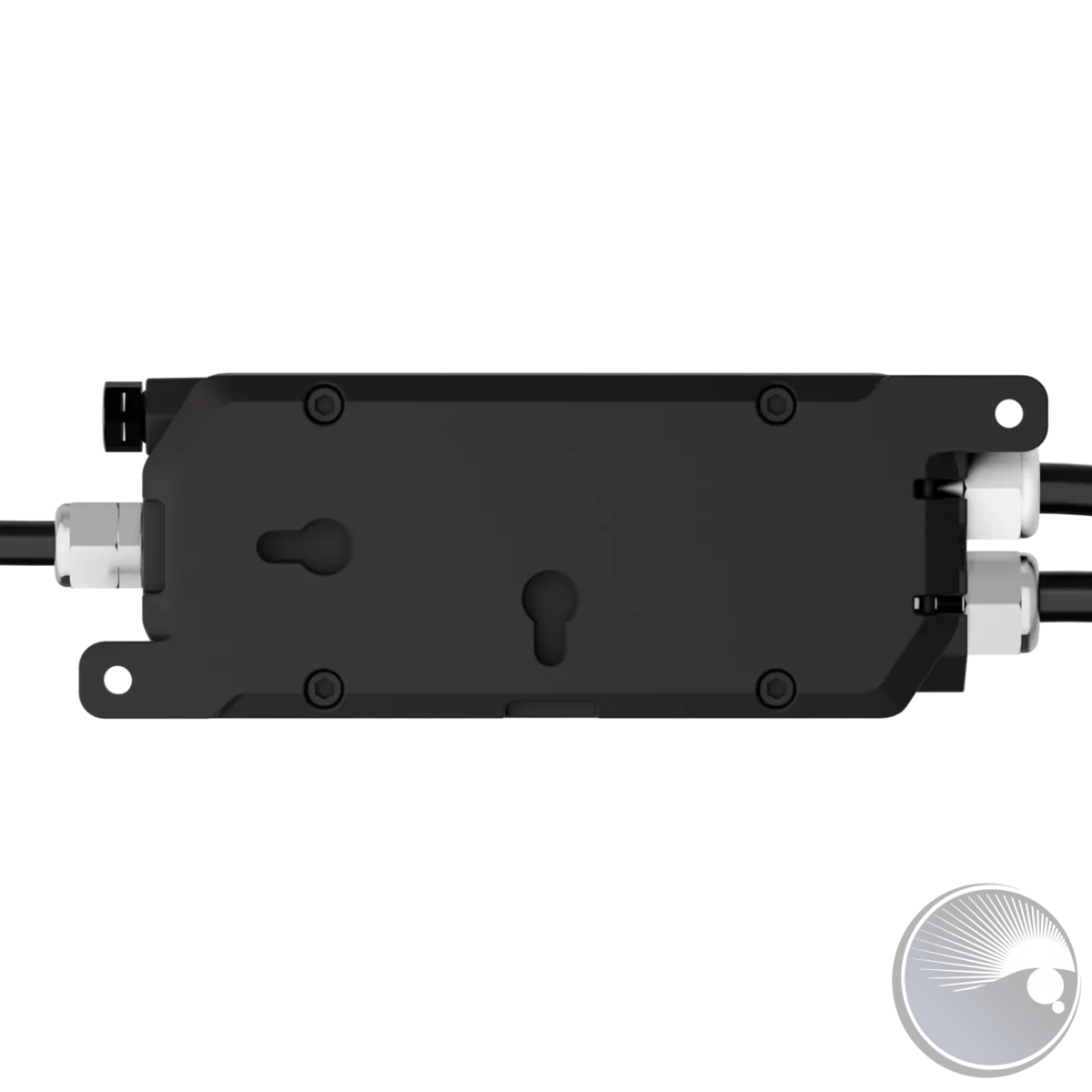

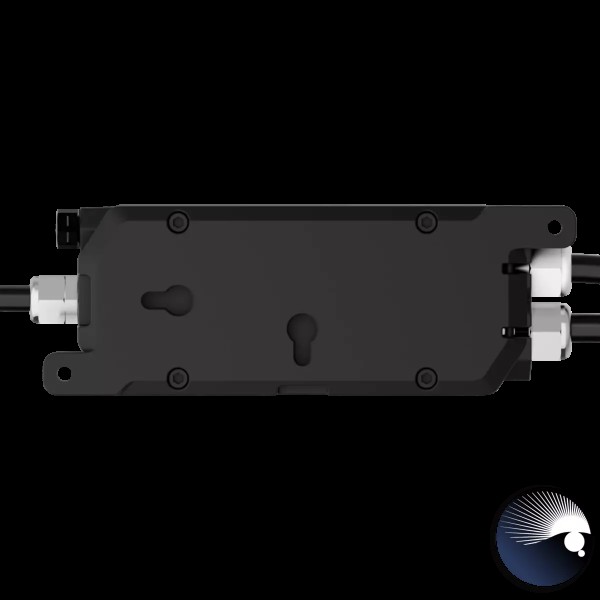

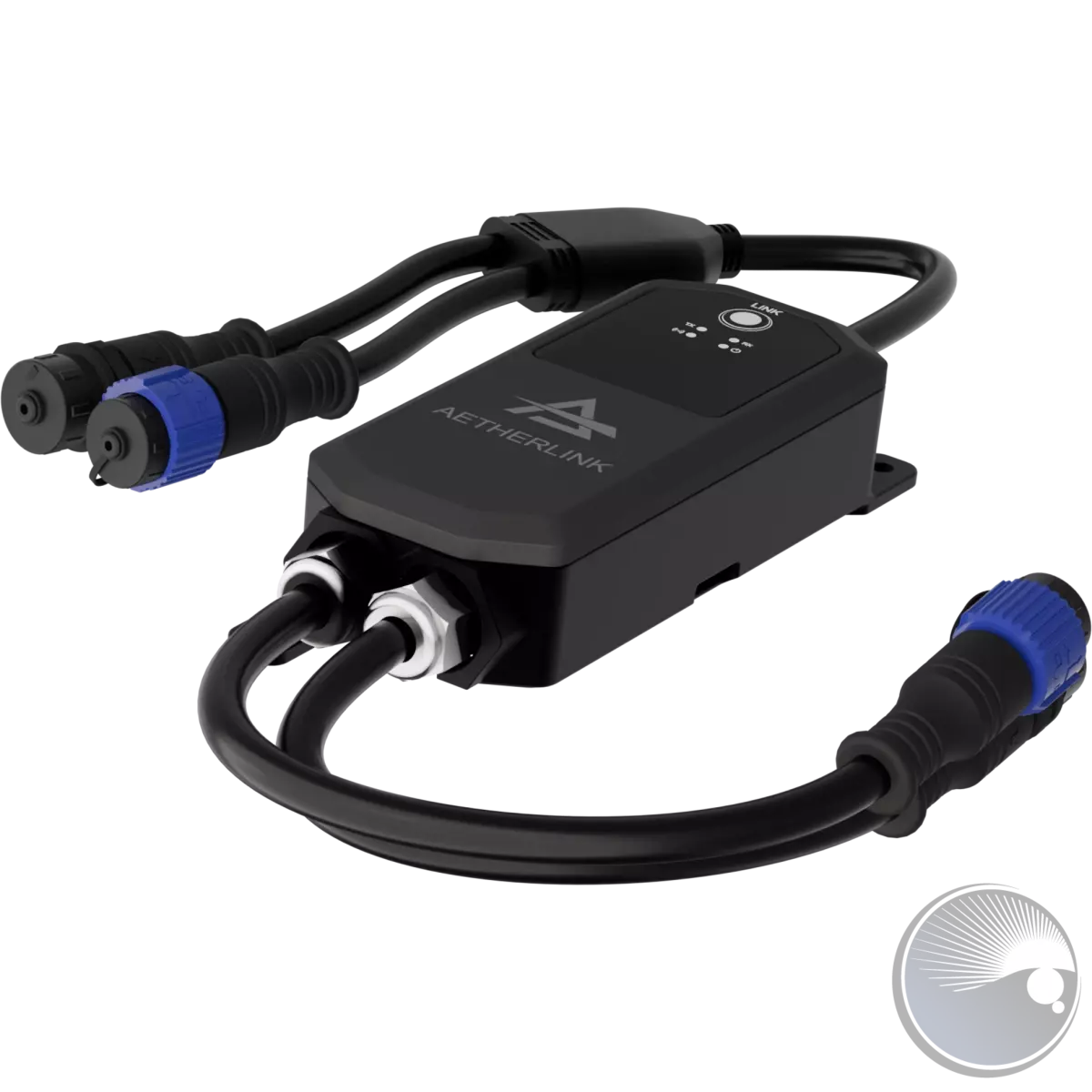

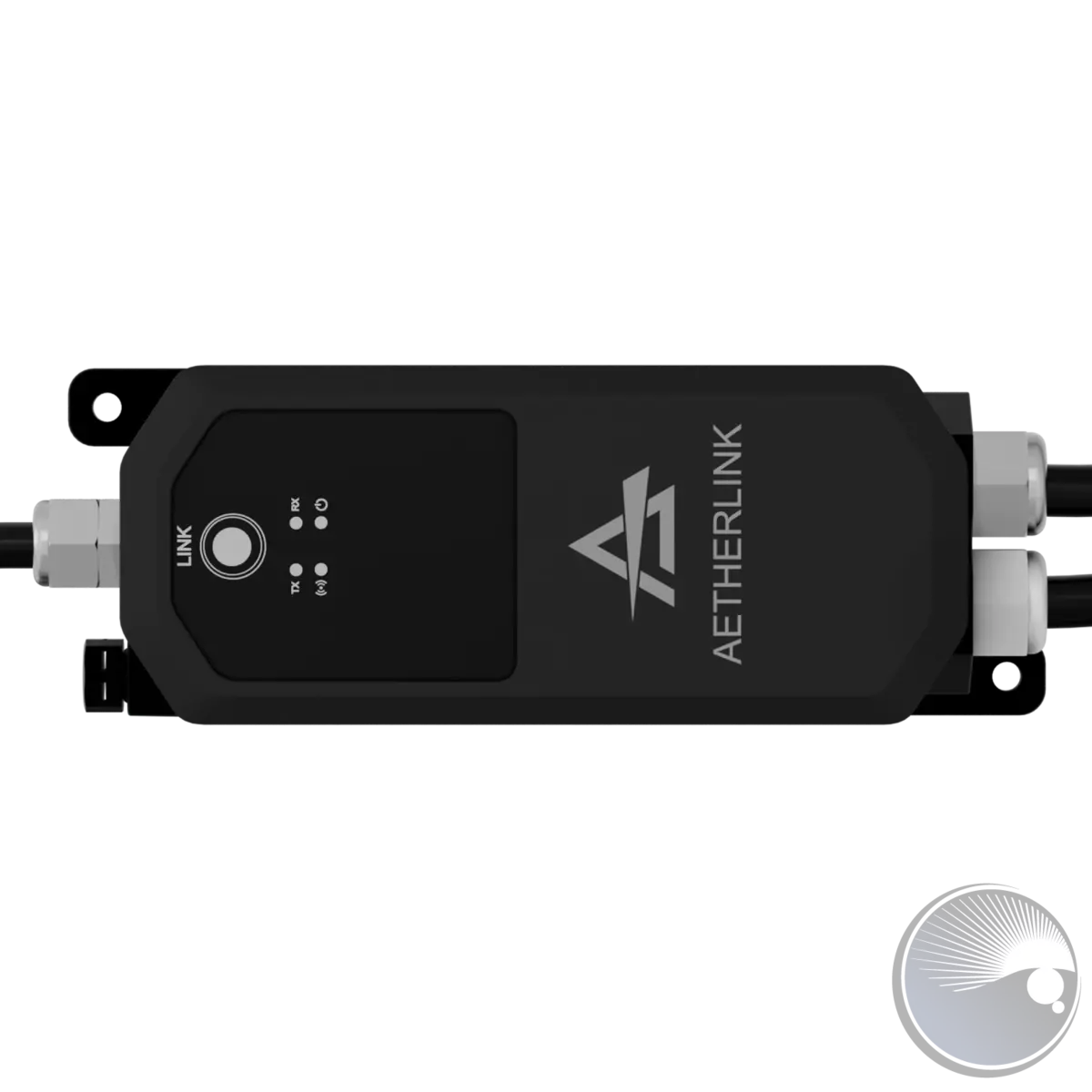

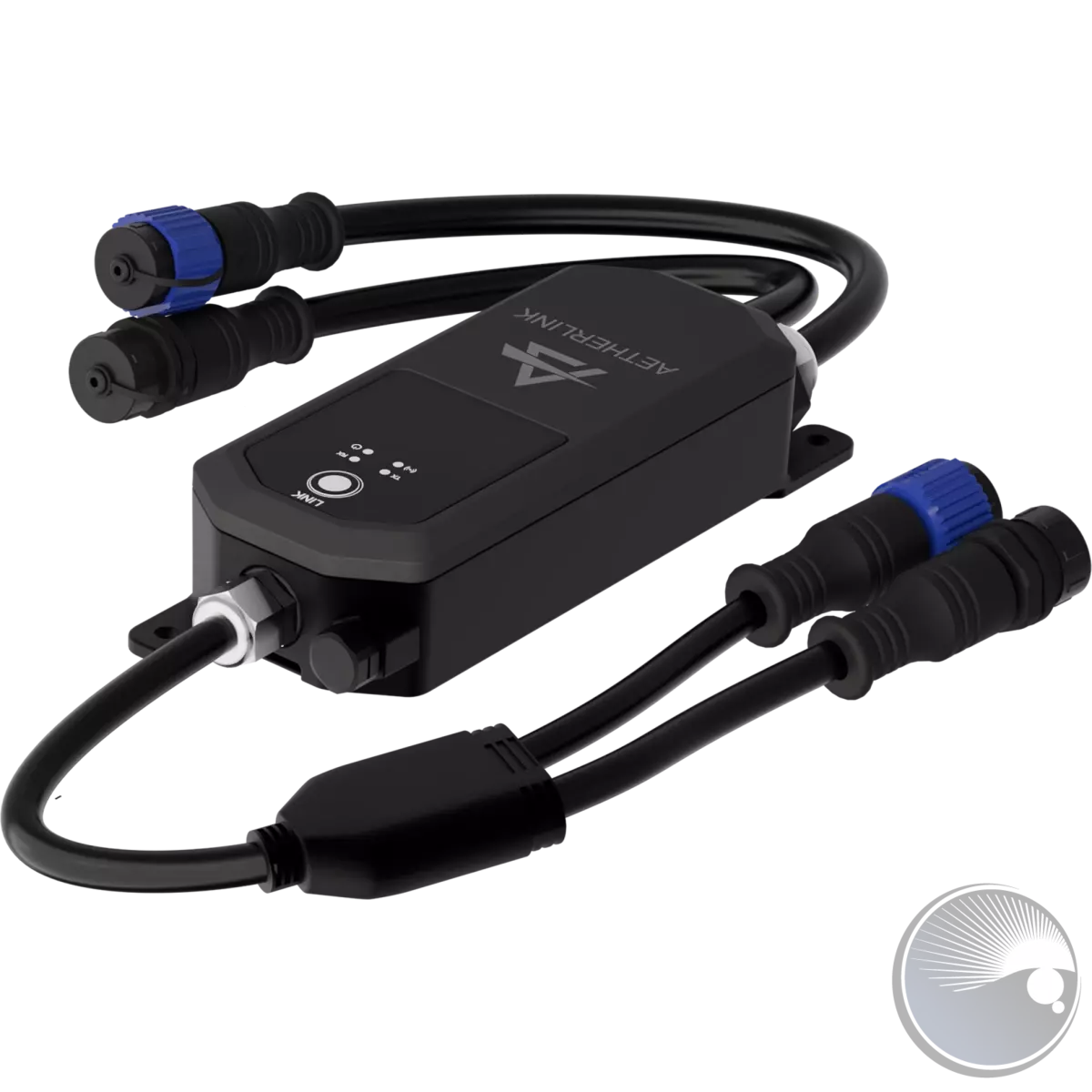

The Aether Link is a versatile, IP66 rated single universe wireless CRMX transceiver, fully compatible with Lumen Radio CRMX as well as Wireless DMX G3 and G4S protocols.Designed in a compact form factor, it features moulded IP67 cables that provide flexible power and signal management, making it ideal for permanent architectural and outdoor installations.The Aether Link also offers a simple, intuitive user interface with status LEDs and a push button, allowing quick and easy configuration of wireless settings.
TECHNICAL SPECIFICATIONS
BODY
- Body: Weatherproof IP66 construction with die-cast aluminium alloy, scratch-resistant C5M Marine Grade paint (as standard)
- Body colour: black
CONTROL
- Supported Protocols: DMX512, RDM, CRMX
- DMX channels: 512channel
- Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)
- Other: Transmission range up to 80 meters in open field
ELECTRONICS
- Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 2W
- Standby power: 0,7 W
PHYSICAL
- IP rating: IP66 for outdoor installations
- Suspension and fixing: holes for fixing to surfaces
- Signal connection: 20 cm, IP67 moulded IP signal IN/OUT connectors
- Power connection: 15 cm, IP67 moulded IP power IN/OUT connectors
- Dimensions (WxHxD): 154x33x54mm / 6.06''x1.3''x2.13''
- Weight: 0,4kg / 0.88lbs
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM
BOX CONTENT
- 1 x AETHERLINK
- 1 x 0,3 meters 3G1mmq power cable (BARE END - IP connection adapter)
- 1 x 5p XLR - IP connection female adapter
- 1 x 5p XLR - IP connection male adapter
- User Manual
