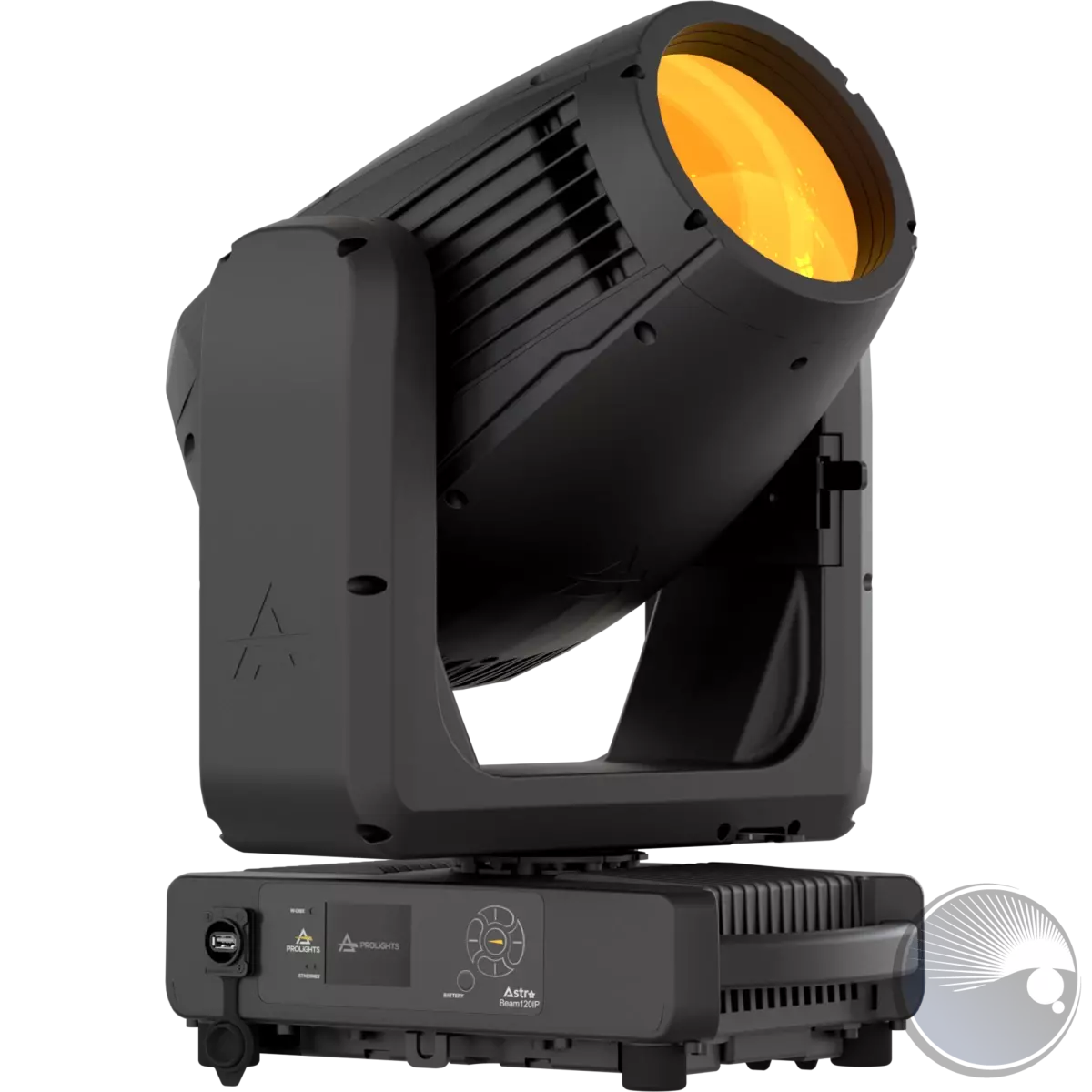

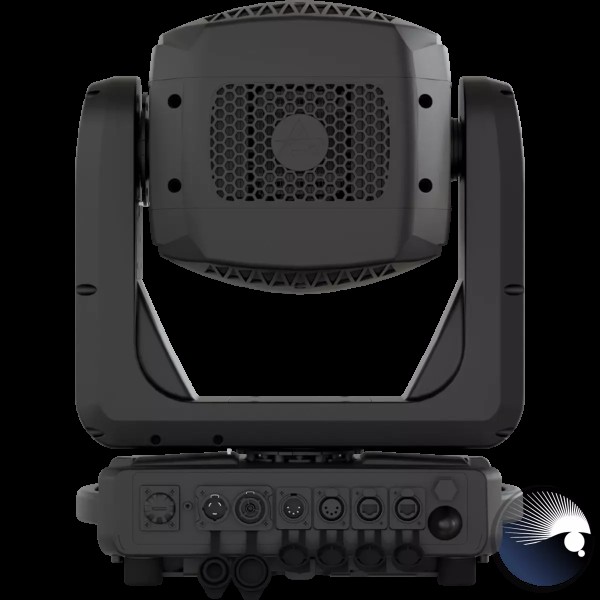

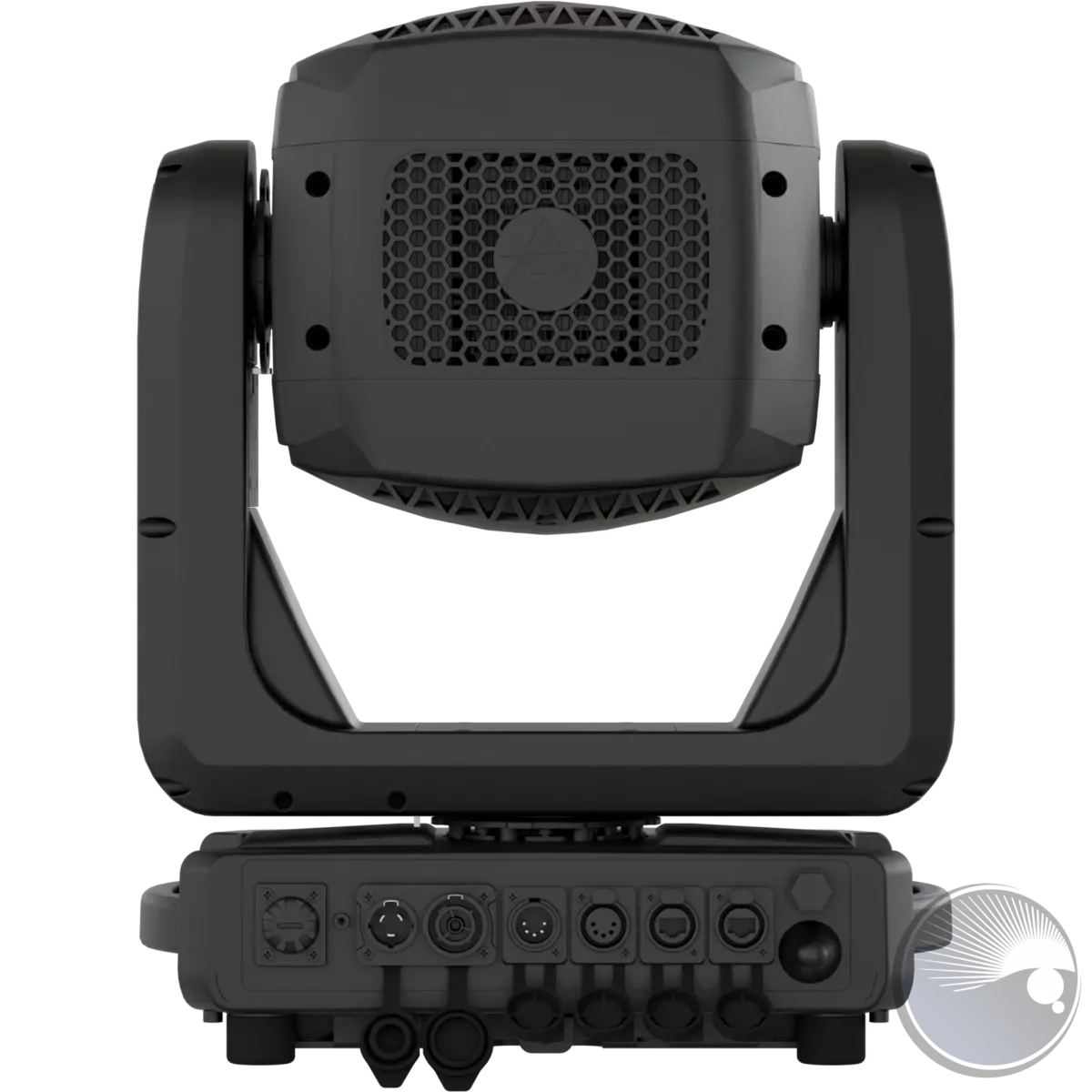

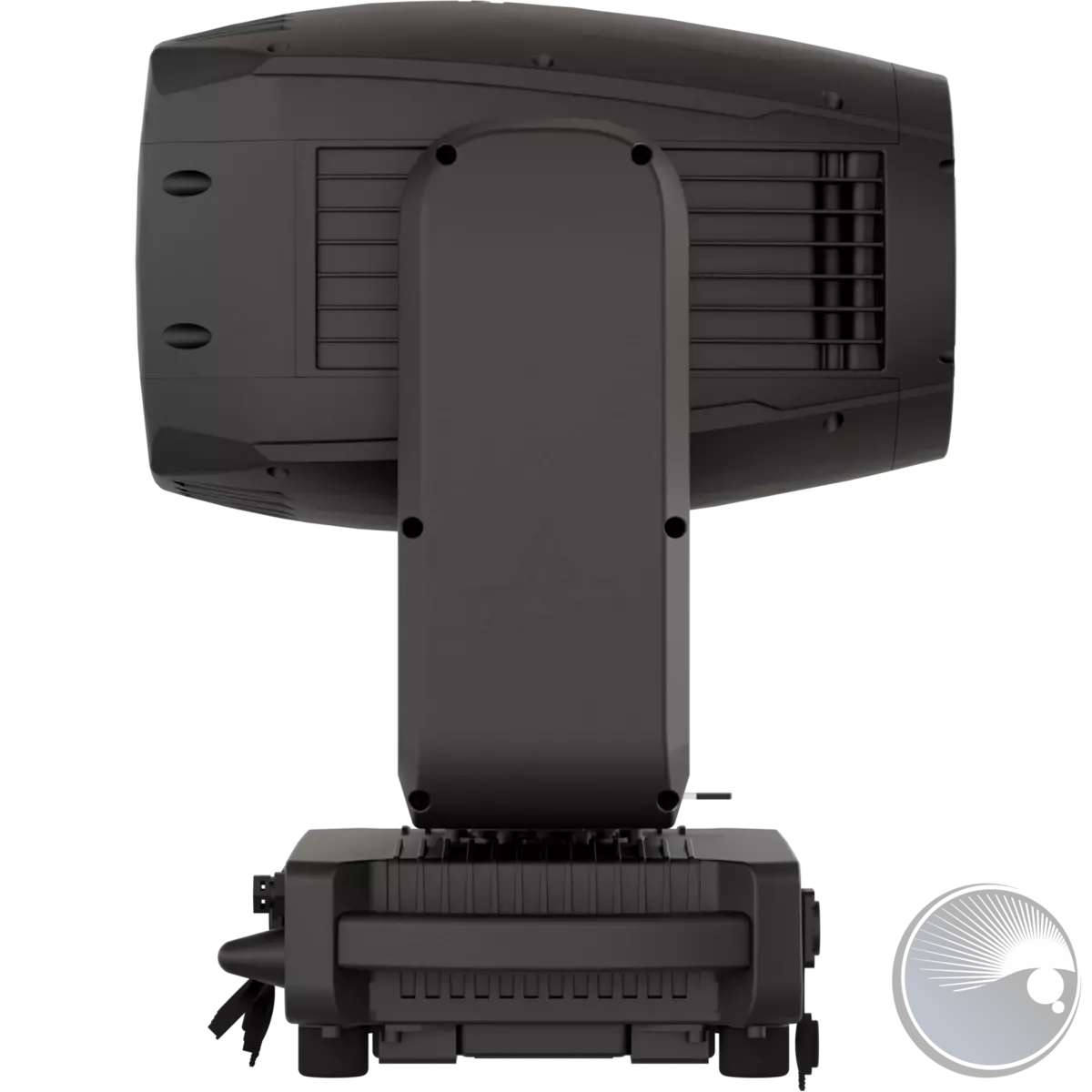

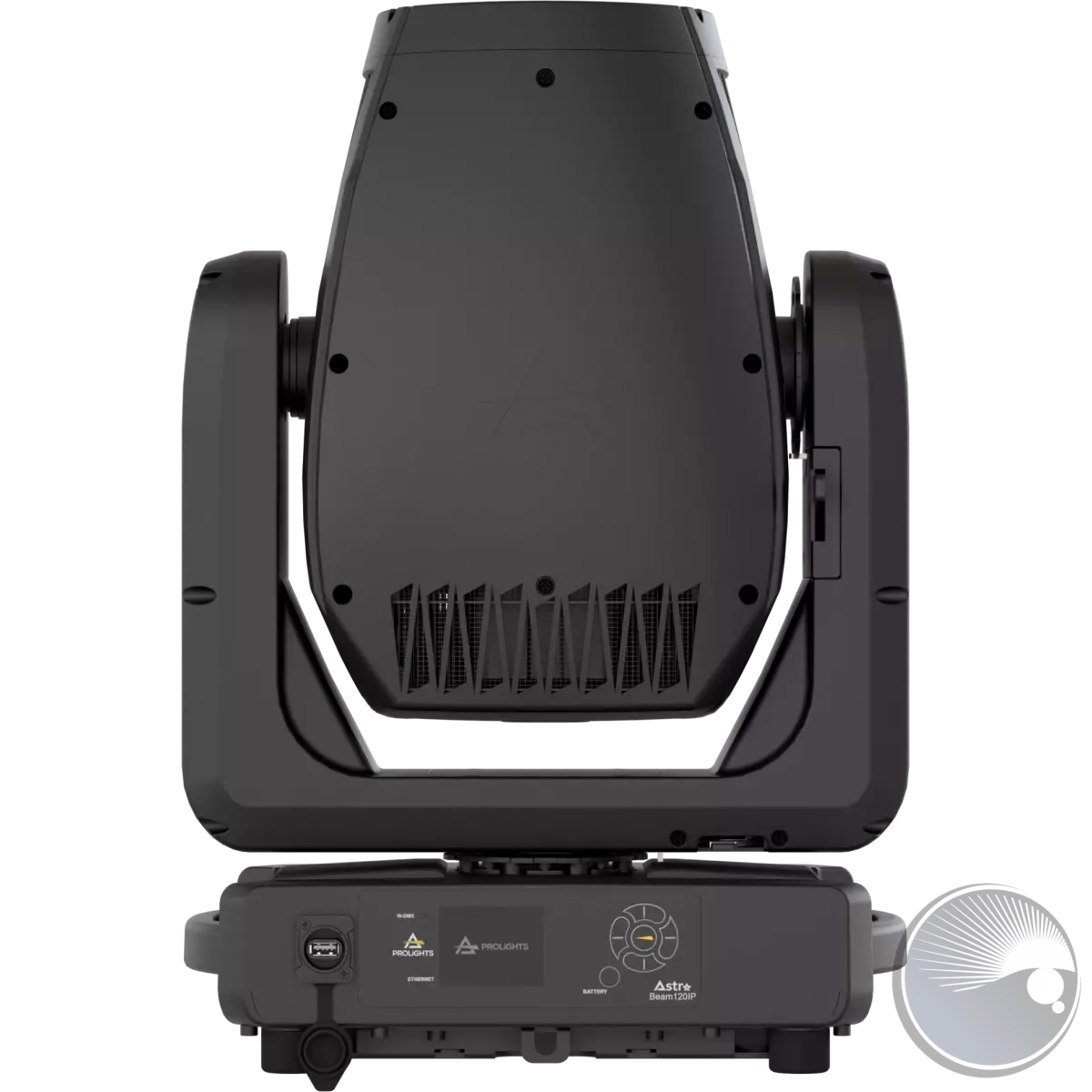

Astra Beam120IP

Astra Beam120IP stands as a formidable IP-rated pure beam moving head, leveraging a 120W phosphor laser source to cast intense white light. Designed for both indoor and outdoor large stage applications, its power and versatility are unmatched.This moving head's advanced phosphor laser source, characterized by a notably small light-emitting surface, works in tandem with a custom-engineered optical system. The result is a striking 0.6° fat, parallel beam that excels in long throw aerial effects, offering unparalleled intensity and contrast.The Astra Beam120IP is not just about raw power; it's a hub of creative potential. Its comprehensive feature set enables limitless color possibilities and visual effects. This includes linear CMY color mixing, a color wheel, one rotating gobo wheel, one static gobo wheels and one animation wheel. The unit also boasts four prisms, dual frost filters, and infinite Pan & Tilt rotation, further expanding its capacity for effect possibilities.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 120W Phosphor Laser source
• CCT: 7'000K
• Lux: 204'167lx @15 m full
• Source life expectancy: > 12.000 h

OPTICS

• Beam angle: 0,6°
• Lens diameter: 143mm / 5.63''
• Lens type: HD anti-reflection lenses with achromatic coating
• Focus: motorised

COLOUR SYSTEM

• Colour mixing: linear CMY
• CCT: several CTB/CTO on wheel
• Colour wheel: open + 24 colour filters

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer
• Animation wheel: animation wheel with CW and CCW rotation
• Rotating gobos: 13 rotating gobos + open, interchangeable, indexing
• Gobo size: outer: 8,4 mm - image: 4 mm - thickness: 0,3 mm
• Fixed gobos: 29 fixed gobos + open
• FX generator: prisms overlap for spectacular aerial effects
• Circular prism: (prism wheel 1) 16f and 6f (prism wheel 2) 8f with bi-directional rotation, indexing, interchangeable
• Linear prism: (prism wheel 1) 6f (prism wheel 2) 4f and 6f with bi-directional rotation, indexing, interchangeable
• Rotating prism wheel: 2 indipendent wheels with 3 prisms each
• Frost: dual soft-edge and heavy

BODY

• Pan range: 540° with 360° continuous rotation
• Tilt range: 270° with 360° continuous rotation
• Pan/Tilt resolution: bit 16-bit
• Feedback: automatic repositioning after accidental movement
• Body: Weatherproof IP65 construction with die-cast magnesium alloy
• Body colour: black

CONTROL

• Supported Protocols: DMX512, RDM, ArtNet, sACN, CRMX
• DMX channels: 32channel
• Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included) or via USB pen drive
• EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1-30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 150W
• Standby power: 66,4 W
• Output (at 230V): 14 units on a single power line
• Power factor: > 0,96

PHYSICAL

• IP rating: IP65 for temporary outdoor use (*)
• Cooling: combination of heat pipe cooling system and low noise fan
• Suspension and fixing: any position with quick-lock omega brackets
• Pan / tilt lock: for transportation and maintenance
• Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
• Data connection: IP65 Seetronic Art-Net RJ45 IN/OUT
• Power connection: Seetronic powerCON TRUE IP65 IN
• Dimensions (WxHxD): 366x528x258mm / 14.41''x20.79''x10.16''
• Weight: 20kg / 44.09lbs

(*)

• NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM

BOX CONTENT

• 1 x ASTRABEAM120IP
• 2 x OSIPPLUS
• 1 x Antenna
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• User Manual
