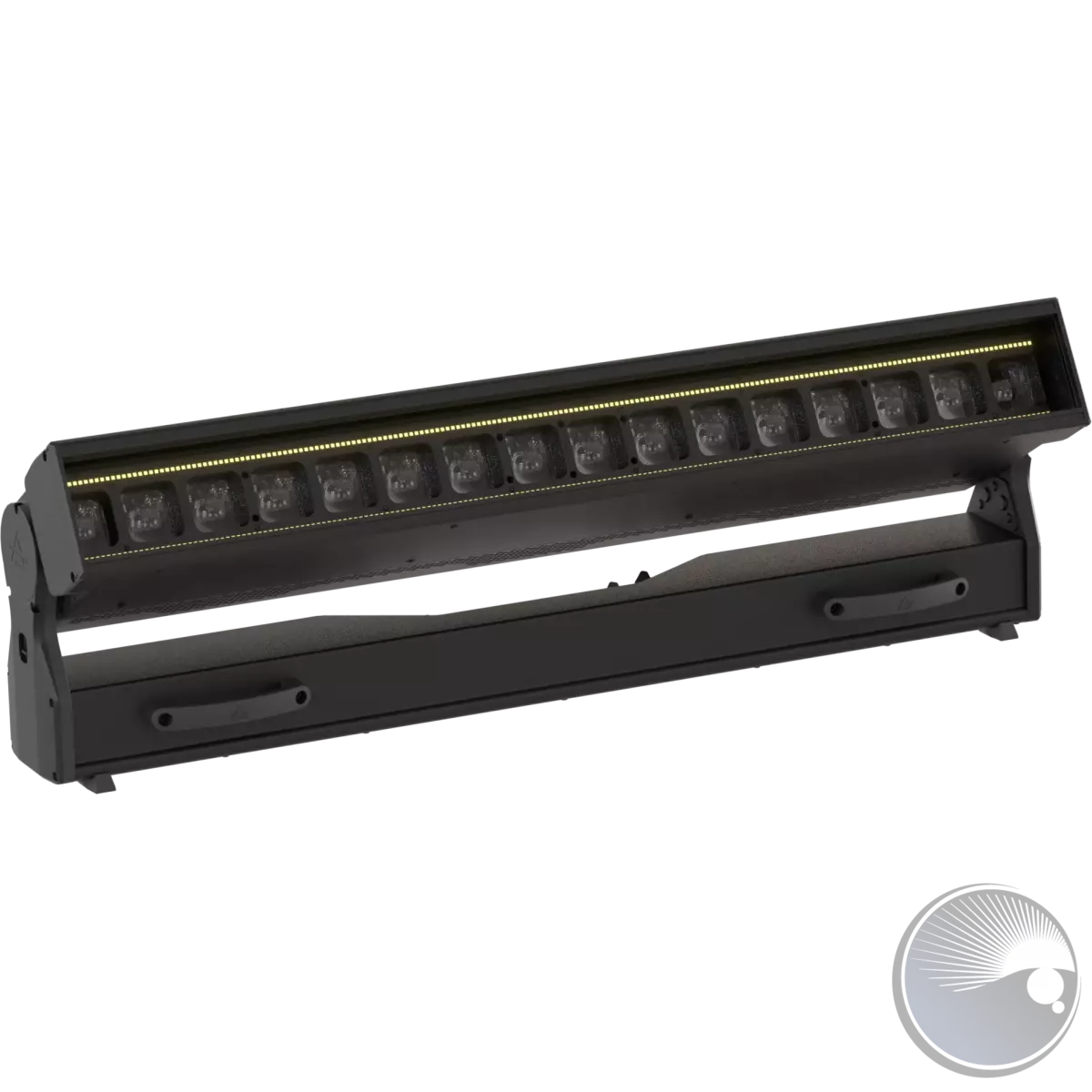

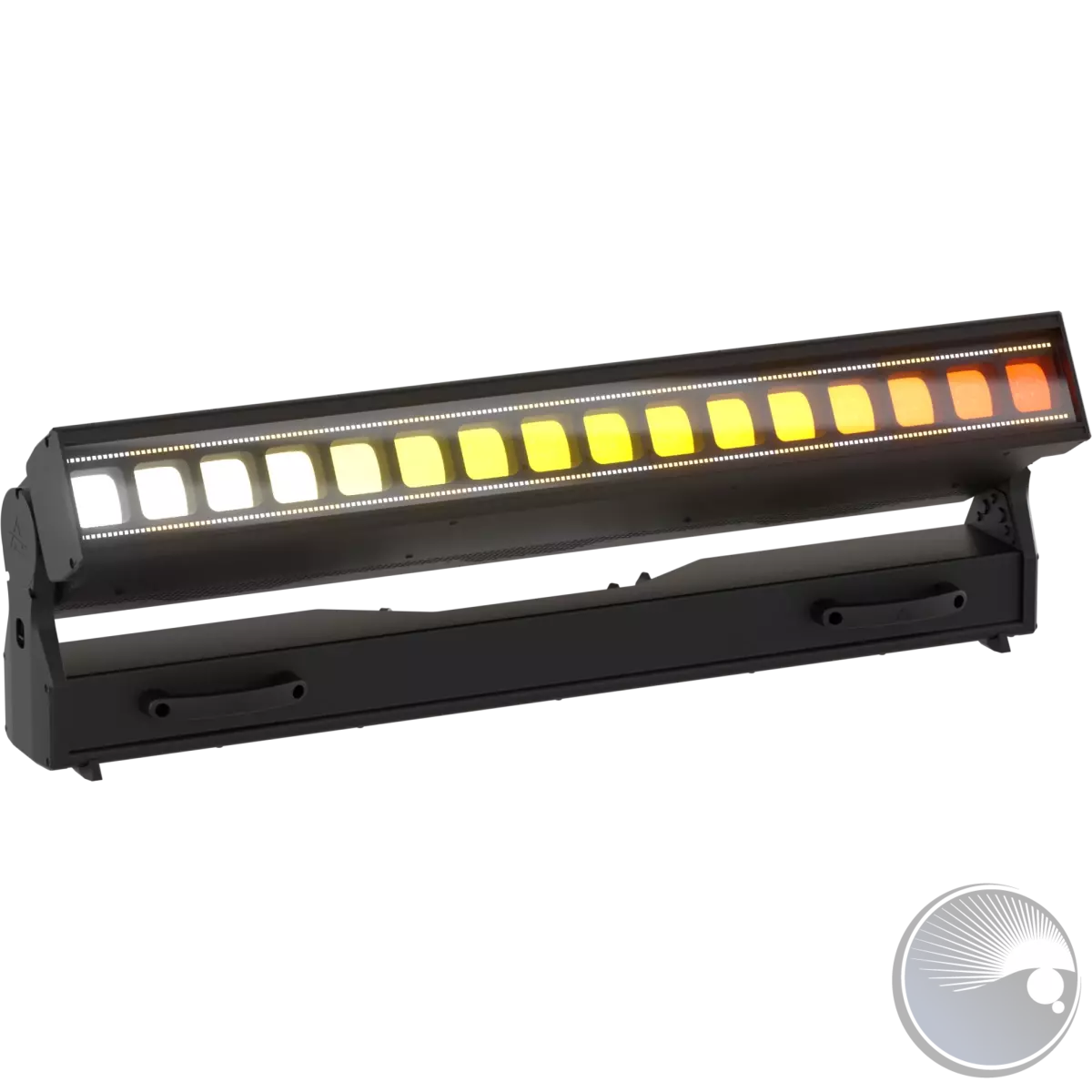

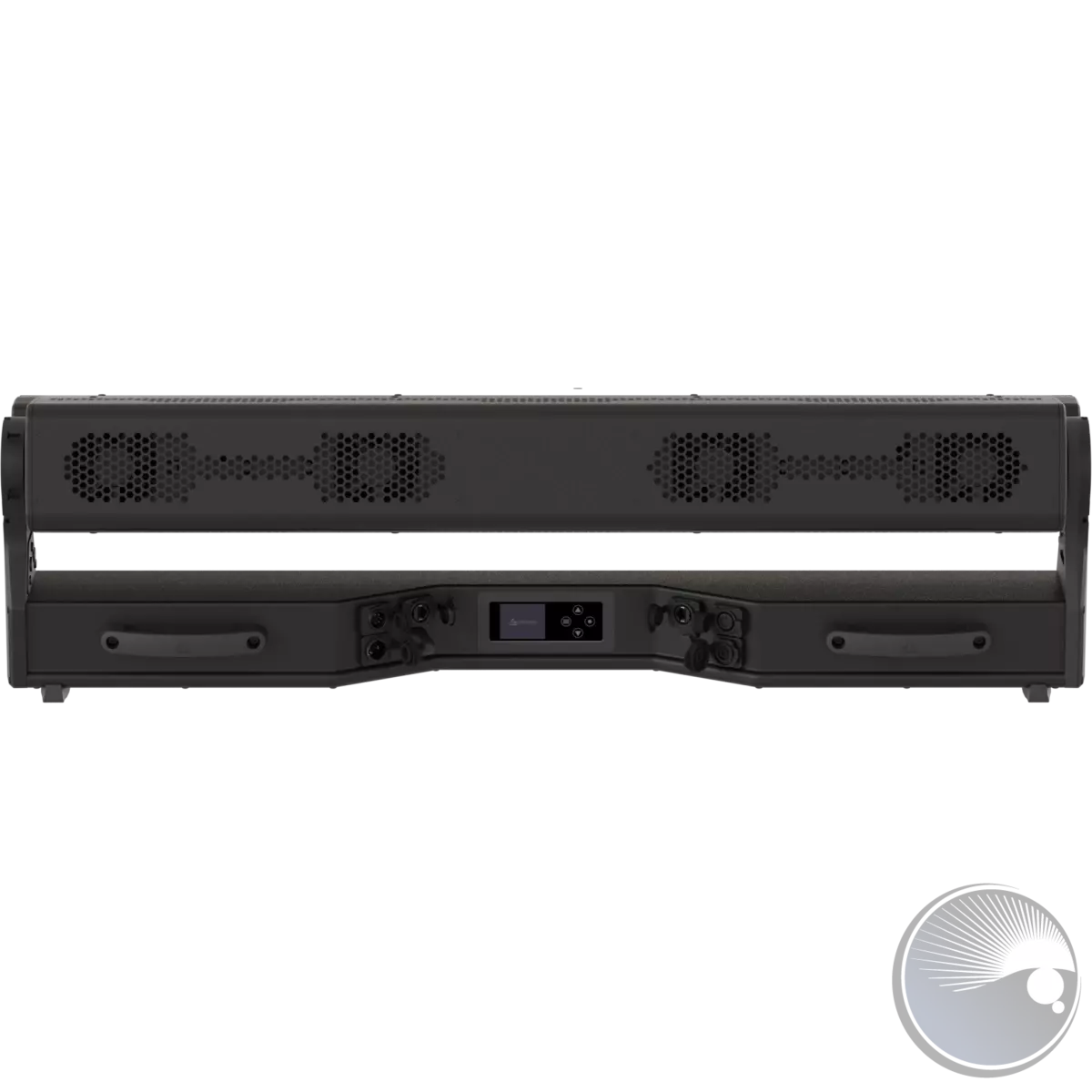

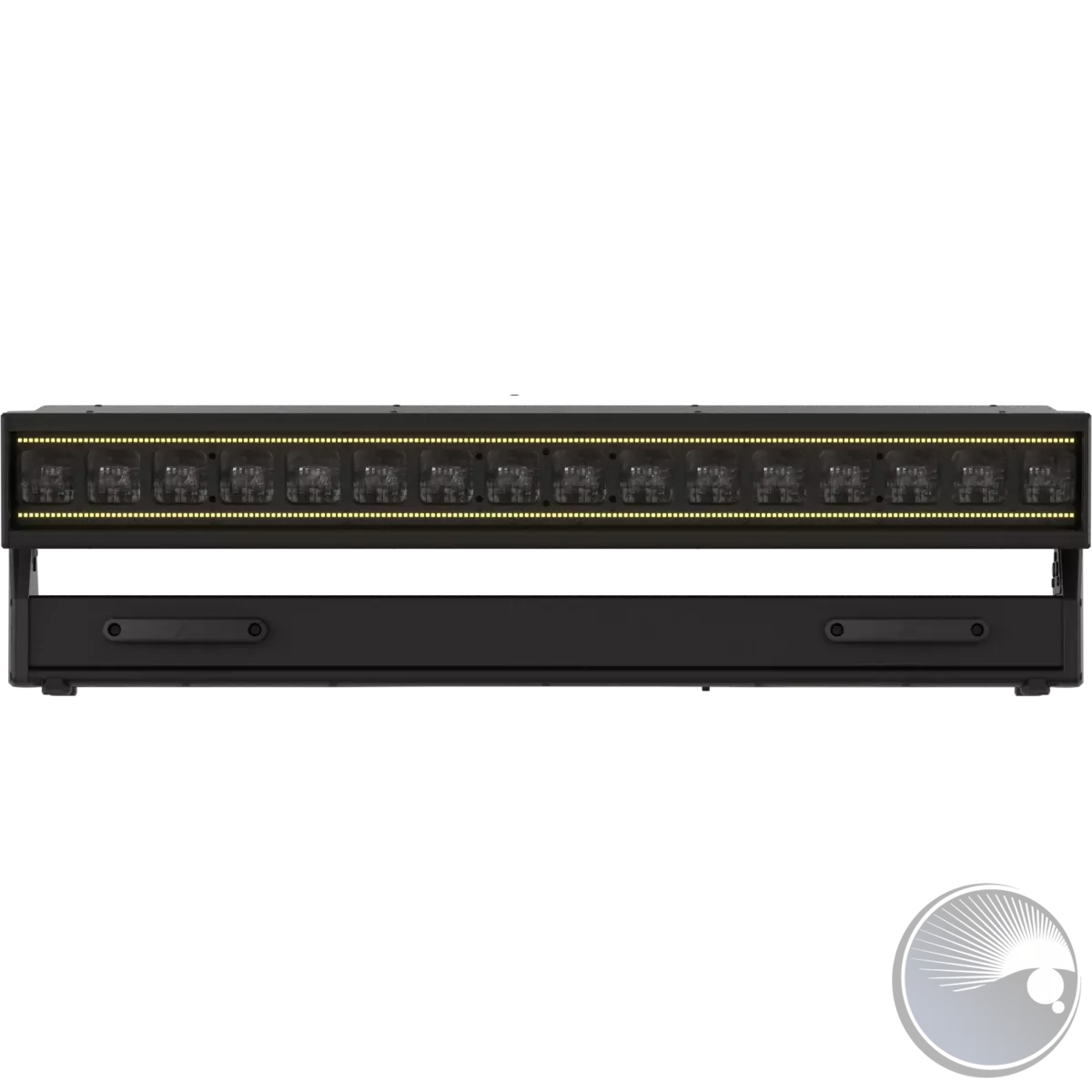

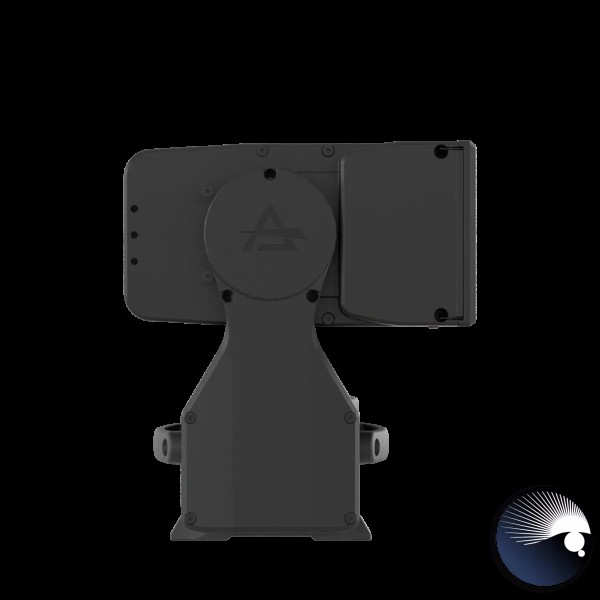

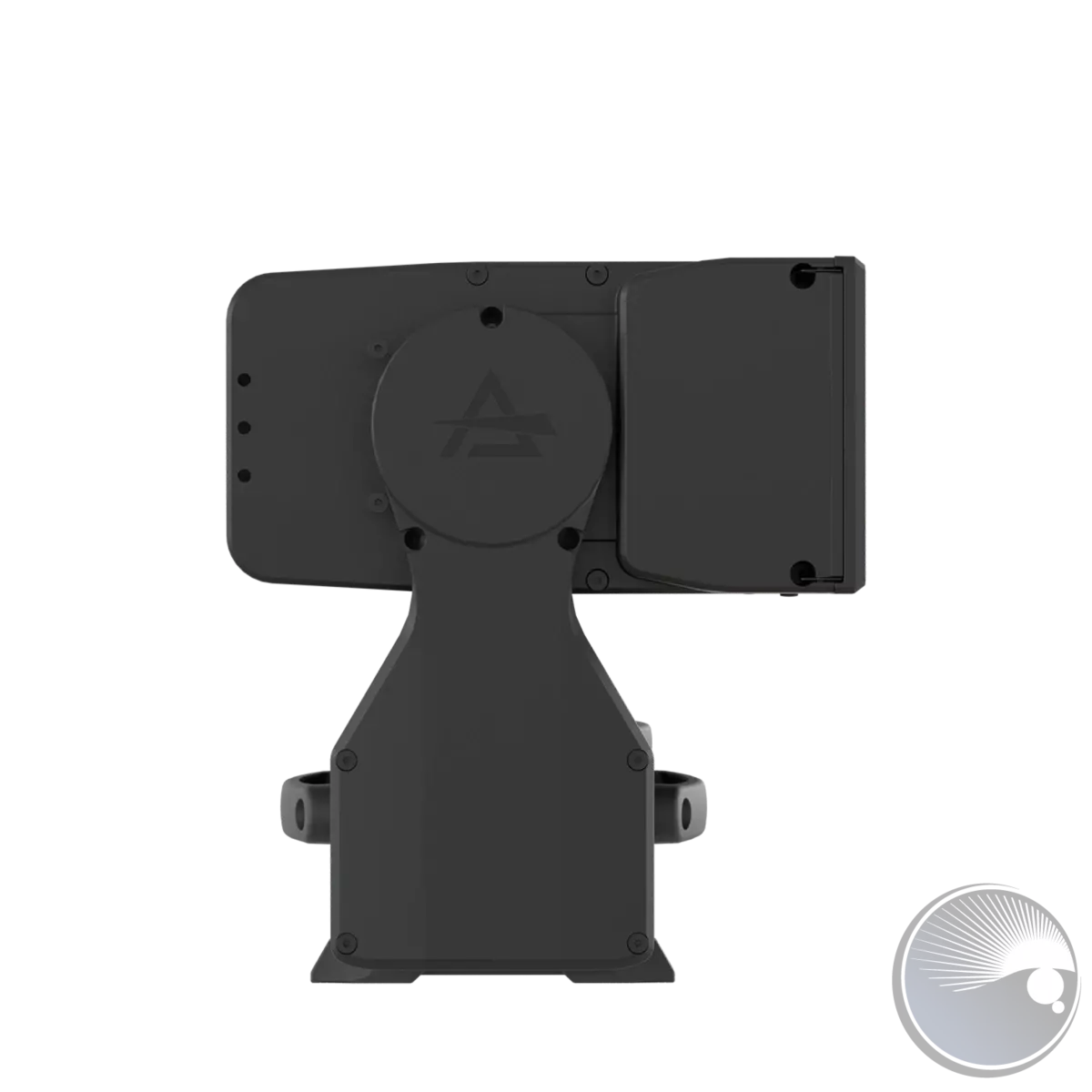

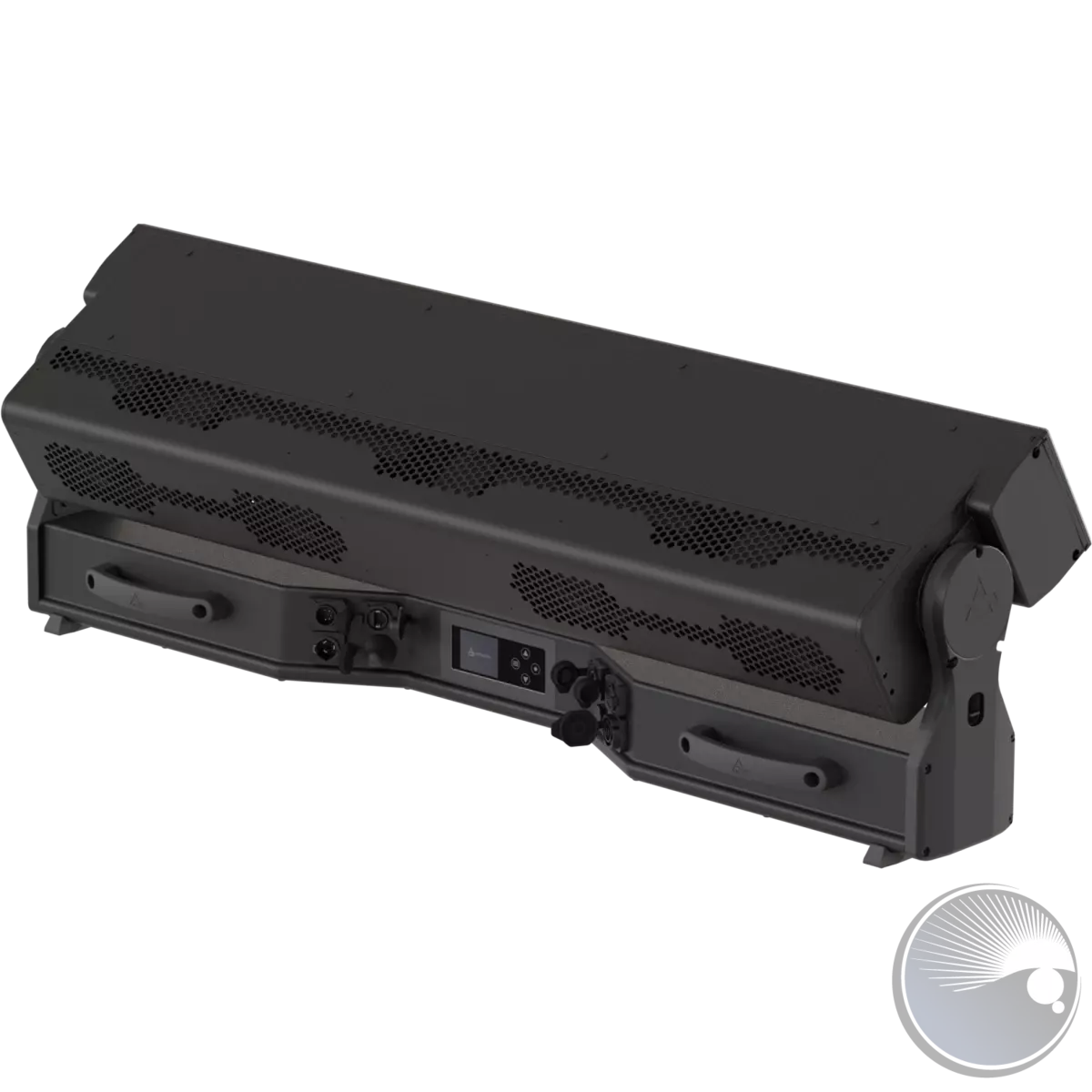

Astra Blade100IP

The Astra Blade100IP is an IP65 rated, linear motorized LED batten, featuring high output through 16 x 40W RGB+WW LEDs and two variable white pixel linear LED strips on both sides, a wide zoom range, and control through the powerful PROLIGHTS Spektra OS algorithm that reproduces perfect white spectrums with high color rendering. The new squared lens design maximizes lumen efficiency and provides a bright curtain of light at its narrowest angle of just 4°, while delivering smooth and homogeneous washes at its widest 40° wash when zoomed out. Astra Blade100IP offers motorized tilt and individual pixel control across the 16 emitters and 32 sectors for your side strips, as well as both wired and wireless CRMX operations or through multi-protocol ethernet support. The water and dustproof design ensures enhanced reliability for any indoor or outdoor stages, making it virtually maintenance-free.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 16x40W RGBW Osram Ostar LEDs
• Luminous flux: (4,3°) 12'028 lm - (39,4°) 15'262 @Full
• Lux: (4,3°) 50'695 lx - (39,4°) 3'056lx @5 m full
• Other: 2 VW linear LED strips with 32 individual sections (16 sections on the top + 16 sections on the bottom)
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Zoom range: 4,3° - 39,4° motorised linear zoom
• Lens diameter: square 50x50mm / 0''x1.97''
• Lens type: high-quality glass lens optics

COLOUR SYSTEM

• Colour control: CCT, RGBW, HSI, Colour Macros
• CCT: CCT control, + / - green correction, tungsten emulation
• Colour wheel: virtual colour wheel with macros
• Macros: several pre-built pixel macros with adjustable speed
• Other: CCT range: (pixels) 2.800K / 10.000K - (strips) 2.700K / 8000K

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer, colours
• Pixel patterns: pre-programmed dynamic and static patterns
• FX generator: adjustable foreground/background colour, index, speed, direction
• Static mode: selection of static dimmer, colors and color temperature
• Manual mode: manual adjustment of colour

BODY

• Hardware on-board: ancor points on the front for accessory mounting
• Tilt range: 200°
• Pan/Tilt resolution: bit 16-bit
• Feedback: automatic repositioning after accidental movement
• Body: Weatherproof IP65 construction with die-cast magnesium alloy
• Body colour: black

CONTROL

• Supported Protocols: DMX512, RDM, ArtNet, sACN, CRMX
• Pixel control: 16 px (main) + 32 px (strips) pixel2pixel control
• Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)
• Master/Slave: for synchronised operation of more units linked in a chain
• EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 5 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
• LED Control: flicker free operation
• Selectable PWM: 1000 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: strobe: 1.000 W (peak) - wash: 750W
• Standby power: 43 W
• Output (at 230V): 2 units on a single power line
• Power factor: > 0,94

PHYSICAL

• IP rating: IP65 for temporary outdoor use (*)
• Cooling: combination of heat pipe cooling system and low noise fan
• Suspension and fixing: any position with quick-lock omega brackets
• Pan / tilt lock: for transportation and maintenance
• Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
• Data connection: IP65 Art-Net RJ45 IN/OUT
• Power connection: Seetronic powerCON TRUE IP65 IN/OUT
• Dimensions (WxHxD): 996x336x175mm / 39.21''x13.23''x6.89''
• Weight: 27,4kg / 60.41lbs

(*)

• NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM, FCC, cTUVus

BOX CONTENT

• 1 x ASTRABLADE100IP
• 2 x OS25PLUS
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• User Manual
