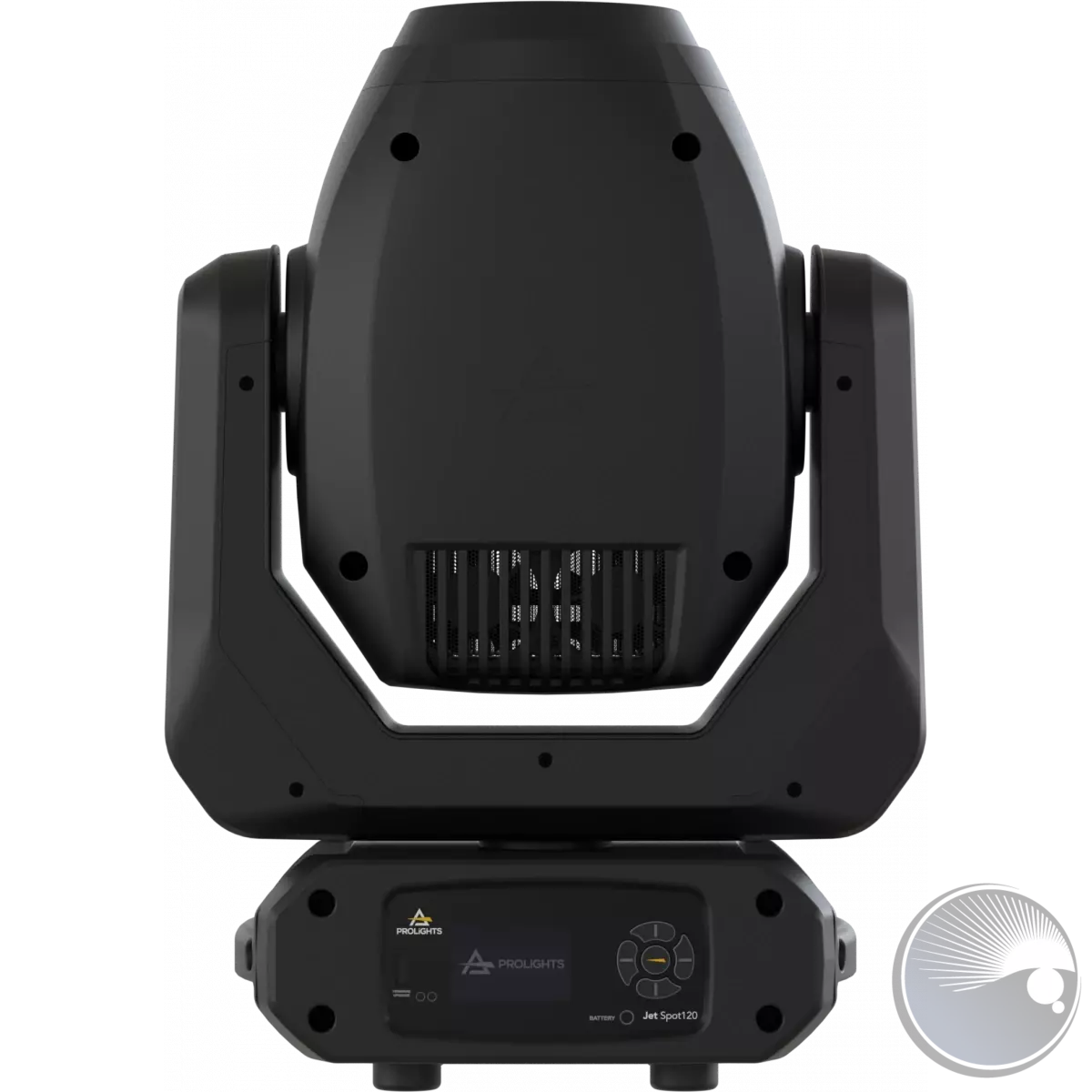

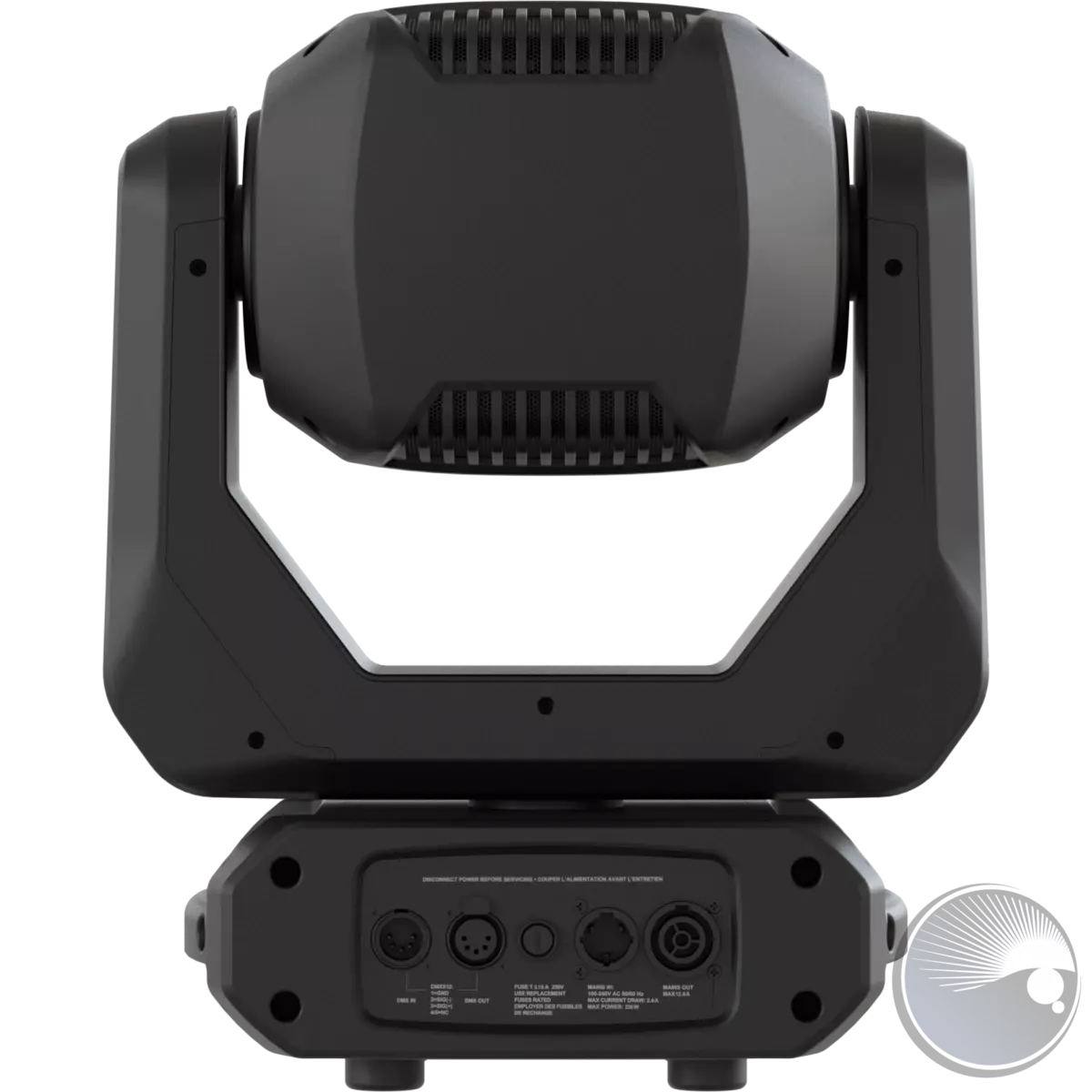

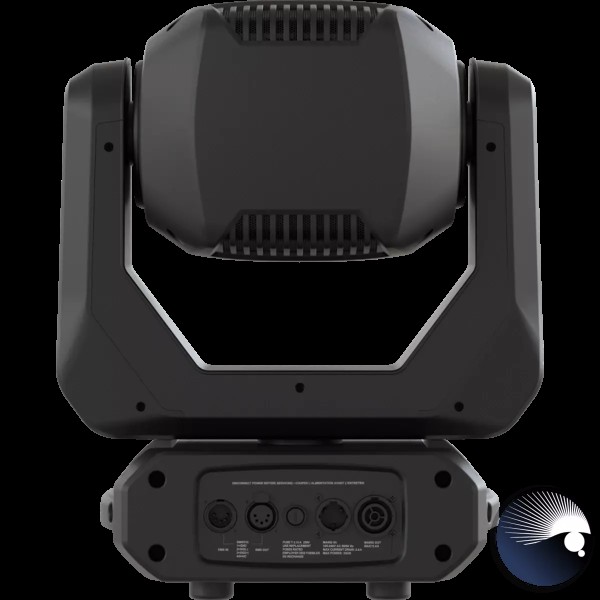

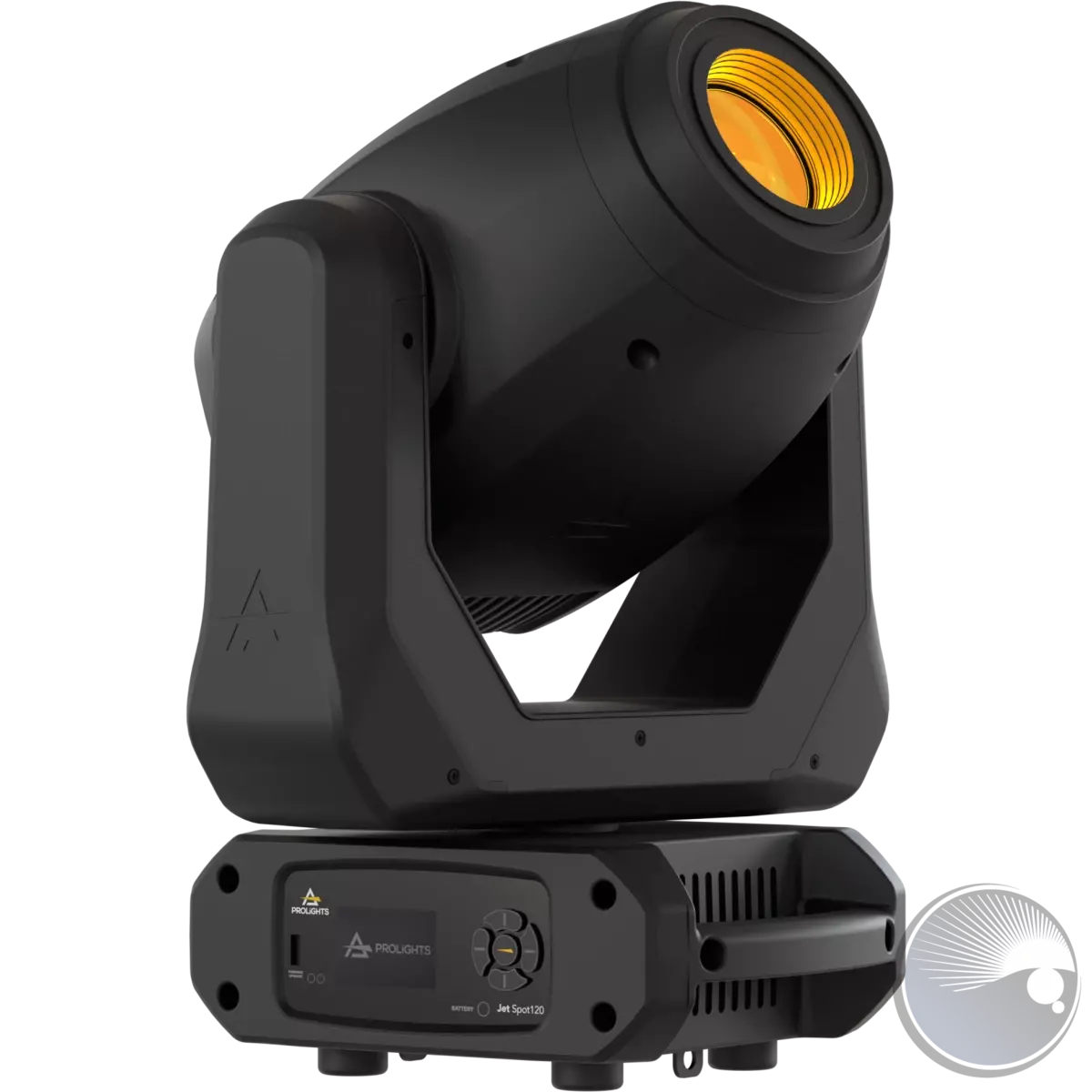

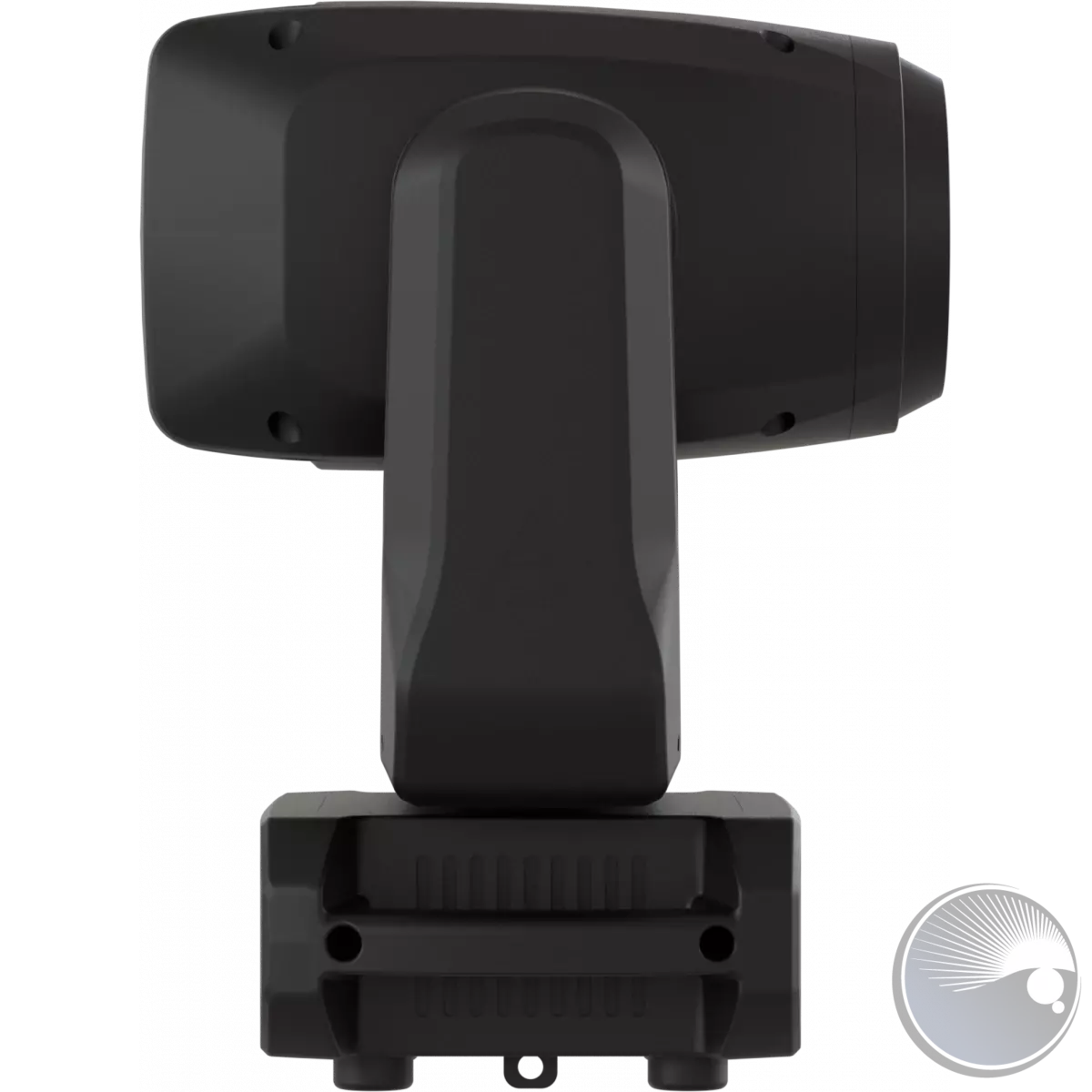

Jet Spot120

Jet Spot120 is a budget friendly, zoomable, and compact moving spotlight, making it a perfect fit for various venues and corporate events with its compact form factors.Jet Spot120 delivers remarkable flexibility with its motorized zoom, which ranges from 9° to 46°. The 120W white LED source produces a surprising 5.600 lumen fixture output.The effect section includes one color wheel, one rotating and one static gobo wheel, prism and frost, meeting the creative demands of lighting designers.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 120W high-power white LED
• CCT: 7.500K
• Luminous flux: (9,1°) 4'502 lm - (46,3°) 5'686 lm @Full
• Lux: (9,1°) 9'452 lx - (46,3°) 681lx @5 m full
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Zoom range: 9,1° - 46,3° motorised linear zoom
• Lens diameter: 75mm / 2.95''
• Lens type: HD anti-reflection lenses with achromatic coating
• Focus: motorised

COLOUR SYSTEM

• CCT: on wheel 3.200 K
• Colour wheel: open+8 colour filters

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer
• Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
• Gobo size: 19,2 mm - image: 16 mm - thickness: up to 3 mm
• Fixed gobos: 10 fixed gobos + open
• Circular prism: 3f with bi-directional rotation, indexing, interchangeable
• Frost: linear 0-100% light interchangeable

BODY

• Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
• Pan range: 540°
• Tilt range: 260°
• Pan/Tilt resolution: bit 16-bit
• Feedback: automatic repositioning after accidental movement
• Body: Aluminium structure with high-resistance polycarbonate cover
• Body colour: RAL 9004

CONTROL

• Supported Protocols: DMX512, RDM
• DMX channels: 20channel
• RDM: RDM for remote monitoring and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -10° ~ +45° Ta
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 238W
• Standby power: 50,2 W
• Output (at 230V): 16 units on a single power line
• Power factor: > 0,94

PHYSICAL

• IP rating: IP20
• Cooling: active, silent operation
• Suspension and fixing: any position with quick-lock omega brackets
• Signal connection: Neutrik XLR 5p IN/OUT connectors
• Power connection: Seetronic powerCON TRUE IP65 IN/OUT
• Dimensions (WxHxD): 340 x 479 x 205mm / 13.39''x18.86''x8.07''
• Weight: 13,5kg / 29.76lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM, FCC

BOX CONTENT

• 1 x JETSPOT120
• 1 x OS24PLUS
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC IP65 power connector)
• User Manual
