PL RubyFCX, 50W RGB-LED, 2°

The Ruby FCX is a LED replacement for a discharge beam light. Maintaining the bright, tight,  2° beam and adding full colour mixing through the high-efficiency RGB source.Ruby FCX is packed with all the features you would expect from a beam effect moving the light - such as gobos, 8f circular and 6f linear prism, frost and infinite pan and tilt rotation.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

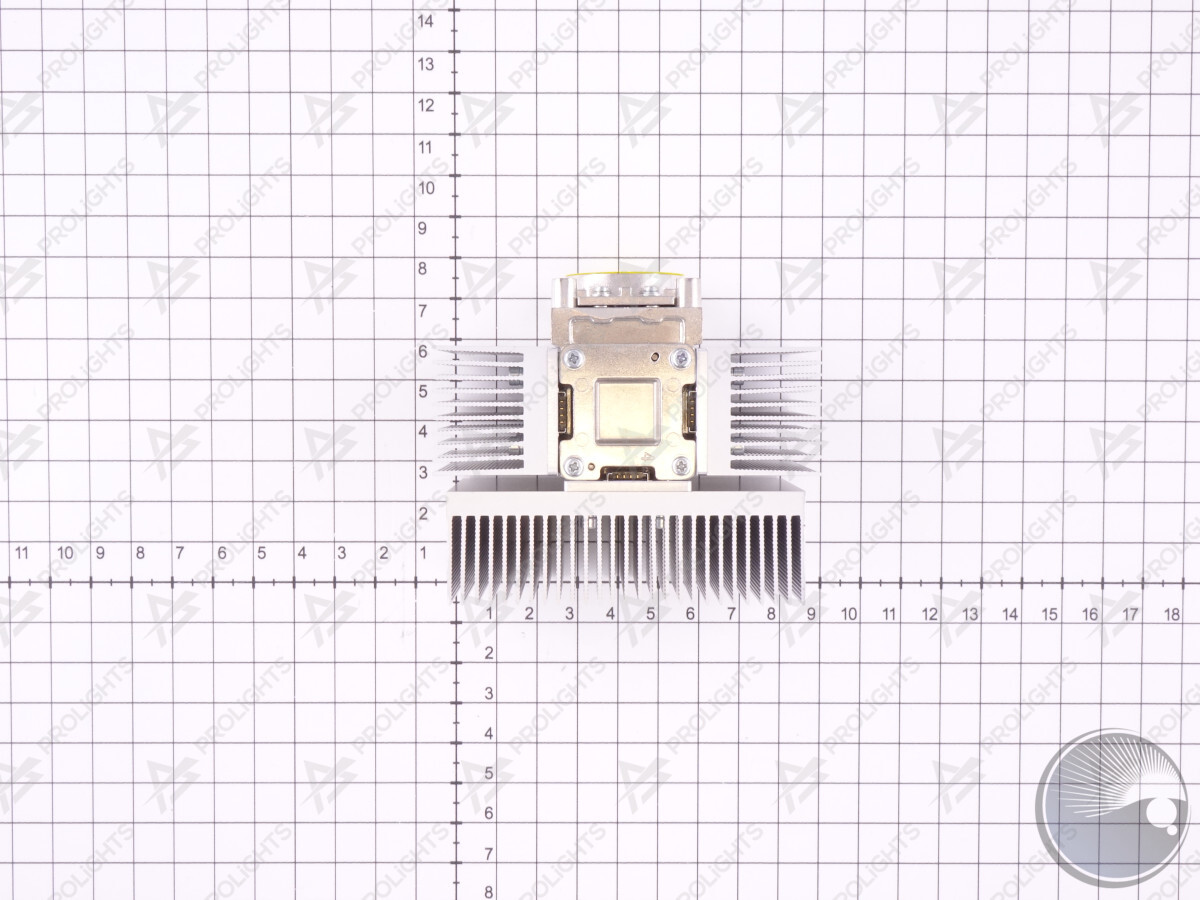

• Source: 50W RGB LED
• Lux: 141'929lx @3 m full
• Lux: 51'094lx @5 m full
• Source life expectancy: > 50.000 h

OPTICS

• Beam angle: 2°
• Lens diameter: 116mm / 4.57''
• Lens type: high-quality glass lens optics
• Focus: motorised

COLOUR SYSTEM

• Colour mixing: RGB / FC
• CCT: CCT control through dedicated DMX channel
• White presets: 2.000 K - 8.000K
• Colour wheel: virtual colour wheel with macros
• Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

• Fixed gobos: 17 fixed gobos + open
• Circular prism: 8f with bi-directional rotation, indexing
• Linear prism: 6f with bi-directional rotation, indexing
• Frost: to soften the beam edge

BODY

• Pan range: 540° / 630° with 360° continuous rotation
• Tilt range: 265° with 360° continuous rotation
• Pan/Tilt resolution: bit 16-bit
• Feedback: automatic repositioning after accidental movement

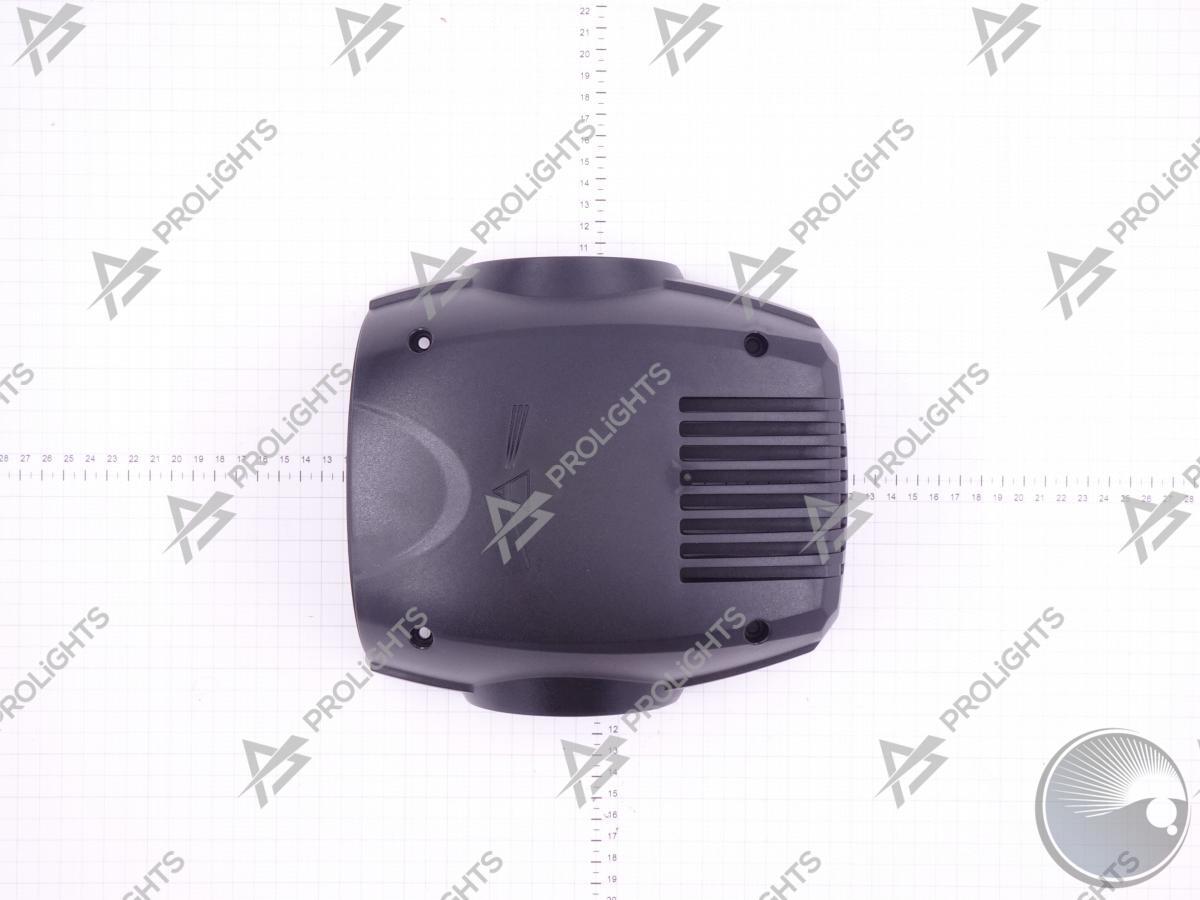

• Body: Sturdy die-cast aluminium body
• Body colour: black

CONTROL

• Supported Protocols: DMX512, RDM, Art-Net, W-DMX
• DMX channels: 18 / 20 / 22 / 23channel
• Wireless Control: Included Wireless Solution receiver
• RDM: RDM for remote monitoring and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
• Hibernation: power safe mode when lost DMX
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Strobe / shutter: 1 - 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: 0° ~ +45° Ta
• LED Control: flicker free operation

ELECTRICAL

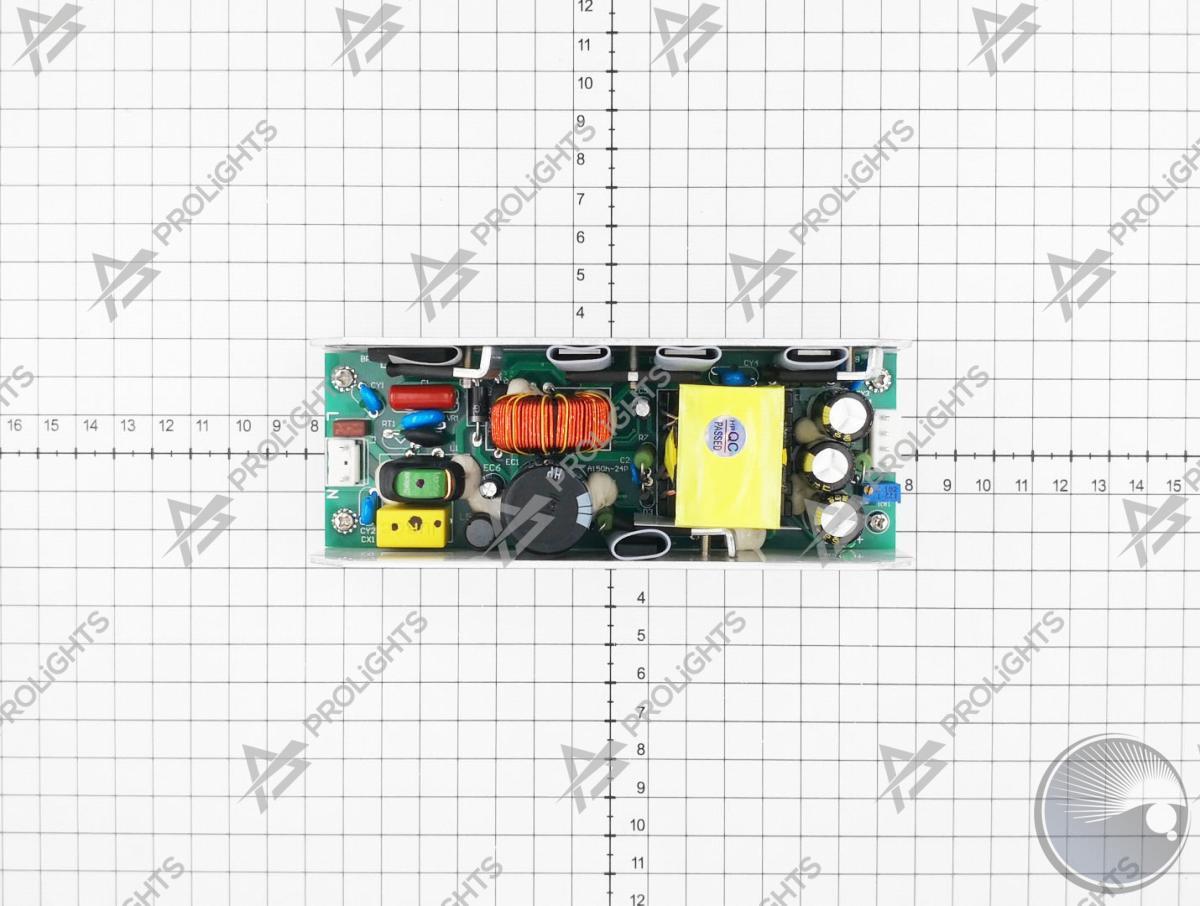

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 122W
• Max power consumption (at 120V): 124W
• Standby power: 56.5W

PHYSICAL

• IP rating: IP20

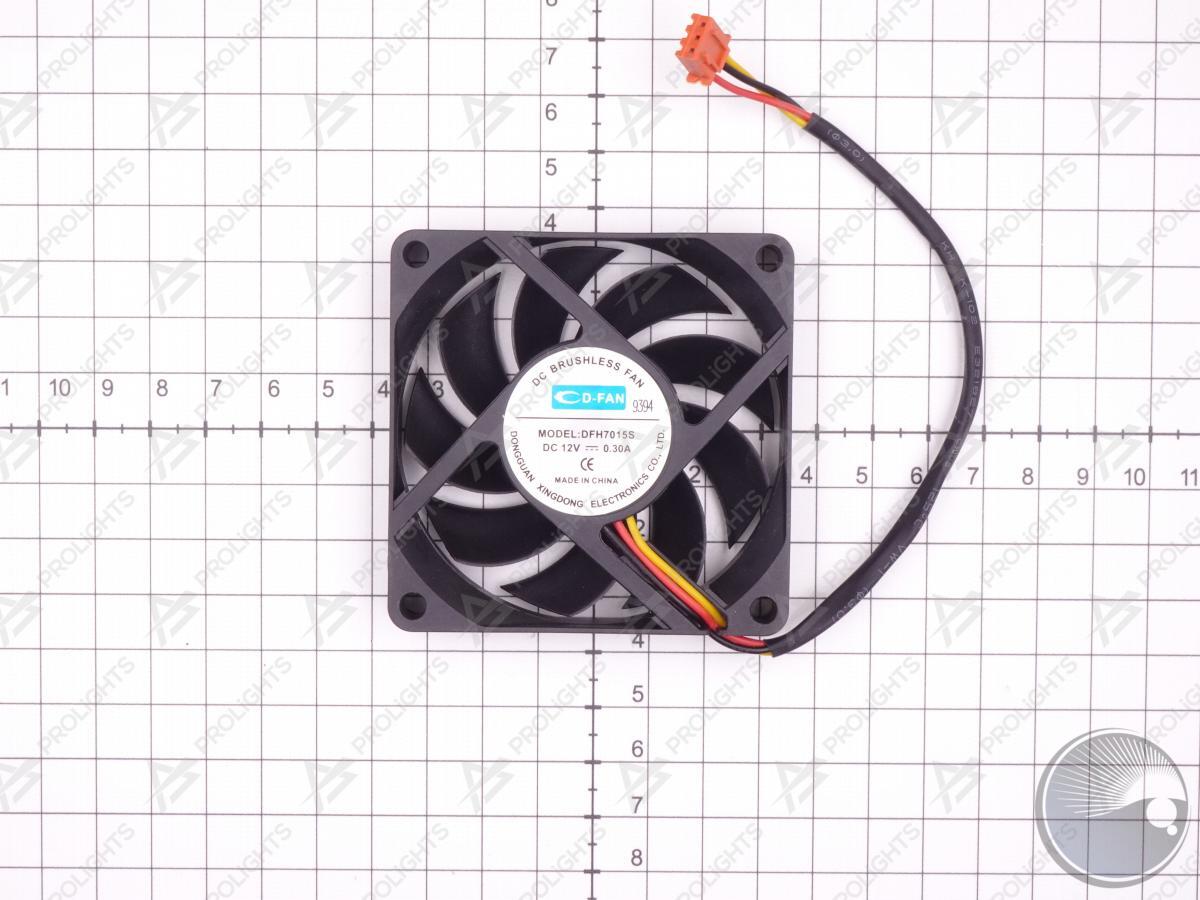

• Cooling: active, silent operation
• Suspension and fixing: any position with quick-lock omega brackets
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Data connection: Art-Net RJ45 IN/OUT
• Power connection: Seetronic powerCON IN/OUT connectors
• Dimensions (WxHxD): 194x311x133mm / 7.64''x12.24''x5.24''
• Weight: 12kg / 26.46lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

• 1 x RUBYFCX
• 1 x OS24PLUS
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• User Manual
