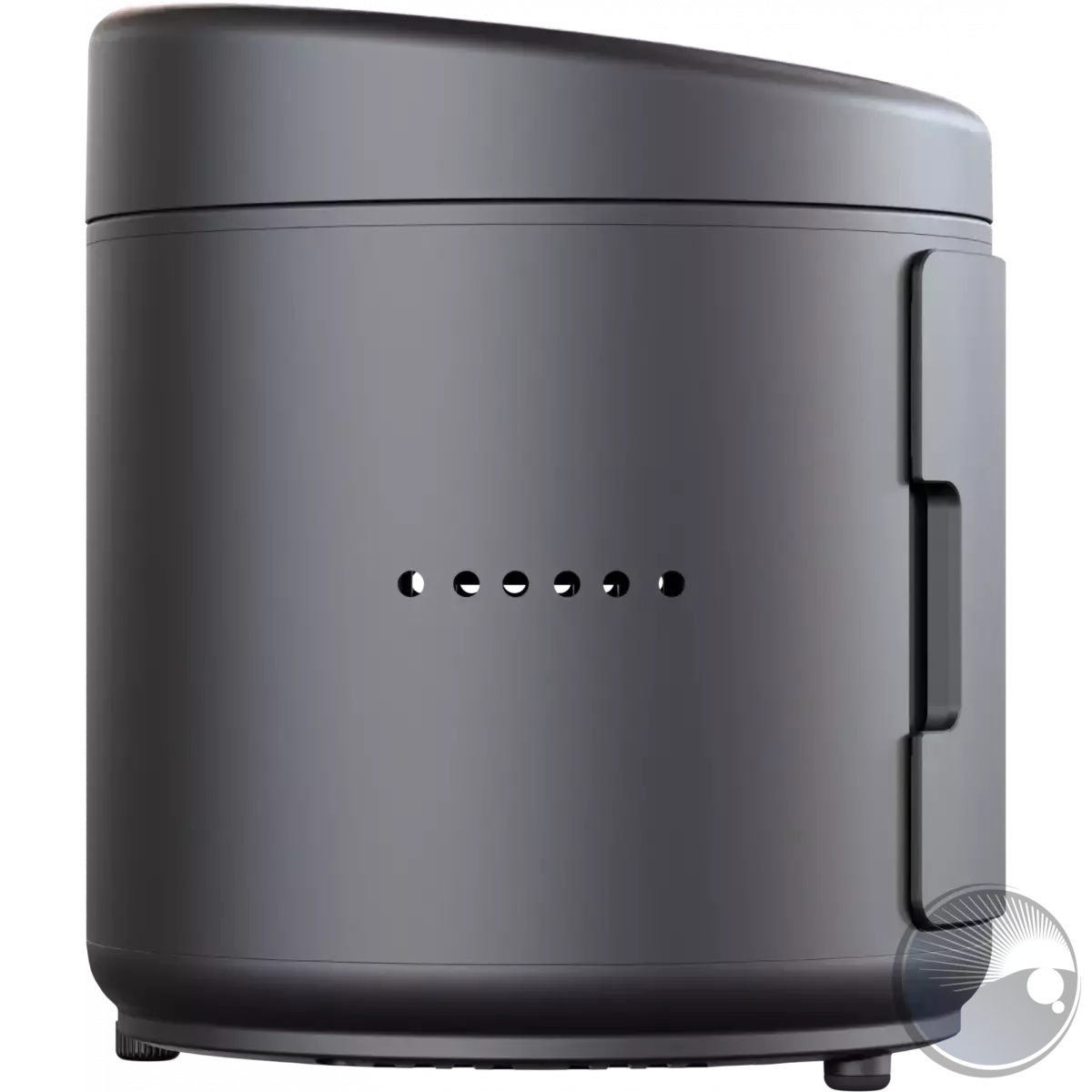

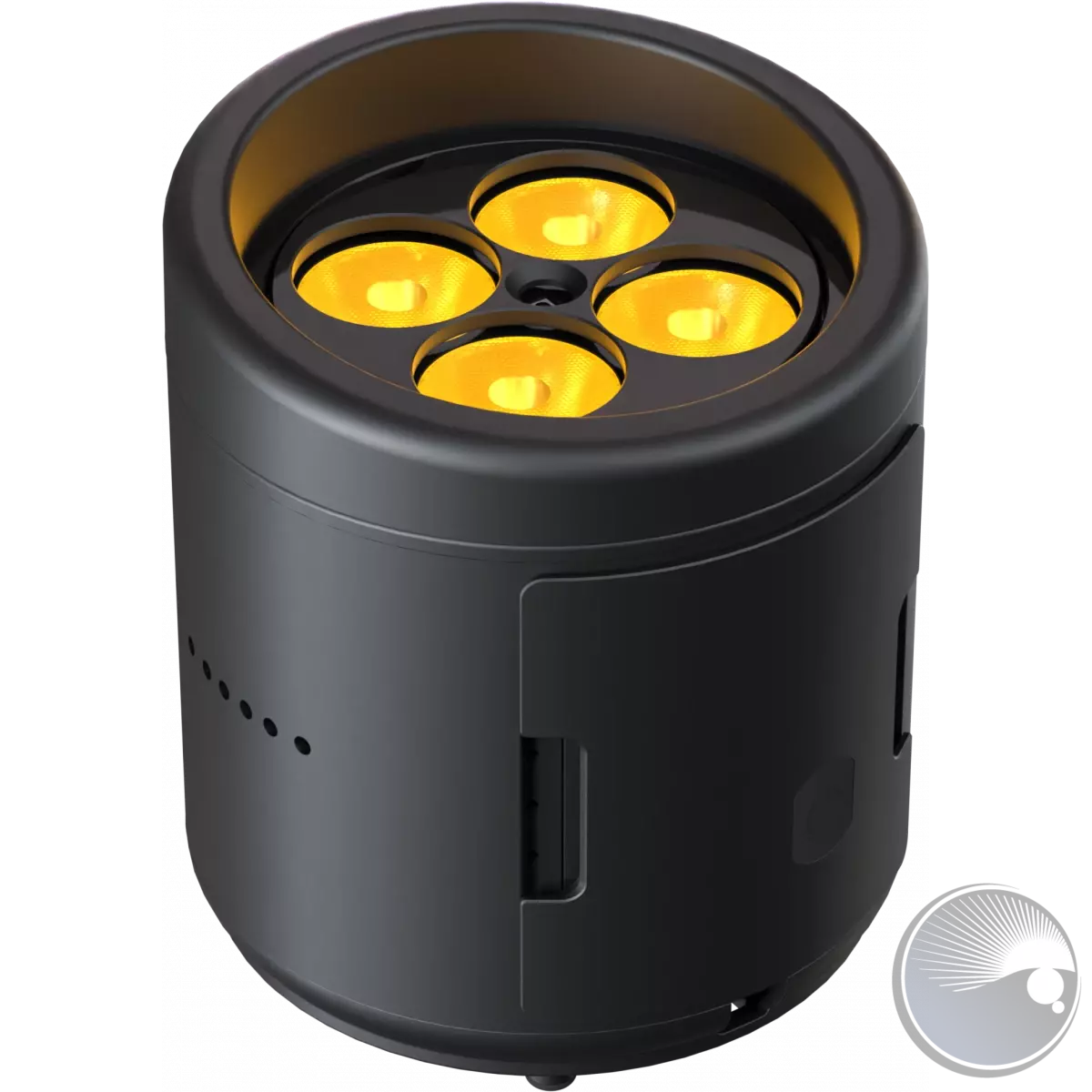

PL Smart BatPlusG2, 4x20W RGB+warmweiß, 12°, IP65, schwarz

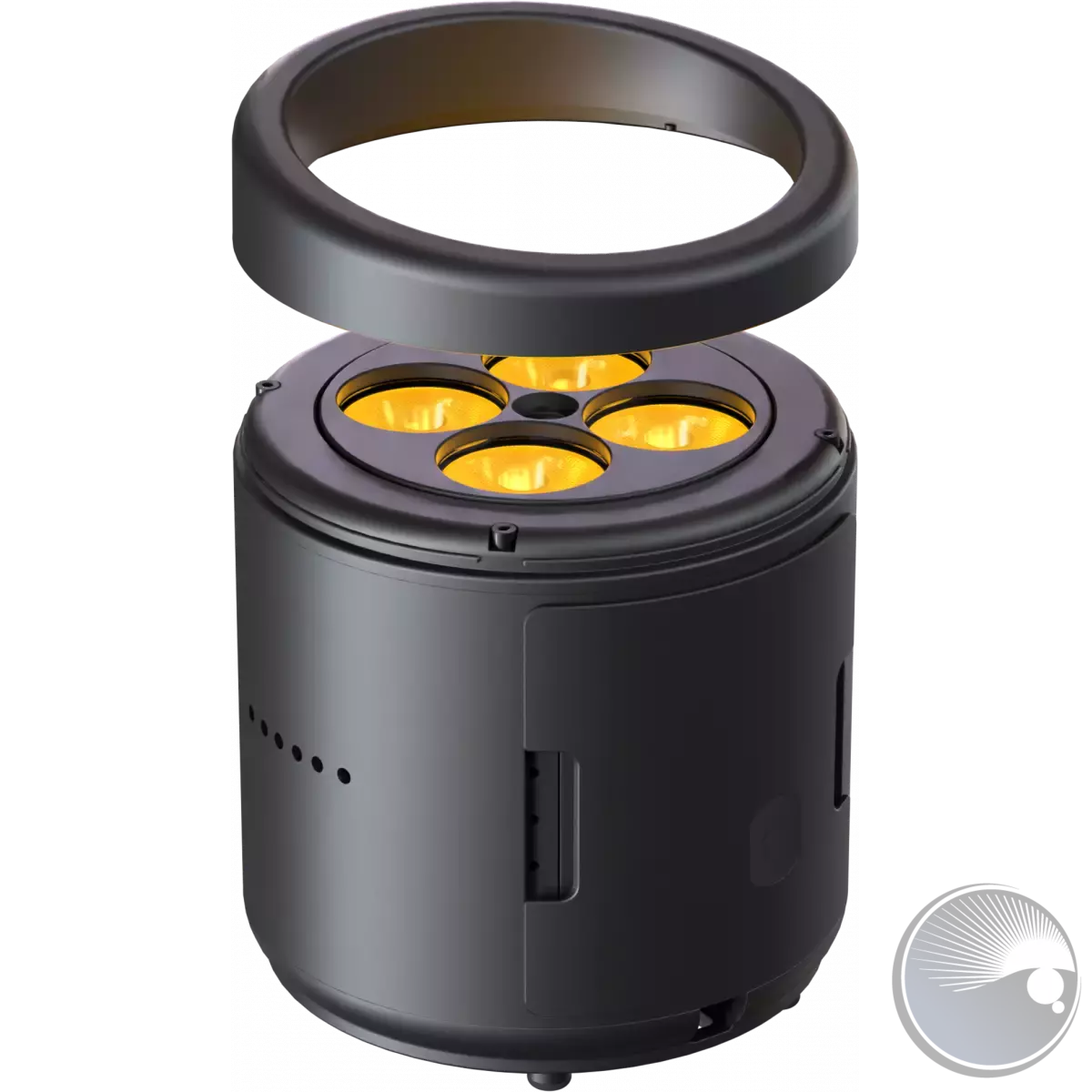

The Smart BatPlusG2 is a high-end version of the iconic Smart Bat uplighters designed with enhanced output and battery performance, IP65 with a stunning new look.The clever mechanical design of the Smart BatPlusG2 allows turning the unit from an uplighter into a spot/flood light by combining filters, using the suspension yoke or floor bracket without compromising the aesthetics of the fixture.The Smart BatPlus G2 introduces new features such as interchangeable batteries and easy covers with multiple colours, making it possible to change its look as desired.  The 4x20W RGB + Warm White LED emitters are Spektra™ calibrated and guarantee incredibly high-quality white CCT reproduction (CRI>93) and boosted output when operated directly through mains.The Smart BatPlusG2 is very user-friendly - it can be used wirelessly with a built-in battery, CRMX/W-DMX and RDM control, or wired through the PSU and XLR connectors (bypassing the battery).

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

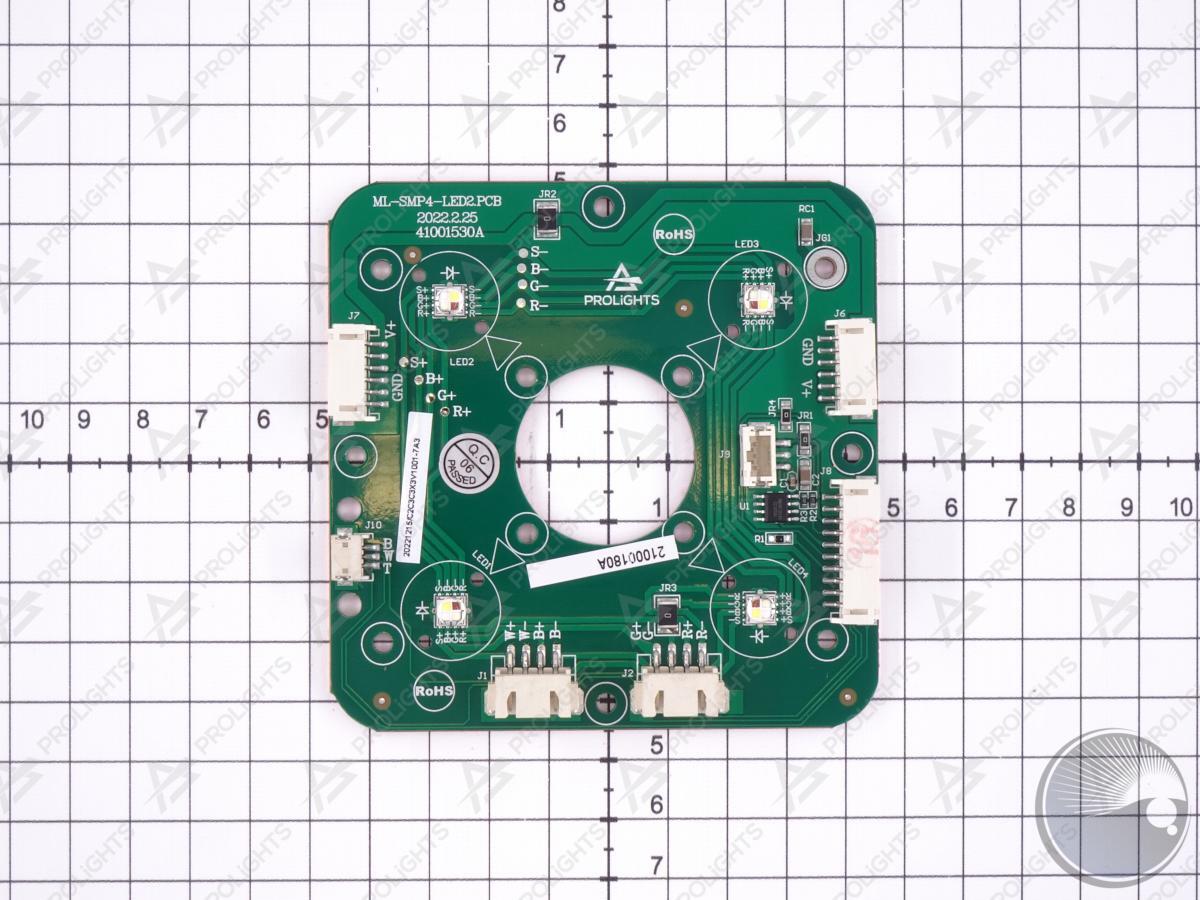

• Source: 4x20W RGB + Warm White LED
• Luminous flux: 2'051 @Full
• Lux: 1'723lx @5 m without filter
• CRI: 94 @3.200 K; 92 @5.600 K
• R9: 96 @3.200 K; 96 @5.600 K
• TLCI: 92 @5.600 K
• TM30 Rf: 93 @3.200 K; 91 @5.600 K
• TM30 Rg: 105 @3.200 K; 106 @5.600 K
• Source life expectancy: > 50.000 h

OPTICS

• Beam angle: 10°
• Additional optics: filters to achieve 20°, 40°, 60°, 10°x60°

COLOUR SYSTEM

• Colour mixing: RGBWW
• CCT: CCT control through dedicated DMX channel
• White presets: 2'800K - 10'000K
• Colour wheel: virtual colour wheel with macros
• Macros: built-in white presets

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer, colours
• Static mode: selection of static colour
• Manual mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment

BODY

• Body: Sturdy die-cast aluminium body
• Body colour: RAL 9004
• Other: Quick release foot to achieve 20° adjustable tilt

CONTROL

• Supported Protocols: CRMX+W-DMX, DMX512, RDM
• Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings

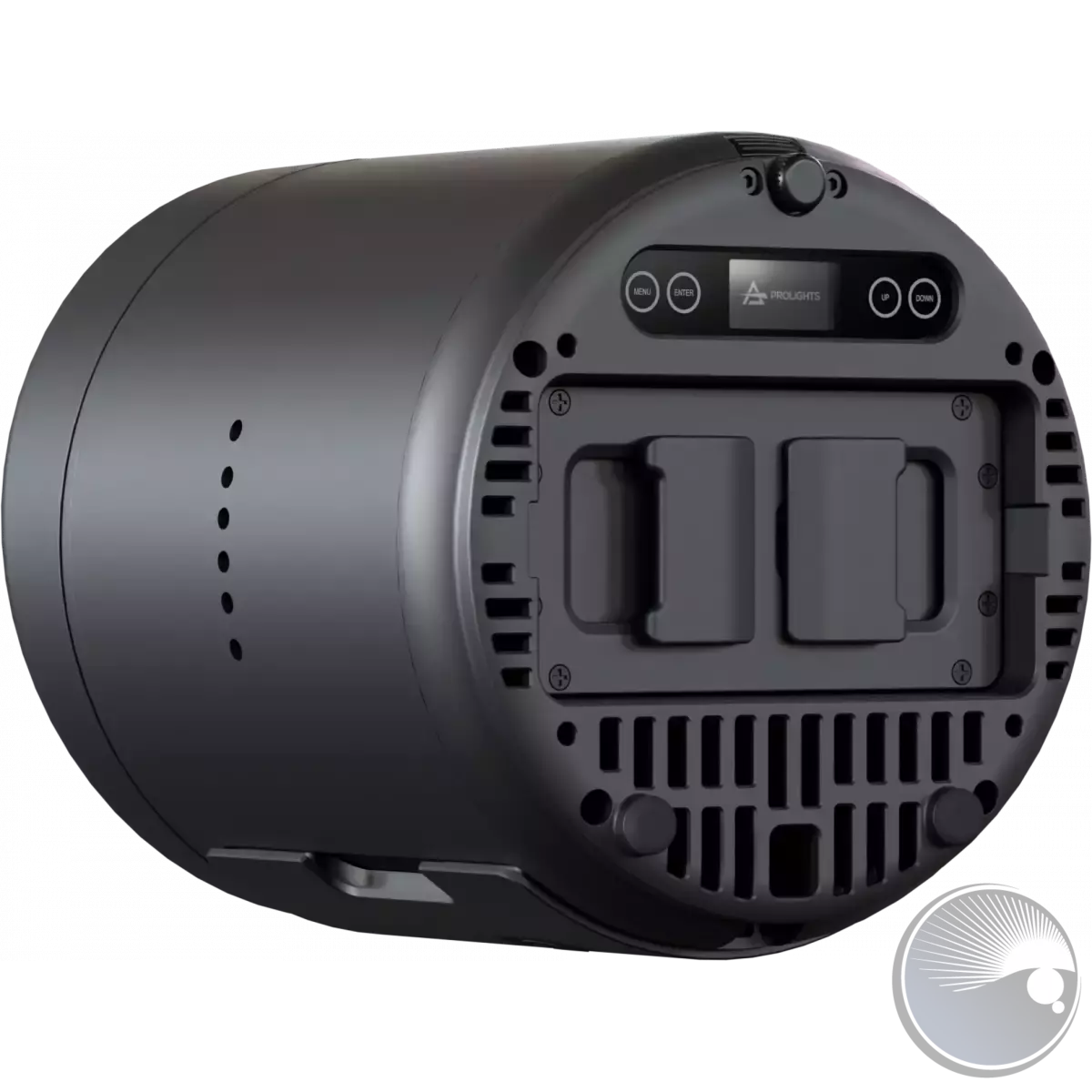

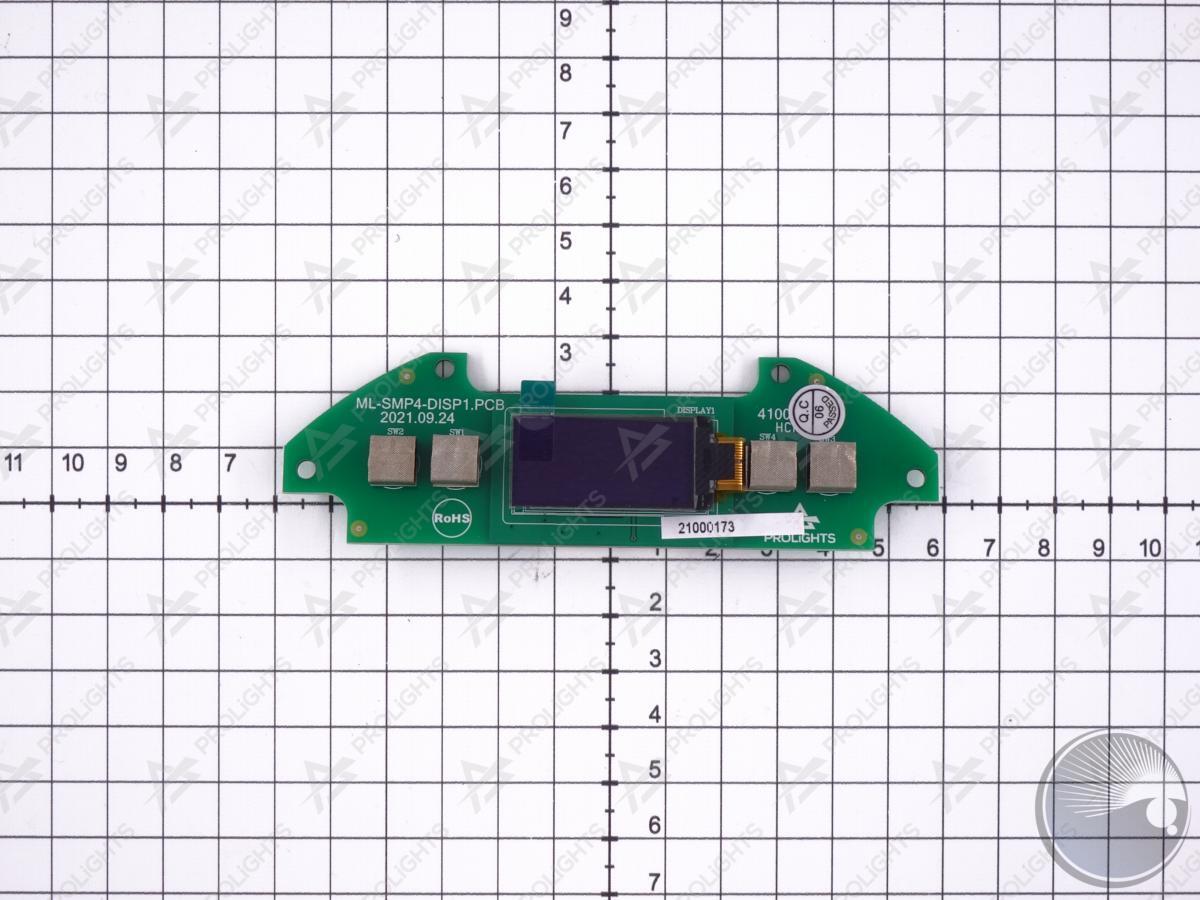

• Display: Graphic User Interface
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
• IR: infrared sensor controlled by remote
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

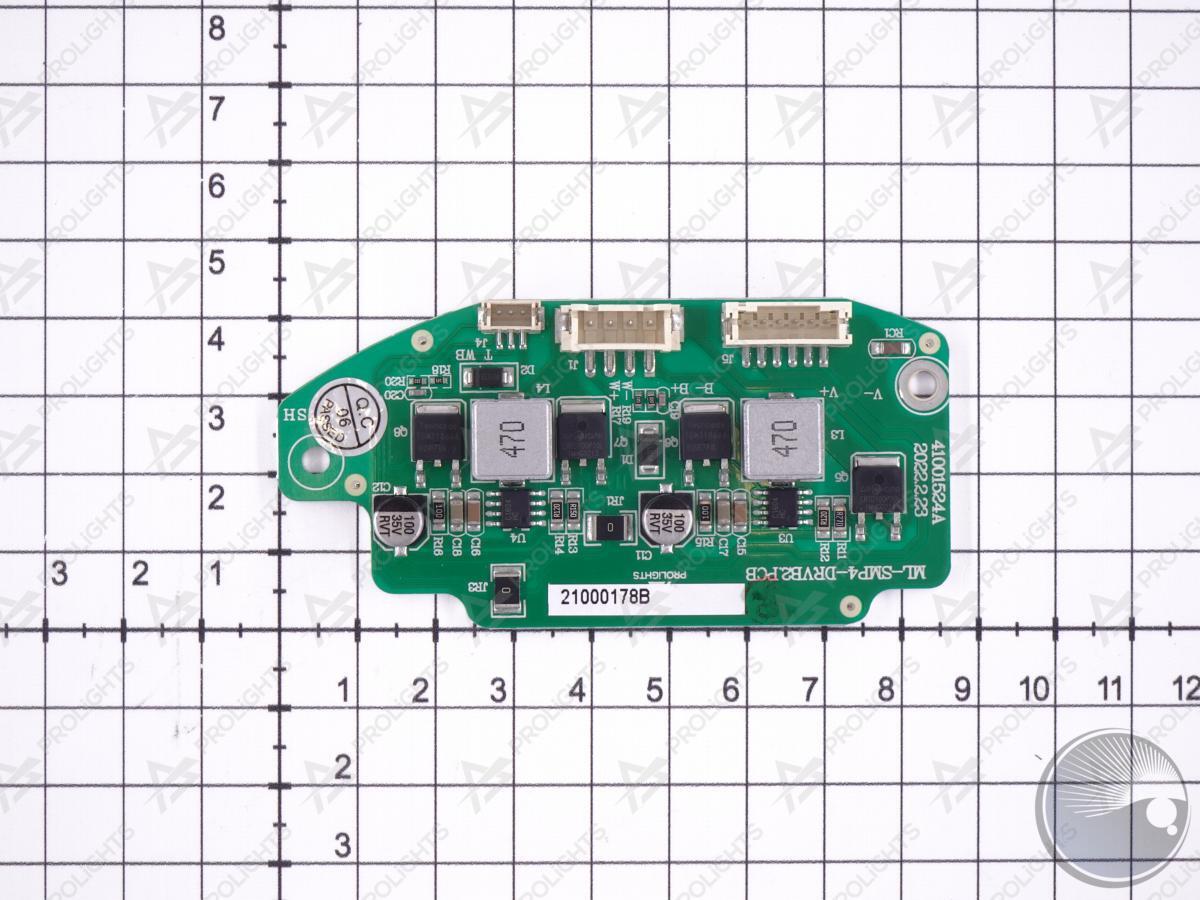

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: 0° ~ +45° Ta
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: (with mains) 80W
• Power factor: >0,98

BATTERY

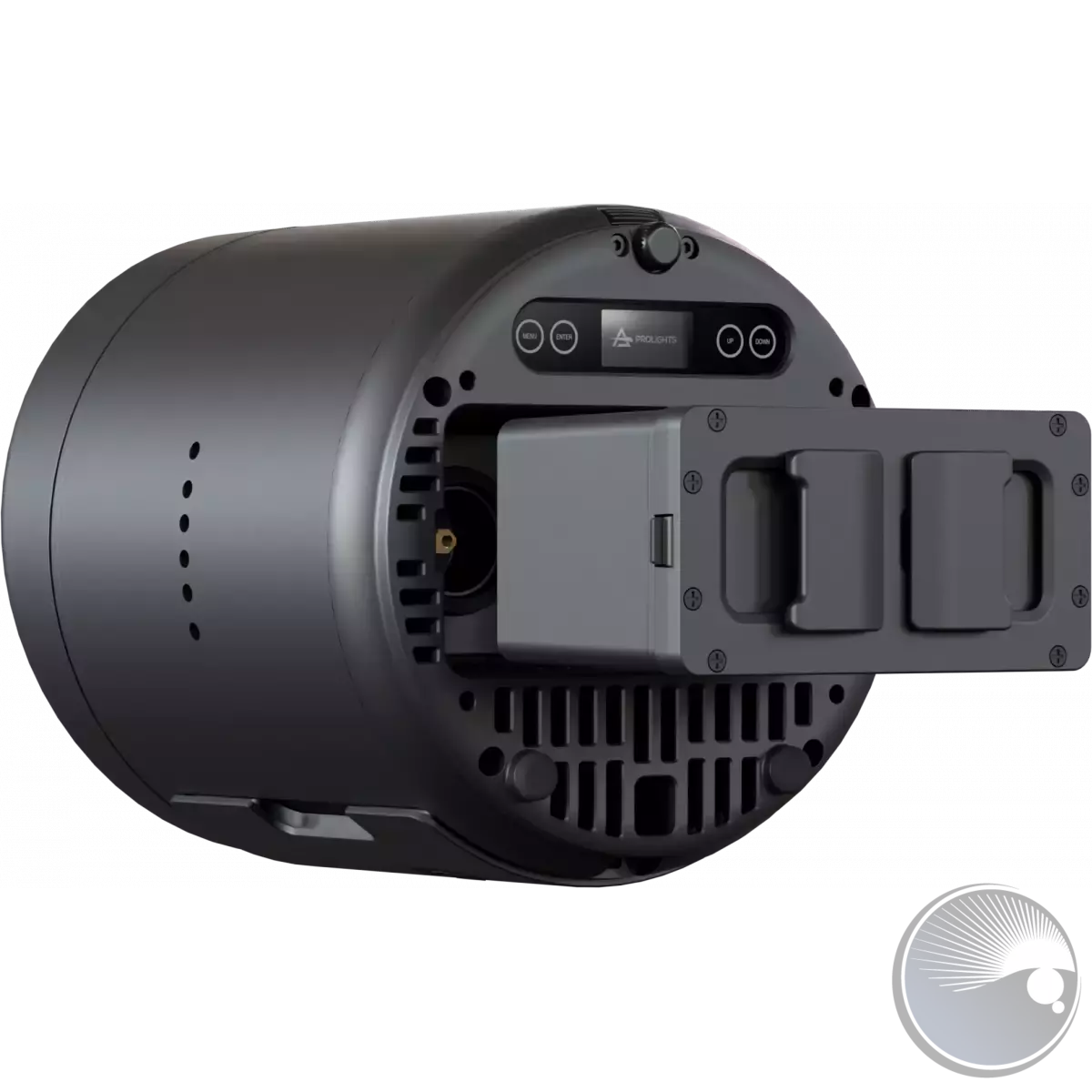

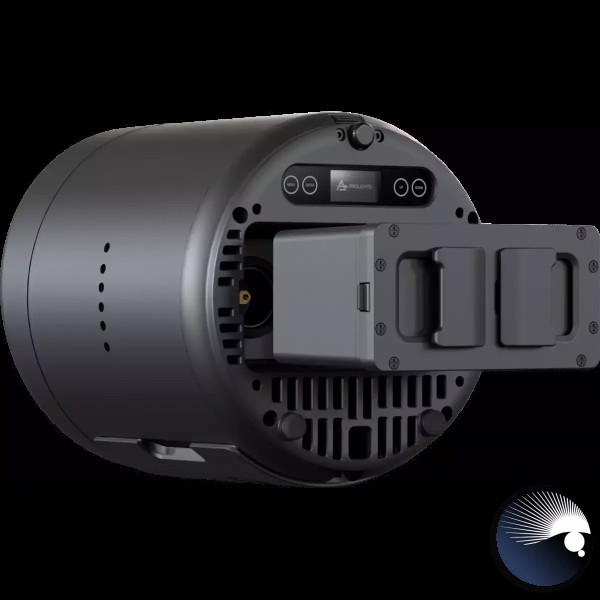

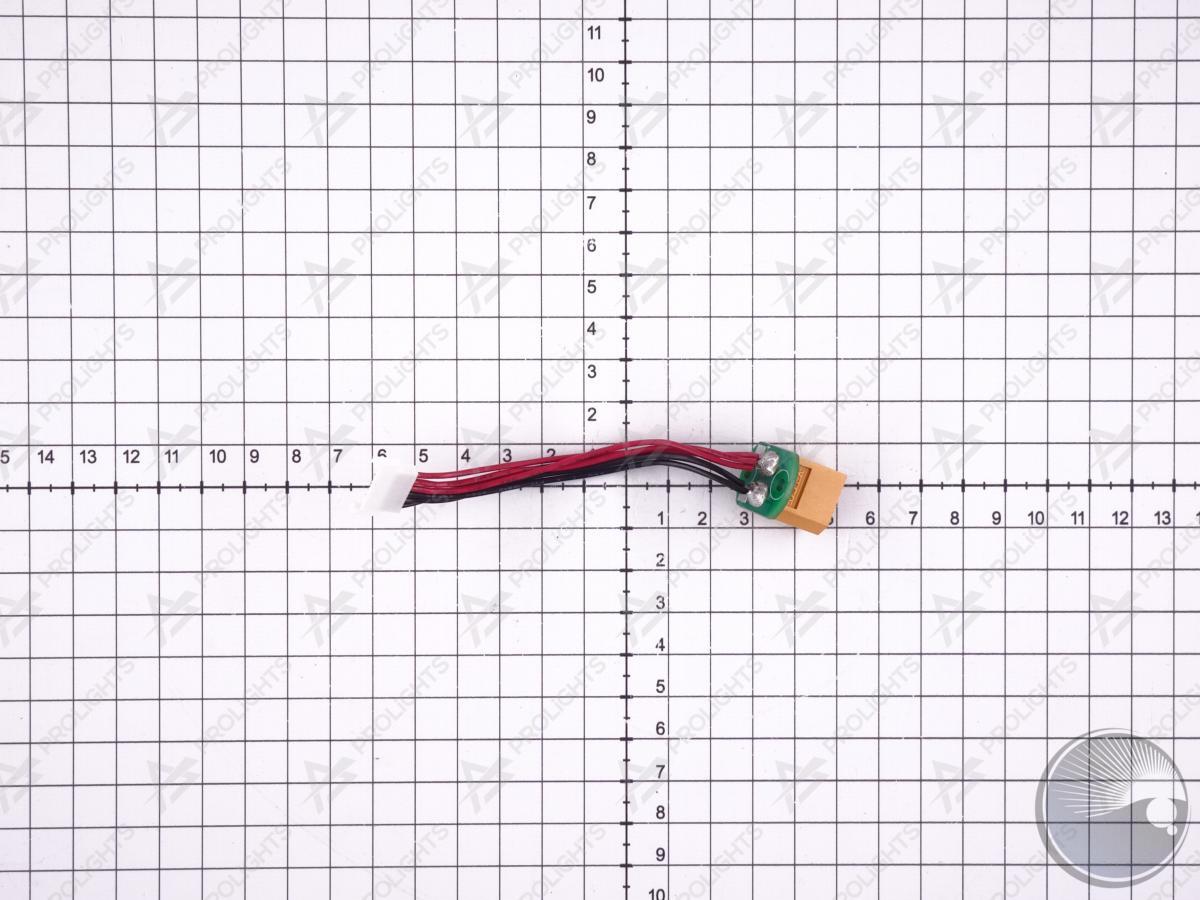

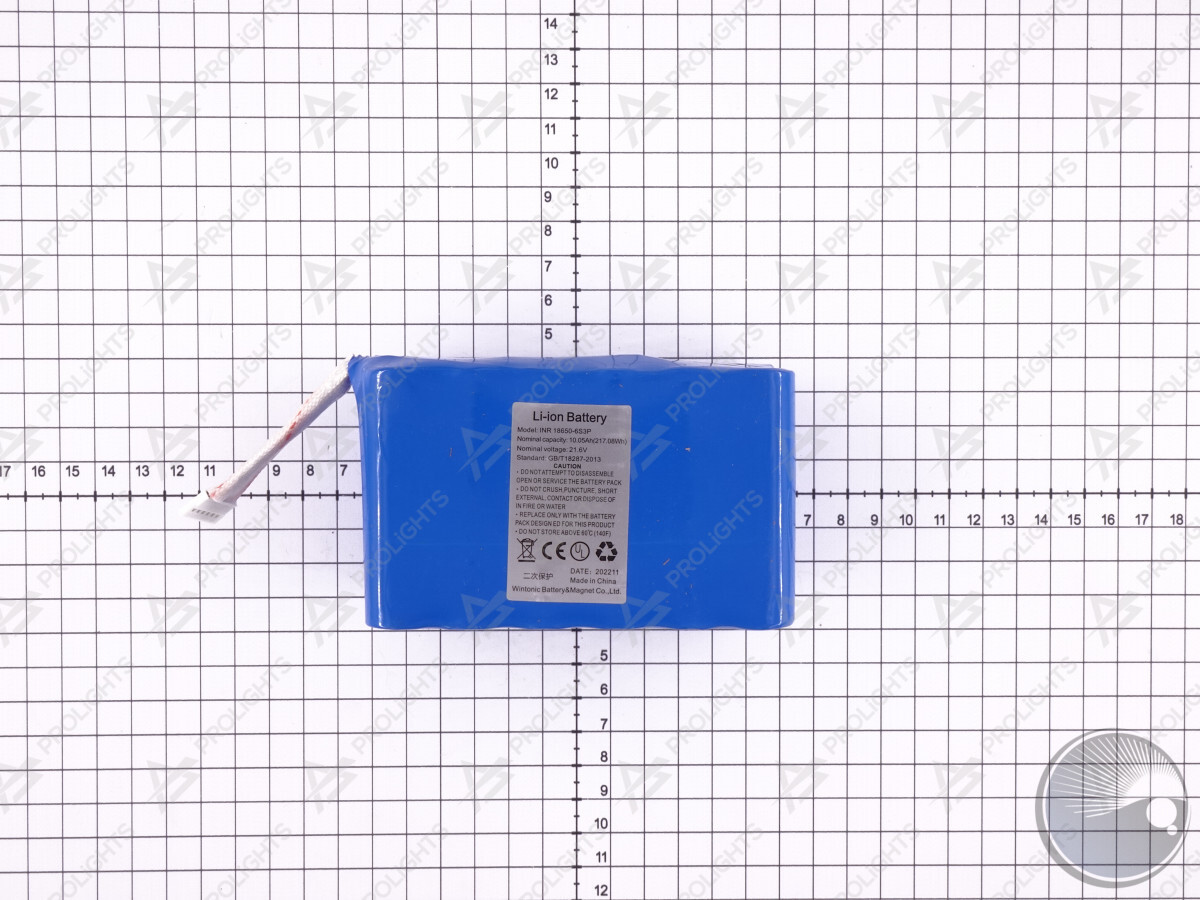

• Battery: removible 21,6V lithium
• Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
• Re-charge connection: Battery Pack fast-charge in Case
• Re-charge time: 4h/max
• Battery status: shown on display
• Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase through the quick charger connector

PHYSICAL

• IP rating: IP65 for temporary outdoor application, not for fixed installations
• Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
• Suspension and fixing: bracket for hanging and positioning

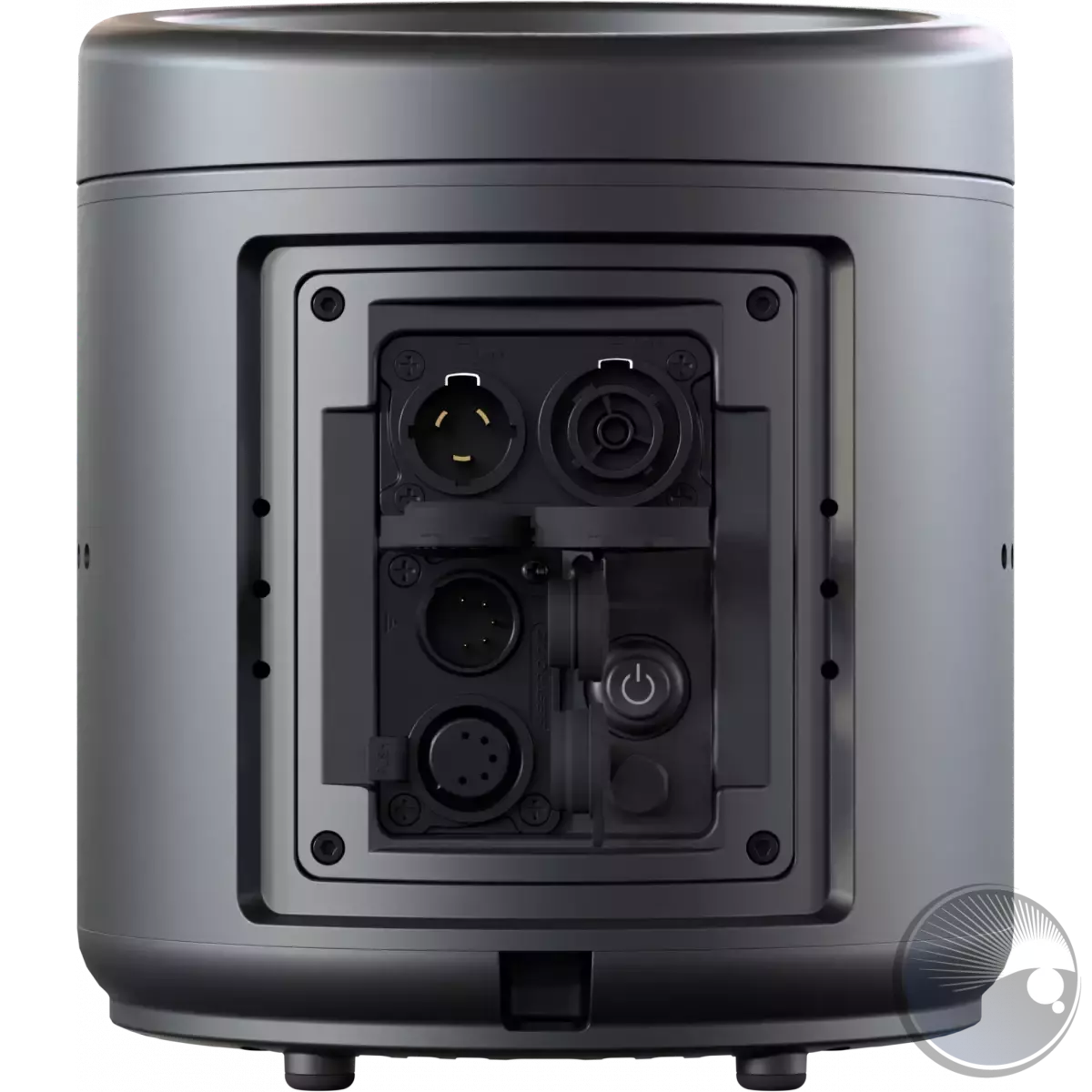

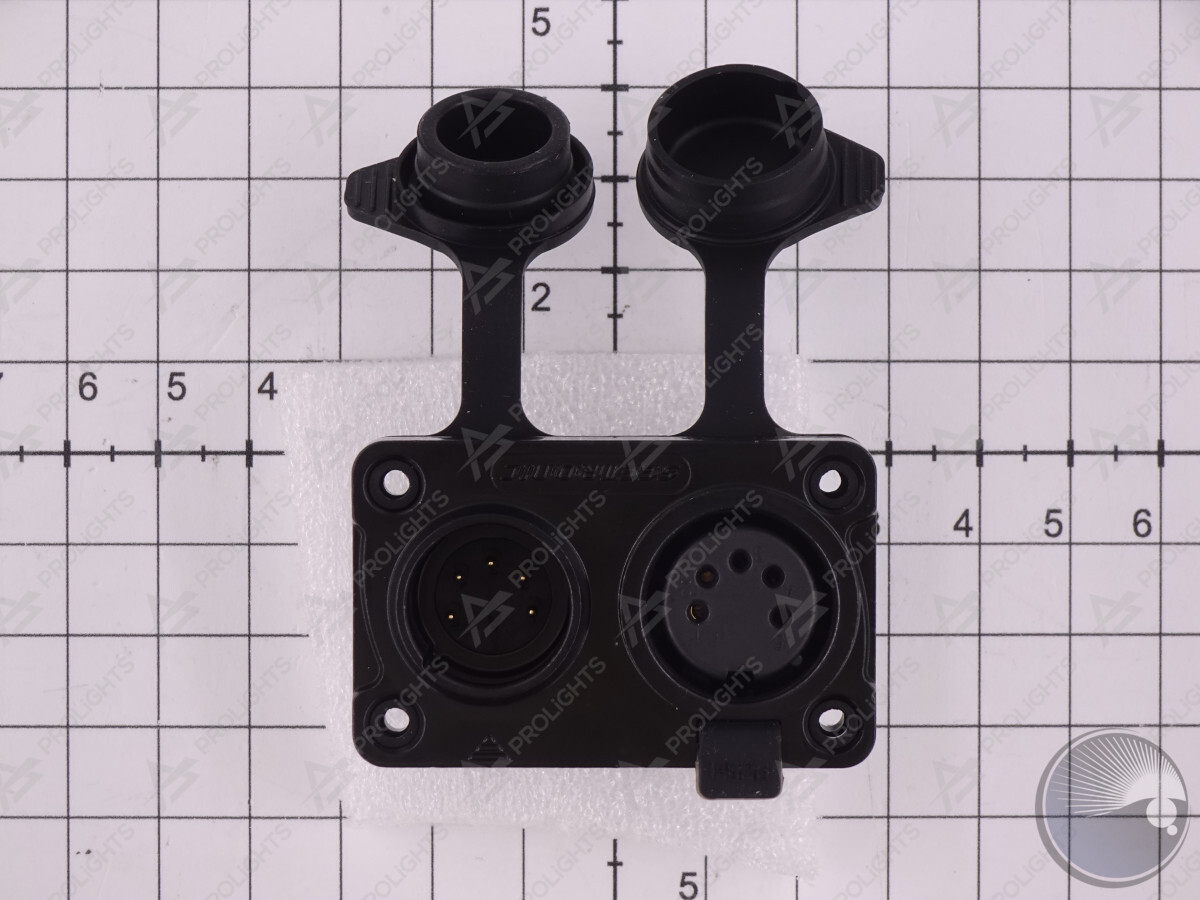

• Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
• Power connection: IP65 Seetronic powerCON IN/OUT connectors
• Dimensions (WxHxD): 192x188x192mm / 7.56''x7.4''x7.56''
• Weight: 5,7kg / 12.57lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

• 1 x SMARTBATPLUSG2
• 1 x filter frame
• 1 x half top hat

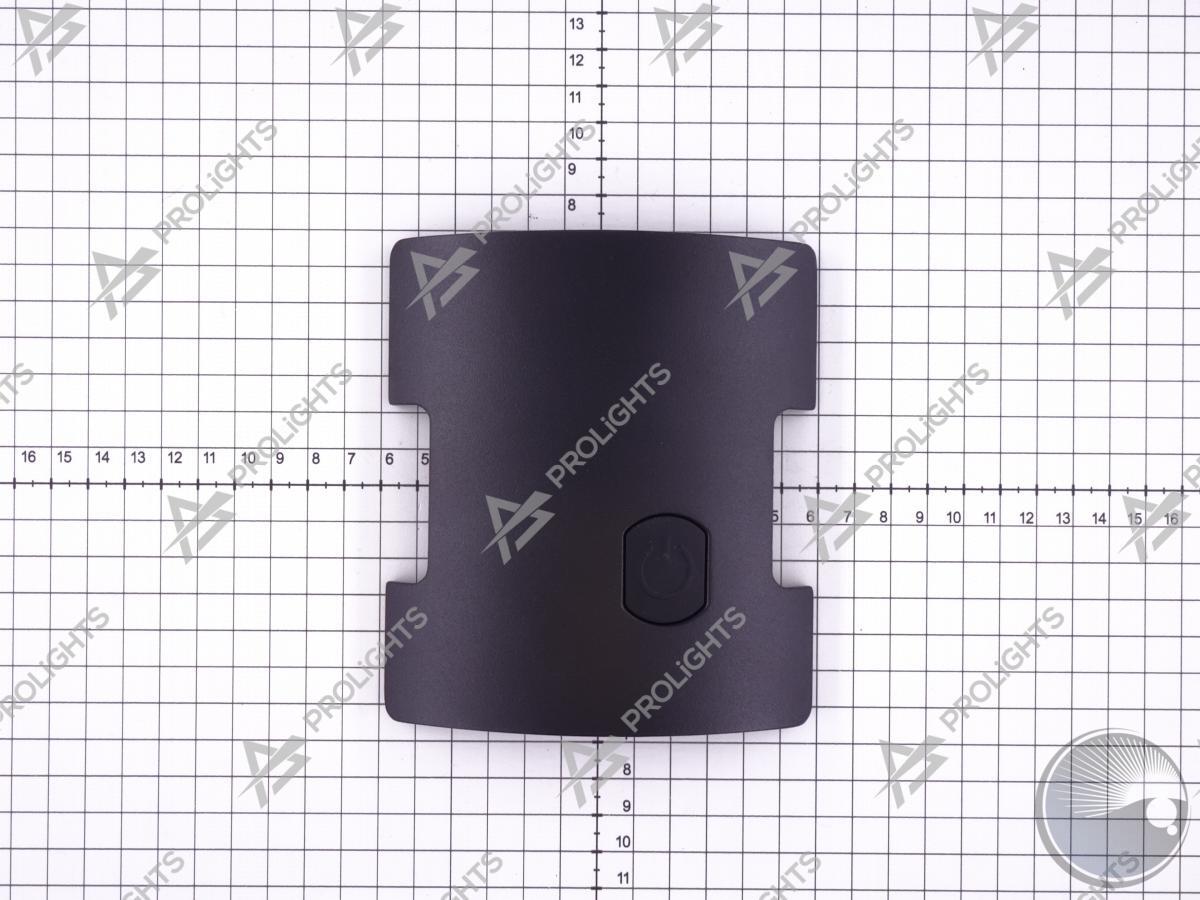

• 1 x connector cover plate
• 1 x SBPG2BAT
• 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
• User Manual
