PL Smart BatPlus, 4x12W RGBW, IP65, W-DMX, chrom-farben
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: SMARTBATPLUS
- Hersteller-Nummer:
Smart BatPlus is the more advanced member of the successful Smart Bat range offering more advanced features such as W-DMX wireless card, waterproof housing, increased brightness, high-definition optics and fast-charge magnetic connector. It's packed in a super-slim compact housing with a mirror finish, useful when hiding the fixture from view.
TECHNICAL SPECIFICATIONS
LIGHT SOURCE

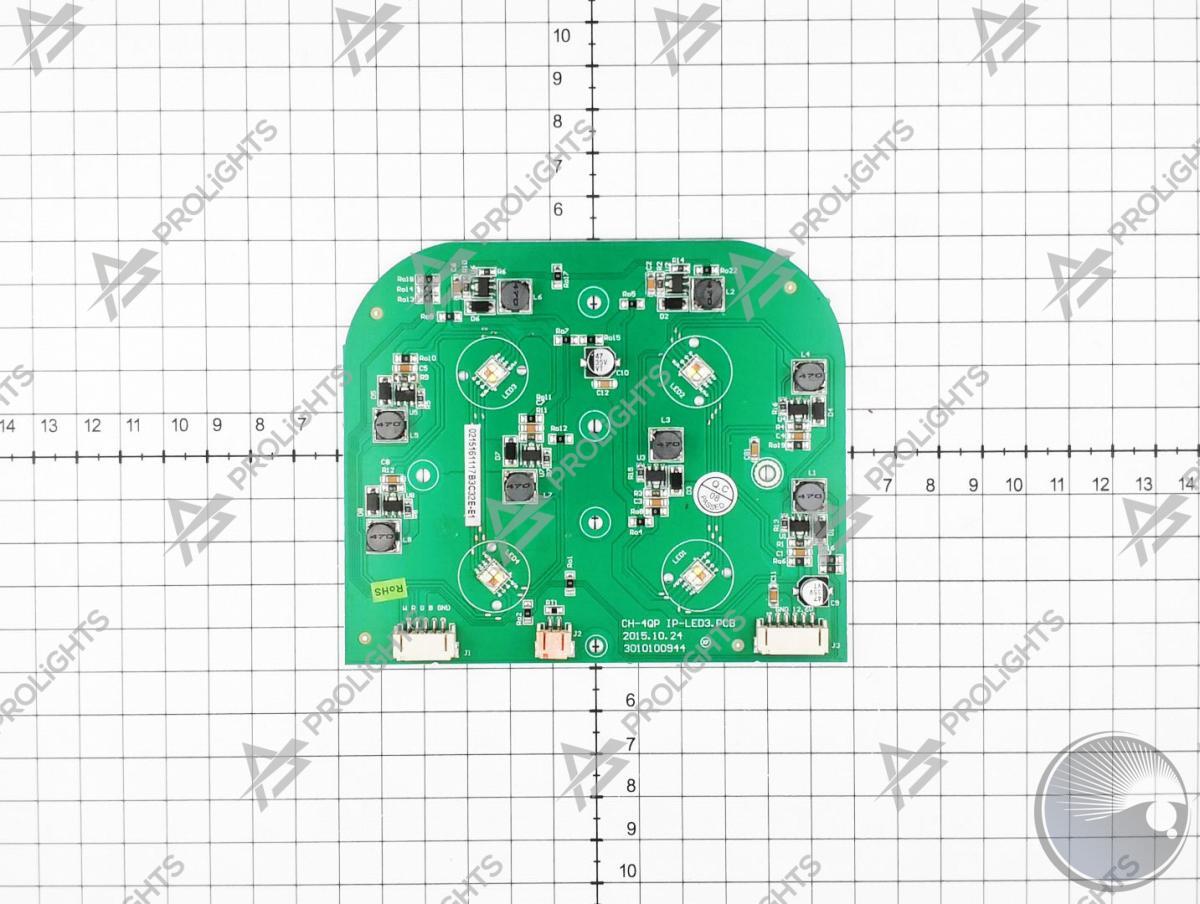

- Source: 4x12W RGBW LEDs
- Luminous flux: 905
- Lux: 759lx @5 m full
- Source life expectancy: > 50.000 h
OPTICS
- Beam angle: 11°
- Field angle: 19°
COLOUR SYSTEM
- Colour mixing: RGBW / FC
- White presets: 3.200 K -9.000K
- Colour wheel: virtual colour wheel with macros
- Macros: built-in white presets
DYNAMIC EFFECTS
- Static mode: selection of static colour
- Manual mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
BODY
- Tilt range: 20° adjustable foot support for tilt regulation (up to 20°)
- Body: Sturdy die-cast aluminium body
- Body colour: mirror finishing
CONTROL
- Supported Protocols: W-DMX
- DMX channels: 4 / 6 / 10channel
- Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)

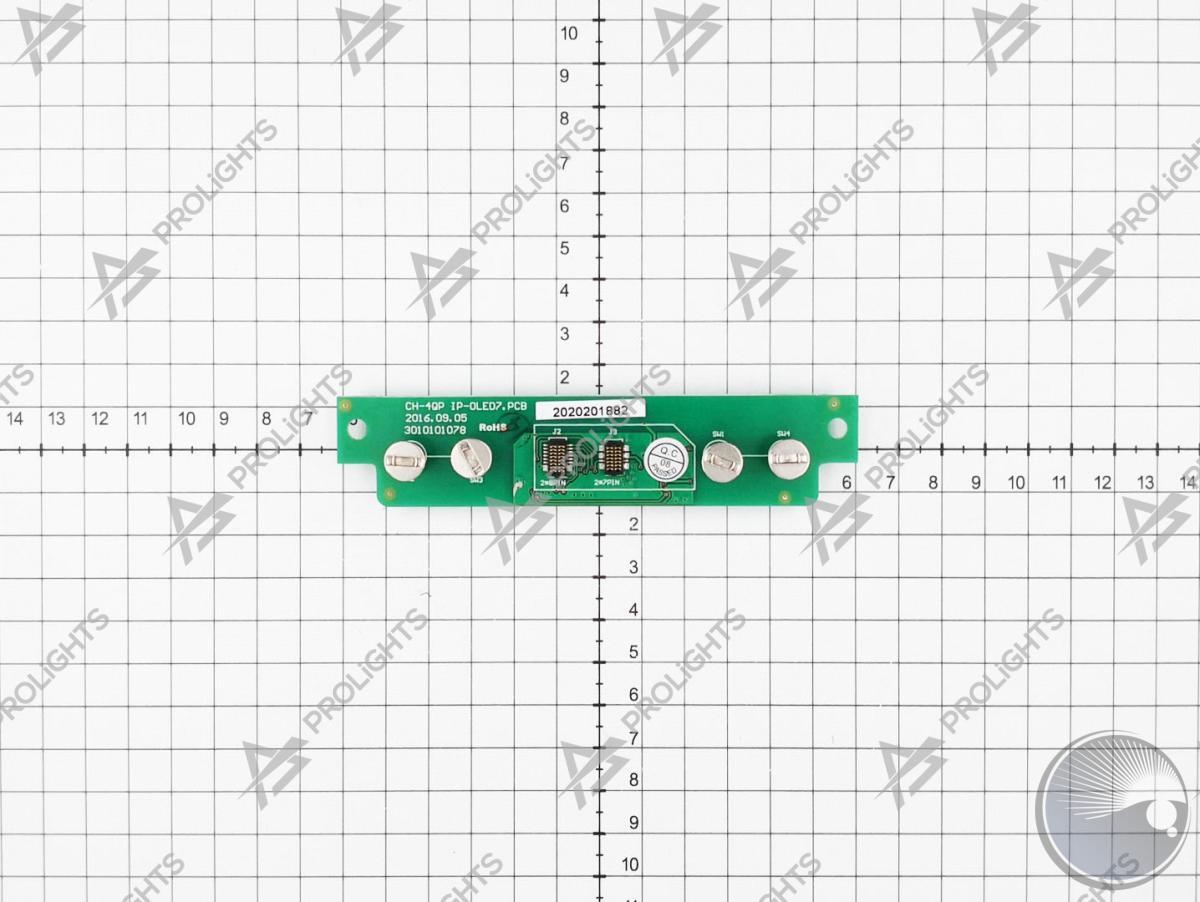

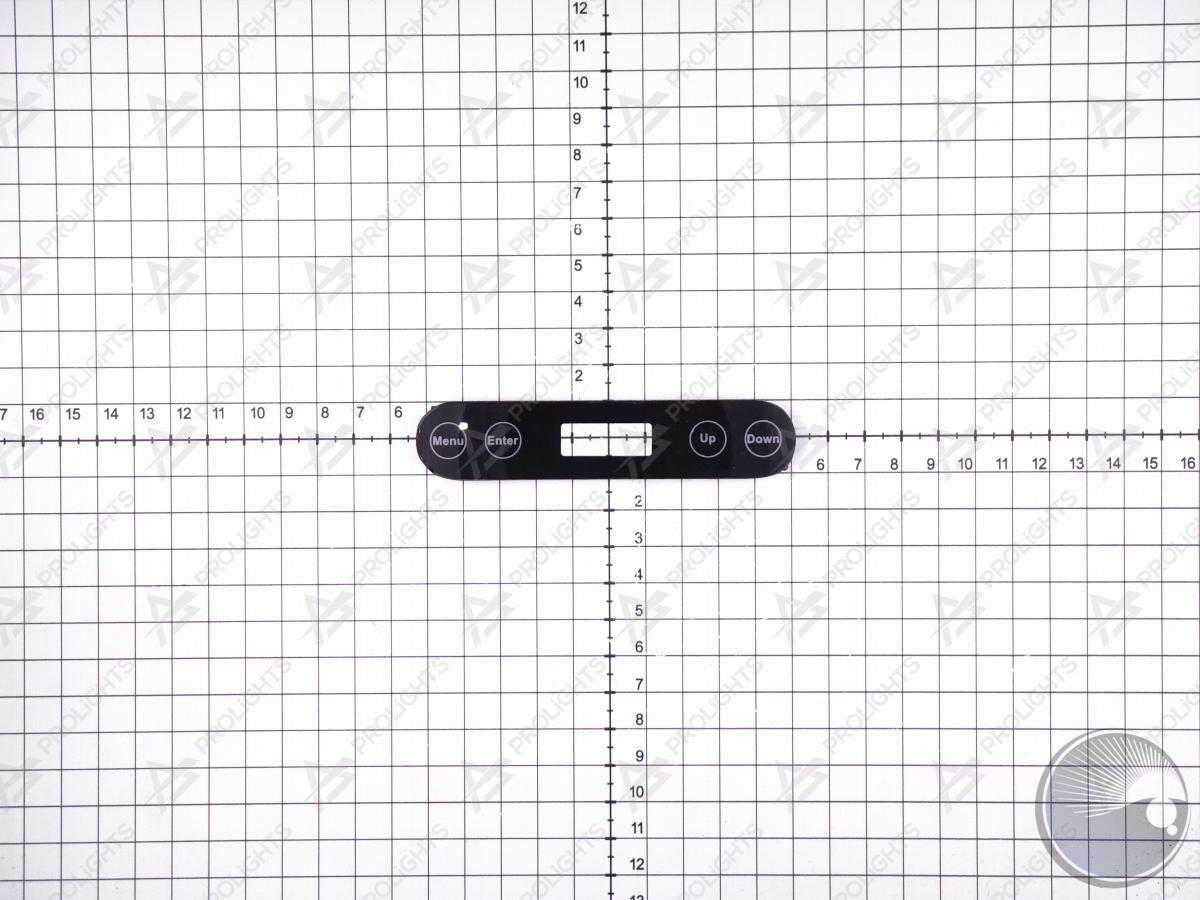

- Display: black OLED touch display
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
- IR: infrared sensor controlled by remote
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 25 Hz, electronic
- Operating temperature: 0° ~ +40° Ta
- LED Control: flicker free operation
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz (SBPLUSPOWER charger not included)
BATTERY

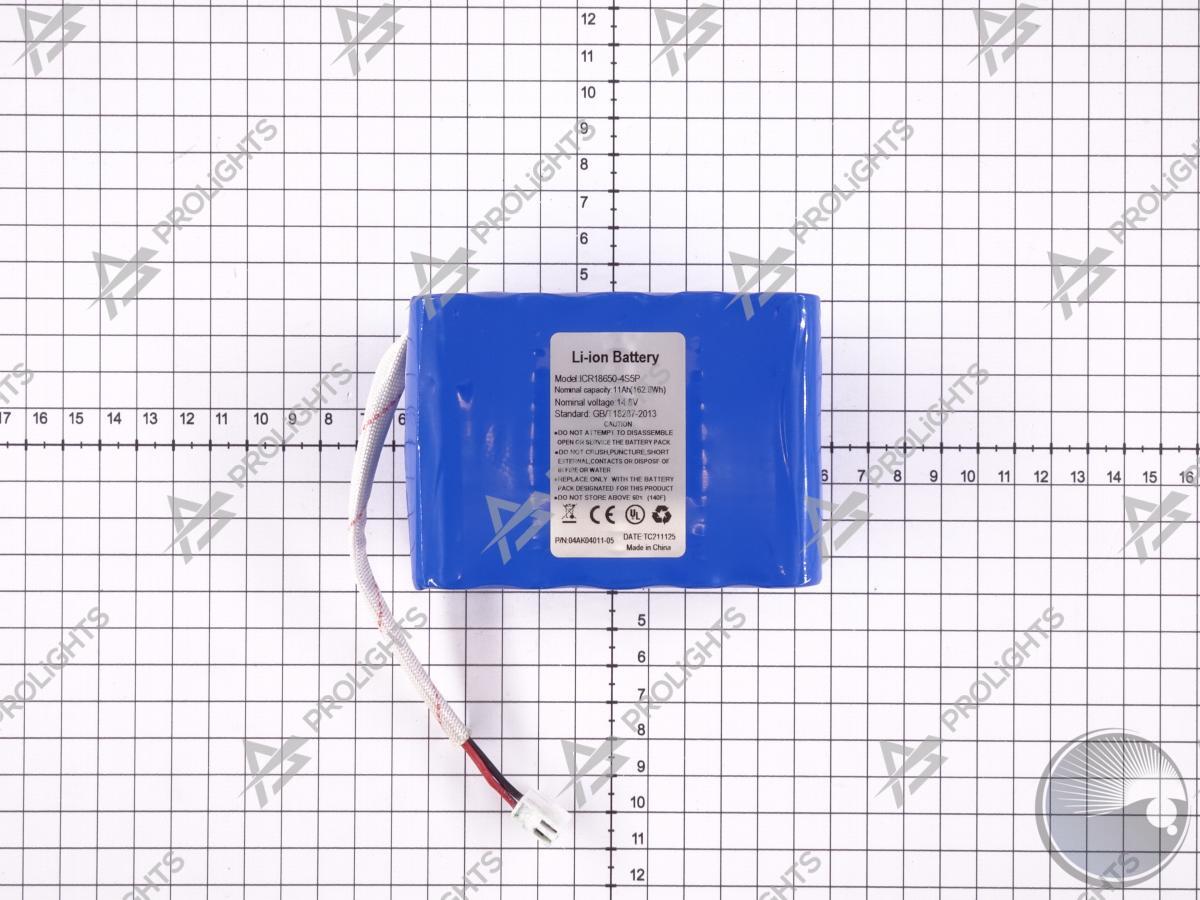

- Battery: 16,8V lithium
- Estimated battery life in colour change mode up to: 12h
- Estimated battery life in full-mode up to: 8h

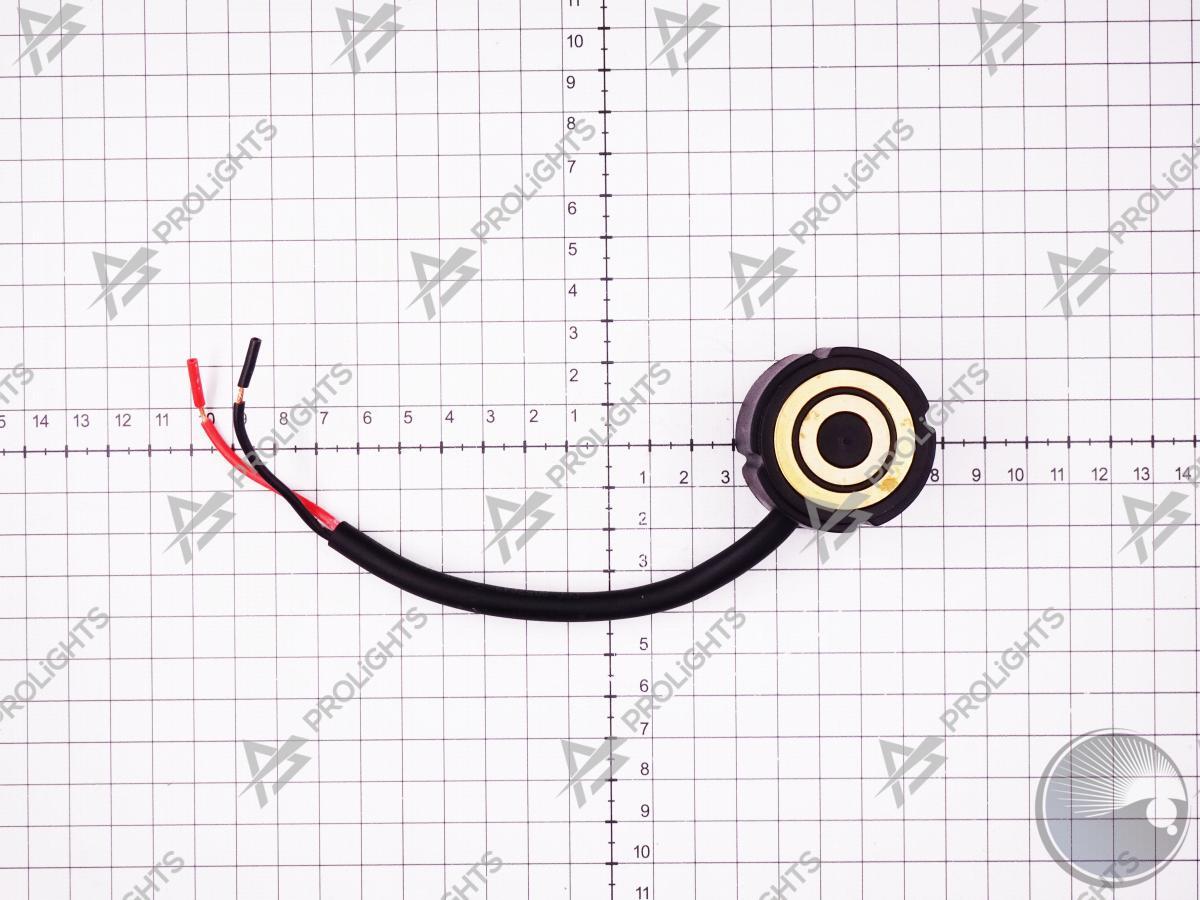

- Re-charge connection: magnetic fast-charge in case
- Re-charge time: 4h/max
- Battery status: shown on display
PHYSICAL
- IP rating: IP65 (front) - IP54 (bottom) for temporary outdoor application, not for fixed installations
- Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
- Suspension and fixing: M12 threaded insert for easy clamp installation
- Data connection: W-DMX receiver
- Dimensions (WxHxD): 138x202x145mm / 5.43''x7.95''x5.71''
- Weight: 3,6kg / 7.94lbs
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT
- 1 x SMARTBATPLUS
- 1 x LUMIPARIRCH
- User Manual
