PL LumiPix 16H, LED-Bar, 16x12W RGBAW+UV, 22°, IP33, 100cm, schwarz

LumiPix 16H is a 100 cm linear LED batten. Designed for professional use utilising an innovative optical system combined with a new light source that performs: 6 primary colours - RGBWAP full colour - granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output, make LumiPix 16H a flexible and versatile solution for every type of application or for use in venues, as the architectural, cyclorama, wall-washer, pixel effect or blinder.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 16x12W RGBWAP LEDs
• Luminous flux: 4'159
• Lux: (22°) 2'692lx @3 m full
• Lux: (25°) 1'907lx @3 m full
• Source life expectancy: > 50.000 h

OPTICS

• Beam angle: 22°
• Field angle: 37°
• Lens diameter: 42mm / 1.65''
• Additional optics: 25° and 45° (optional)

COLOUR SYSTEM

• Colour mixing: RGBWAP / FC
• White presets: 3.200 K -10.000K
• Colour wheel: virtual colour wheel with macros
• Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

• Static mode: selection of static colour
• Manual mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment

BODY

• Body: Sturdy aluminium profile
• Body colour: black

CONTROL

• Supported Protocols: DMX512
• DMX channels: 6 / 8 / 12 / 96 / 101channel
• Pixel control: pixel2pixel control

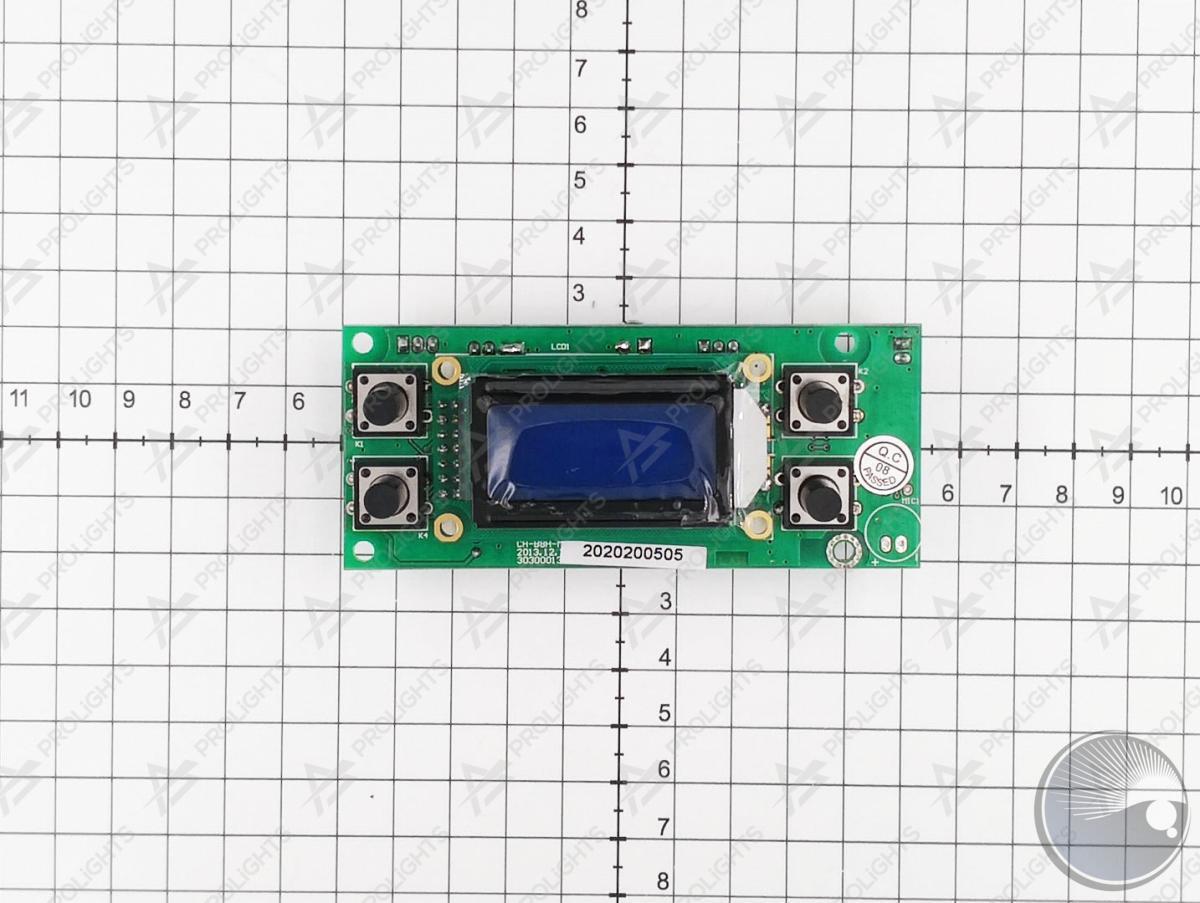

• Display: LCD display
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1-25 Hz, electronic
• Operating temperature: -10° ~ +45° Ta
• LED Control: flicker free frequency with adjustable PWM

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 160W
• Max power consumption (at 120V): 165W
• Output (at 230V): 12 units on a single power line
• Power factor: pF 0,95 @120 V - pF 0,90 @230 V

PHYSICAL

• IP rating: IP33
• Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
• Suspension and fixing: bracket for hanging and positioning
• Signal connection: XLR 3p + 5p IN/OUT connectors
• Power connection: Neutrik powerCON IN/OUT connectors
• Dimensions (WxHxD): 1.000x180x63mm / 0.04''x7.09''x2.48''
• Weight: 5,1kg / 11.24lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

• 1 x LUMIPIX16H
• 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON)
• 2 x side floor brackets
• User Manual
