PL LumiPar 12UQPro5, 12x8W RGBW, 16°, IP44, schwarz

Lumipar 12UQPro is a super-slim par LED designed for professional use to be a powerful wash light and perform an outstanding chromatic capacity through the new optical design and light source based on 4 colours mixing. Lumipar 12UQPro is compatible with the infrared remote controller for intuitive and interactive use without need any external DMX units and can be also controlled wireless through the optional USB WIFI transceiver in combination with WIFIBOX and the SmartColor app.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

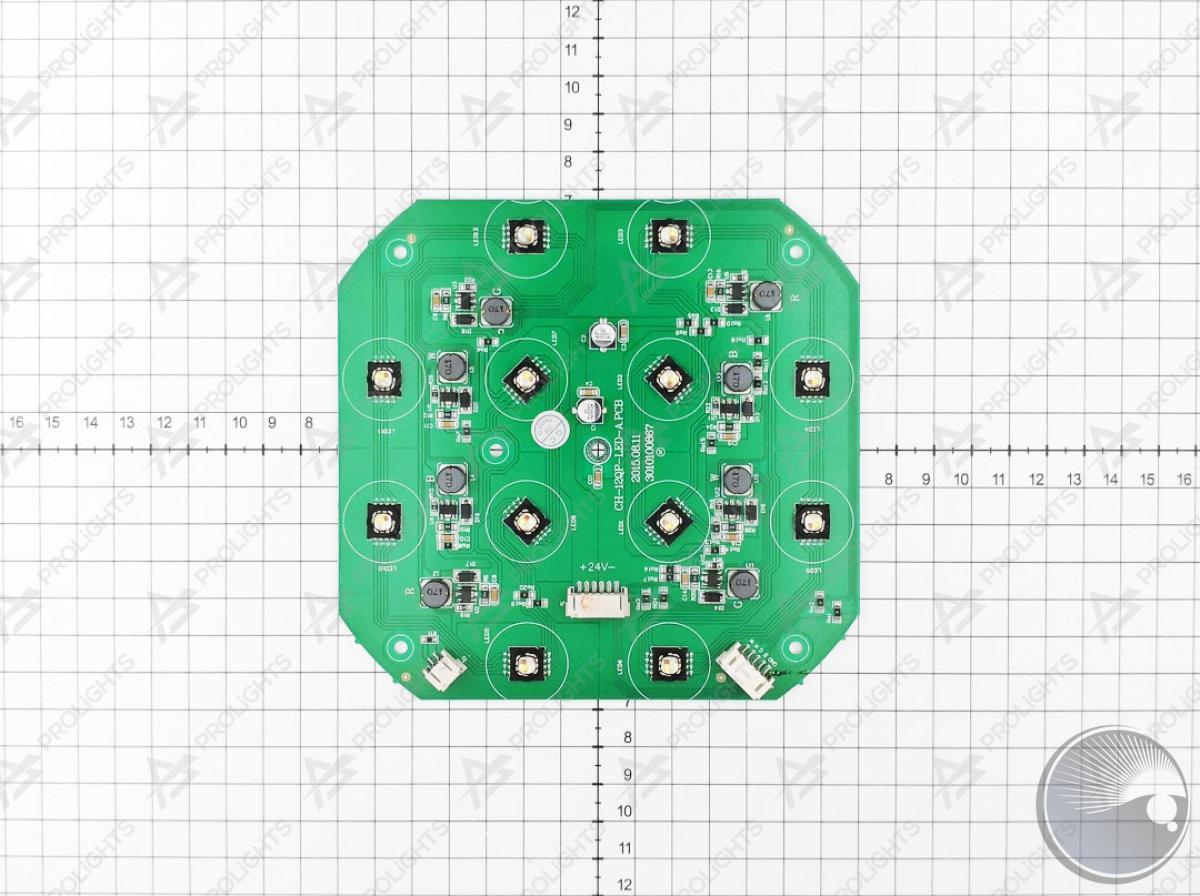

• Source: 12x8W RGBW LEDs
• CCT: W: 6.600
• Luminous flux: 2'689
• Lux: 2'871lx @3 m full
• Source life expectancy: > 50.000 h

OPTICS

• Beam angle: 15°
• Lens diameter: 38mm / 1.5''
• Additional optics: 15° (on-board) - 45° (optional)

COLOUR SYSTEM

• Colour mixing: RGBW / FC
• Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

• Static mode: selection of static colour
• Manual mode: manual adjustment of dimmer and strobe
• Auto mode: built-in programs with execution speed adjustment

BODY

• Body: Sturdy die-cast aluminium body
• Body colour: black

CONTROL

• Supported Protocols: DMX512
• DMX channels: 4 / 9channel
• Wireless Control: Optional proprietary protocol compatible with WIFIBOX, WDBOX

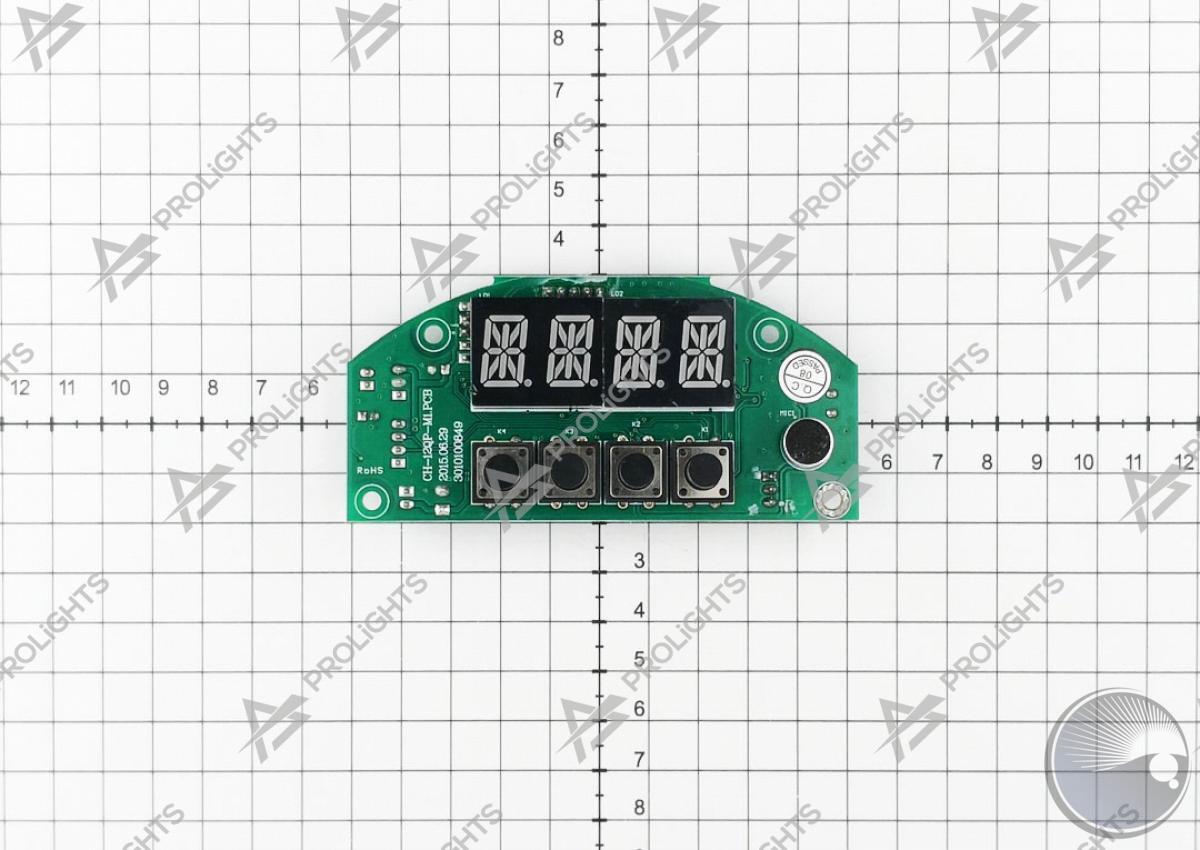

• Display: LED display user interface
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
• IR: infrared sensor controlled by remote
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 28 Hz, electronic
• Operating temperature: -10° ~ +45° Ta
• LED Control: flicker free operation

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 77W
• Max power consumption (at 120V): 78W
• Output (at 230V): 11 units on a single power line
• Output (at 120V): 9 units on a single power line

PHYSICAL

• IP rating: IP44
• IK rating: 07
• Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
• Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
• Data: USB port for USB WIFI transmitter (optional)
• Signal connection: variants available
• Power connection: variants available
• Dimensions (WxHxD): 253x200x237mm / 9.96''x7.87''x9.33''
• Weight: 3,3kg / 7.28lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

• 1 x LUMIPAR12UQPRO
• 1 x 1,5 meters 3G0,75mmq power cable (BARE END - SEETRONIC POWERCON power connector)

Es sind leider keine Geräte verfügbar.

Es kann vorkommen, dass in unserem Lager noch gebrauchte Geräte vorhanden sind. Fragen Sie gerne über unsere Service-Hotline +49 871 40875521 oder per Email info@lights-whatever.de bei uns nach. Wir helfen Ihnen gerne weiter!
