PL Astra Wash37Pix, 37x40W RGBW, 4-54°, schwarz

The Astra Wash37PIX is a powerful LED moving wash light, designed for large stages, arena tours and venues.The 37x40W Osram RGBW LED light source, plus the exterior pixel ring, make this fixture the most powerful LED wash in its class. The unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, creating beautiful convergence in-air effects and smooth wash spreads. The Astra Wash37PIX is single pixel controllable, with multiple on-board effects, and allows access to a precise and advanced white and colour control, all through DMX, CRMX+W-DMX, Art-Net, sACN, Kling-Net and RDM.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 37x40W RGBW Osram Ostar LEDs
• Luminous flux: (4°) 8'452 lm - (54°) 17'898 @Full
• Lux: (4°) 73'522 lx - (54°) 2'140lx @5 m full

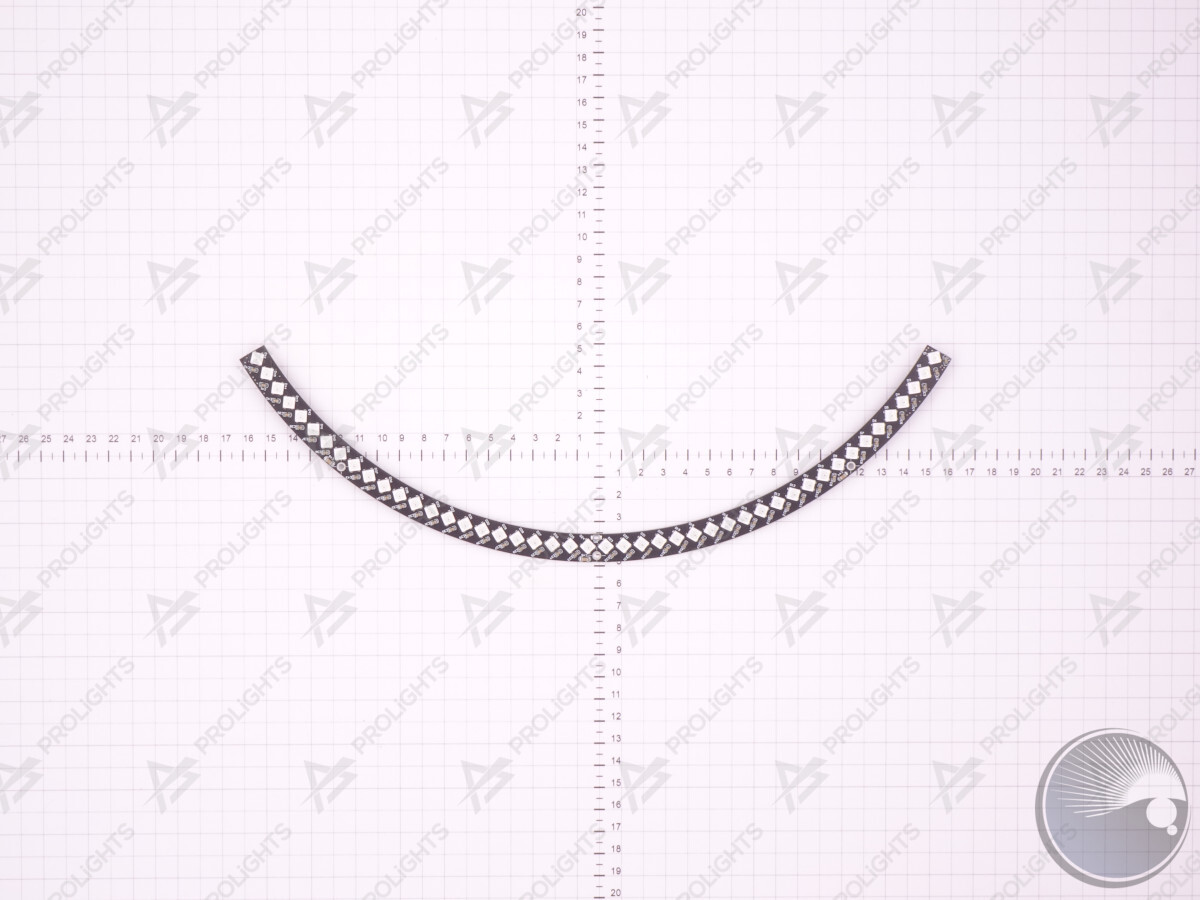

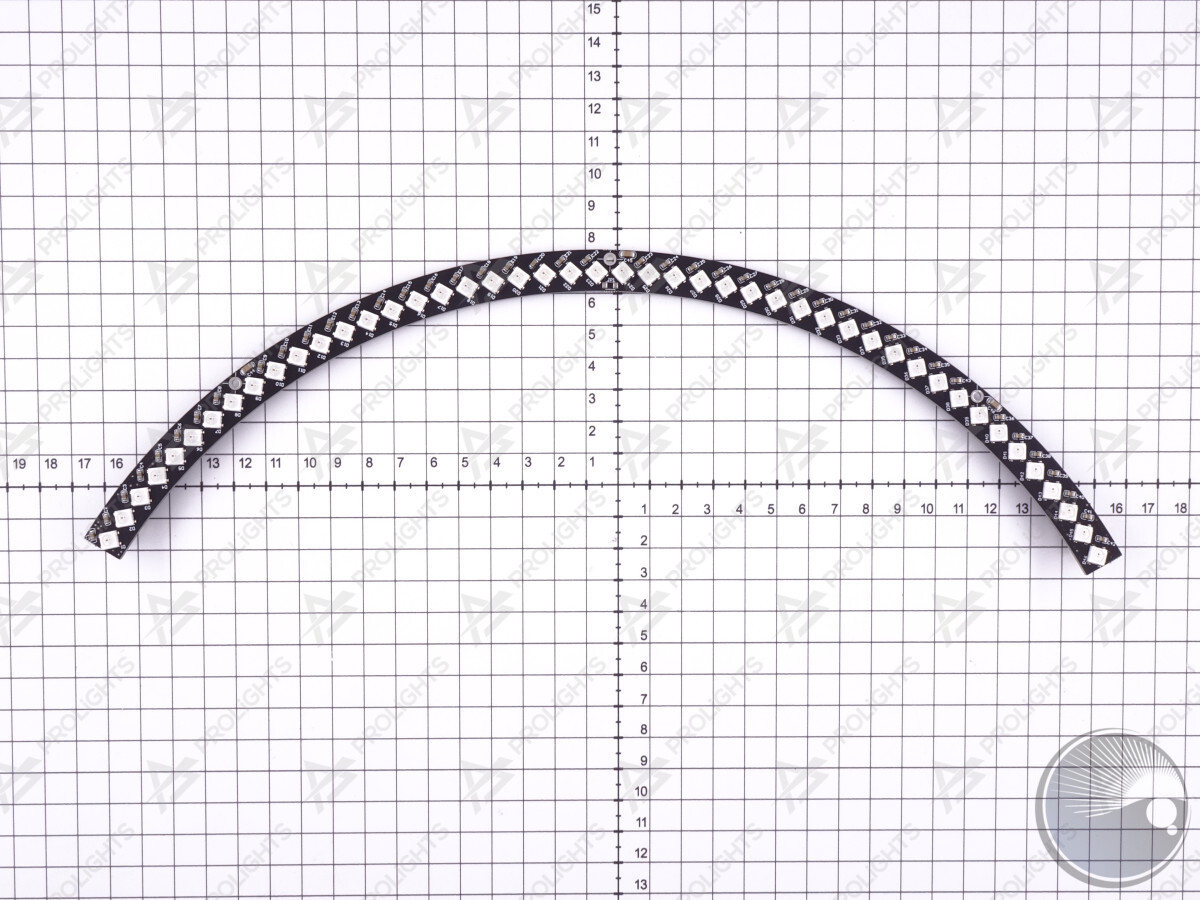

• Other: outer RGB pixel ring with frost film
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

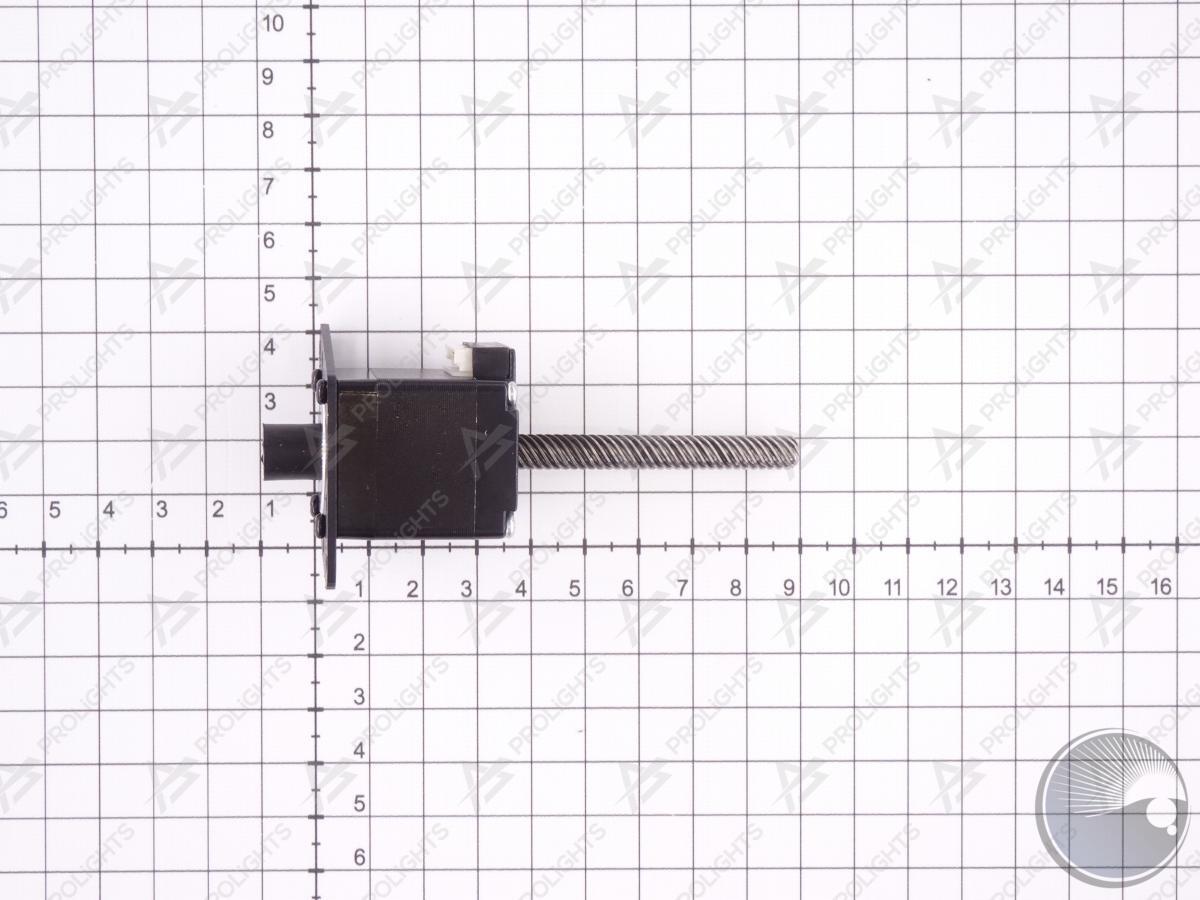

• Zoom range: 4° - 54° motorised linear zoom

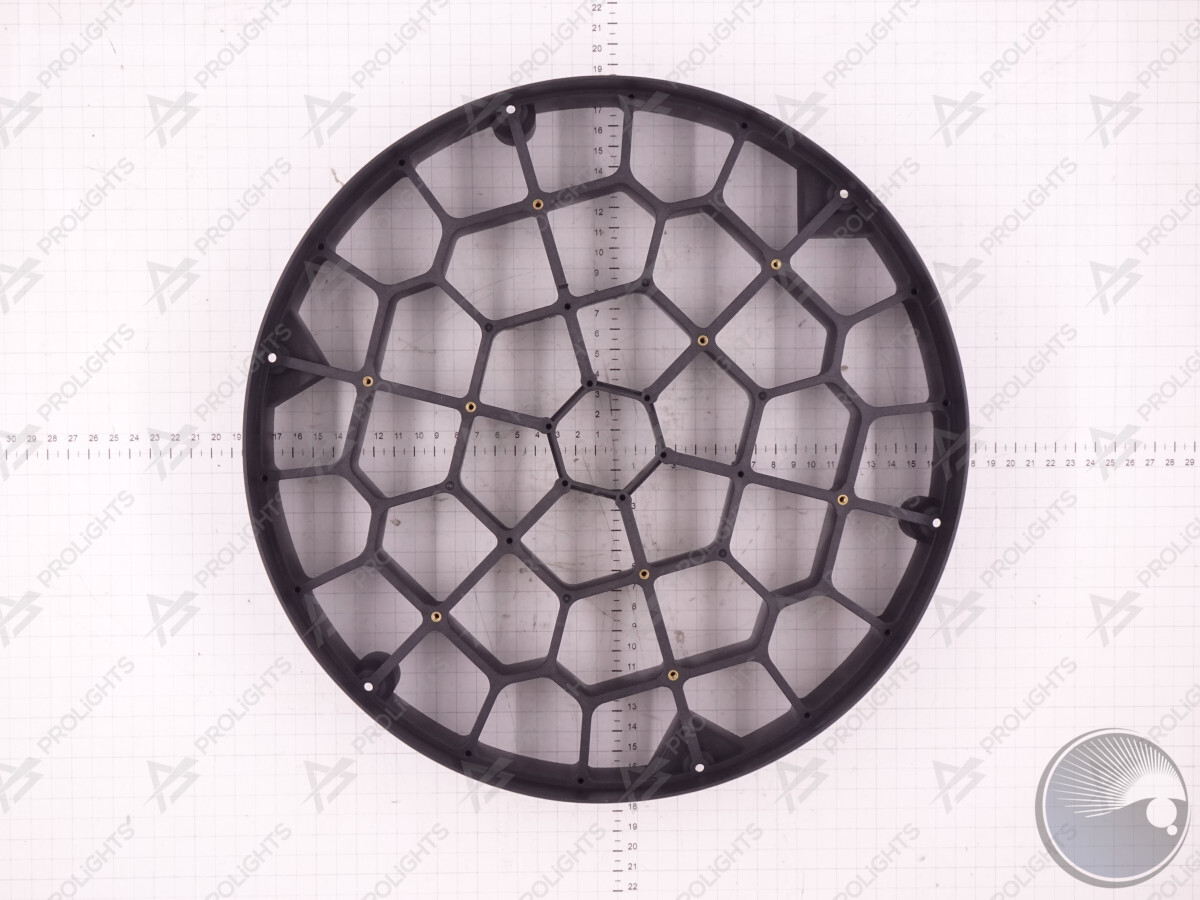

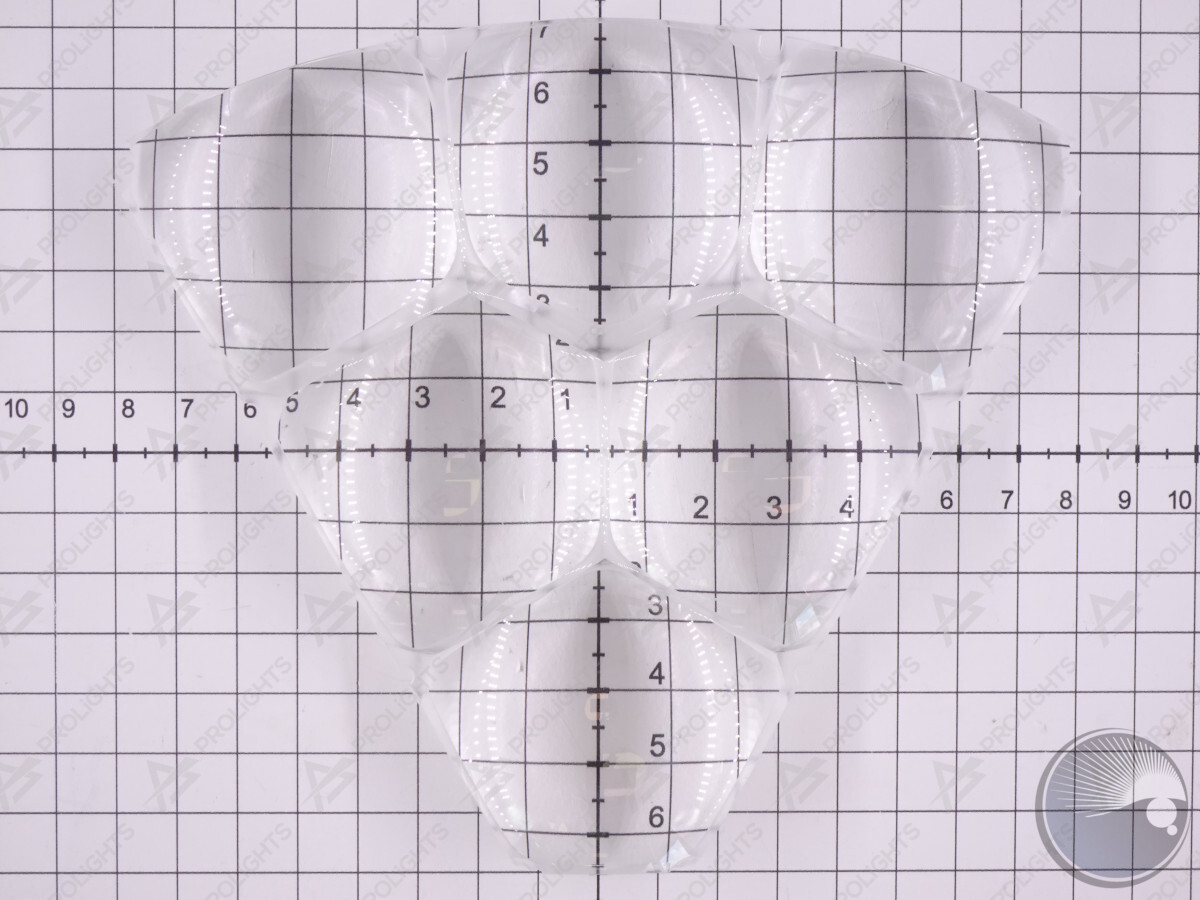

• Lens type: honeycomb gapless plano-convex optics
• Additional optics: diffuser on outer pixel ring

COLOUR SYSTEM

• Colour mixing: RGBW / FC
• CCT: CCT control, + / - green correction, tungsten emulation
• White presets: 2.800 K ~ 10.000K
• Colour wheel: virtual colour wheel with macros
• Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer, colours
• Pixel patterns: pre-programmed dynamic and static patterns
• FX generator: adjustable foreground/background colour, index, speed, direction
• Special features: outer RGB, pixel ring with several built in FX macros and linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

• Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
• Pan range: 540°
• Tilt range: 233°
• Feedback: automatic repositioning after accidental movement
• Body: Aluminium structure with high-resistance polycarbonate cover
• Body colour: RAL 9004

CONTROL

• Supported Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
• DMX channels: main personality 23 / 30 / 44 / 52channel
• Pixel control: OFF, ring and pixel2pixel
• Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -10° ~ +40° Ta
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 1227W
• Standby power: 49.5W
• Power factor: > 0,97

PHYSICAL

• IP rating: IP20
• Cooling: filtered forced-air cooling with low-noise fans
• Suspension and fixing: any position with quick-lock omega brackets
• Pan / tilt lock: for transportation and maintenance
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Data connection: Neutrik Art-Net RJ45 IN/OUT
• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
• Dimensions (WxHxD): 520x644x310mm / 20.47''x25.35''x12.2''
• Weight: 26,4kg / 58.2lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

• 1 x ASTRAWASH37PIX
• 2 x OS24PLUS
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65 power connector)
• User Manual
