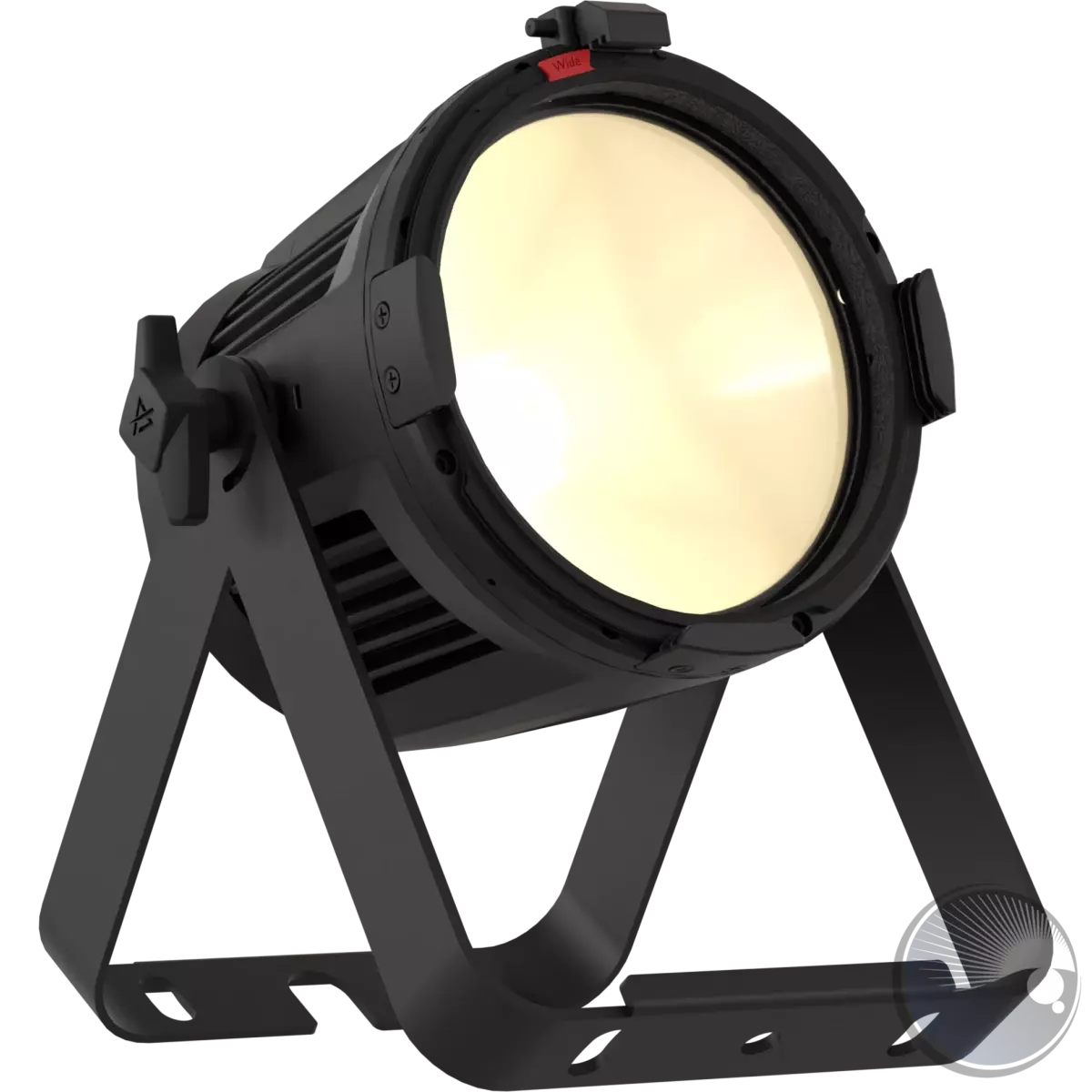

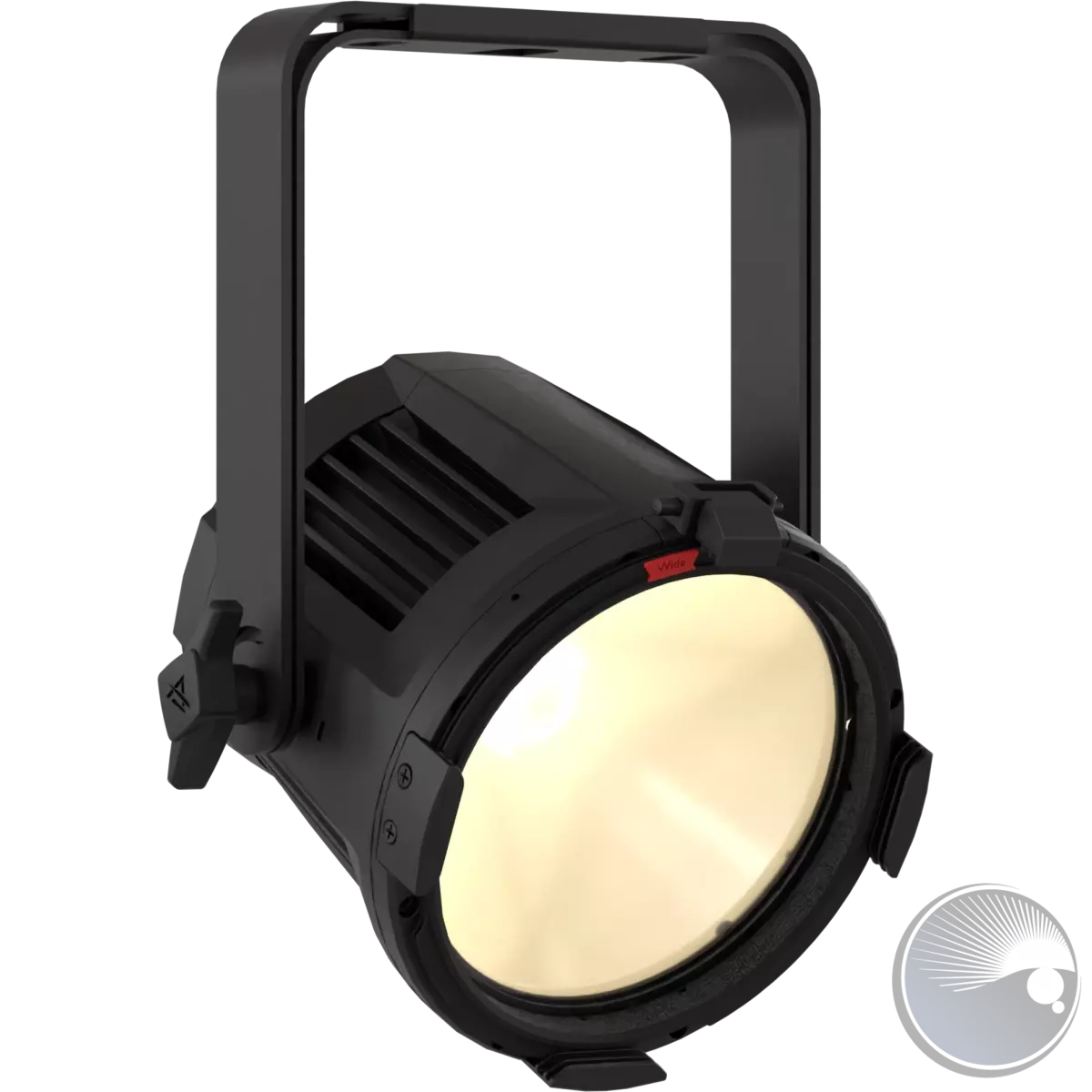

EclPar IPMVW, 100W, 2.700K-6.500K

EclPar IPMVW is a flexible IP rated single source LED spotlight, featuring an 100W Variable White light source with high efficiency and advanced colour control. Its LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.The unit is compact and completely fan free, making the EclPar IPMVW a workhorse for any outdoor and dusty environment, but as well as for corporate and studio whereas  silent operations are required.The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 100W Variable White LED
• Luminous flux: (15°) 4'571 lm; (30°) 4'329 lm; (60°) 4'414 @Full
• Lux: (15°) 3'072 lx; (30°) 451 lx; (60°) 163lx @5 m full
• CRI: 97,6 @full; 97,1 @2'700K; 96,4 @6'500K
• R9: 95 @full; 83,7 @2'700K; 94,1 @6'500K
• TLCI: 99 @full; 97 @2'700K; 98 @6'500K
• TM30 Rf: 93,3 @full; 93,7 @2'700K; 91,5 @6'500K
• TM30 Rg: 100,5 @full; 97,1 @2'700K; 98,1 @6'500K
• Source life expectancy: > 50.000 h

OPTICS

• Beam angle: (on-board) 15° - (opt) 30°, 60°
• Field angle: (on-board) 24°
• Lens diameter: 172mm / 6.77''
• Lens type: parabolic reflector in combination with HD fresnel lens
• Additional optics: (opt) 30°, 60°
• Other: possible to mount lens both on the internal side and on the external side

COLOUR SYSTEM

• Colour mixing: tunable white
• CCT: CCT control through dedicated DMX channel
• White presets: 2.700 K ~ 6.500K
• Macros: built-in white presets

DYNAMIC EFFECTS

• Static mode: selection of static dimmer and color temperature
• Manual mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment

BODY

• Body: Sturdy die-cast aluminium body
• Body colour: black
• Other: Front mount holder for accessories as barn door, filter frame

CONTROL

• Supported Protocols: DMX512, RDM, CRMX (optional)
• DMX channels: 1 / 2 / 4 / 5 / 9 / 11channel
• Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 40.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 117W
• Output (at 230V): 12 units on a single power line
• Power factor: > 0,93

PHYSICAL

• IP rating: IP65 for temporary outdoor application, not for fixed installations

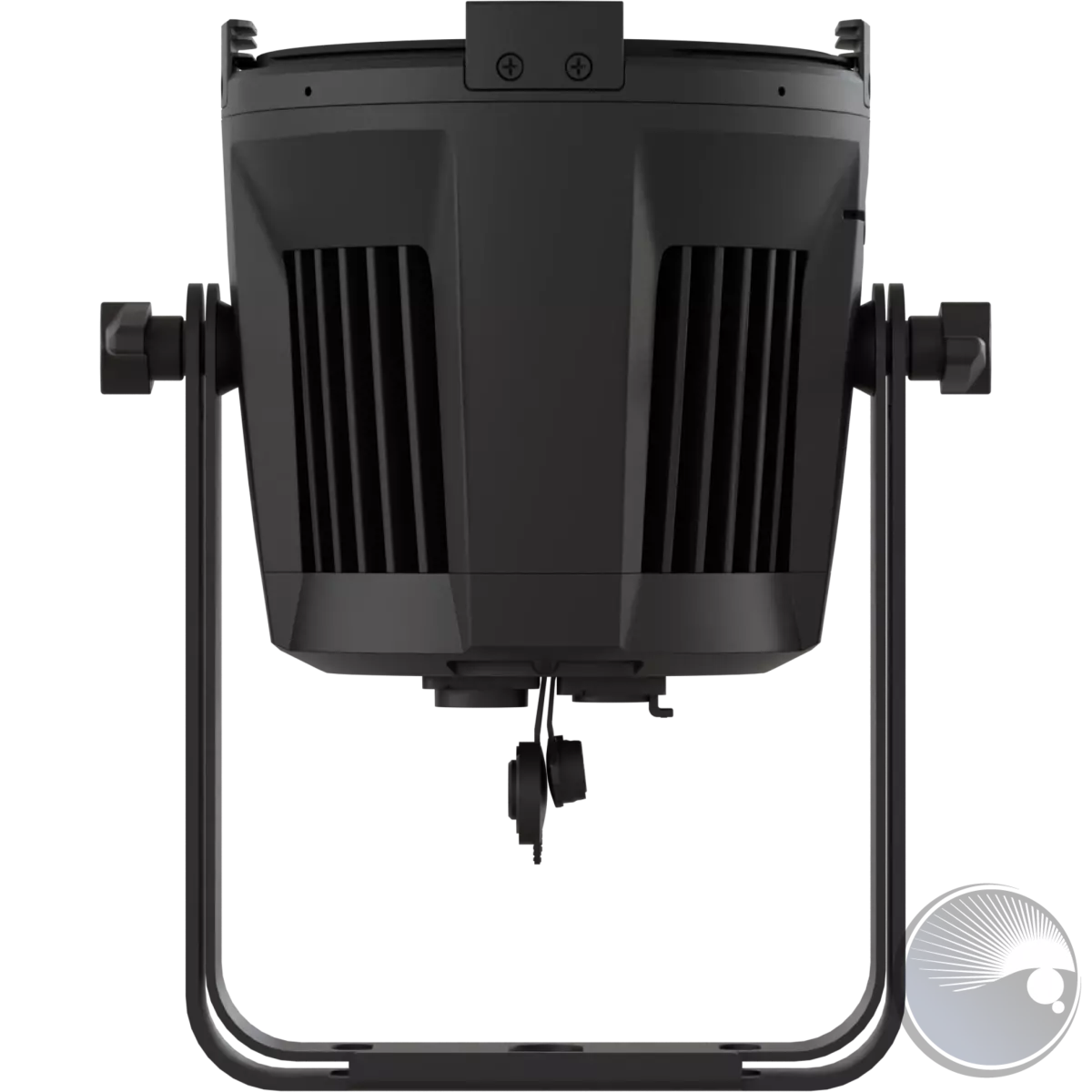

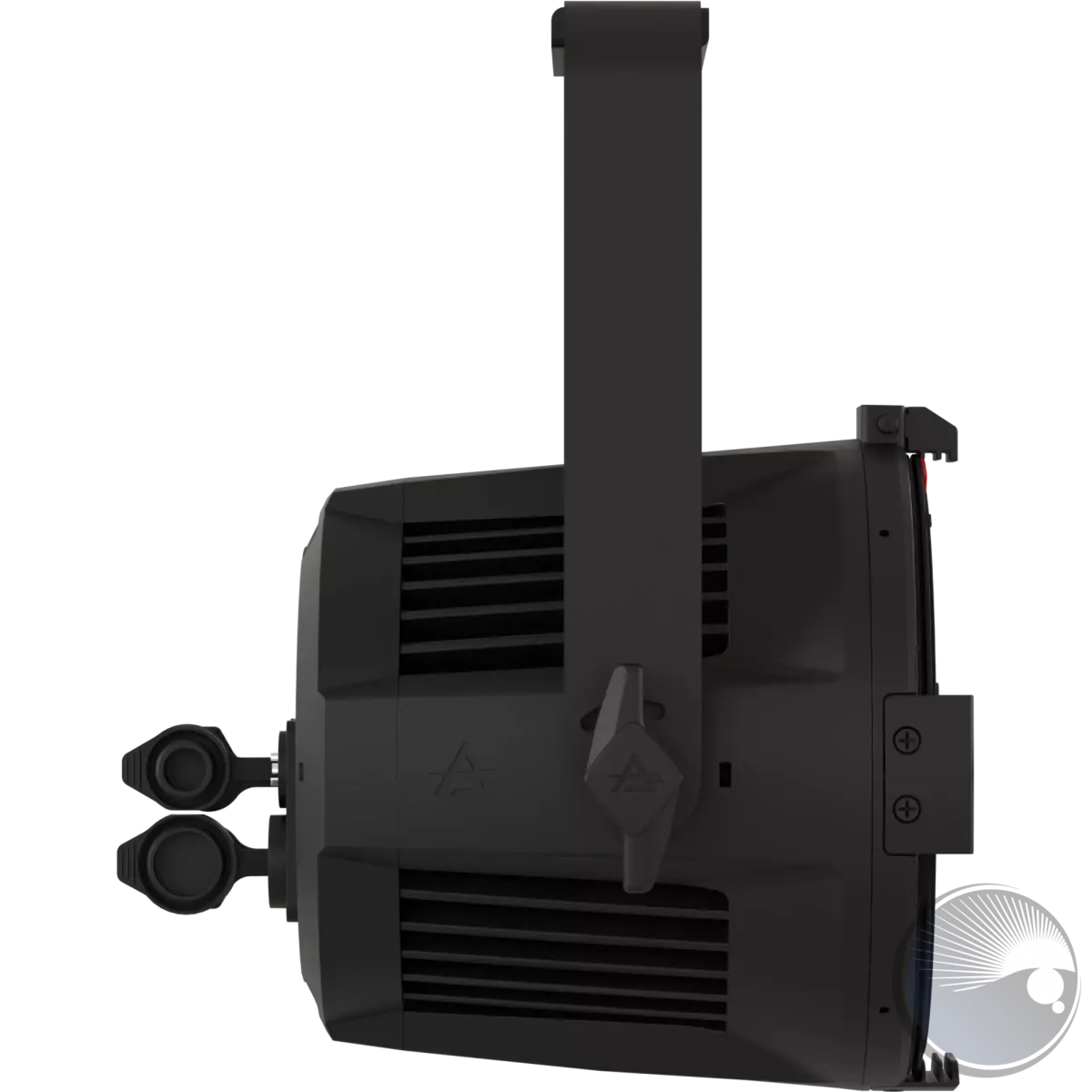

• Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
• Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

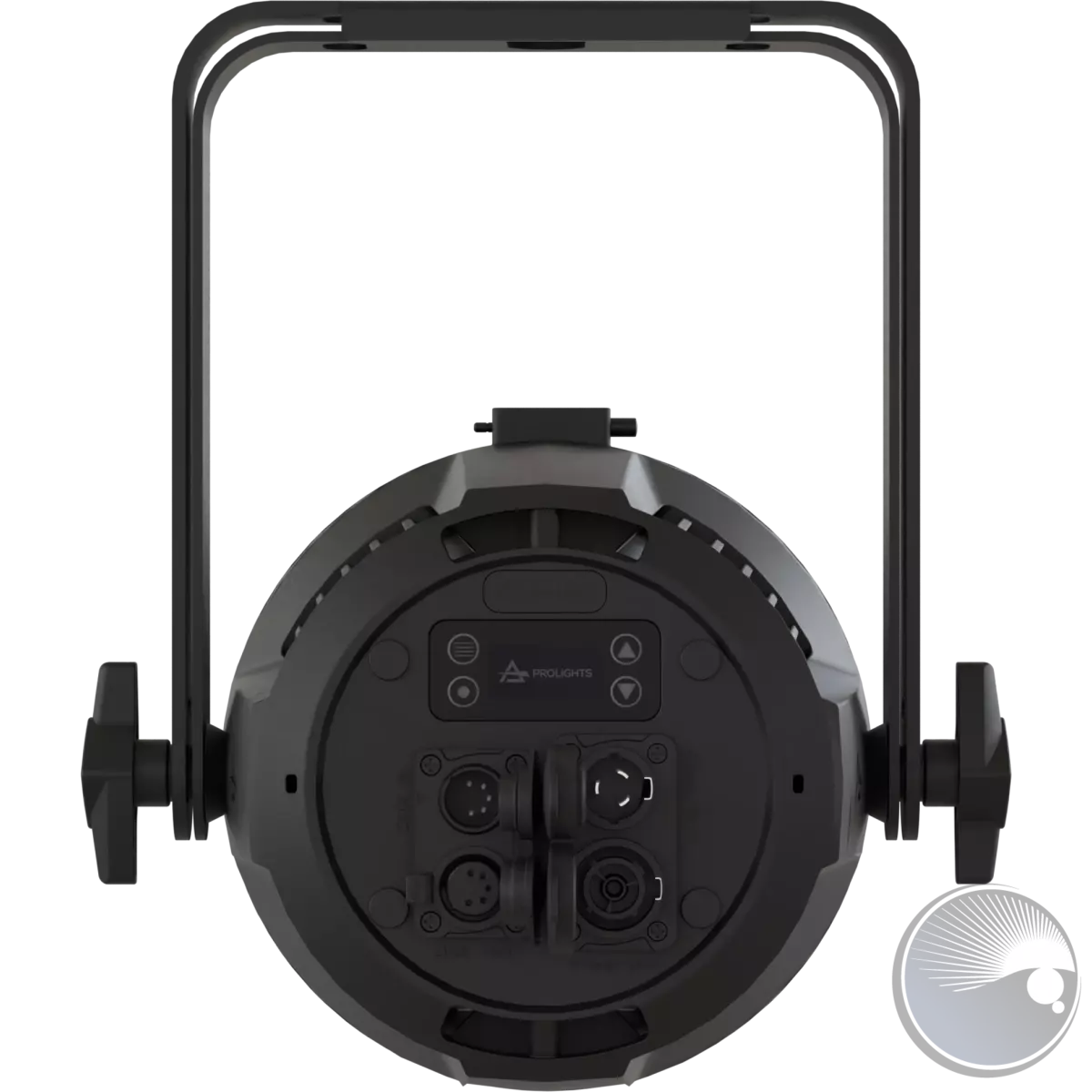

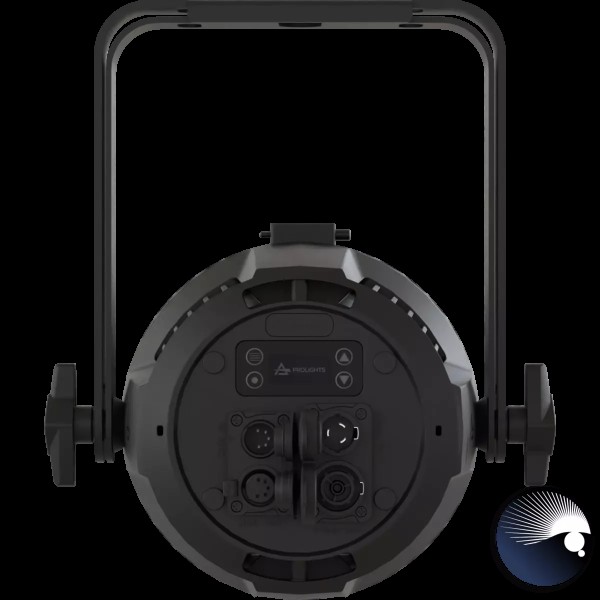

• Signal connection: Seetronic XLR 5p IN/OUT connectors
• Power connection: Seetronic powerCON TRUE IP65 IN/OUT
• Dimensions (WxHxD): 262x327x213mm / 10.31''x12.87''x8.39''
• Weight: 4,1kg / 9.04lbs

(*)

• NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

• 1 x ECLPARIPMVW
• 1 x EPIPMLENS15
• 1 x ECLPARTPG
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• 1 x User Manual
