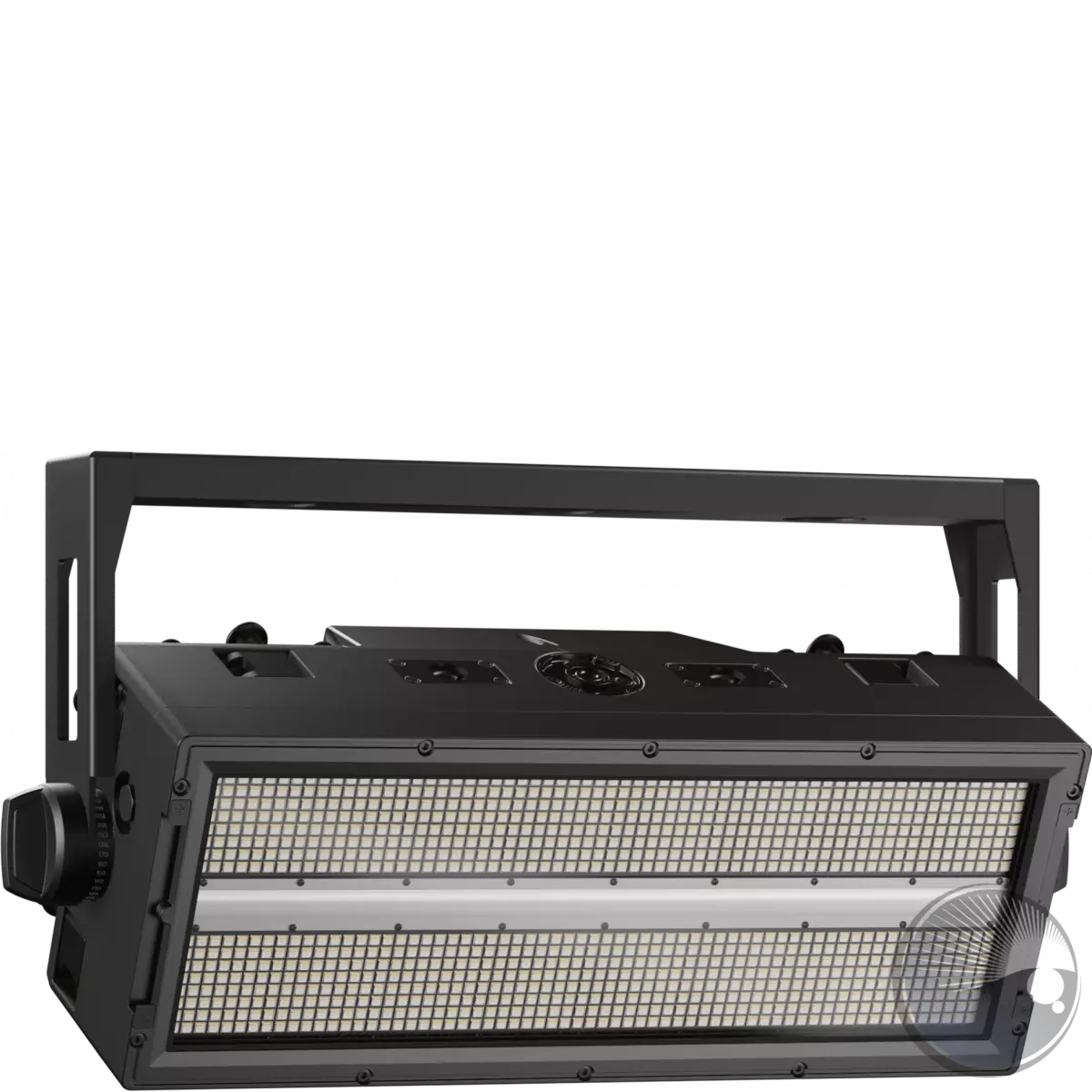

PL SunBlast FLX, RGB+warmweiß-LED Strobe, 16-Zellen, IP65, schwarz

The Sunblast FLX is a high-performance, IP65-rated LED fixture that combines both strobe and washlight  capabilities for versatile applications. Its hybrid design includes a central linear white LED beam that replicates the traditional xenon-bulb filament of classic strobes, alongside RGB+Warm White LED plate that provide intense washlight with superior color rendering, powered by Spektra OS.With advanced pixel mapping, the Sunblast FLX offers precise control over 28 individual pixels - 12 for the white LED strip and 16 for the RGB+WW panel - enabling dynamic effects and creative flexibility. With a peak power output of 1200W when strobing and 400W for continuous floodlighting, it's engineered to deliver exceptional brightness.Designed for easy, tool-free assembly, the Sunblast FLX features a modular rigging system that supports both vertical and horizontal configurations in clusters. Its rugged IP65 rating ensures dependable performance in outdoor environments, making it an ideal solution for festivals, events, and temporary architectural lighting. Equipped with both wired (sACN and Art-Net) and wireless (CRMX) control options, it integrates seamlessly into any lighting system.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: (Beam 12 px) 60 x 12 white LEDs + (Plate 16 px) 1.024 x 1,2W RGBWW LEDs
• Luminous flux: Full Power Strobe - Combined: 108'526 lm @Full
• Luminous flux: Full Power Wash - Plate: 32'771 lm @full
• Luminous flux: Full Power Wash - Beam: 45'170 lm @full
• Luminous flux: Full Power Wash - Combined: 40'507 lm @full
• Lux: Full Power Strobe - Combined: 1'710lx @5 m full
• Lux: Full Power Wash - Plate: 467lx @5 m full
• Lux: Full Power Wash - Beam: 729lx @5 m full
• Lux: Full Power Wash - Combined: 621lx @5 m full
• Source life expectancy: > 20.000 h

OPTICS

• Beam angle: (Plate) RGB+WW: 112° - (Beam) White LEDs: 49° x 130°
• Field angle: (Plate) RGB+WW: 152° - (Beam) White LEDs: 79° x 155°

COLOUR SYSTEM

• Colour control: CCT, RGBW, HSI, Colour Macros
• Colour mixing: RGB+WW + White LEDs
• CCT: CCT control range from 2.800K to 10.000K, + / - green correction, tungsten emulation
• White presets: 2.800-10.000K
• Macros: Gels library on-board

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer, colours
• Pixel patterns: pre-programmed dynamic and static patterns
• FX generator: adjustable foreground/background colour, index, speed, direction
• Static mode: selection of static dimmer, colors and color temperature
• Manual mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment

BODY

• Bracket system: Several brackets available for simply array mounting - see available accessories
• Hardware on-board: fast ancor points on the front for accessory mounting and on board mechanics for modular assembly of multiple fixtures
• Body: Weatherproof IP65 construction with die-cast magnesium alloy
• Body colour: black

CONTROL

• Supported Protocols: DMX512, RDM, ArtNet, sACN, CRMX
• DMX channels: 7 / 13 / 21 / 36 / 32 / 42 / 47 / 60channel
• Pixel control: 16 px RGB+WW LEDs + 12 px White LEDs individually select and control sections
• Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
• EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: strobe: 1.200 W (peak) - wash: 400W
• Standby power: 7,6W
• Output (at 230V): 2 units on a single power line
• Power factor: > 0,94

PHYSICAL

• IP rating: IP65 for temporary outdoor application, not for fixed installations
• Cooling: active, silent operation
• Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
• Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
• Data connection: Seetronic Ethernet IP in/out connectors
• Power connection: Seetronic powerCON waterproof IN/OUT connectors
• Dimensions (WxHxD): 460 x 170 x 170mm / 18.11''x6.69''x6.69''
• Weight: 11,6kg / 25.57lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM, FCC, cTUVus

BOX CONTENT

• 1 x SUNBLASTFLX
• 1 x SBLFLXB01H
• 1 x OS25PLUS
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• User Manual
