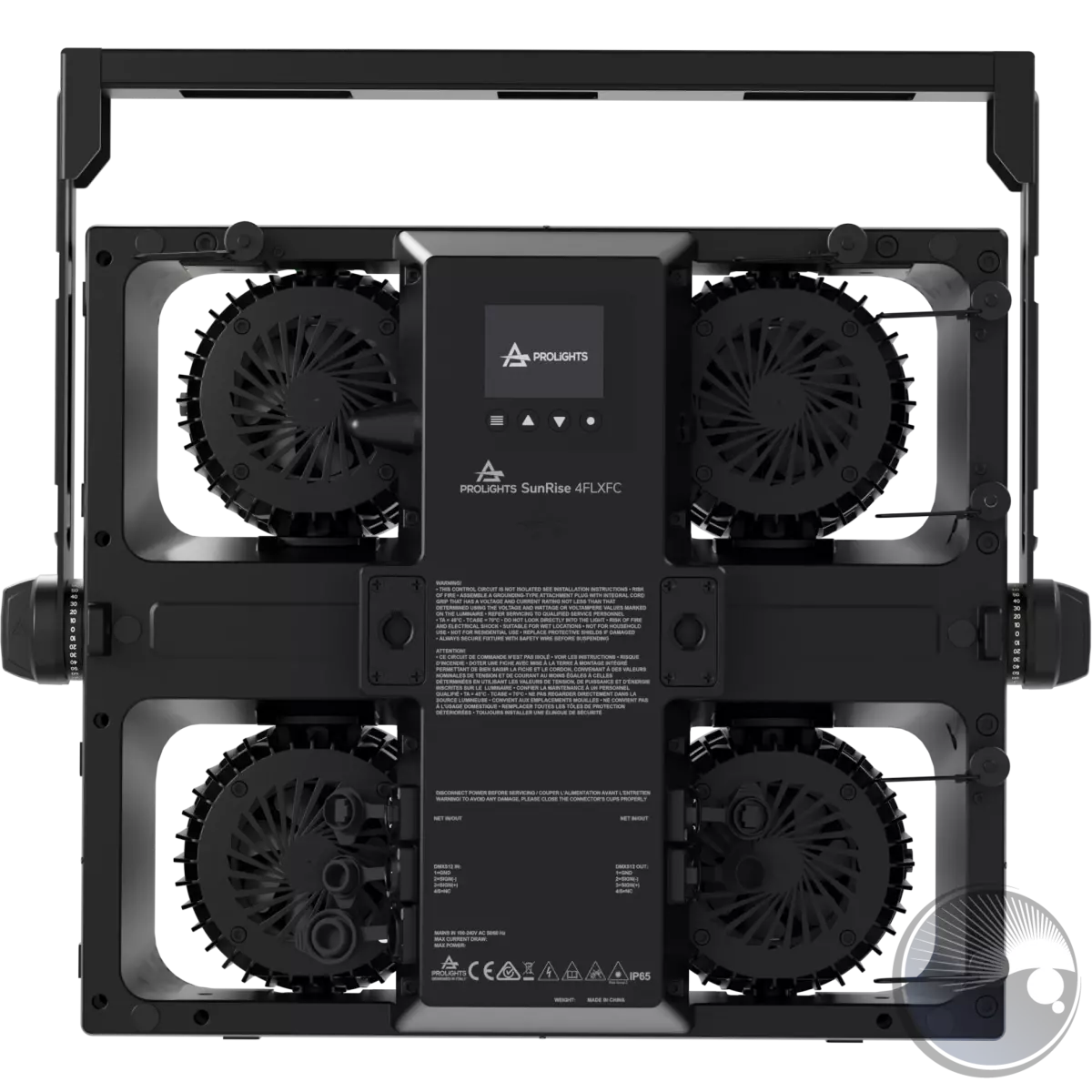

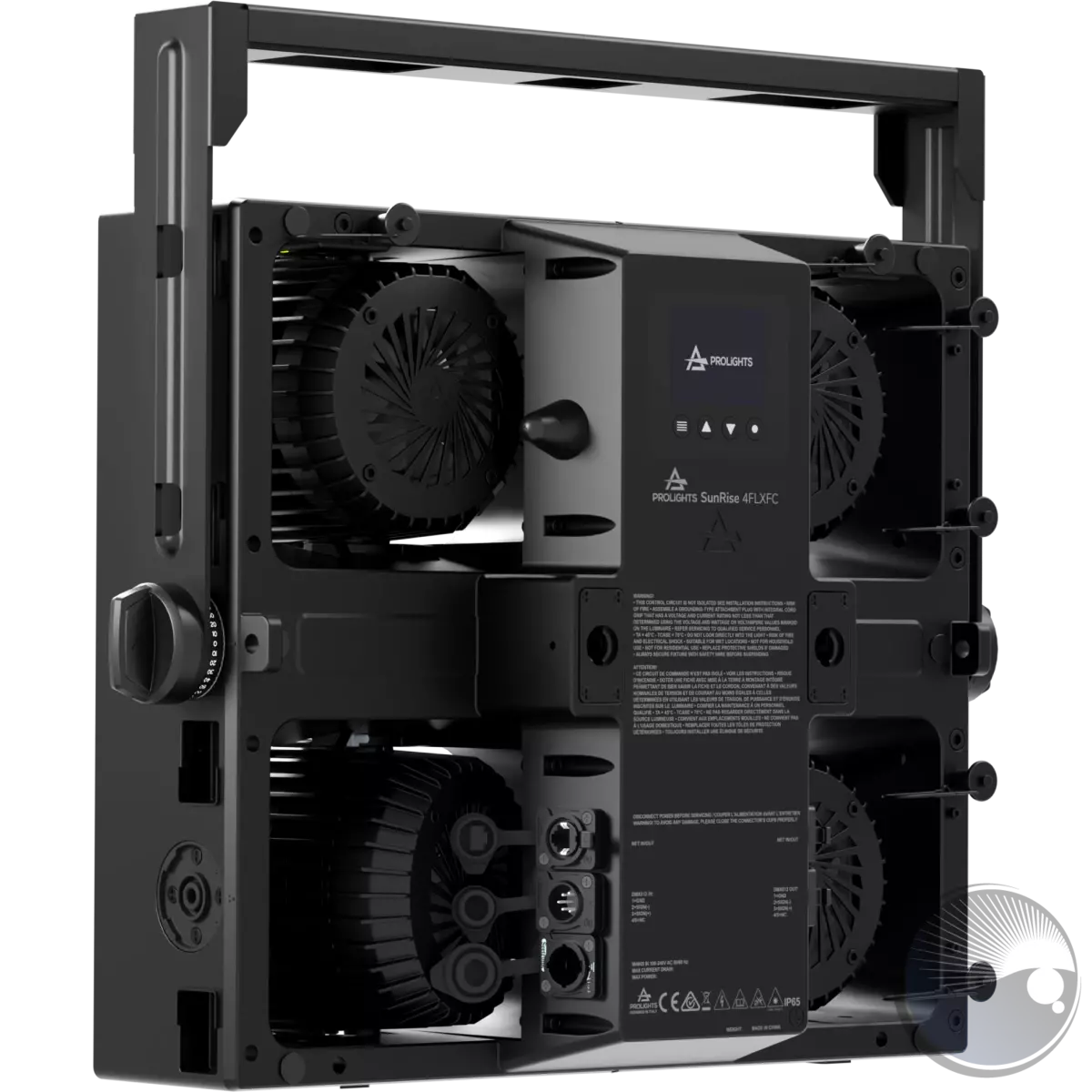

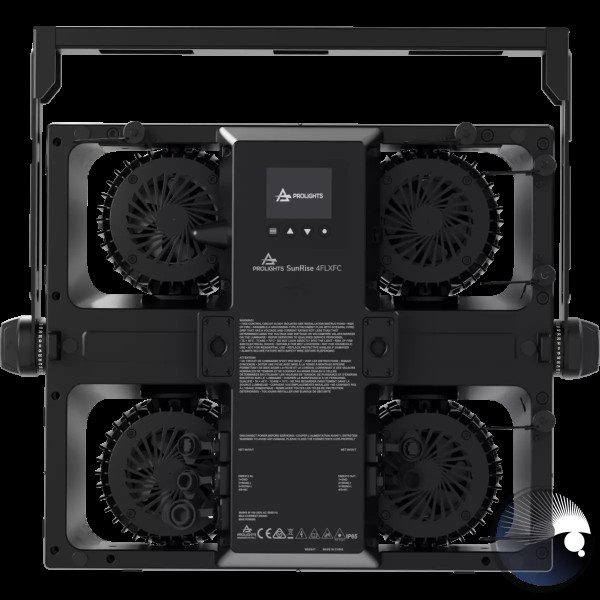

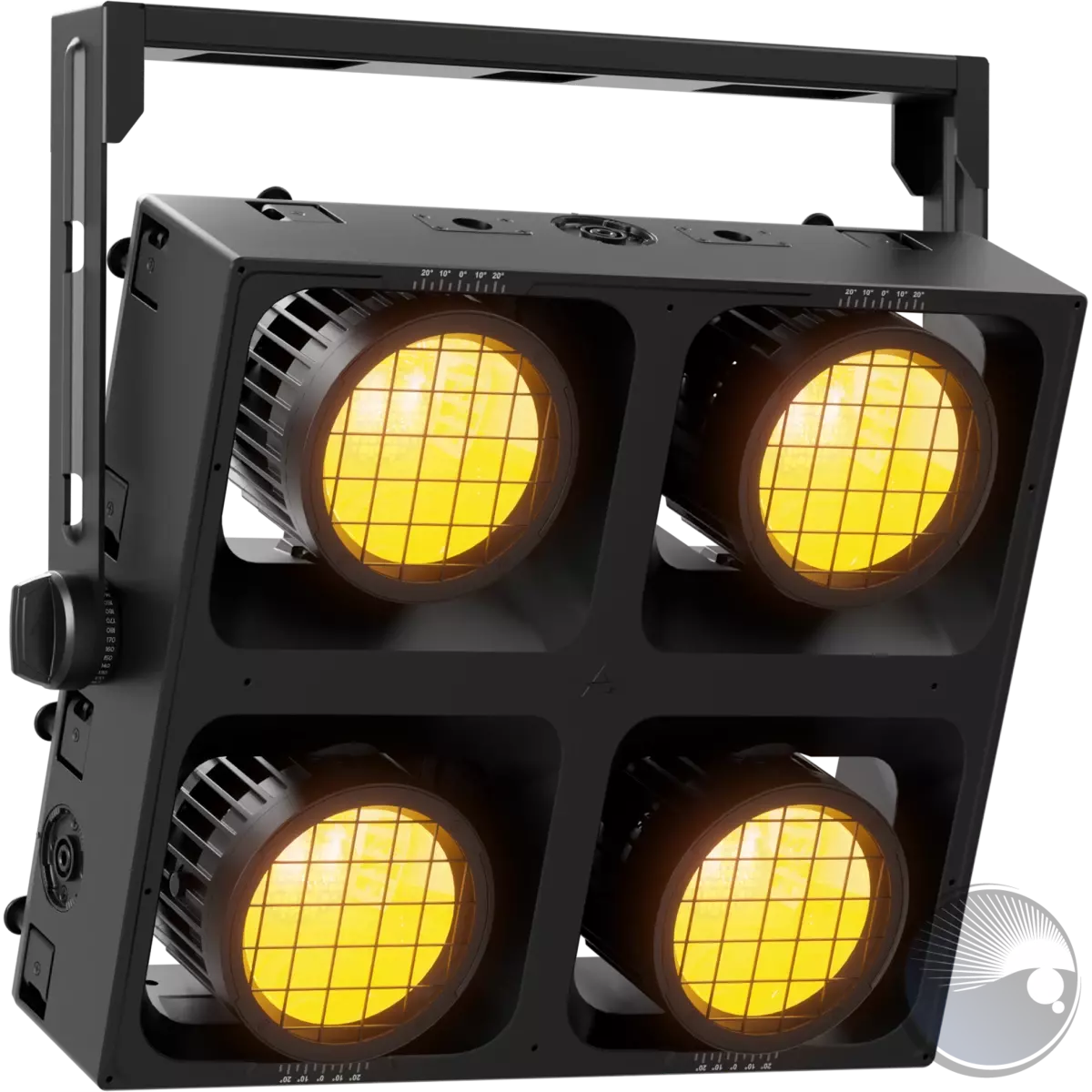

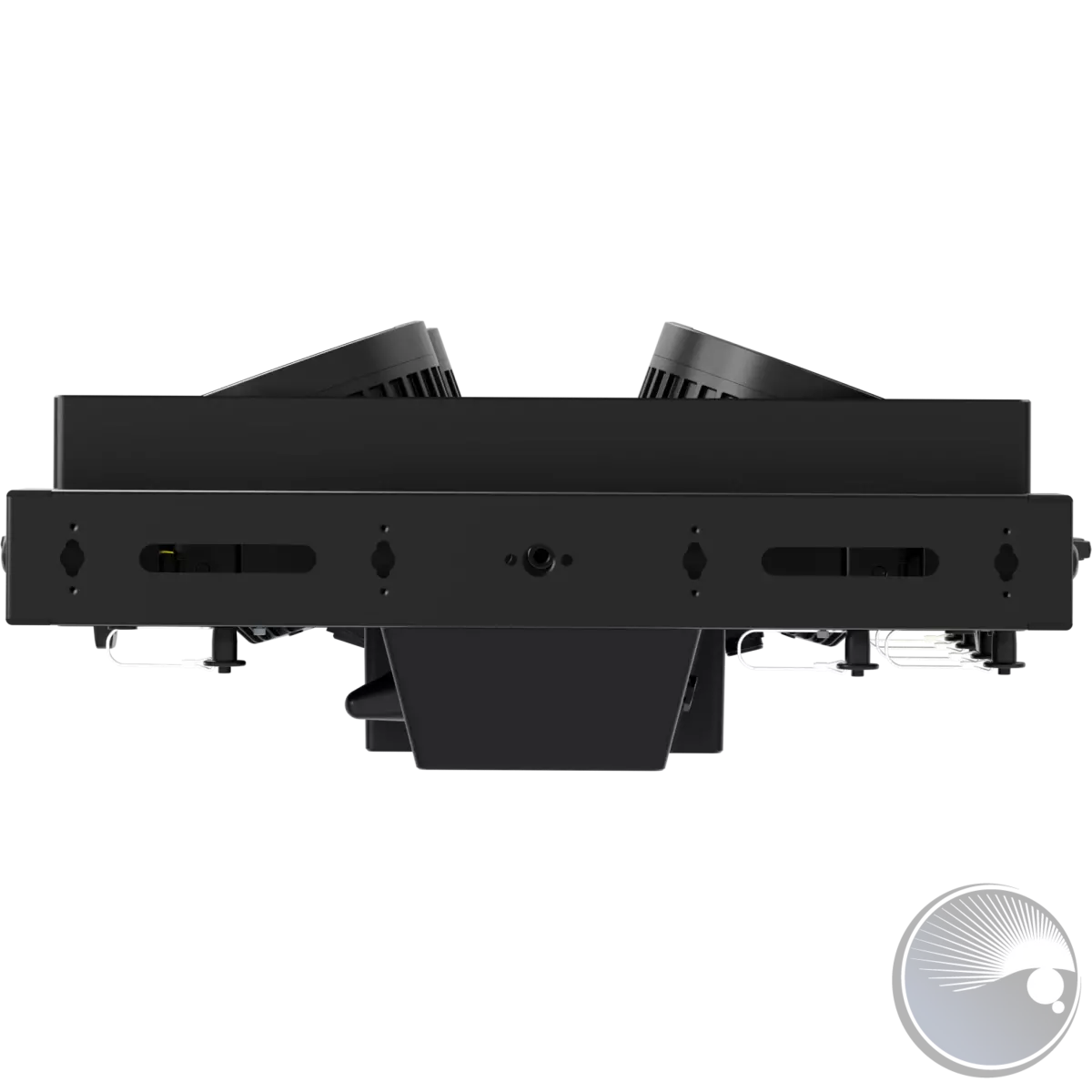

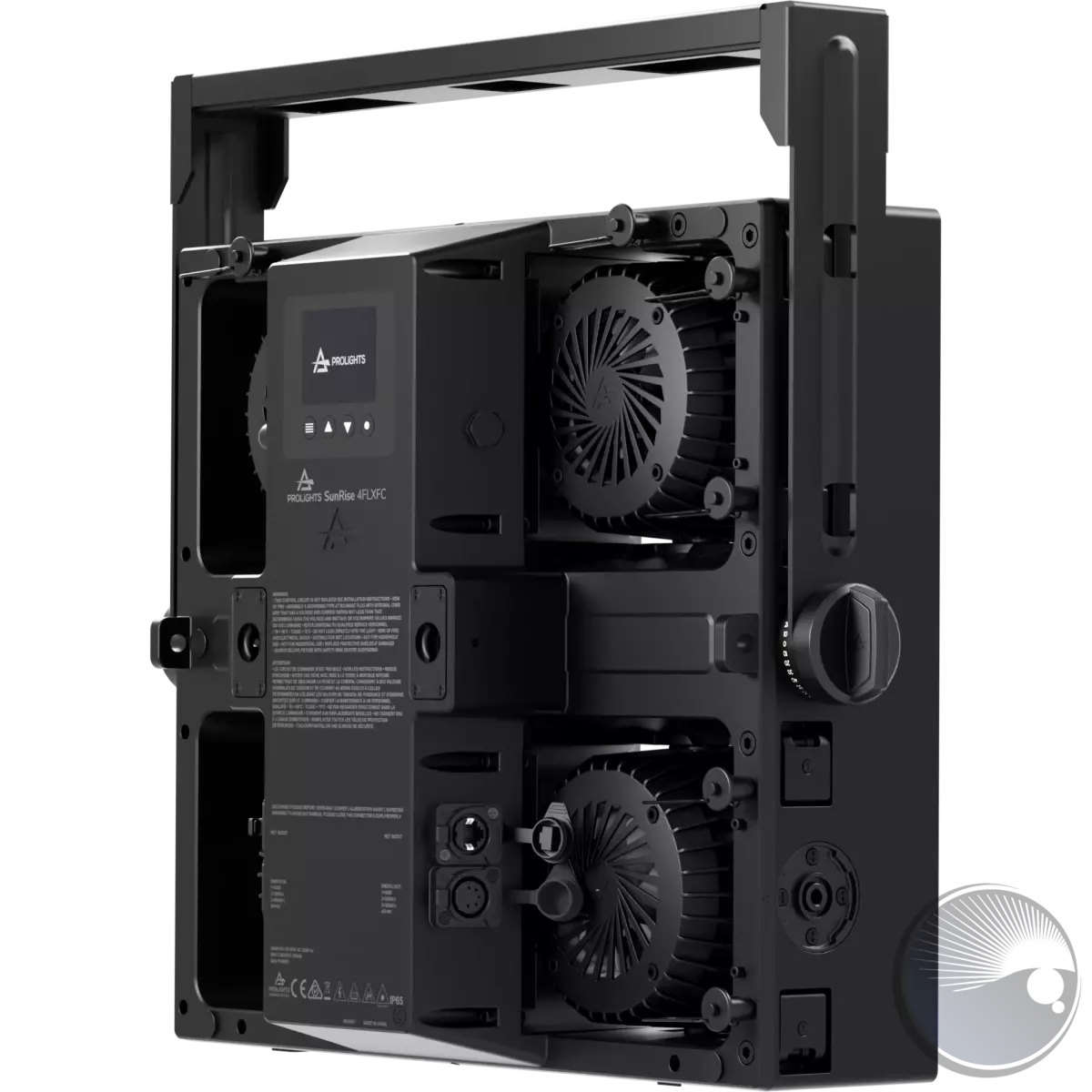

SunRise 4FLXFC

SunRise 4FLXFC reimagines the classic 4-lite blinder as a powerful, colorful LED fixture with IP65-rated protection for reliable indoor and outdoor use.Full-colour intensity when you need it, and that authentic tungsten glow as it fades.Powered by 4 independent 300 W RGBWW + Amber pods, it delivers over 59'000 lumens with high-CRI CCT and smooth dim-to-warm fidelity. Each pod offers ±20° manual pan, so you can shape the beam exactly where it matters.Featuring the proven FLX modular mechanics, SunRise 4FLXFC is engineered for speed on site. The rugged die-cast magnesium housing and tool-free, fast-lock rigging let fixtures snap together horizontally, vertically, or in mixed-axis arrays. Build lines, matrices, or full colour walls in minutes, on the floor or flown with the included cam-lock yoke.From sweeping audience blinders and arena-filling pixels, to wide and even stage washes, SunRise 4FLXFC is designed to deliver maximum impact with true modular freedom.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 4 x 300W RGBWW + Amber LED
• Luminous flux: 59'378 @Full
• Lux: 2'469lx @5 m full
• CRI: 94,4 @ 3200K; 92,3 @ 5600K
• R9: 96,3 @ 3200K; 96,2 @ 5600K
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Beam angle: 55°
• Field angle: 98°

COLOUR SYSTEM

• Spektra OS: unmatched color precision and consistency
• Colour mixing: RGBA + Warm White
• CCT: CCT control, + / - green correction, tungsten emulation
• White presets: 2.700 K ~ 10.000K

DYNAMIC EFFECTS

• Static mode: selection of static dimmer and color temperature
• Manual mode: manual adjustment of colour
• Special features: tungsten emulation activation

BODY

• Bracket system: Several brackets available for simply array mounting - see available accessories
• Hardware on-board: fast ancor points on the front for accessory mounting and on board mechanics for modular assembly of multiple fixtures
• Pan range: +/- 20° with manual regulation
• Body: Weatherproof IP65 construction with die-cast magnesium alloy
• Body colour: black
• Other: pan directional adjustment for each pod

CONTROL

• Supported Protocols: DMX512, RDM, ArtNet, sACN (IGMP v2), CRMX (optional)
• DMX channels: several DMX modes from 1 ch to 56channel
• Modular Control Architecture (MCA): Modular and user-customizable DMX architecture
• Pixel control: pixel2pixel control
• Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included) or via Ethernet (Art-Net with DMX-Workshop)
• EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 6 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 1000 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 1'260W
• Standby power: 23 W
• Output (at 230V): 2 units on a single power line
• Power factor: > 0,94

PHYSICAL

• IP rating: IP65 for temporary outdoor application, not for fixed installations
• Cooling: active, silent operation
• Suspension and fixing: hanging bracket for floor stand. Also can fit the fast quick lock OMEGA bracket
• Signal connection: Seetronic XLR 5p IN/OUT connectors
• Data connection: Seetronic IP65 Art-Net RJ45 IN/OUT
• Power connection: Seetronic powerCON waterproof IN connector
• Dimensions (WxHxD): 542x489x191mm / 21.34''x19.25''x7.52''
• Weight: 15,9kg / 35.05lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM

BOX CONTENT

• 1 x SUNRISE4FLXFC
• 1 x SNR4FLXBRKS
• 1 x OS25PLUS
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• User Manual
