PL EclProfile FS, RGBL, schwarz, ohne Linsentubus

EclProfile FS is a full colour elipsoidal LED, designed to deliver a full range of pastels, saturates and whites, both with or without gobos. The EclProfile FS' RGB + Lime LED engine has been specially engineered to provide a full spectrum and full output in the most discerning environments, regardless of which role the EclProfile FS is playing.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

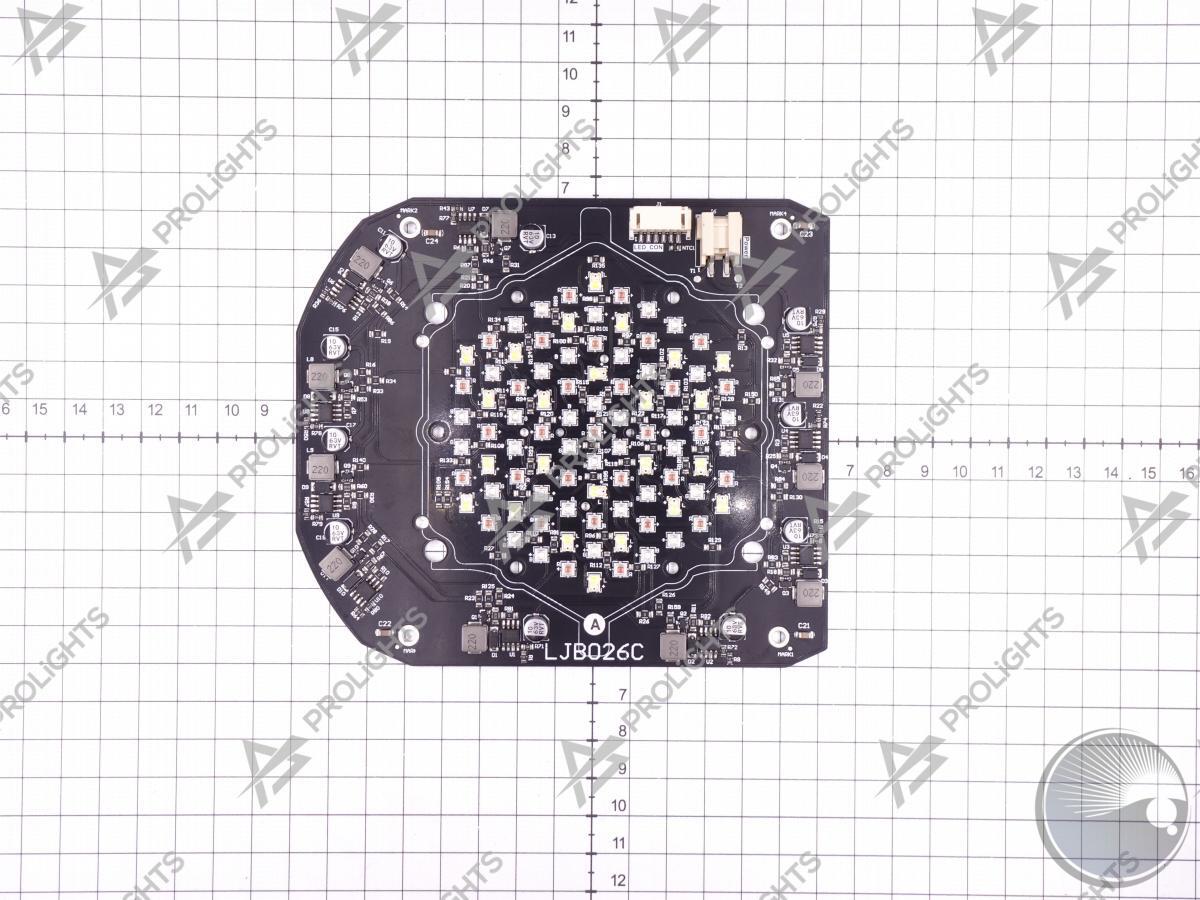

• Source: 91x3W RGB + lime LEDs
• CCT: @full 5.000
• Luminous flux: (5°) TBD; (10°) TBD; (14°) 4'619 lm; (19°) 5'133 lm; (26°) 6'100 lm; (36°) 5'970 lm; (50°) 5'596 lm; (70°) TBD @Full
• Lux: (5°) TBD; (10°) TBD; (14°) 4'321 lx; (19°) 2'567 lx; (26°) 1'711 lx; (36°) 873 lx; (50°) 462 lx; (70°) TBDlx @5 m full
• CRI: 86 @3.200 K; 85 @5.600 K
• TLCI: 82 @5.600 K
• TM30 Rf: 84 @3.200 K
• TM30 Rg: 109 @3.200 K
• Source life expectancy: > 50.000 h

OPTICS

• Lens type: high-quality glass lens optics
• Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50
• Focus: manual

COLOUR SYSTEM

• Colour mixing: RGB + lime / full colour
• CCT: CCT control through dedicated DMX channel
• White presets: 2.700 K ~ 10.000K
• Colour wheel: virtual colour wheel with macros
• Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

• Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
• Static mode: selection of static colour
• Manual mode: manual adjustment of colour
• Auto mode: built-in programs with execution speed adjustment
• Special features: different presets for fan mode and output management
• Other: automatic software colour balance when fixture warms up - linear crossfade from a white to any color and virtual CTO app

BODY

• Body: Sturdy die-cast aluminium body
• Body colour: black

CONTROL

• Supported Protocols: DMX512, RDM
• DMX channels: 1 / 2 / 3RGB / 4RGBL / 5RGBL / 3 / 4 / 5 / 8 / 13 ch - Tungsten / 3.200 K / 5.400 K / 6.500 Kchannel
• RDM: RDM for remote monitoring and settings

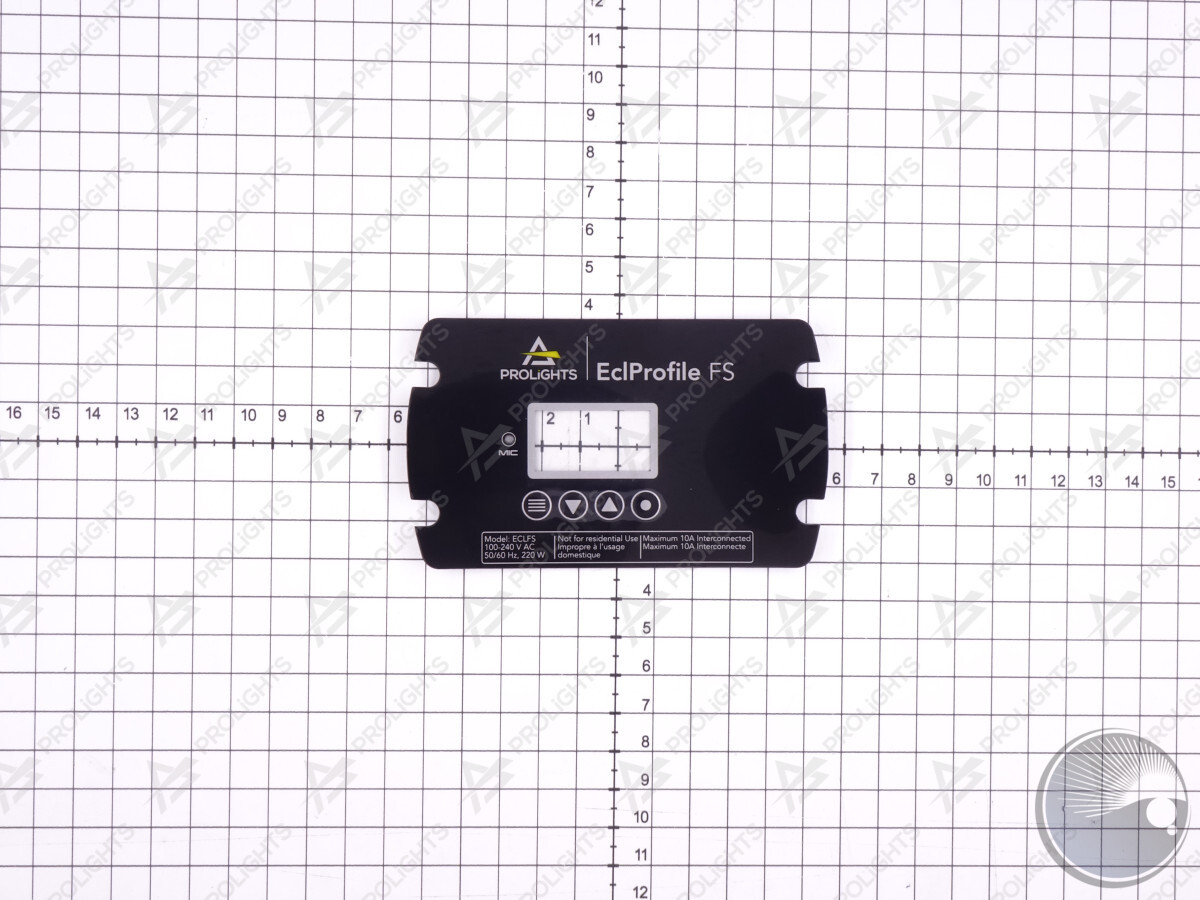

• Display: Graphic User Interface
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Strobe / shutter: 1 - 25 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -20° ~ +45° Ta
• LED Control: flicker free operation
• Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 220W
• Standby power: 5 W
• Output (at 230V): 10 units on a single power line
• Power factor: > 0,95

PHYSICAL

• IP rating: IP20
• Cooling: low noise fan

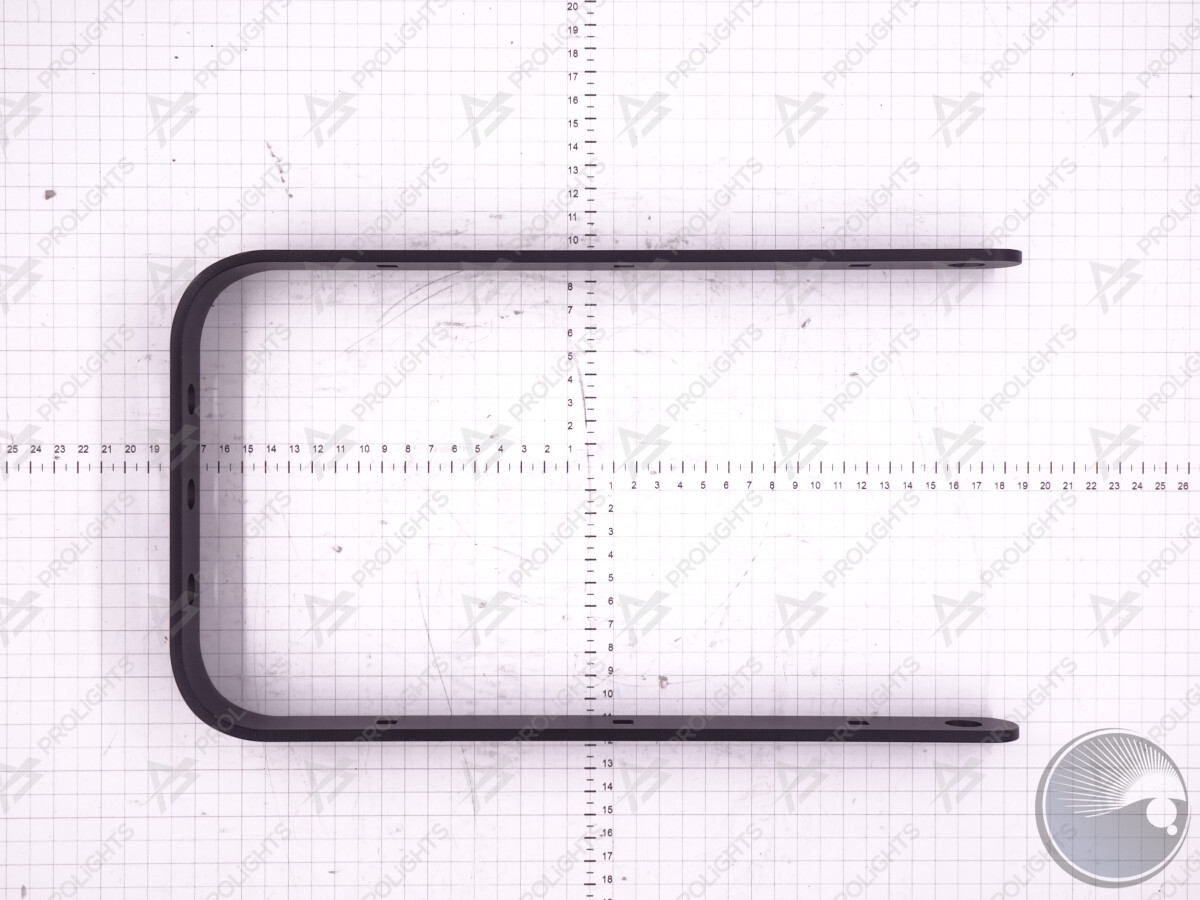

• Suspension and fixing: bracket for hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
• Dimensions (WxHxD): 265x259x540mm / 10.43''x10.2''x21.26''
• Weight: 7,3kg / 16.09lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

• 1 x ECLFS
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65 power connector)
• User Manual
