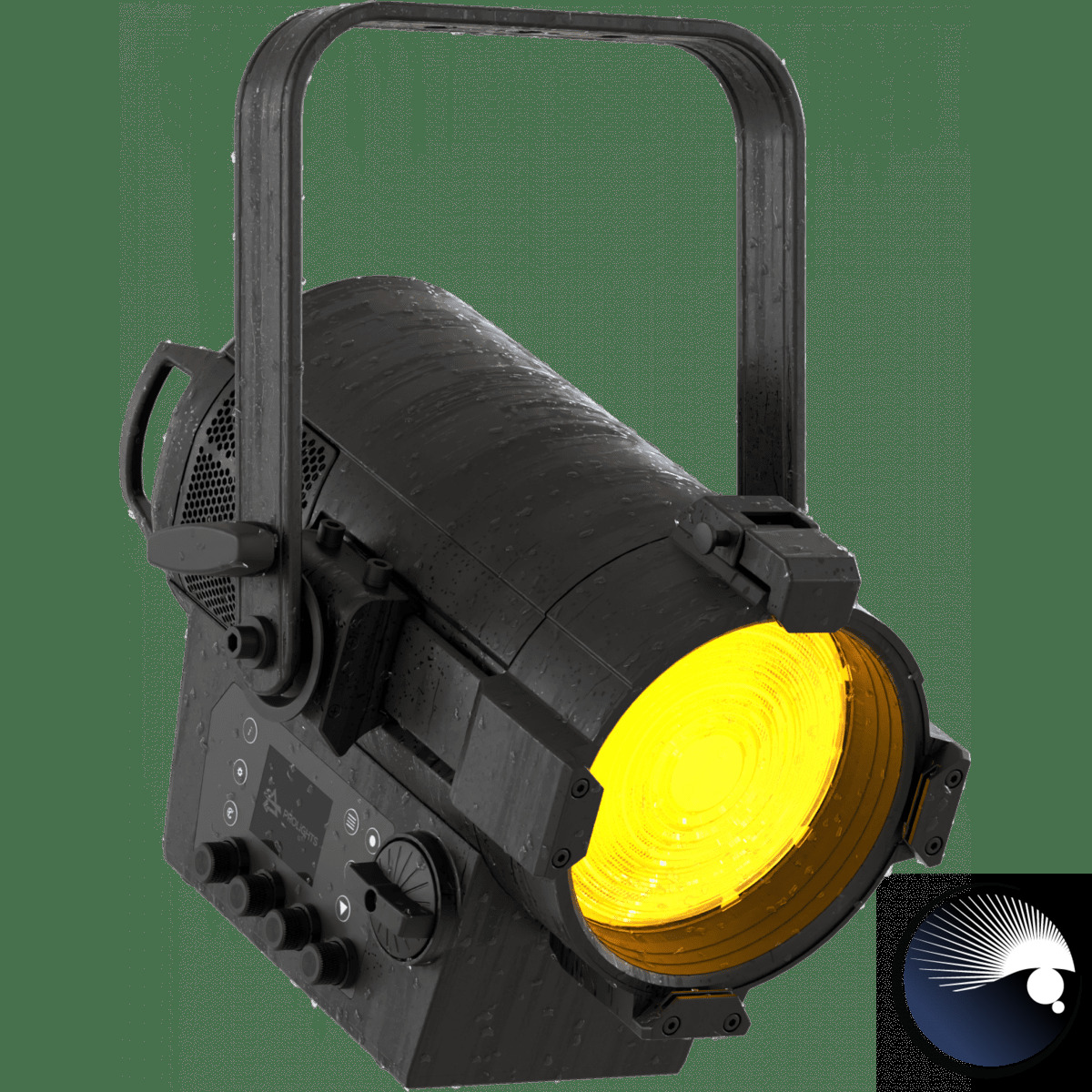

PL EclFresnel CT+ S IP, 250W 6-Farb-LED, 2800K-10.000K, IP65

EclFresnel CT+SIP is a 200W LED Fresnel, engineered with a new 6 colours light source and  a 150mm / 6'' glass Fresnel lens. Being IP65 rated, the unit is both water and dust resistant ensuring safe application in any set or extreme locations, keeping lightweight and not scaling up in sizes.The newly designed optical system allows a greater zoom range from 9° to 73°, keeping and high efficiency also at a narrow beam angle.The Spektra calibrated light source delivers consistency in operations, higher luminous flux in both colours and whites CCT keeping a broader color space and richer light spectrum to achieve unprecedented values of CRI, TLCI and TM30. Fixtures of the EclFresnel CT+ range brings more power in their processing unit, offering an ultimate user experience in terms of  control of the light and colours and as well more intuitive stand alone operations through a larger display, backlight encoders,  and advanced connectivity both wired and wireless.Completed by a wide range of accessories including 8 leaf barndoors and P.O. bracket, the EclFresnel CT+ also performs silent, allowing to be the indispensable workhorse for Broadcast, Film and Theatre applications.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Light source: Proprietary source manufactured by PROLIGHTS
• Source: 200W 6 colour LEDs source
• Luminous flux: (9,7°) 1'922 lm - (73,5°) 4'795 @4.000 K
• Lux: (9,7°) 2'270 lx - (73,5°) 286lx @5m 4.000 K
• CRI: 96,6 @3.200K; 97 @5.600 K
• R9: 87 @3200K; 96 @5.600 K
• TLCI: 87 @3200K; 94 @5.600 K
• TM30 Rf: > 94 @3.200K; > 94 @5.600 K
• TM30 Rg: < 101 @3.200K; < 102 @5.600 K
• Source life expectancy: > 50.000 h

OPTICS

• Zoom range: 9,7° - 73,5° manual
• Lens diameter: 6'' / 150mm / 0.24''
• Lens type: Fresnel glass lens with AR coating
• Lens effect: Glass Fresnel lens providing a classic light fall-off
• Additional optics: PC lens available as accessory
• Other: spigot, barndoor and gel frame included

COLOUR SYSTEM

• Colour control: XY, CCT, Gel with Source Emulation, Tungsten emulation, HSI, User preset
• Colour mixing: 6 colour LEDs source
• CCT: Linear CCT adjustment from 1.850 K-20.000K

BODY

• Bracket system: Sliding bracket for adjustable weight balance
• Hardware on-board: filter frame, 8 doors barndoor, spigot
• Body: Weatherproof IP65 construction with die-cast magnesium alloy
• Body colour: RAL 9004
• Other: Strengthened zoom movement system for enhanced durability and stability

CONTROL

• Supported Protocols: DMX512, RDM, CRMX
• Stand Alone: 4 pushable RGB backlit encoder
• Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and W-DMX, Bluetooth capable
• RDM: RDM for remote monitoring and settings
• Display: 2.4'' Color display
• Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 6 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -20° ~ +45° Ta
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 1282 ~ 40.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Low Voltage DC mains: 48V
• Max power consumption: 200W
• Output (at 230V): 17 units on a single power line
• Power factor: > 0,94

PHYSICAL

• IP rating: IP65 for temporary outdoor use (*)
• Cooling: combination of heat pipe cooling system and low noise fan
• Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
• Data connection: IP65 WEIPU SF12 4P-F
• Power connection: Seetronic powerCON TRUE IP65 IN/OUT
• Low Voltage DC connector: XLR 3p for 48V
• Dimensions (WxHxD): 286x513x356mm / 11.26''x20.2''x14.02''
• Weight: 7,6kg / 16.76lbs

(*)

• NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM, FCC, cTUVus

BOX CONTENT

• 1 x ECLFRCTPSIP
• 1 x ECLFRSPG
• 1 x ECLFRCTPSFF
• 1 x ECLFRCTPSBD
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• 1 x User Manual
