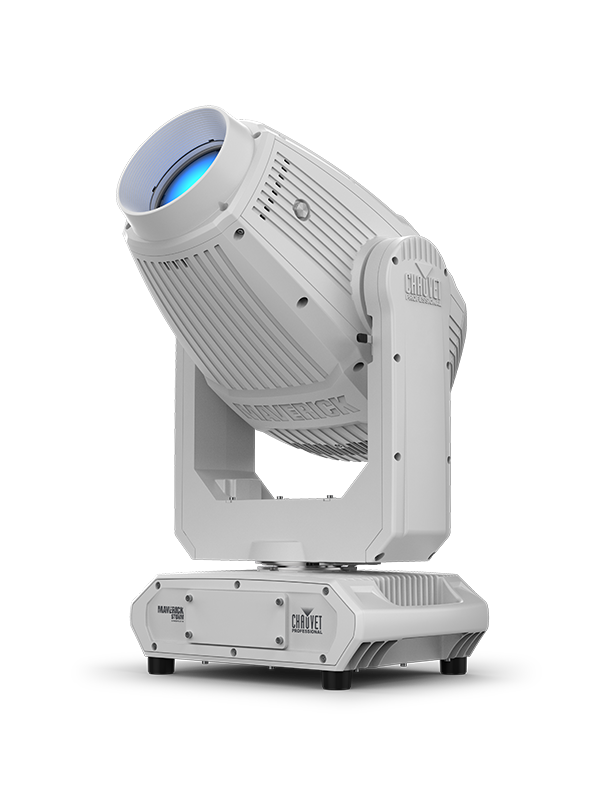

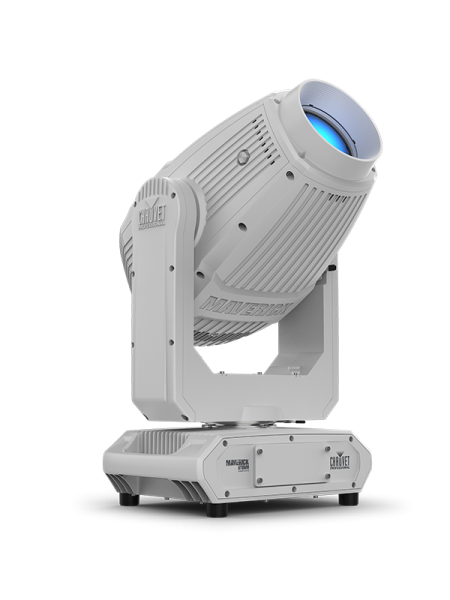

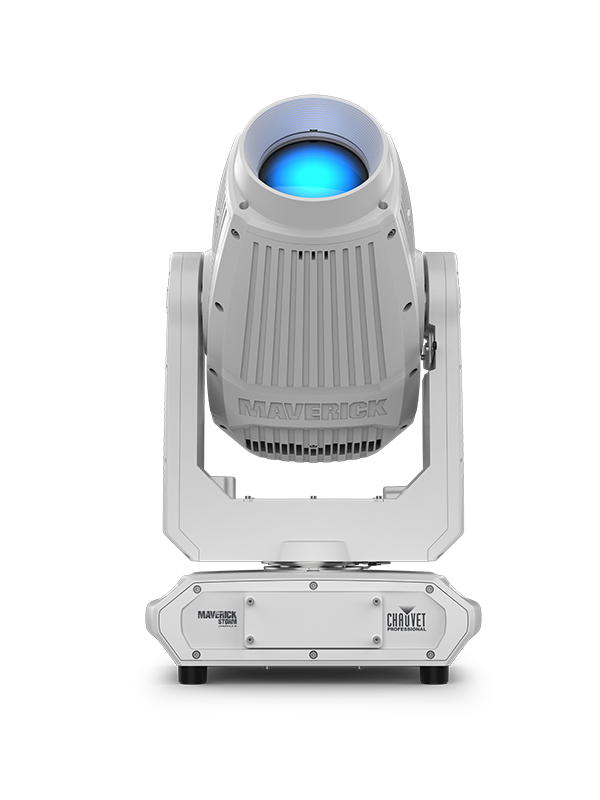

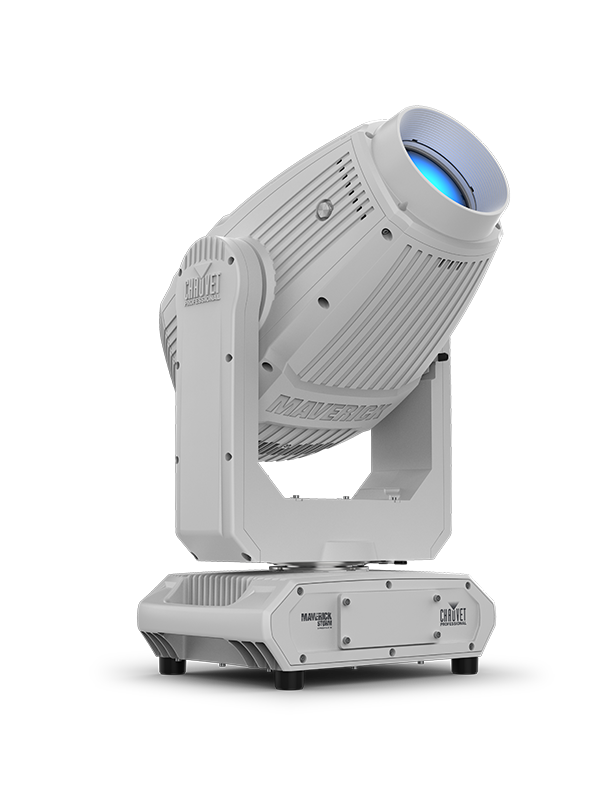

Maverick Storm 2 Profile M (IP65 rated)
inkl. MwSt. zzgl. Versandkosten
Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.
- Artikel-Nr.: MAVERICKSTORM2PROFILEM
At a Glance
Fully featured, compact and lightweight IP66 580 W LED yoke profile fixture including CMY + CTO color mixing, a 4-blade framing shutter system with rotation, a color wheel, 10:1 zoom, a 5-facet prism wheel, 1 rotating and 1 static gobo wheel, integrated sun shield
C5M Paint application process and full aluminum construction for extended outdoor usage in and near marine environments
Included display cover for extended outdoor usage in and near marine environments
Stainless steel gland nuts for extended outdoor usage in and near marine environments
16-bit dimming of master dimmer for smooth control of fades
Variable CMY + CTO color mixing system to create a wide pallet of colors
CRI and CTB filters on color wheel for added flexibility
One rotating, indexing and interchangeable slot and lock gobo wheel
One rotating static gobo wheel
RDM control over DMX for fixture reporting
5.8° to 56.1° zoom range for variable beam sizes
Iris, 5-facet prism and frost for beam control
True 1 compatible power input
Integrated sun shield for protecting the optical path from sunlight when the fixture is off
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
Battery backup display with auto-rotate depending on fixture orientation
Specifications
Optical
- Light Source: 1 LEDs (CW) 588 W, (4.6 A), 7500 K, 50,000 hours life expectancy
- Color Temperature (at full): 7,242 K
- CRI: 71.4
- CRI with CRI Filter: 90.3
- Front Lens Diameter: 127 mm
- Beam Angle: 6° to 42°
- Field Angle: 7.1° to 54.1°
- Cutoff Angle 7.7° to 56.5°
- Zoom Range: 6° to 54.1°
- Lumens – Source: 43,500
- Lumens – Output: 25,840
- Illuminance (6°) 70,007 lux @ 5 m
- Illuminance (54.1°) 2,624 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
- Colors: CMY flags, CTO flag
- Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 9 + open (glass), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
- Framing Shutters: 4 Blades, each with dual axis movement, Full blackout.
- Framing Shutter rotation: +/- 60° rotation.
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Focus: Motorized
- Frost: Motorized
- Iris: Motorized
- Prism: 5 Facets, motorized, rotating
- Strobe Rate: 0 to 20 Hz
- Move-in-Black: Yes
- Dim Curves: 4
Construction / Physical
- Dimensions: 9.92 x 15.28 x 27.52 in (252 x 388 x 699 mm)
- Weight: 70.2 lb (31.9 kg)
- Exterior Color: C5M rated (White)
- Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel

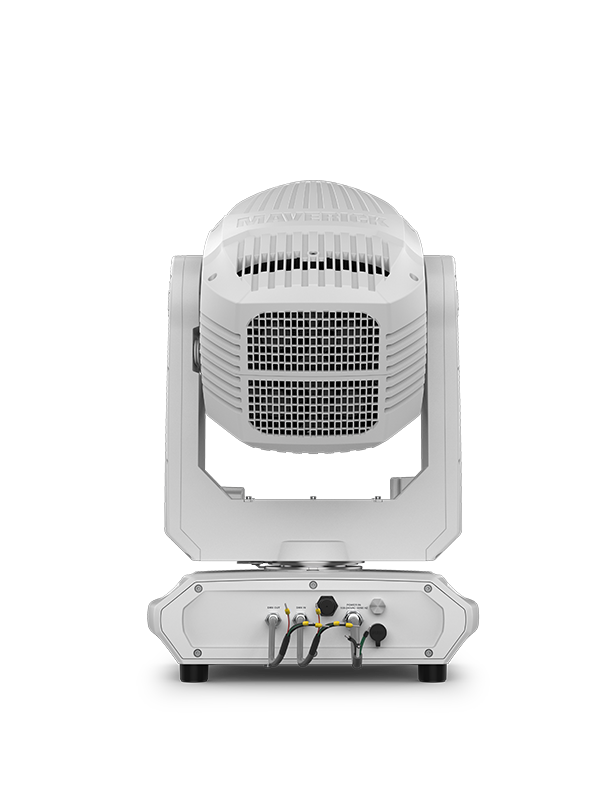

Connections
- Power Connection: Termination-ready bare-ended
- Power Input: proprietary IP65
- Data Connection: bare wired to proprietary IP65 input cable
- Data input/output: Termination-ready bare-ended
- Cable Length (power input): 5 ft (1.5 m)
- Cable Length (hardwire connection): 6.6 ft (2 m)
- Cable Length (signal in/out): 5 ft (1.5 m)
- Cable Length (signal hardwire connection): 6.6 ft (2 m)
Control
- Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
- DMX Channels: 32 or 48
- Art-Net Channels: 32 or 48
- Modes/Personalities: 2 personalities (32, 48)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 800 W, 8.20 A @ 100 V, 60 Hz
- Power and Current: 800 W, 6.82 A @ 120 V, 60 Hz
- Power and Current: 779 W, 3.77 A @ 208 V, 60 Hz
- Power and Current: 763 W, 3.41 A @ 230 V, 50 Hz
- Power and Current: 767 W, 3.34 A @ 240 V, 50 Hz
- Breaker Size: F15 A, 250 V
Certifications / Qualifications
- CE, MET, FCC
- IP Rating: IP66, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
- Temperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)
What's Included
- Maverick Storm 2 Profile (Marine)
- Omega bracket with mounting hardware ( 2 Allen Key bolts)
- Display cover
Optional Accessories
- Professional Clamps : CTC-50HC, CTC-50HCN
- Safety Cable: SC-08
- DMX Cables
- IP Rated Seetronic® Powerkon Extensions
- UPLOAD 08 software uploader
- Micro T-1 TRX G5 WDMX Transceiver
- FLIGHT CASE TBA
