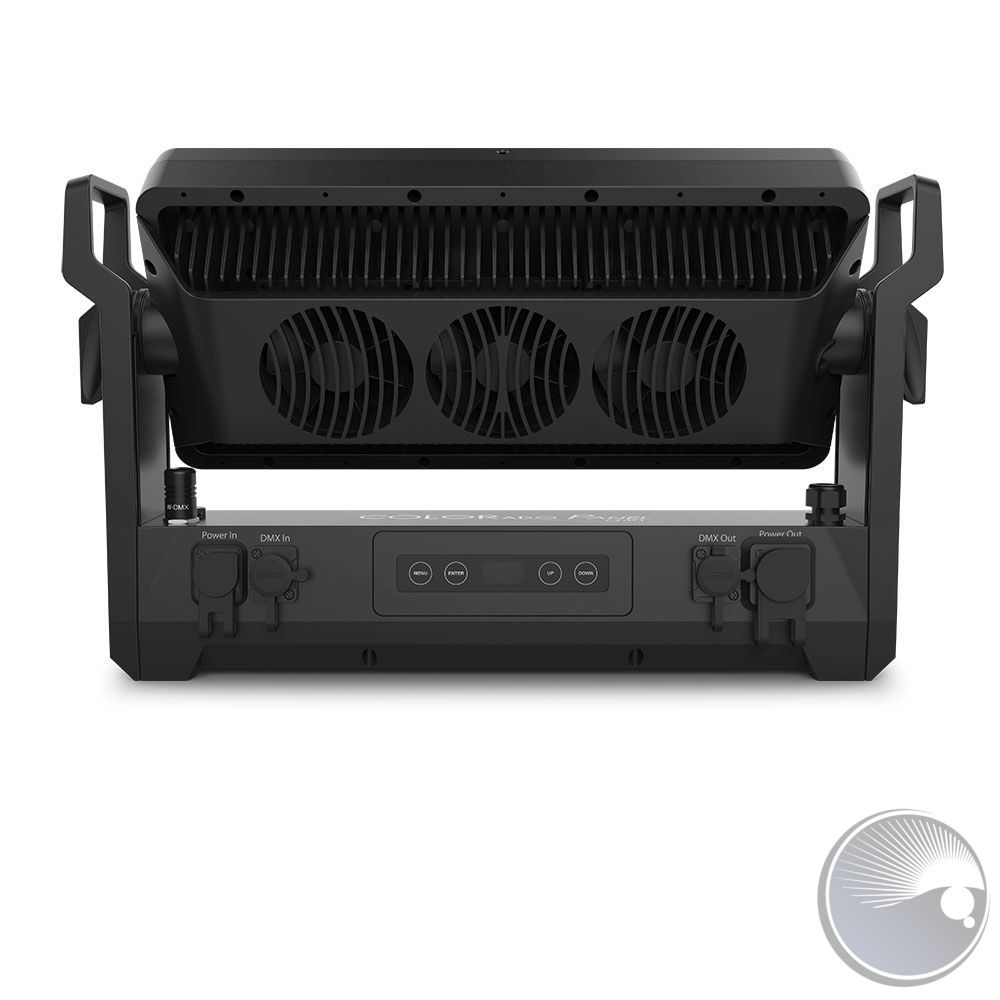

COLORado Panel Q40

Auf Anfrage!

  • COLORADOPANELQ40
COLORado  Panel Q40 COLORado Panel Q40 is a powerful IP65-rated rectangular wash light... mehr
Produktinformationen "COLORado Panel Q40"

COLORado Panel Q40

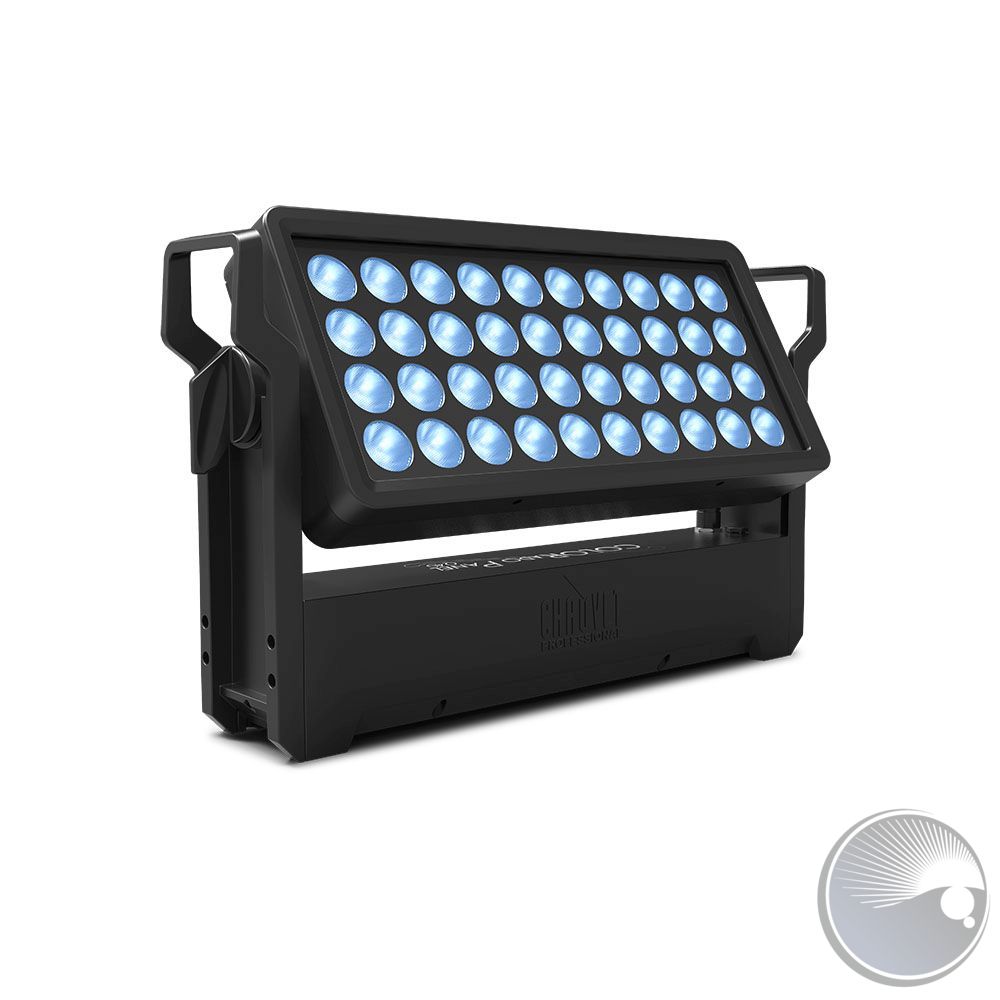

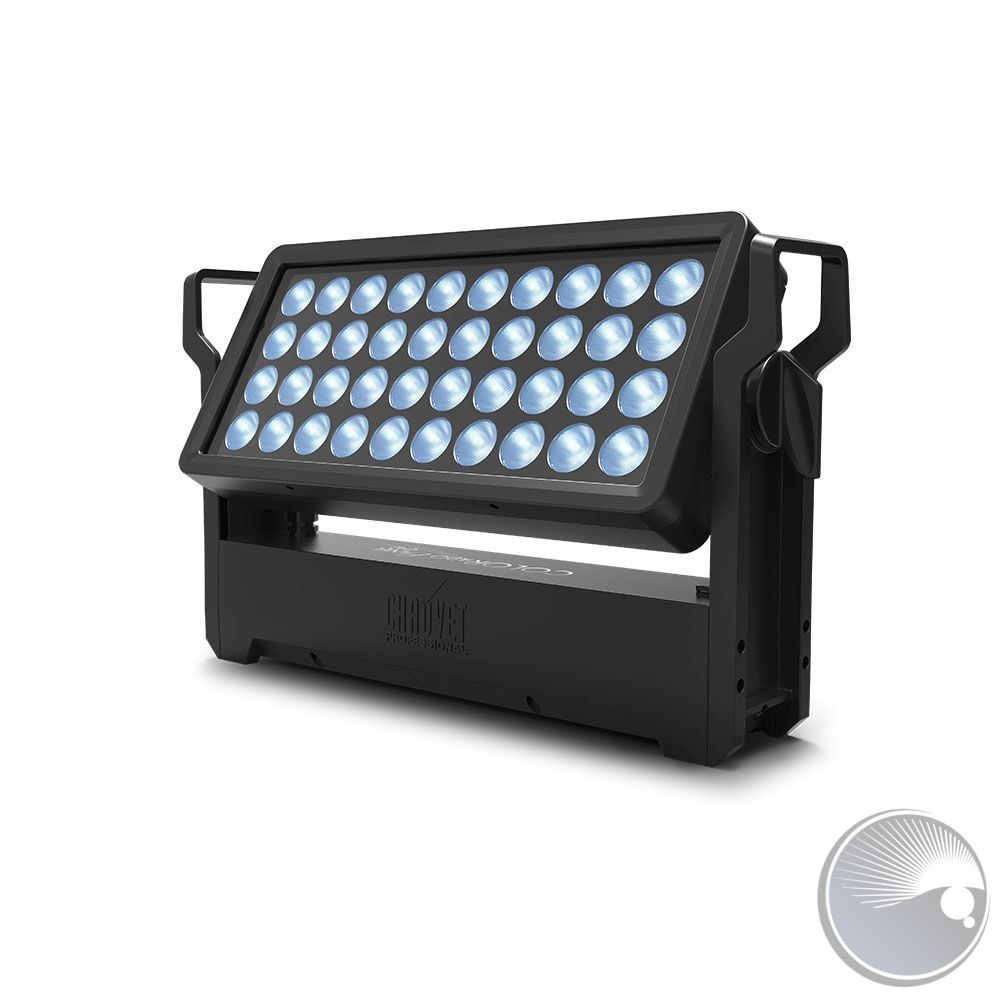

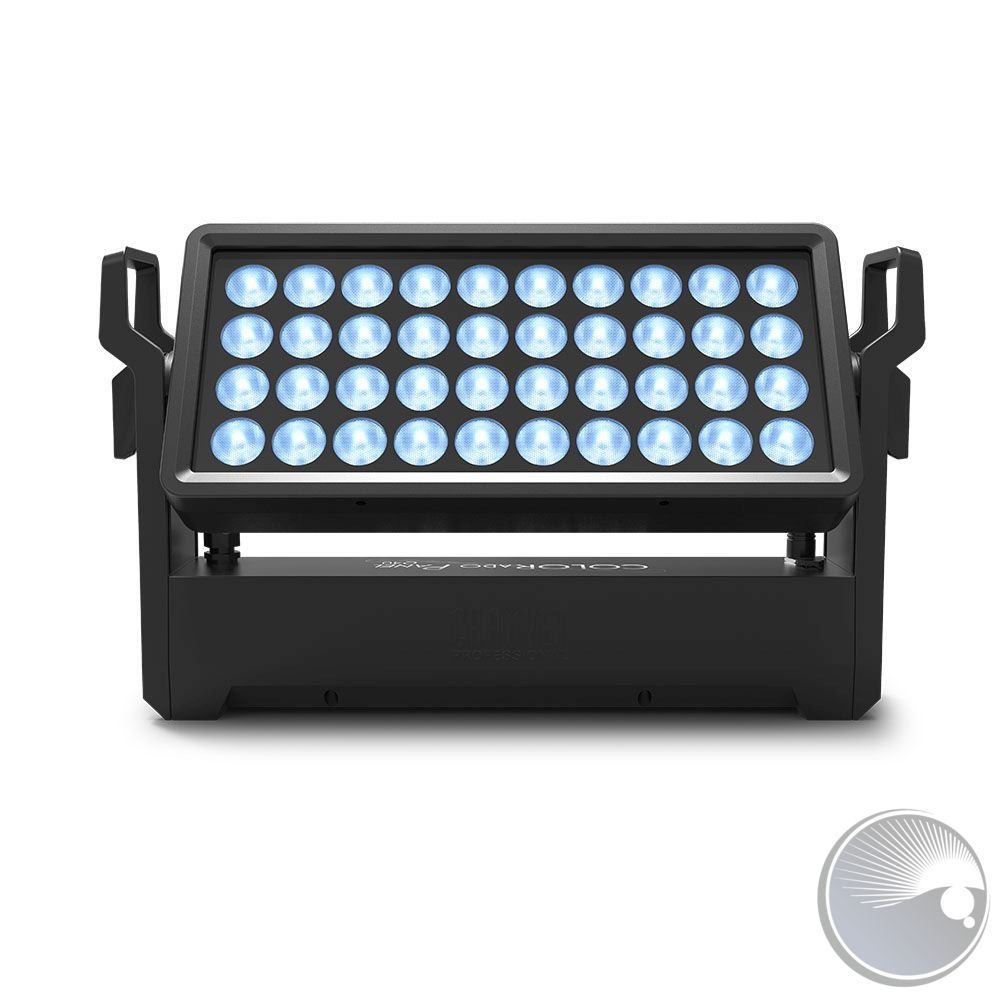

COLORado Panel Q40 is a powerful IP65-rated rectangular wash light that features 40 15 W RGBW LEDs capable of flawless edge-to-edge color mixing. This rugged indoor/outdoor unit can be manipulated through adjustable beam angles and includes a magnetic flood filter to produce a wider, but still even area wash. Its outdoor rated power and data connectors allow for easy connections without propriety cabling. Control it as you see fit with W-DMX and RDM.



AT A GLANCE

  • Rugged RGBW LED wash for events where indoor/outdoor flexibility is needed

  • Superior edge-to-edge color mixing

  • At home in any weather conditions with IP rated power and DMX connections

  • Included magnetic flood filter for wide area wash

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • WDMX & RDM (Remote Device Management) for added flexibility

  • Selectable, smooth dimming curves to eliminate flicker and choppiness in fades

  • Easy to read OLED display with password protection and touchscreen interface

  • Advanced optics provide exceptional color mixing and high efficiency

  • Included omega bracket for quick and easy truss/pipe mounting

SPECIFICATIONS

OPTICAL

  • Light Source: 40 LEDs (quad-color RGBW) 15 W, (970 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Installed Optics: 15°
  • Beam Angle (w/o filter): 20.4°
  • Beam Angle (w/filter): 24.6°
  • Field Angle (w/o filter): 33.8°
  • Field Angle (w/ filter): 50.4°
  • Lumens: 29,407
  • Lumens (w/filter): 17,992
  • Illuminance (w/o filter): 8,347 lux @ 5 m
  • Illuminance (w/ filter): 2,590 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Tilt Ranges: 0° to 150°
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 27 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 20.27 x 7.71 x 11.96 in (515 x 196 x 304 mm)
  • Weight: 28.2 lb (12.8 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast
  • Filter Size: 16.75 x 8 in (425.45 x 203.2 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, W-DMX, RDM
  • DMX Channels: 4, 7, 11, 16 or 22
  • Modes/Personalities: 5 personalities (4ch, 7ch, 11ch, 16ch, 23ch)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
  • Power and Current: 566 W, 4.729 A @ 120 V, 60 Hz
  • Power and Current: 559 W, 2.701 A @ 208 V, 60 Hz
  • Power and Current: 560 W, 2.439 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • Seetronic Powerkon IP65 power cord
  • Color Blending Filter lens
  • Omega bracket with mounting hardware

OPTIONAL ACCESSORIES

Weiterführende Links zu "COLORado Panel Q40"

5 pin XLR IP connecter(M) (BOM#30)PTF11000004645 pin XLR IP connecter(M) (BOM#30)
Power socket Assembly (out) (BOM#26)PTF1100000468Power socket Assembly (out) (BOM#26)
waterproof power socket (BOM#24)PTF1100000469waterproof power socket (BOM#24)
Pressure valve (BOM#18)PTF1491700004Pressure valve (BOM#18)
Power cord (BOM#41)PTFX20147Power cord (BOM#41)
140Dmm OMEGA BRACKET (BOM#34)PTH1040000230891140Dmm OMEGA BRACKET (BOM#34)
Locking Washer for Fast LockPTH152000222Locking Washer for Fast Lock
wireless pcb A40895G4-R_GPTH2020303265531wireless pcb A40895G4-R_G

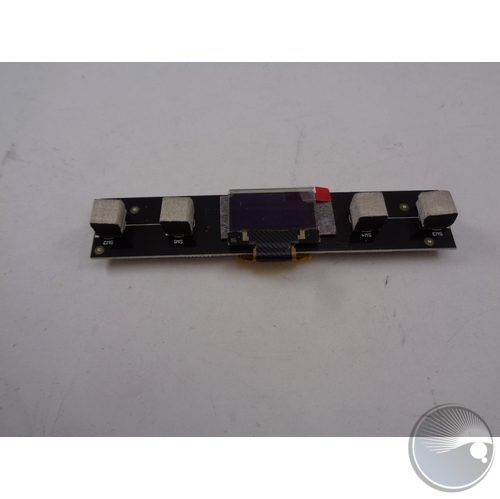

DISPLAY PCB (BOM#37)PTJ2020202553DISPLAY PCB (BOM#37)
PTJ2020202555AMPCB (BOM#26)

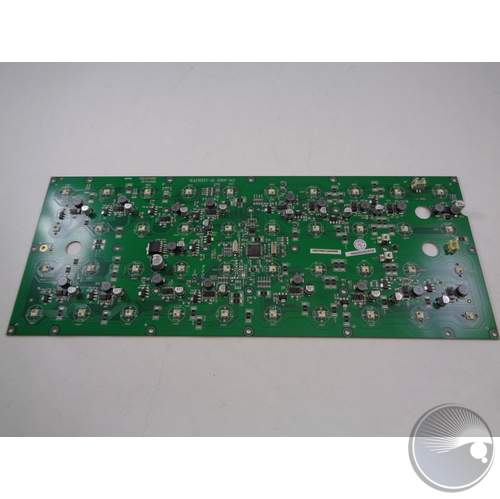

PTJ2020202558LED PCB (BOM#8)

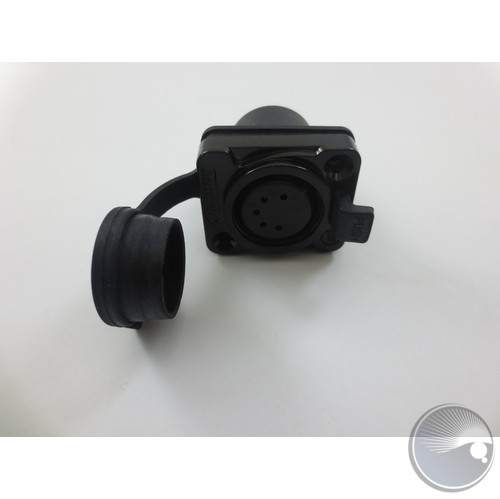

5-pin XLR IP connecter (F) with cover *26.6mm* (BOM#19)PTJ20202026015-pin XLR IP connecter (F) with cover *26.6mm* (BOM#19)

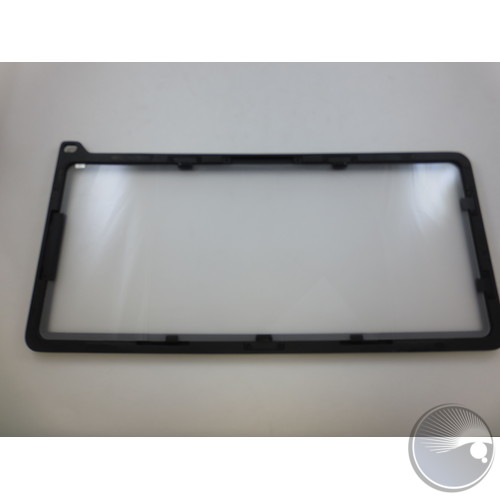

COLOR-BLENDING FILTER/LENS ASSEMBLYPTJ2030100139COLOR-BLENDING FILTER/LENS ASSEMBLY

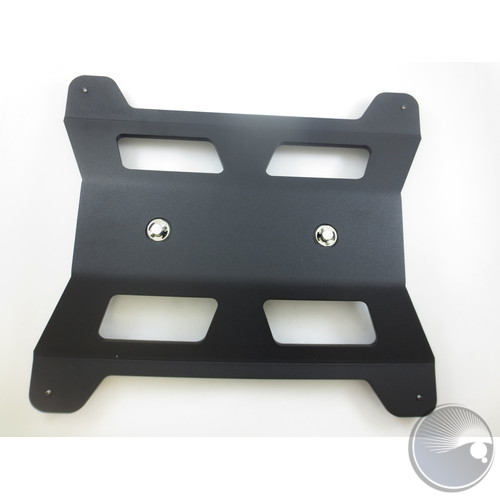

STAND BRACKET ASSEMBLYPTJ2030100174STAND BRACKET ASSEMBLY

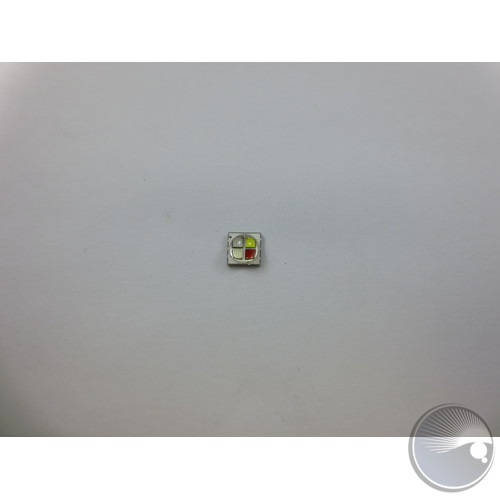

SINGLE LEDPTJ3010500092SINGLE LED

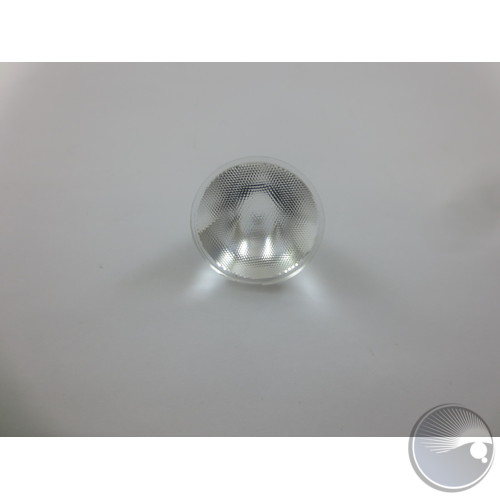

LENS (BOM#4)PTJ3020100420LENS (BOM#4)

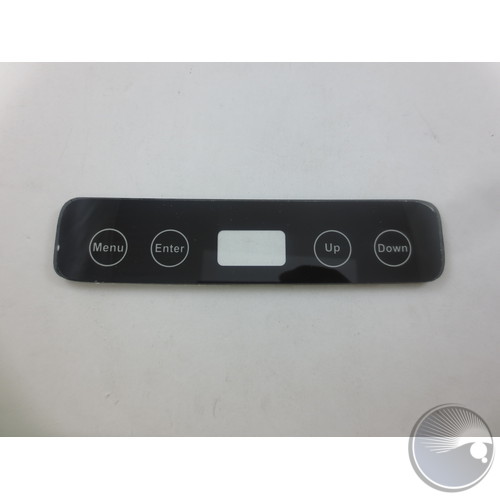

FRONT GLASS (BOM#22)PTJ3020200335FRONT GLASS (BOM#22)

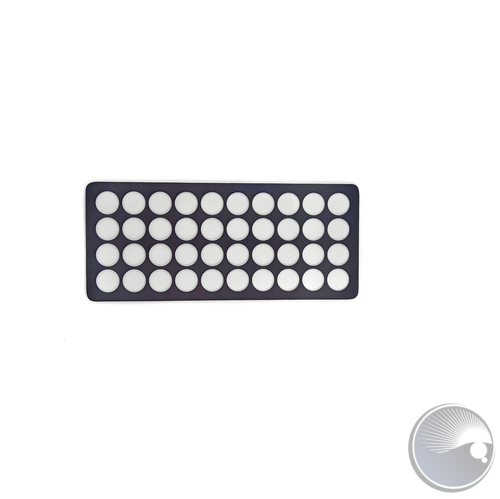

FRONT GLASS USE ON LENS COVER (BOM#3)PTJ3020200341FRONT GLASS USE ON LENS COVER (BOM#3)

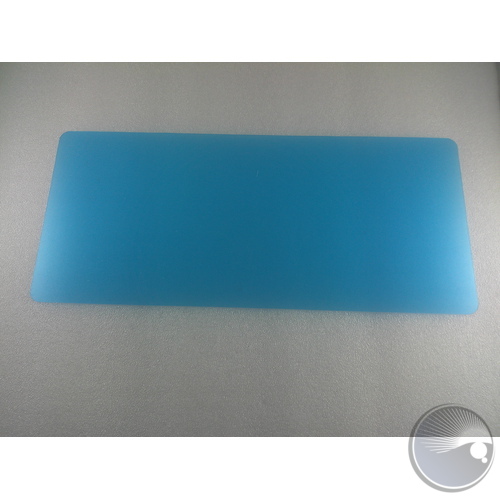

PTJ3020300384Opaque filter Non Clear

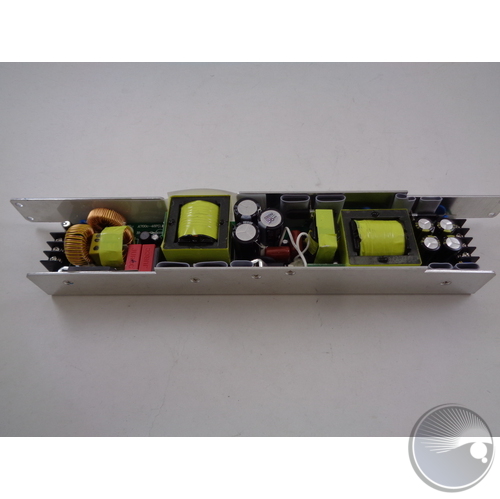

PTJ3020400289POWER SUPPLY (BOM#28)
PTJ3021300014DISPLAY CUSHION RUBBER (BOM#23)

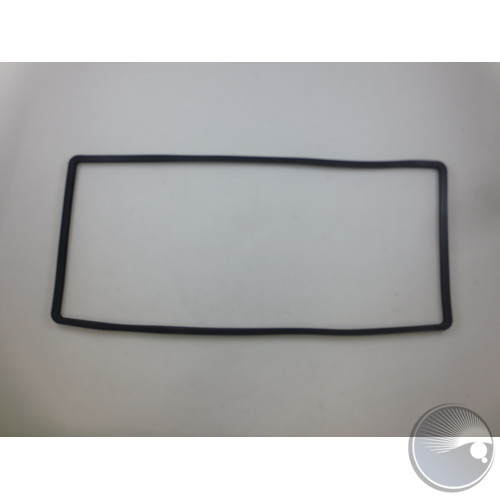

CUSHION RUBBER FOR FRONT COVER (BOM#4)PTJ3021300183CUSHION RUBBER FOR FRONT COVER (BOM#4)

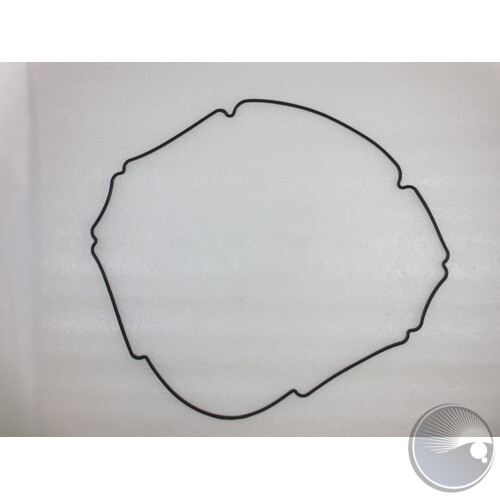

CUSHION RUBBER FOR HOUSING (BOM#29)PTJ3021300184CUSHION RUBBER FOR HOUSING (BOM#29)

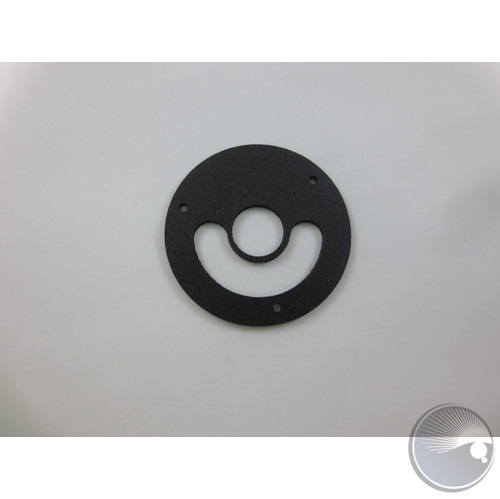

SILICON GASKET FOR HOUSING (BOM#12)PTJ3021300185SILICON GASKET FOR HOUSING (BOM#12)

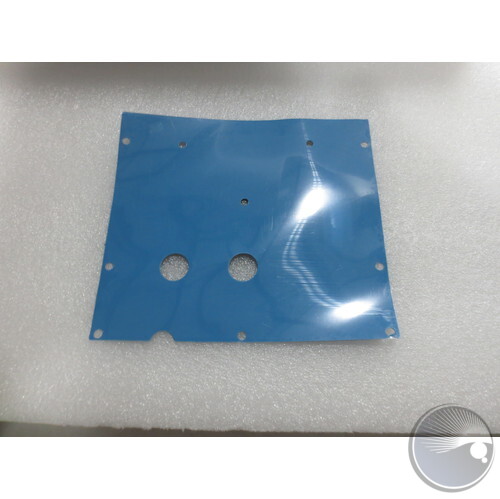

LED insulation pad 1PTJ3021500151LED insulation pad 1

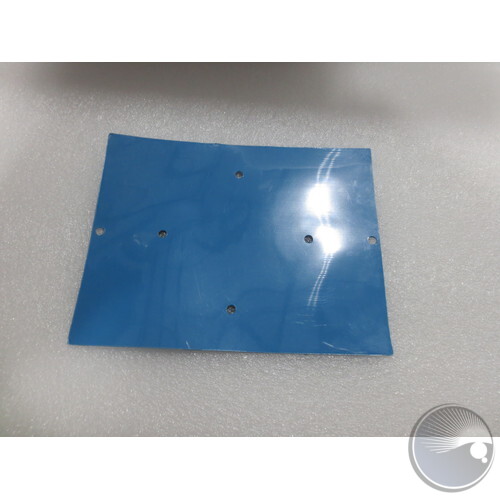

LED insulation pad 2PTJ3021500152LED insulation pad 2

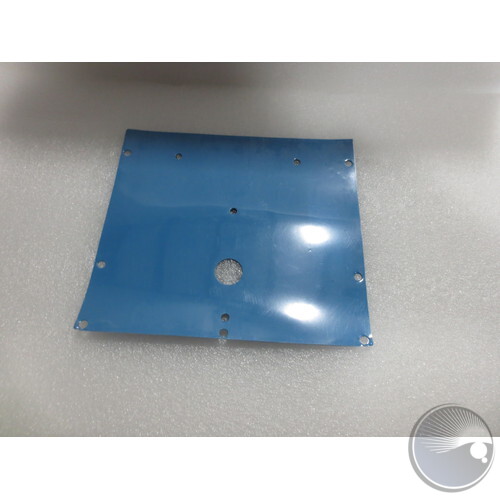

LED insulation pad 3PTJ3021500153LED insulation pad 3

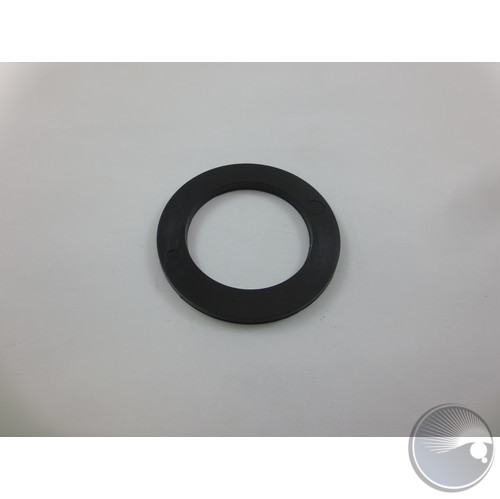

METAL RING (BOM#15)PTJ3021701054METAL RING (BOM#15)
PTJ3022000008IP CONNECTOR FOR FAN (BOM#15)
PTJ3022000014IP CONNECTOR (BOM#14)

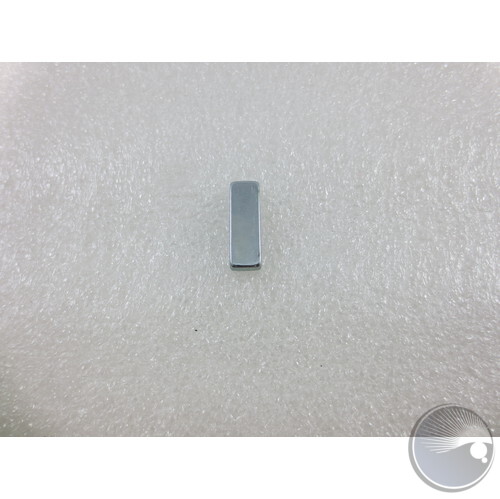

MAGNET (BOM#9)PTJ3022200028MAGNET (BOM#9)

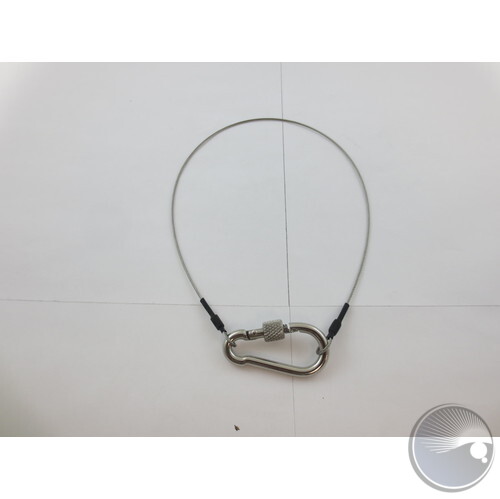

PTJ3022500088ASAFETY ROPE (BOM#40)

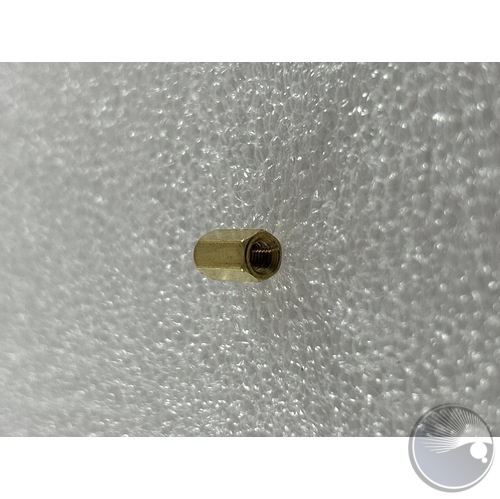

PTJ3030100071STANDOFF (BOM#50)

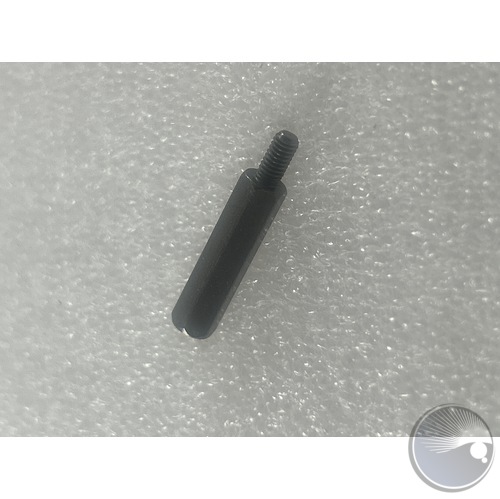

PTJ3030100229STAND OFF (BOM#7)
PTJ3040200215IP EXTENSION CABLE FOR LED PCB

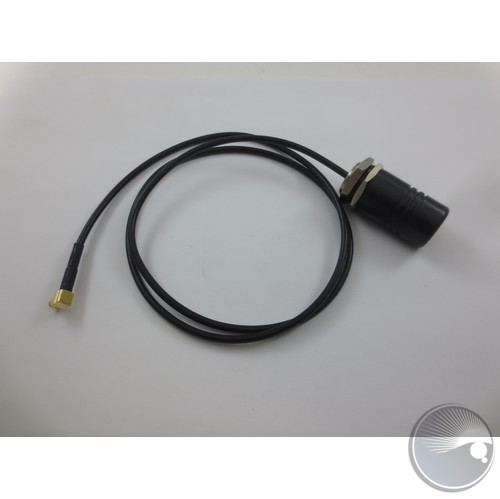

IP CABLE (BOM#27)PTJ3080100133IP CABLE (BOM#27)
PTJ3080100152SCREW/QUICK LOCK FOR OMEGA BRACKET (BOM#43)
CLAMP LOCK (BOM#21)PTJ4010302997CLAMP LOCK (BOM#21)

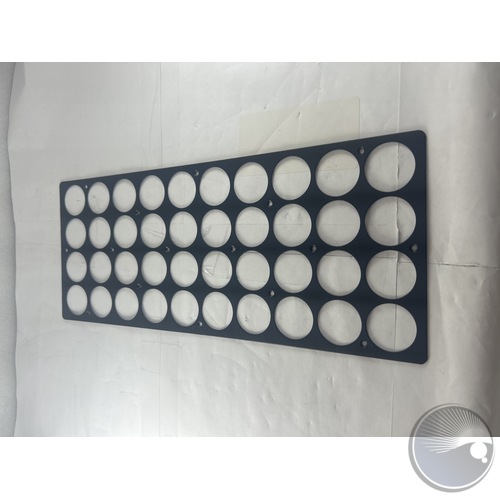

PTJ4010304228LENS COVER (BOM#5)
PTJ4010304229SAFE LOCK HOLDER (BOM#32)

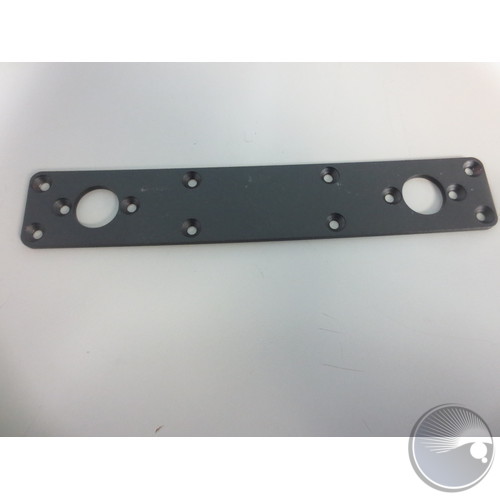

CLAMP LOCK HOLDER (BOM#31)PTJ4010304230CLAMP LOCK HOLDER (BOM#31)

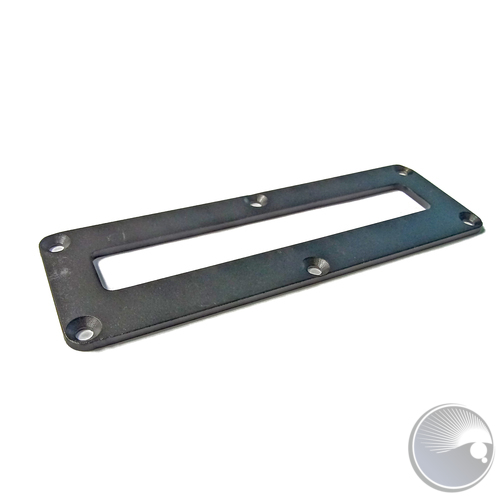

DISPLAY COVER (BOM#21)PTJ4010304231DISPLAY COVER (BOM#21)

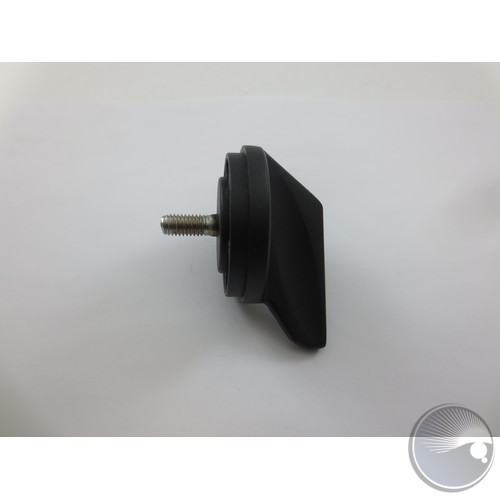

HANGING BRACKET KNOB (BOM#17)PTJ4010304232HANGING BRACKET KNOB (BOM#17)

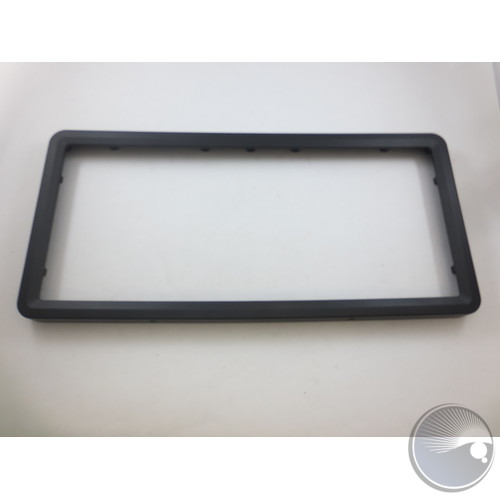

FRONT COVER (BOM#1)PTJ4010304233FRONT COVER (BOM#1)

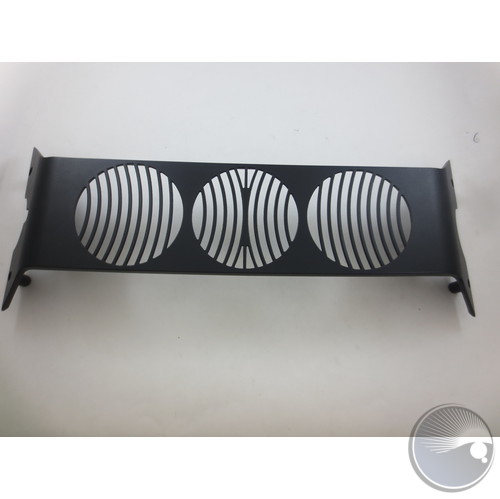

FAN TRIM (BOM#17)PTJ4010304234FAN TRIM (BOM#17)

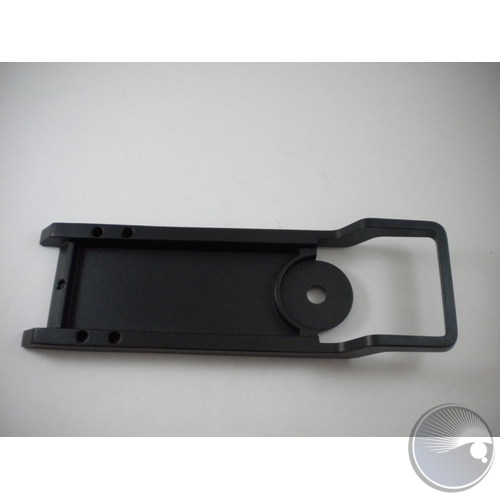

BRACKET (BOM#11)PTJ4010304235BBRACKET (BOM#11)

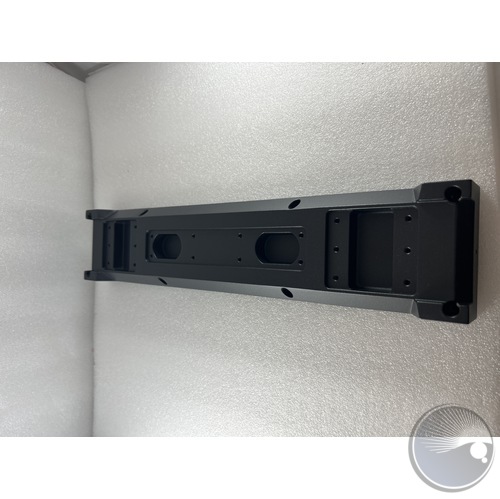

PTJ4010304237BASE (BOM#30)

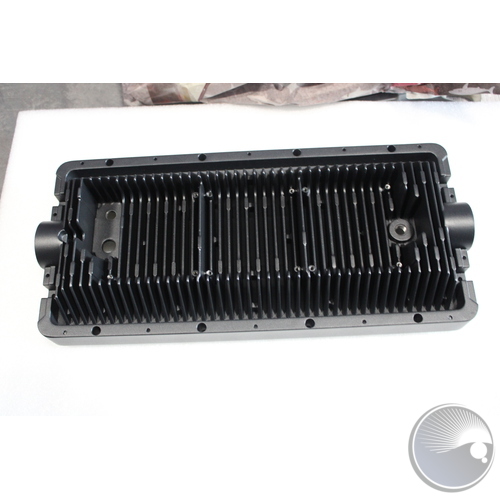

PTJ4010304238HOUSING (BOM#13)
PTJ4010304736AFilter Fixed Plate 3
PTJ4010402119TOP COVER USE ON HOUSING (BOM#35)

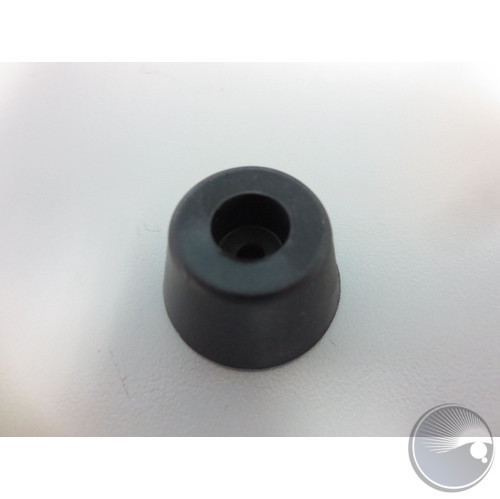

LEG (BOM#42)PTJ4020200332LEG (BOM#42)
PTJ4020200410DISPLAY HOLDER (BOM#36)

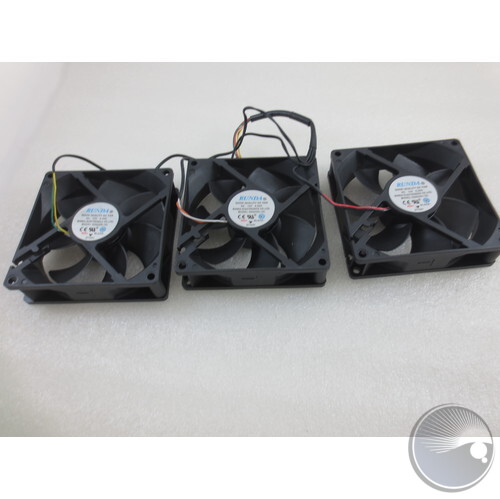

FAN ASSEMBLY (BOM#16)PTJ6010100035FAN ASSEMBLY (BOM#16)
