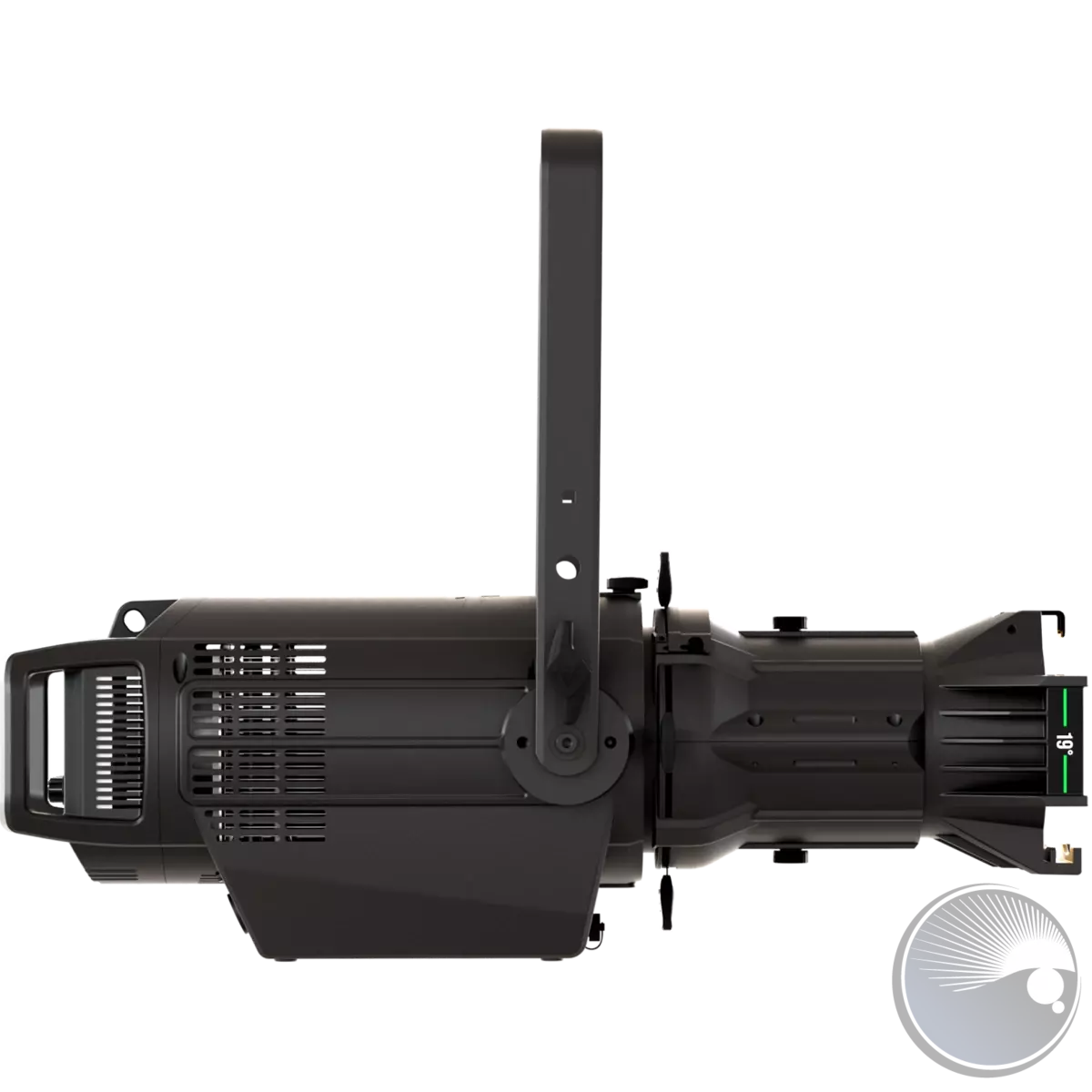

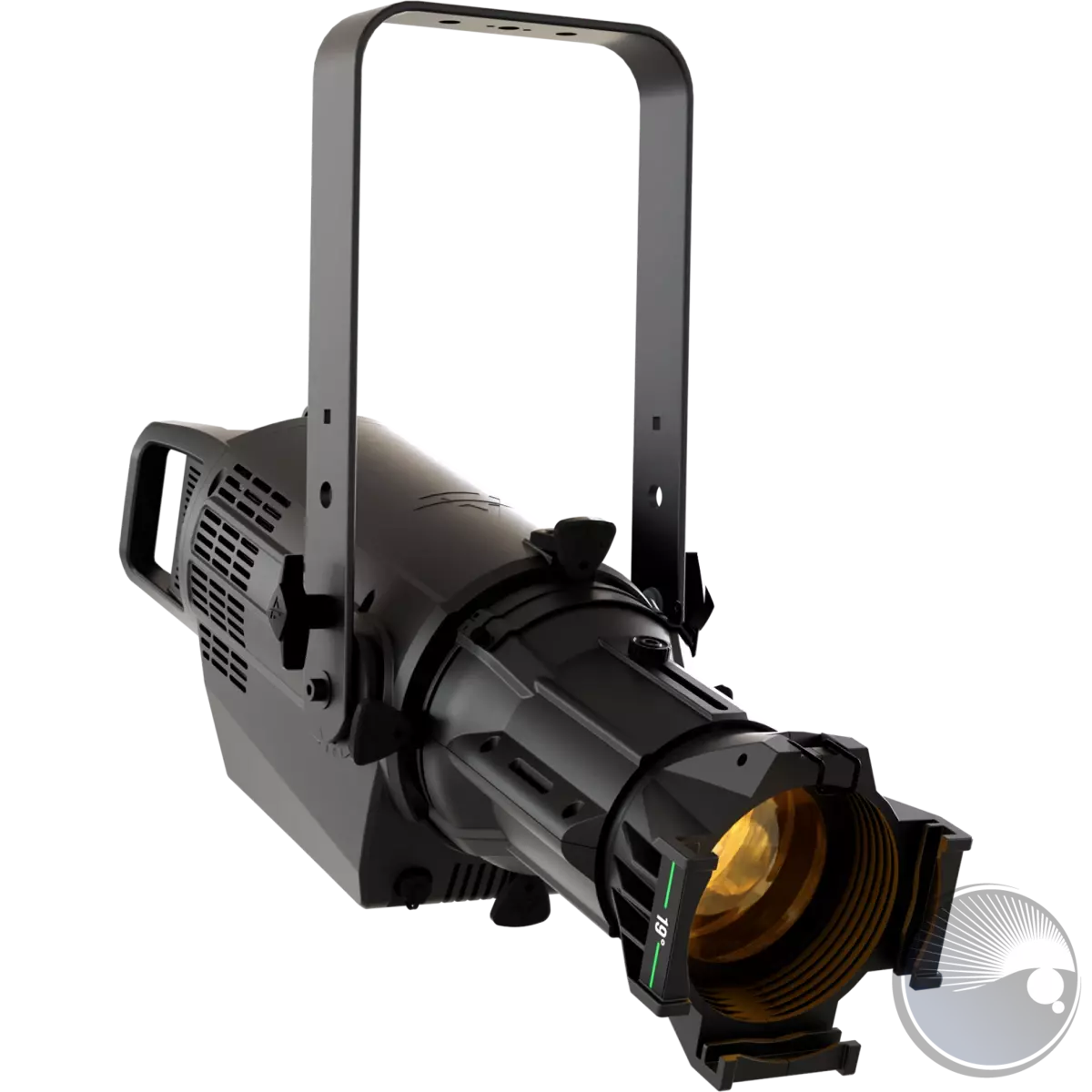

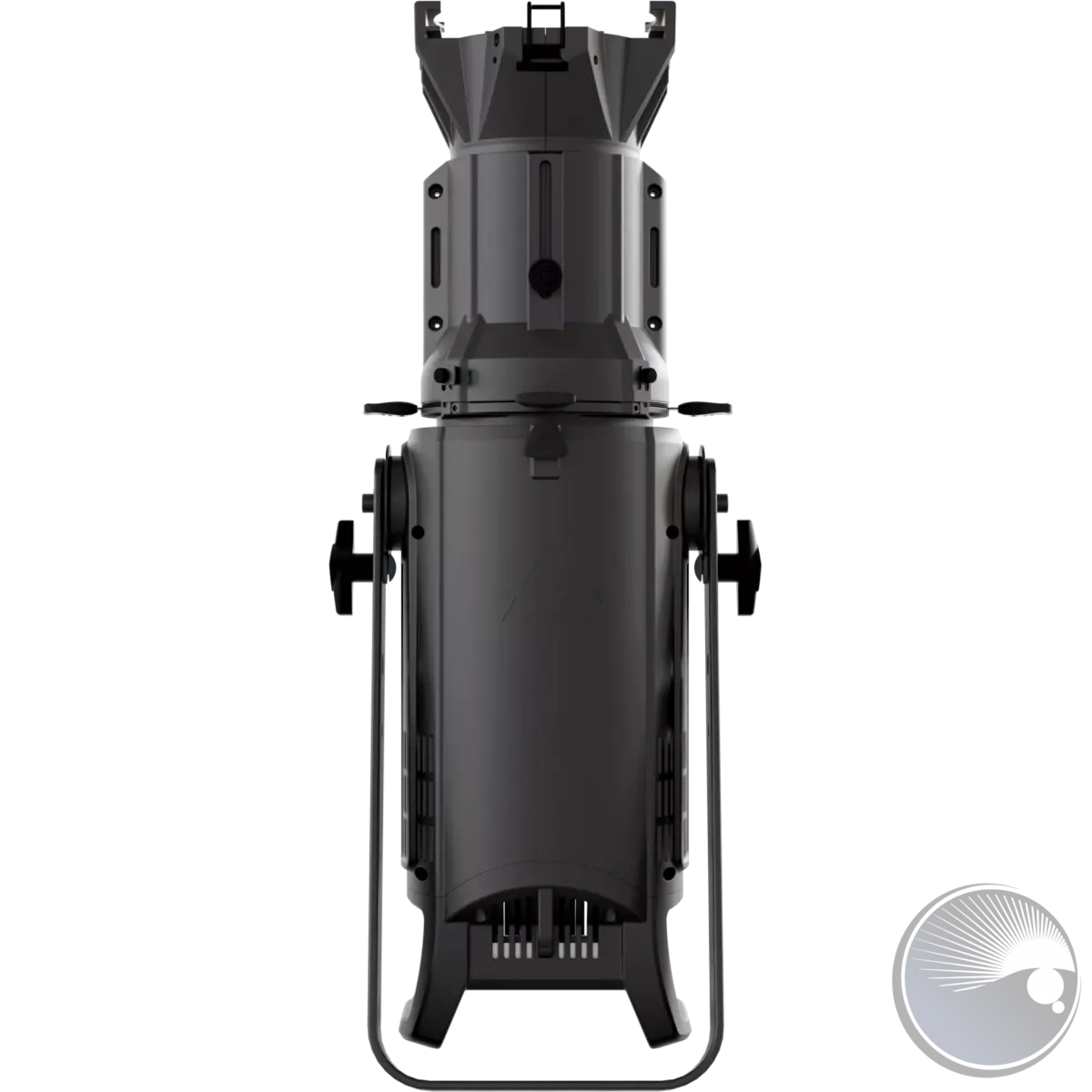

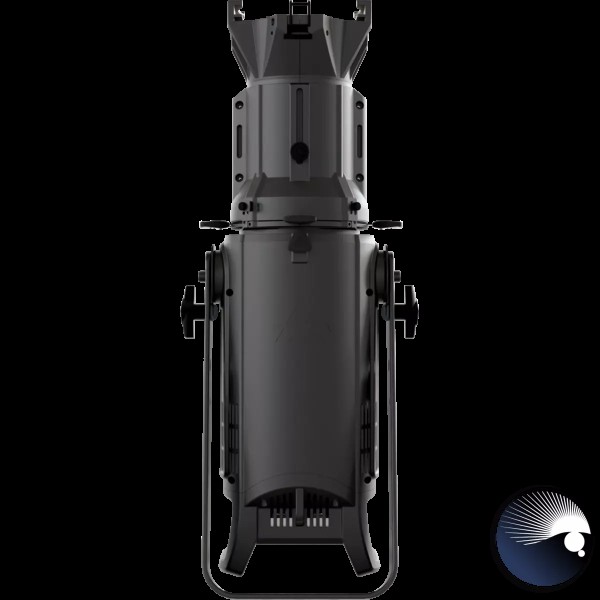

EclProfile CT+ HP, 450W 6-Farb-LED, schwarz

The EclProfile CT+HP elevates the benchmark in LED ellipsoidals by delivering 450 Watts of fixture power, effectively doubling its lumen output to an impressive 14,000 lumens. Retaining the renowned 6-color LED engine of the CT+ series, it offers superior color rendering for unparalleled light quality. Specifically designed for longer throw distances and higher hanging positions, the CT+HP is the ideal replacement for traditional HPL 750W and 2kW tungsten fixtures, excelling in large venues such as theaters, studios, and auditoriums.The latest generation of Spektra OS equips the EclProfile CT+HP with cutting-edge UI and control features. Seamlessly aligned with the PROLIGHTS ecosystem, it offers advanced color mixing, precision CCT reproduction, and user-friendly operation. The enhanced 2.4-inch display, complemented by four RGB backlit, pushable encoders, ensures a streamlined user experience. This innovation delivers intuitive control across multiple operating modes, ensuring consistency and efficiency for professionalsDespite its increased output, the fixture maintains the compact dimensions of its predecessor, offering compatibility with industry-standard fixed-angle and zoomable lenses, including the PRL and PRLZ lenses. This ensures seamless integration with existing inventories, making it a versatile and cost-effective solution for diverse lighting needs.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 450W 6 colour LEDs source
• Luminous flux: (10°) 11'384 lm; (14°) 9'863 lm; (19°) 10'977 lm; (26°) 13'536 lm; (36°) 13'643 lm; (50°) 12'293 lm; (70°) 14'959 @4.000 K
• Lux: (10°) 16'659 lx; (14°) 8'676 lx; (19°) 5'157 lx; (26°) 3'517 lx; (36°) 1'902 lx; (50°) 989 lx; (70°) 660lx @5m 4.000 K
• CRI: 96
• R9: 98
• TLCI: 94,7
• Source life expectancy: > 50.000 h

OPTICS

• Lens type: high-quality glass lens optics
• Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
• Focus: manual
• Other: see available accessories

COLOUR SYSTEM

• Colour control: XY, CCT, Gel with Source Emulation, Tungsten emulation, HSI, User preset
• CCT: CCT control range from 1.800K to 20.000K, + / - green correction, tungsten emulation
• Colour wheel: LEE filter emulation and RGB / HSI / CMY input mode selectable

DYNAMIC EFFECTS

• Rotating gobos: optional, see available accessories
• Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
• Special features: 4 fan modes available and output management and linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

• Body: Sturdy die-cast magnesium body
• Body colour: RAL 9004

CONTROL

• Supported Protocols: DMX512, RDM, CRMX (optional)
• Stand Alone: 4 pushable RGB backlit encoder
• DMX channels: from 1 channel to 30channel
• Wireless Control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and W-DMX, Bluetooth capable
• RDM: RDM for remote monitoring and settings

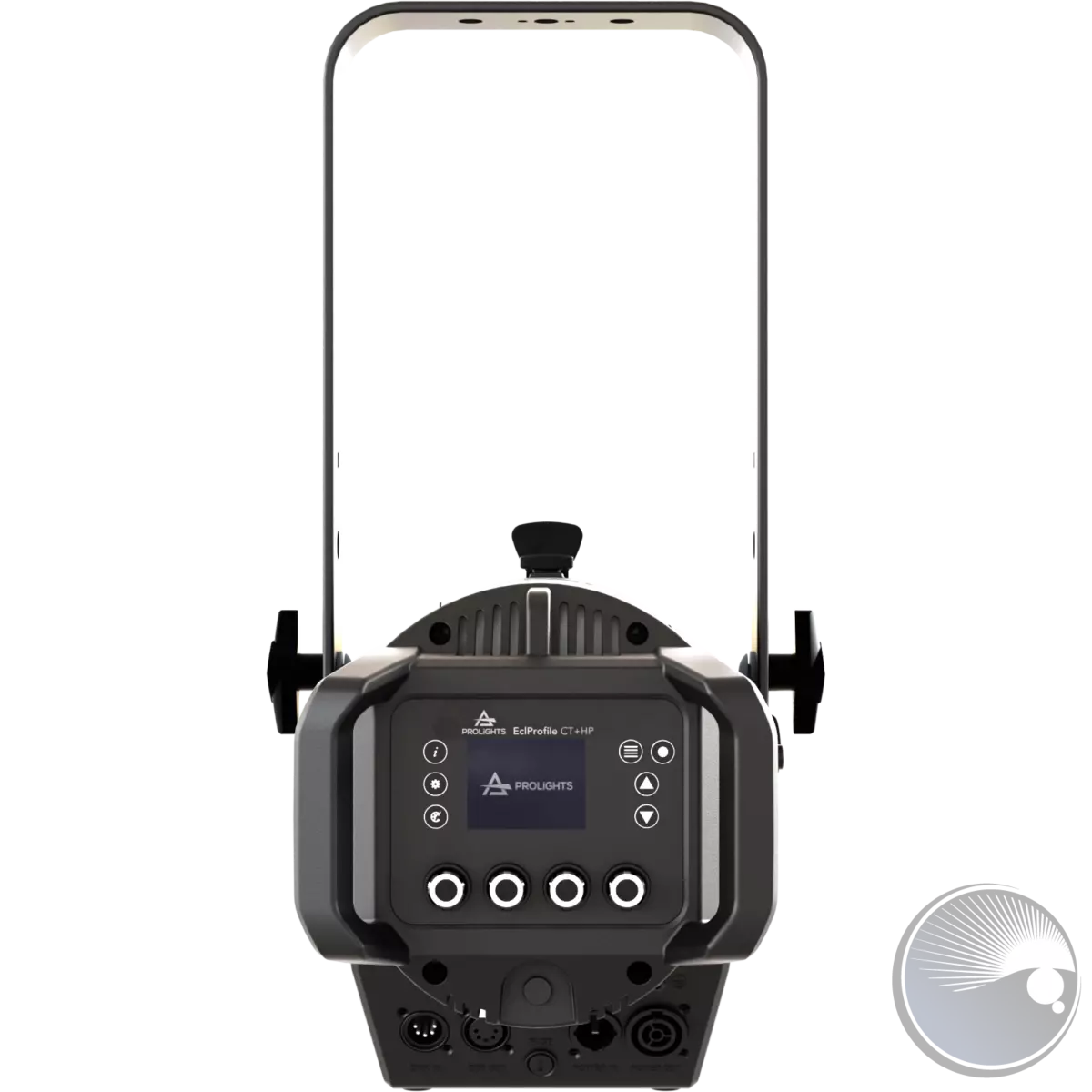

• Display: Graphic User Interface
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) through dedicated software
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 25 Hz, electronic
• Operating temperature: -10° ~ +45° Ta
• LED Control: flicker free operation
• Selectable PWM: 1282 ~ 20.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 470W
• Standby power: 11,6 W
• Output (at 230V): 5 units on a single power line
• Power factor: > 0,94

PHYSICAL

• IP rating: IP20
• Cooling: combination of heat pipe cooling system and low noise fan
• Suspension and fixing: bracket for hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
• Dimensions (WxHxD): 292x267x628mm / 11.5''x10.51''x24.72''
• Weight: 8,5kg / 18.74lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM, FCC

BOX CONTENT

• 1 x ECLCTPLUSHPBK
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65 power connector)
• User Manual
