Ovation F-915VW

2.130,10 € *

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-3 Werktage.
Coronabedingt kann es verzeinzelt zu Verzögerungen kommen.

  • OVATIONF915VW
Ovation  F-915VW Ovation F -915VW  is a high-power, variable white... mehr
Produktinformationen "Ovation F-915VW"

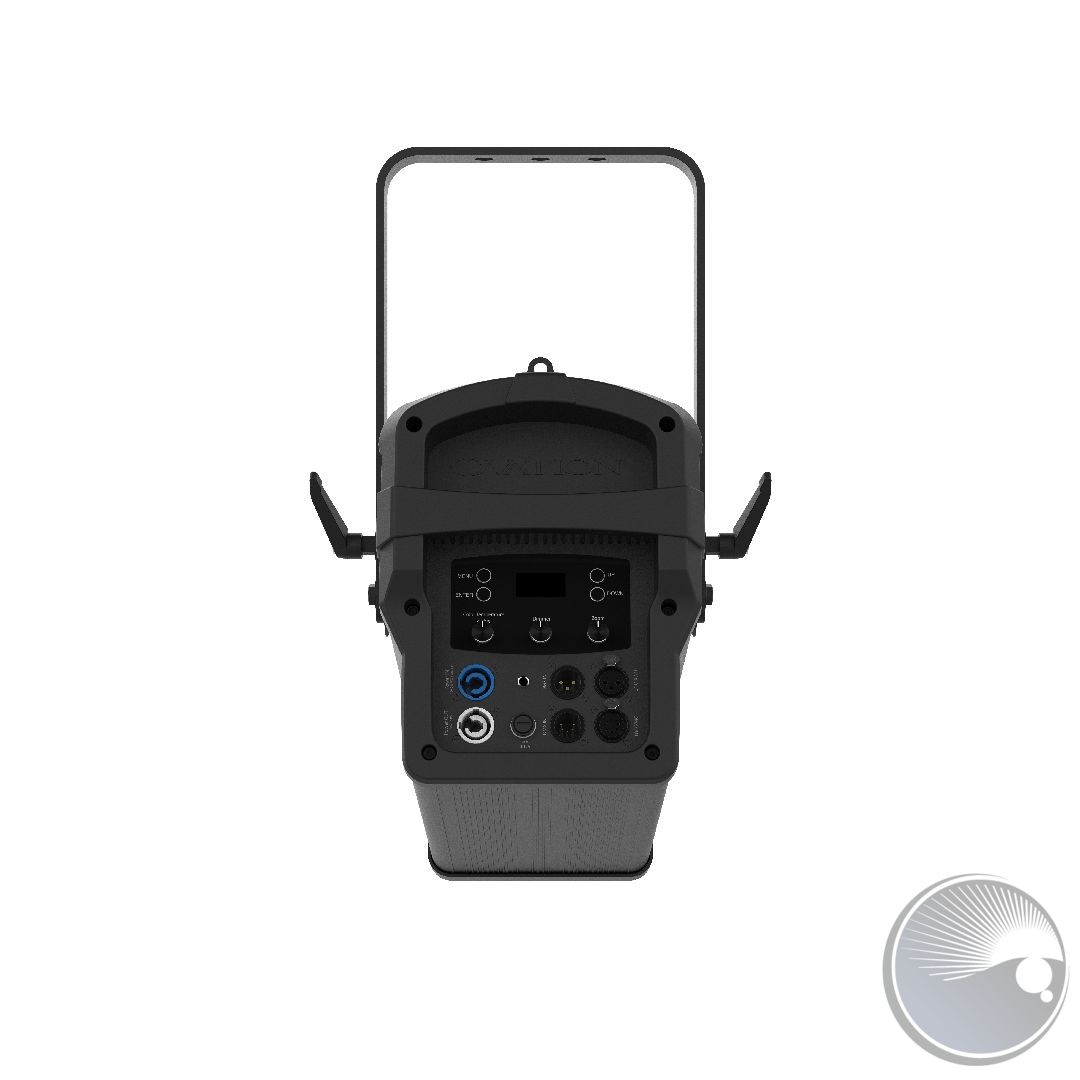

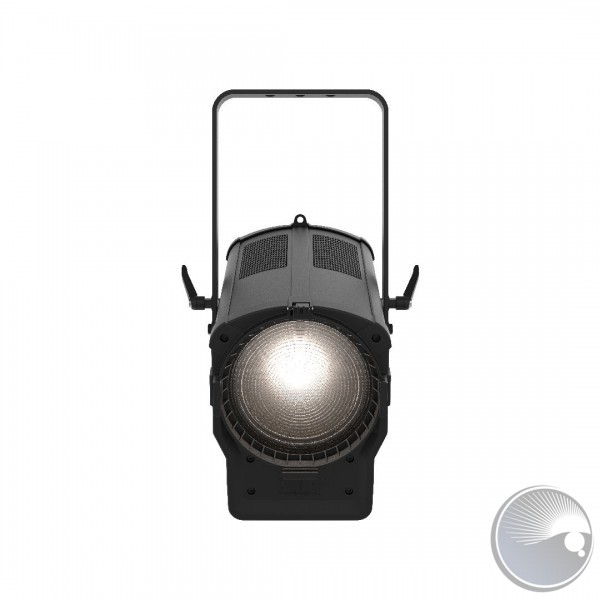

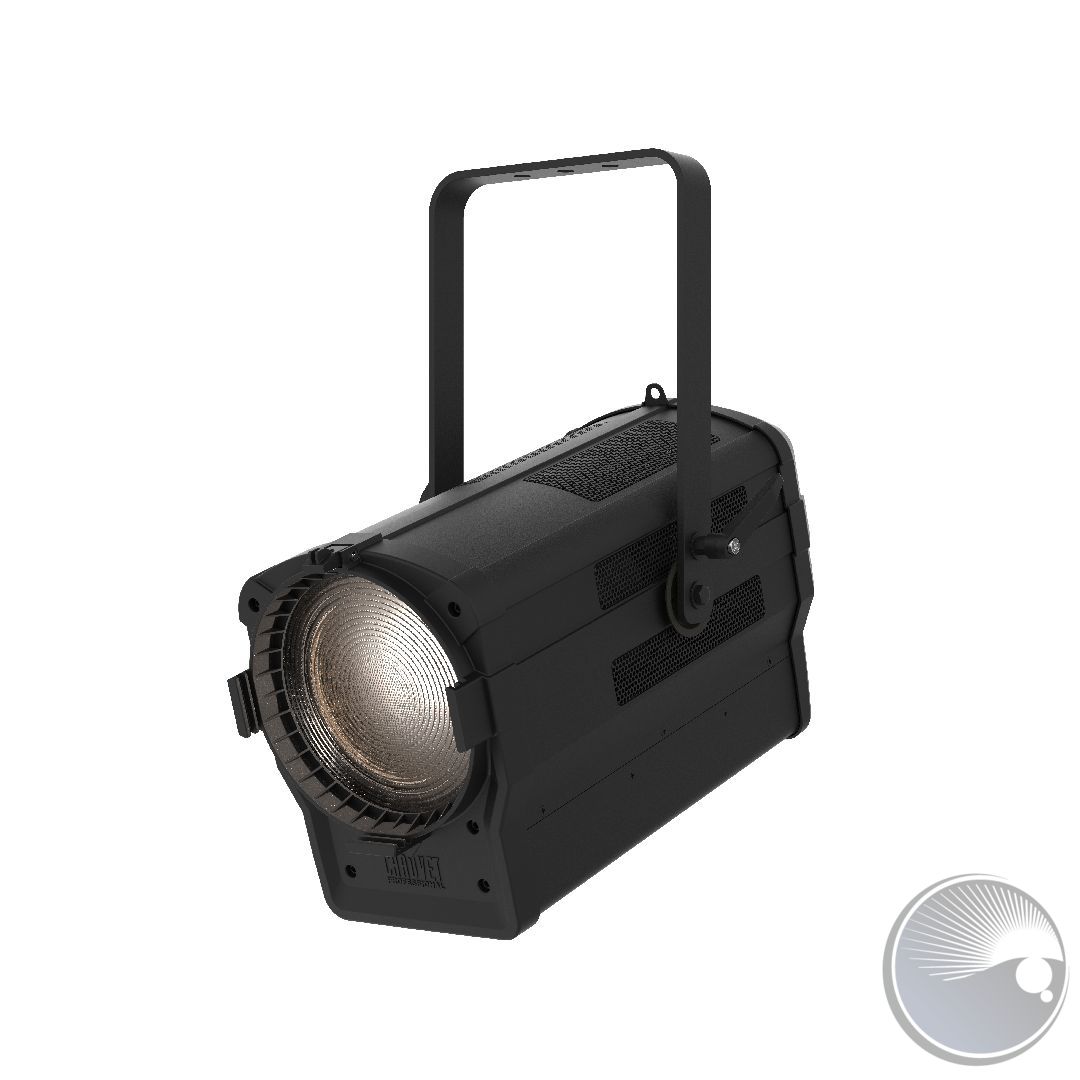

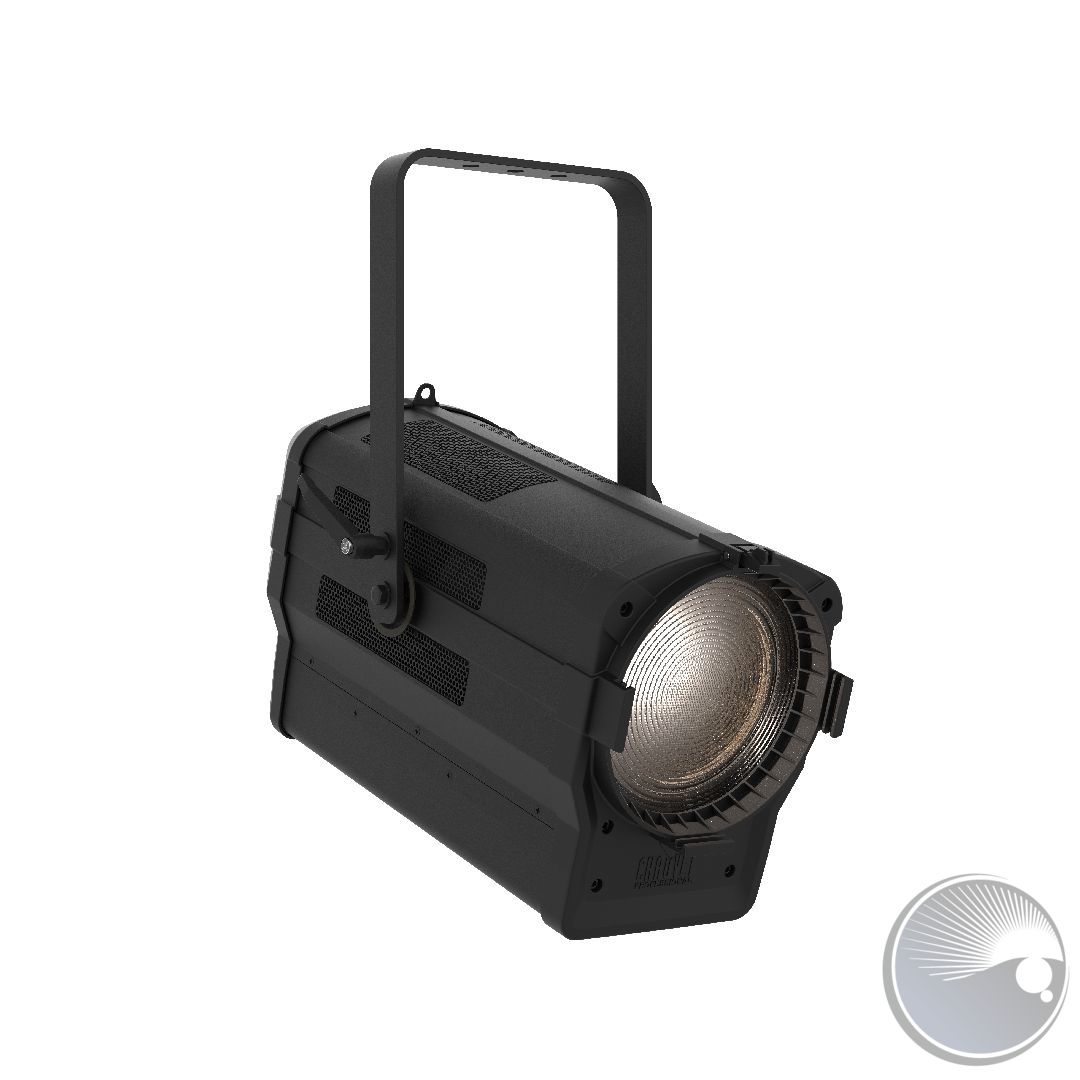

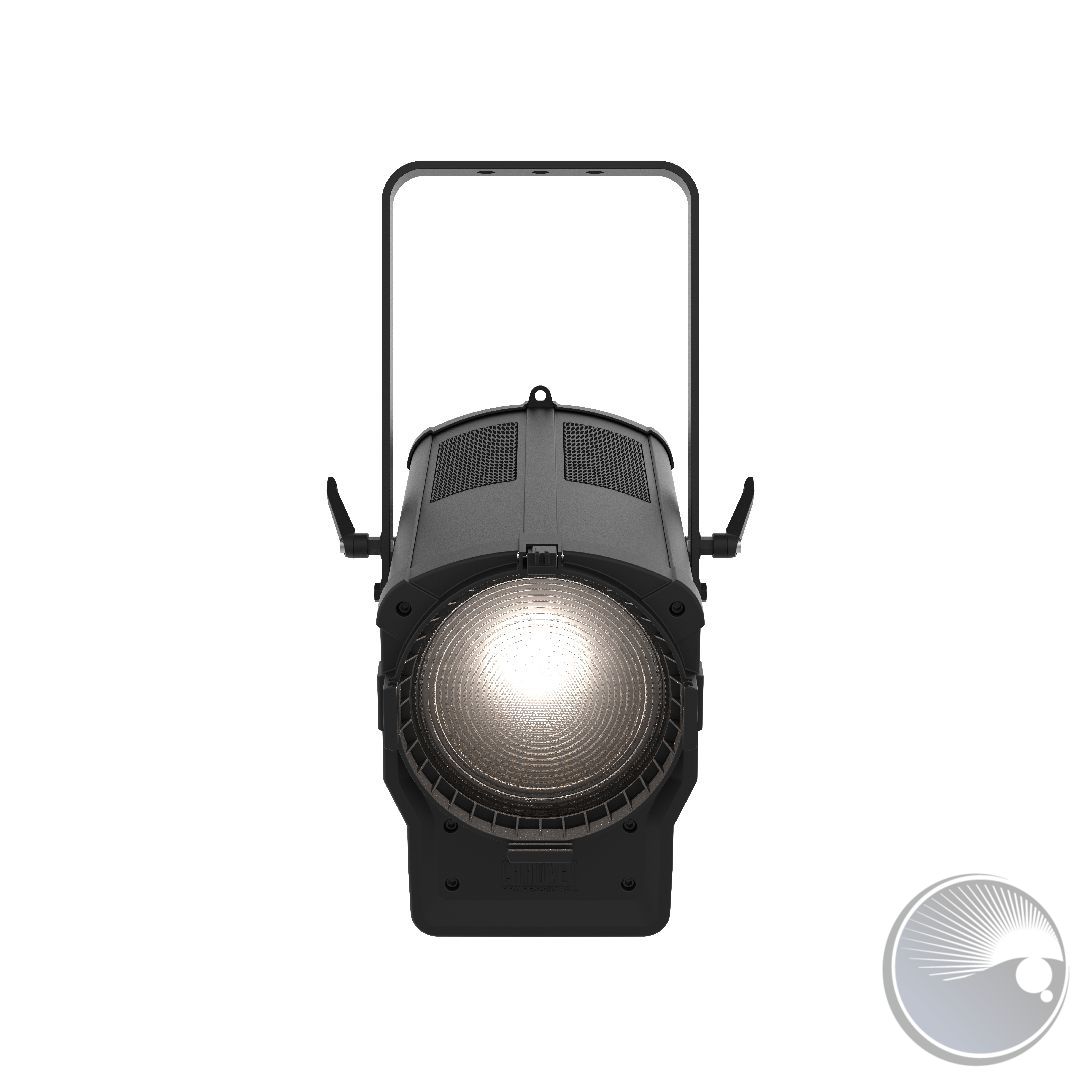

Ovation F-915VW

Ovation F-915VW is a high-power, variable white Fresnel-style fixture that utilizes our unique 6-color LED system. This fixture projects a bright, beautifully soft field of light in nearly any temperature of white with high CRI and CQS making it ideal for theatres and TV studios. Each Color Temperature can be further adjusted for +/- green and a motorized zoom with a 17° – 85° field range allows you to add light where it is needed. The Color Temperature and hue along with zoom and output can be controlled via DMX or on-board dials.



AT A GLANCE

  • Variable white LED Fresnel lighting fixture for theatre, film and production

  • Soft and even field of light

  • Smooth, motorized zoom from 17° to 85° beam range

  • Color Temperature Presets from 2800 K to 8000 K with high CRI and CQS

  • Beautiful 16-bit dimming

  • Proprietary LED engine delivers tremendous, equal output at all color temperatures

  • Easy to use on board control of color temperature, zoom and dimming

  • +/- Green adjustment via DMX or on-board control

  • Independent color control over the 6-color engine when a splash of color is needed

  • RDM (Remote Device Management) for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Virtually silent operation for use in studio and theatre applications

SPECIFICATIONS

OPTICAL

  • Light Source: 89 LEDs (6 red, 15 orange-red, 8 green, 12 blue, 16 royal blue, 32 lime) 3 W, (960 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 8000 K
  • CRI: 88-92
  • Beam Angle: 17° to 54°
  • Field Angle: 30° to 85°
  • Zoom Range: 17° to 85°
  • Lumens (30°): 4,143
  • Lumens (85°): 6,792
  • Illuminance (30°): 1,748 lux @ 5 m
  • Illuminance (85°): 414 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 27 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: No

CONSTRUCTION / PHYSICAL

  • Dimensions: 22.41 x 12.59 x 10.82in (569.44 x 320 x 275 mm)
  • Weight: 18.6 lb (8.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 4, 6, 7, 9, 13, 16 or 18
  • Modes/Personalities: 8 personalities (1, 4, 6, 7, 9, 13, 16, 18)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
  • Power and Current: 216 W, 1.8 A @ 120 V, 60 Hz [7 A inrush]
  • Power and Current: 220 W, 1.1 A @ 208 V, 60 Hz [7 A inrush]
  • Power and Current: 223 W, 1 A @ 230 V, 50 Hz [7.8 A inrush]
  • Power and Current (resting): 6 W, 0.050 A @ 120 V, 60 Hz
  • Power and Current (resting): 11 W, 0.054 A @ 208 V, 60 Hz
  • Power and Current (resting): 9 W, 0.036 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
  • Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

WHAT'S INCLUDED

  • Ovation F-915VW
  • Neutrik® powerCON® power cord
  • Gel frame (7.5 in/191 mm accessories)

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 03031392
Weiterführende Links zu "Ovation F-915VW"

3.15AMPGMAFUSE (BOM#14)
PTF1001002202POWER OUT SOCKET (BOM#31)
PTF1001002302power supply in socket NAC3MPA-1 (BOM#28)
M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)PTF1340110771M8 BRACKET ADJUSTMENT KNOB/SHANK (BOM#25)
PTF2700003804NEUTRIK POWER CABLE 1.5M (POWERCON TO EDISON) (BOM#41)
DMX XLR SOCKET PCB - 5-PIN (BOM#56)PTJ2010033700DMX XLR SOCKET PCB - 5-PIN (BOM#56)
PTJ2010325000DMX XLR SOCKET PCB - 3-PIN (BOM#57)
HALL ELEMENT  LOCATER (BOM#36)PTJ2020200635HALL ELEMENT LOCATER (BOM#36)
DISPLAY PCB (BOM#37)PTJ2020201330DISPLAY PCB (BOM#37)
POTENTIOMETER PLATE (BOM#34)PTJ2020201971POTENTIOMETER PLATE (BOM#34)

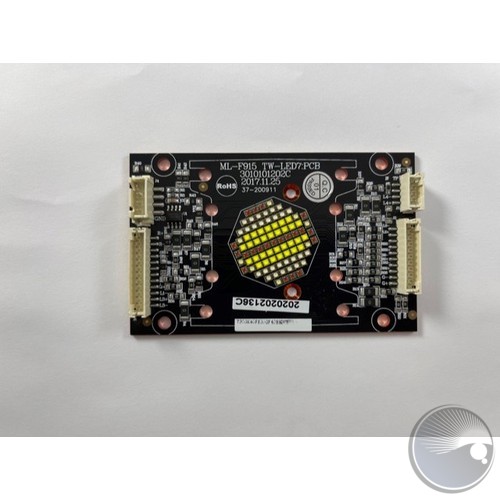

LED 5 PCB (BOM#27)PTJ2020202136LED 5 PCB (BOM#27)

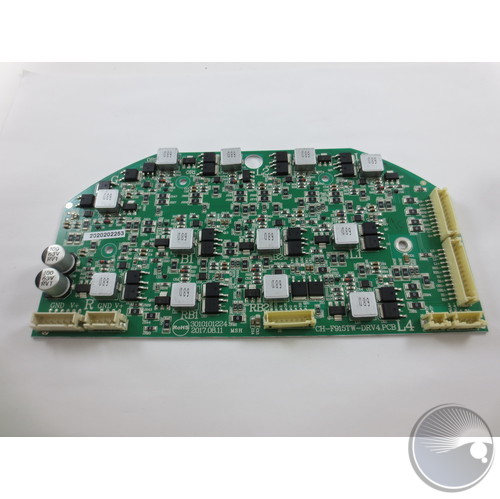

DRIVER PCB (BOM#18)PTJ2020202218DRIVER PCB (BOM#18)

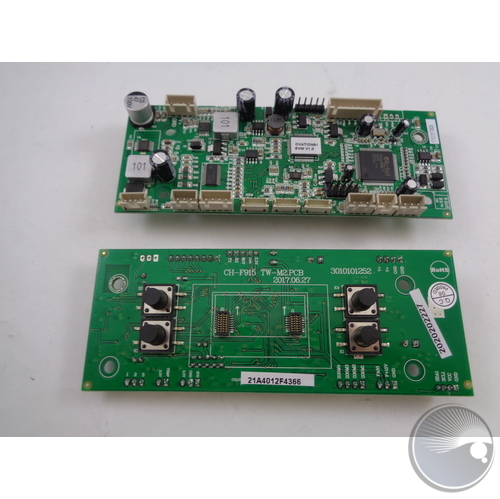

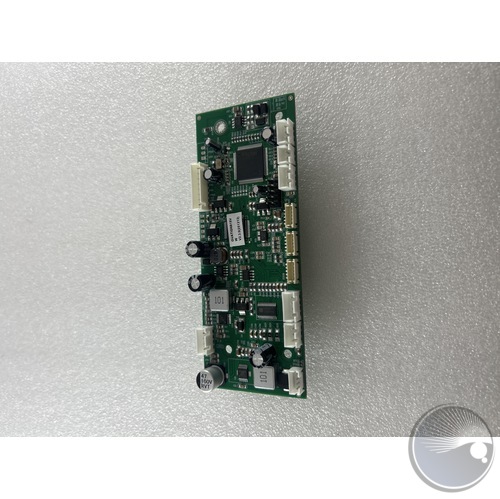

MPCB (BOM#16)PTJ2020202305MPCB (BOM#16)

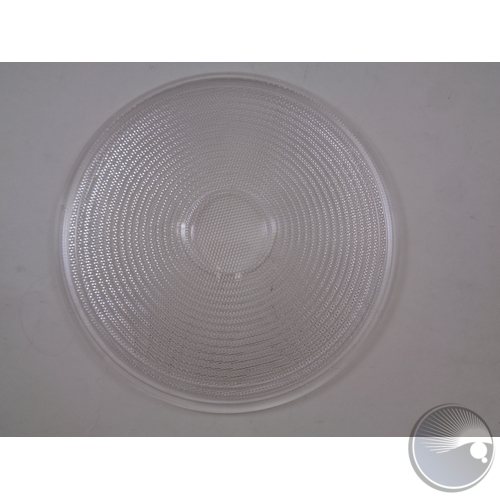

THREAD LENS (BOM#72)PTJ3020100387THREAD LENS (BOM#72)

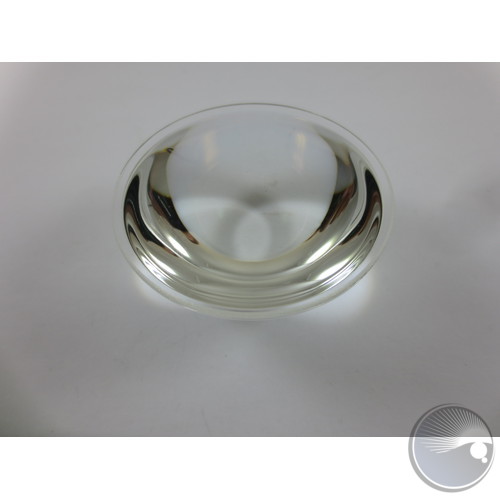

ASPHERIC SURFACE LENS (BOM#33)PTJ3020100388ASPHERIC SURFACE LENS (BOM#33)

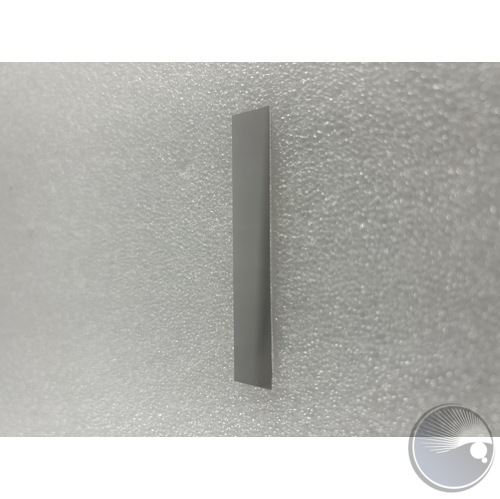

PTJ3020200305MIRROR (BOM#29)
FILTER FRAME  (BOM#30)PTJ3020300311FILTER FRAME (BOM#30)
POWER SUPPLY (BOM#46)PTJ3020400263POWER SUPPLY (BOM#46)
BEARING (BOM#24)PTJ3020500049BEARING (BOM#24)
PTJ3020600053SYNCHRONOUS BELT (BOM#39)

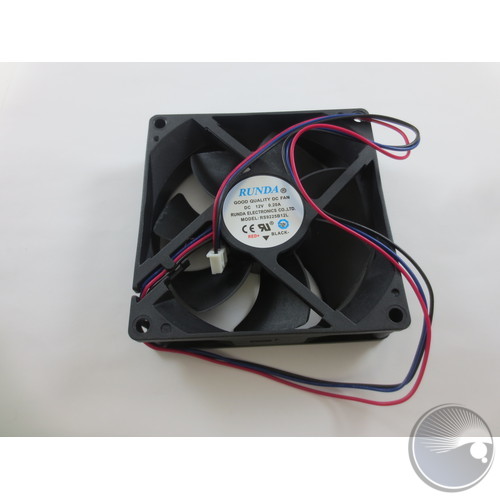

DC FAN  (BOM#24)PTJ3020900072DC FAN (BOM#24)
PTJ3021000084STEPPER MOTOR (BOM#57)
PTJ3021100027TUBES (BOM#32)
SPRING    (BOM#2)PTJ3021600094SPRING (BOM#2)
C-RING (BOM#2)PTJ3021600102C-RING (BOM#2)
HM SCREW (BOM#6)PTJ3021700154HM SCREW (BOM#6)
SCREW INSIDE HANGING BRACKET  (BOM#22)PTJ3021700412SCREW INSIDE HANGING BRACKET (BOM#22)
RING (BOM#11)PTJ3021700452RING (BOM#11)
HM SCREW (BOM#24)PTJ3021700587HM SCREW (BOM#24)
PTJ3021700679METAL RING (BOM#69)
PTJ3021700898RING FOR THREAD LENS (BOM#70)
PTJ3021700946FOAM (BOM#26)
MAGNET (BOM#31.ARM)PTJ3022200009MAGNET (BOM#31.ARM)
LOOP FOR FOCUSING LEVER (BOM#66)PTJ3022500068LOOP FOR FOCUSING LEVER (BOM#66)
Panel mount fuse holder (BOM#36)PTJ3027001001Panel mount fuse holder (BOM#36)
PTJ3030100218CONNECTER (BOM#22)
PTJ3030100219PLAIN BEARING (BOM#56)
FLANGE (BOM#25)PTJ3030200023FLANGE (BOM#25)
PTJ3030300028DRIVING WHEEL (BOM#40)
PTJ3030300049DRIVING GEAR (BOM#37)
PTJ3030600020SLIDER 2 (BOM#21)

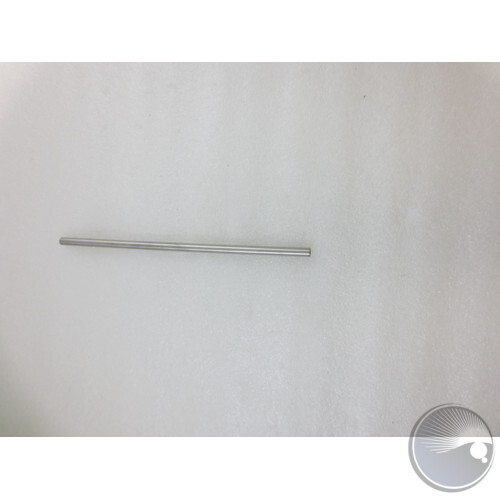

PTJ3030600032FOCUSING LEVER (BOM#45)

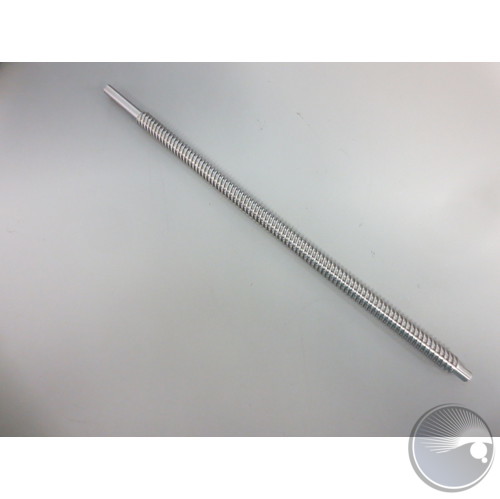

PTJ3030600033SCREW FIXATION (BOM#50)
SAFETY PIN (BOM#4)PTJ3030800007SAFETY PIN (BOM#4)
PTJ3030900007BROTARY KNOB (BOM#35)
PTJ3050802396DISPLAY STICKER (BOM#14)
PTJ4010103578FAN HOLDER (BOM#23)

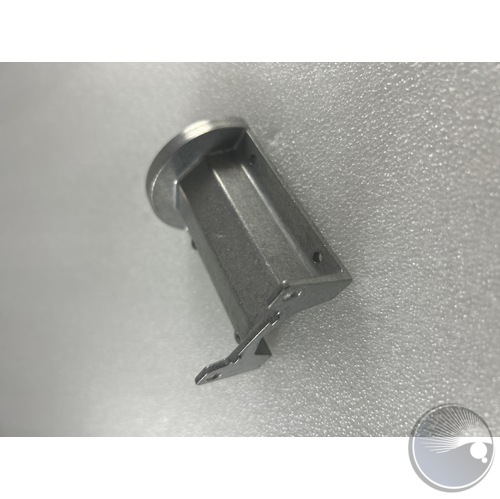

PTJ4010103588LIGHT TUBE (BOM#28)
PTJ4010103625HEAT SINK (BOM#24)
PTJ4010302041PRESSING PLATE (BOM#23.BASE)
SEMI-CIRCLE  METAL PART (BOM#49)PTJ4010302483SEMI-CIRCLE METAL PART (BOM#49)
GER FRAME (BOM#35)PTJ4010303080AGER FRAME (BOM#35)
PTJ4010303724FRONT PANEL (BOM#68)
PTJ4010303726HEAT SINK PLATE (BOM#21)
PTJ4010303727BCONNECTER PANEL (BOM#53)
PTJ4010303729PLAIN BEARING HOLDER (BOM#61)
PTJ4010303730PLAIN BEARING HOLDER 1 (BOM#55)
PTJ4010303732SCREW FIXATION PLATE 2 (BOM#54)
PTJ4010303734SHADOW SHIELD FOR REAR (BOM#20)
HANGING BRACKET  (BOM#13)PTJ4010303821HANGING BRACKET (BOM#13)
PTJ4010303822ASIDE PANEL ASSEMBLY 1 (BOM#5)
PTJ4010303823ASIDE PANEL ASSEMBLY 2 (BOM#6)

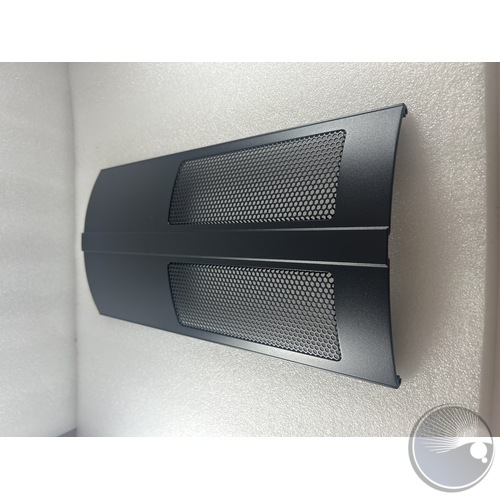

PTJ4010303824ATOP COVER ASSEMBLY (BOM#7)
PTJ4010303825HOUSING (BOM#48)
PTJ4010303826AHEAT HOLDER (BOM#25)

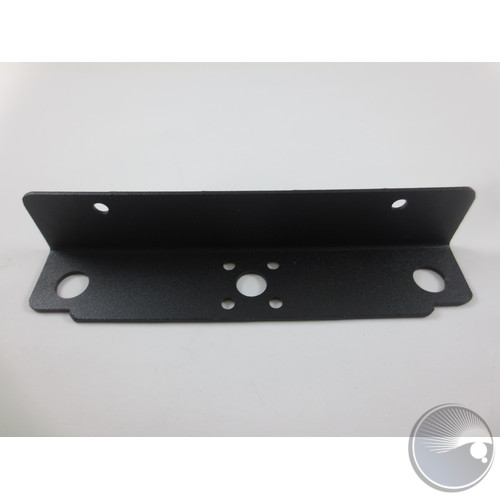

SCREW FIXATION PLATE 1 (BOM#51)PTJ4010303827SCREW FIXATION PLATE 1 (BOM#51)
PTJ4010303828BASEPLATE (BOM#49)
PTJ4010303829DRIVER HOLDER (BOM#17)
PTJ4010401980REAR (BOM#15)
PTJ4020100174ALOCK (BOM#1)

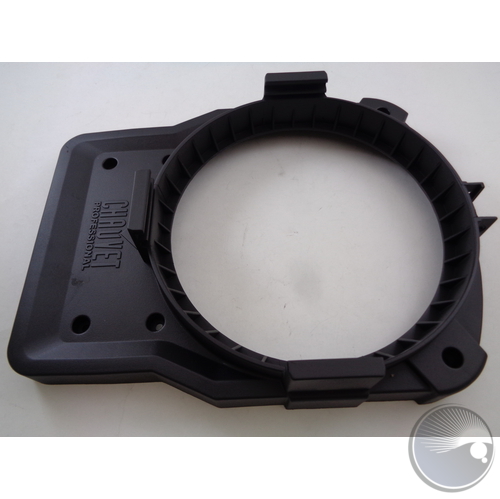

FRONT COVER (BOM#73)PTJ4020100198FRONT COVER (BOM#73)
PTJ4020100199BACK HOUSING (BOM#41)

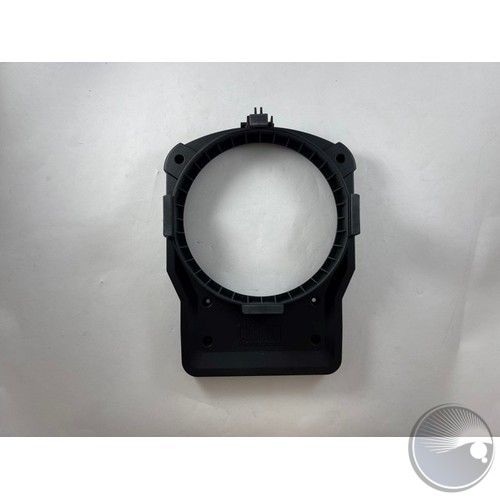

FRONT COVER ASSEMBLYPTJ5000000066FRONT COVER ASSEMBLY
UPLOAD03PTJUPLOAD03UPLOAD03
