Rogue R1 Beam Wash

Auf Anfrage!

  • ROGUER1BW
Rogue  R1 BeamWash Rogue R1 Beam Wash is a versatile and compact moving head that... mehr
Produktinformationen "Rogue R1 Beam Wash"

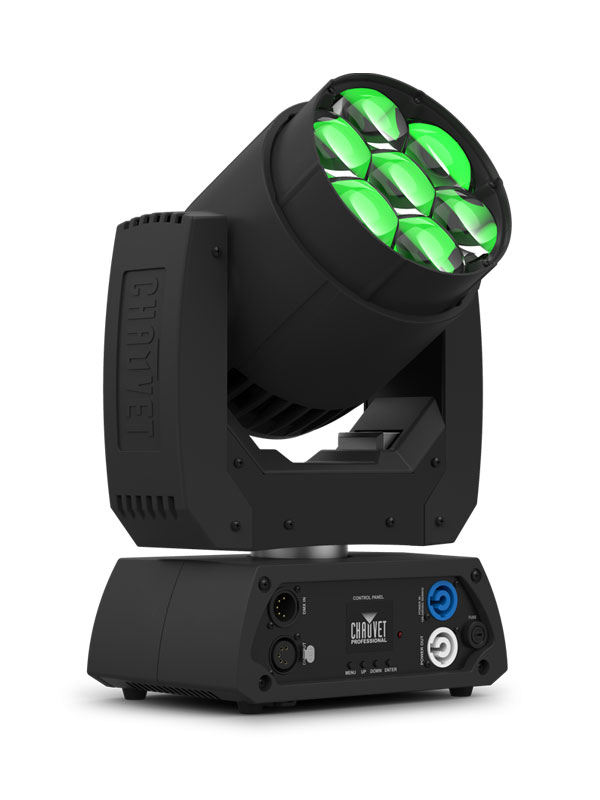

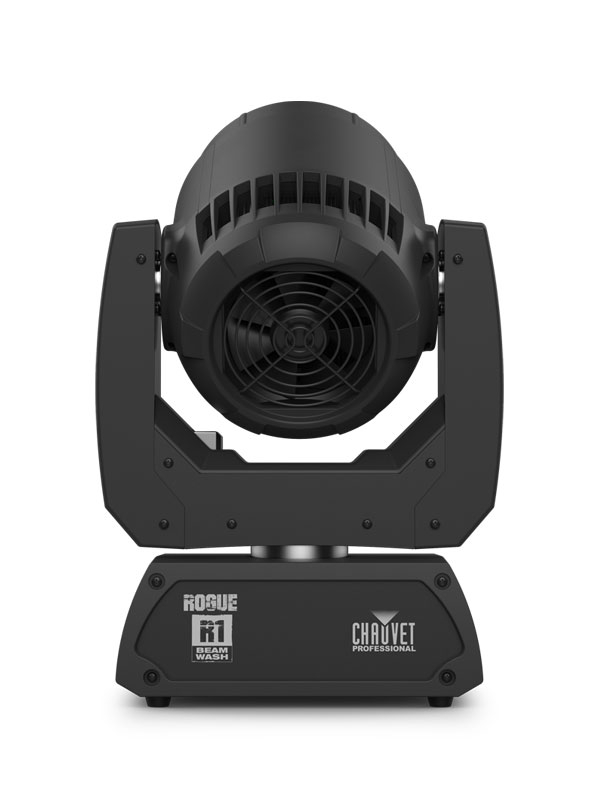

Rogue R1 BeamWash

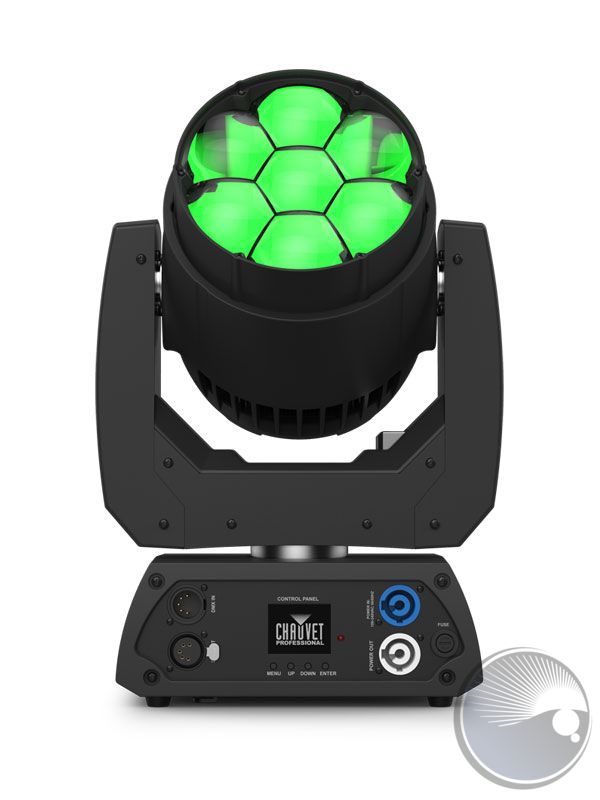

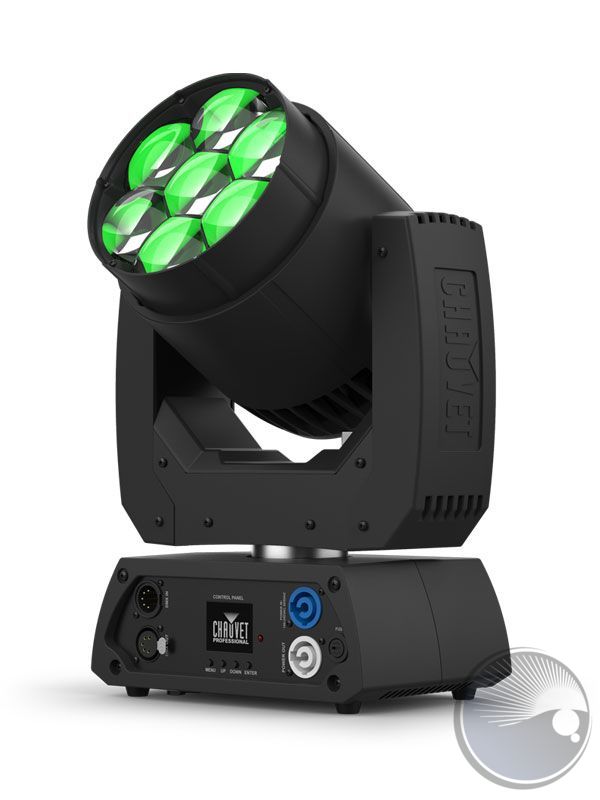

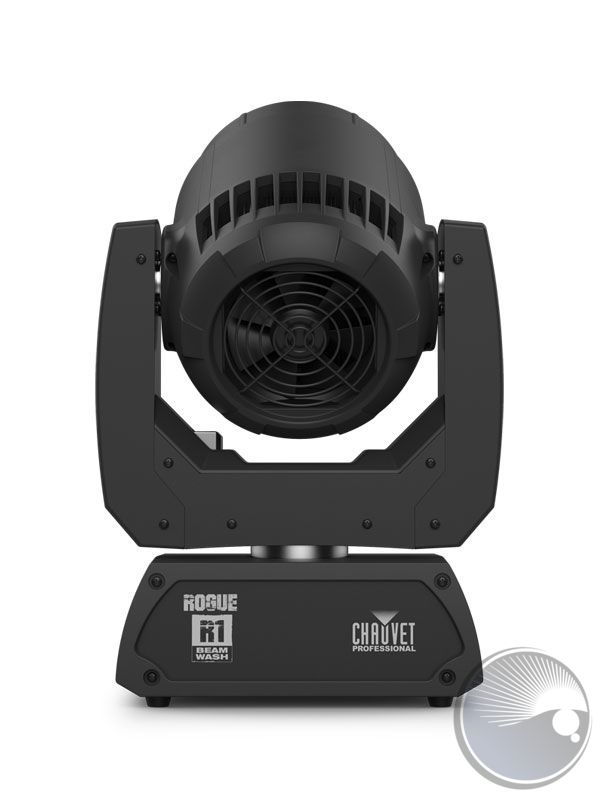

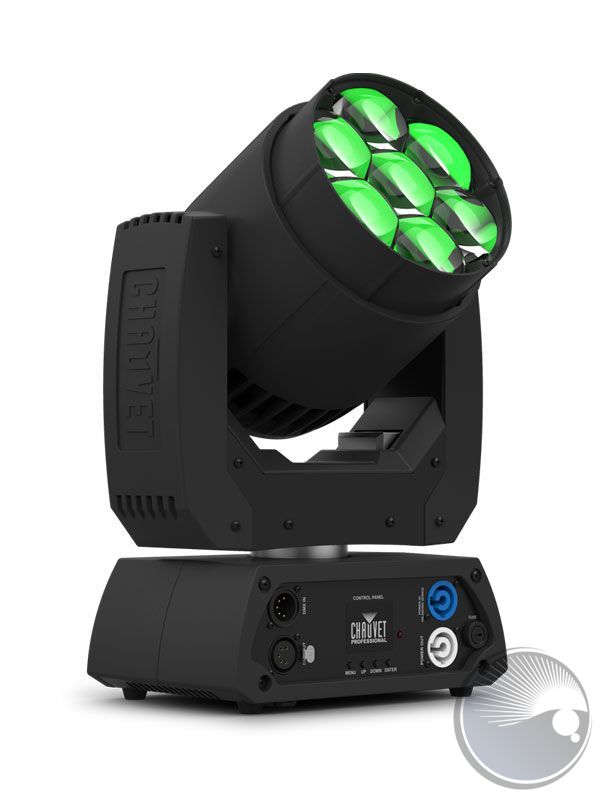

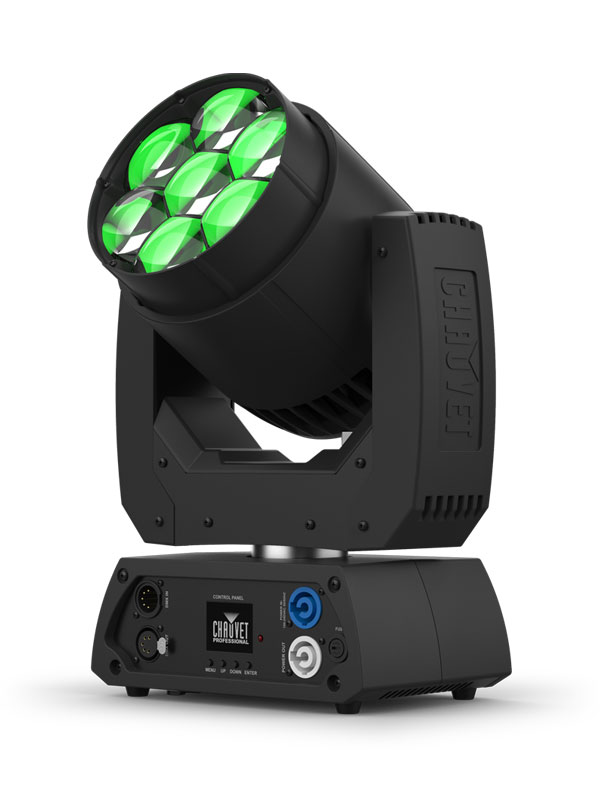

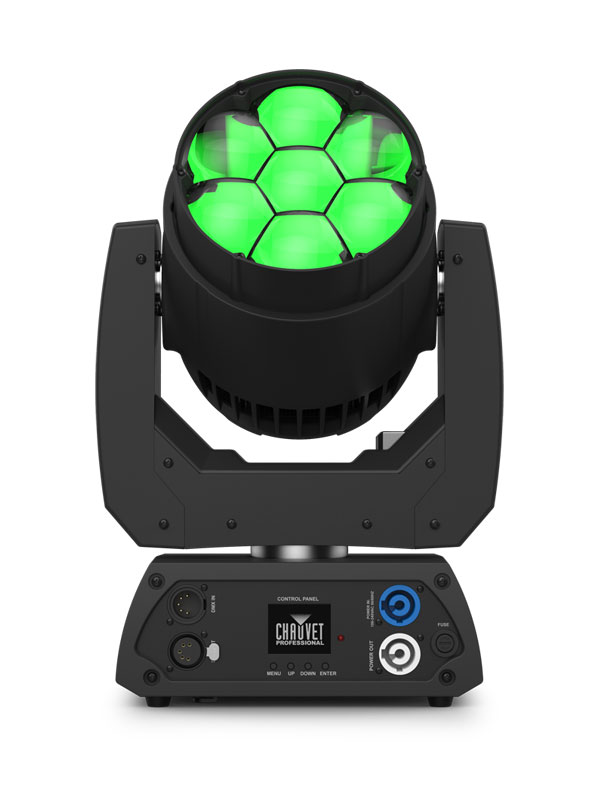

Rogue R1 BeamWash is a versatile and compact moving head that projects a punchy beam and wash. Weighing just under 12 lbs., the unit features a custom-designed optical system with seven, 40W RGBW LEDs and an expansive zoom range of 3.4° to 67.7° that allows for it to project tight, solid beam effects at its most narrow and transforms the light source into a nice even wash with excellent color blending as it expands. The unit’s small size also allows for a superfast and smooth pan and tilt movement. It’s also RDM enabled for remote addressing and is equipped with a selectable PWM setting to maintain flicker free operation on camera

AT A GLANCE

  • Fully-featured RGBW LED yoke wash fixture with zoom

  • 16-bit dimming of master dimmer as well as individual colors for smooth control of fades

  • 7 RGBW LEDs, 40 W each

  • 5-pin DMX input/output connections

  • Unique lens design for excellent color blending and tight beam effects

  • Extremely fast, smooth pan and tilt movement

  • RDM enabled for remote addressing and trouble shooting

  • Selectable PWM settings for camera operation

  • User-selectable calibrated white for 7500 K at full output

  • 6 distinct dimming modes for advanced control

  • Omega mounting bracket fits all Rogue and Maverick fixtures

  • Easy to read OLED display with simple, effective menu options

  • Simple and complex DMX channel profiles for programming versatility

SPECIFICATIONS

OPTICAL

  • Light Source: 7 LEDs (quad-color RGBW) 40 W, (980 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Beam Angle: 4° to 37.8°
  • Field Angle: 5° to 58.2°
  • Cutoff Angle: 5.5° to 67.7°
  • Zoom Range: 3.4° to 67.7°
  • Lumens – Source: 5,400
  • Lumens – Output: 3,967 Wide
  • Illuminance (5°): 13,939 lux @ 5 m
  • Illuminance (55°): 383 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/230°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No

CONSTRUCTION / PHYSICAL

  • Dimensions: 8.42 x 6.29 x 14.52 in (214 x 160 x 369 mm)
  • Weight: 11.8 lb (5.35 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX
  • DMX Channels: 14, 15, 19 or 21
  • Modes/Personalities: 4 personalities (14, 15, 19, 21)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 120 V; 9 units @ 208 V; 11 units @ 230 V
  • Power and Current: 285 W, 2.38 A @ 120 V, 60 Hz
  • Power and Current: 285 W, 1.37 A @ 208 V, 60 Hz
  • Power and Current: 284 W, 1.23 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Rogue R1 BeamWash
  • Neutrik® powerCON® power cord
  • Omega bracket with mounting hardware

OPTIONAL ACCESSORIES

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • Neutrik® powerCON® cables
  • DMX Cables
  • Flight Case: CP6CASER1W
  • UPLOAD 08 software uploader
Weiterführende Links zu "Rogue R1 Beam Wash"

5AMPGMAfuse 5A Φ5×20 250V (BOM#31)
PTF1001002202Seetronic POWER OUT indoor white socket SAC3FPX
PTF1001002302POWER IN SOCKET (MALE)(BOM#2B)
PTF2700003804NEUTRIK US POWER CABLE 1.5M - 5FT (POWERCON TO EDISON) 14 AWG
fan DFM6010B (BOM#8)PTH0200601206010fan DFM6010B (BOM#8)
fan vent 6×6 (BOM#13)PTH02100600fan vent 6×6 (BOM#13)
PTH1010102229011tilt wire press board PRO-715-A02-07 (BOM#32)
PTH1010102229031pan motor fix bracket 1 PRO-715-A02-08 (BOM#64)
PTH1010102229051pan motor fix bracket 2 PRO-715-A02-09 (BOM#63)
safety cable board M515A0112 (BOM#78)PTH1010102284961safety cable board M515A0112 (BOM#78)

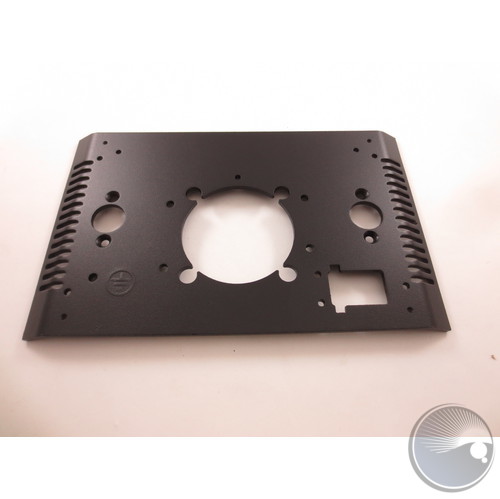

base board PRO-740-A01-01 (BOM#22)PTH1010102523841base board PRO-740-A01-01 (BOM#22)

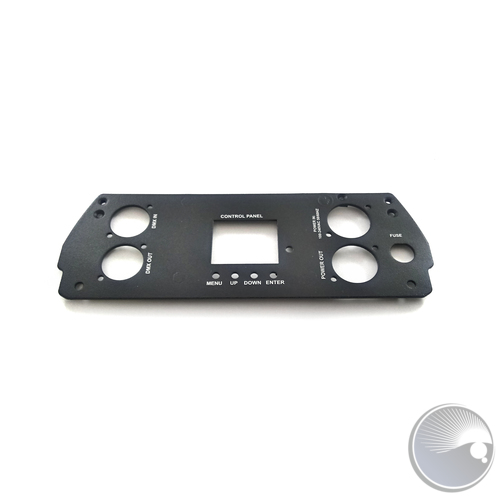

display board bracket PRO-740-A01-02 (BOM#21)PTH1010102523861display board bracket PRO-740-A01-02 (BOM#21)
PTH1010102523881base back board PRO-740-A01-03 (BOM#2)

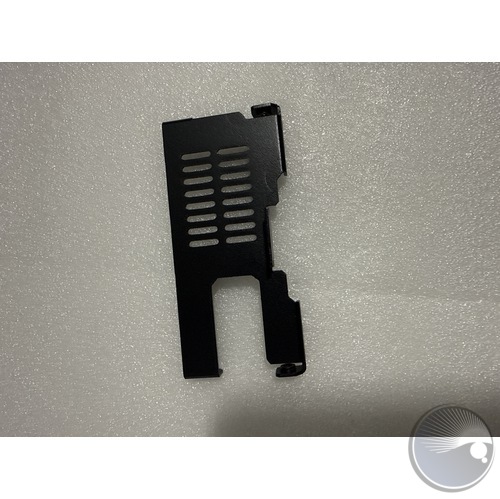

PTH1010102523901base side board PRO-740-A01-04 (BOM#4)

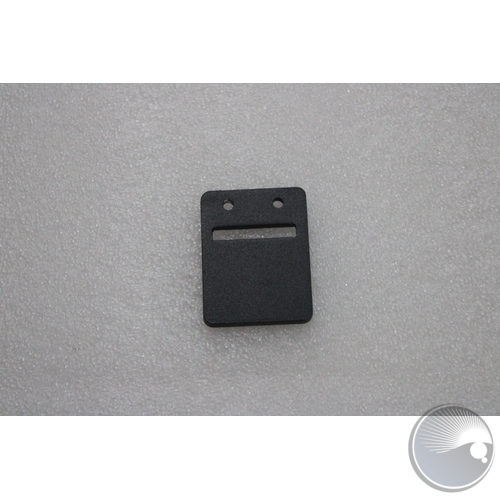

PTH1010102523941safety rope cover board PRO-740-A01-06 (BOM#23)

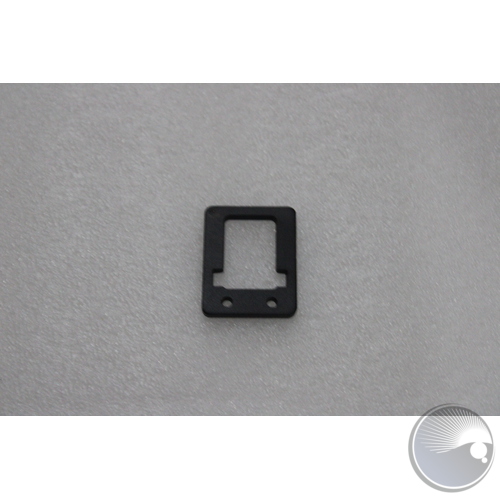

PTH1010102523961safety rope mat board PRO-740-A01-05 (BOM#24)

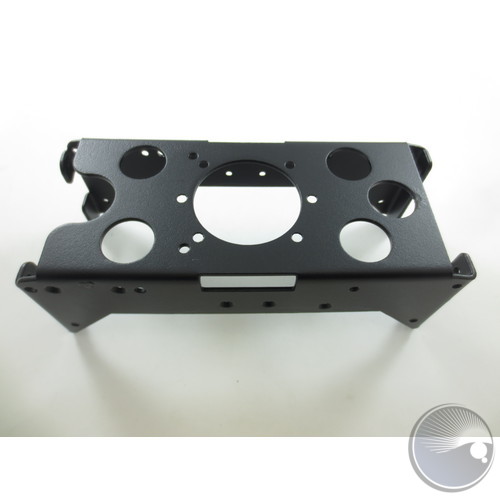

arm connection bracket PRO-740-A02-01 (BOM#52)PTH1010102523981arm connection bracket PRO-740-A02-01 (BOM#52)

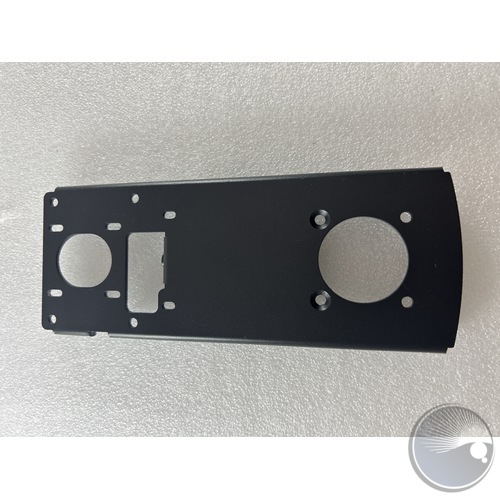

PTH1010102524001tilt motor bracket PRO-740-A02-02 (BOM#37)
PTH1010102524021tilt bracket PRO-740-A02-03 (BOM#33)

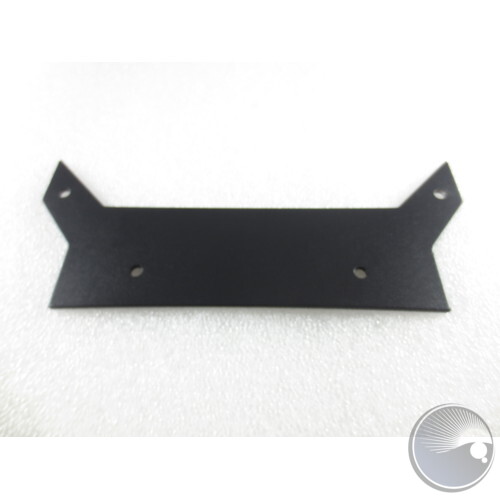

PTH1010102524041arm front board PRO-740-A02-04 (BOM#45)
PTH1010102524061pan motor bracket PRO-740-A02-05 (BOM#60)
PTH1010102524081tilt motor adjust bracket PRO-740-A02-06 (BOM#43)
PTH1010102524101head side bracket PRO-740-A03-01 (BOM#68)
PTH1010202229091mat cover PRO-715-B03 (BOM#56)

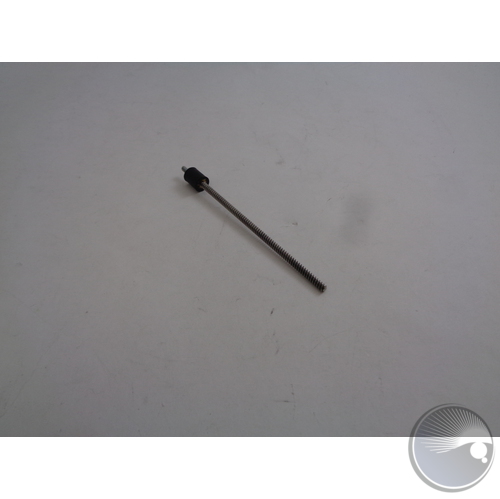

shake proof screw LG-3.5-109 (BOM#76)PTH1010202376671shake proof screw LG-3.5-109 (BOM#76)
PTH1010202510051gear DL-355-02 (BOM#38)

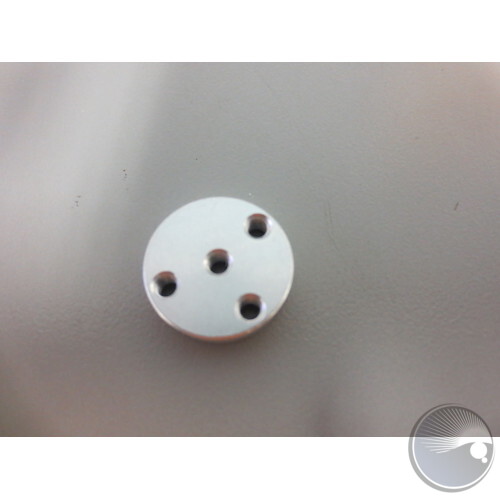

PTH1010202510731slider block IW-740-B04 (BOM#77)
PTH1010202523751pan optocoupler bracket PRO-740-B01 (BOM#55)
PTH1010202523761tilt optocoupler bracket PRO-740-B02 (BOM#41)
PTH1010202523771slide cover PRO-740-B03 (BOM#74)

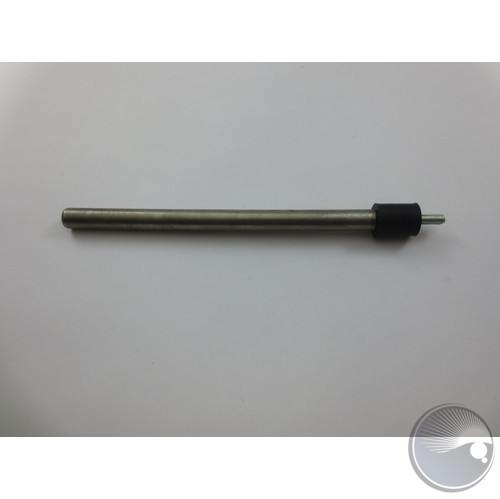

shake proof slider PRO-740-B04 (BOM#75)PTH1010202523791shake proof slider PRO-740-B04 (BOM#75)
PTH1010202533451pan axis bracket PRO-740-B05 (BOM#9)
PTH1010401209671standoff 537 M3 (BOM#53)
PTH1010401229701standoff 5X68M3 (BOM#57)
PTH1010401412951standoff 562 M3 (BOM#33)
PTH1010502523731heat sink CD-Z23 (BOM#67)
OMEGA BRACKET (BOM#32)PTH1040000230891OMEGA BRACKET (BOM#32)

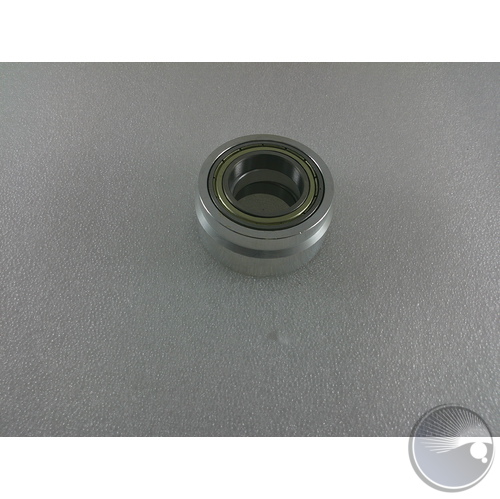

PTH1040000241401pan bushing TOP-715IW-715 LED Moving Wash,TOP-715 Z LED Moving Spot,TOP-635IW-635 LED Moving Zoom Wa
arm cover PRO-715-C04 (BOM#31)PTH1060100382191arm cover PRO-715-C04 (BOM#31)

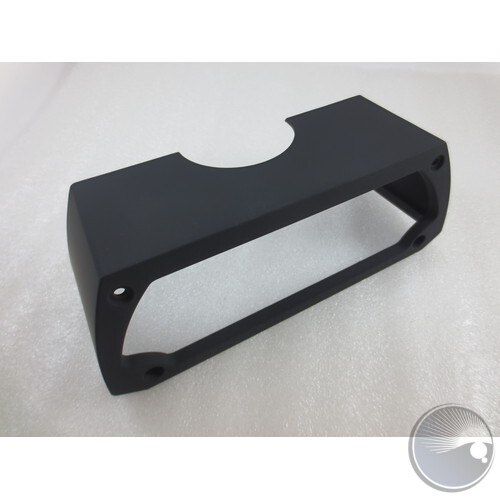

PTH1060100524781base front cover PRO-740-C01 (BOM#1)
PTH1060100524791arm top cover PRO-740-C02 (BOM#35)

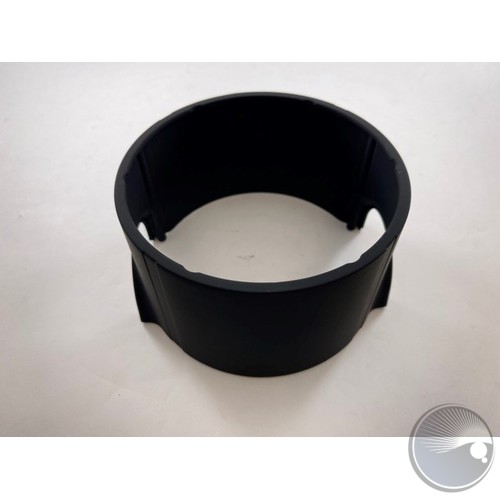

head front cover PRO-740-C03 (BOM#81)PTH1060100524801head front cover PRO-740-C03 (BOM#81)

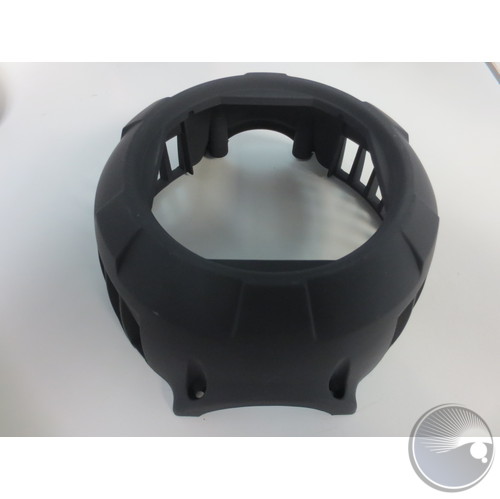

head back cover PRO-740-C04 (BOM#64)PTH1060100524811head back cover PRO-740-C04 (BOM#64)

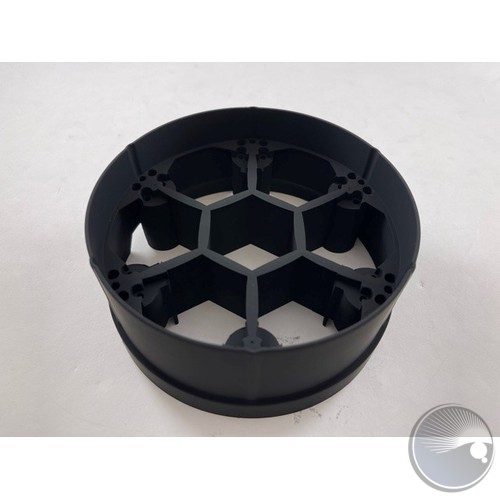

lens bottom cover PRO-740-C05 (BOM#78)PTH1060100524821lens bottom cover PRO-740-C05 (BOM#78)
PTH1060100533461lens top cover PRO-740-C06 (BOM#80)
display lens cover CDC39×32×2.5 (BOM#35)PTH1060200181811display lens cover CDC39×32×2.5 (BOM#35)

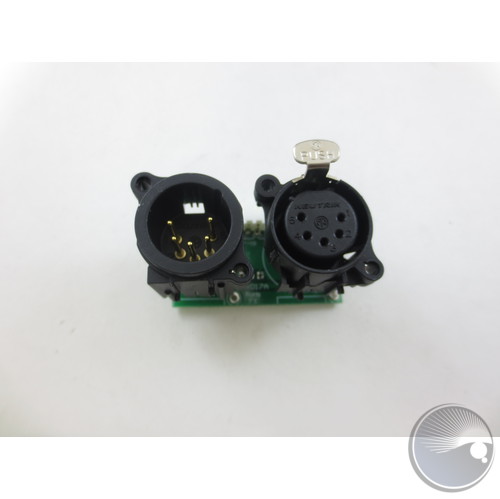

DMX PCB ADMX017 (BOM#12)PTH2020302275041DMX PCB ADMX017 (BOM#12)

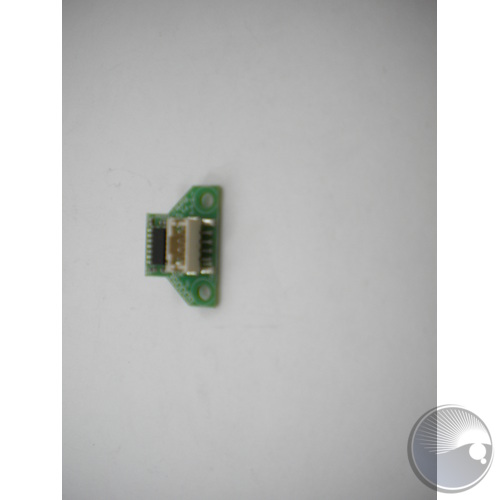

optocoupler PCB GD005 E (BOM#71)PTH2020302380561optocoupler PCB GD005 E (BOM#71)
optocoupler PCB GD006 (BOM#40)PTH2020302424271optocoupler PCB GD006 (BOM#40)

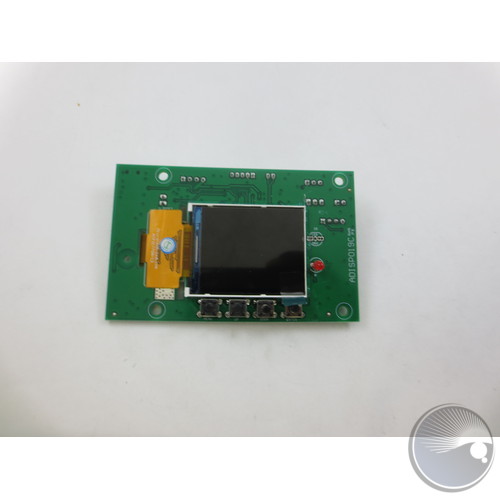

display PCB ADISP019 (BOM#15)PTH2020302521821display PCB ADISP019 (BOM#15)

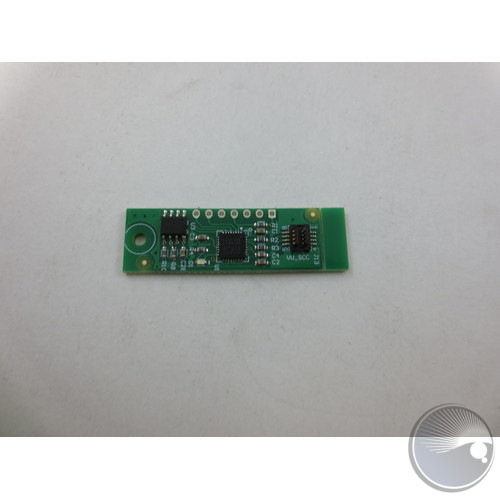

PCB MK013  4031 (BOM#13)PTH2020302530651PCB MK013 4031 (BOM#13)

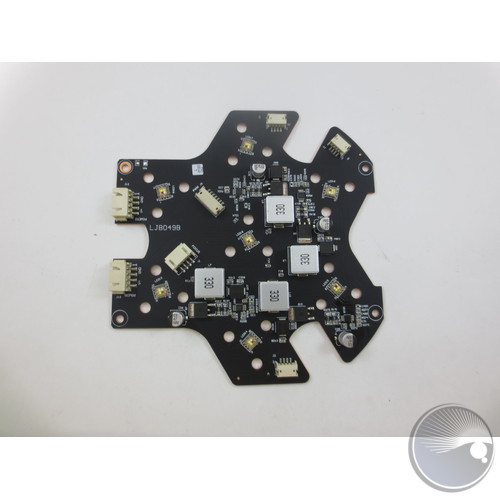

LED PCB LJB049 (BOM#69)PTH2020302544781LED PCB LJB049 (BOM#69)

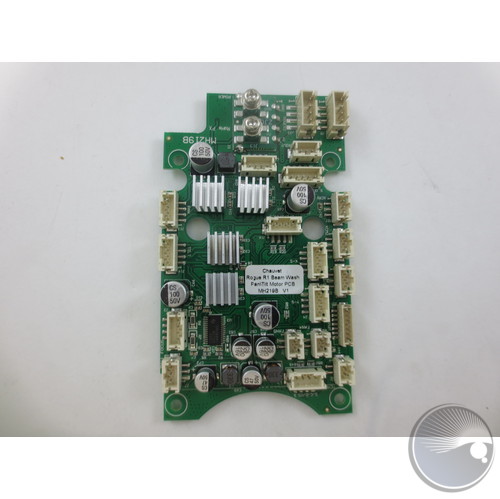

pan tilt PCB MH219 (BOM#63)PTH2020302544811pan tilt PCB MH219 (BOM#63)
PTH20203025865313pin Connector PCB

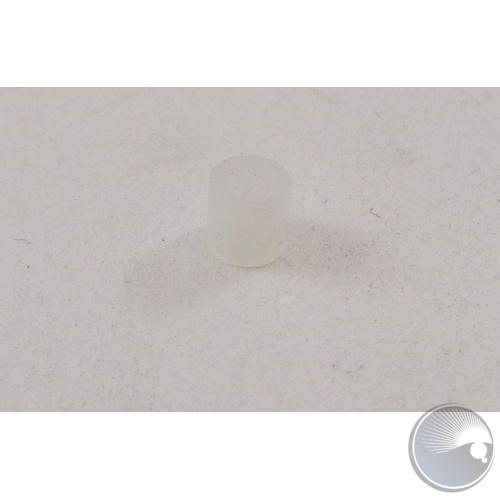

plastic standoff 44 2.8 (BOM#14)PTH2021900109181plastic standoff 44 2.8 (BOM#14)

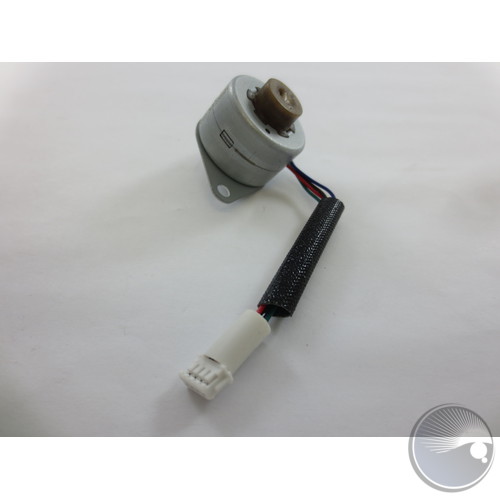

motor 25PM30013-01 (BOM#73)PTH20301032823411motor 25PM30013-01 (BOM#73)

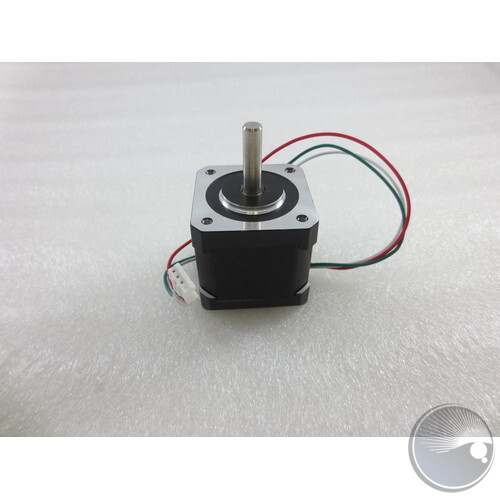

PTH2030103534391motor 17HEF4104-25-500 (BOM#44)

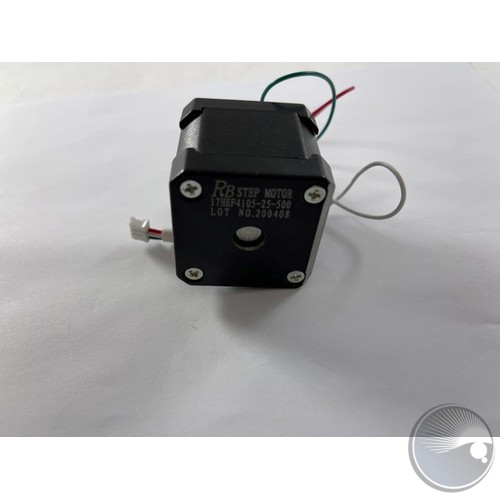

motor 17HEF4105-25-500 (BOM#61)PTH2030103534601motor 17HEF4105-25-500 (BOM#61)

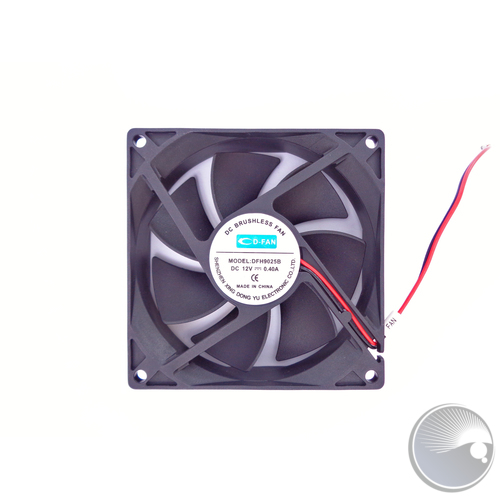

12V⎓0.40A Head fan DFH9025B - 2-pin 2.0 female (BOM#69)PTH203020110134112V⎓0.40A Head fan DFH9025B - 2-pin 2.0 female (BOM#69)

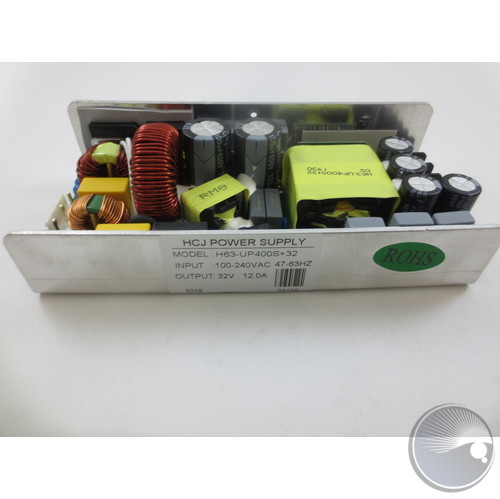

Power supply PSU H63-UP400S32 (BOM#3)PTH2030700526051Power supply PSU H63-UP400S32 (BOM#3)
PTH2040000541011pan driving wheel PRO-740 LED Moving Wash (BOM#46)
PTH2040000541021tilt bushing PRO-740 LED Moving Wash (BOM#32)

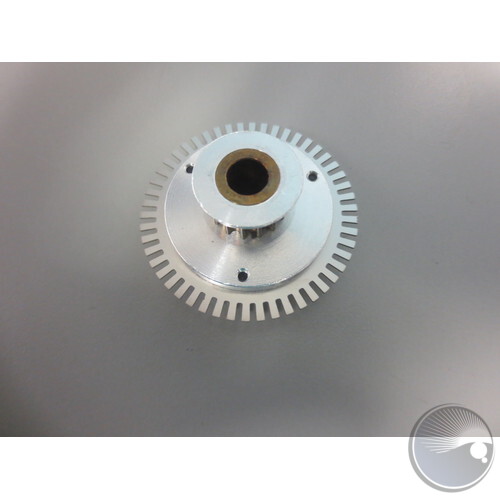

PTH2040000541031pan driving wheel PRO-740 LED Moving Wash (BOM#54)

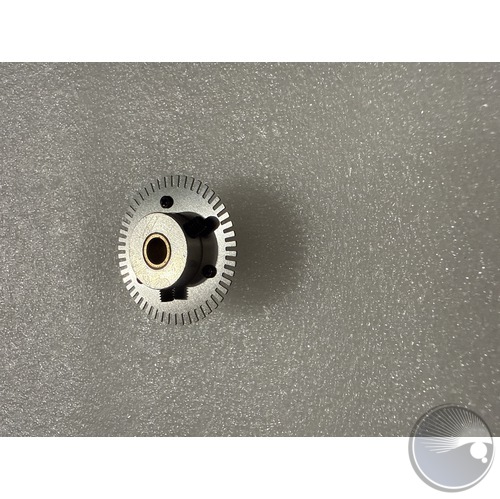

PTH2040000541041tilt driving wheel PRO-740 LED Moving Wash (BOM#42)

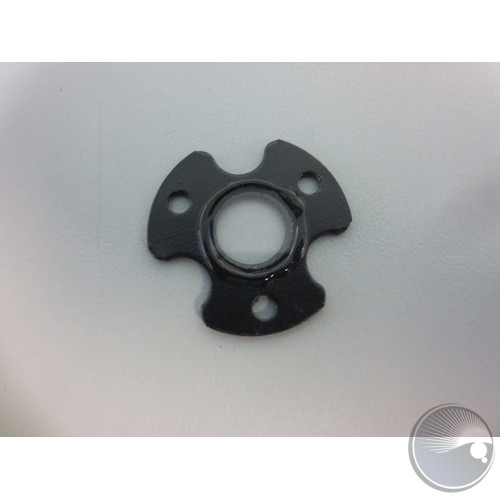

frost PRO-740 LED Moving Wash (BOM#71)PTH2040000547131frost PRO-740 LED Moving Wash (BOM#71)

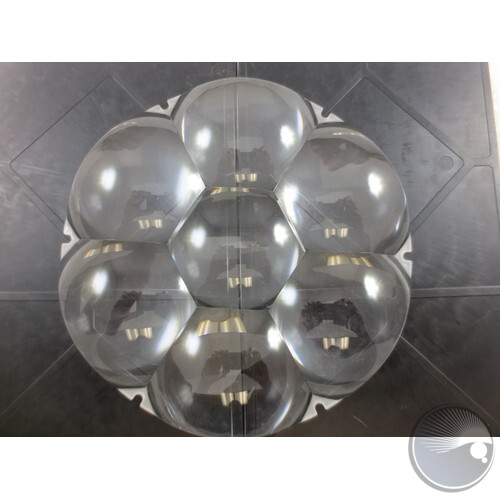

PTH20409005247517 in 1 cluster CD-F10 (BOM#79)

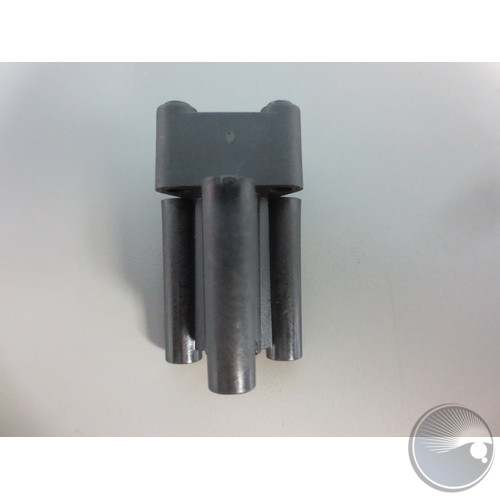

light guide SD02-LP40V2-D295085 (BOM#70)PTH2041200524761light guide SD02-LP40V2-D295085 (BOM#70)

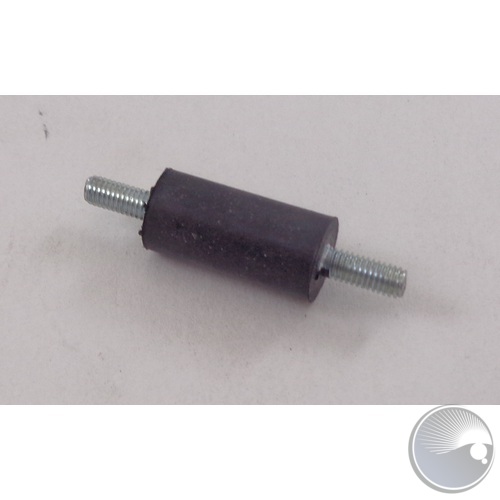

rubber shake proof screw 817 (BOM#72)PTH2081200308972rubber shake proof screw 817 (BOM#72)

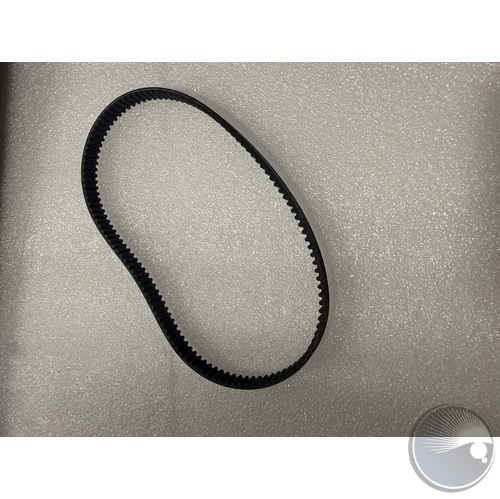

PTH2090101177962syncronization belt 3M-357-8mm (BOM#39)

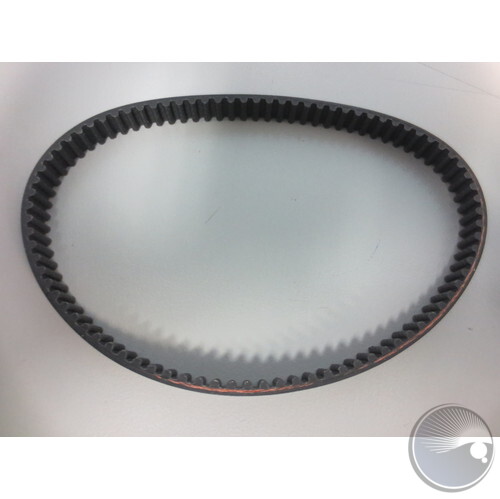

PTH2090101524731belt 3M-255-7mm (BOM#47)

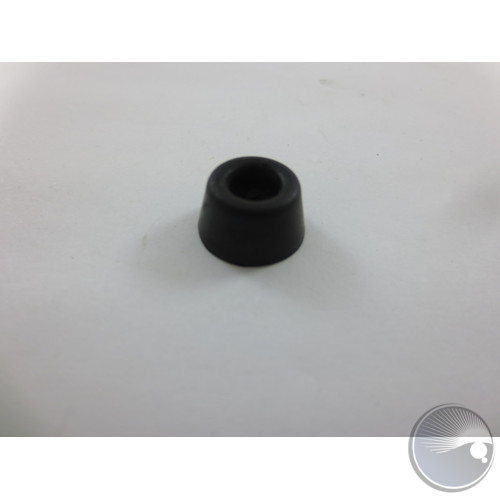

machine foot 158 (BOM#26)PTH2090400171491machine foot 158 (BOM#26)
fan vent 9×9 (BOM#68)PTH2090500170781fan vent 9×9 (BOM#68)
spring Φ6×27×0.8 (BOM#181)PTH2090601168501spring Φ6×27×0.8 (BOM#181)
circlip Φ24 (BOM#44)PTH2091302169561circlip Φ24 (BOM#44)
PTH2091500530281silicone CP300-6236 62365mm (BOM#62)
PTHTOP715A0206pan orientation chip (BOM#55)
pan orientation mat (BOM#54&56)PTHTOP715A0207pan orientation mat (BOM#54&56)
PTHTOP715BZ01pan axis TOP-715-BZ01 (BOM#7)
PTHTOP715BZ03tilt axis (BOM#35)
PTHTOP715BZ05tilt axis (BOM#37)
UPLOAD08/MR UPLOAD (CPMOVEUP)PTHUPLOAD08UPLOAD08/MR UPLOAD (CPMOVEUP)
UPLOAD08/MR UPLOAD (CPMOVEUP)PTHUPLOAD08UPLOAD08/MR UPLOAD (CPMOVEUP)
CLAMP LOCK (BOM#42)PTJ3020018004CLAMP LOCK (BOM#42)
FUSE HOLDER (BOM#18)PTJ3027001001FUSE HOLDER (BOM#18)

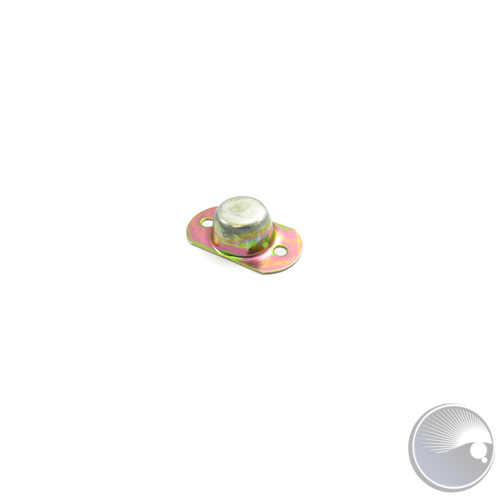

COVER FOR FAST LOCKPTJ5014950170COVER FOR FAST LOCK
