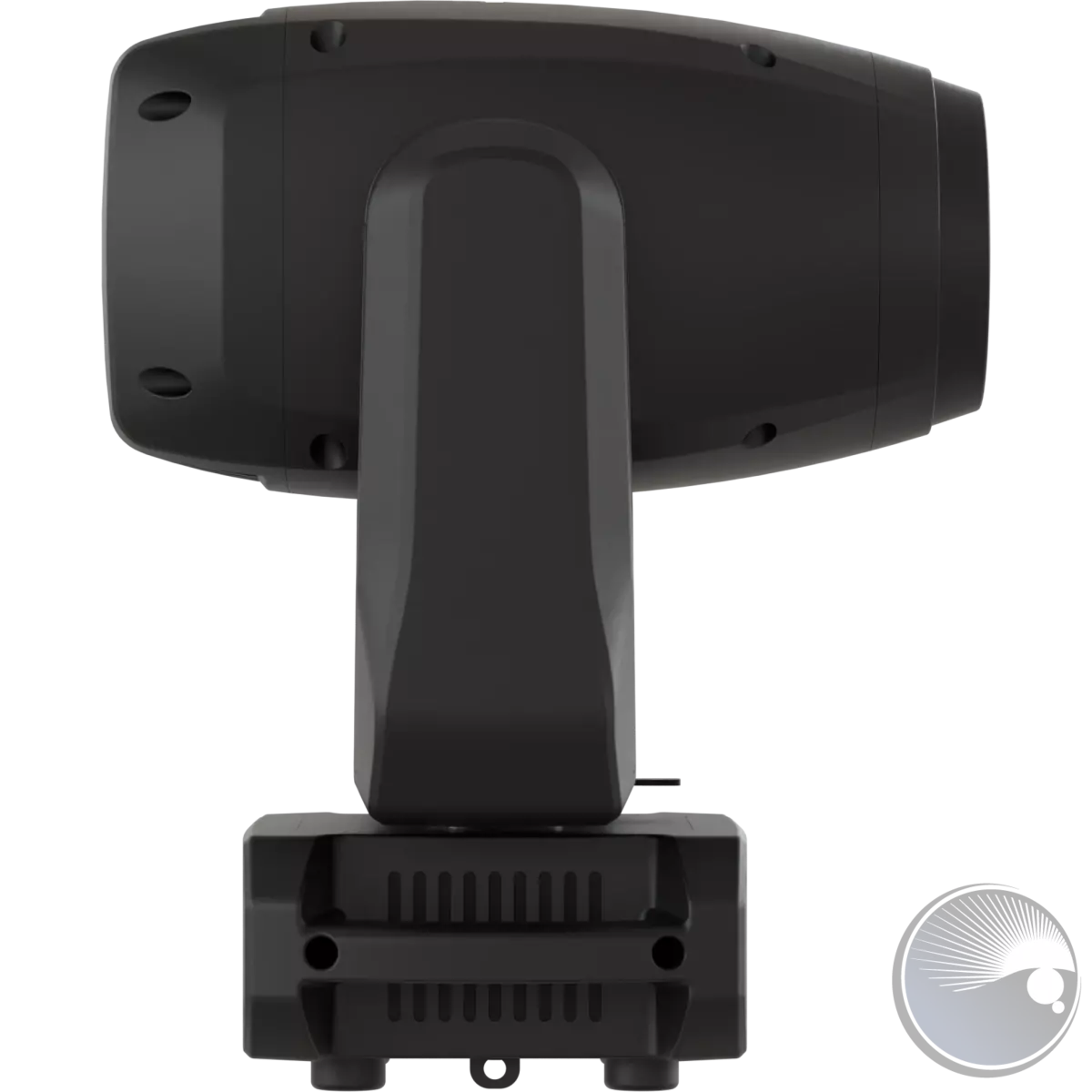

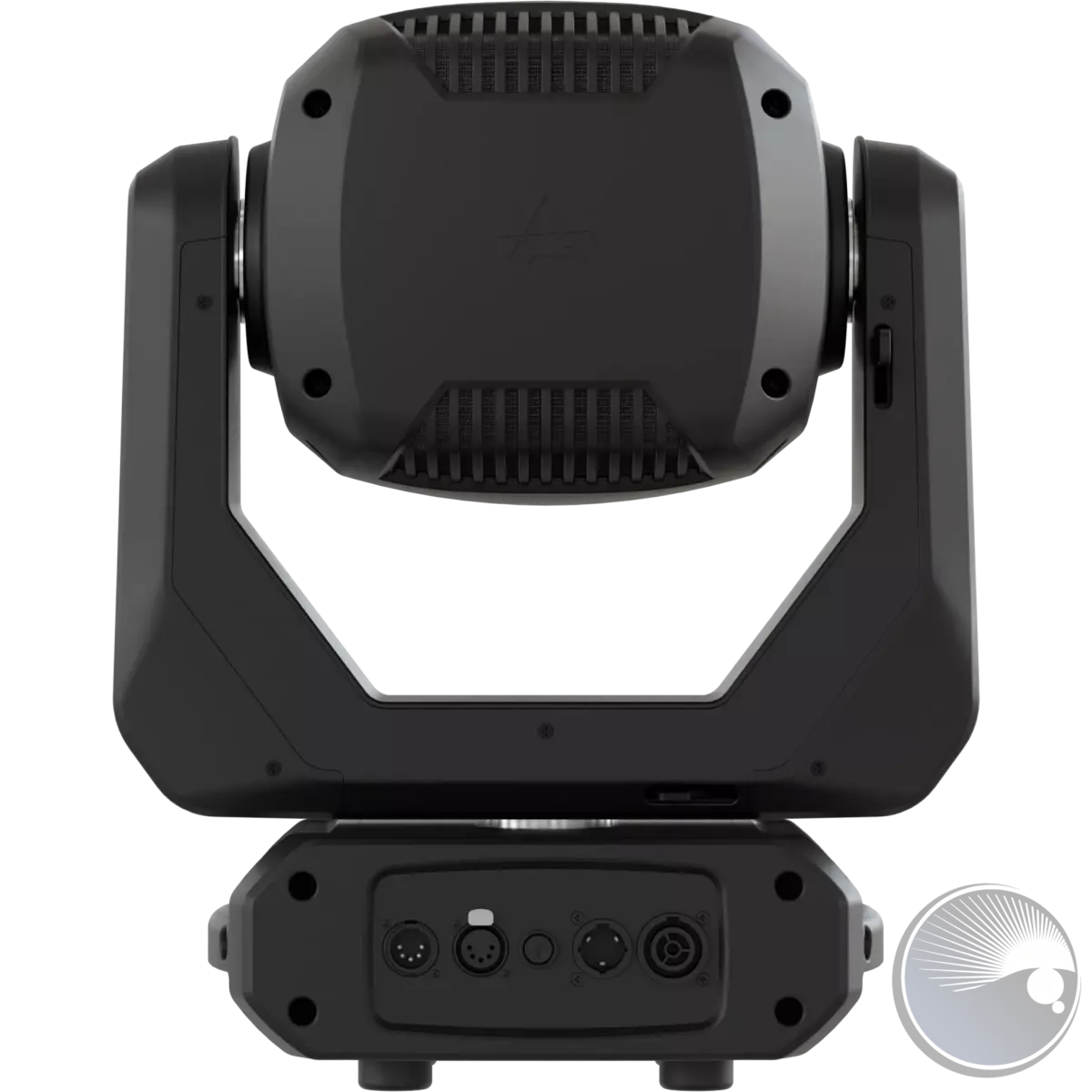

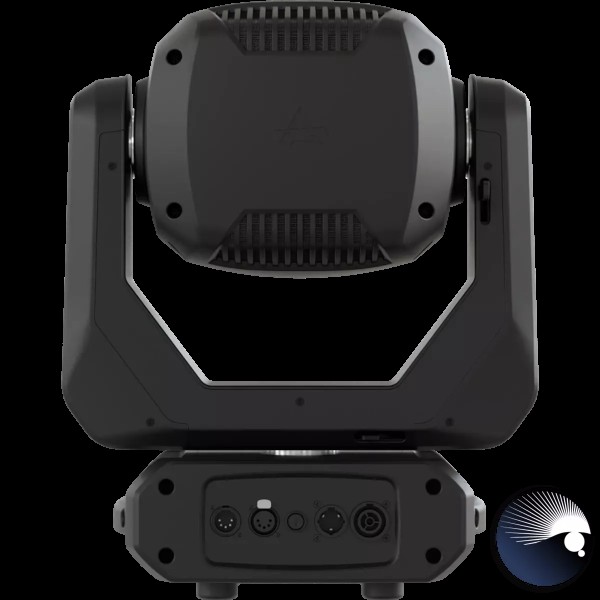

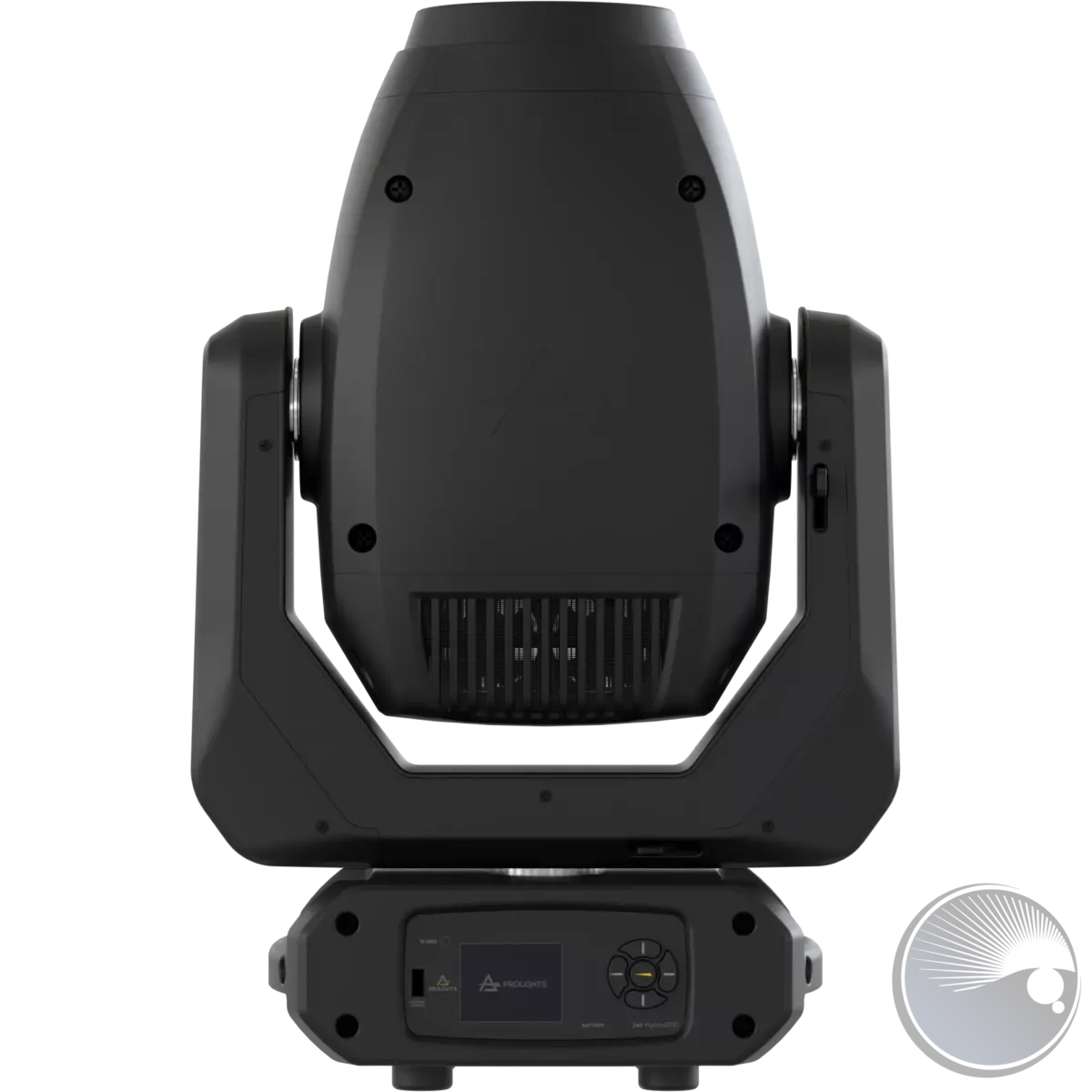

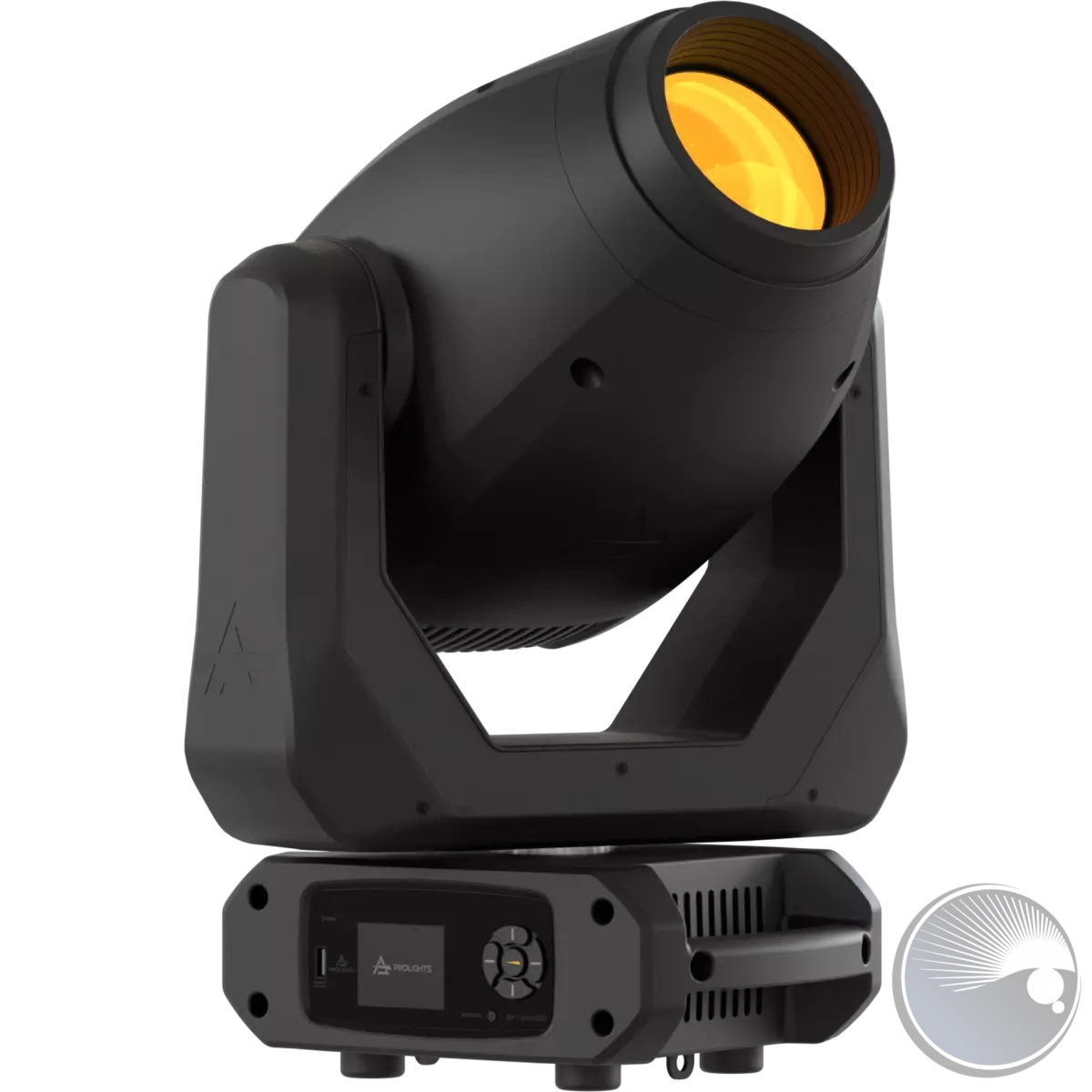

PL Jet Hybrid200, 200W LED, schwarz

Jet Hyb200 is a budget-friendly, hybrid beam-spot moving light, offering high-quality and powerful output in a compact design. Tailored for both mid-air effects and image projections, it boasts an impressive 8,000-lumen output from a 200W LED source. Its fast zoom ranges from 3.5° to 40°, making it an excellent replacement to compact discharge hybrid fixtures. The Jet Hyb200's dynamic effects suite includes a color wheel with 13 dichroic filters, two gobo wheels featuring 8 rotating and 17 static gobos, along with prism and frost capabilities for diverse creative needs.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 200W high-power white LED
• CCT: 7.000
• Luminous flux: (3,5°) 5'962 lm - (40°) 7'593
• Lux: (3,5°) 69'503 lx - (40°) 1'461lx @5 m full
• CRI: > 70 (CCT 6000K and CRI > 84 with filter on color wheel)
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Zoom range: 3,5° - 40° motorised linear zoom
• Lens diameter: 100mm / 3.94''
• Lens type: HD anti-reflection lenses with achromatic coating
• Focus: motorised

COLOUR SYSTEM

• CCT: on wheel 3.200 K
• Colour wheel: 11 colour filters
• Colour wheel: High CRI colour filters

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer
• Rotating gobos: 8 rotating gobos + open, interchangeable, indexing
• Gobo size: outer: 13,9 mm - image: 11 mm - thickness: up to 3 mm
• Fixed gobos: 17 fixed gobos + open
• Circular prism: 5f with bi-directional rotation, indexing
• Frost: linear 0-100% light interchangeable

BODY

• Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
• Pan range: 540°
• Tilt range: 260°
• Pan/Tilt resolution: bit 8 / 16-bit
• Feedback: automatic repositioning after accidental movement
• Body: Aluminium structure with high-resistance polycarbonate cover
• Body colour: RAL 9004

CONTROL

• Supported Protocols: DMX512, RDM
• DMX channels: 20channel
• RDM: RDM for remote monitoring and settings
• Display: LCD high resolution colour display with autoflip
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -10° ~ +45° Ta
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
• Max power consumption: 276W
• Standby power: 56W
• Output (at 230V): 9 units on a single power line
• Power factor: > 0,94

PHYSICAL

• IP rating: IP20
• Cooling: combination of heat pipe cooling system and low noise fan
• Suspension and fixing: any position with quick-lock omega brackets
• Pan / tilt lock: for transportation and maintenance
• Signal connection: Neutrik IP XLR 5p IN/OUT connectors
• Power connection: Seetronic powerCON TRUE IP65 IN/OUT
• Dimensions (WxHxD): 356x538x205mm / 14.02''x21.18''x8.07''
• Weight: 15kg / 33.07lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM, FCC, cTUVus

BOX CONTENT

• 1 x JETHYB200
• 1 x OS24PLUS
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• User manual
