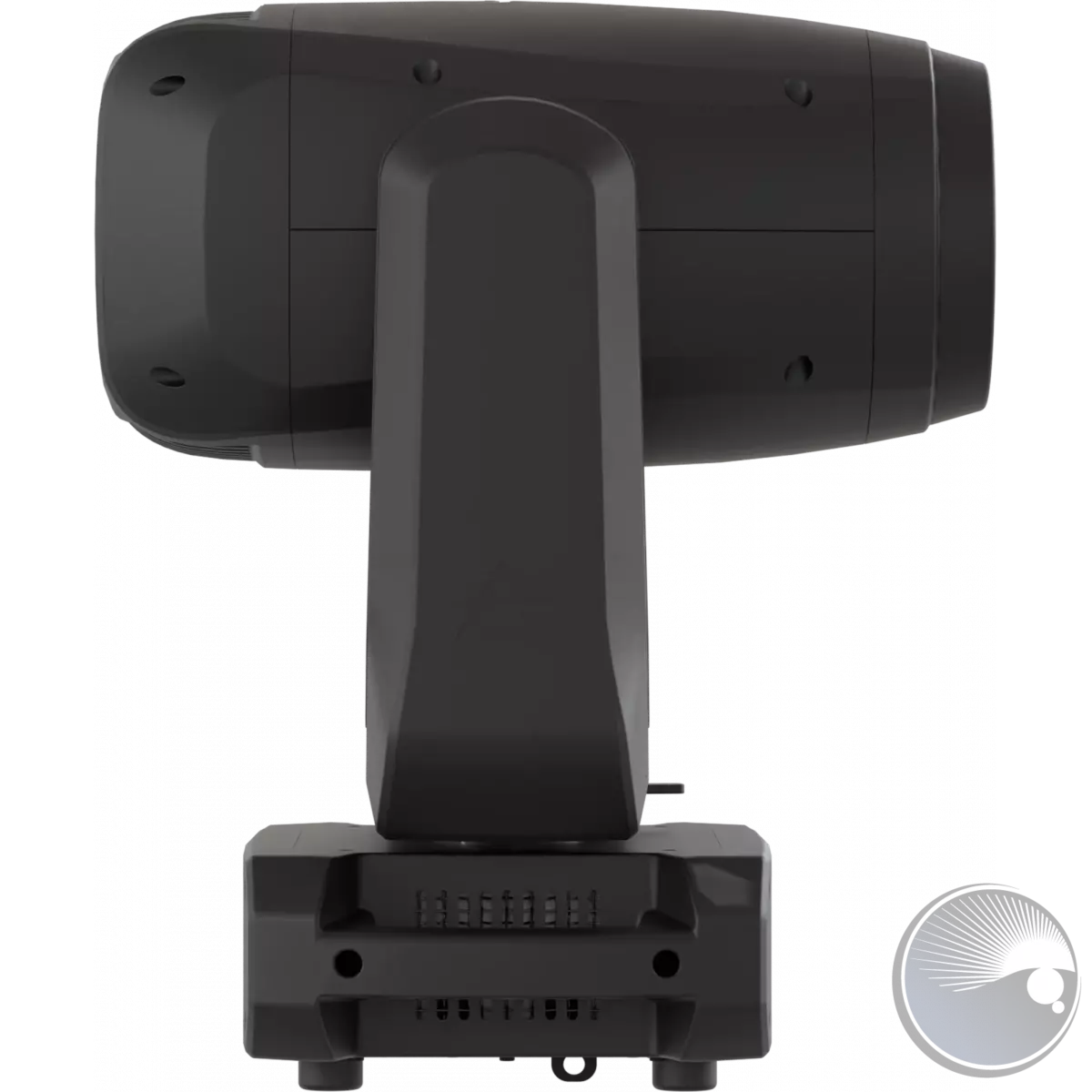

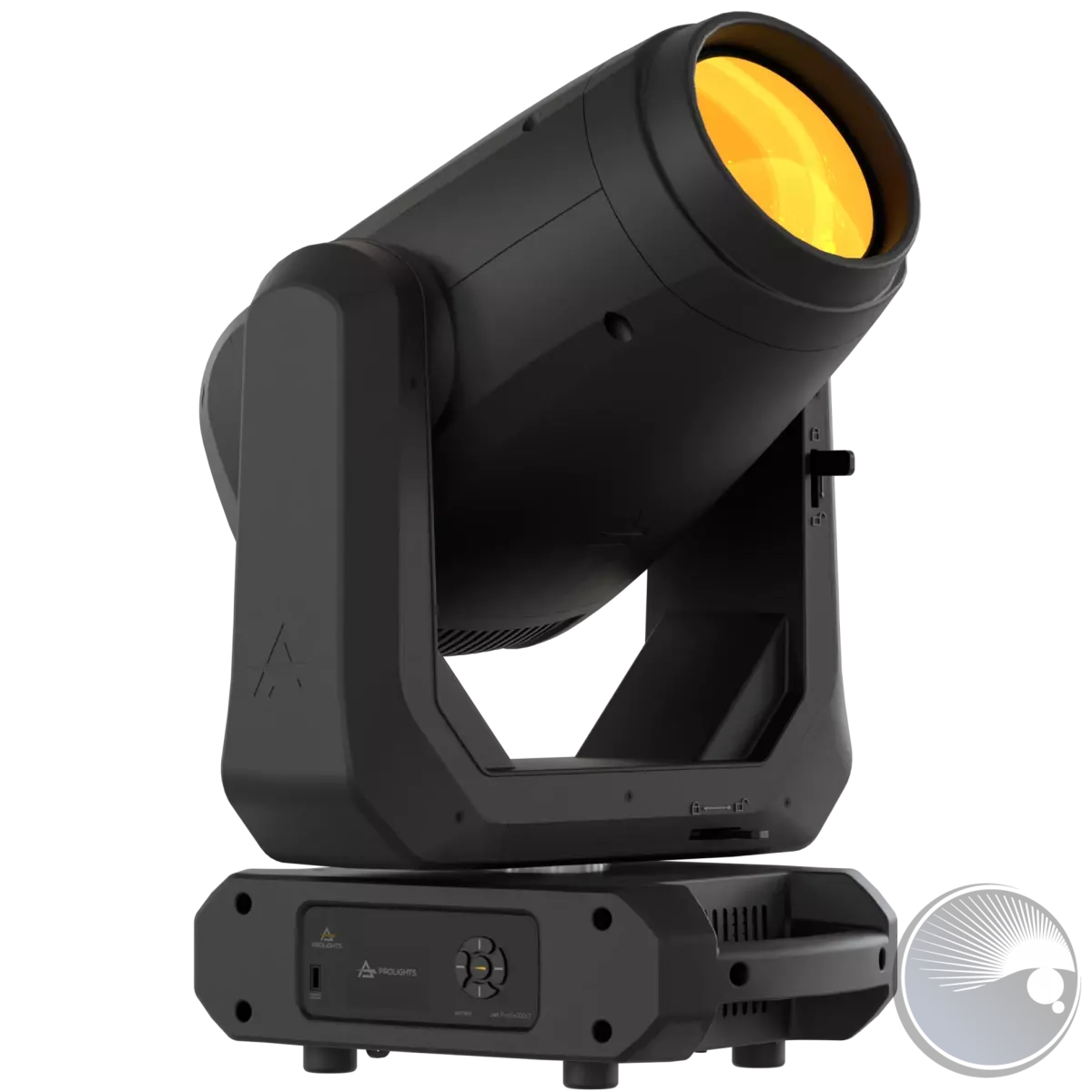

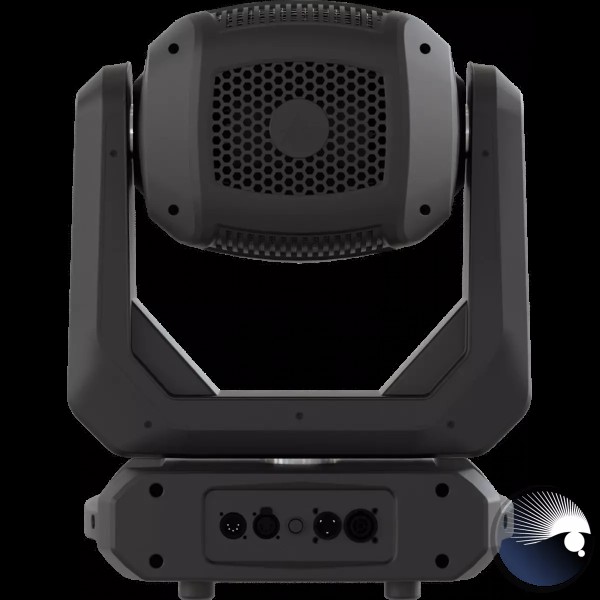

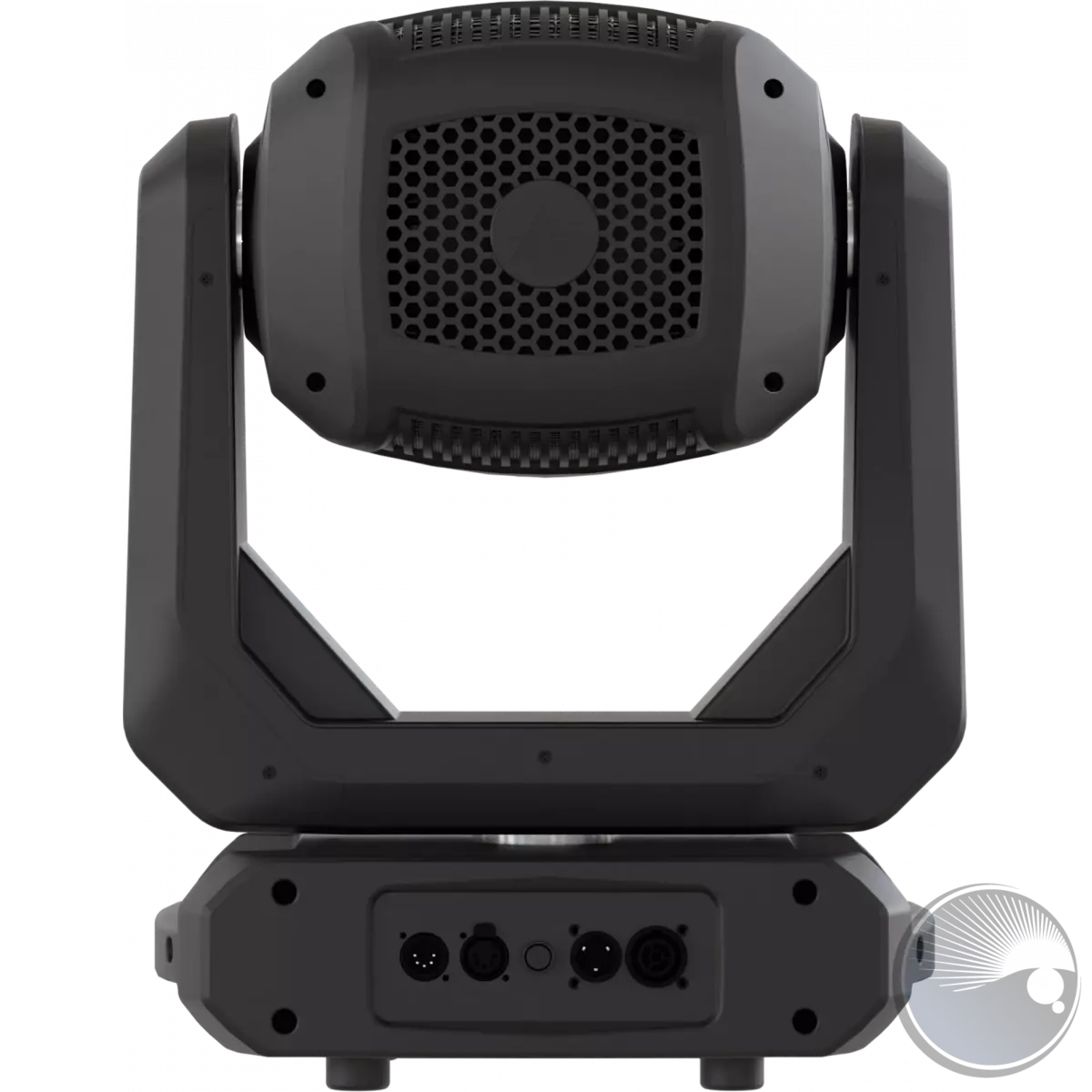

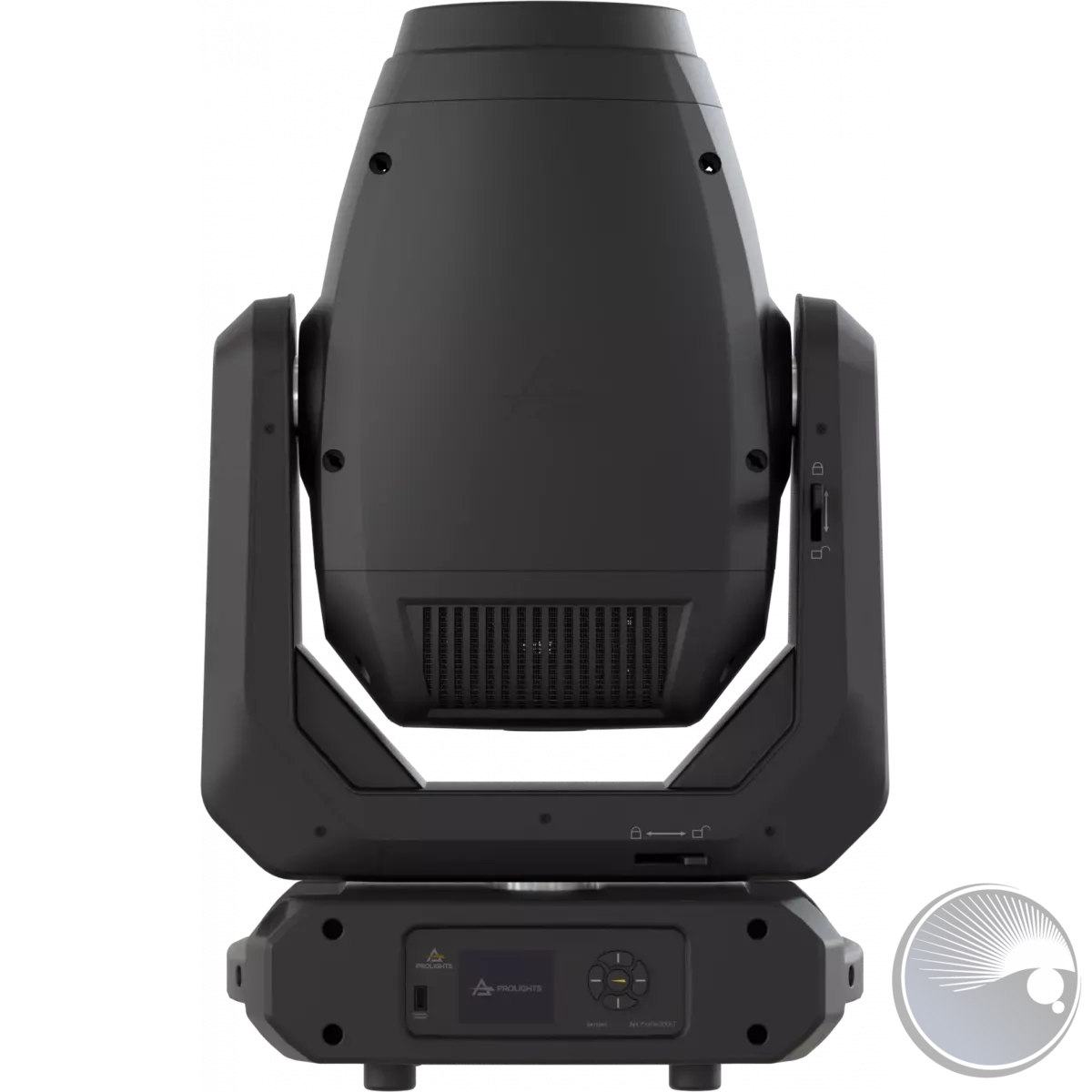

PL Jet Profile300LT, 300W LED, schwarz

The Jet Profile300LT is a compact, quiet, and versatile moving LED profile designed for small to medium stages in theater, television, and live performances. Featuring a 300W white LED source and a long-throw optical system with a large 140mm front lens, it delivers a robust 12.000 lumen output.Despite its super-compact design, it maintains high performance. The motorized zoom offers a range of 4°-44°, making it suitable for aerial effects and long-distance throws key light.The Jet Profile300LT offers precise beam control with four framing shutters, each with individual plane rotation and full curtain effect capability. Additional features include a linear CMY system, linear CTO system, two half-color wheels, a rotating gobo wheel with seven images, animation wheels, soft frost, a circular prism and linear prism.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 300W high-power white LED
• CCT: 6.500K
• Luminous flux: (3,9°) 8'313 lm - (44,1°) 12'065 lm
• Lux: (3,9°) 88'597 lx (44,1°) 1'333lx @5 m
• CRI: > 70 (85 with 6000K High CRI filter on color wheel)
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Zoom range: 3,9° - 44,1° motorised linear zoom
• Lens diameter: 140mm / 5.51''
• Lens type: HD anti-reflection lenses with achromatic coating
• Focus: motorised

COLOUR SYSTEM

• Colour mixing: CMY colour system on 3 gradually fading colour wheels
• CCT: linear CTO correction 2.800 K ~ 6.500 K
• Colour wheel: 6 dichroic filters on 2 independent colour wheels

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer
• Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
• Animation wheel: animation wheel with CW and CCW rotation
• Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
• Gobo size: outer diameter: 20 mm; image diameter: 15 mm; thick: up to 3 mm
• FX generator: prisms overlap for spectacular aerial effects
• Circular prism: 4f with bi-directional rotation, indexing, interchangeable
• Linear prism: 4f with bi-directional rotation, indexing, interchangeable
• Frost: linear 0-100% light interchangeable

BODY

• Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
• Pan range: 540°
• Tilt range: 265°
• Pan/Tilt resolution: bit 16-bit
• Feedback: automatic repositioning after accidental movement
• Body: Aluminium structure with high-resistance polycarbonate cover
• Body colour: black

CONTROL

• Supported Protocols: DMX512, RDM, CRMX (optional)
• DMX channels: (STD) 38 / (EXT) 42channel
• Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -10° ~ +45° Ta
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 491W
• Standby power: 85 W
• Output (at 230V): 7 units on a single power line
• Power factor: > 0,96

PHYSICAL

• IP rating: IP20
• Cooling: combination of heat pipe cooling system and low noise fan
• Suspension and fixing: any position with quick-lock omega brackets
• Pan / tilt lock: for transportation and maintenance
• Signal connection: Neutrik XLR 5p IN/OUT connectors
• Power connection: Seetronic powerCON TRUE IP65 IN/OUT
• Dimensions (WxHxD): 403x640x250mm / 15.87''x25.2''x9.84''
• Weight: 21,4kg / 47.18lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM, cTUVus

BOX CONTENT

• 1 x JETPROFILE300LT
• 2 x OS24PLUS
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65 power connector)
• User Manual
