PL LumiPix 15IP, LED-Bar, 15x10W RGBW, 16°, IP65, schwarz

Lumipix 15IP is a tour-ready LED pixel batten conceived to be fully versatile and perform outdoor, delivering advanced brightness and colour mixing by offering individual pixel control of each cell. The robust die-cast aluminium structure with omega quick lock socket on the bracket and the waterproof power and signal connector make Lumipix 15IP suitable for the most demanding environments.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

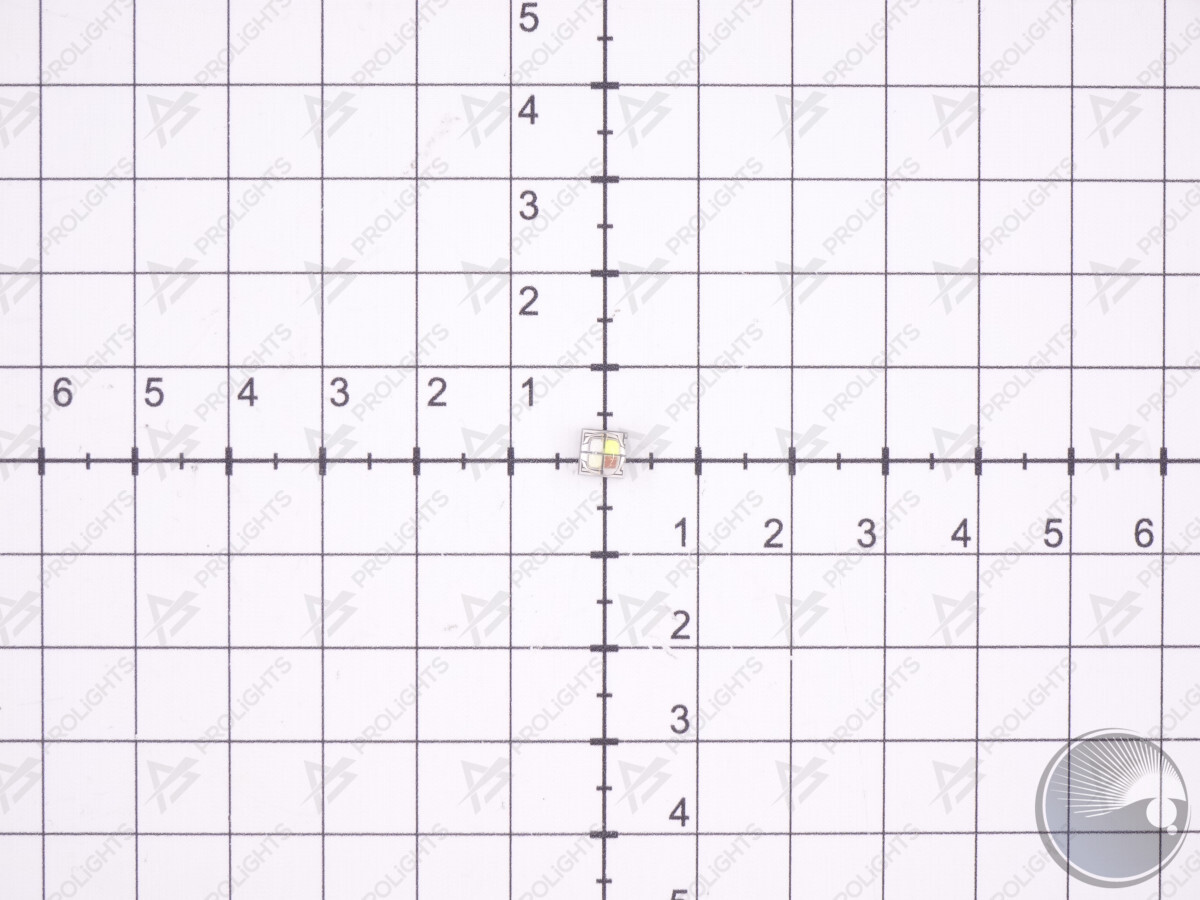

• Source: 15x10W RGBW LEDs
• Luminous flux: (16° + diffused) 4'983 lm - (16°) 5'394 @Full
• Lux: (16° + diffused) 1'886 lm - (16°) 2'454lx @5 m full
• Source life expectancy: > 30.000 h

OPTICS

• Beam angle: 16°
• Field angle: 31°

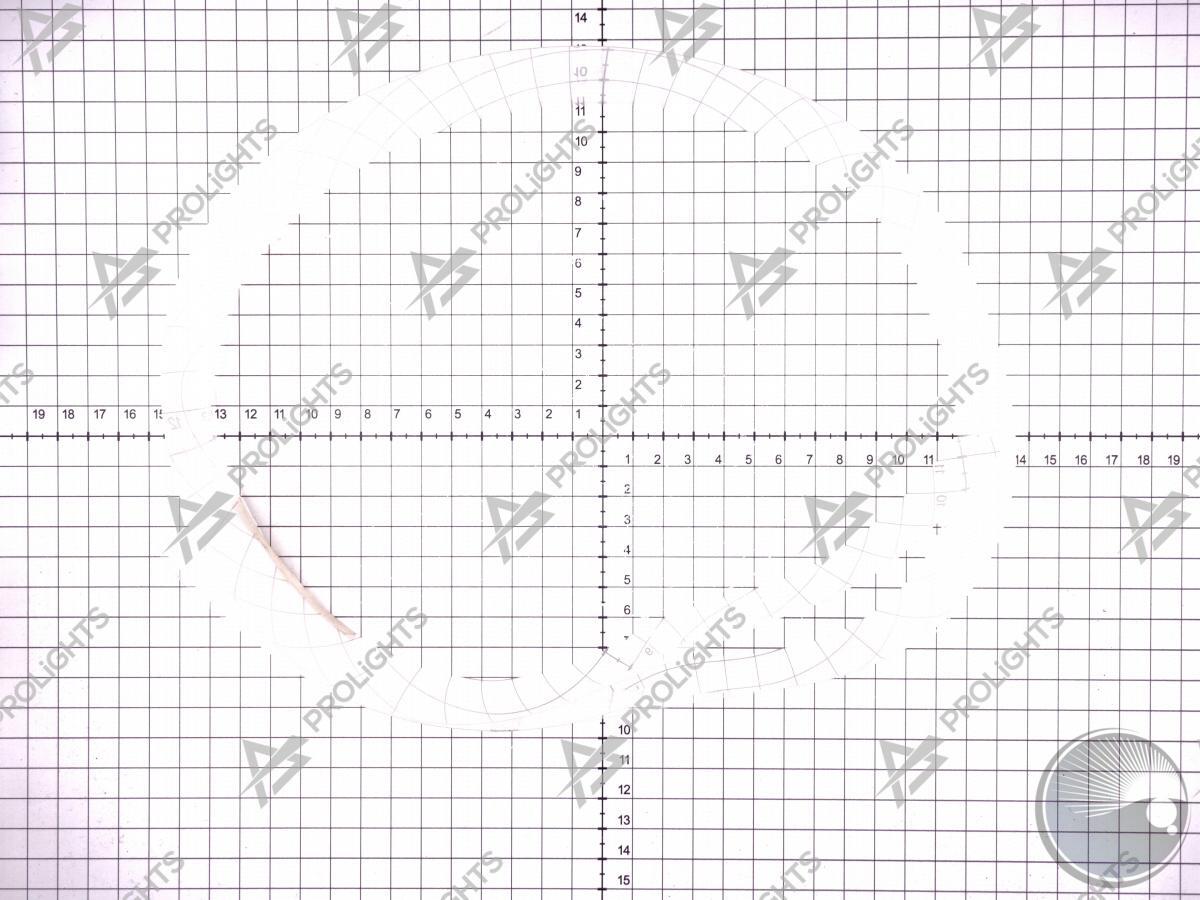

• Additional optics: magnetic frost holder on board

COLOUR SYSTEM

• Colour mixing: RGBW / FC
• CCT: CCT control through dedicated DMX channel
• White presets: 2.800 K - 10.000K
• Colour wheel: virtual colour wheel with macros
• Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

• Pixel patterns: pre-programmed dynamic and static patterns
• Static mode: selection of static colour
• Manual mode: manual adjustment of colour

BODY

• Hardware on-board: sockets for quick-Lock Omega bracket (clamp included)
• Body: Sturdy die-cast aluminium body
• Body colour: black

CONTROL

• Supported Protocols: DMX512
• DMX channels: 4 / 6 / 10 / 60 / 65channel
• Pixel control: pixel2pixel control
• Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• Display: Graphic User Interface
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 0 ~ 30 Hz, electronic
• Display battery: self-charging battery backup
• Operating temperature: -10° ~ +45° Ta
• LED Control: flicker free frequency with adjustable PWM

ELECTRICAL

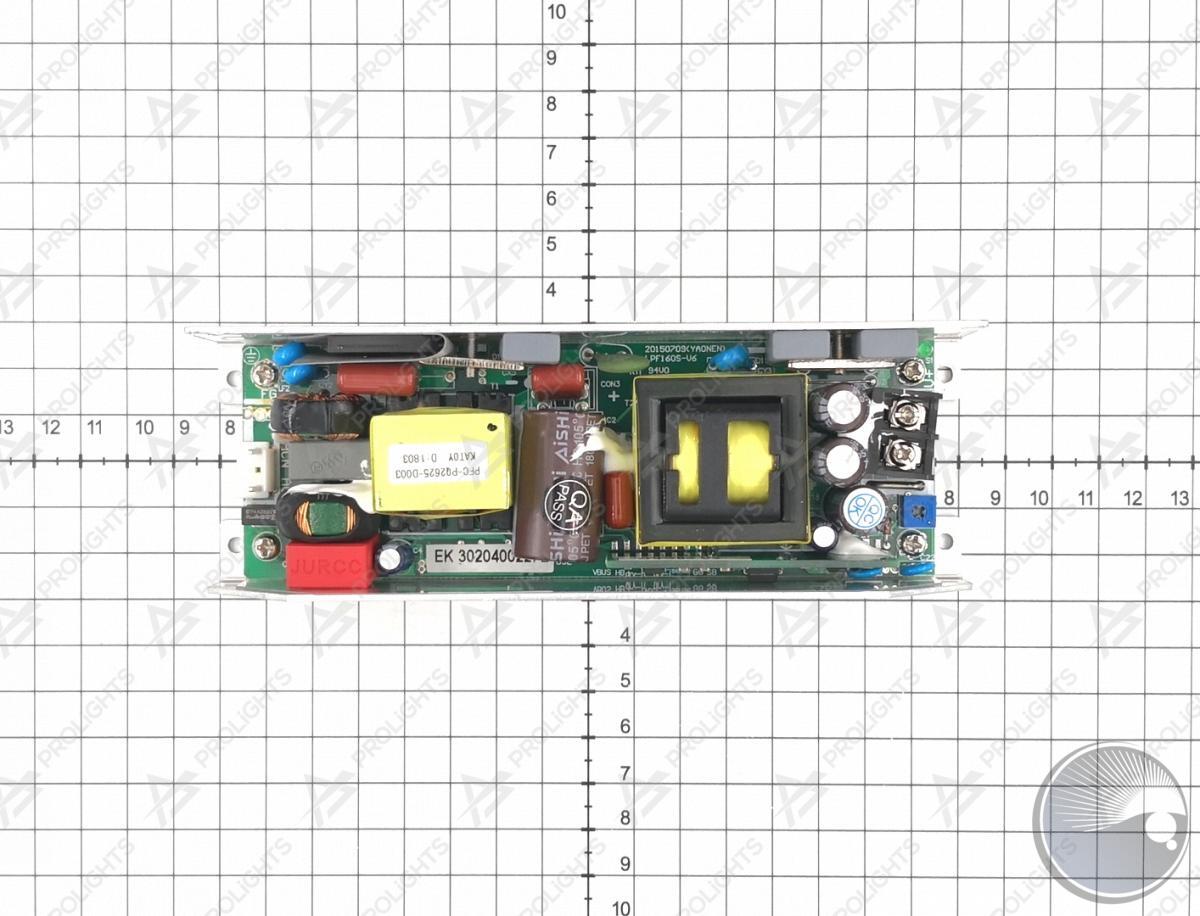

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 161W
• Max power consumption (at 120V): 162W
• Output (at 230V): 16 units on a single power line
• Output (at 120V): 12 units on a single power line

PHYSICAL

• IP rating: IP65 for temporary outdoor application, not for fixed installations
• Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation

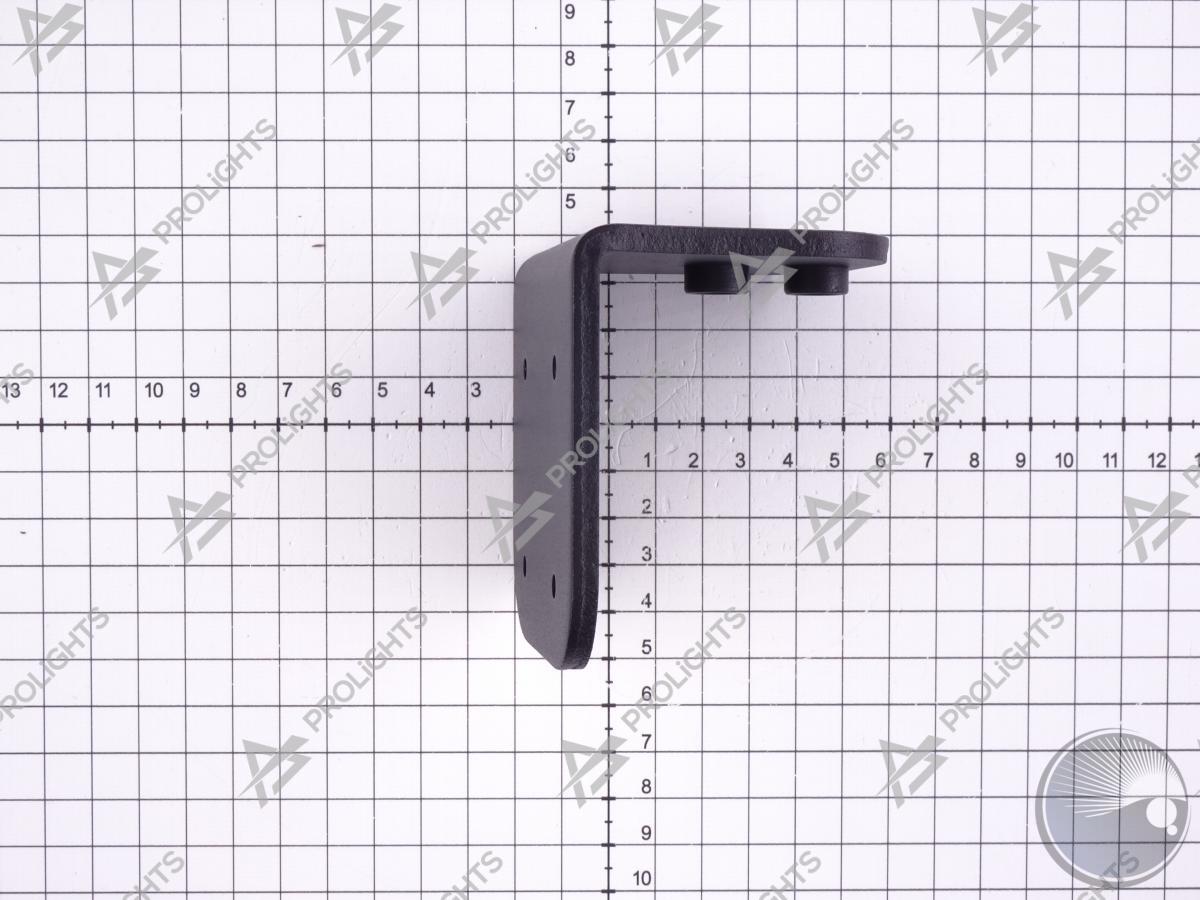

• Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
• Signal connection: Seetronic XLR 5p IN/OUT connectors
• Data connection: W-DMX receiver
• Power connection: Seetronic powerCON waterproof IN/OUT connectors
• Dimensions (WxHxD): 992x206x160mm / 39.06''x8.11''x6.3''
• Weight: 8,6kg / 18.96lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

• 1 x LUMIPIX15IP
• 1 x OS25PLUS

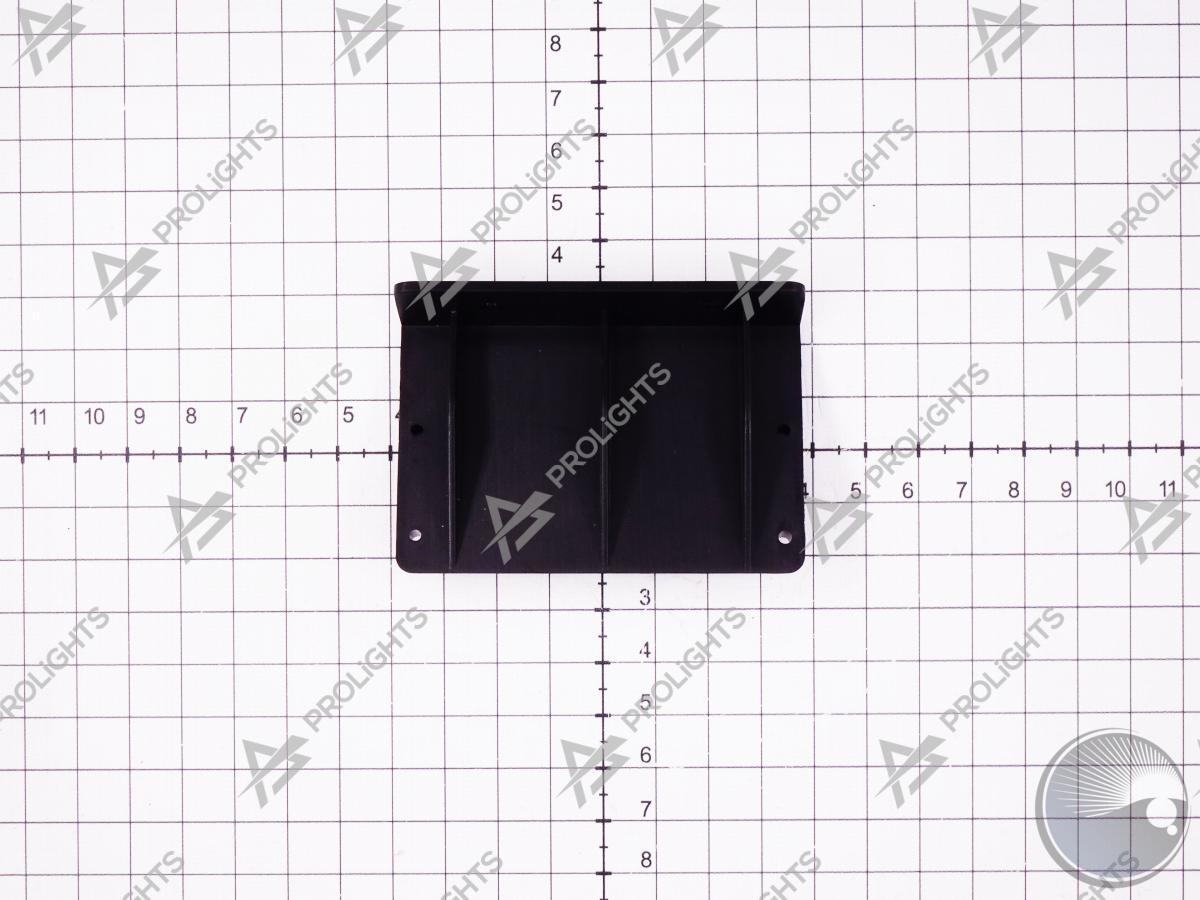

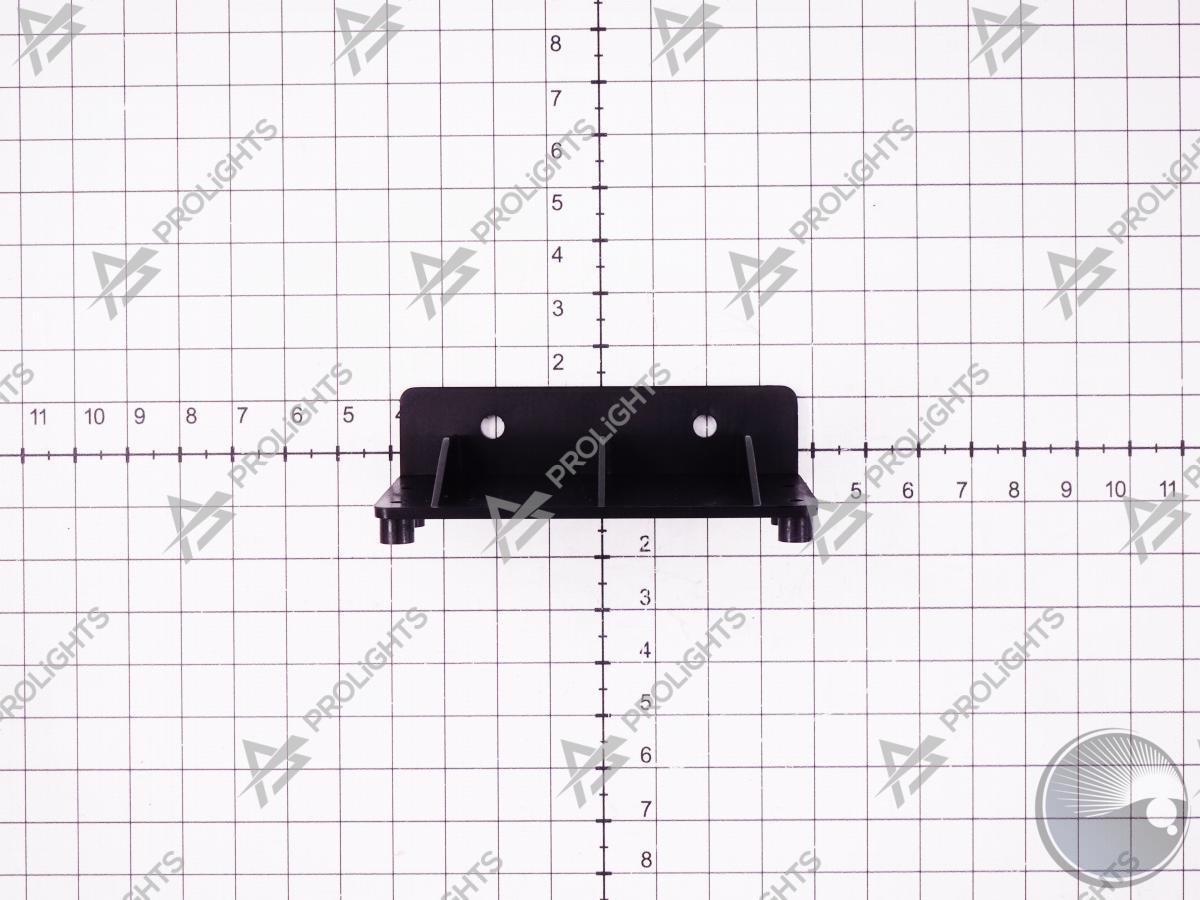

• 2 x side floor brackets
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• User Manual
