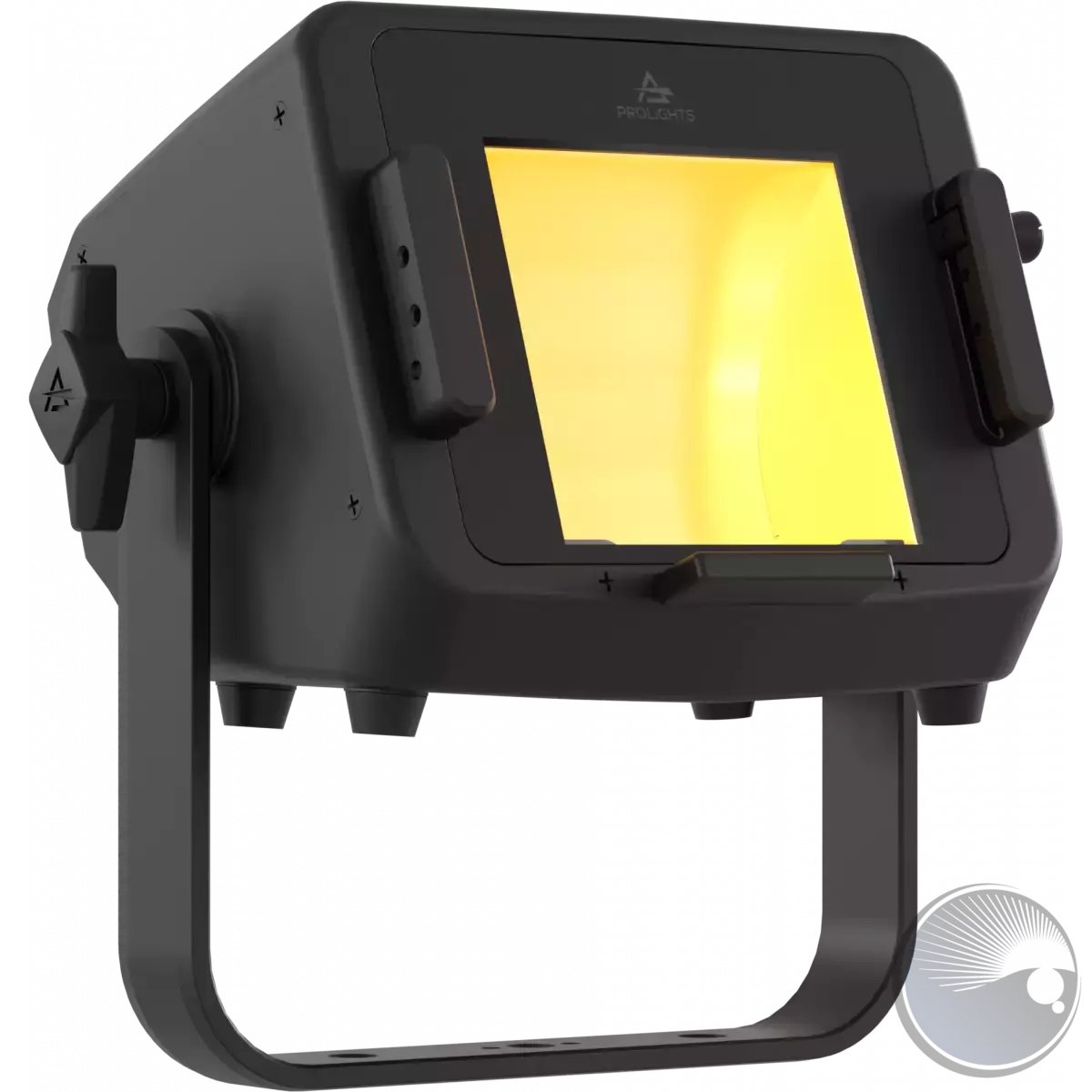

PL EclExpo Flood150FC, 150W RGB+warmweiß, 100° x 60°, schwarz

The EclExpo Flood150 is a compact, bright, and versatile floodlight that is designed to be a substitute for traditional CDM, HMI, and tungsten small floods in tradeshows, theaters, or as a work light. Just like its classic predecessors, but with a custom LED source, this unit features a linear light source combined with a reflector, which ensures a wide coverage of 100° (Horizontal) x 60° (Vertical) of indirect light emission.The EclExpo Flood150 is available in two source variants: - FC, which utilizes RGB+WarmWhite calibrated LED with high Color Rendering.- VW, which uses a bi-color Vari White LED source with a CCT range of 2,700K-6,500K.This unit is incredibly user-friendly, offering immediate stand-alone access through the knobs or through wired DMX/RDM or Wireless CRM (optional). Timeless Elegance meets Green Innovation: The EclExpo Flood150 - Where Classic Beauty Embraces Modern Technology

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 150W RGB + Warm White LED
• Luminous flux: 5'342 @Full
• Lux: 65lx @5 m full
• CRI: preliminary 92,8 @5'600K
• R9: preliminary 94,7 @5'600K
• TLCI: preliminary 92 @5'600K
• TM30 Rf: preliminary 91,3 @5'600K
• TM30 Rg: preliminary 106 @5'600K
• Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Optics: asymmetrical beam reflector in pure aluminium 99,6%
• Beam angle: (H) 100° x (V) 60°
• Additional optics: 5° smooth filter on-board

COLOUR SYSTEM

• Colour mixing: RGB + Warm White
• CCT: CCT control, + / - green correction, tungsten emulation
• White presets: 2.800 K - 10.000K
• Colour wheel: built-in white presets

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer
• Static mode: selection of static dimmer, colors and color temperature
• Manual mode: manual adjustment of intensity, CT, colour correction from knob
• Auto mode: built-in programs with execution speed adjustment

BODY

• Body: sturdy die-cast magnesium body
• Body colour: RAL 9004
• Other: see available accessories

CONTROL

• Supported Protocols: DMX512, RDM, CRMX (optional)

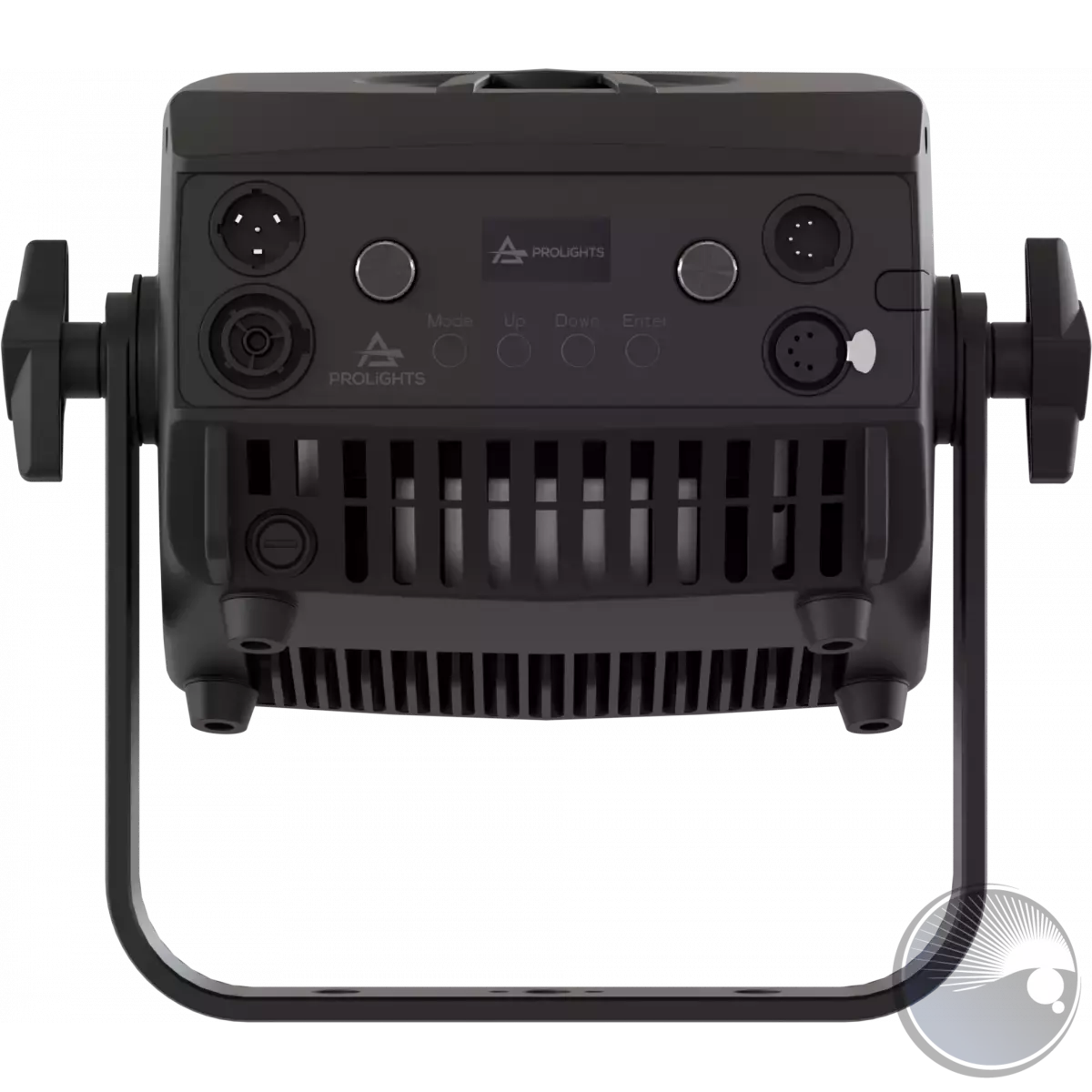

• Stand Alone: 2 rotatory knobs
• DMX channels: 1/2/5/9/10/12/18channel
• Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -10° ~ +45° Ta
• Selectable PWM: 600 ~ 40.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 175W
• Standby power: 110V (60Hz): 1,5W; 230V (50Hz): 1,9W
• Output (at 230V): 7 units on a single power line
• Power factor: > 0,94

PHYSICAL

• IP rating: IP20

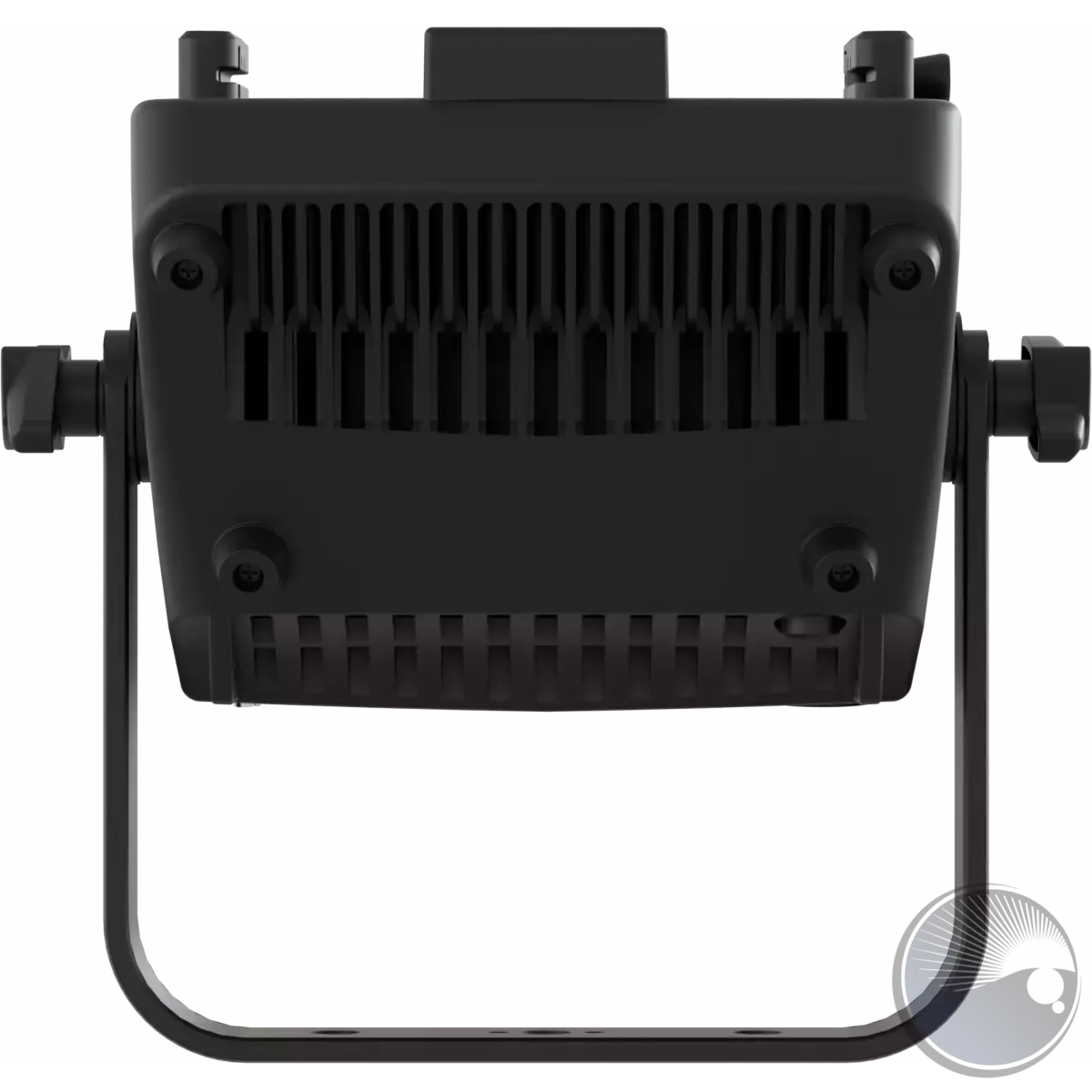

• Cooling: active, silent operation
• Suspension and fixing: bracket for hanging and positioning
• Signal connection: Amphenol XLR 5p IN/OUT connectors
• Power connection: Seetronic powerCON TRUE IP65 IN/OUT
• Dimensions (WxHxD): 283x273x176mm / 11.14''x10.75''x6.93''
• Weight: 3,2kg / 7.05lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

• 1 x ECLEXPOFL150FC
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• 1 x User Manual
