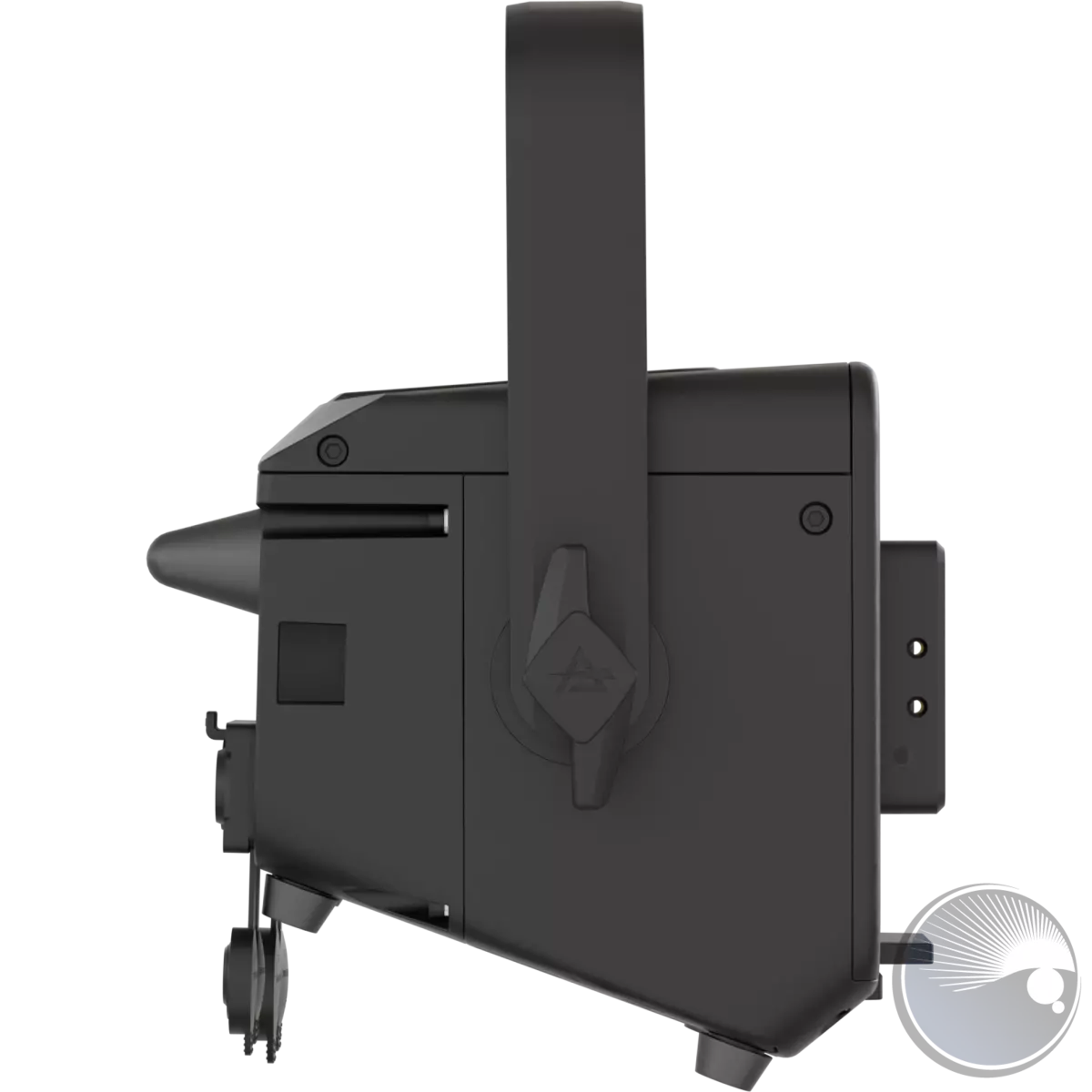

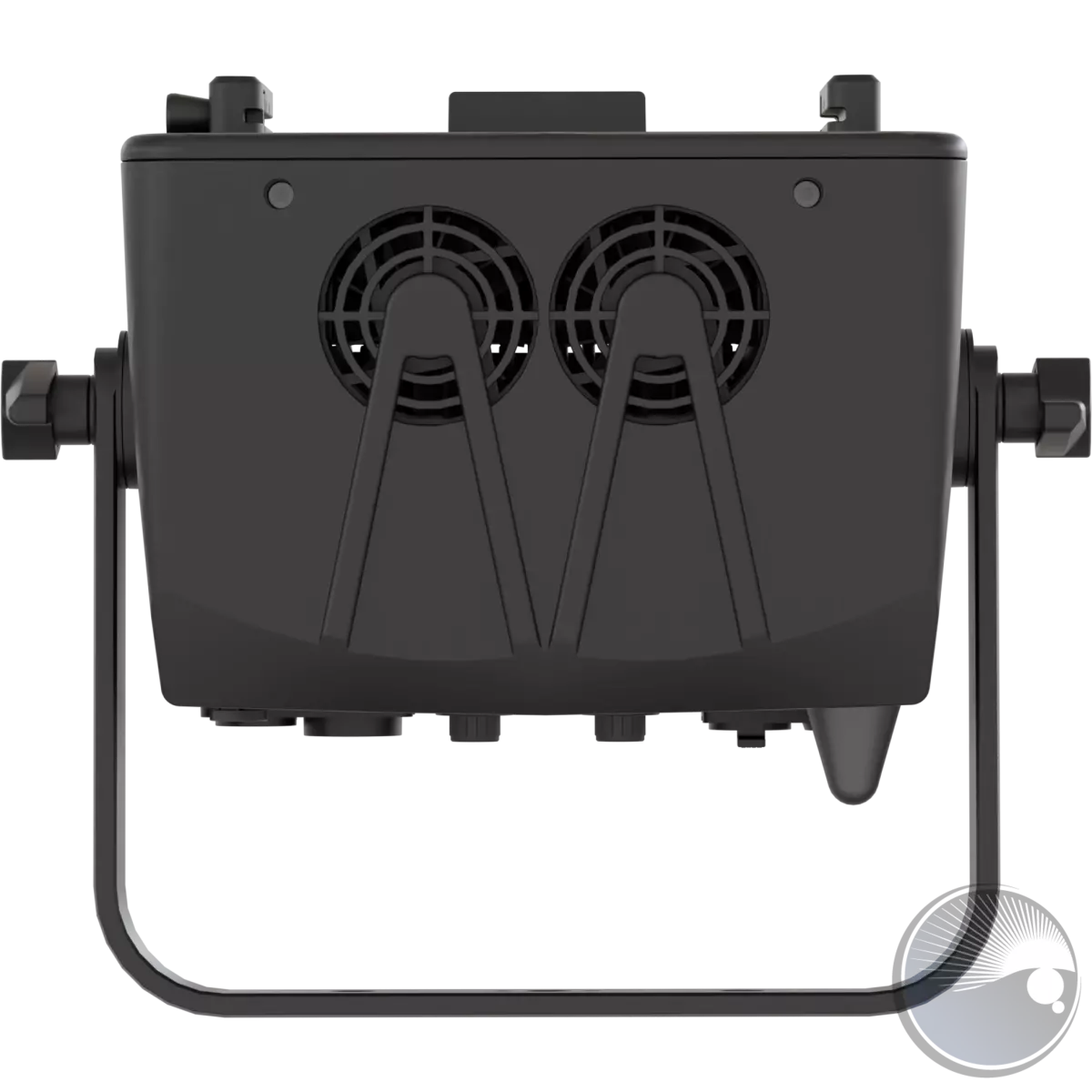

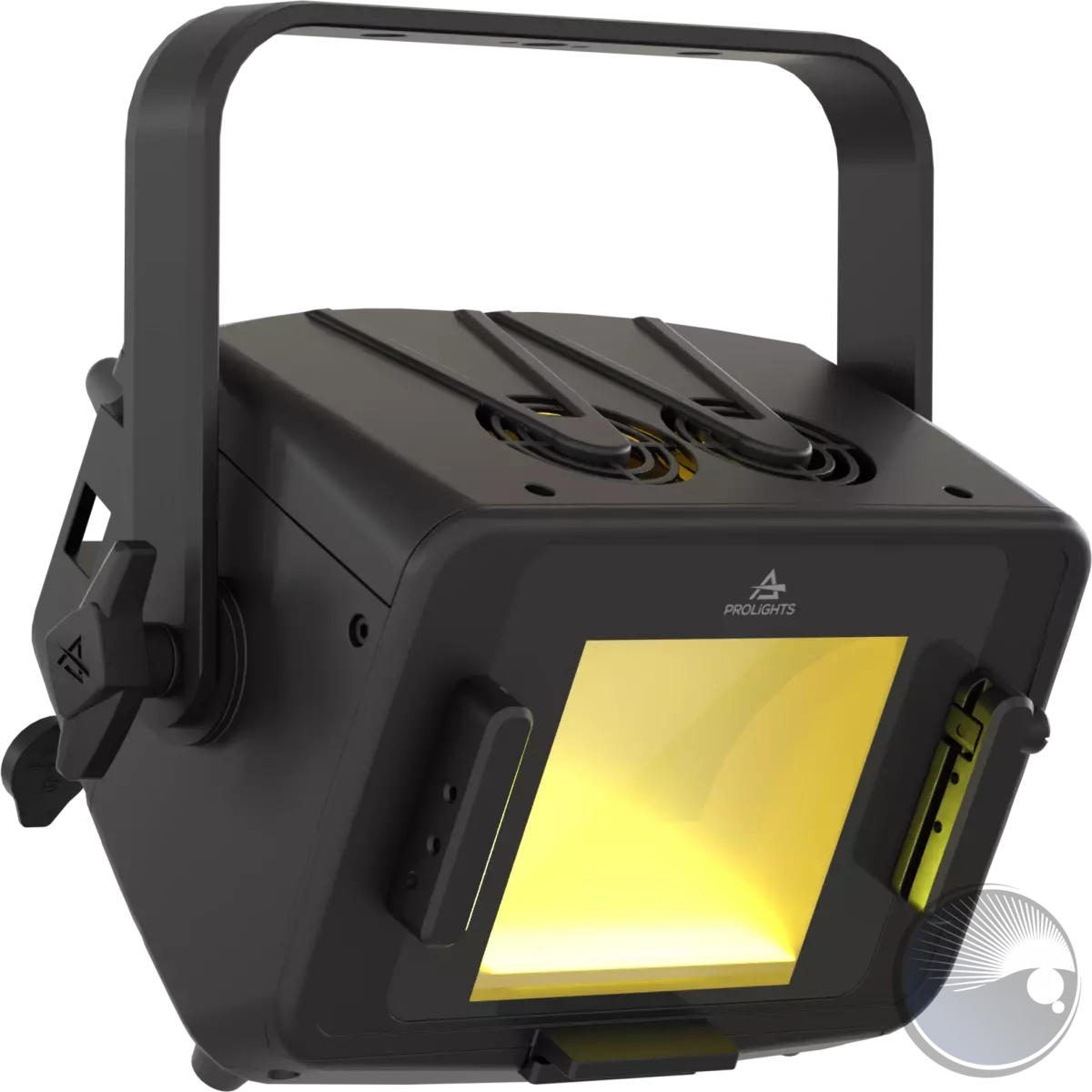

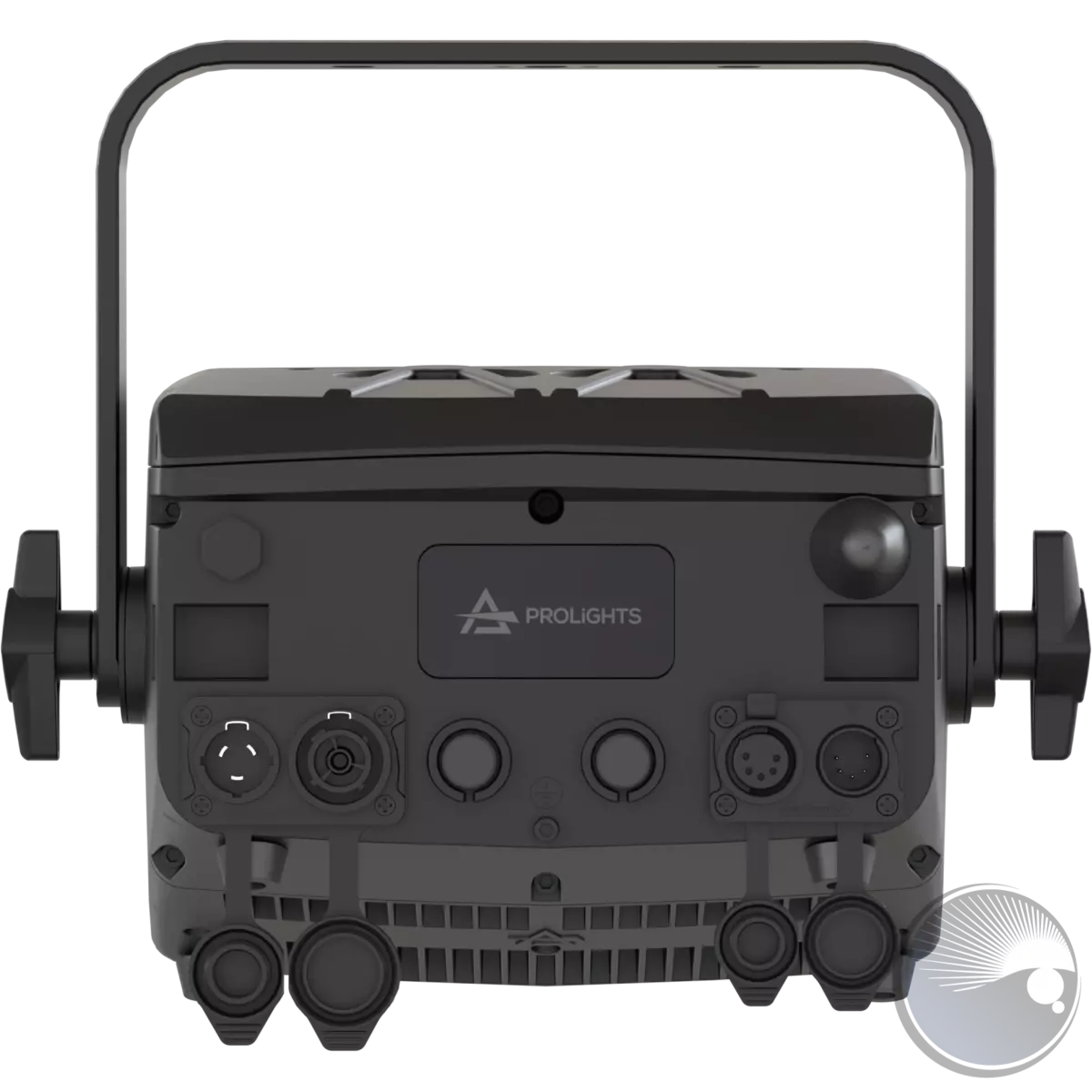

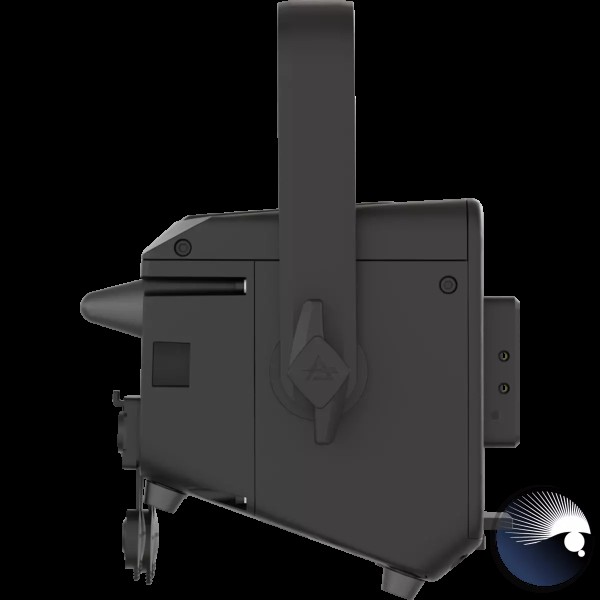

EclExpo Flood150IPFC

The EclExpo Flood150IP is an IP65 high power LED Floodlight, designed for indoor and outdoor installations, as a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric floods.Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.The EclExpo Flood150IP is available in two source variants:the EclExpo Flood150IPFC has a calibrated 150W RGB+WarmWhite LED source, ensuring high-quality white reproduction across the entire CCT with high CRI and TM30 and advanced control over colours;the EclExpo Flood150IPVW has a 150W LED source, with variable white ranging from 2,700K to 6,500K, and an outstanding lumen output with high-scoring CRI levels (>95), TM-30, R9. This unit is incredibly user-friendly, using remote control via DMX and RDM, on-board W-DMX + CRMX or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT, colours and dimmer settings.Its unique design and performance set a new standard for outdoor exhibition floodlights.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Source: 150W RGB + Warm White LED
• Luminous flux: 5'235 @3.200 K
• Luminous flux: 6'210 @5.600 K
• Lux: 69lx @5 m 3.200 K
• Lux: 83lx @5 m 5.600K
• CRI: 91,6 @5'600K
• R9: 96,9 @5'600K
• TLCI: 90 @5'600K
• TM30 Rf: 89,3 @5'600K
• TM30 Rg: 106,2 @5'600K
• Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Optics: asymmetrical beam reflector in pure aluminium 99,6%
• Beam angle: (H) 100° x (V) 60°
• Additional optics: 5° smooth filter on-board

COLOUR SYSTEM

• Colour mixing: RGB + Warm White
• CCT: CCT control, + / - green correction, tungsten emulation
• White presets: 2.800 K - 10.000K
• Colour wheel: built-in white presets

DYNAMIC EFFECTS

• Control Resolution: 16-bit dimmer
• Static mode: selection of static dimmer, colors and color temperature
• Manual mode: manual adjustment of intensity, CT, colour correction from knob
• Auto mode: built-in programs with execution speed adjustment

BODY

• Body: sturdy die-cast magnesium body
• Body colour: RAL 9004
• Other: see available accessories

CONTROL

• Supported Protocols: DMX512, RDM, CRMX
• Stand Alone: 2 rotatory knobs
• DMX channels: 1/2/5/9/10/12/18channel
• Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
• RDM: RDM for remote monitoring and settings
• Display: Graphic User Interface
• Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 4 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
• Selectable PWM: 600 ~ 40.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Max power consumption: 175W
• Standby power: 1,9 W
• Output (at 230V): 7 units on a single power line
• Power factor: > 0,94

PHYSICAL

• IP rating: IP65 for temporary outdoor application, not for fixed installations
• Cooling: active, silent operation
• Suspension and fixing: bracket for hanging and positioning
• Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
• Power connection: Seetronic powerCON TRUE IP65 IN/OUT
• Dimensions (WxHxD): 283x273x176mm / 11.14''x10.75''x6.93''
• Weight: 4,2kg / 9.26lbs

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM, FCC, cTUVus

BOX CONTENT

• 1 x ECLEXPOFL150IPFC
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• 1 x User Manual
