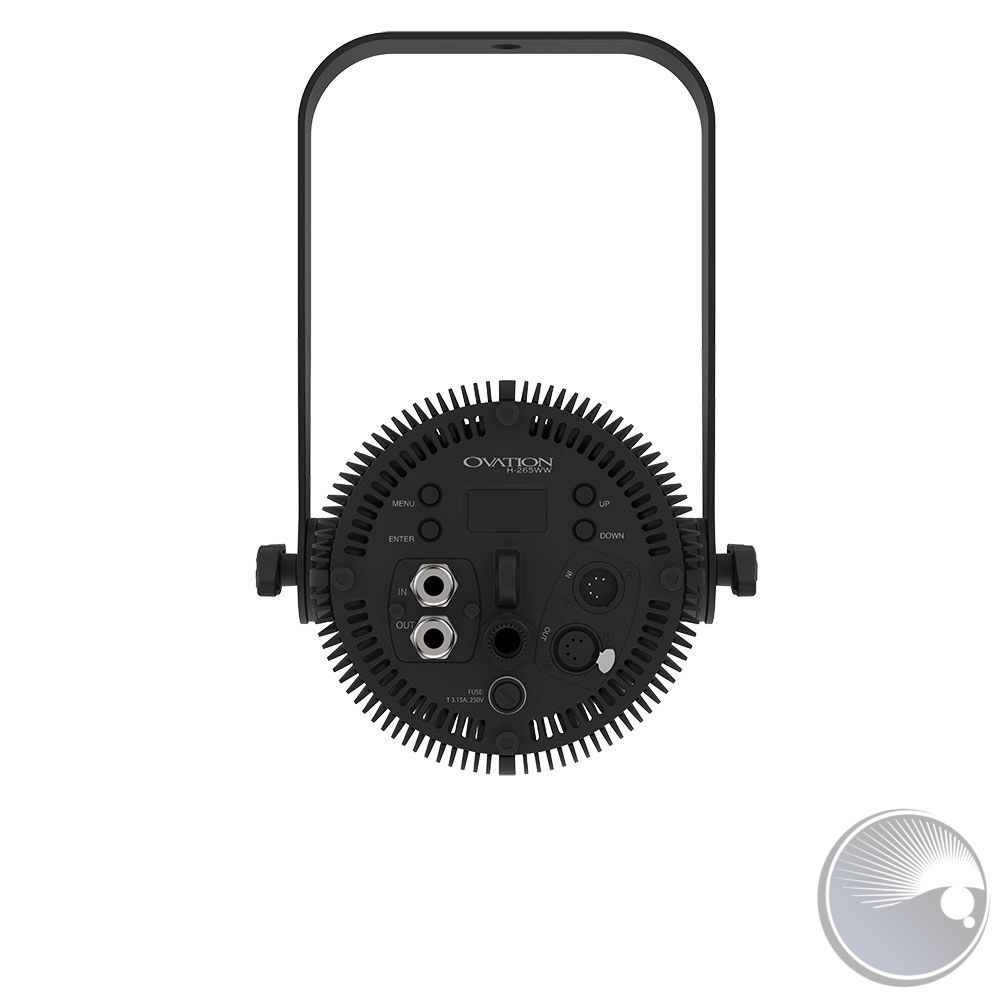

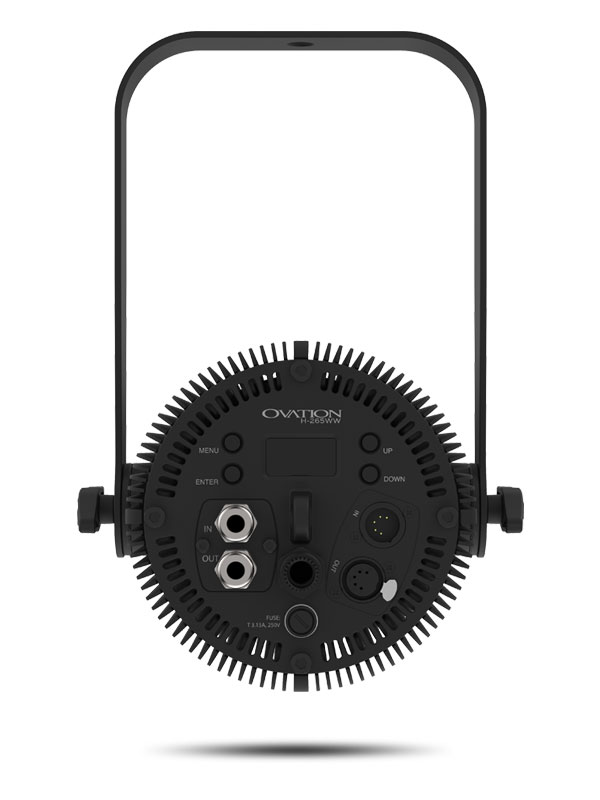

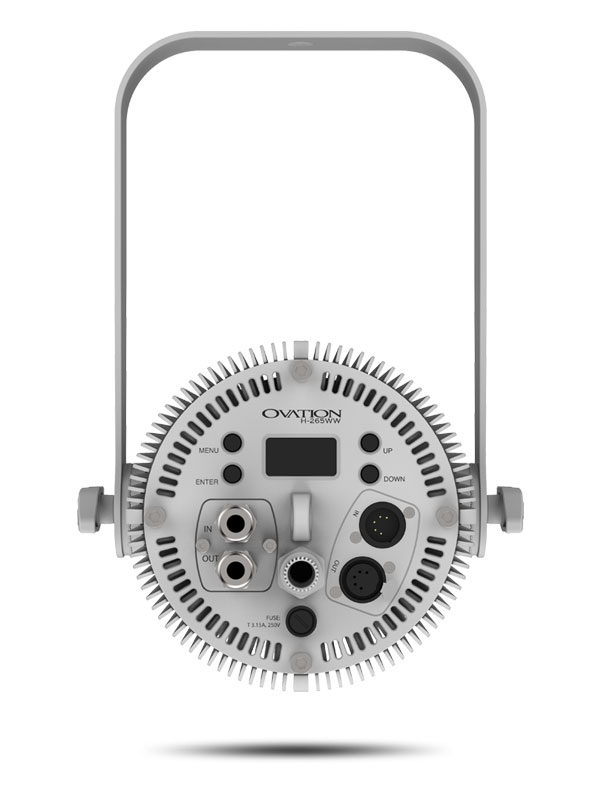

Ovation H-265WW

1.570,80 € *

inkl. MwSt. zzgl. Versandkosten

Wenn verfügbar beim Hersteller, Lieferzeit ca. 1-3 Werktage.
* Die aktuelle Lieferzeit kann gerne vorab angefragt werden. Jetzt anfragen.

  • OVATIONH265WWBLK
Ovation  H-265WW Ovation H-265WW is a silent, convection cooled LED houselight with a... mehr
Produktinformationen "Ovation H-265WW"

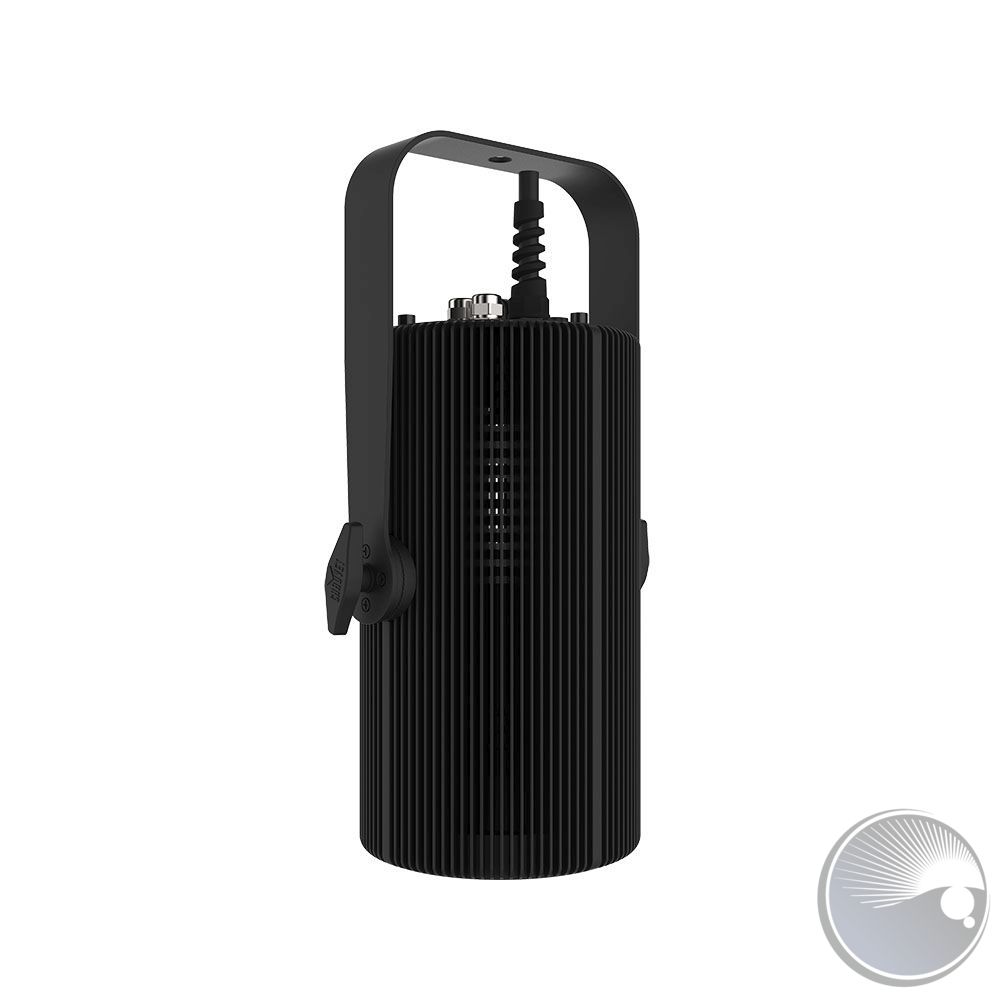

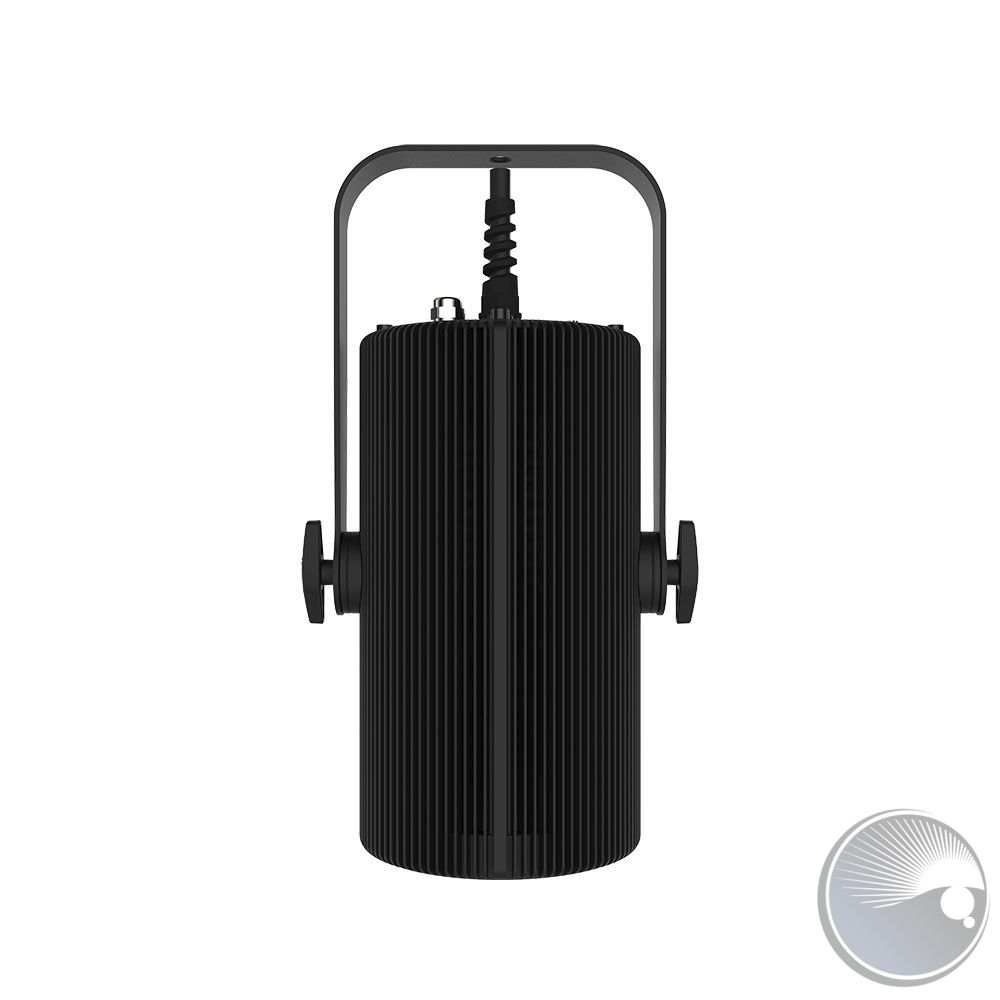

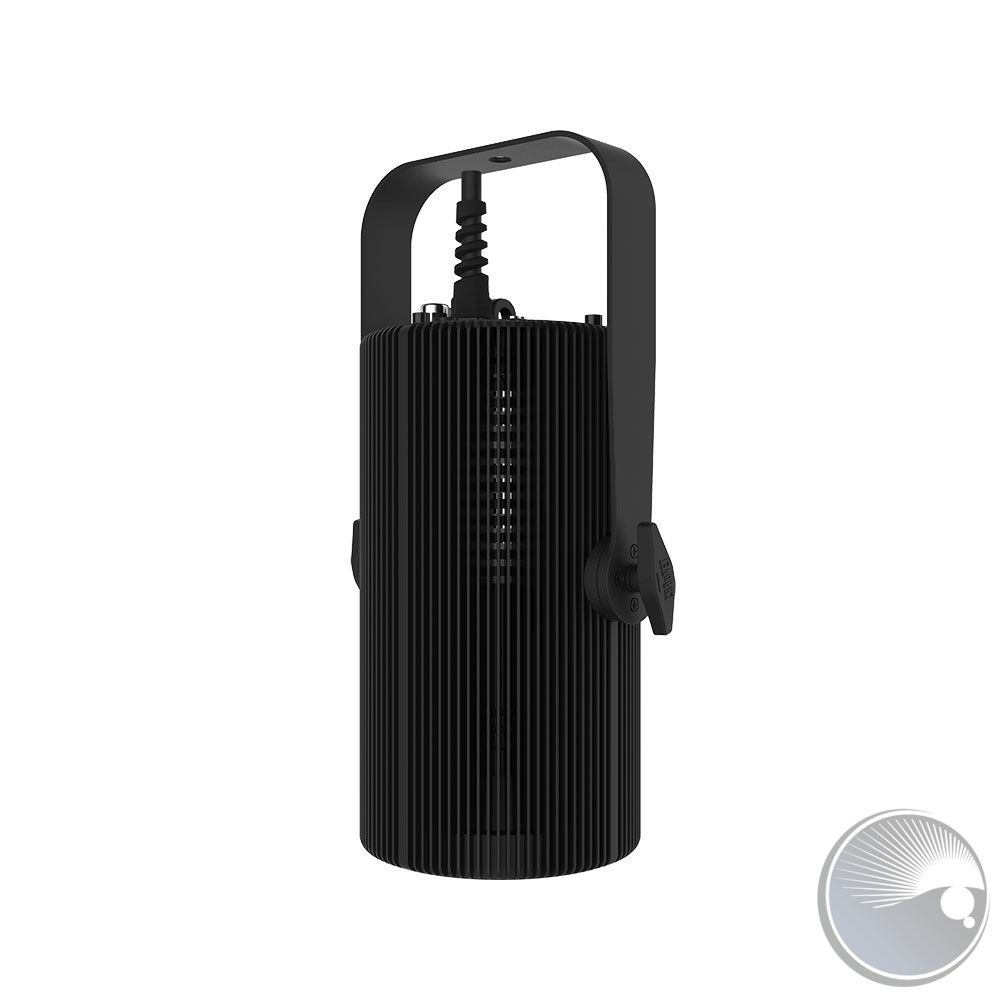

Ovation H-265WW

Ovation H-265WW is a silent, convection cooled LED houselight with a powerful warm white light output and a high CRI, ideal for theatres, worship venues and recital halls or any other application where silent operation is crucial. The unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. Interchangeable lenses for height adjustment are another indispensable feature in theatrical and house of worship applications. For even more versatility, the yoke can be completely removed, and the fixture suspended, pendant style, from a loop on the back plate. White housing not available in European Markets.

AT A GLANCE

  • High-power warm white, convection cooled houselight

  • Interchangeable lens plates to adapt to different mounting heights

  • 5-pin XLR and terminal blocks for DMX connections

  • Use included yoke for mounting, or suspend from integrated loop-eye

  • 16-bit dimming for ultra-smooth fades

  • DMX, WDMX and RDM (Remote Device Management) for added programming flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LEDs (WW) 230 W, (2.3 A), 3258 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3258 K
  • CRI: 97
  • Beam Angle (w/80° filter): 40°
  • Beam Angle (w/65°): 50°
  • Beam Angle (w/45° lens): 39°
  • Beam Angle (w/25° lens): 19°
  • Beam Angle (w/80° filter): 40°
  • Field Angle (w/80° filter): 132.9°
  • Field Angle (w/45° lens): 69°
  • Field Angle (w/25° lens): 36°
  • Lumens (w/80° filter): 7,912
  • Lumens (w/65° lens): 8,505
  • Lumens (w/45° lens): 8,885
  • Lumens (w/25° lens): 9,139
  • Illuminance (w/80° filter) : 325 lux @ 5 m
  • Illuminance (w/65°): 400 lux @ 5 m
  • Illuminance (w/45° lens): 623 lux @ 5 m
  • Illuminance (w/25° lens): 1,933 lux @ 5 m
  • Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 25 kHz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions: 13.11 x 9.44 x 13.34 in (333 x 240 x 339 mm)
  • Weight: 17.8 lb (8.1 kg)

CONNECTIONS

  • Power Connection: Bare-wired
  • Power Input: Hard-wired
  • Data Connectors: 5-pin XLR, Phoenix connector
  • Cable Length (power): 15 ft (4.5 m)

CONTROL

  • Control Protocol: DMX, W-DMX, RDM
  • DMX Channels: 1, 2, 3 or 6
  • Modes/Personalities: 4 personalities (1CH, 2CH, 3CH, 6CH)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 147 W, 1.21 A @ 120 V, 60 Hz
  • Power and Current: 147 W, .694 A @ 208 V, 60 Hz
  • Power and Current: 149 W, .641 A @ 230 V, 50 Hz
  • Breaker Size: T3.15 A, 250 V

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • Ovation H-265WW
  • 65°, 45° and 25° Lenses
  • 80° Filter
  • Egg Crate

OPTIONAL ACCESSORIES

ORDERING INFO

  • Item Code: 03031466
Weiterführende Links zu "Ovation H-265WW"

5-PIN DMX XLR SOCKET PCB (BOM#19)PTJ20100337005-PIN DMX XLR SOCKET PCB (BOM#19)
PTJ20147107THERMAL SWITCHES (BOM#6)
Display PCBPTJ2020201329Display PCB

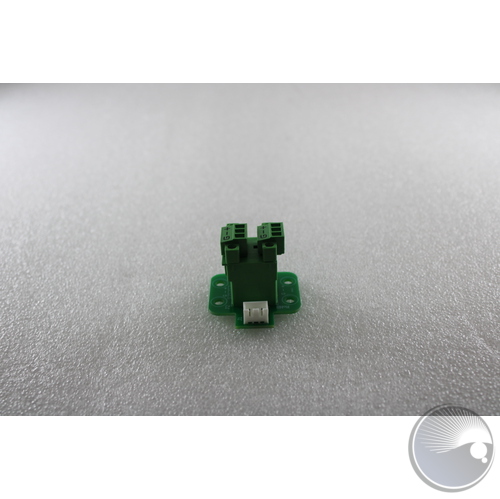

PTJ2020202050DMX XLR SOCKET (BOM#17)
TOUCHING BOARD (BOM#14)PTJ2020202100TOUCHING BOARD (BOM#14)

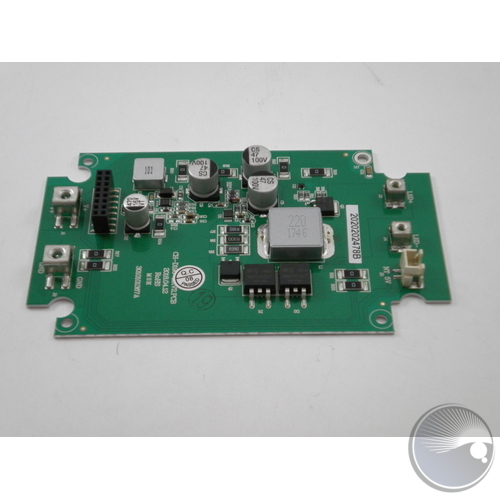

DRIVER PCB (BOM#9)PTJ2020202478BDRIVER PCB (BOM#9)

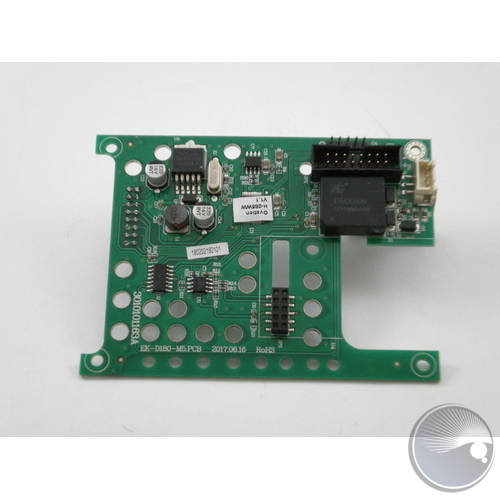

MASTER PCB (BOM#11)PTJ2020202524MASTER PCB (BOM#11)
LED (BOM#12)PTJ3010500241LED (BOM#12)
PTJ3019001043BUTTON COVER (BOM#12)
Allen Screw M6x12 (BOM#09)PTJ3020016009Allen Screw M6x12 (BOM#09)
25 DEGREE LENSPTJ302010036825 DEGREE LENS
FRESNEL LENS (BOM#30)PTJ3020100370FRESNEL LENS (BOM#30)

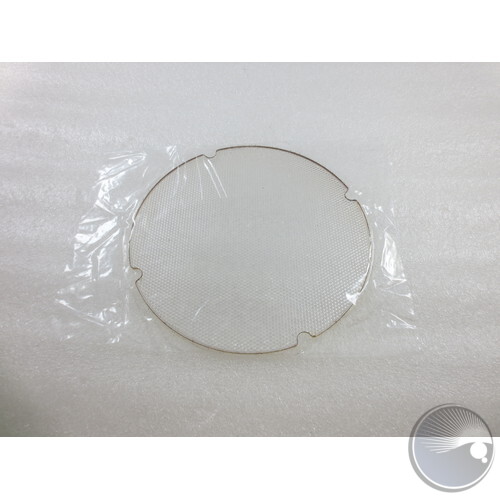

45 degree FRESNEL LENS PTJ3020100371C45 degree FRESNEL LENS
PTJ3020200064DISPLAY CLEAR LENS (BOM#13)
PTJ3020200294AFRONT GLASS (BOM#31)
80 DEGREE FILTERPTJ302030038380 DEGREE FILTER

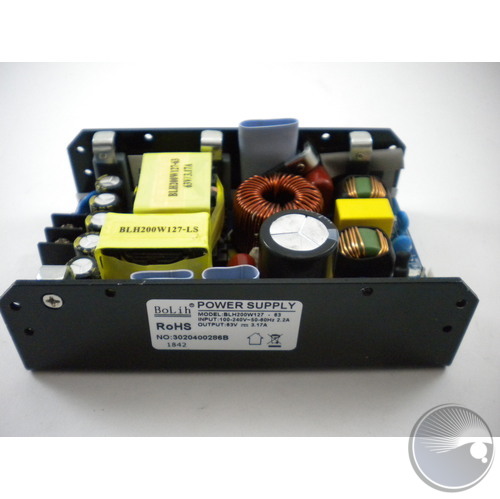

POWER SUPPLY (BOM#12)PTJ3020400286BPOWER SUPPLY (BOM#12)
RING (BOM#32)PTJ3021700452RING (BOM#32)
PTJ3021701044FOAM (BOM#36)
DMX CONNECTOR (BOM#3)PTJ3022000006DMX CONNECTOR (BOM#3)
PTJ3022000011POWER CORD CONNECTOR (BOM#2)
Panel mount fuse holder (BOM#29)PTJ3027001001Panel mount fuse holder (BOM#29)
PTJ3030100042ASTANDOFF (BOM#10)
POWER CABLE (BOM#1)PTJ3040700444POWER CABLE (BOM#1)
PTJ3050601334SPECIFICATIONS (BOM#34)

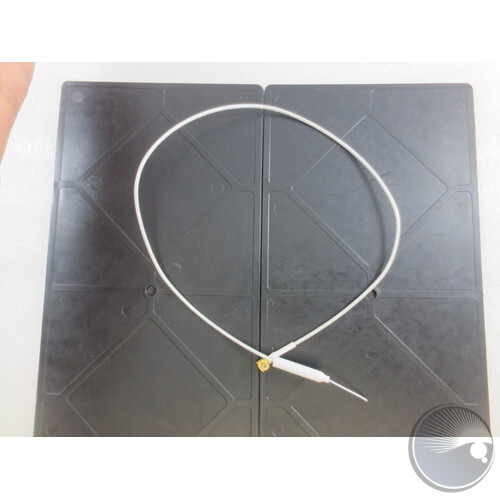

2.4G OMNI ANTERNNA (BOM#25)PTJ3080100124A2.4G OMNI ANTERNNA (BOM#25)
PTJ4010103300HEAT SINK (BOM#8)
PTJ4010103301CPOWER HEAT PLATE (BOM#7)
PTJ4010104005BREFLECT CUP (BOM#28)
HANGING BRACKET KNOB (BOM#39)PTJ4010302560HANGING BRACKET KNOB (BOM#39)
PTJ4010303407CTOP COVER (BOM#32)
PTJ4010303410TOOTH LOCK PLATE (BOM#21)
PARTS FOR HANGING BRACKET (BOM#18)PTJ4010303411PARTS FOR HANGING BRACKET (BOM#18)
SPOT BRACKET (BOM#24)PTJ4010303412SPOT BRACKET (BOM#24)
PTJ4010304178BHEAT SINK ASSEMBLY (BOM#20)
CONNECTOR COVER (BOM#4)PTJ4010401845CONNECTOR COVER (BOM#4)
PTJ4010402101REAR (BOM#6)
PTJ4020200399ABLOCK MASK (BOM#27)
PTJ4020200402EGG CRATE
