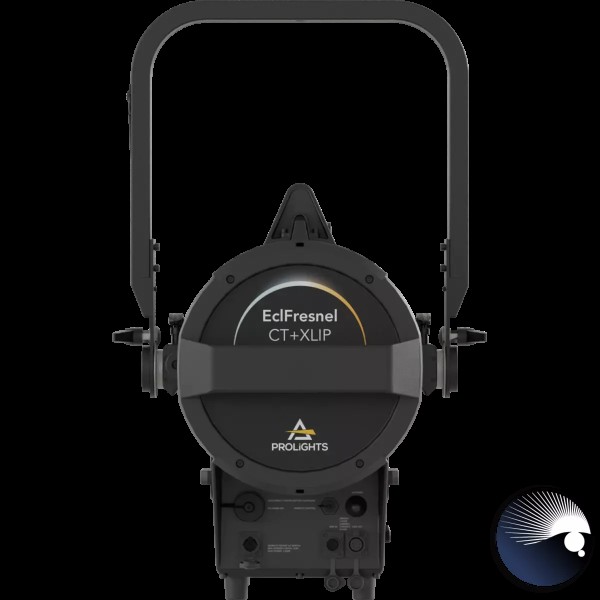

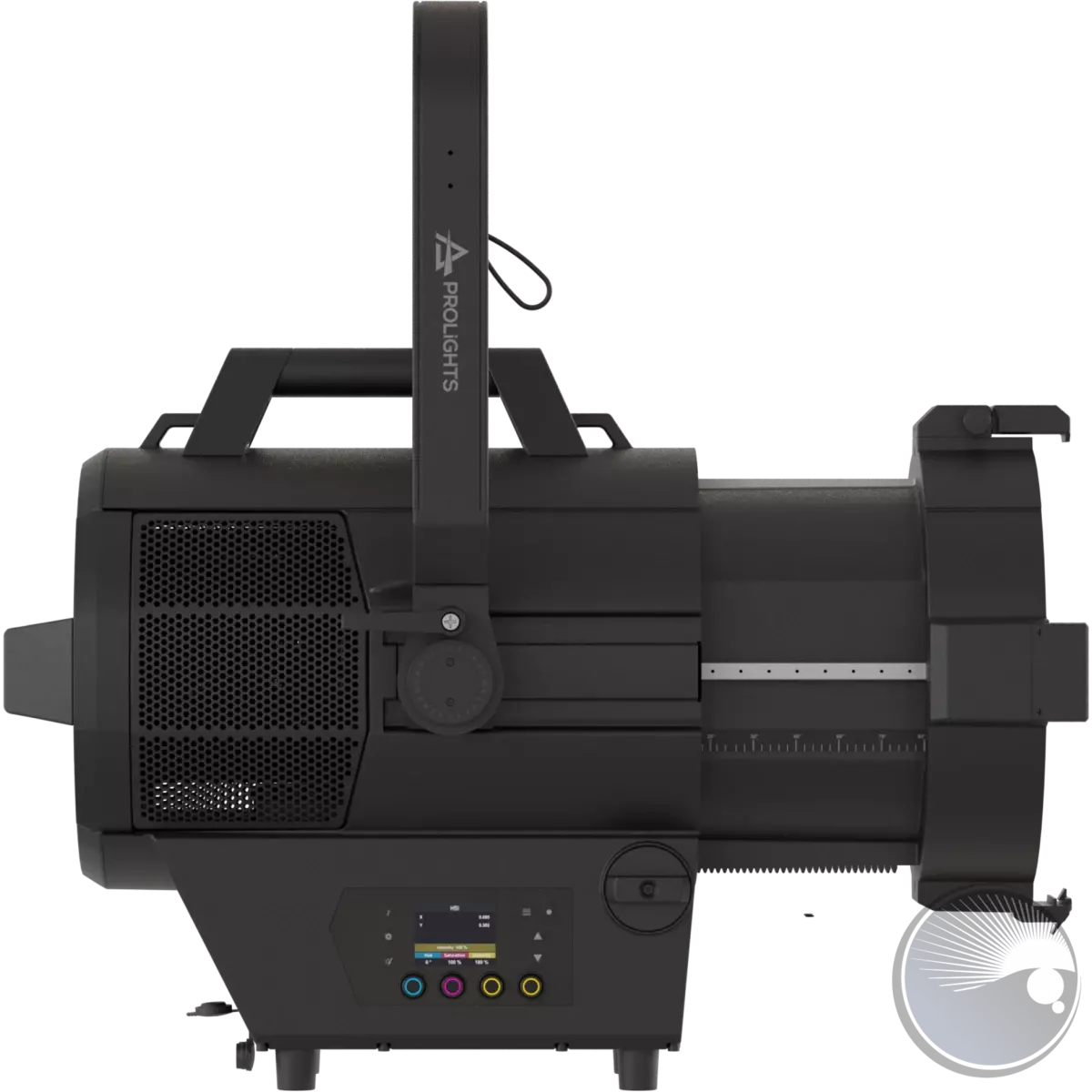

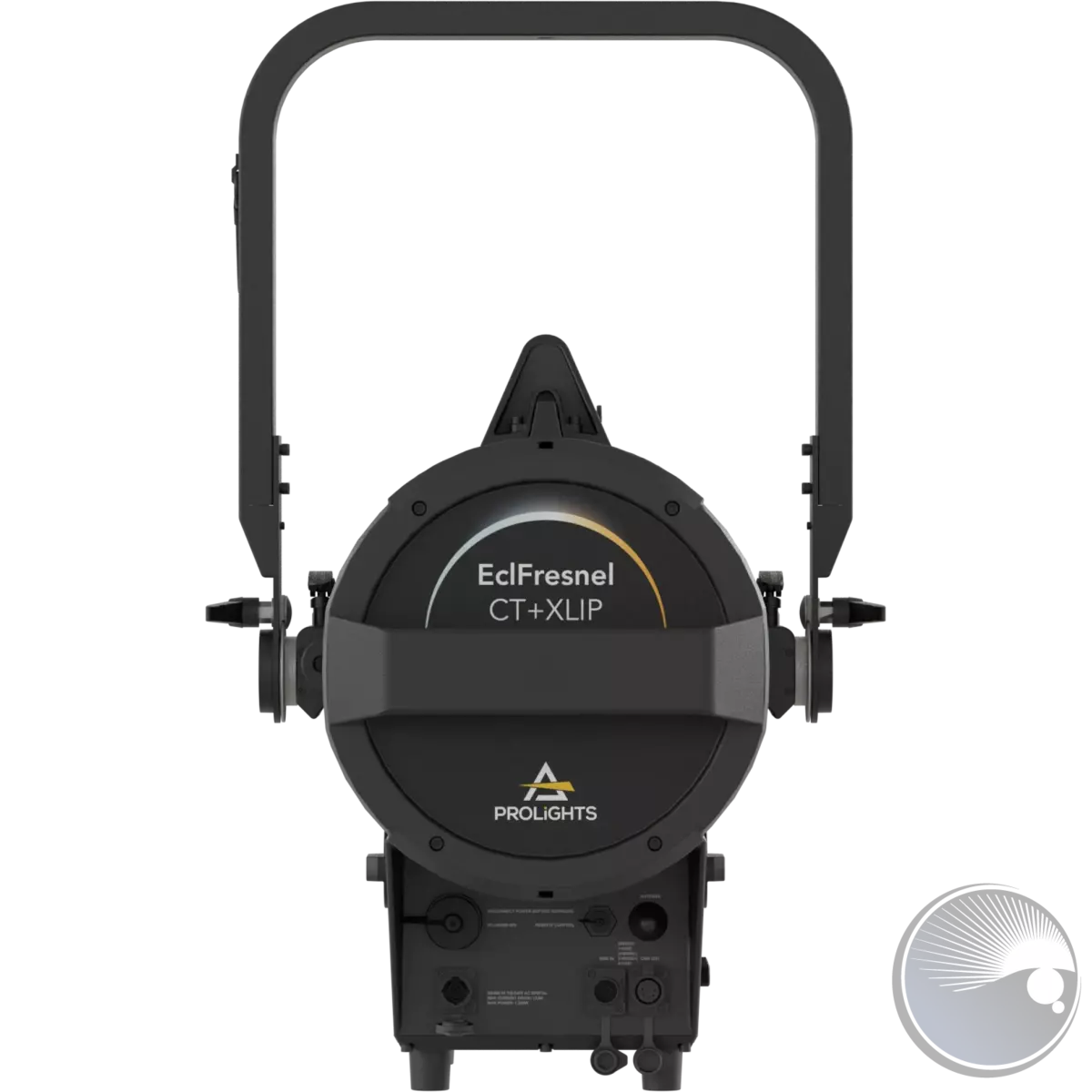

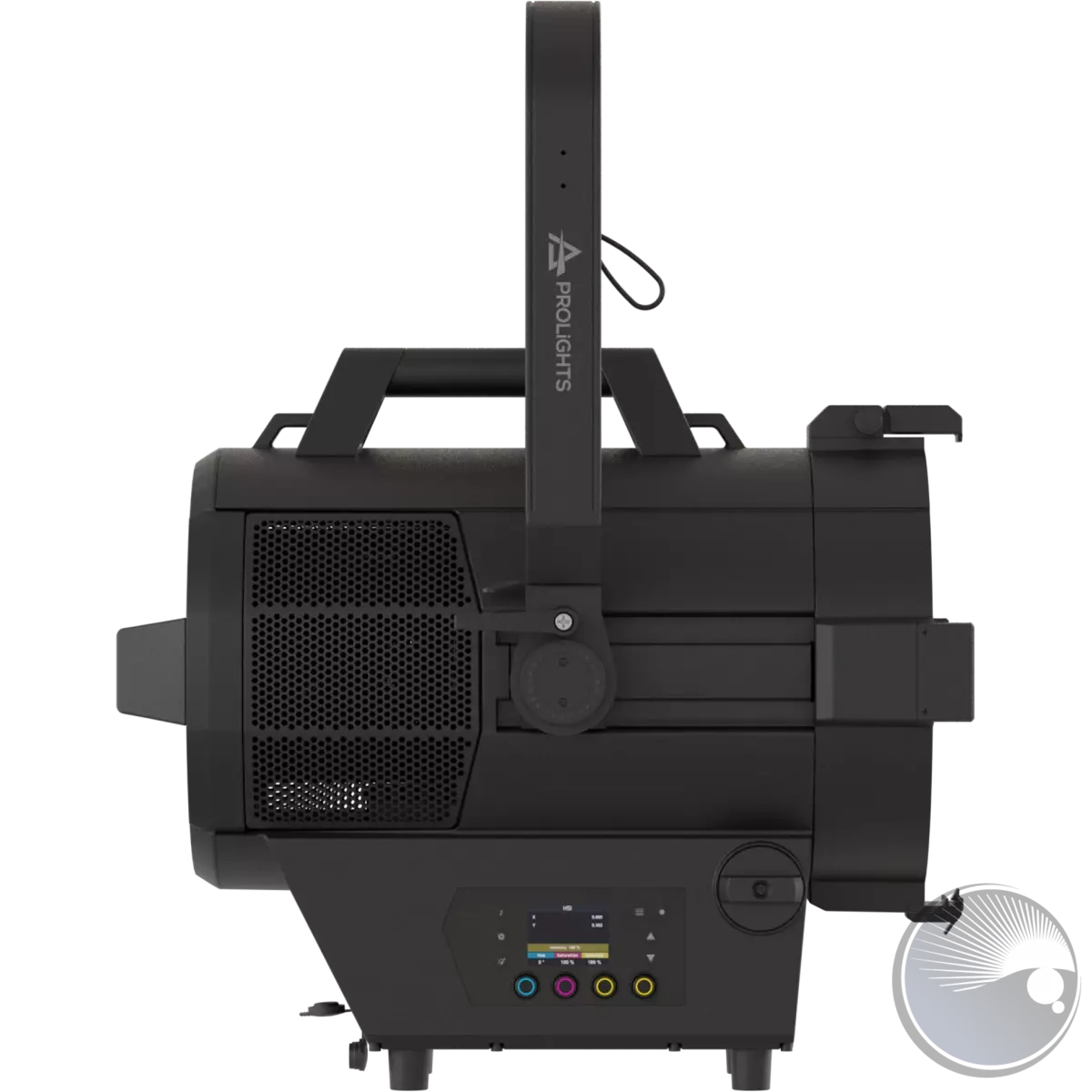

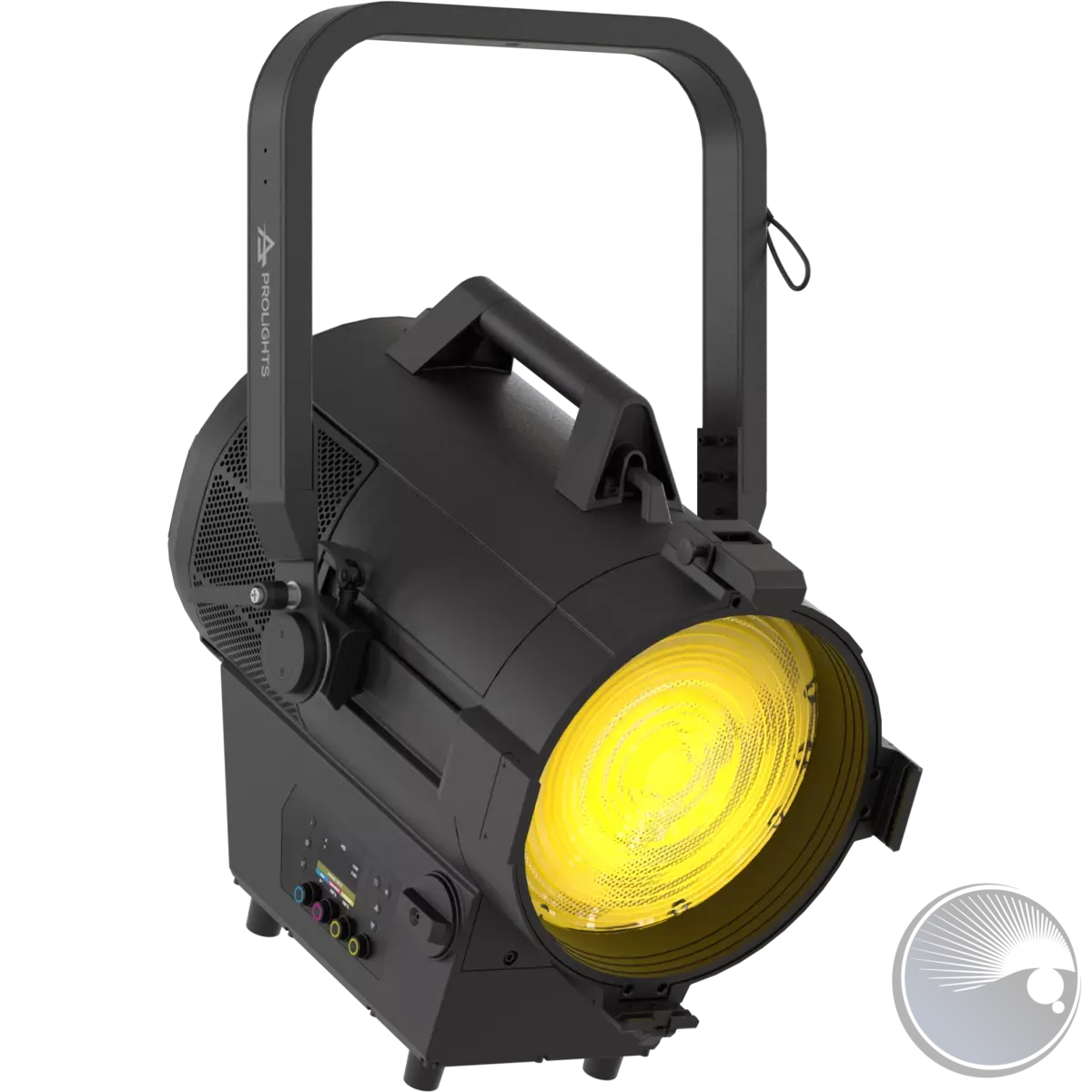

EclFresnel CT+ XLIP

The EclFresnel CT+ XLIP stands out as a bright IP65-rated Fresnel hard source, crafted to replace traditional 5K Tungsten and 2.5K HMI lighting in film sets and large-scale indoor and outdoor setups. At the heart of this fixture is a robust 1500W (driven @1200 W) LED source, featuring 6 color emitters.Its design with integrated power supply simplifies installation and wiring for both on-location use and permanent installations.EclFresnel CT+ XLIP boasts a 300mm (12 inches) glass Fresnel lens, offering an impressive zoom range from 10° to 90° and 44.000 fixture lumens. This design maintains high efficiency even at narrow beam angles, ensuring a bright output at long throw projection.For jobs that demand maximum punch, the fixture also accepts optional 30° and 60° open‑face reflector lenses, boosting luminous flux while preserving homogeneous colour mixingPowered by Spektra Os, this luminaire guarantees light consistency, delivering a higher luminous flux across colors and whites. This results in a broader color space and a richer light spectrum, achieving exceptional values in CRI, TLCI, SSI, and TM30 indices, meeting the highest professional lighting requirements.Enhanced with a more powerful processing unit, the EclFresnel CT+ range offers an unparalleled user experience. It provides refined control over light and color, complemented by more intuitive standalone operations. This is achieved through a larger display, backlit encoders, and advanced connectivity options, both wired and wireless.EclFresnel CT+ also operates silently, making it an essential, durable workhorse for large film sets, theaters, and studio applications.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

• Light source: Proprietary source manufactured by PROLIGHTS
• Source: 1'500W 6 colour LEDs source (driven @1'200W)
• Luminous flux: (10°) 22'322 lm - (90°) 43'642 lm @4.000 K
• Lux: (10°) 18'113 lx - (90°) 1'485lx @5m 4.000 K
• CRI: 95 @3.200K; 98 @5.600K
• R9: 98 @3.200K; 97 @5.600K
• TLCI: 95 @3.200K; 98 @5.600K
• TM30 Rf: >93 @3.200K; >93 @5.600K
• TM30 Rg: <103 @3.200K; <103 @5.600K
• Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

• Zoom range: 10° - 90° manual
• Lens diameter: 12'' / 300mm / 0.47''
• Lens type: Fresnel glass lens with AR coating
• Lens effect: Glass Fresnel lens providing a classic light fall-off
• Other: spigot, barndoor and gel frame included

COLOUR SYSTEM

• Colour control: XY, CCT, Gel with Source Emulation, Tungsten emulation, HSI, User preset
• Colour mixing: 6 colour LEDs source
• CCT: Linear CCT adjustment from 1.850 K-20.000K

BODY

• Bracket system: Sliding bracket for adjustable weight balance and handle on the top of the body for easy transportation
• Hardware on-board: filter frame, 8 doors barndoor, spigot
• Body: Weatherproof IP65 construction with die-cast magnesium alloy
• Body colour: RAL 9004
• Other: Handle on the top, double safety system on the front for the accessories, strengthened zoom movement system for enhanced durability and stability

CONTROL

• Supported Protocols: DMX512, RDM, CRMX
• Stand Alone: 4 pushable RGB backlit encoder
• Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and W-DMX, Bluetooth capable
• RDM: RDM for remote monitoring and settings
• Display: 2.8'' Color display
• Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)
• Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

• Dimmer: linear 0 ~ 100% electronic dimmer
• Dimmer curves: 6 selectable dimming modes available
• Strobe / shutter: 1 - 30 Hz, electronic
• Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
• LED Control: flicker free frequency with adjustable PWM
• Selectable PWM: 1282 ~ 40.000 Hz

ELECTRICAL

• Mains power supply: 100-240V - 50/60Hz
• Low Voltage DC mains: 48V (WEIPU SY25 4P connector)
• Max power consumption: 1260W
• Standby power: 7,5 W
• Power factor: > 0,97

PHYSICAL

• IP rating: IP65 for temporary outdoor use (*)
• Cooling: combination of heat pipe cooling system and low noise fan
• Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
• Data connection: IP65 WEIPU SF12 4P-F
• Power connection: Seetronic powerCON TRUE IP65 IN
• Low Voltage DC connector: 48V WEIPU SY25 4P connector
• Dimensions (WxHxD): 485x676x583mm / 19.09''x26.61''x22.95''
• Weight: 27,7kg / 61.07lbs

(*)

• NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

CERTIFICATIONS / APPROVALS

• Certifications / Approvals: CE, RCM, FCC, cTUVus

BOX CONTENT

• 1 x ECLFRCTPXLIPBK
• 1 x ECLFRSPG
• 1 x ECLFRCTPXLFF
• 1 x ECLFRCTPXLBD
• 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
• 1 x User Manual
